ADCaster C2

Podcasting/Recording/Streaming Multi-functional Audio Interface

Watch Video Buy Now
ADCaster C2 ADCaster C2

ADCaster C2

Overview Specifications Download

ADCaster C2

Podcasting/Recording/Streaming Multi-functional Audio Interface

48kHz/24bit Record, Broadcasting-level Sound Quality

ADCaster C2 comes with 48kHz/24bit high sampling rate and bit depth, excellent dynamic range, and broadcasting-level high-fidelity sound quality. It gives clear and detailed treble processing and deep bass processing, bringing back original audio and providing richer listening experience.

48kHz/24bit Record, Broadcasting-level Sound Quality

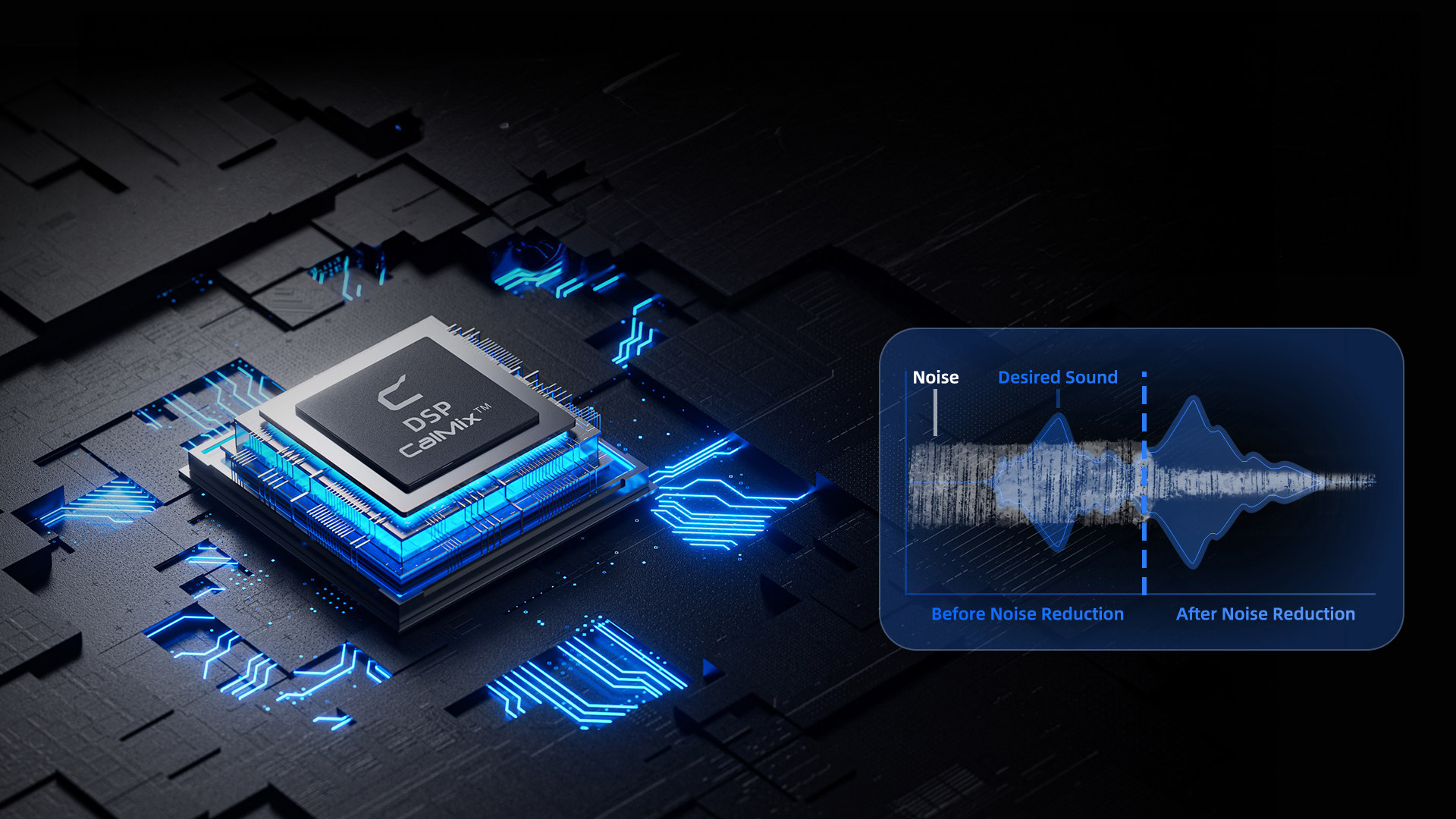

Revolutionary CalMixTM Denoise Algorithm, Two-stage Denoise Mode

The C2 adopts the CalMixTM audio processing algorithm, which is independently developed by COMICA based on DSP operation. It offers the best denoise effect by identifying and filtering the environmental noise in real time. Two-stage denoise allows you to adjust the denoise effect according to your needs.

Revolutionary CalMixTM Denoise Algorithm, Two-stage Denoise Mode

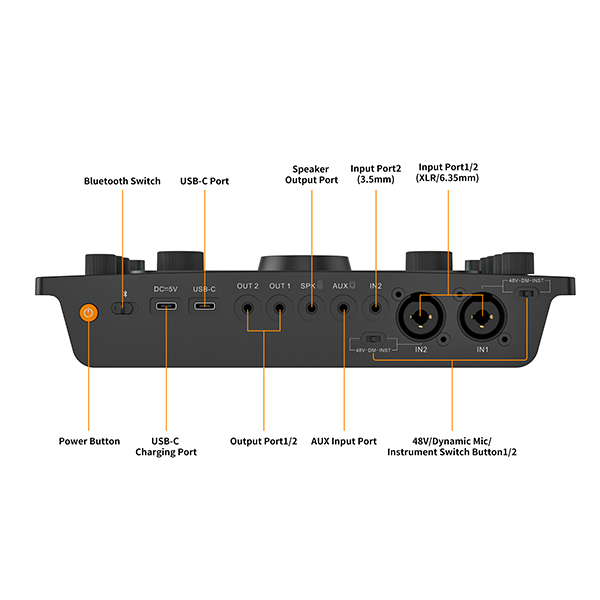

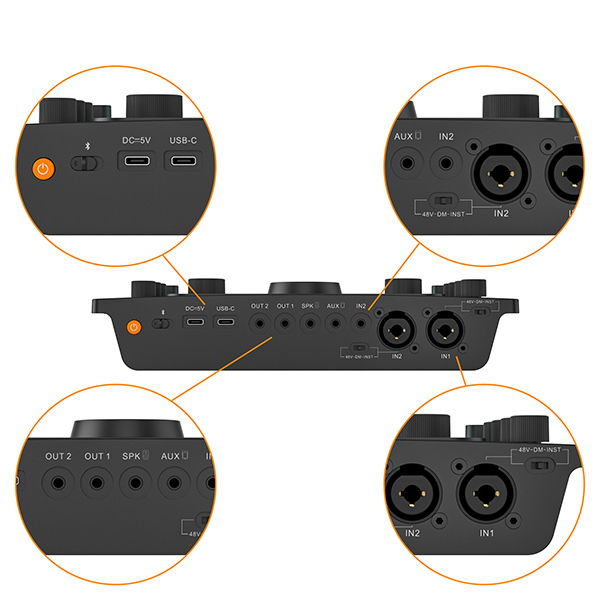

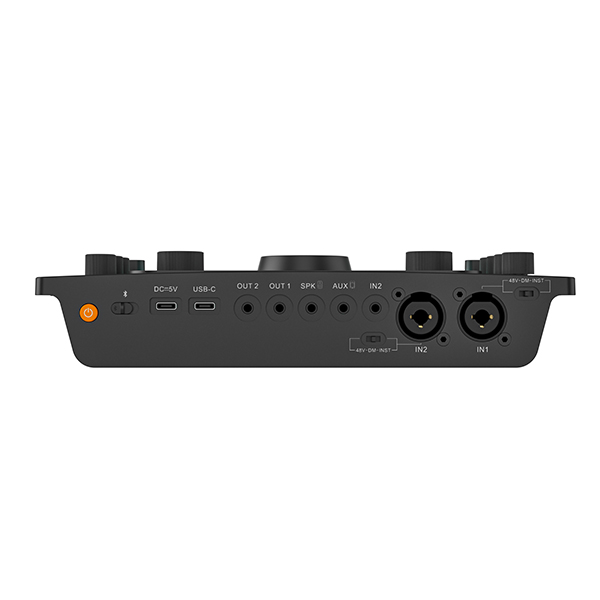

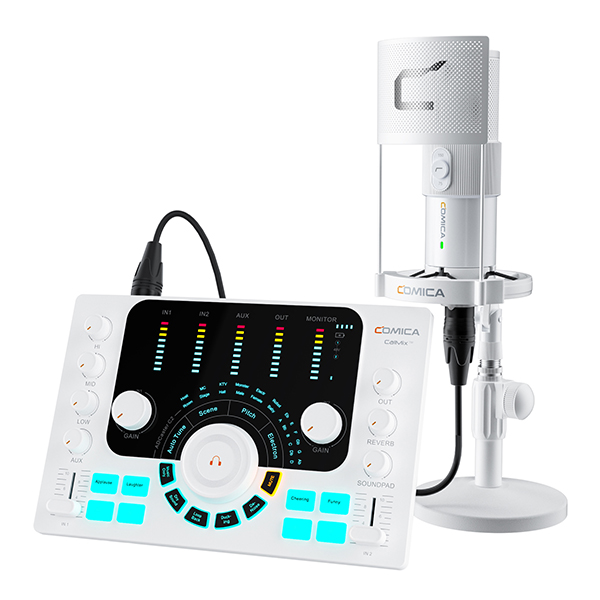

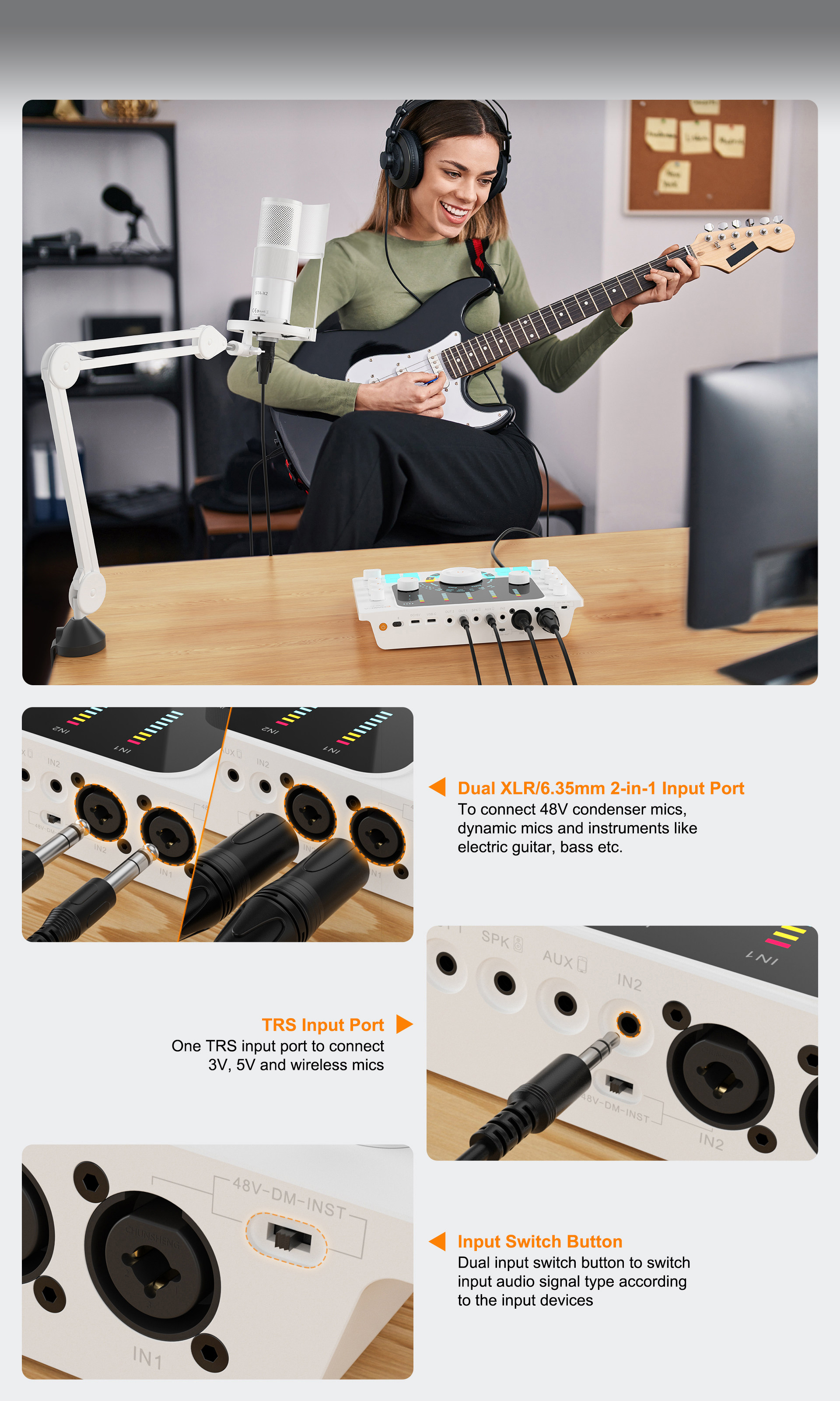

Integrated XLR/6.35mm/3.5mm Interface, Support 48V Mics and Instruments Input

Integrated XLR/6.35mm/3.5mm Interface, Support 48V Mics and Instruments Input

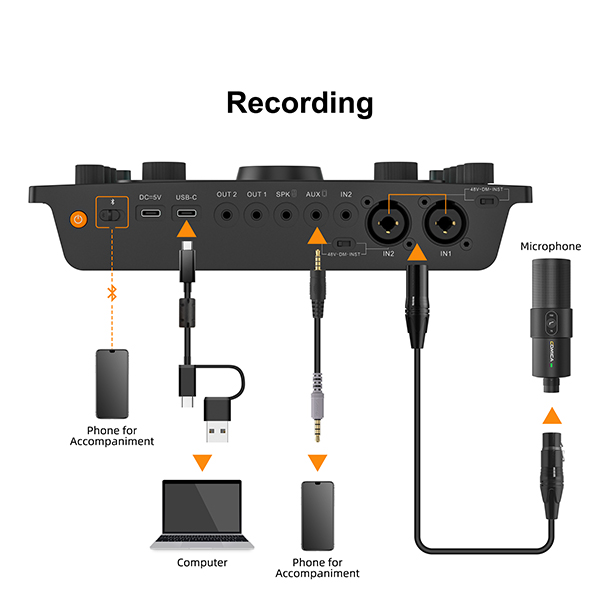

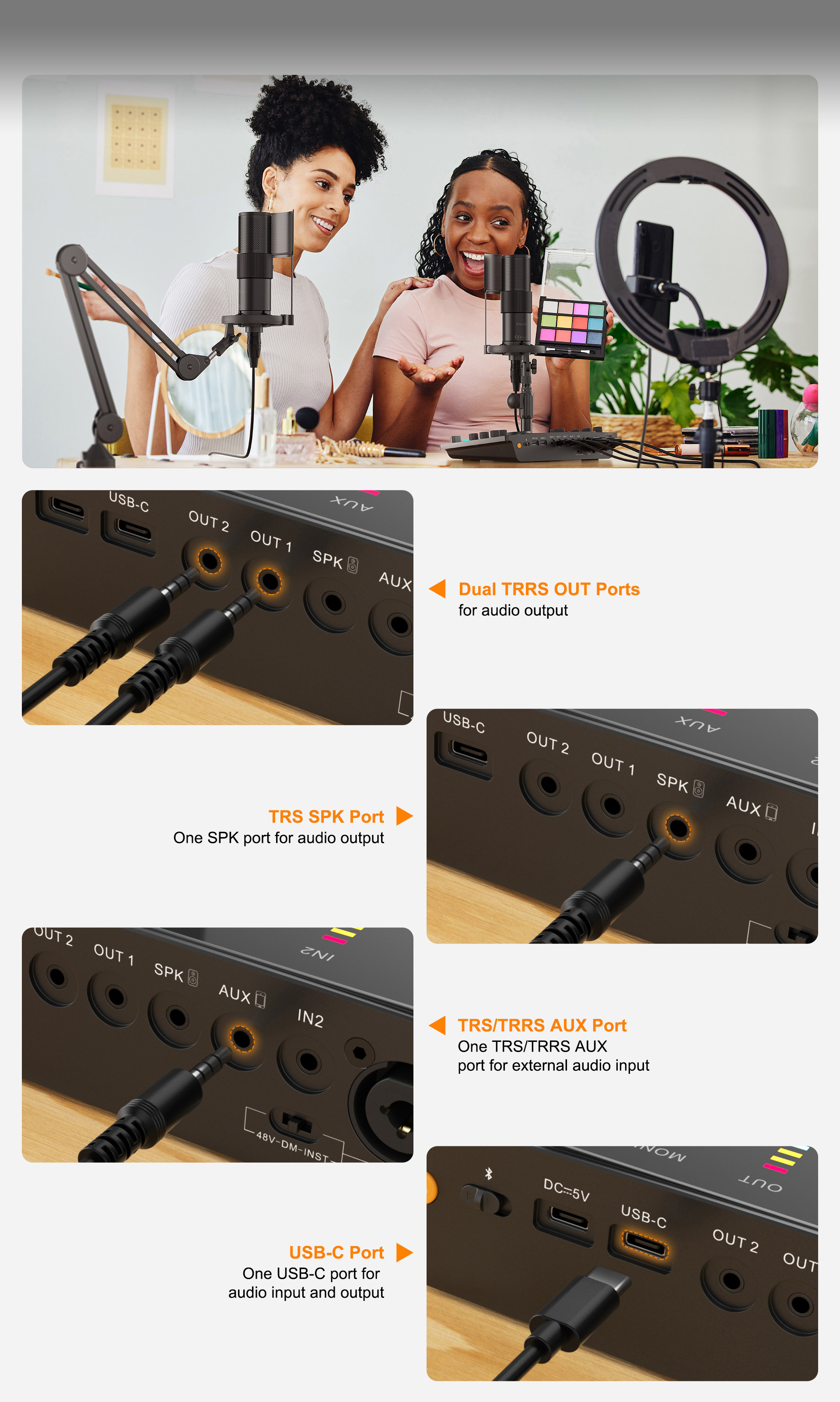

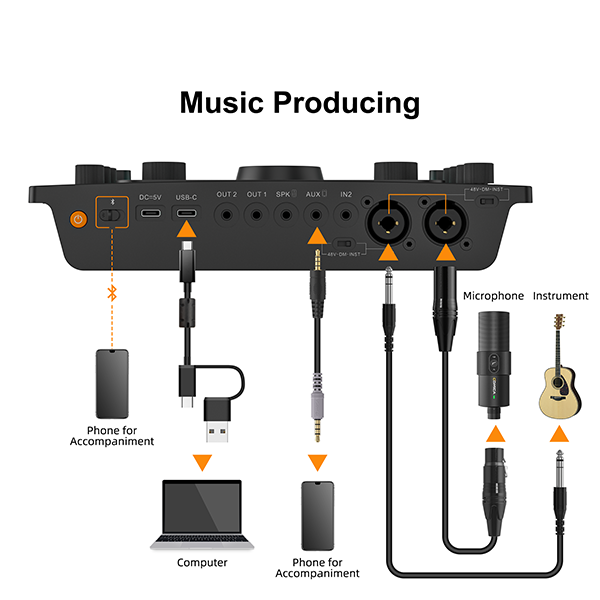

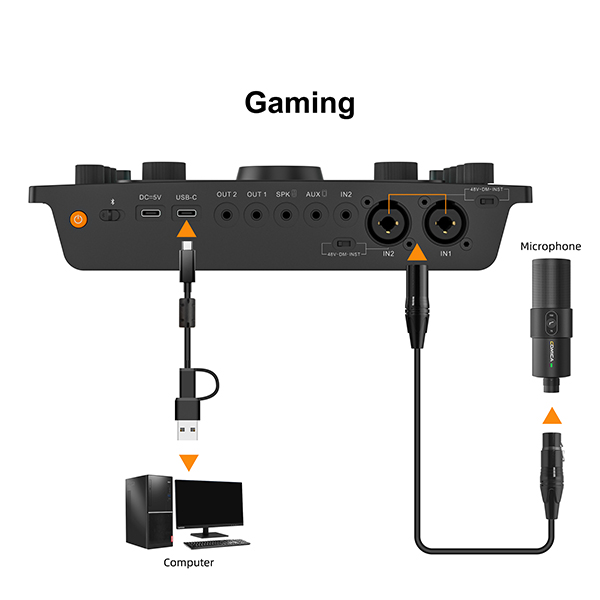

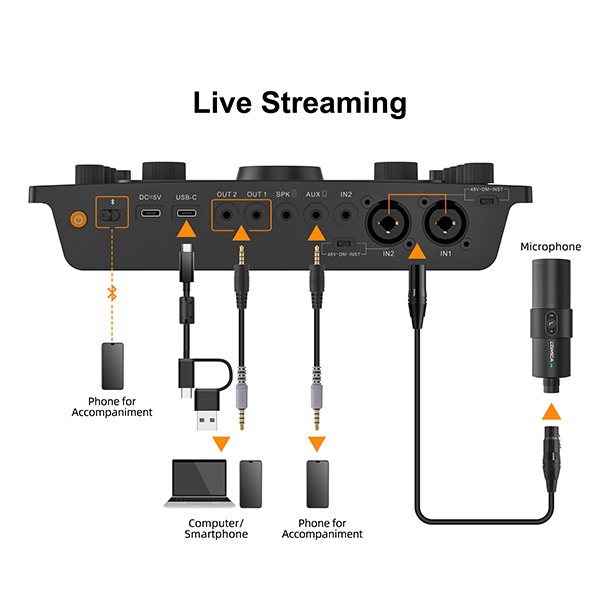

Multiple I/O Interfaces to Connect Phones, Tablets, and Computers

Multiple I/O Interfaces to Connect Phones, Tablets, and Computers

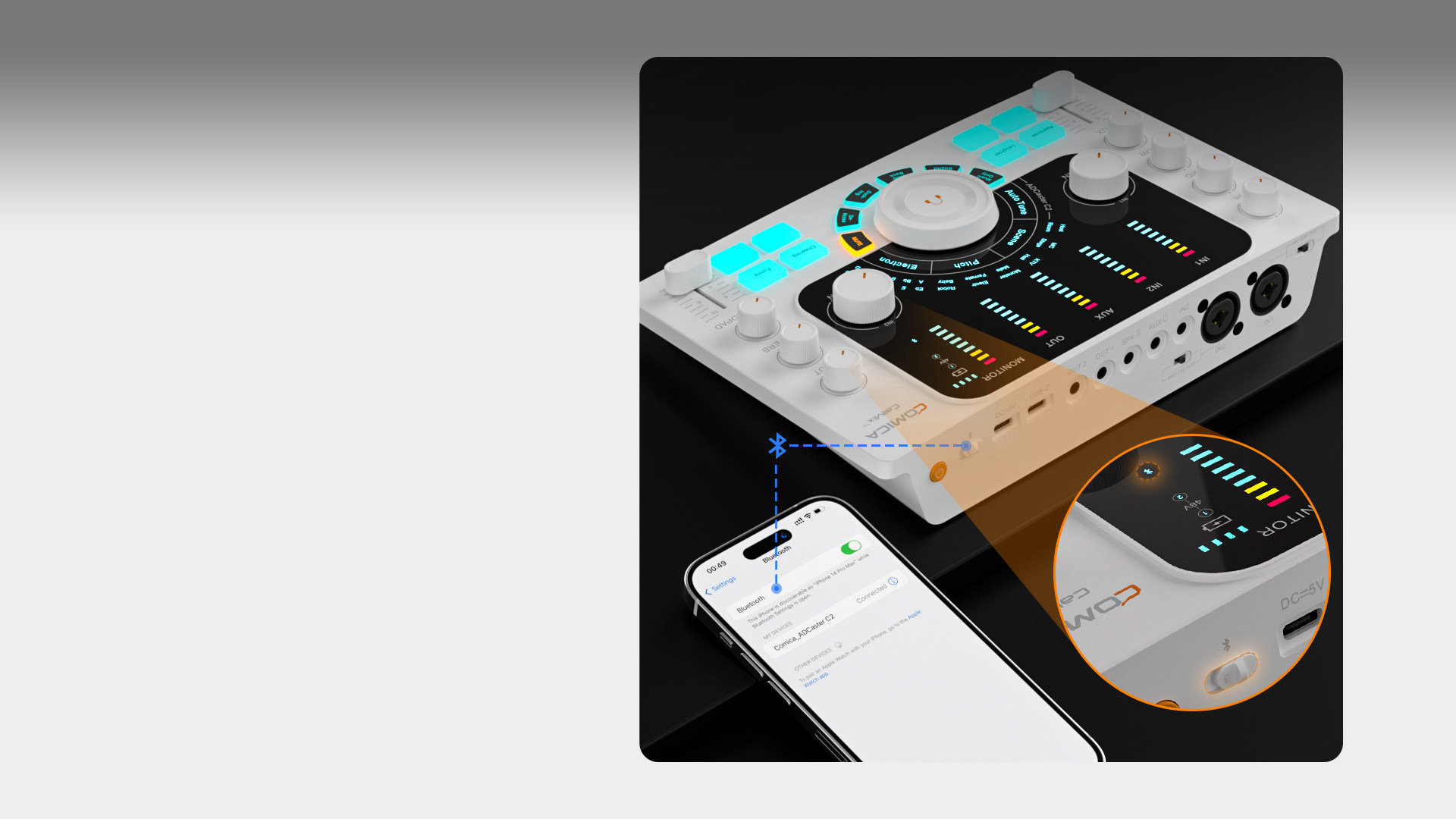

Built-in Bluetooth 5.3 Chipset with Stable Transmission and Low Latency

External audio can be input through Bluetooth connection, which makes your live streaming more convenient without the constraints of wires. Equipped with Bluetooth 5.3 chip to achieve stable transmission with low latency.

Built-in Bluetooth 5.3 Chipset with Stable Transmission and Low Latency

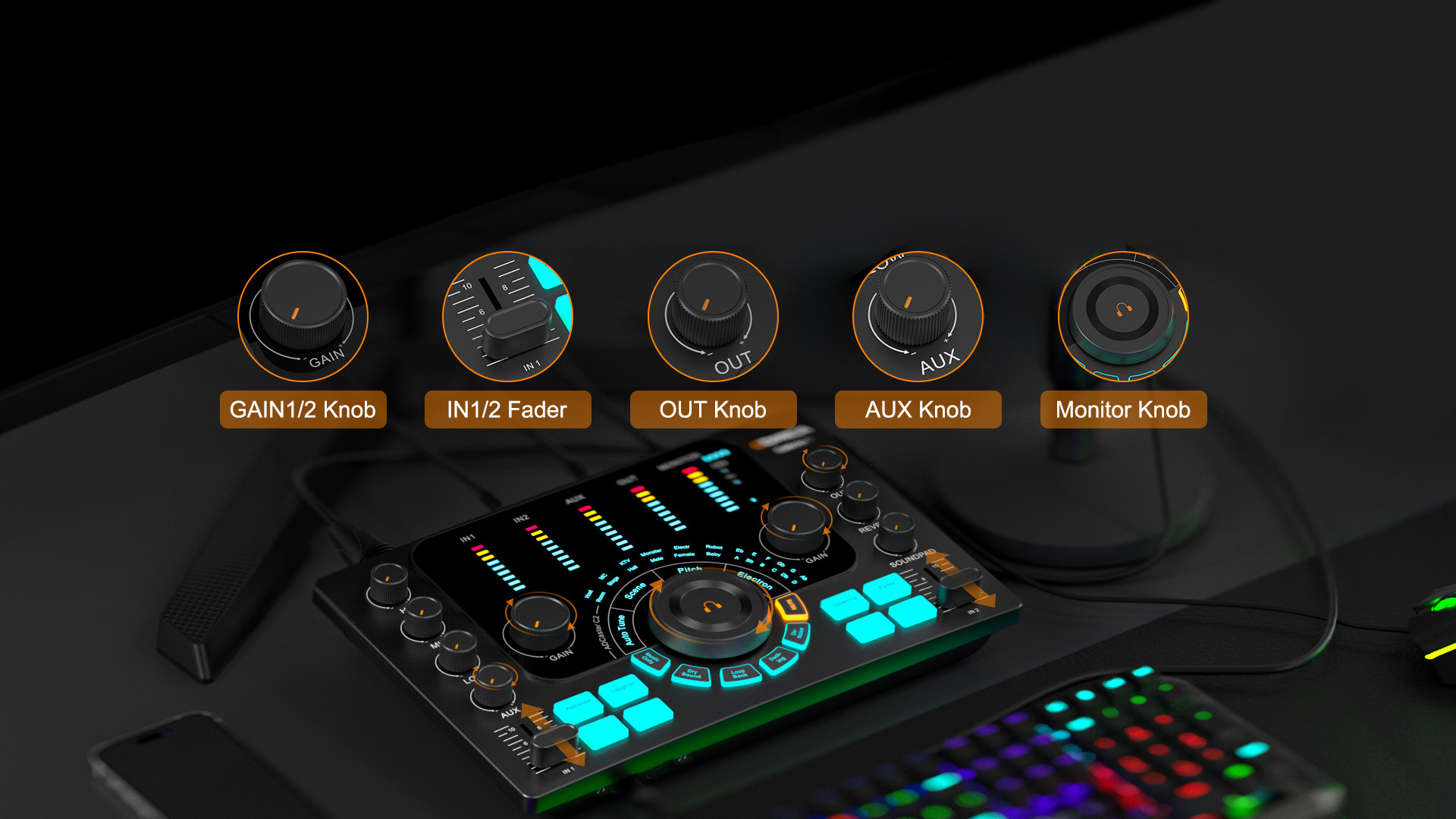

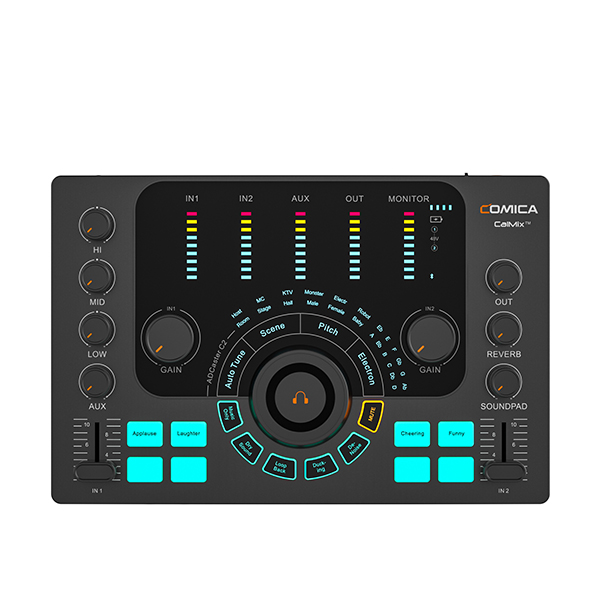

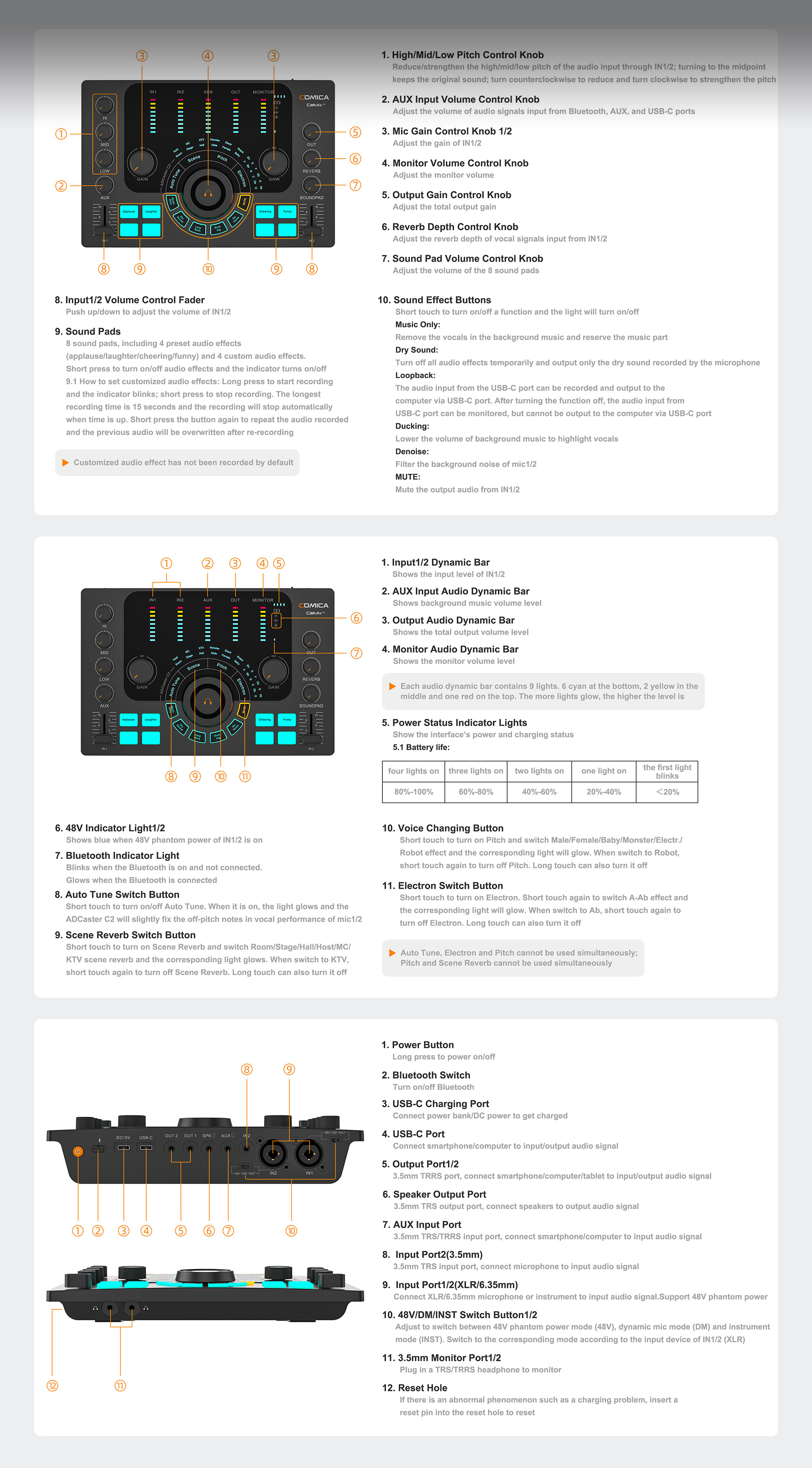

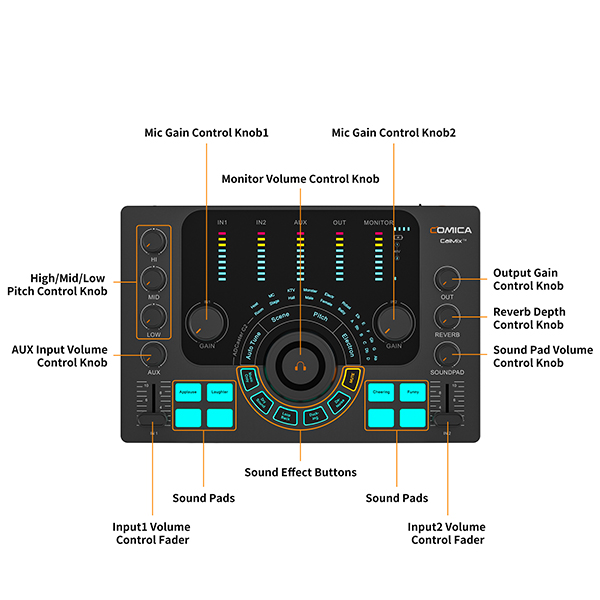

Support Individual Input Gain, Output Gain, and Monitor Volume Control

Two input gains are independently adjustable. The gain of input1/2 can be adjusted by GAIN1/2 knob and the DSP volume can be adjusted by IN1/2 fader. The output gain, background music volume and monitor volume can also be adjusted separately, bringing a freer volume control experience.

Support Individual Input Gain, Output Gain, and Monitor Volume Control

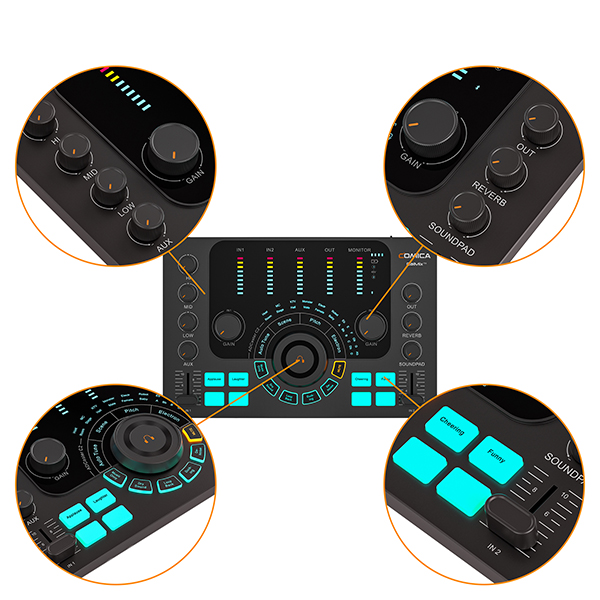

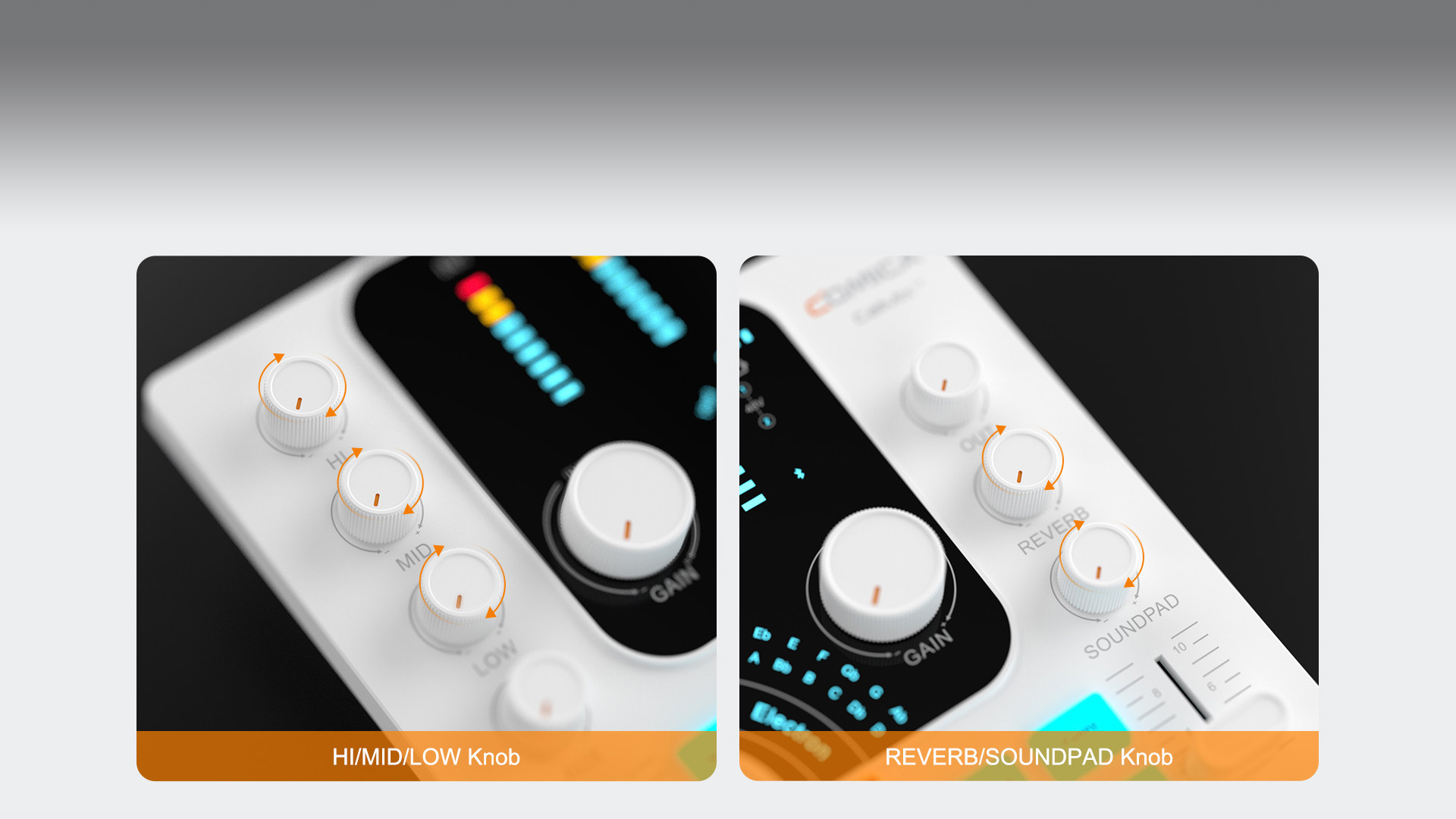

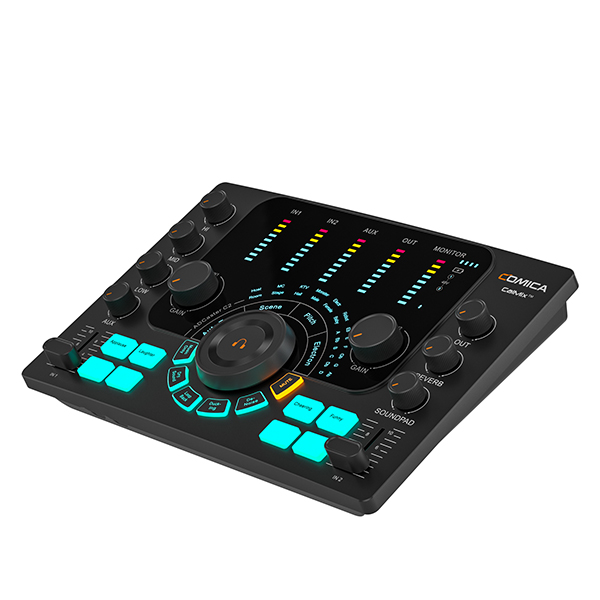

Adjustable High/Mid/Low Tone, Reverb Depth, and Sound Pad Volume

More professional High/Mid/Low independent control knobs to offer clearer treble, fuller mid-range and thicker bass; there are also independent adjustment knobs for the scene reverb depth control and sound pad volume adjustment to ensure a perfect recording effect.

Adjustable High/Mid/Low Tone, Reverb Depth, and Sound Pad Volume

Support Auto Tune, 6 Scene Reverb, 6 Pitch Changers, and 12-step Electronic Sounds

Support Auto Tune, 6 Scene Reverb, 6 Pitch Changers, and 12-step Electronic Sounds

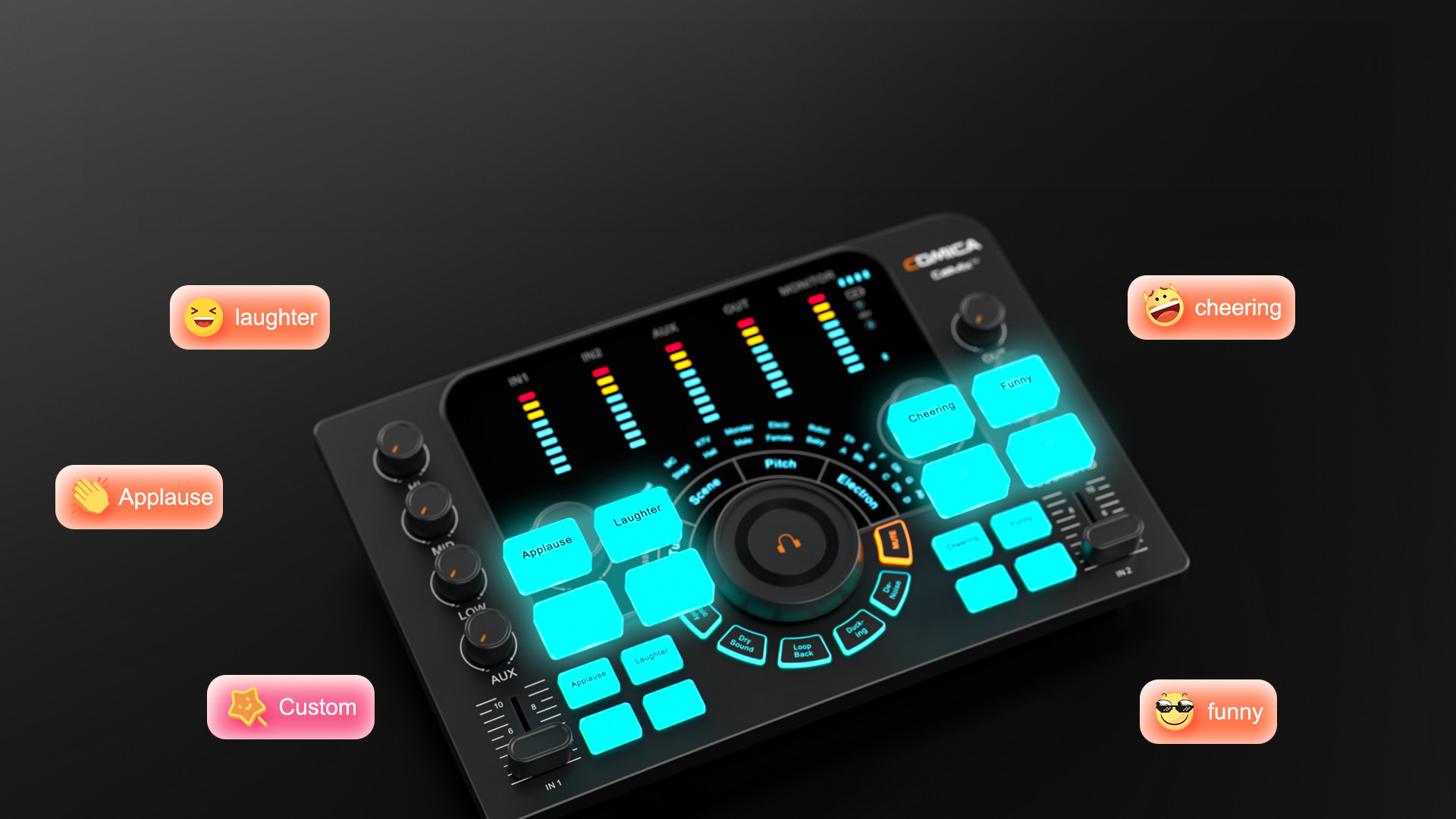

8 Sound Pads to Create Live Streaming and Podcasting Atmosphere

The 8 sound pad effects include 4 warm-up and 4 customizable sound pads. Applause/laughter/cheering/funny effects are used to enhance the live streaming atmosphere and the other 4 customizable sound pads allow you to record your favorite audio for podcast and live streaming.

8 Sound Pads to Create Live Streaming and Podcasting Atmosphere

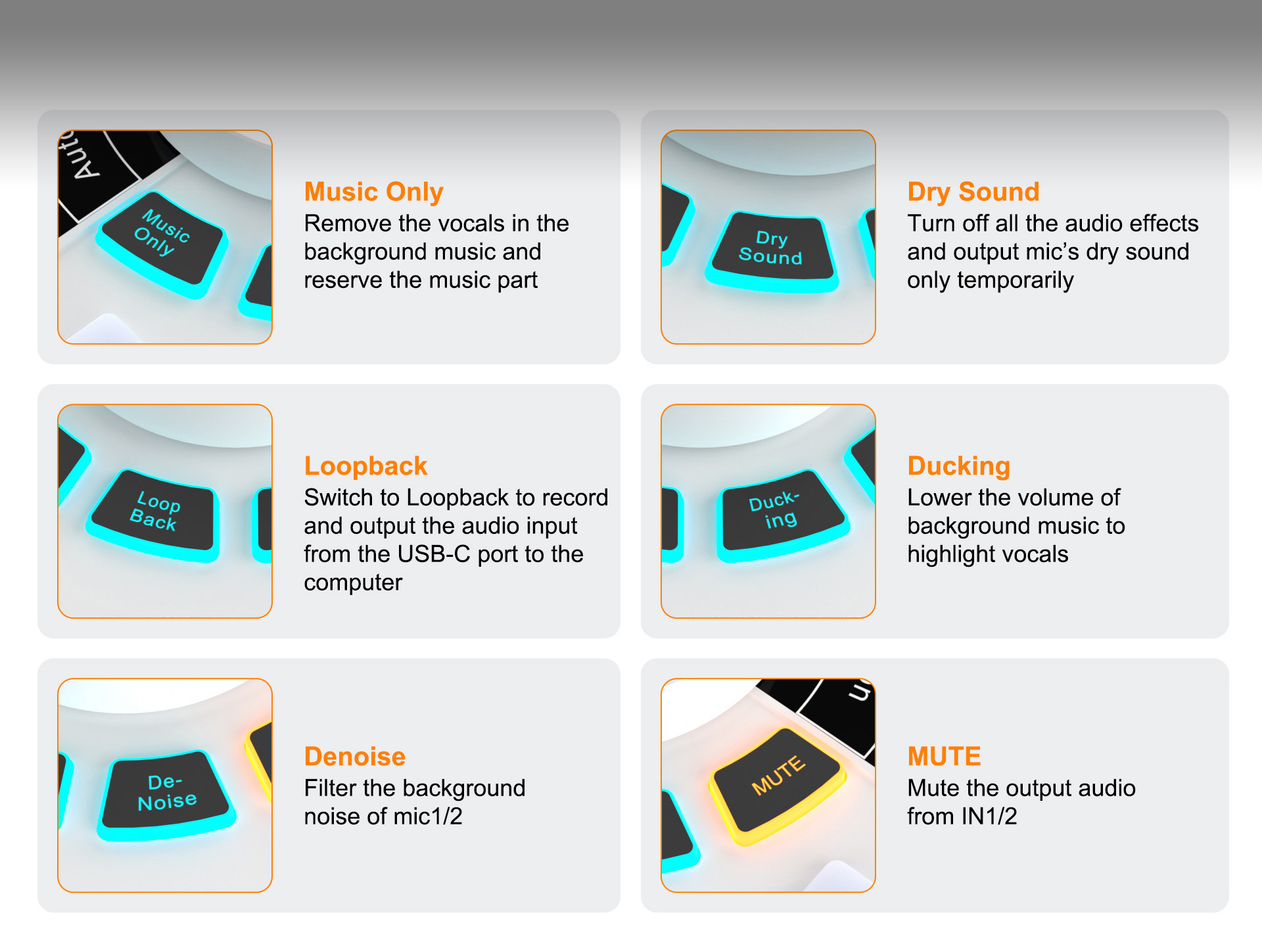

Support Music Only/Dry Sound/Loopback/Ducking/Mute Functions

Support Music Only/Dry Sound/Loopback/Ducking/Mute Functions

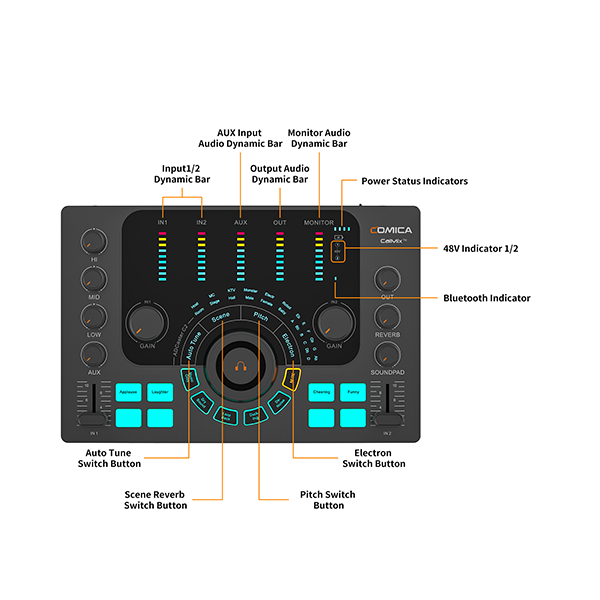

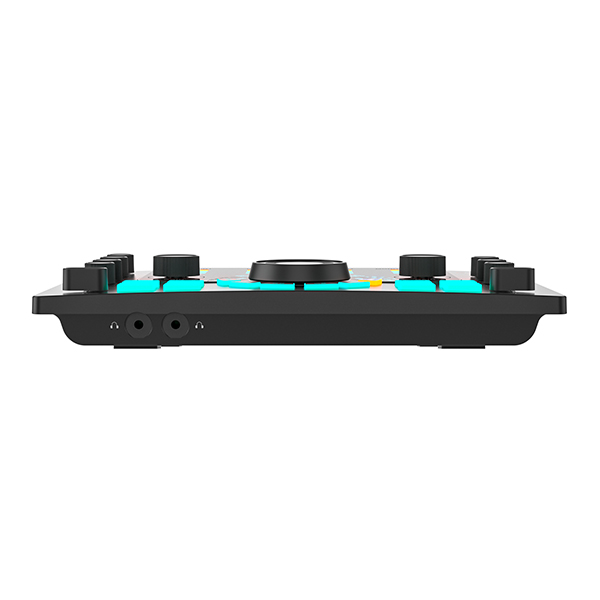

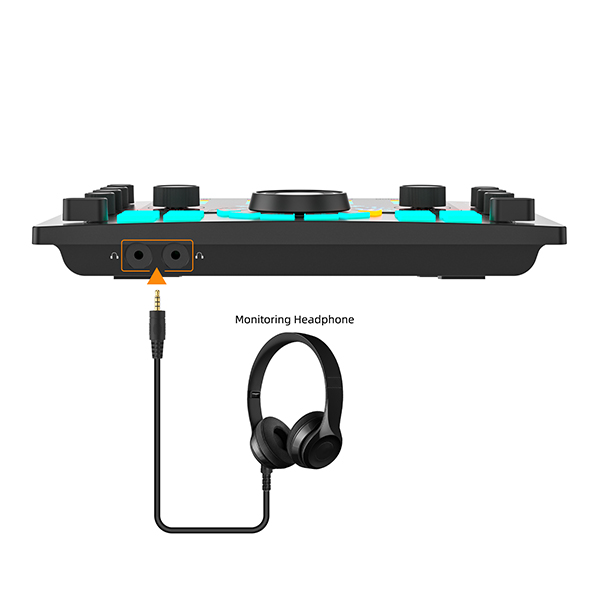

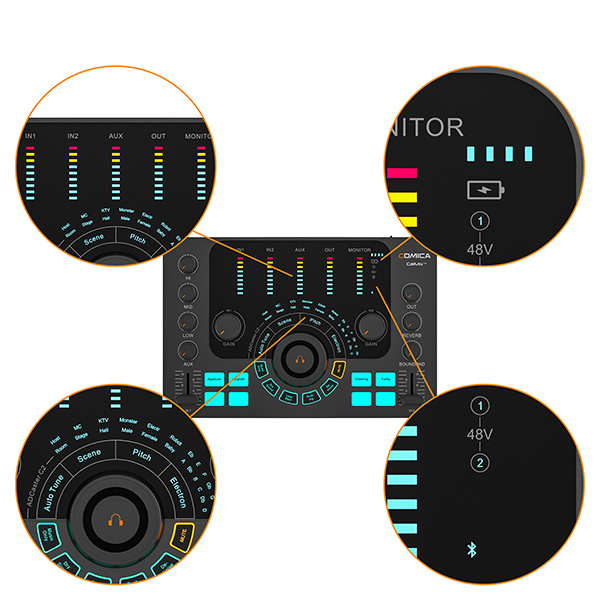

Support Real-time Monitoring and Audio Dynamic Monitor

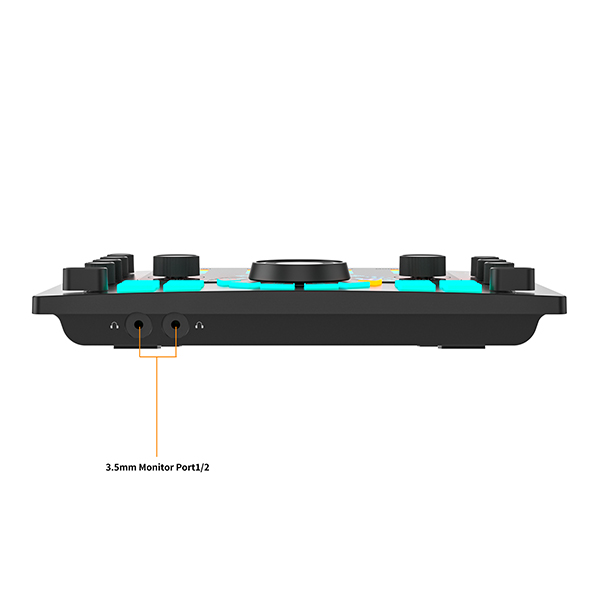

The C2 is equipped with dual 3.5mm monitor ports for two people to monitor at the same time. The touch screen shows 5 audio dynamic bars, which are used to check input, output, AUX, monitor audio dynamic in real time and make adjustment at any time.

Support Real-time Monitoring and Audio Dynamic Monitor

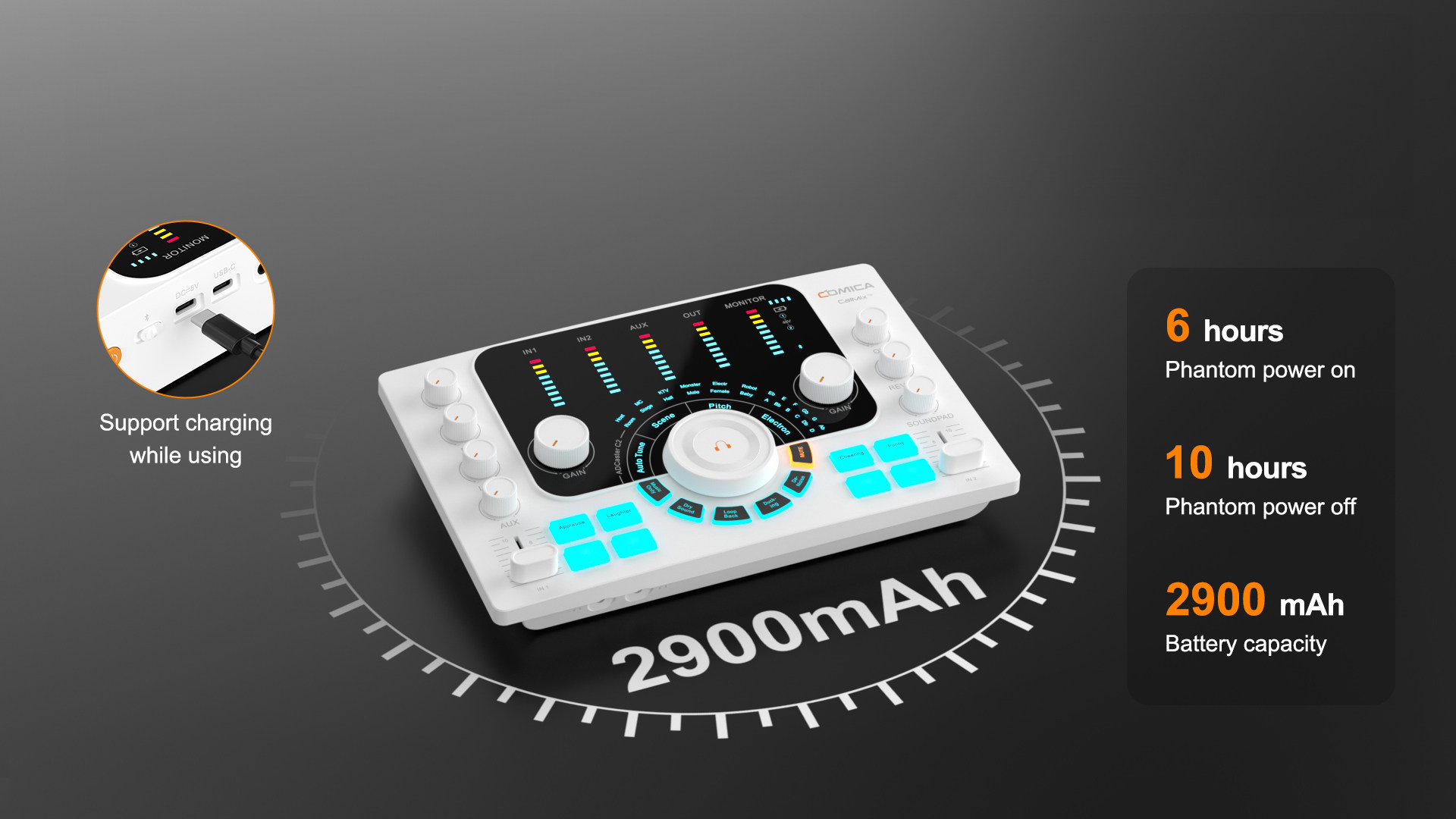

Operating Time Up to 6 Hours, Support Charging While Using

The 2900mAh high capacity lithium battery allows its 6-hour operating time with phantom power on and 10-hour operating time with phantom power off. It supports charging while using for unlimited streaming.

Operating Time Up to 6 Hours, Support Charging While Using

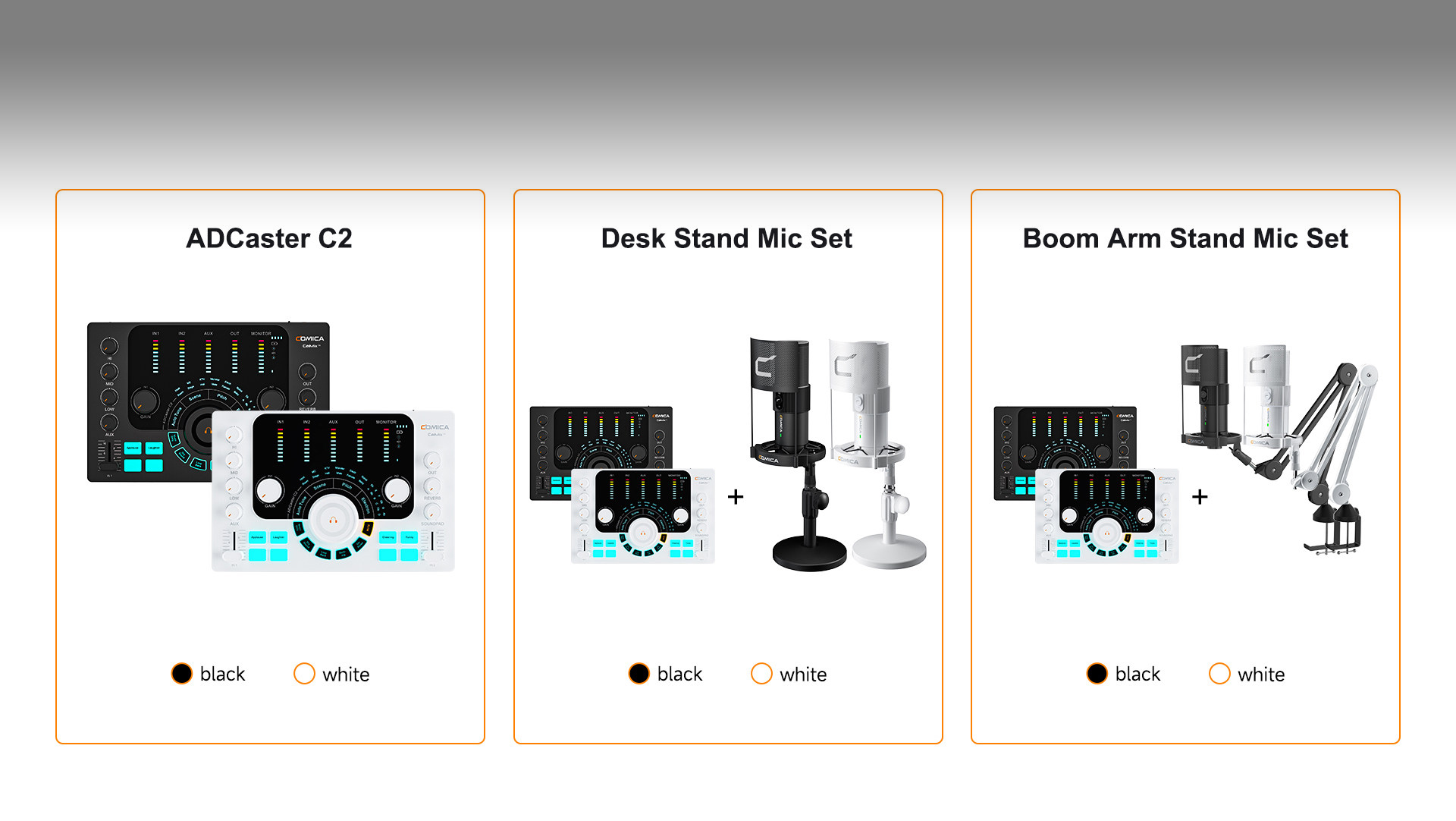

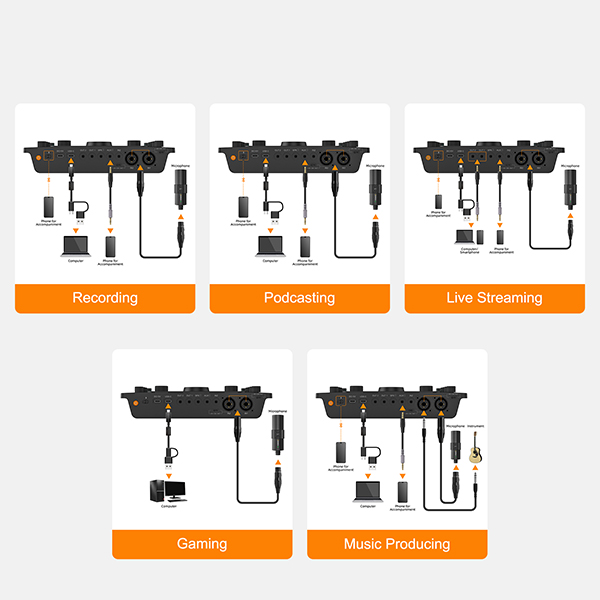

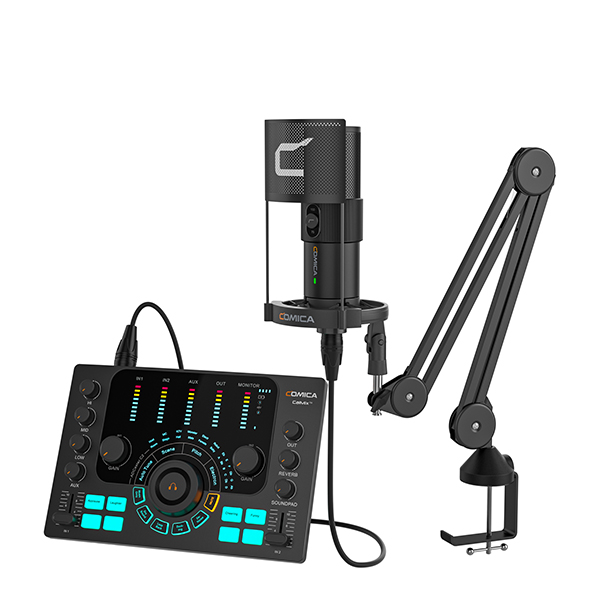

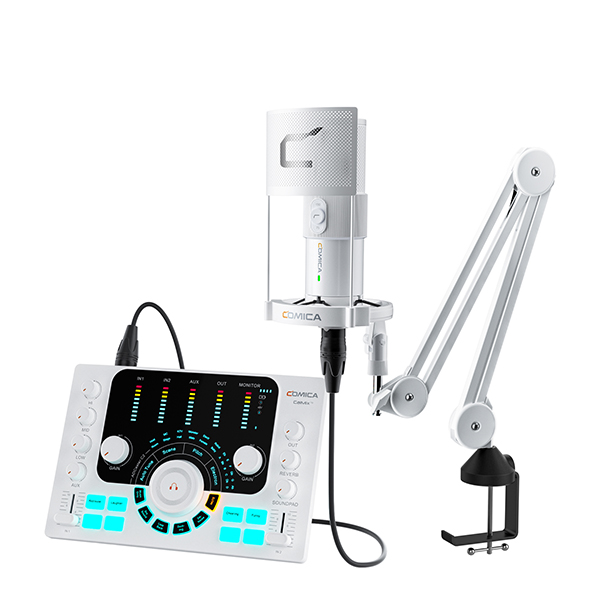

Multiple Options

Multiple Options

Interface

Input Port

2 x XLR/6.35mm, 1 x 3.5mm

AUX Port

1 x 3.5mm

Digital Port

1 x USB-C

OUT Port

2 x 3.5mm

SPK Output

1 x 3.5mm

Headphone Output

2 x 3.5mm

Audio Resolution

Sample Rate

48kHz

Bit Depth

24bit

Microphone Input

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Responce

20Hz ~ 20kHz, ±0.1dB

THD+N

0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF

Equivalent Noise

-130dBu(A-weighted,as per IEC651)

Input Impedance

5kΩ

Maximum Input Level

-4dBu

Gain Range

6dB ~ 60dB

Instrument Input

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Responce

20Hz ~ 20kHz, ±0.1dB

THD+N

0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF

Equivalent Noise

-130dBu(A-weighted,as per IEC651)

Input Impedance

50kΩ

Maximum Input Level

4dBu

Gain Range

0dB ~ 30dB

SPK Output

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Responce

20Hz ~ 20kHz, ±1dB

Output Impedance

600Ω

Maximum Output Level

4dBu

Headphone Output

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Responce

20Hz ~ 20kHz, ±1dB

Output Impedance

Maximum Output Level

4dBu

Others

Battery

Lithium Battery 2900mAh 3.7V

Standby Time

With 48V Phantom Power on: 6Hours
With 48V Phantom Power off: 10Hours

Charging

USB-C 5V2A

Phantom Power Output

48V±2V

Net Weight

670g

Dimension

239*158*51mm

Working Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃
