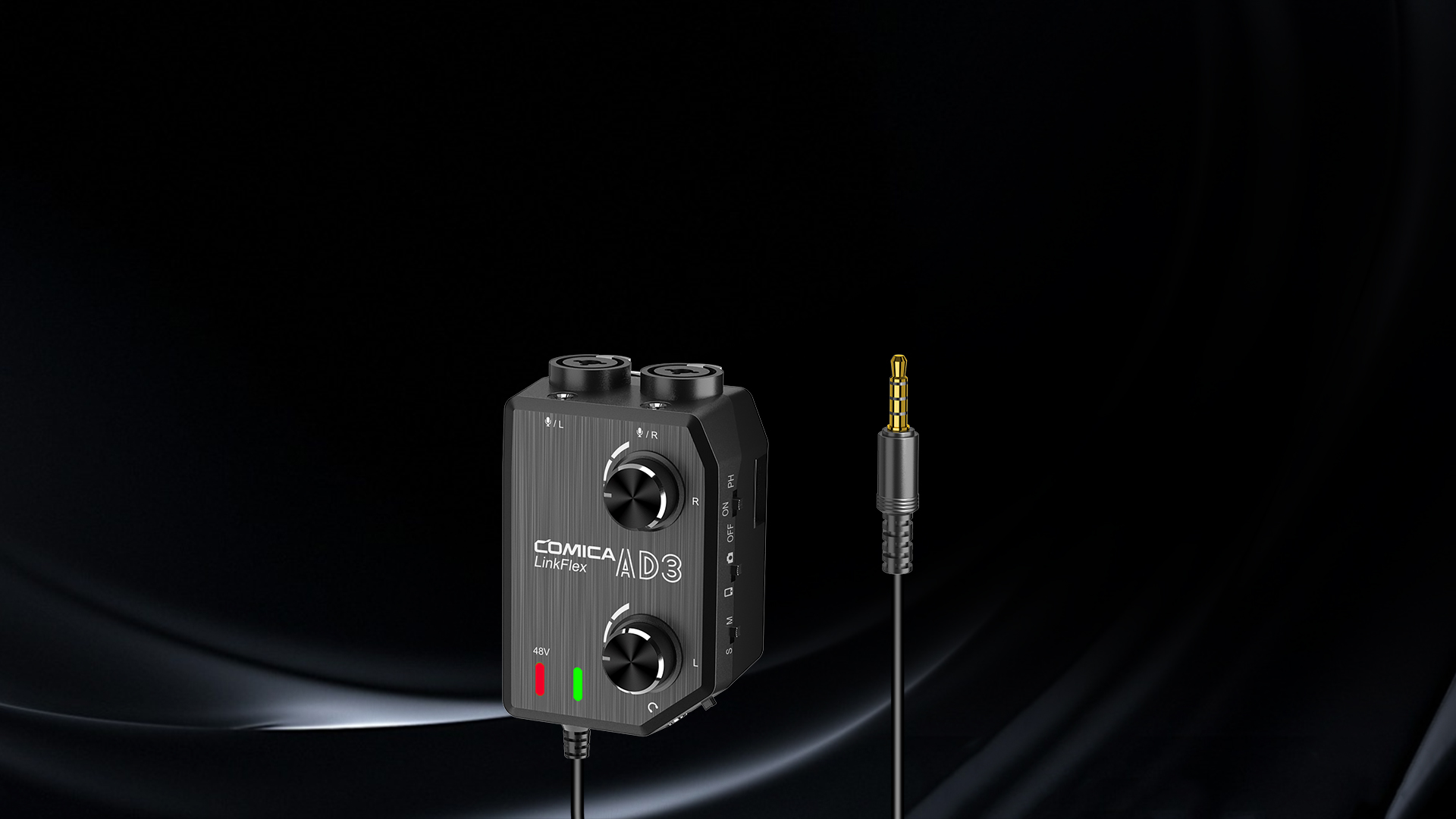

LinkFlex AD3
Two-channels XLR / 3.5mm / 6.35mm Audio Preamp Mixer / Adapter / Interface for Camera and Smartphone
Buy Now

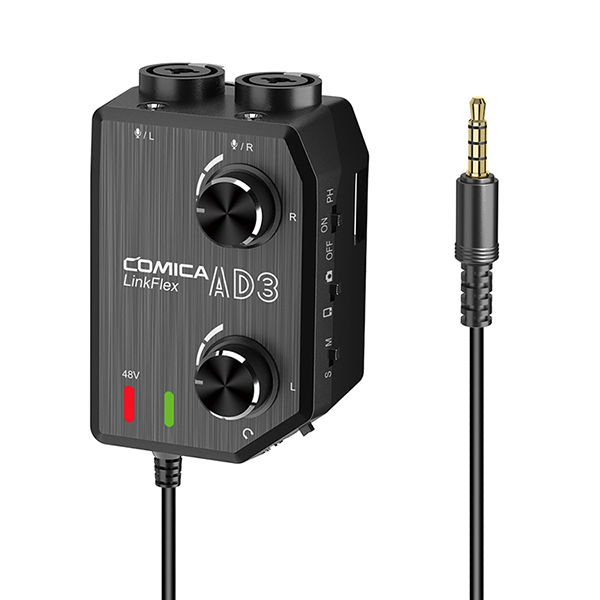

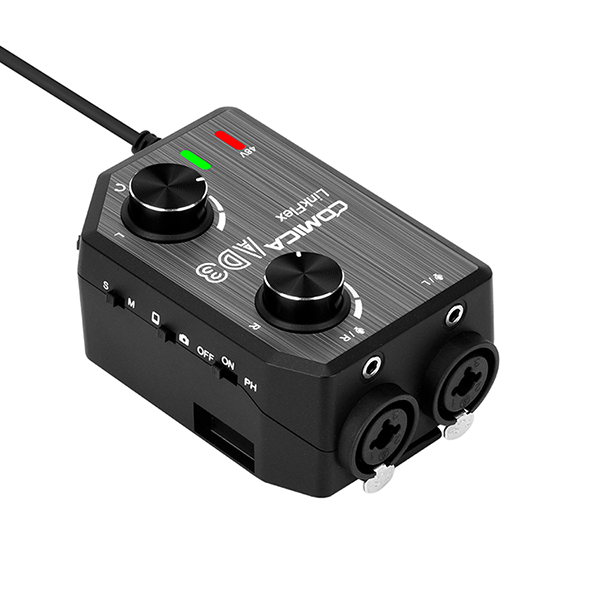

LinkFlex AD3
Overview Specifications Download

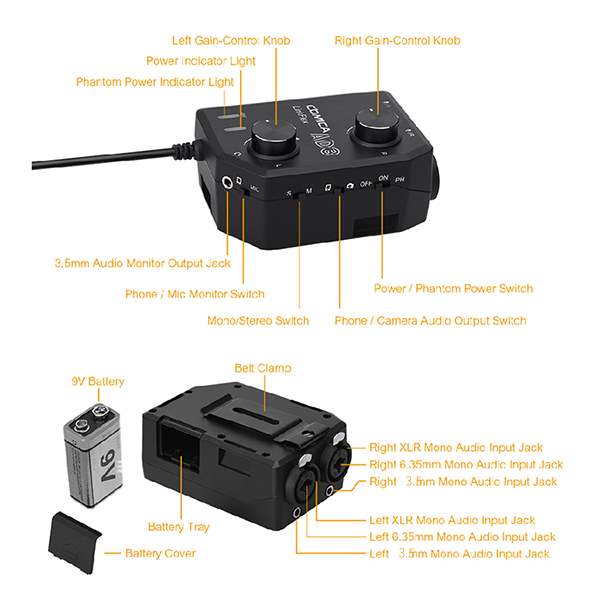

● Support 2-Channels Audio Input
● XLR / 3.5mm / 6.35mm(For Instrument like Guitar etc.,) Audio Adapter Interface
● Universal for Camera and Smartphone
● Support 48V Phantom Power Output
● Audio Preamp and Gain Control
● Mic / Phone Two Way Audio Monitor
● Belt-clamp and Magic-tape Design at the Bottom

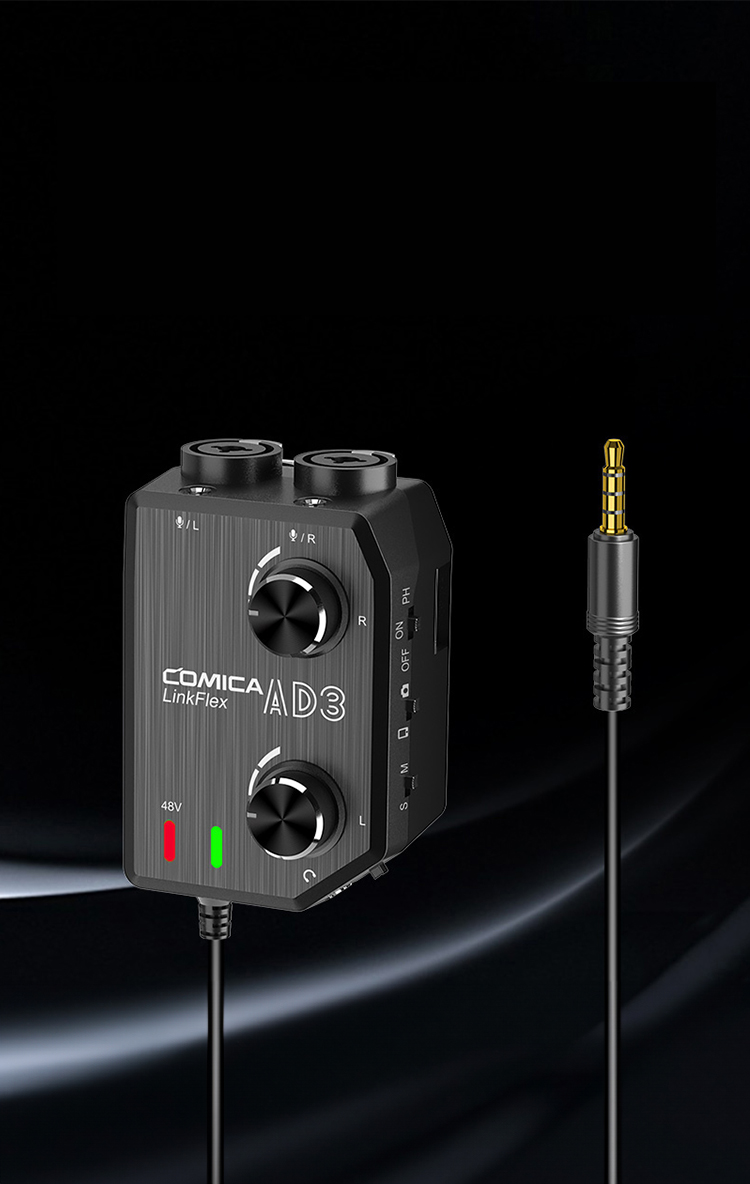

LinkFlex AD3
Two-channels XLR / 3.5mm / 6.35mm Audio Preamp Mixer / Adapter / Interface for Camera and Smartphone

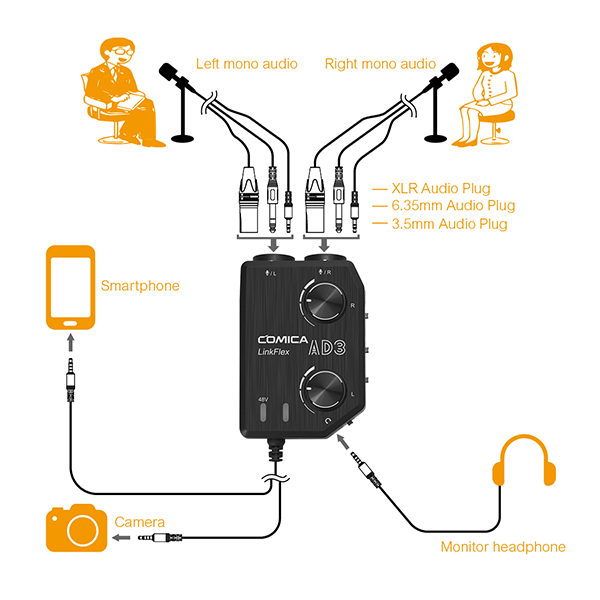

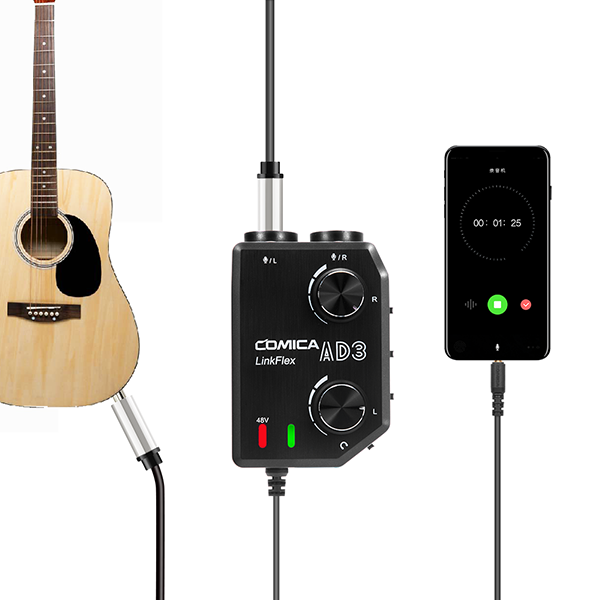

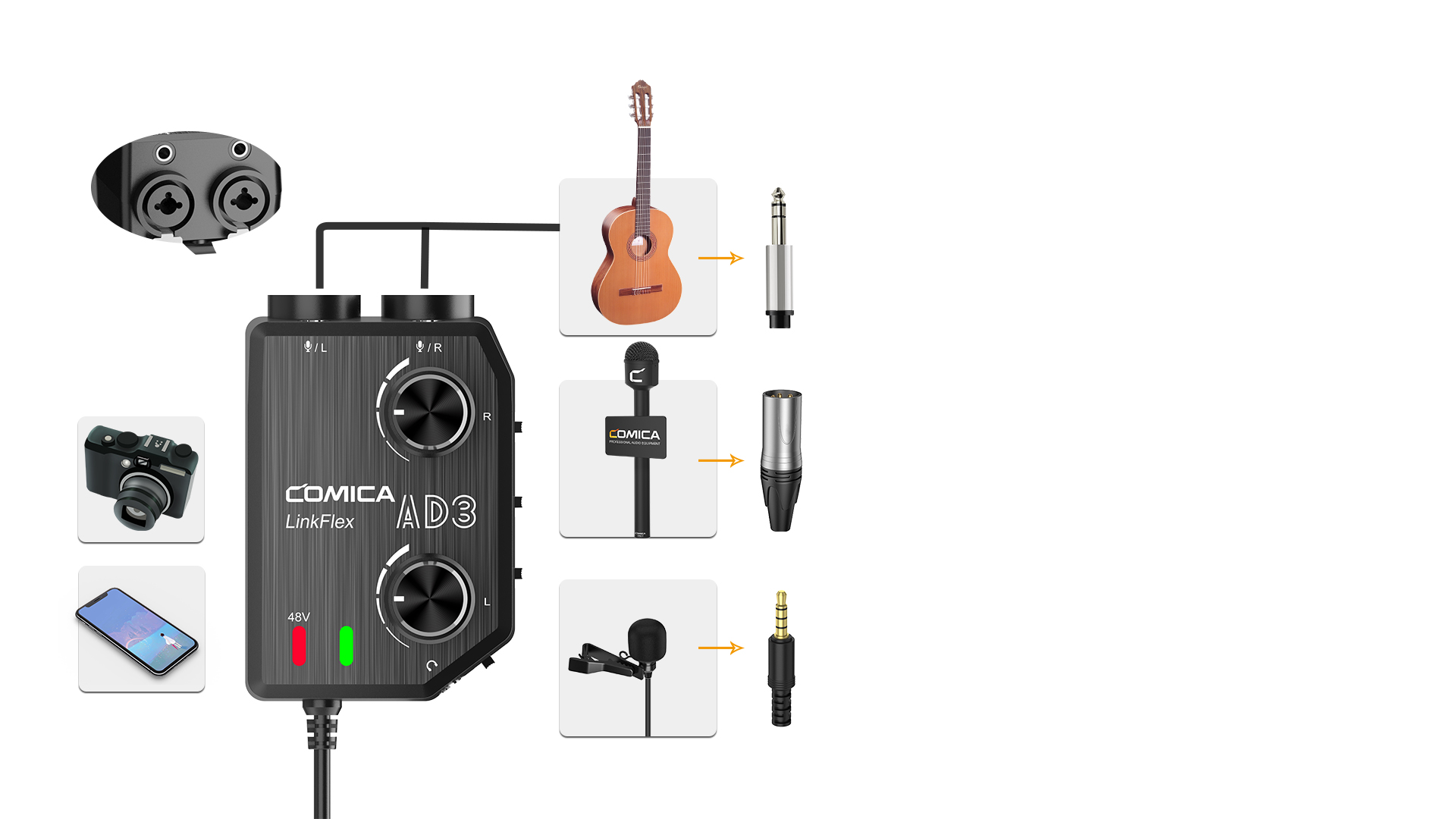

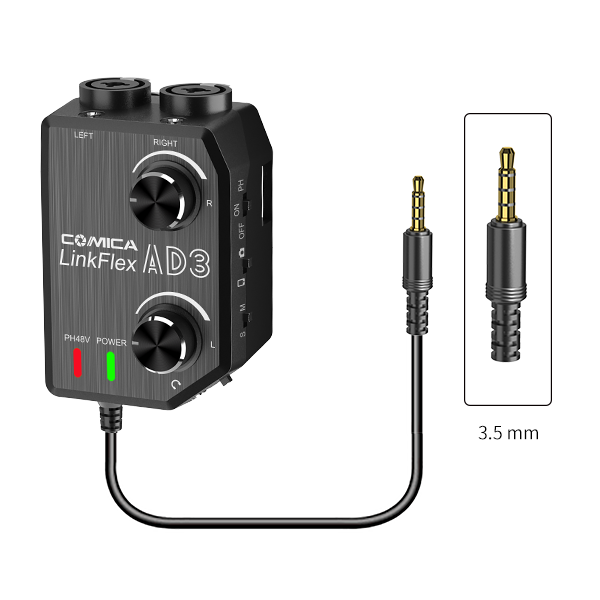

XLR / 3.5mm / 6.35mm (For Instrument like Guitar etc.,) Audio Adapter Interface
It makes your recording work easier by connecting the interface of 3.5mm or XLR microphone and the interface of 6.35mm instrument (such as guitar, etc.) to smartphone and camera
Mono / Stereo Switch
Multiple output options to meet different requirements

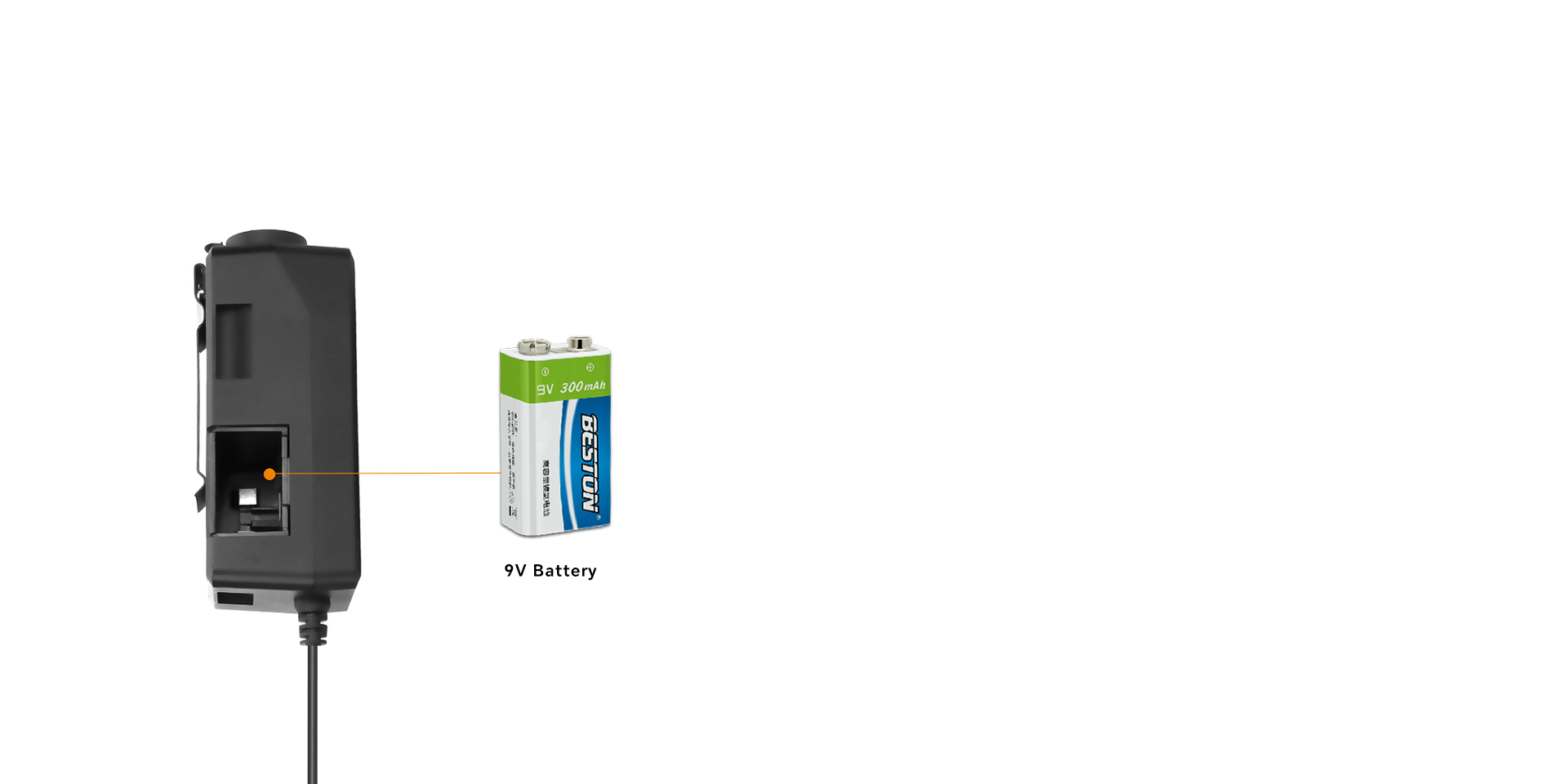

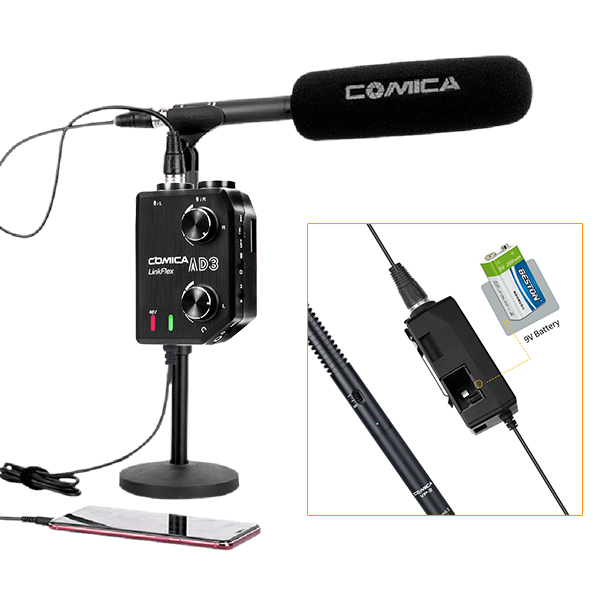

Support 48V Phantom Power Output
After installing the 9V battery it can supply 48V phantom power for other devices

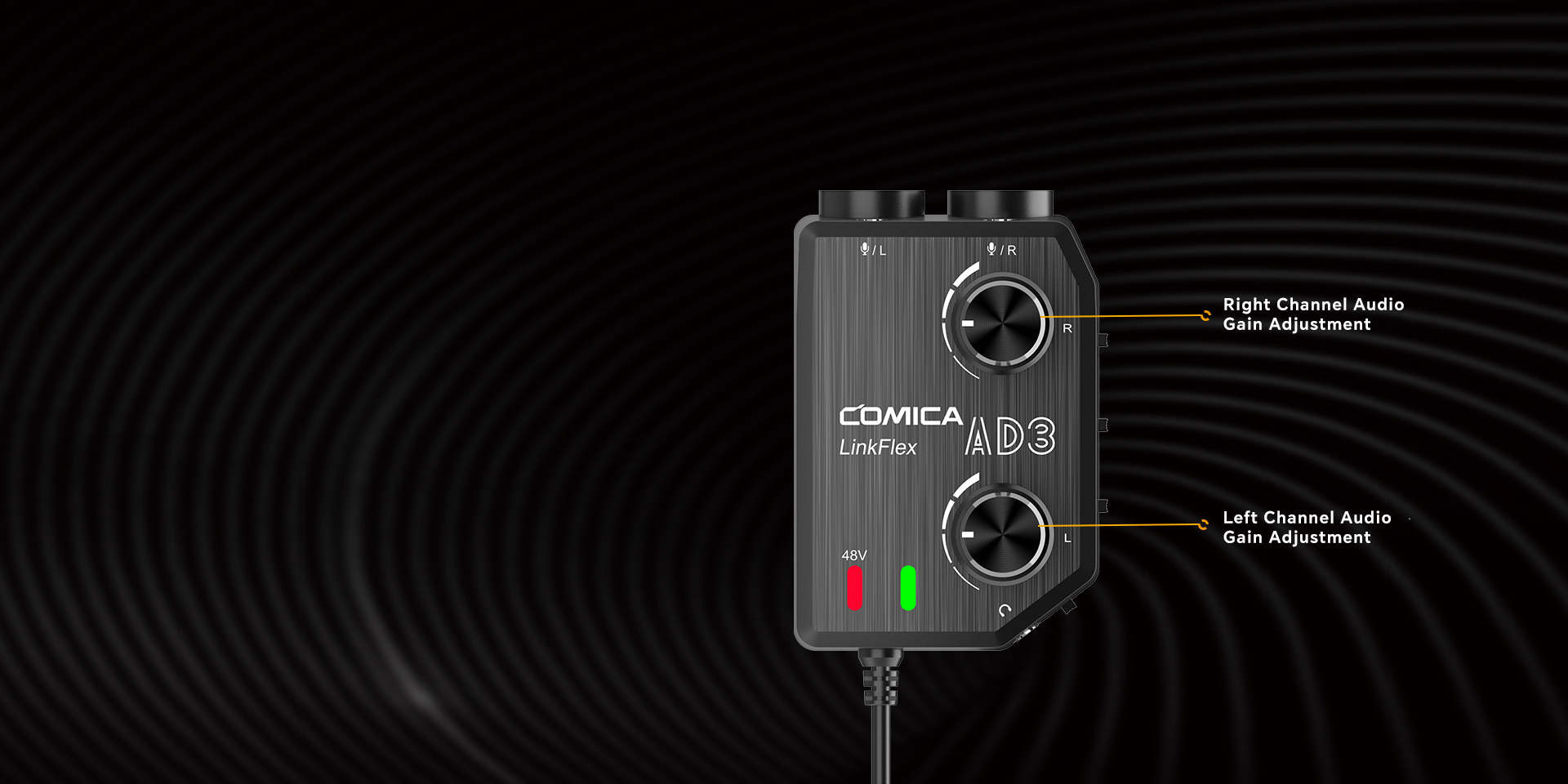

Audio Preamp and Gain Control
The left and right channel gain-control knobs make it easy to set precise levels

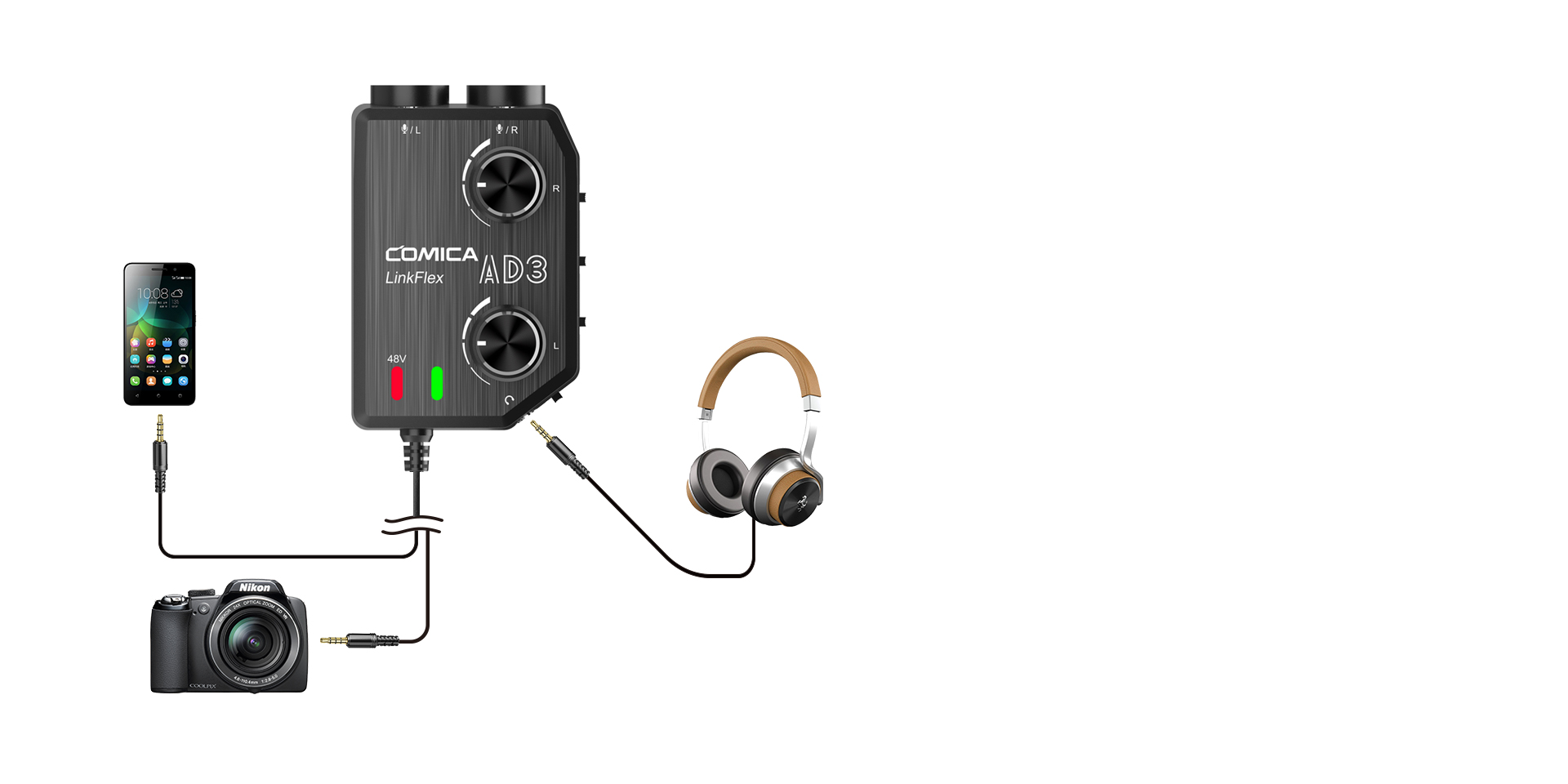

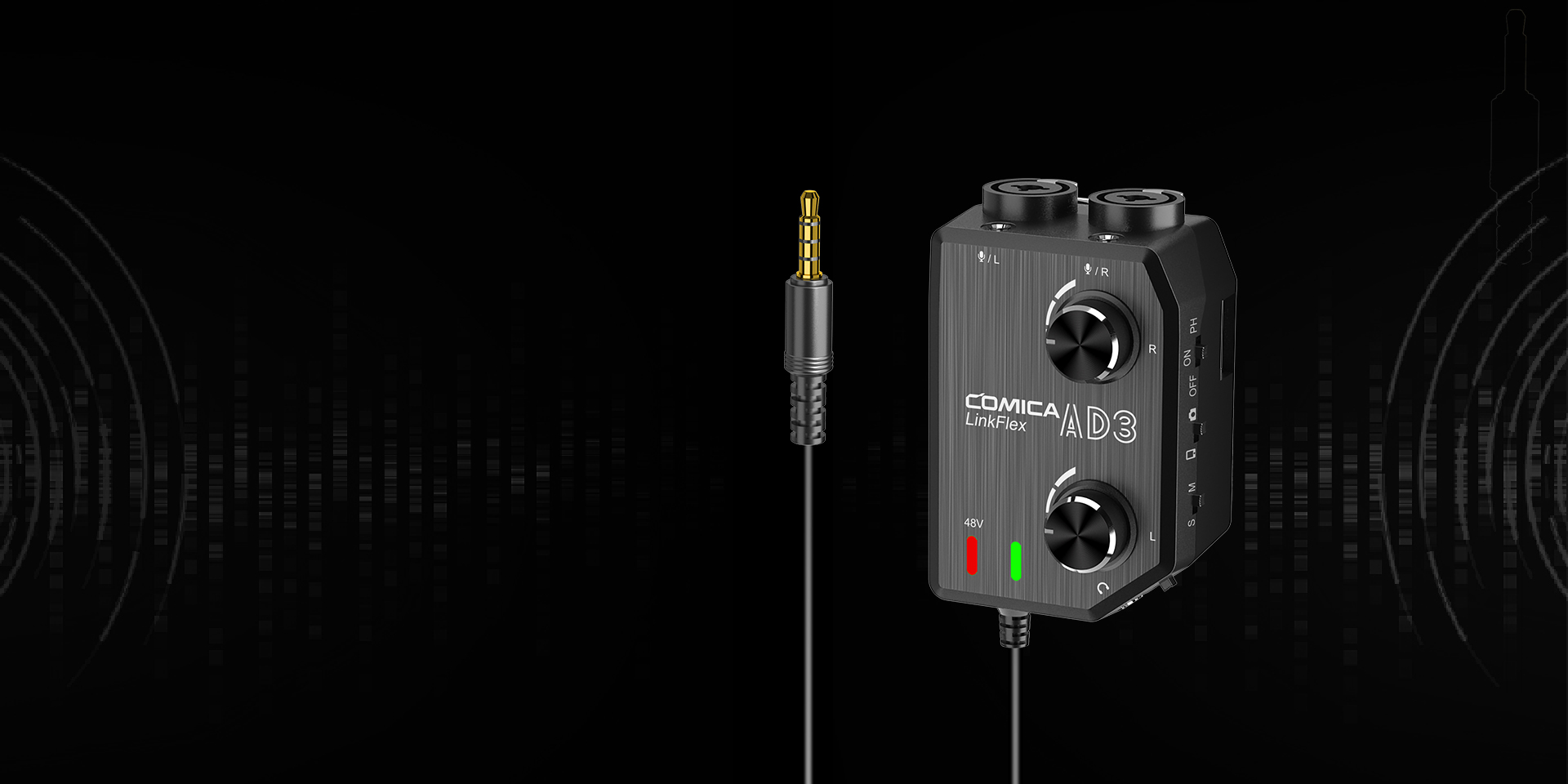

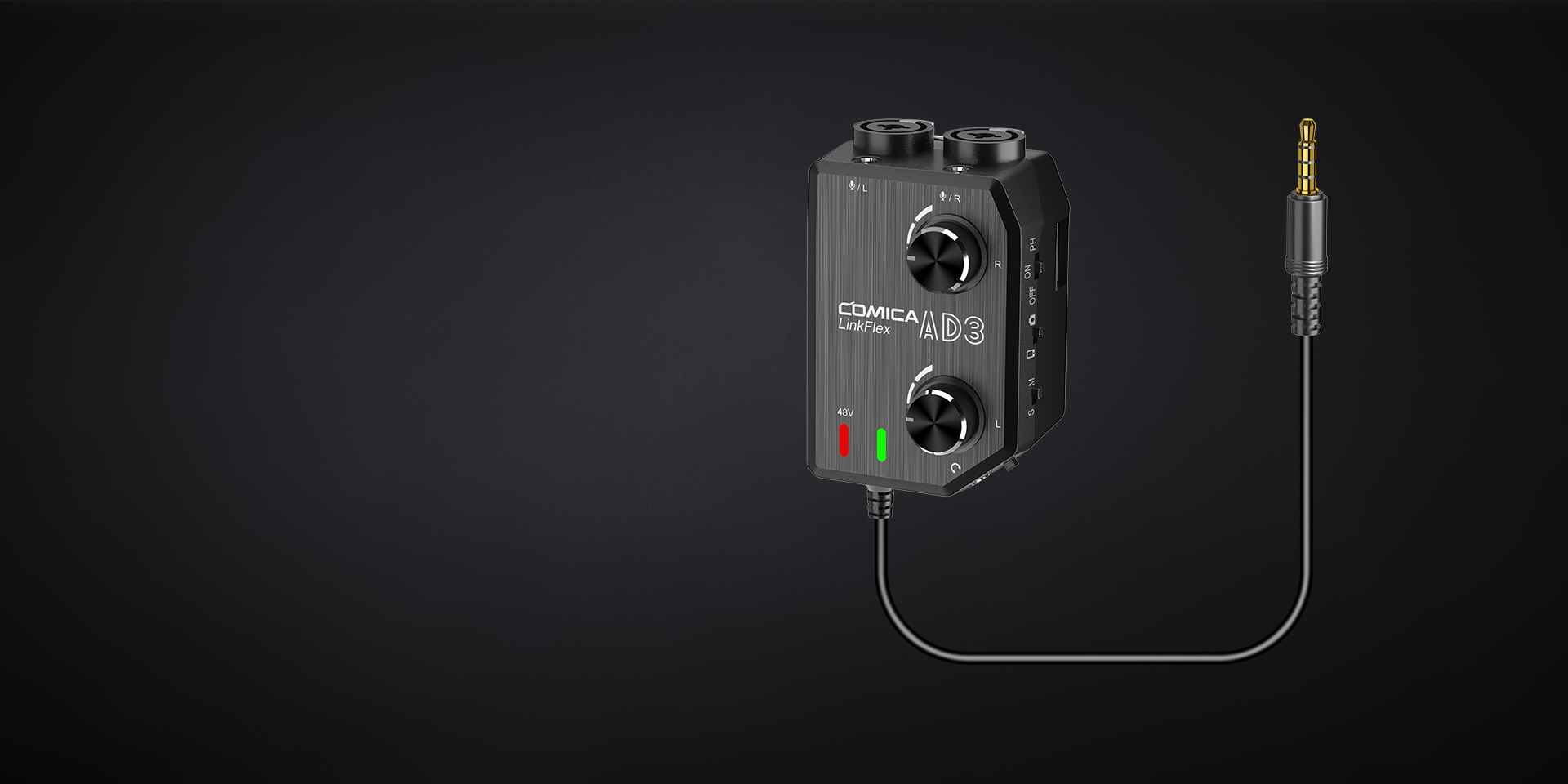

Universal for Camera and Smartphone
Suit for camera and smartphone, easy to switch

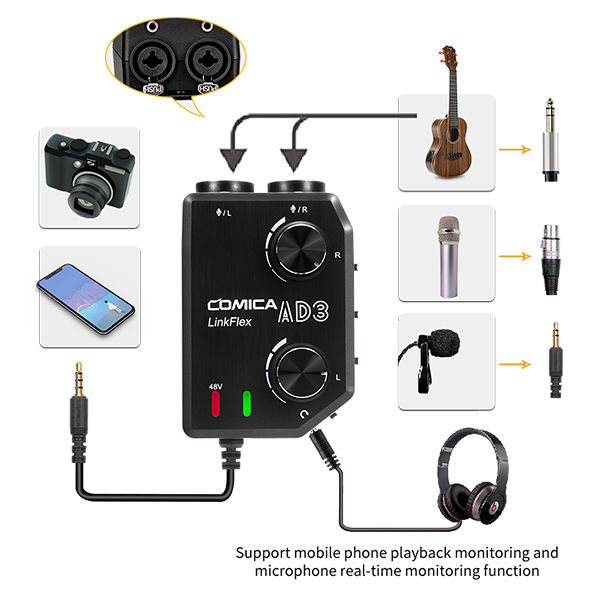

Mic / Phone Two Way Audio Monitor
Effectively support microphone real-time monitoring and smartphone play back monitoring

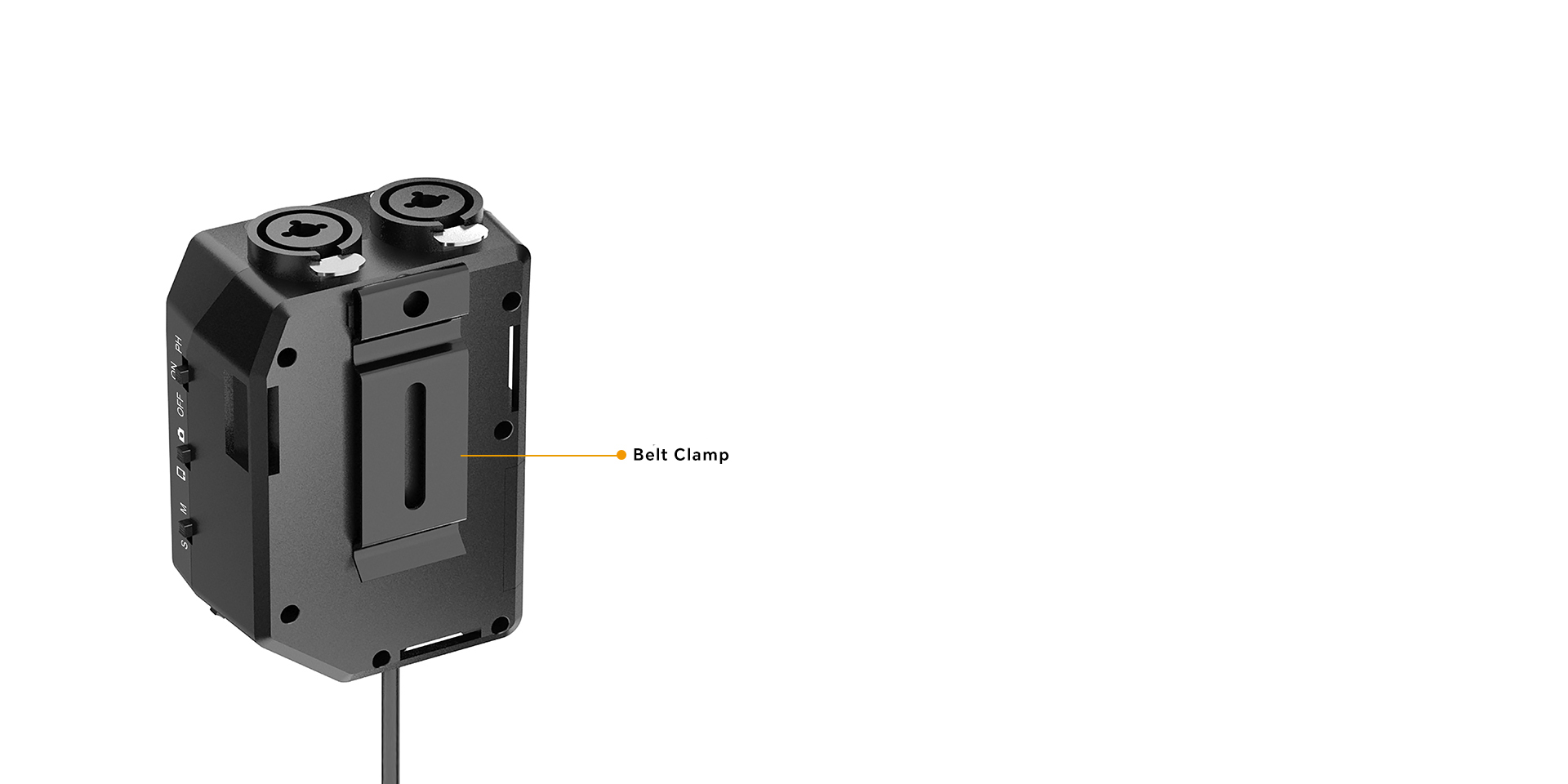

Belt-clamp Design at the Bottom
It can be hung on the belt with a belt-clamp, which is easy and convenient to carry
|
Input |
XLR x 2(L/R), 6.35mm x 2(L/R), 3.5mm x 2(L/R) |
|
Output |
3.5mm audio output, 3.5mm headphone output |
|
Frequency Response |
20Hz~20kHz,±1dB |
|
Gain Range |
Maximum increase +20dB |
|
THD+Noise |
<0.02%, RL=2kΩ, f=20Hz~20kHz,Vo=1Vrms |
|
Battery |
9V 6LR61/6F22 x 1 |
|
Size |
70 x 53 x 102mm |
|
Net Weight |
159g |
|
Working Temperature |
0℃~ +50℃ |
|
Storage Temperature |
-20℃ ~ +60℃ |
-
LinkFlex AD3
User Manual(EN) User Manual(CN)
