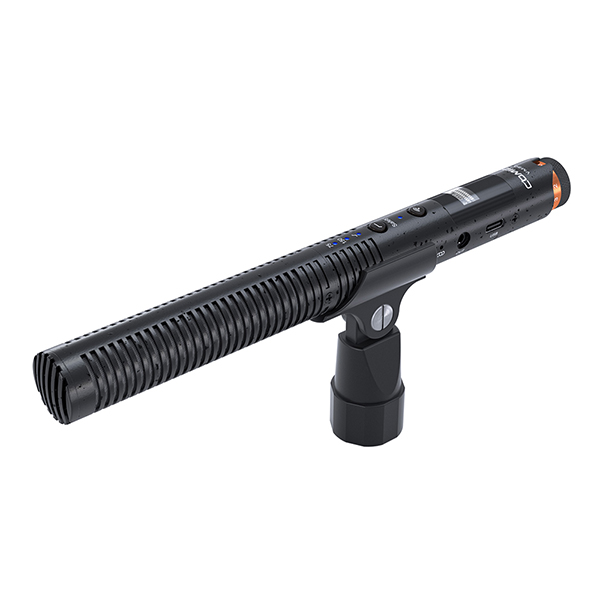

VM30

2.4G Super Cardioid Condenser Wireless Shotgun Microphone

Watch Video Buy Now
VM30 VM30

VM30

Overview Specifications Download

VM30

2.4G Super Cardioid Condenser Wireless Shotgun Microphone

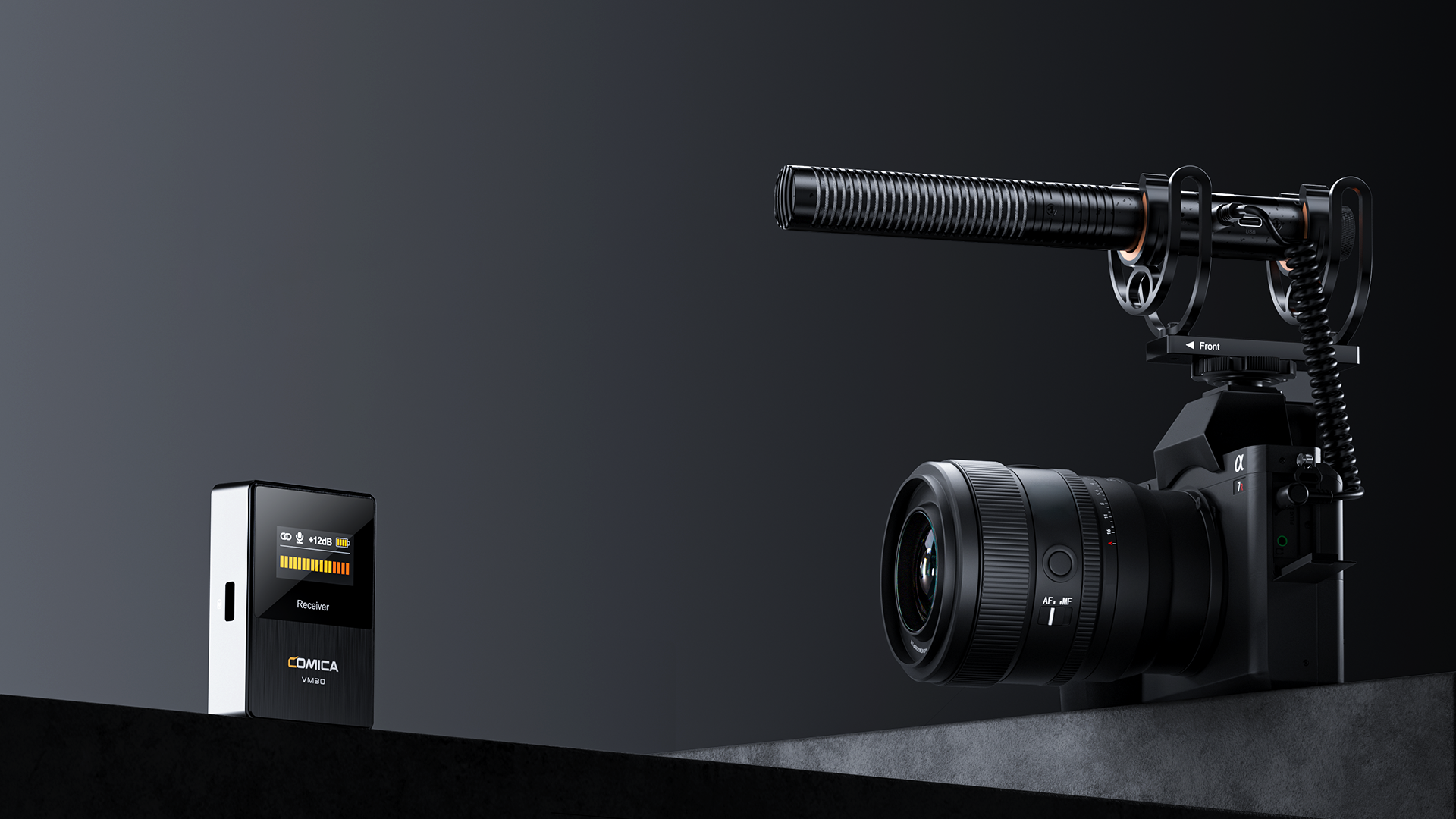

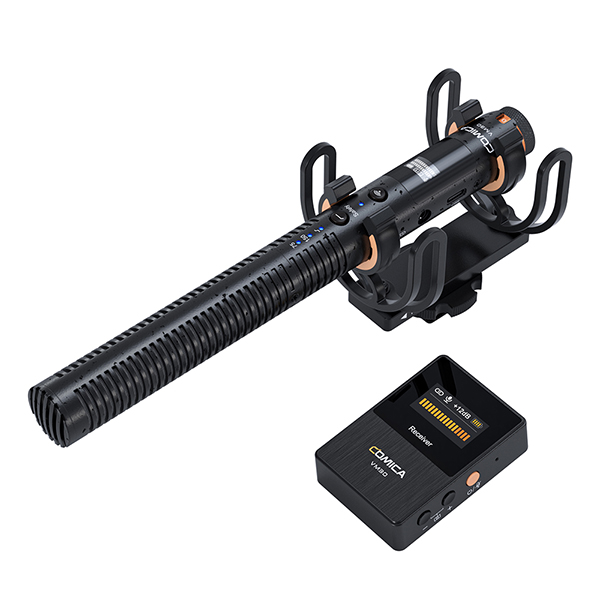

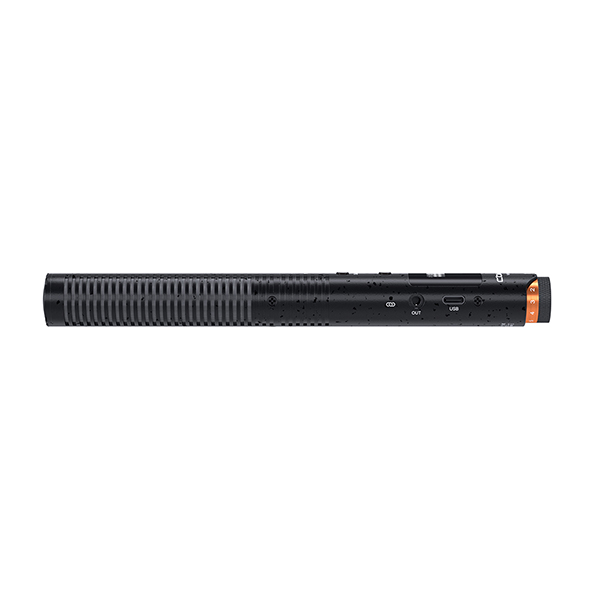

Groundbreaking Shotgun Microphone with Integrated Wireless Module

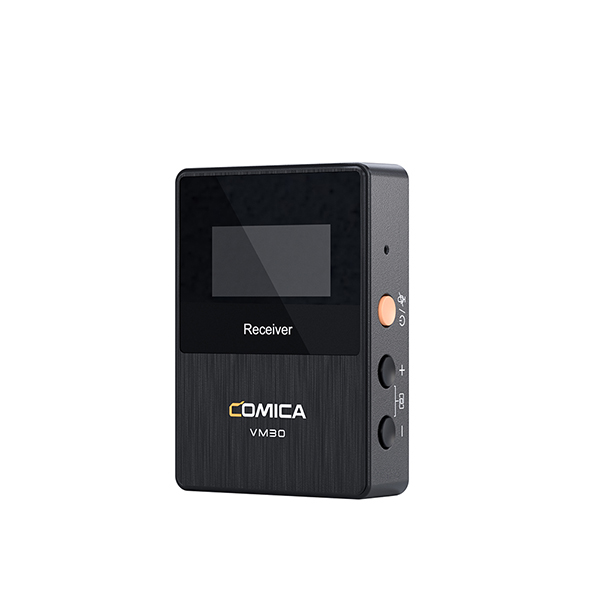

The industry's first shotgun microphone is integrated with a wireless radio frequency module so that it can be used independently or with a receiver as a wireless system. It is easy to operate, stable to transmit, and freer to shoot.

Groundbreaking Shotgun Microphone with Integrated Wireless Module

Support Wired/Wireless Dual Modes for One-button Switch

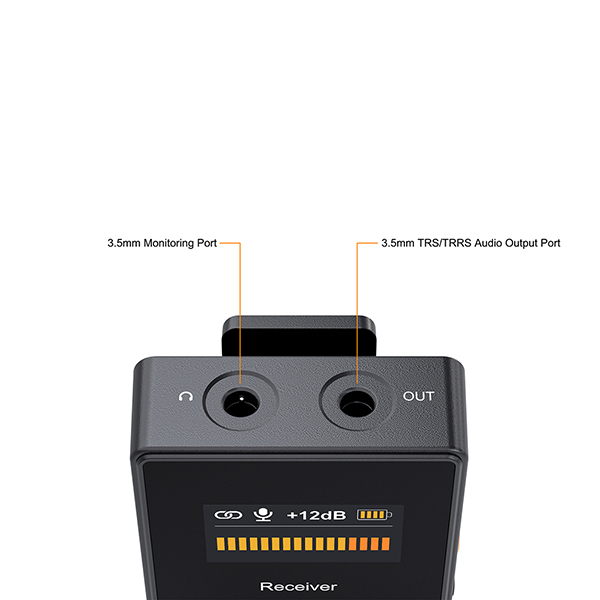

Both the 3.5mm output interface of the microphone and the receiver can intelligently sense the TRS/TRRS output device. In wireless mode, the microphone and receiver can be paired automatically and applied to more shooting scenarios.

Support Wired/Wireless Dual Modes for One-button Switch

Auto Power On/Off Feature, Plug and Play

The shotgun microphone can automatically turn on/off when connecting/disconnecting the output device in wired mode, which is plug-and-play, easy to use, and power-saving.

Auto Power On/Off Feature, Plug and Play

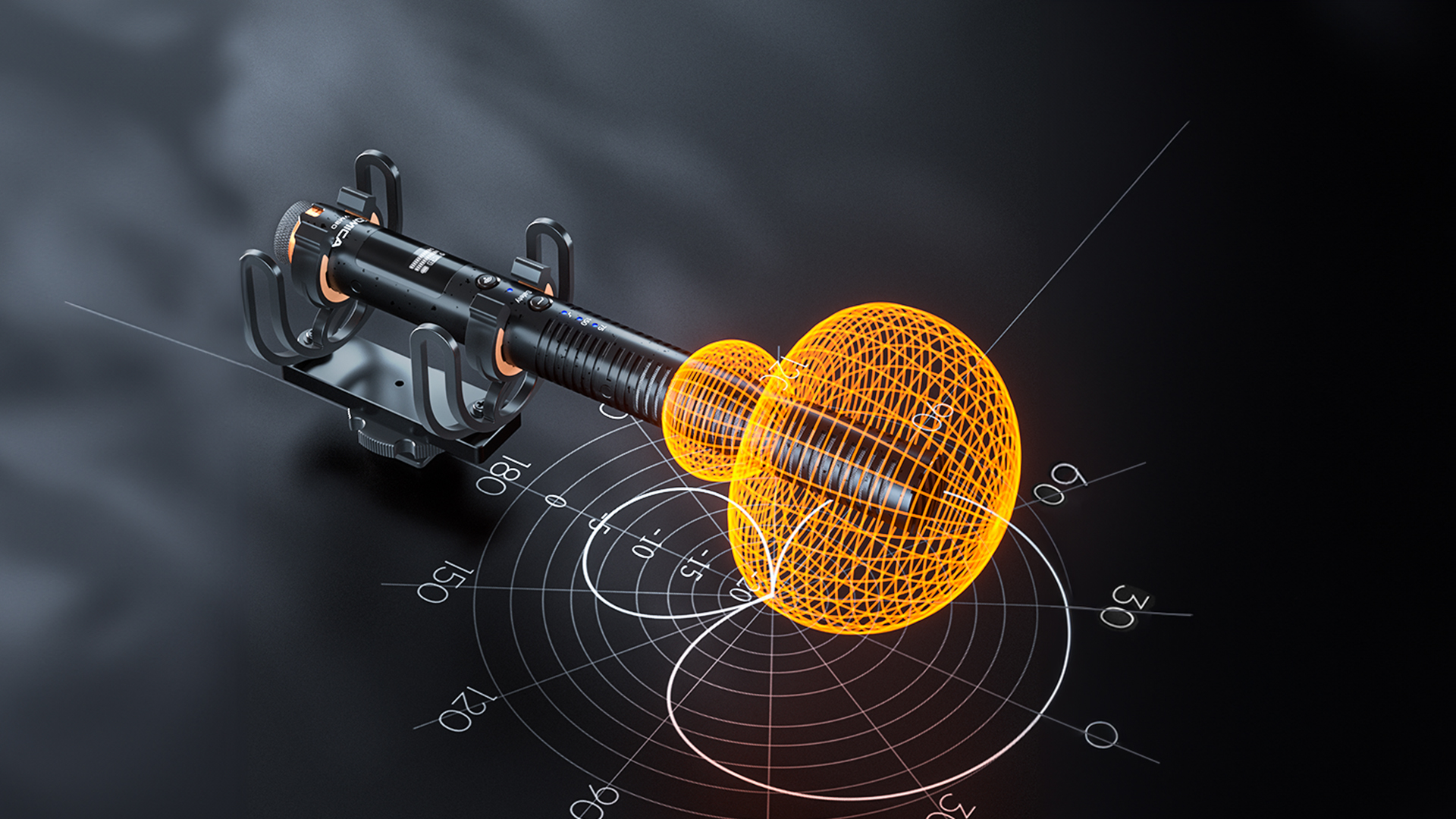

48kHz/24bit Super Cardioid Recording, Broadcasting-level Sound Quality

48kHz/24bit high sampling rate and bit depth achieve high-fidelity sound quality; super cardioid pattern can accurately pick up sound sources, reduce ambient noise, and make the overall sound clean and delicate.

48kHz/24bit Super Cardioid Recording, Broadcasting-level Sound Quality

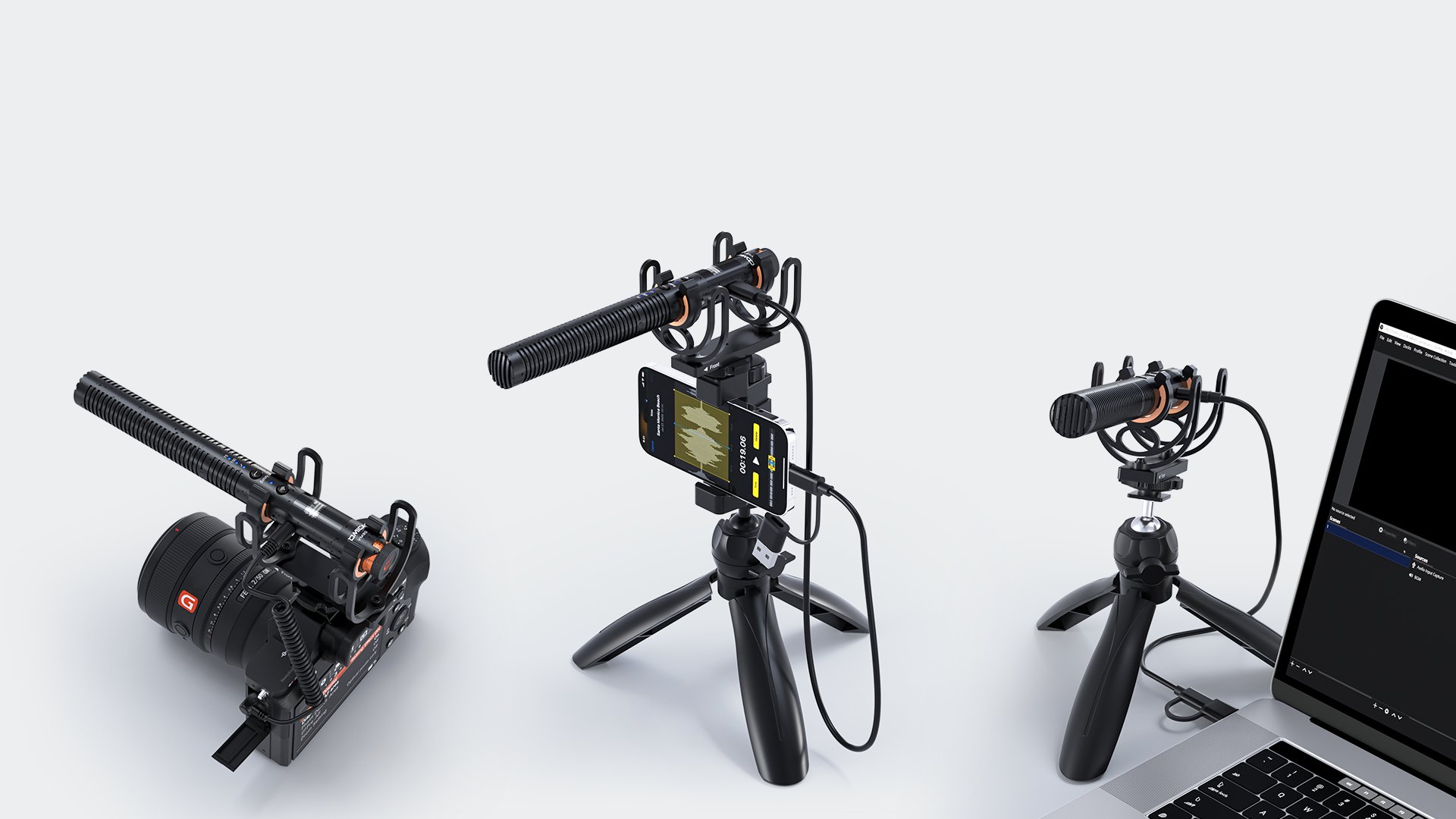

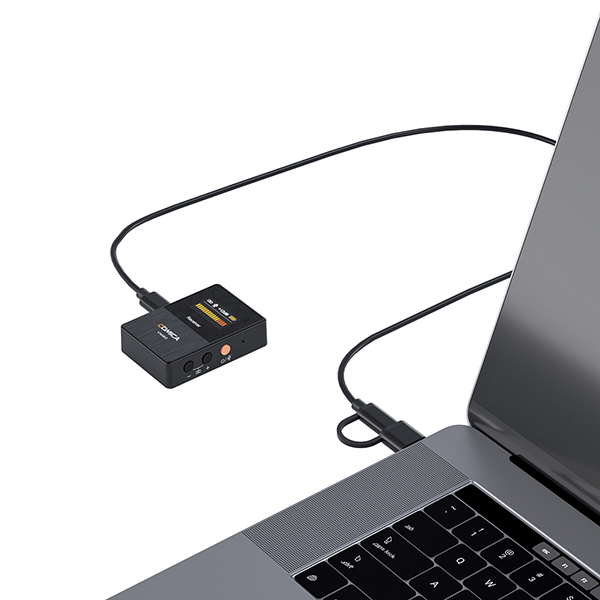

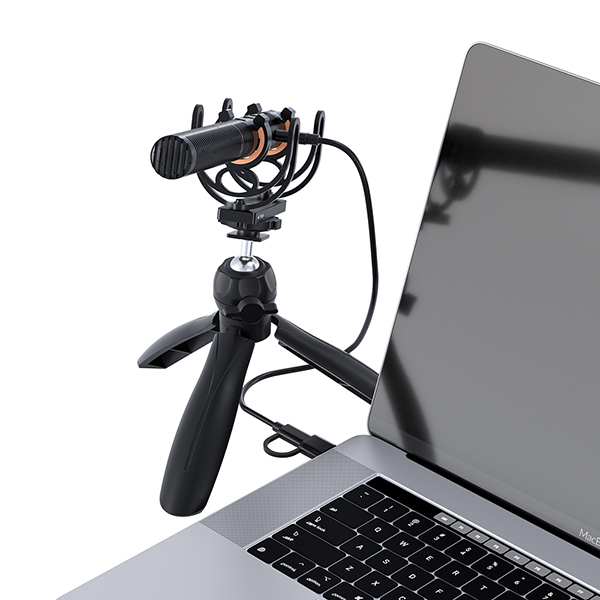

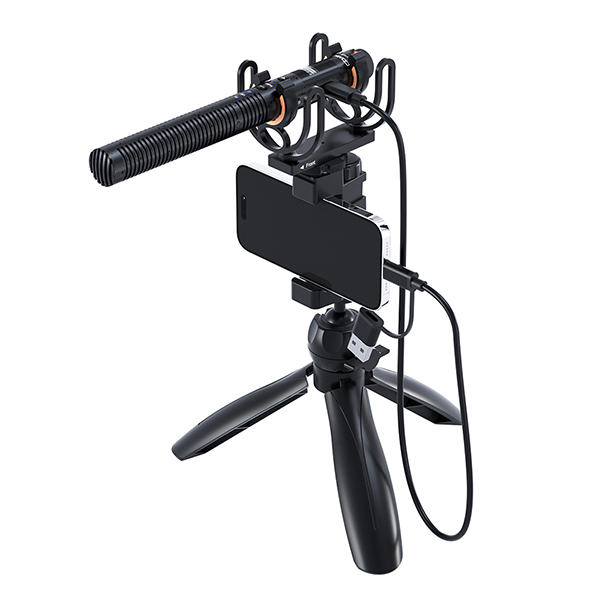

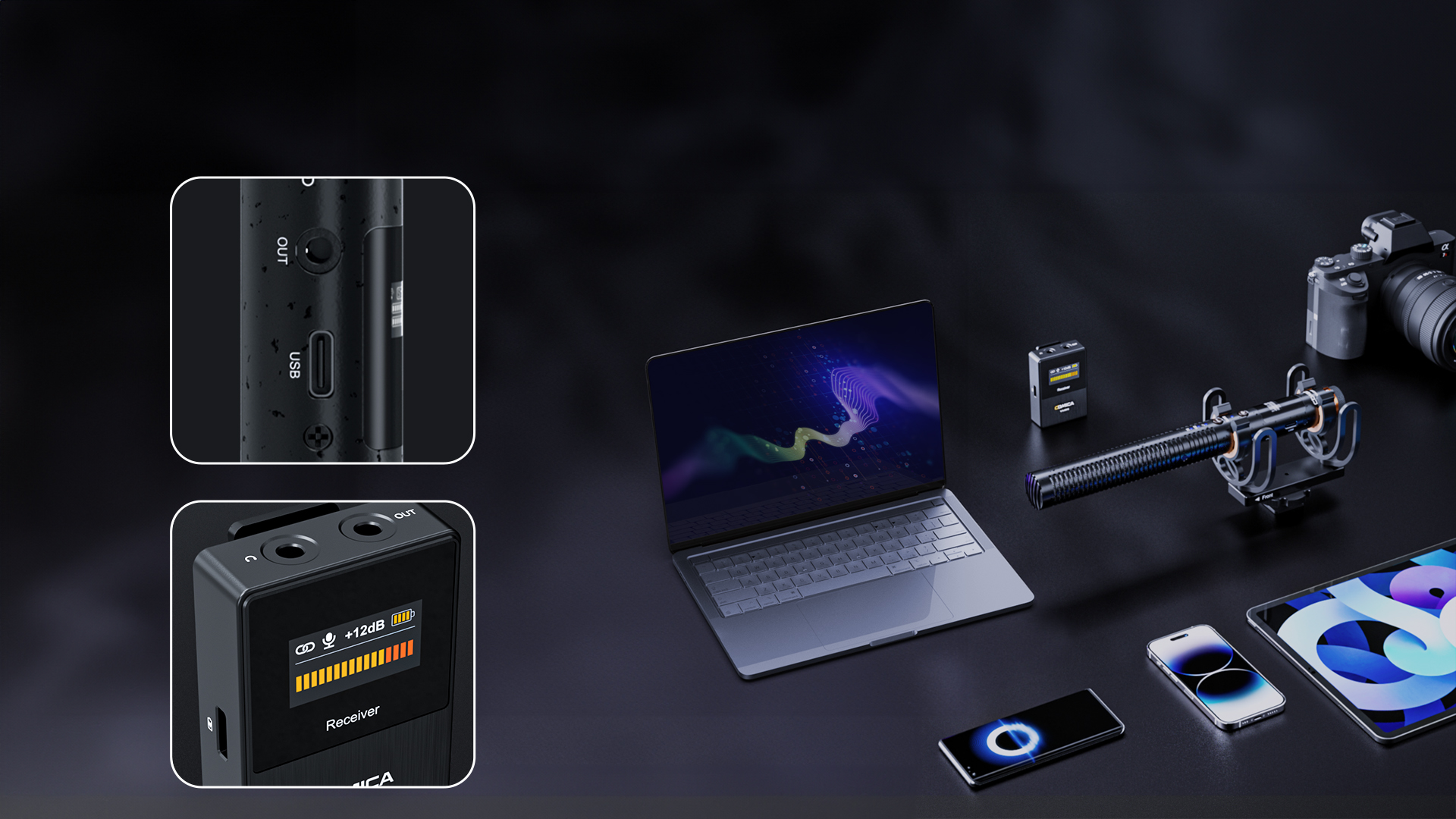

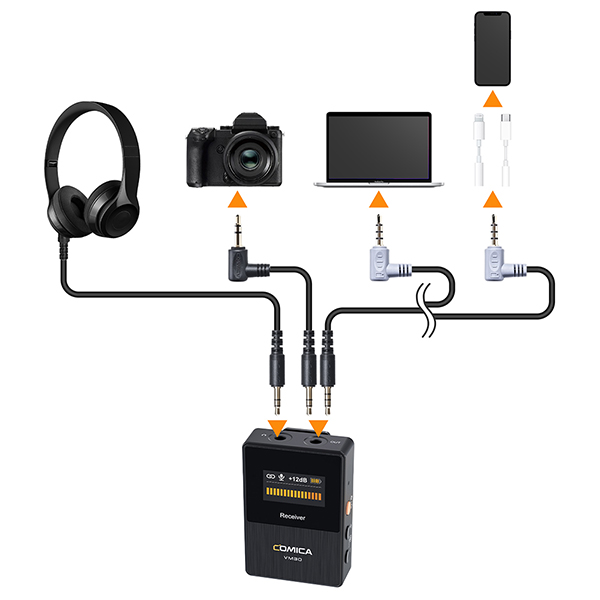

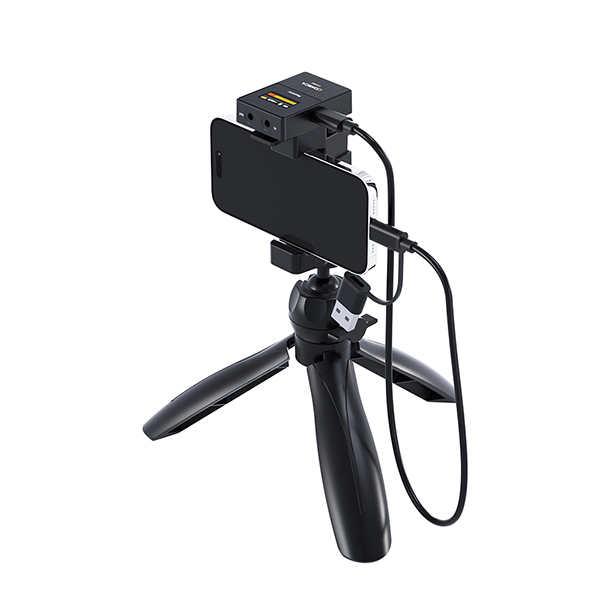

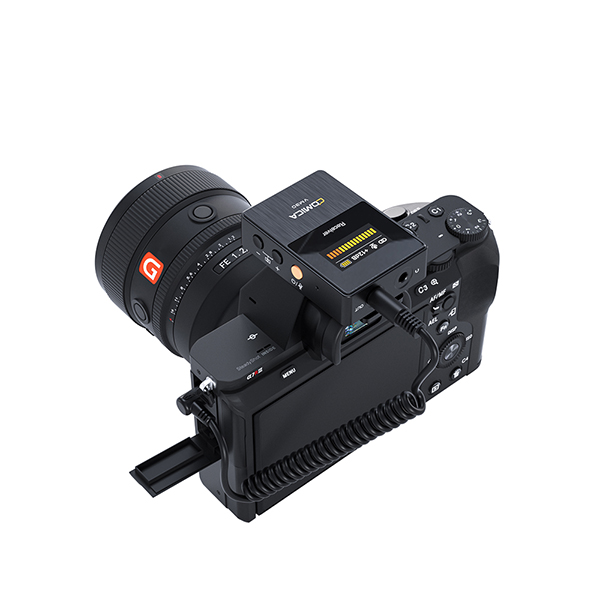

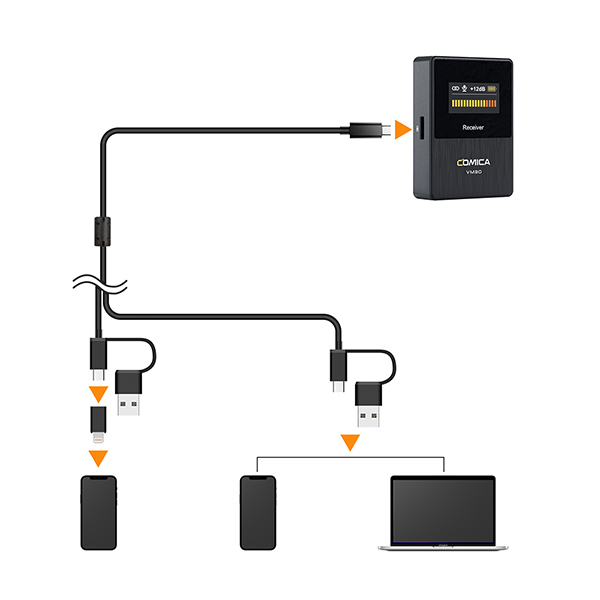

Digital/Analog Output, Universal for Camera, Smartphone, Computer

Both the shotgun microphone and receiver support USB digital output and 3.5mm analog output. Whether in wired mode or wireless mode, they are widely applicable to mobile phones, cameras, computers, and other devices.

Digital/Analog Output, Universal for Camera, Smartphone, Computer

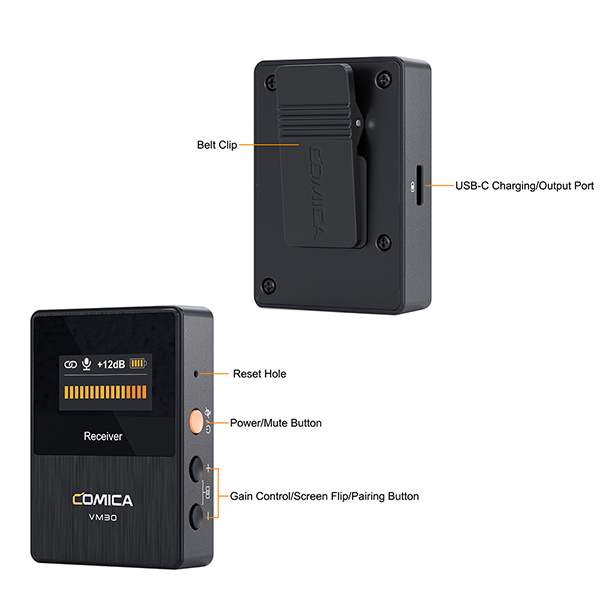

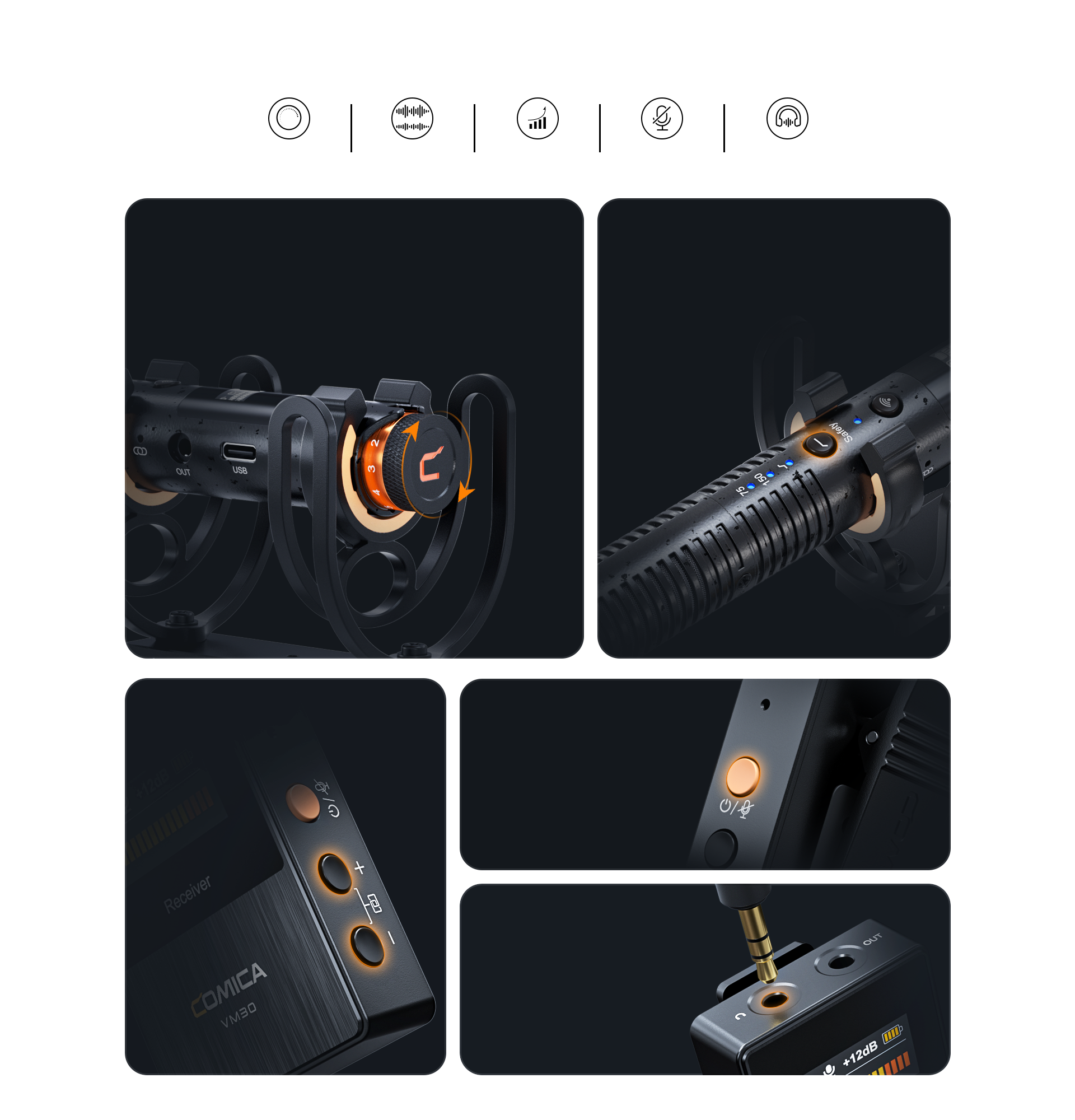

Support Gain Control, Safety Mode, Real-time Monitor and Muting

Support Gain Control, Safety Mode, Real-time Monitor and Muting

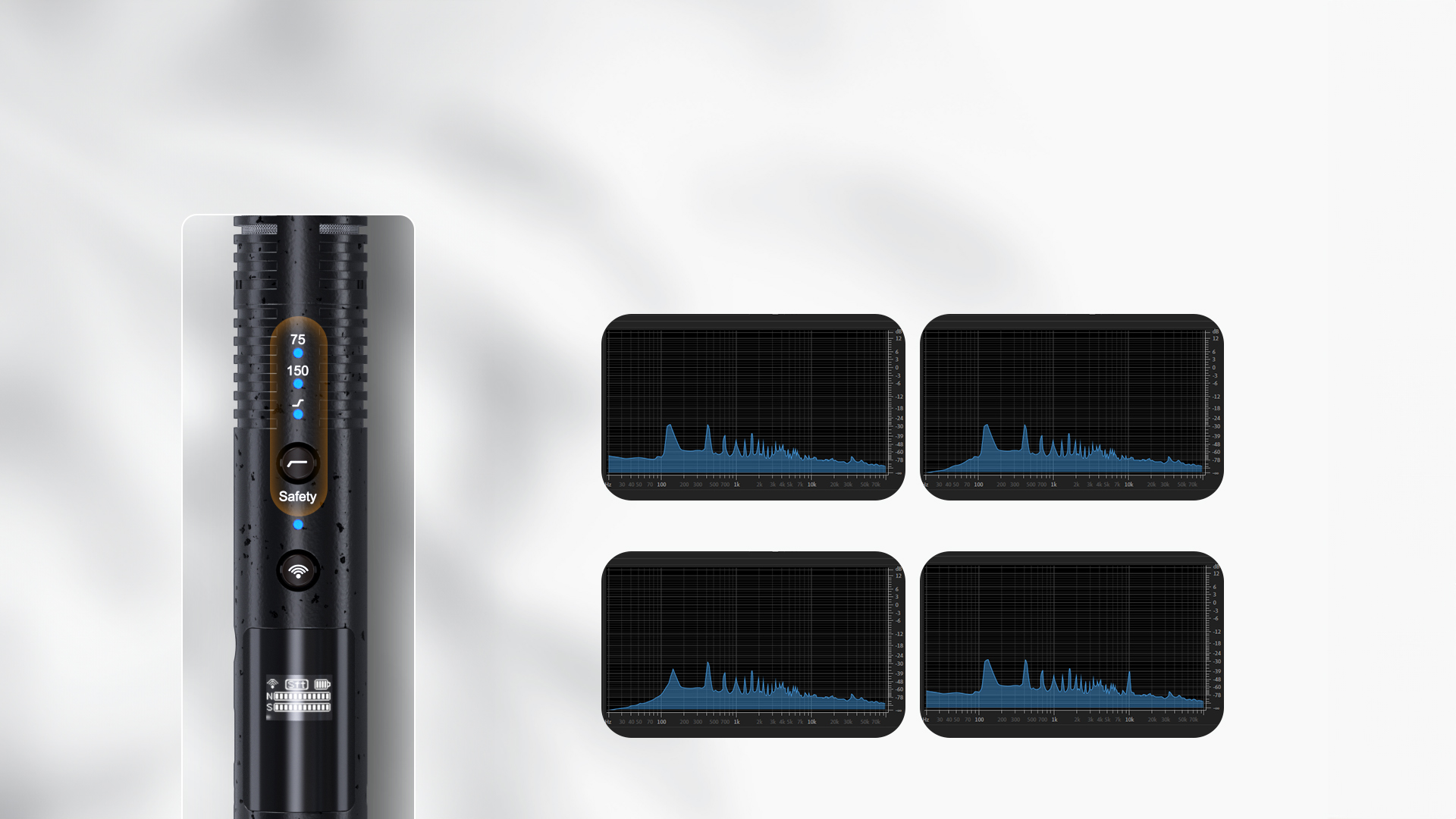

75/150Hz Two Low-cut Filter Modes, High-frequency Boost

VM30 supports 75/150Hz low-cut and high-frequency boost. Low-cut can effectively filter out low-frequency noise, making the sound quality purer. High-frequency boost can enhance sound detail and clarity.

75/150Hz Two Low-cut Filter Modes, High-frequency Boost

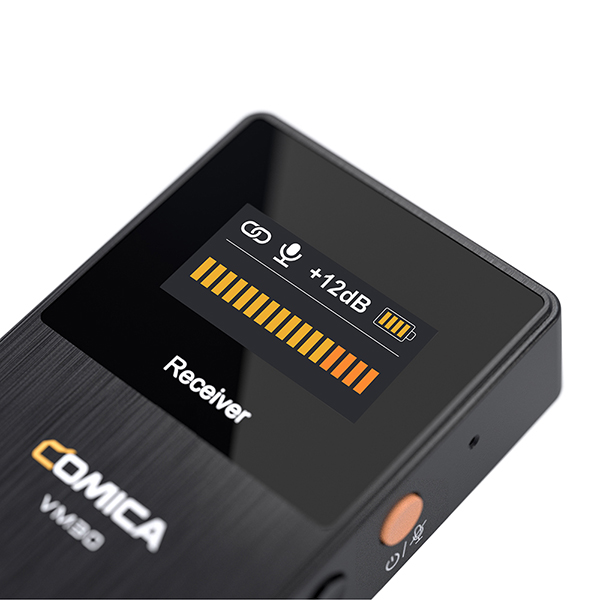

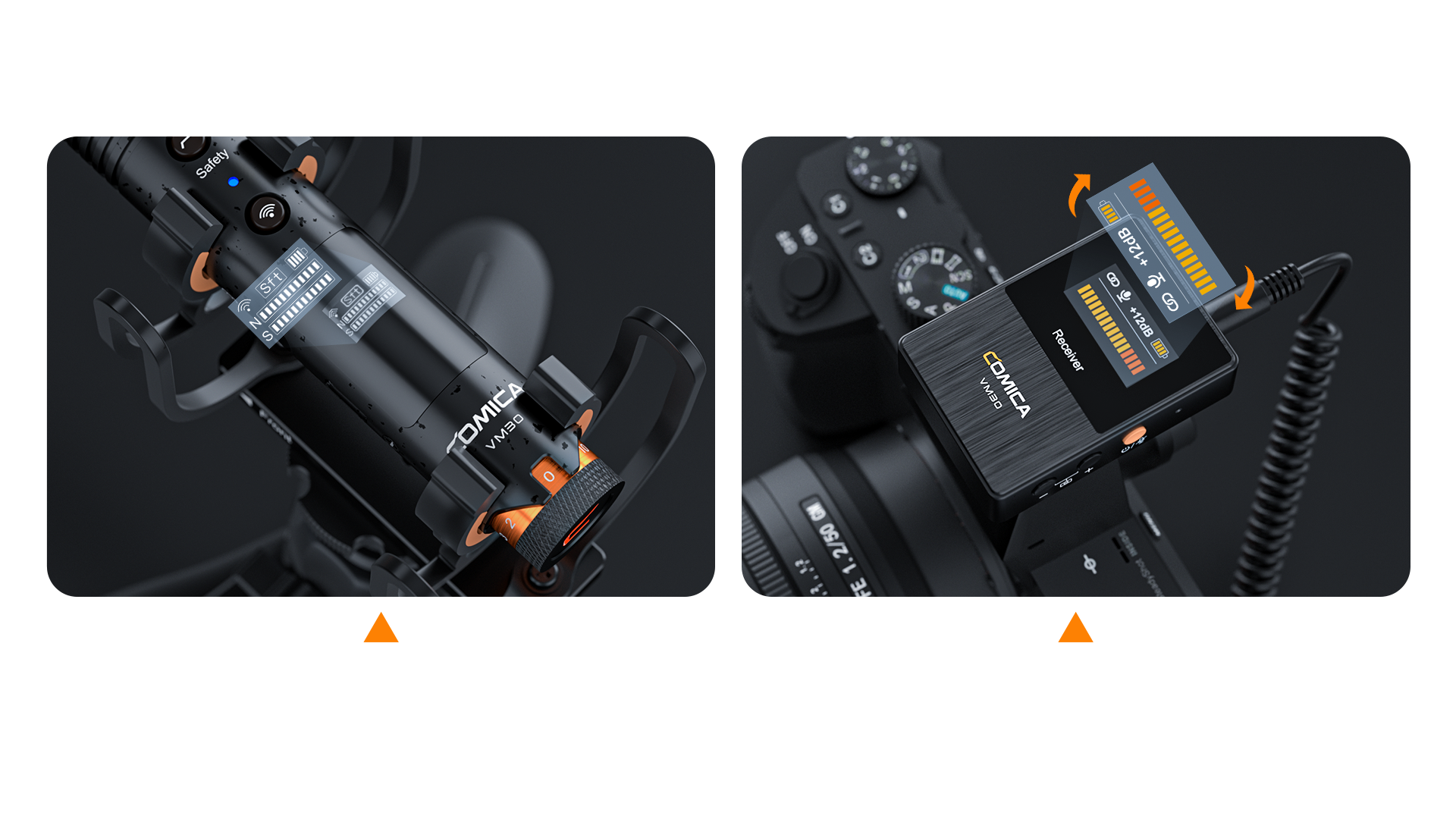

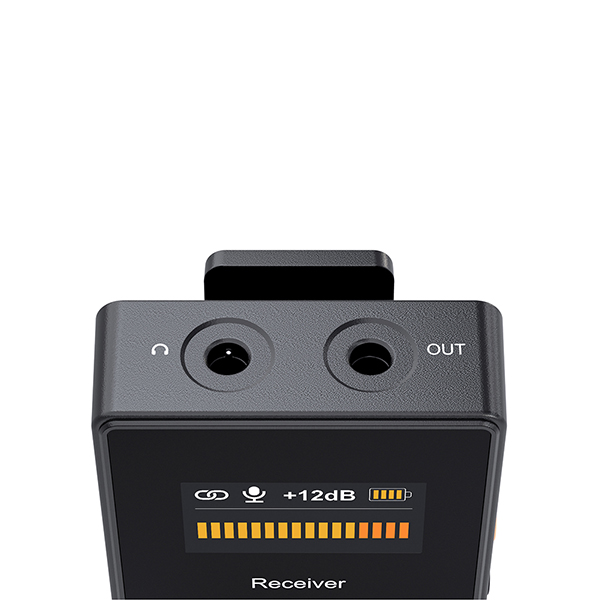

OLED Screen for Monitoring and Visual Operation

OLED Screen for Monitoring and Visual Operation

Ultra-long Battery Life Support Charging While Using

Built-in Rechargeable Lithium Battery

Ultra-long Battery Life Support Charging While Using

Low Latency<20ms, Wireless Working Range Up to 100m

Less than 20ms latency makes the audio transmission high-efficient and synchronized with the video. The wireless working range is up to 100m in an open area and up to 20m even in complex environments, which is stable and smooth without dropouts.

Low Latency<20ms, Wireless Working Range Up to 100m

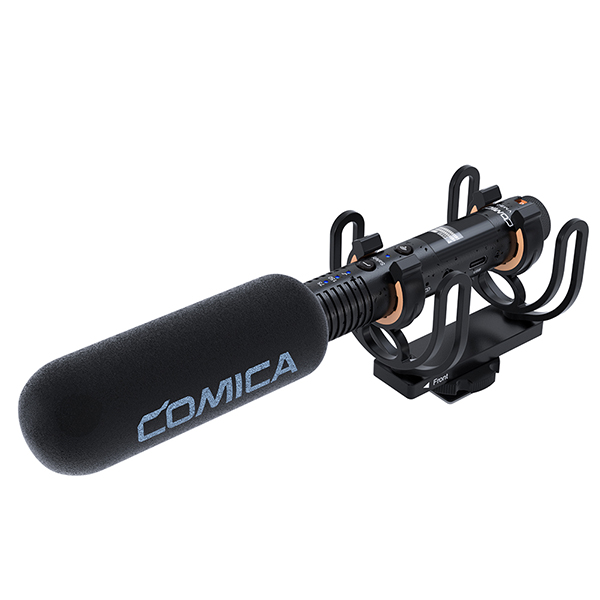

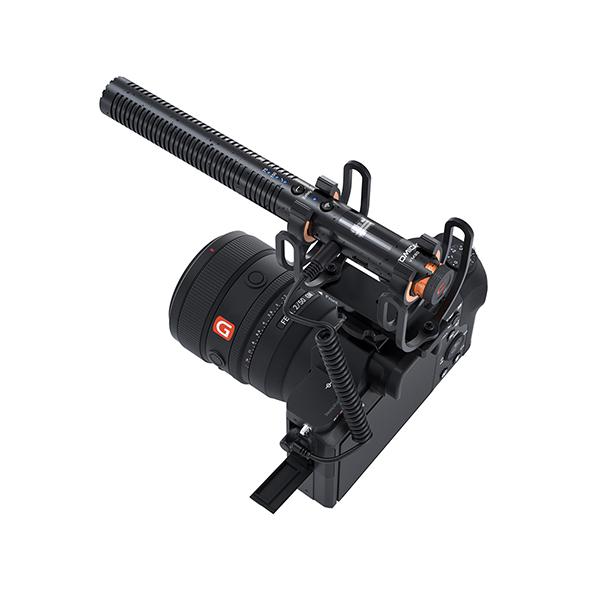

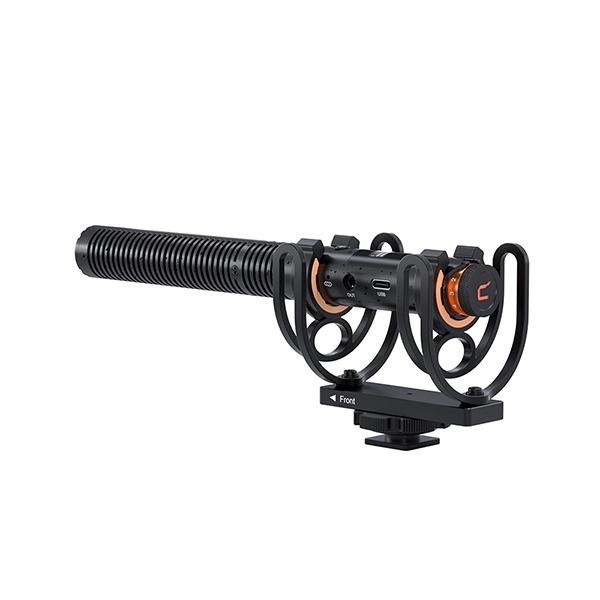

Equipped with Shock Mount and High-density Wind muff

The equipped high-density windscreen and wind muff effectively filter various noises and ensure clean reception even when shooting outdoors; the matching shock-absorbing bracket can reduce external vibration interference and improve recording quality.

Equipped with Shock Mount and High-density Wind muff

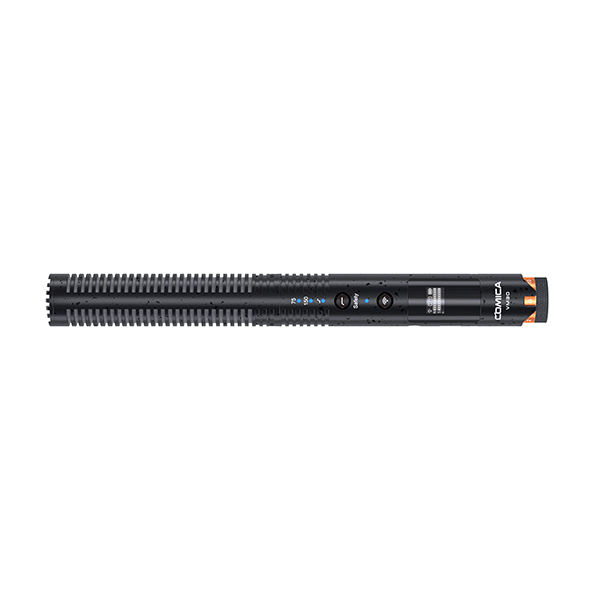

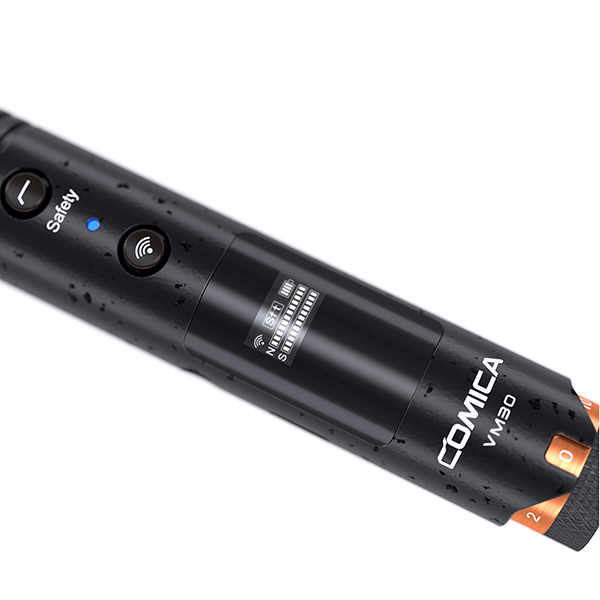

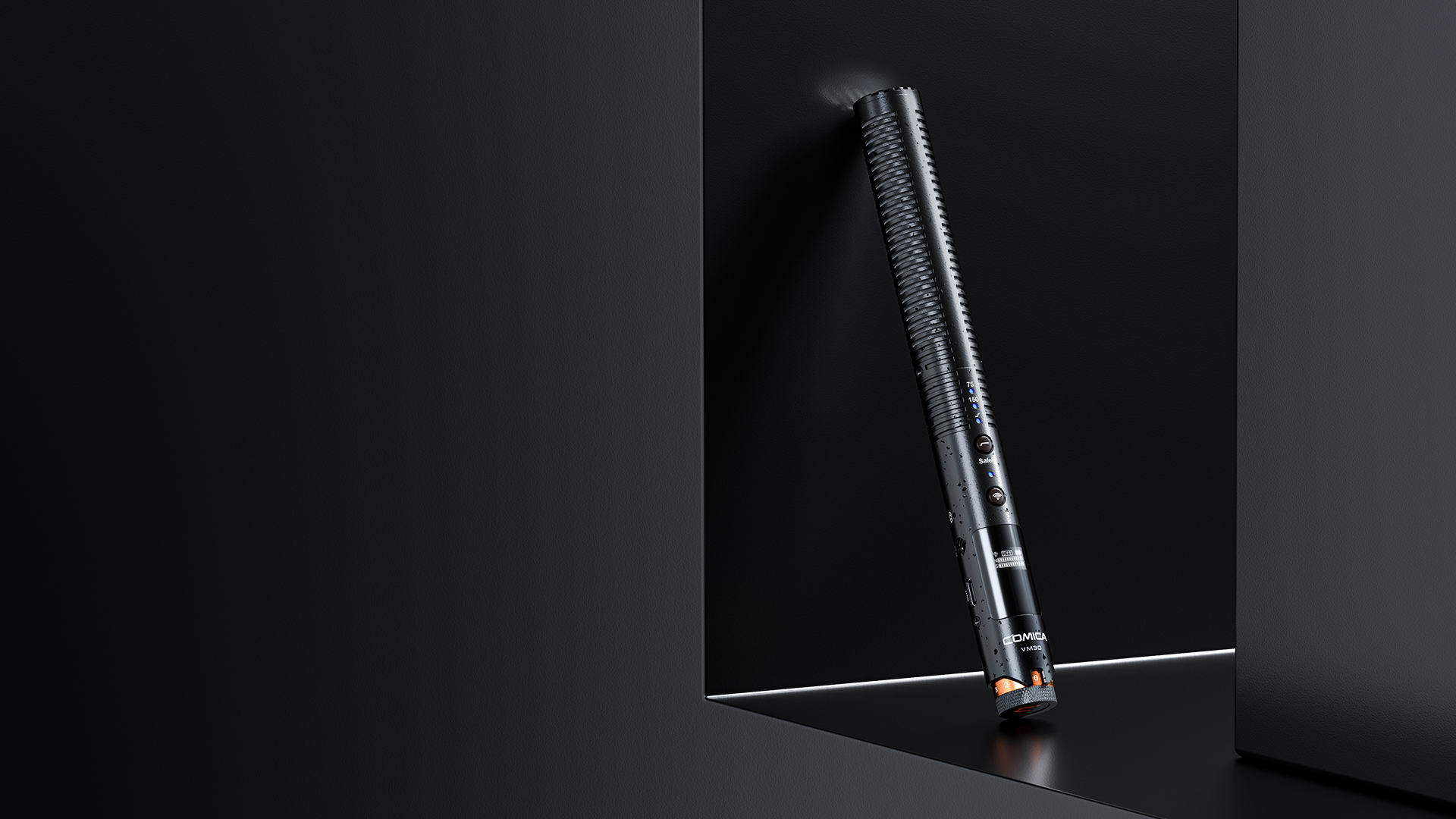

Full Metal Material, Super-shielding, Stable and Durable

The full metal body of the shotgun mic can effectively shield external interference and make the audio clear and natural; metal material makes the appearance high-end, the grip comfortable, and the use durable.

Full Metal Material, Super-shielding, Stable and Durable


Wireless Band

2400~ 2483.5MHz

Transmitting Power

+10dBm

Receiving Sensitivity

-86dBm

Antenna

Transmitter:Ceramic Antenna

Receiver:PCB Antenna

Sound Delay

<20ms

Polar Pattern

Super Cardioid

Frequency Response

20Hz~20kHz

Low-cut

75Hz,150Hz

High-frequency Boost

10kHz

Output Impedance

50Ω

Sensitivity

-38dB ~ -18dB re 1V/Pa(12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz

S/N

75dB SPL(A-weighted,as per IEC651)

Equivalent Noise

19dB SPL(A-weighted,as per IEC651)

Maximum SPL

130dB SPL(@ 1% THD)

Dynamic Range

111dB SPL(A-weighted,as per IEC651)

Analog Output

3.5mm TRRS,TRS

Digital Output

USB-C 48kHz 24bit

Battery

Transmitter:Li-polymer 3.7V 350mAh

Receiver:Li-polymer 3.7V 330mAh

Battery Life

Wired Mode: 50 Hours for 3.5mm Devices; 8 Hours for XLR Devices

Wireless Mode: 7 Hours

Dimensions

Transmitter:Φ22mm x L210mm

Receiver:39 x 22 x 55mm

Net Weight

Transmitter:93g

Receiver:29g

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃
