ADCaster C1-K1

Streaming/Podcast Audio Kit

Watch Video Buy Now
ADCaster C1-K1 ADCaster C1-K1

ADCaster C1-K1

Overview Specifications Download

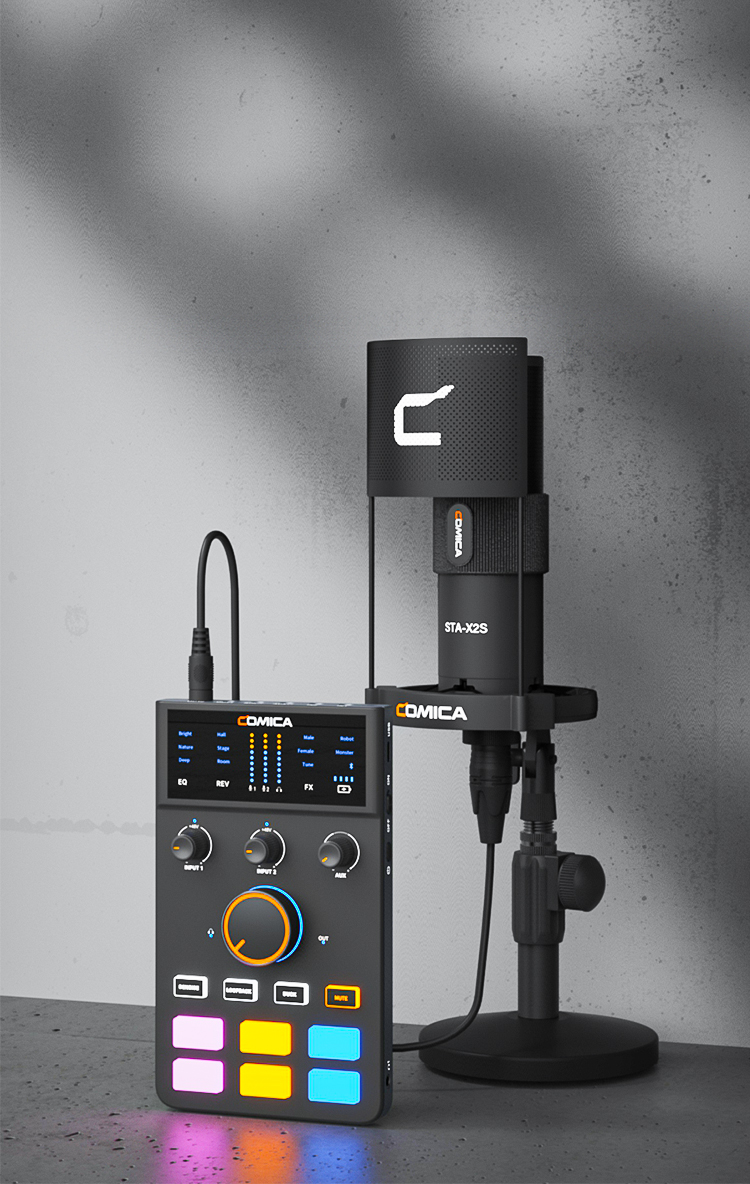

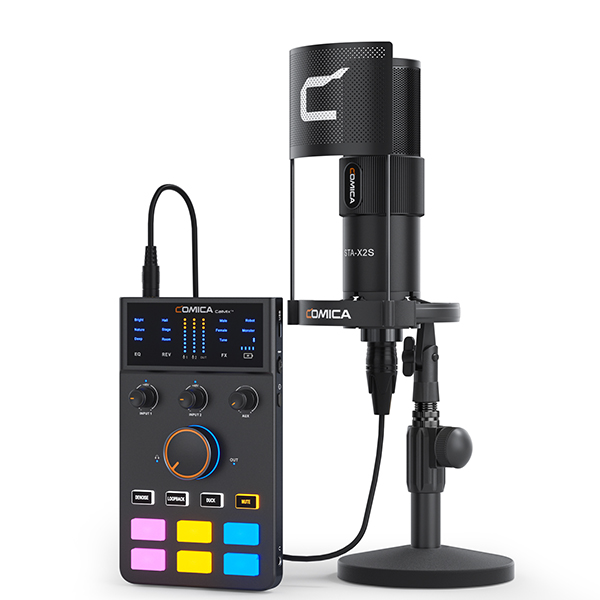

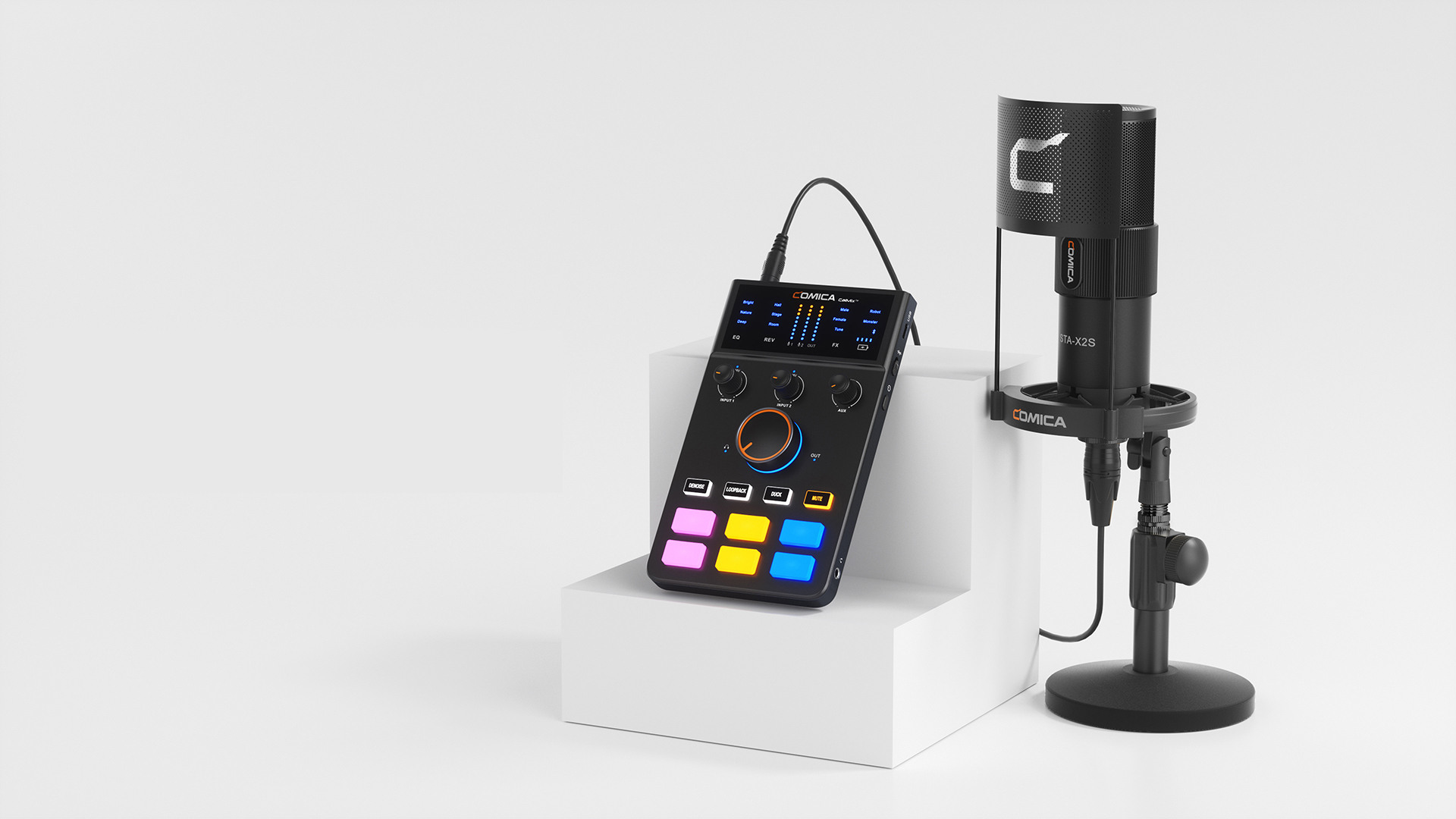

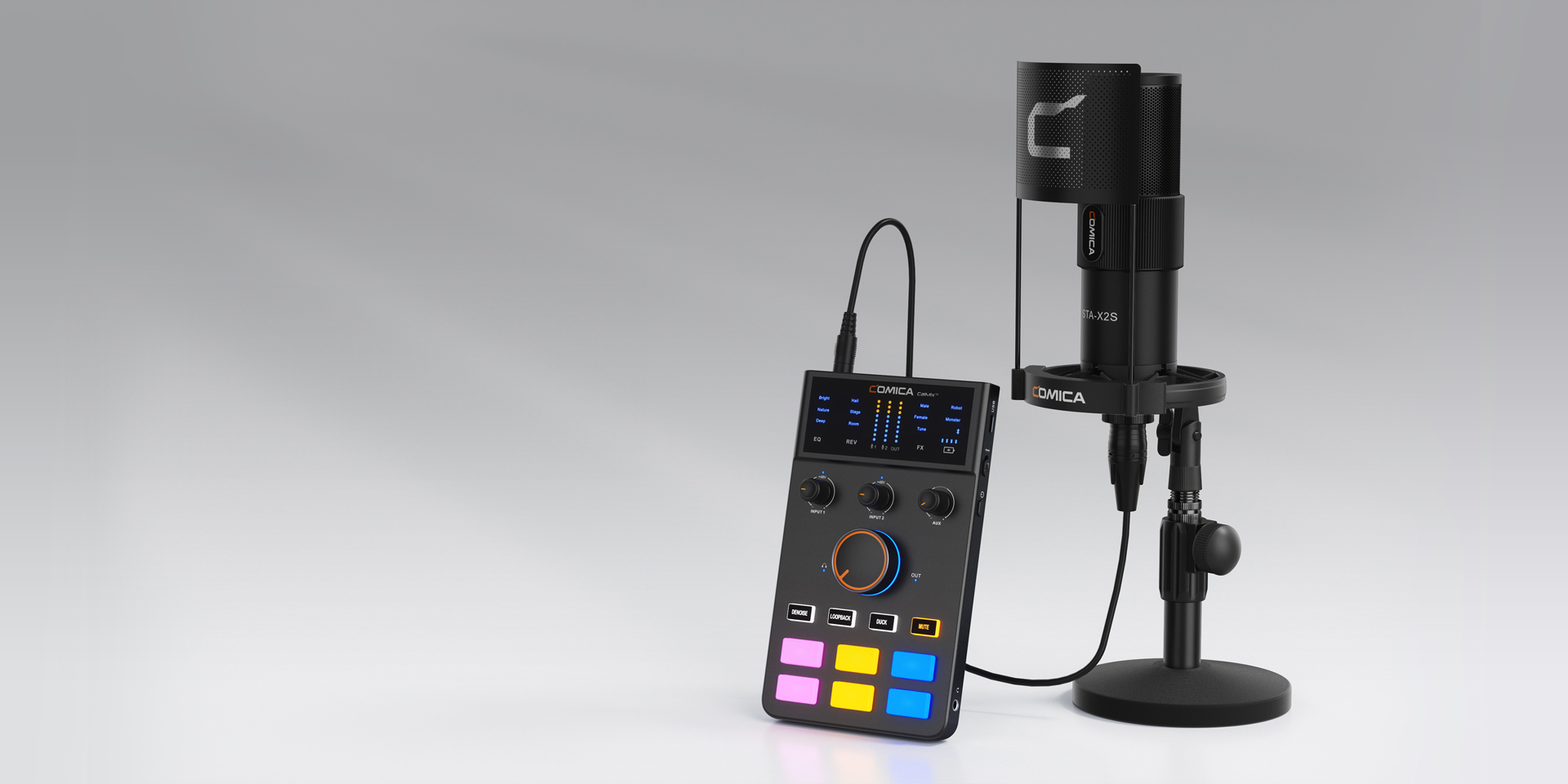

ADCaster C1K1

Streaming/Podcast Audio Kit

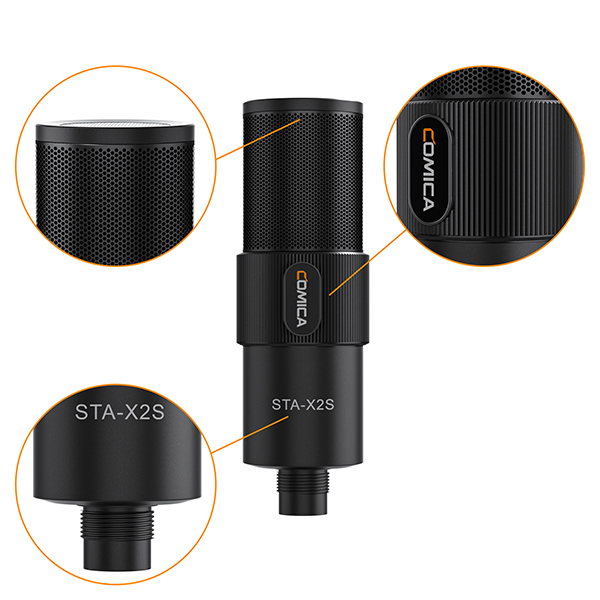

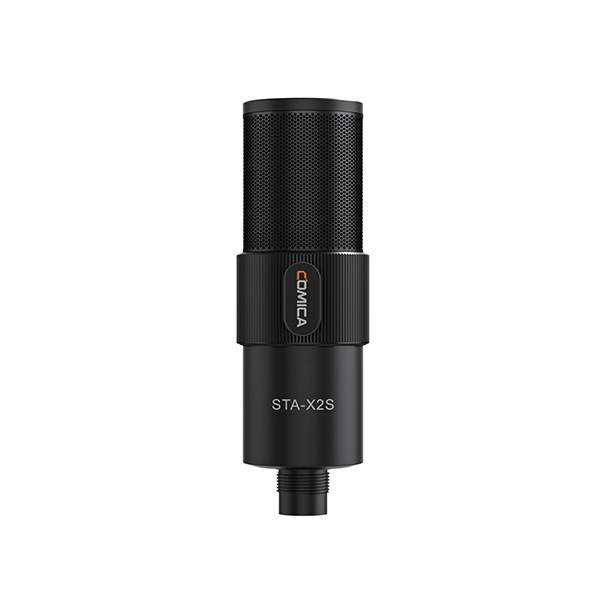

48kHz/24bit Sound Card, 25mm Cardioid Condenser Mic

ADCaster C1 sound card has 48kHz/24bit high sampling rate and bit depth,super low self-noise. The multipurpose sound card features diverse interfaces--48V XLR input, 3.5mm input, USB OTG interfaces;25mm cardioid condenser mic with excellent frequency response, it can minimize unwanted environmental noise and capture clearer sound, achieving HiFi sound quality.

48kHz/24bit Sound Card, 25mm Cardioid Condenser Mic

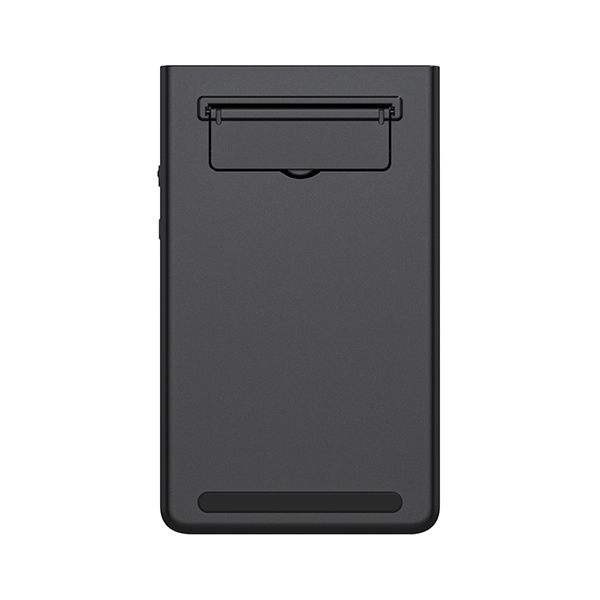

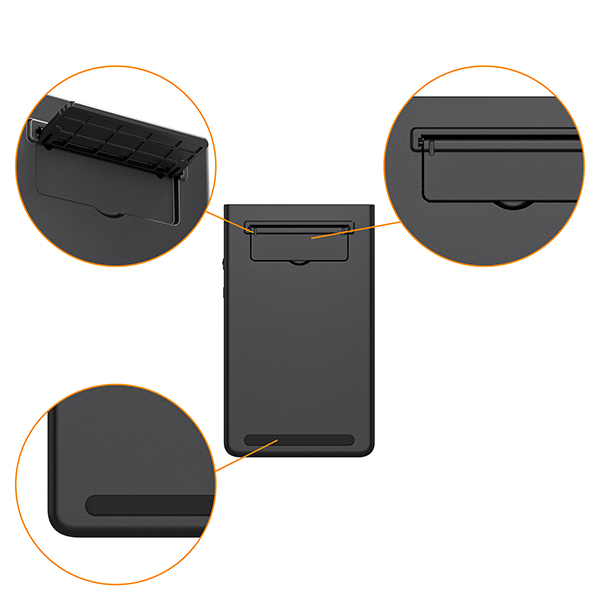

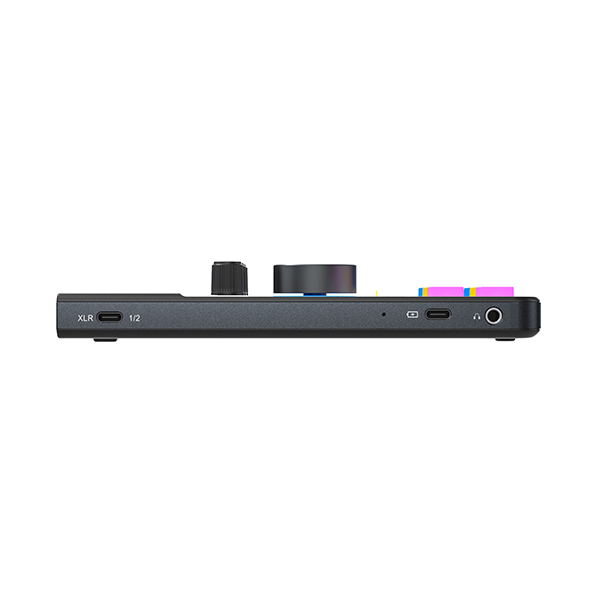

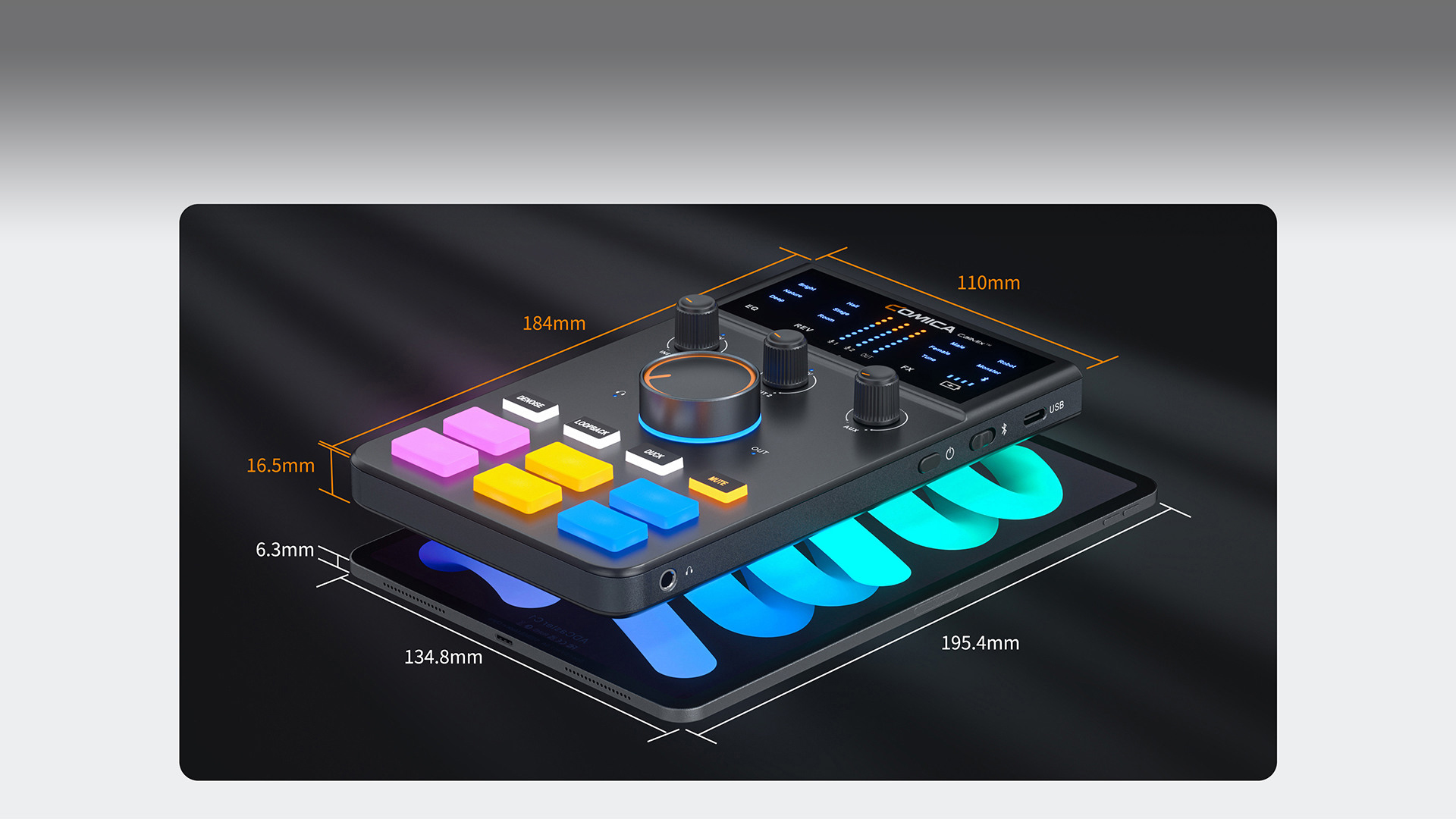

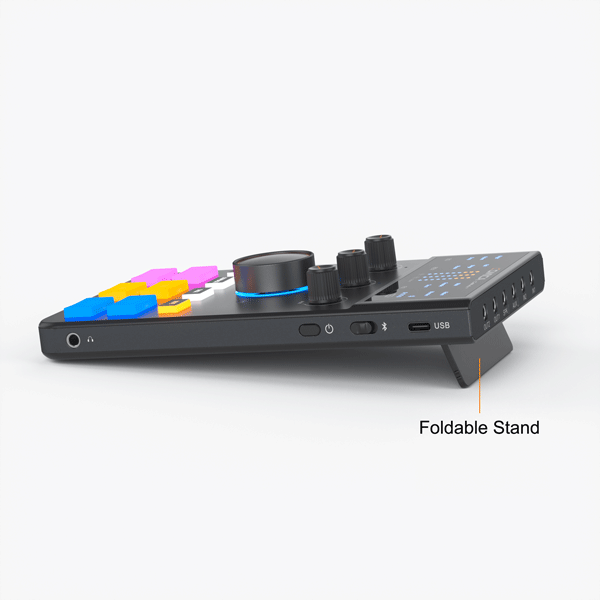

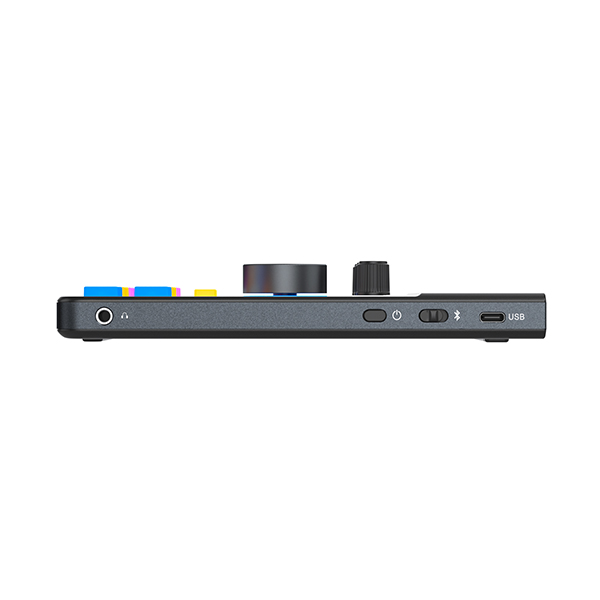

Thin and Lightweight, Mini and Portable

The ADCaster C1 is incredibly thin--just 16.5mm, 303g ultra-light weight, and as small as an iPad mini. You can easily take it for indoor and outdoor recording at anytime.

Thin and Lightweight, Mini and Portable

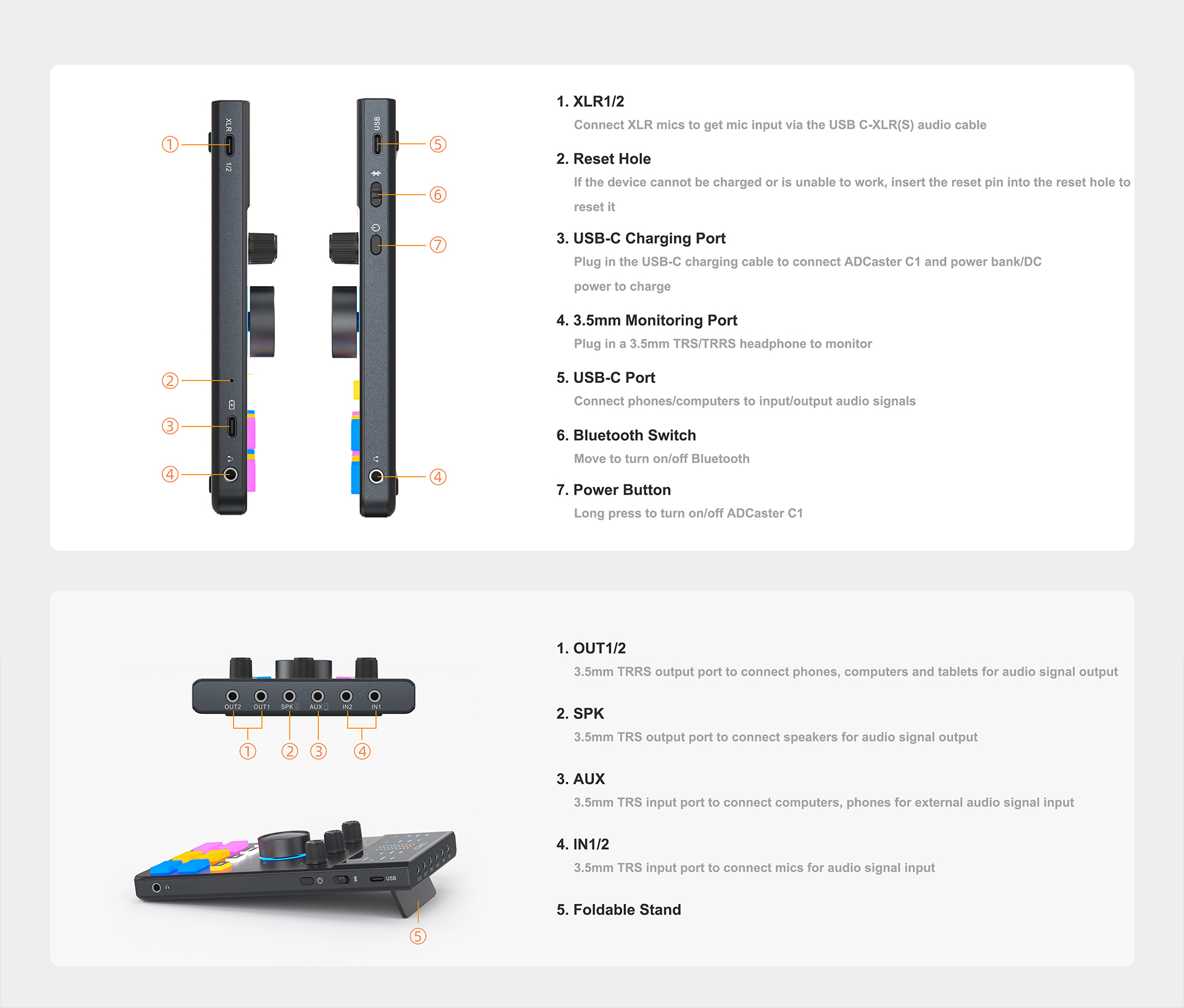

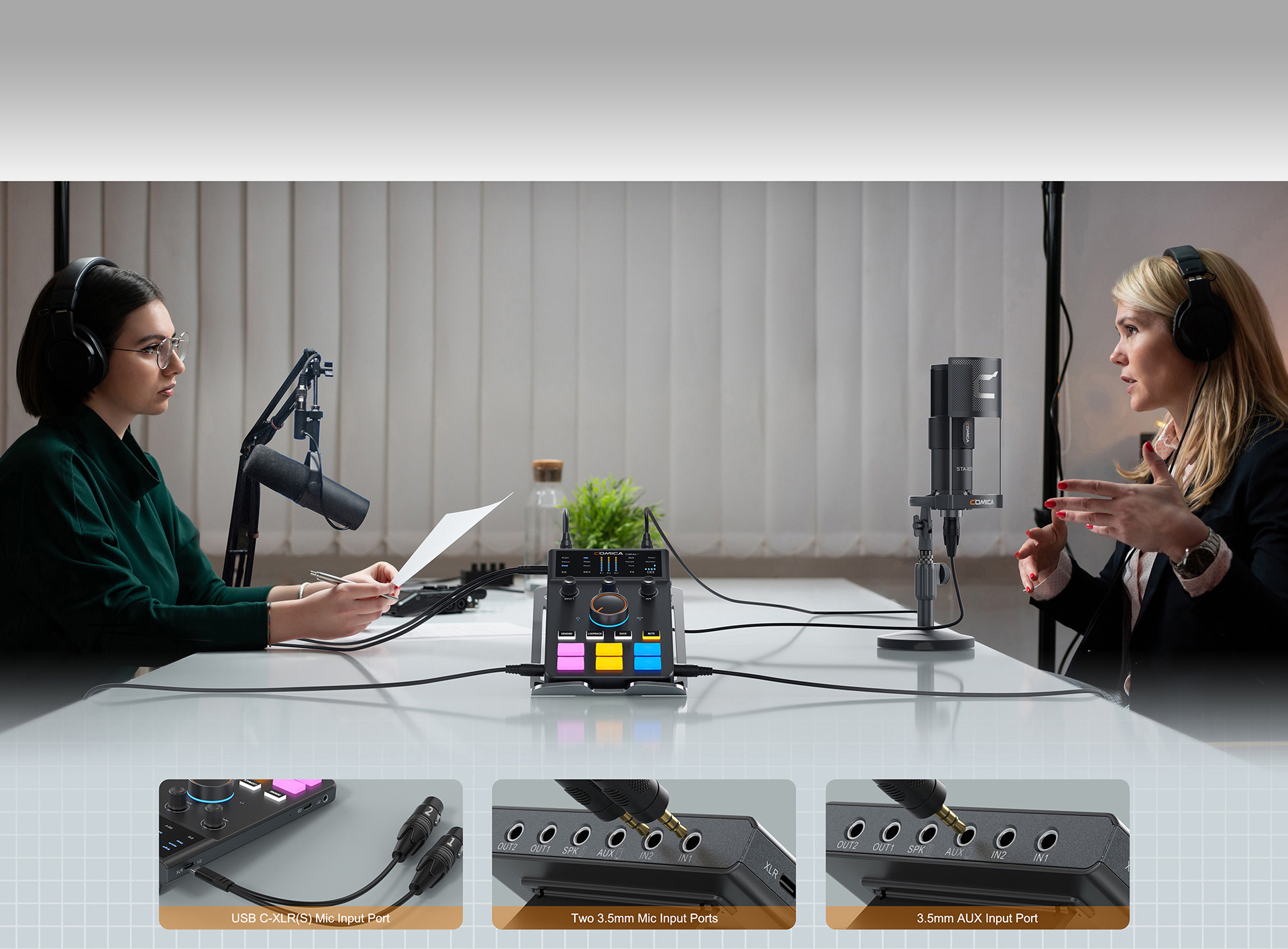

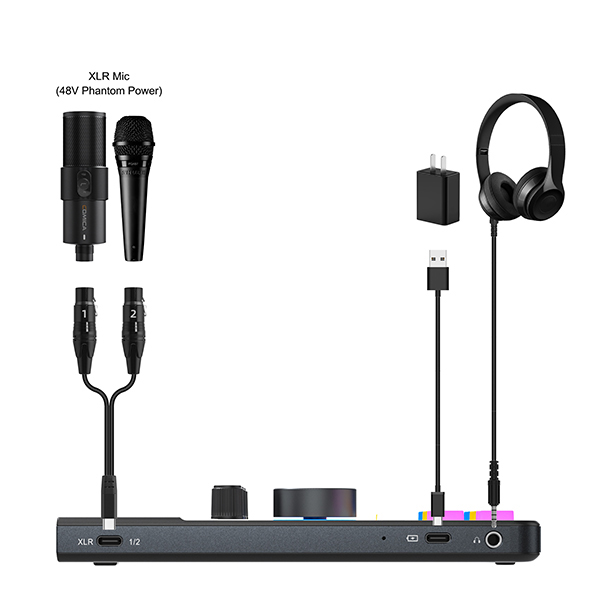

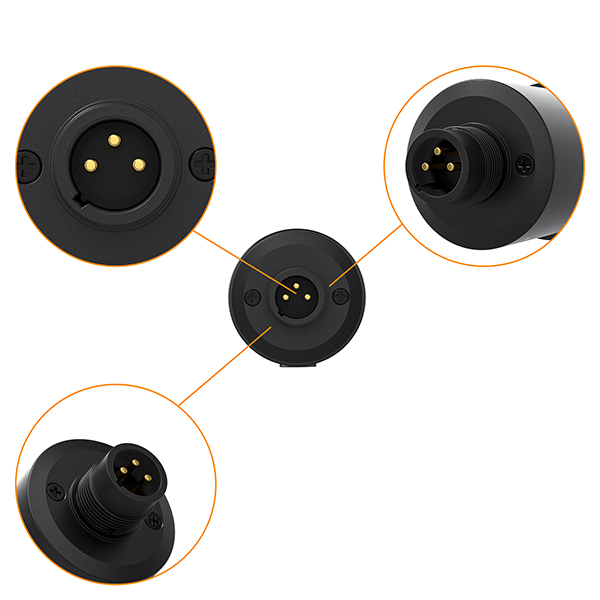

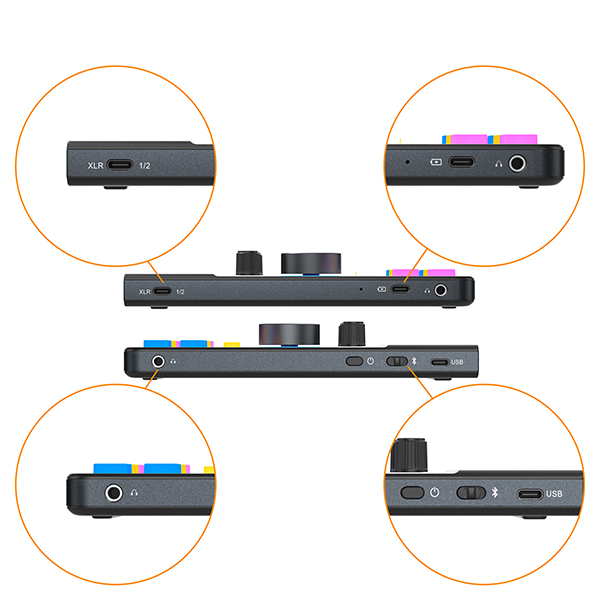

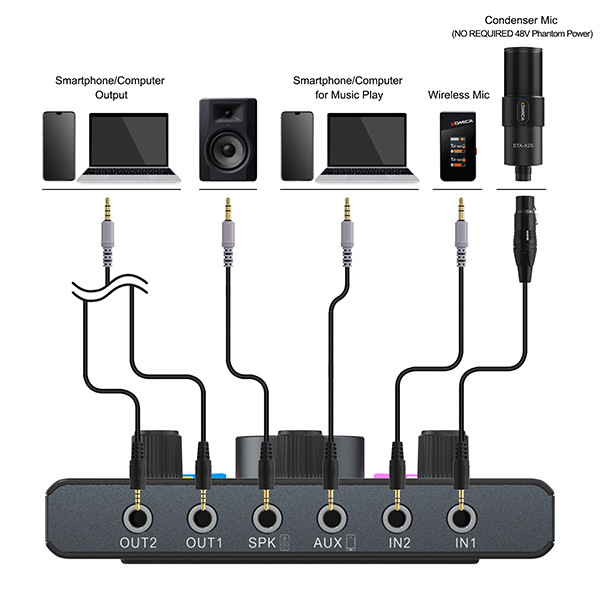

3.5 mm/XLR Multi Interfaces for 5V/48V Mic Input

Designed with external dual XLR and internal dual 3.5mm microphone input interfaces, the sound card is compatible with 99% of the XLR and 3.5mm microphones, and supports 4 microphones input at the same time, without trouble during multi-people recording.

3.5 mm/XLR Multi Interfaces for 5V/48V Mic Input

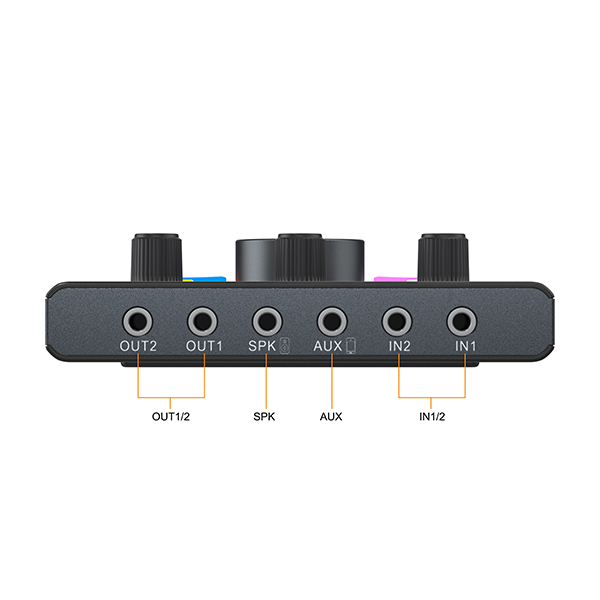

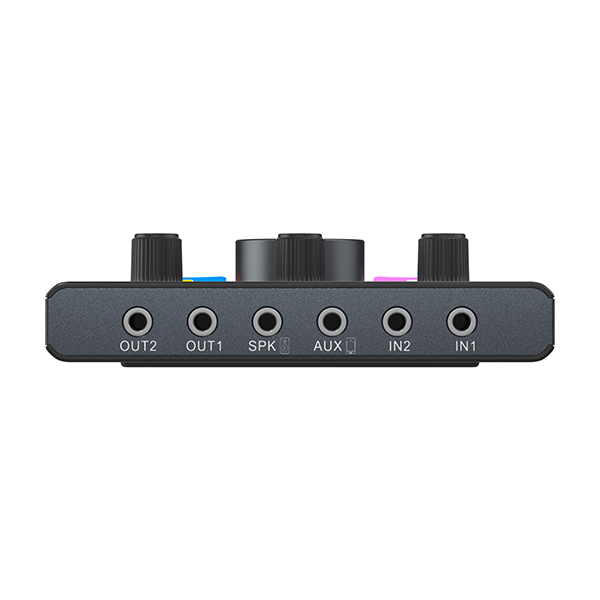

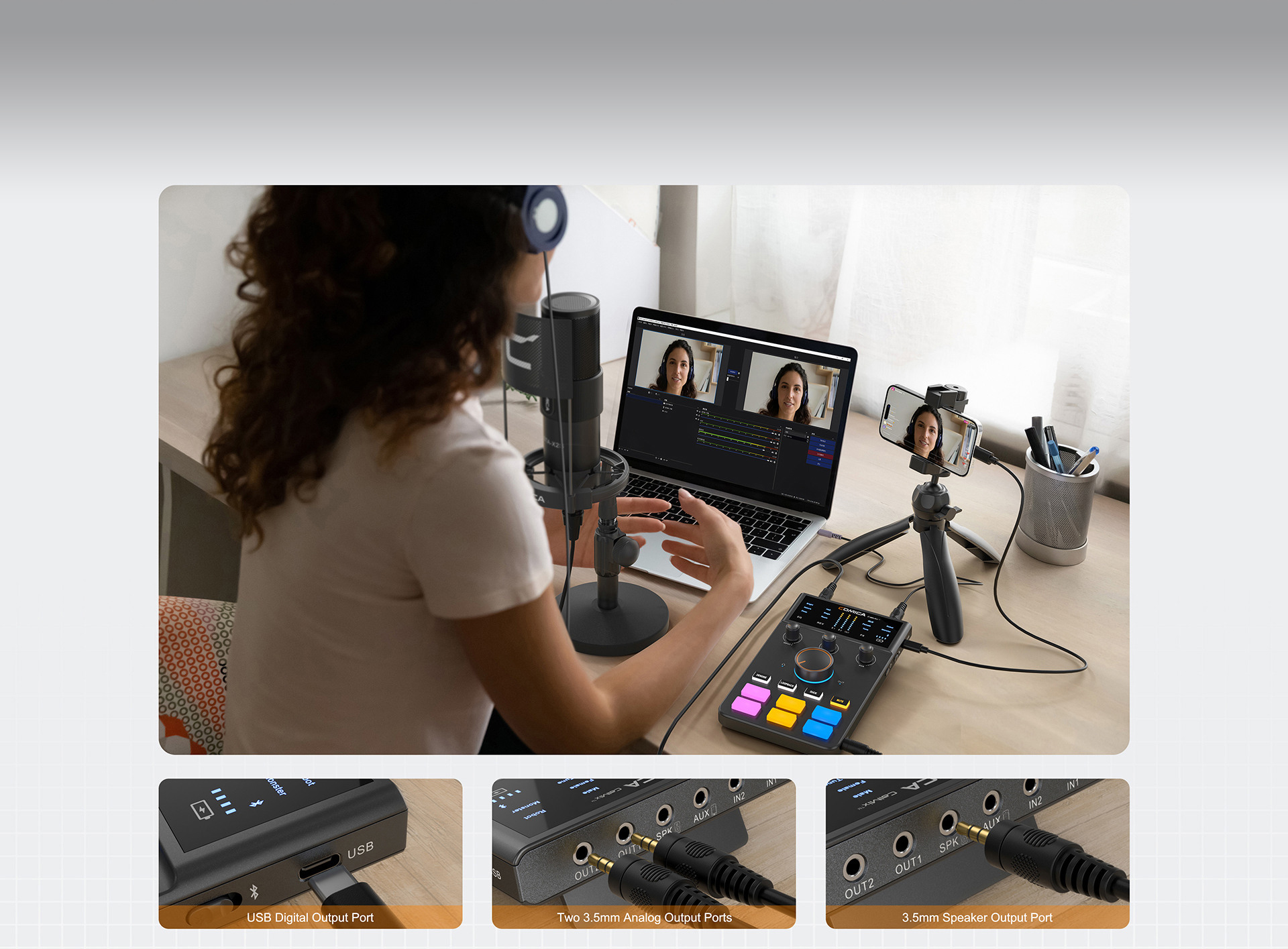

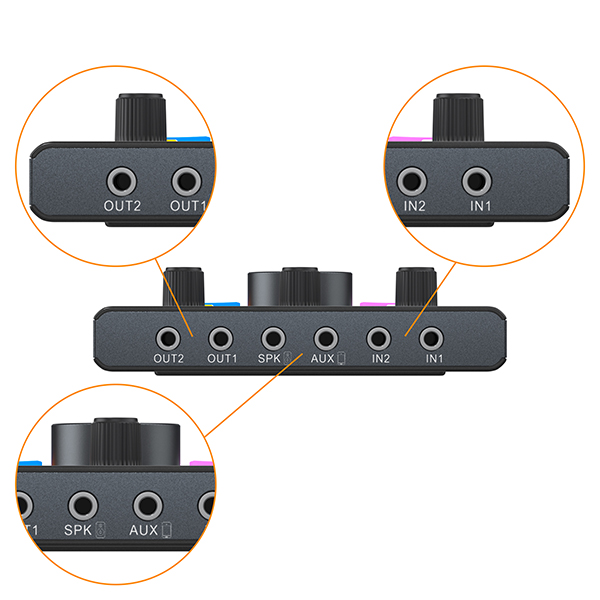

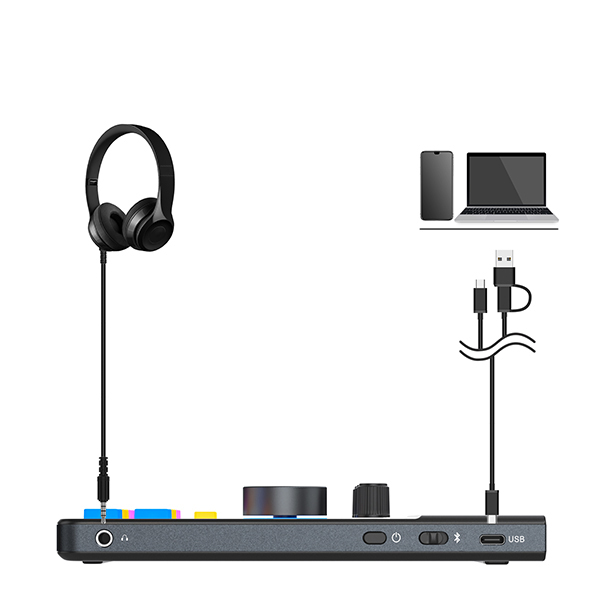

3.5 mm and USB-C Digital Output Interfaces for Live Streaming

It comes with one USB-C digital output interface and dual 3.5mm analog interfaces to support connection with multiple mobile phones and computers at the same time, achieving multi-platform synchronous live streaming.

3.5 mm and USB-C Digital Output Interfaces for Live Streaming

Revolutionary CalMixTM Denoise Algorithm, Two-stage Denoise Mode

Equipped with Comica’s revolutionary CalMixTM denoise algorithm, the C1 filters out environmental noise and gives studio-level audio quality; The two-stage denoise mode is also designed to support multiple noise-free recording scenes.

Revolutionary CalMixTM Denoise Algorithm, Two-stage Denoise Mode

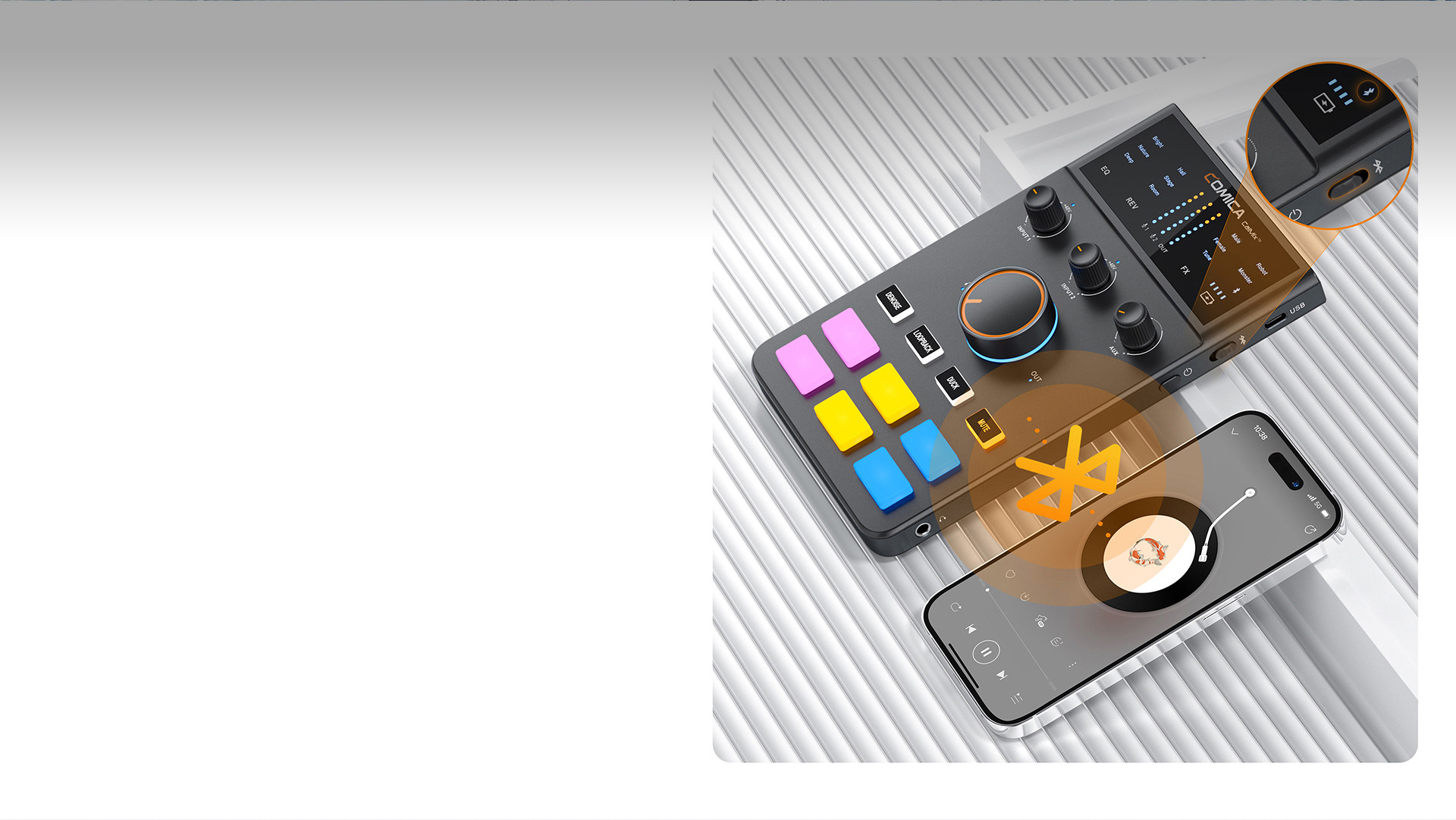

Internal Bluetooth 5.3 Chipset

High-quality Bluetooth 5.3 chip supports stable transmission, low latency; it can be directly connected to the mobile phone without wire trouble. Audio transmits smoothly without stuttering.

Internal Bluetooth 5.3 Chipset

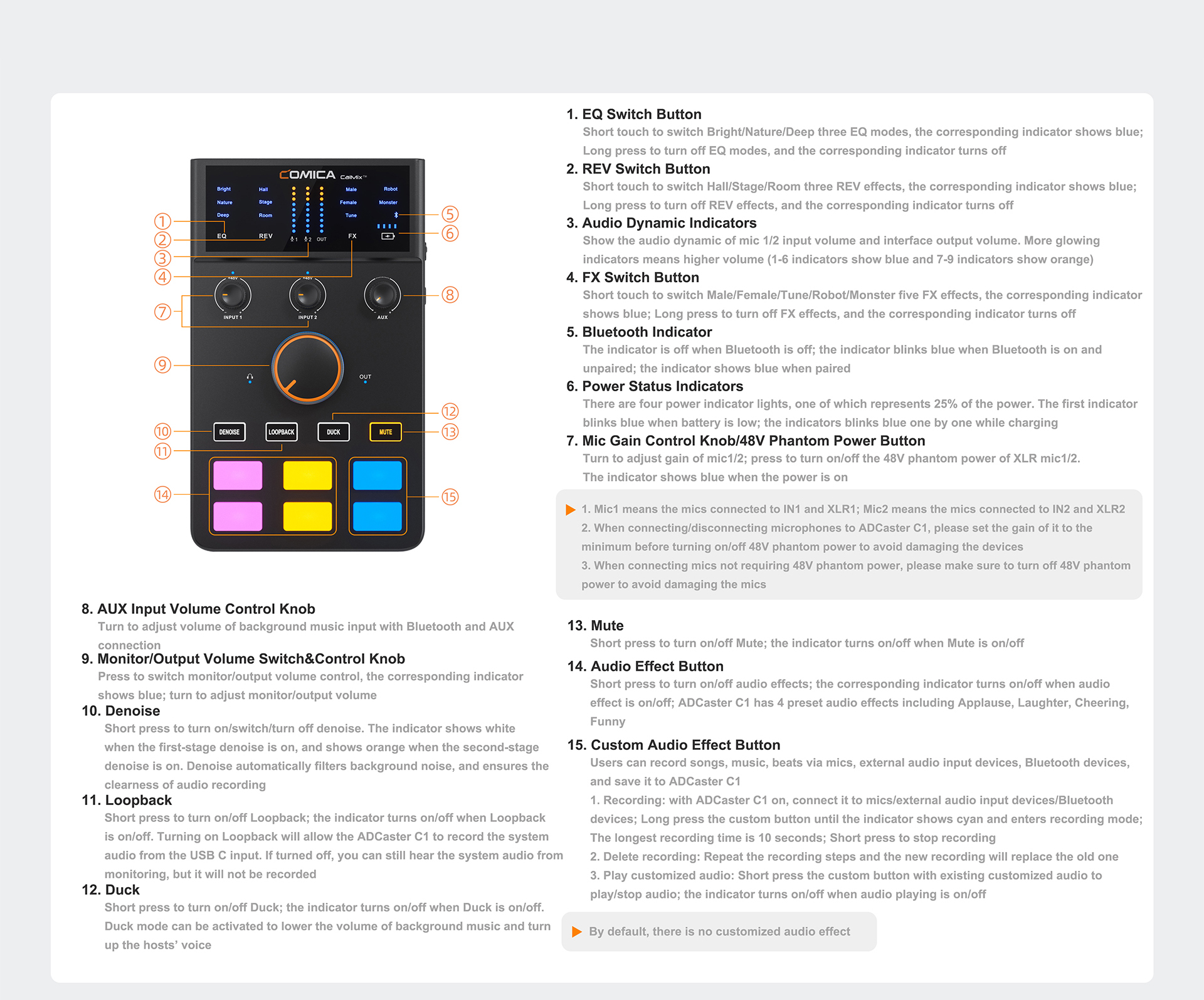

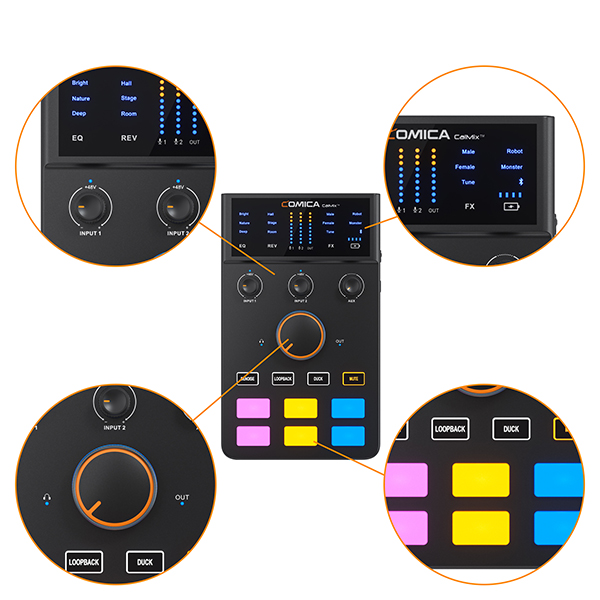

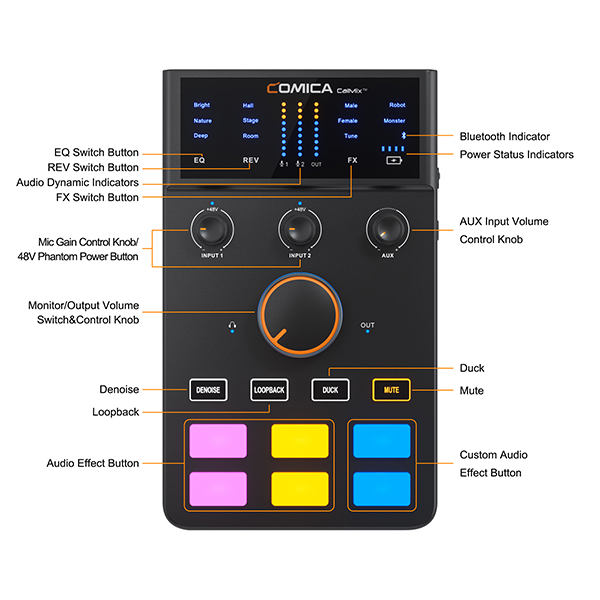

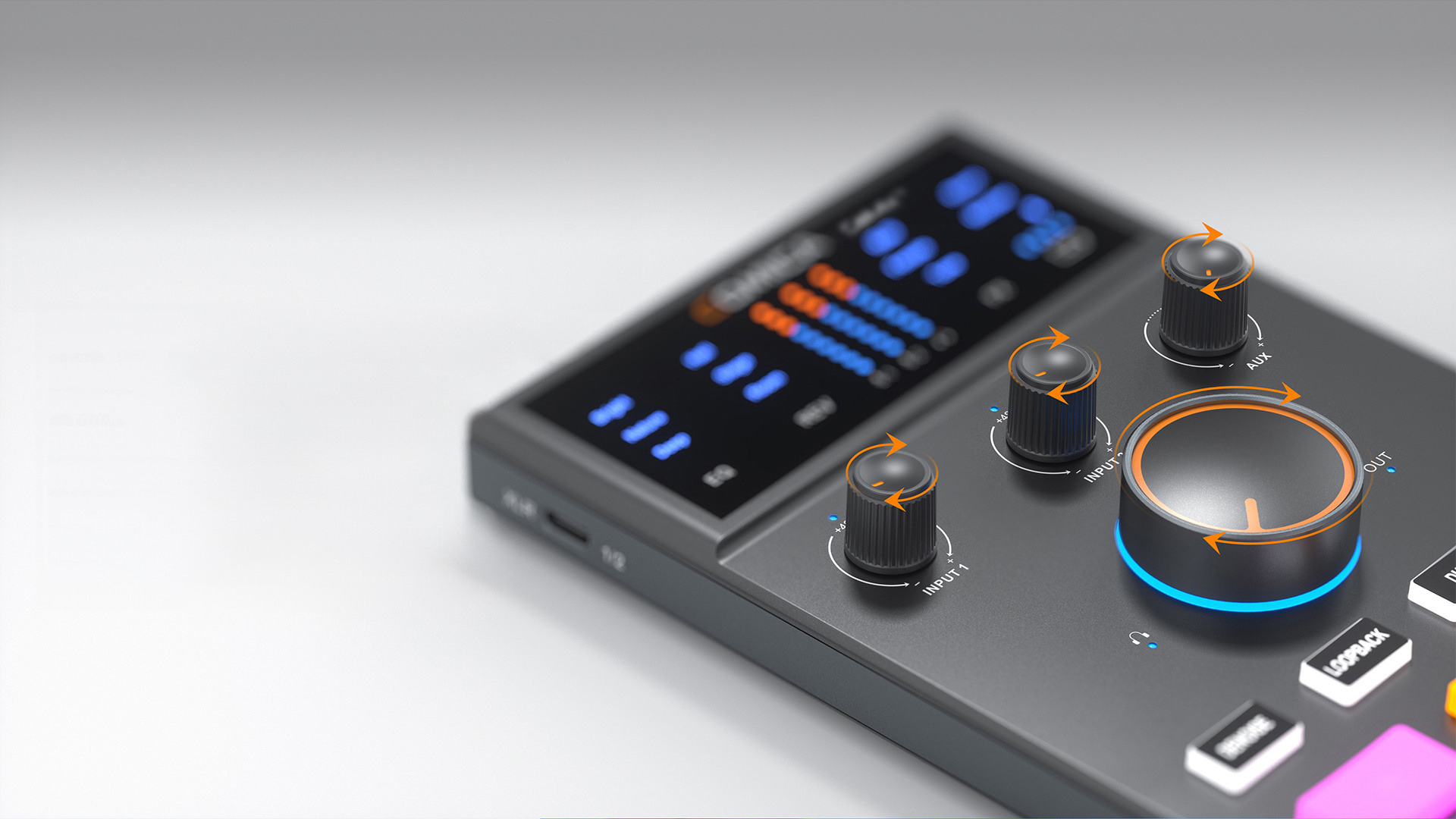

Individual Mic Preamps, Monitor Volume and Output Gain Control

Equipped with two separate pre-amplification gain control knobs, up to 60dB of gain. It is widely compatible with 90% high impedance dynamic mics; supportbackground volume adjustment, one-click to switch real-time monitor volume and output gain adjustment for more convenient experience of users.

Individual Mic Preamps, Monitor Volume and Output Gain Control

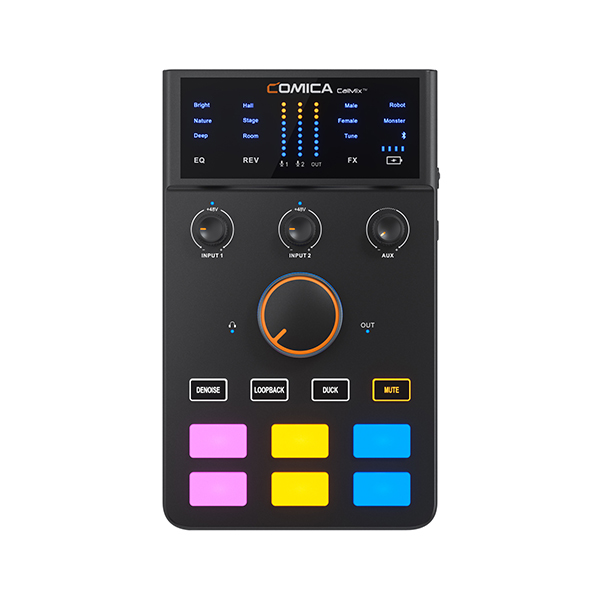

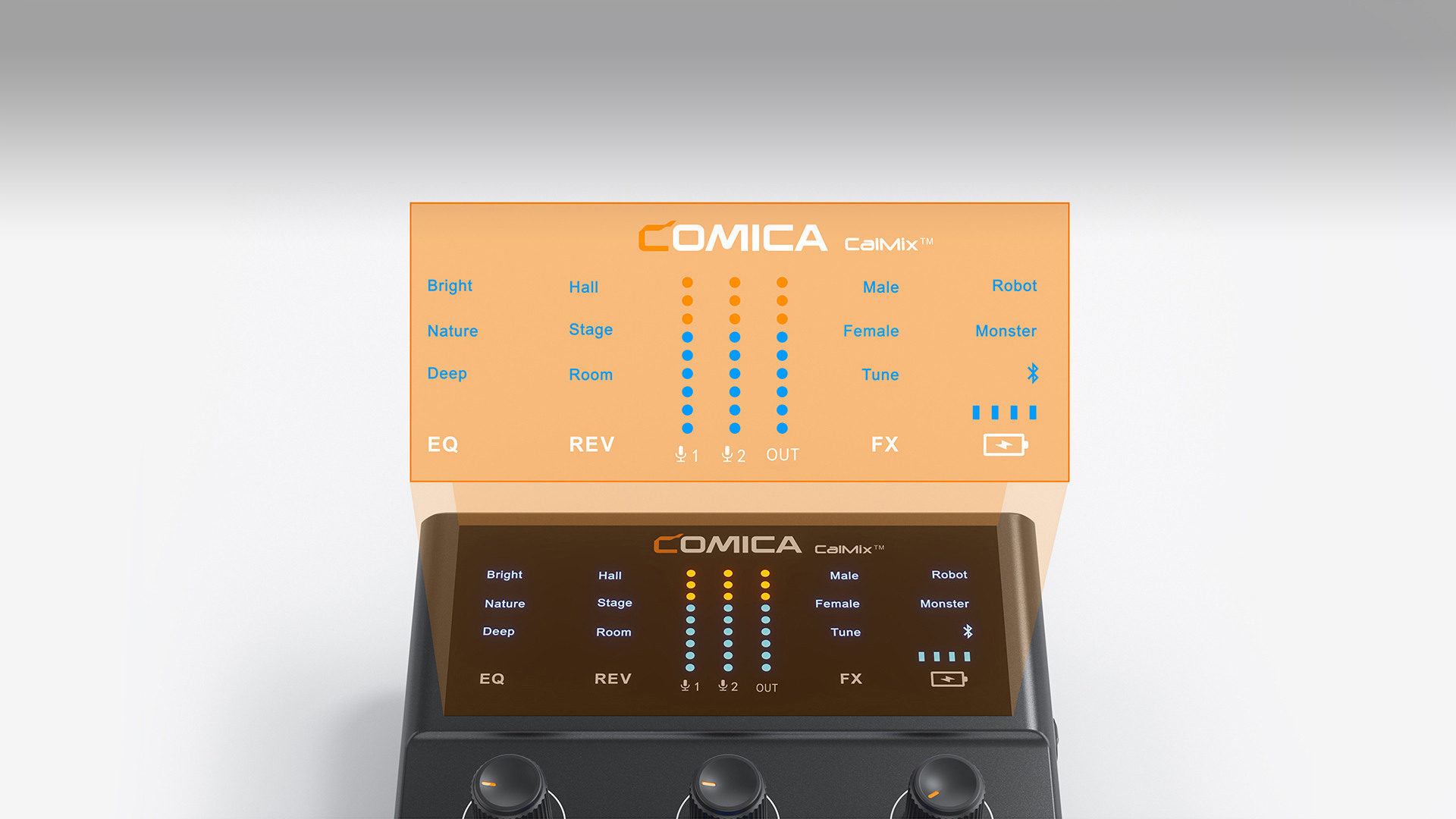

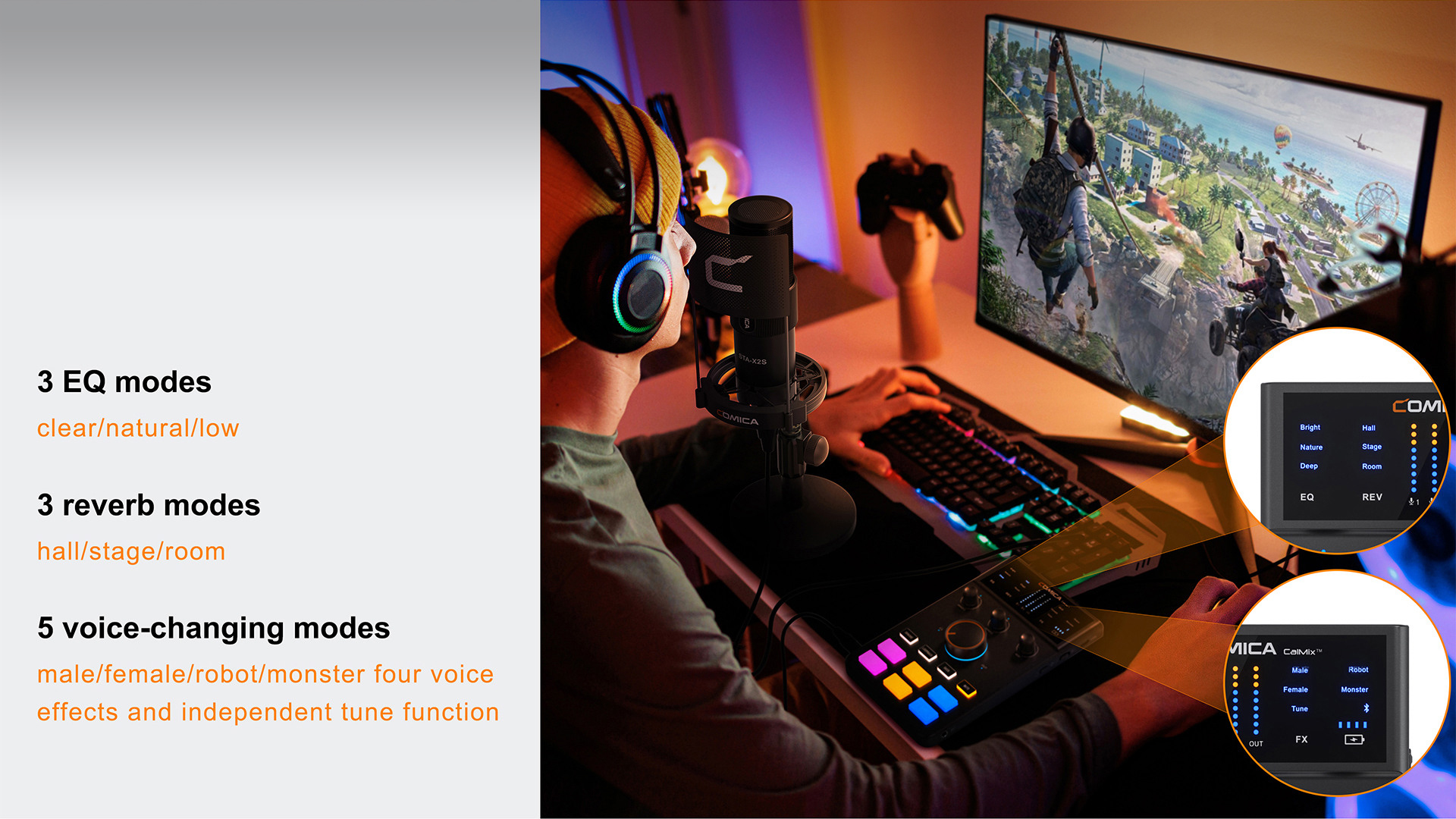

3 EQ Modes, 3 Reverb Modes and 5 Voice Effects

Enrich your usage and bring you different experiences to make gaming and streaming more interesting.

3 EQ Modes, 3 Reverb Modes and 5 Voice Effects

4 Preset and 2 Custom Sound Effects

4 warm-up sound effects of applause/laughter/cheers/funny and 2 custom sound effects. Freely record your favorite songs, music, beats, and others to customize exclusive sound effects. Set off a streaming/podcasting atmosphere at any time.

4 Preset and 2 Custom Sound Effects

One-click Loopback/Duck/Mute and Monitoring

One-click Loopback/Duck/Mute and Monitoring

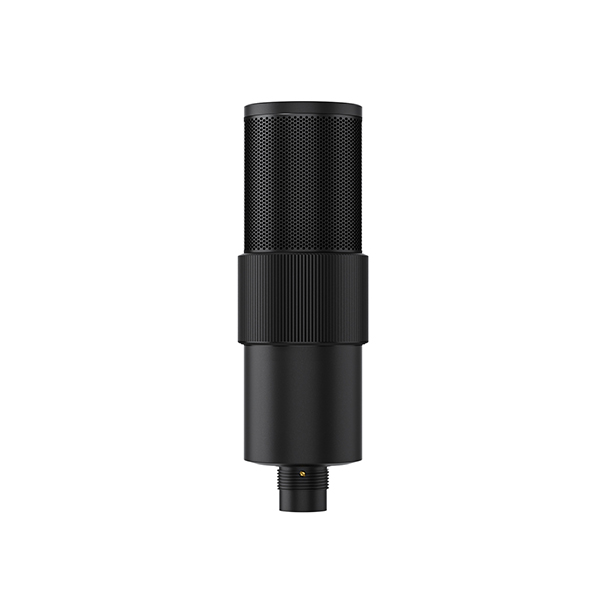

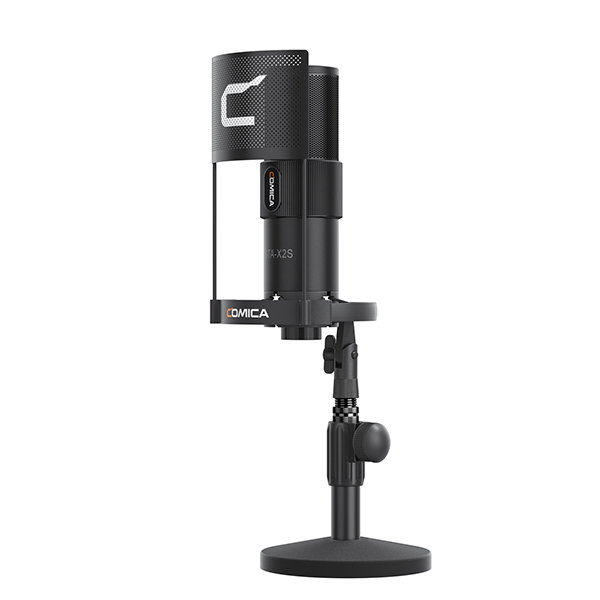

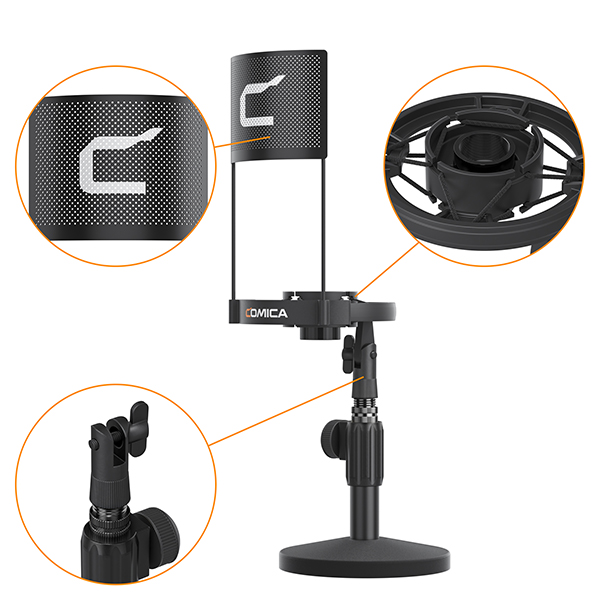

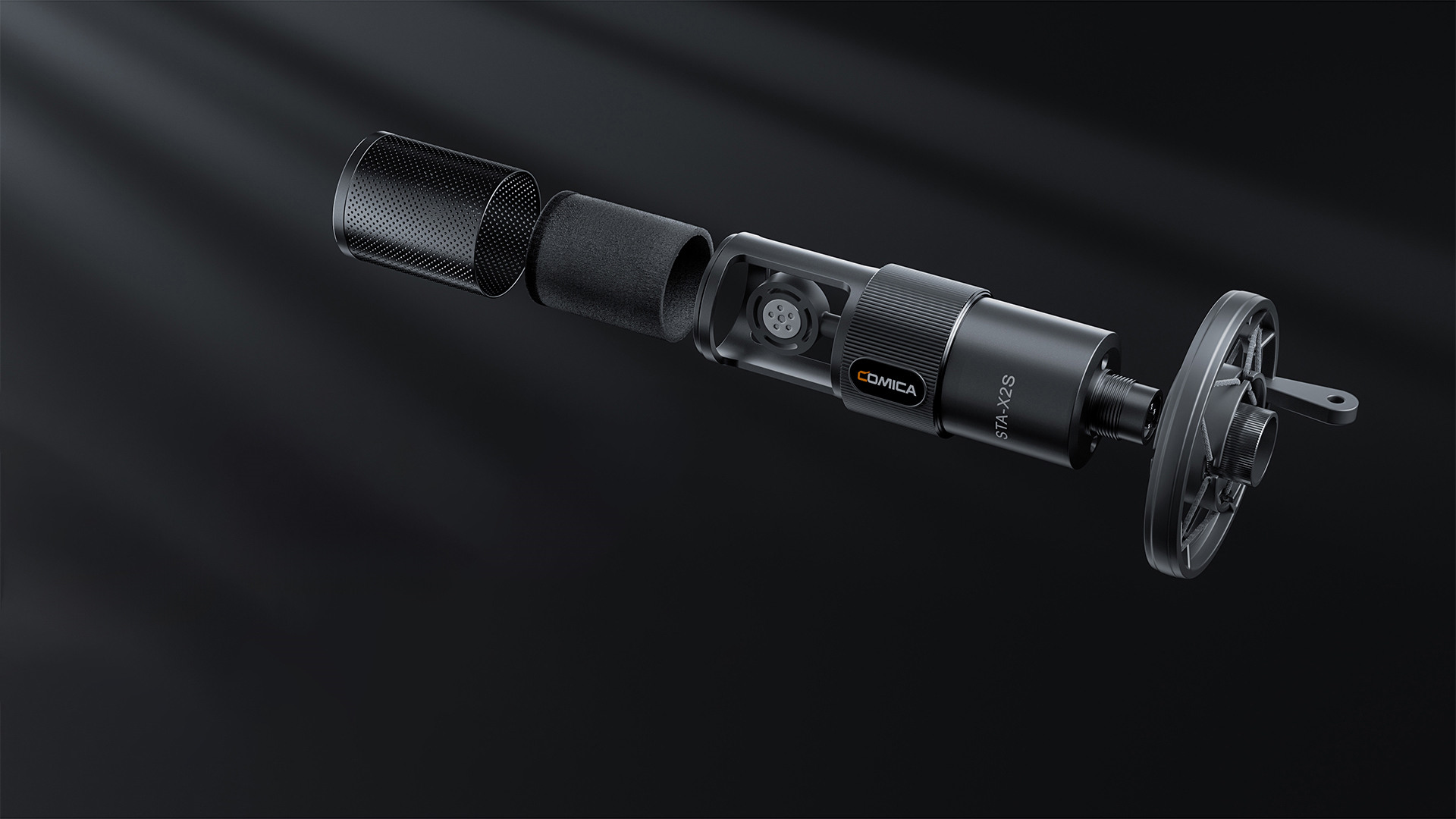

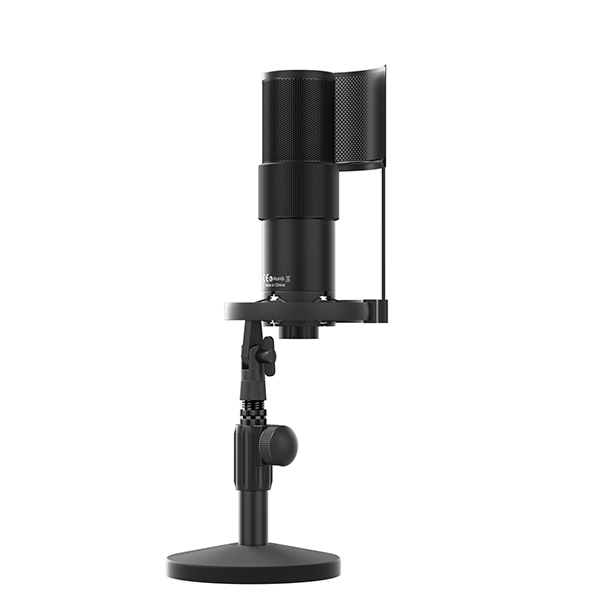

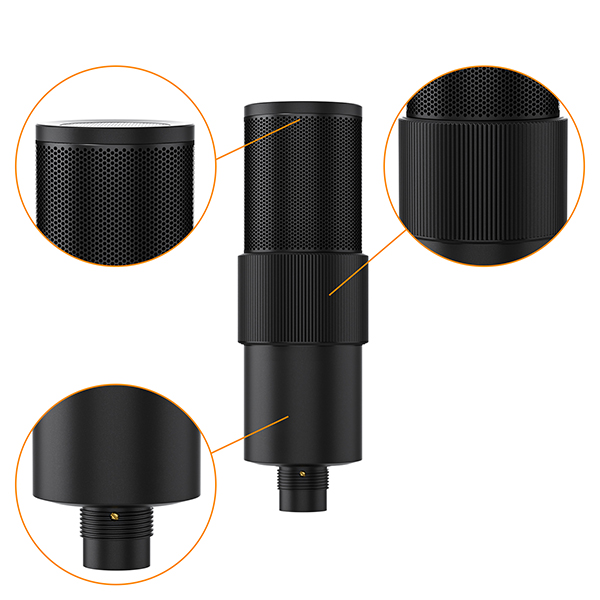

Internal Pop Filter Integrated Capsule Shock Mounting

Cardioid pattern mic effectively shields the noise outside the pick-up range; the metal pop filter banishes hissing and lisping sounds; the shock absorbing structure minimizes the noise caused by vibrations, realizing triple noise reduction.

Internal Pop Filter Integrated Capsule Shock Mounting

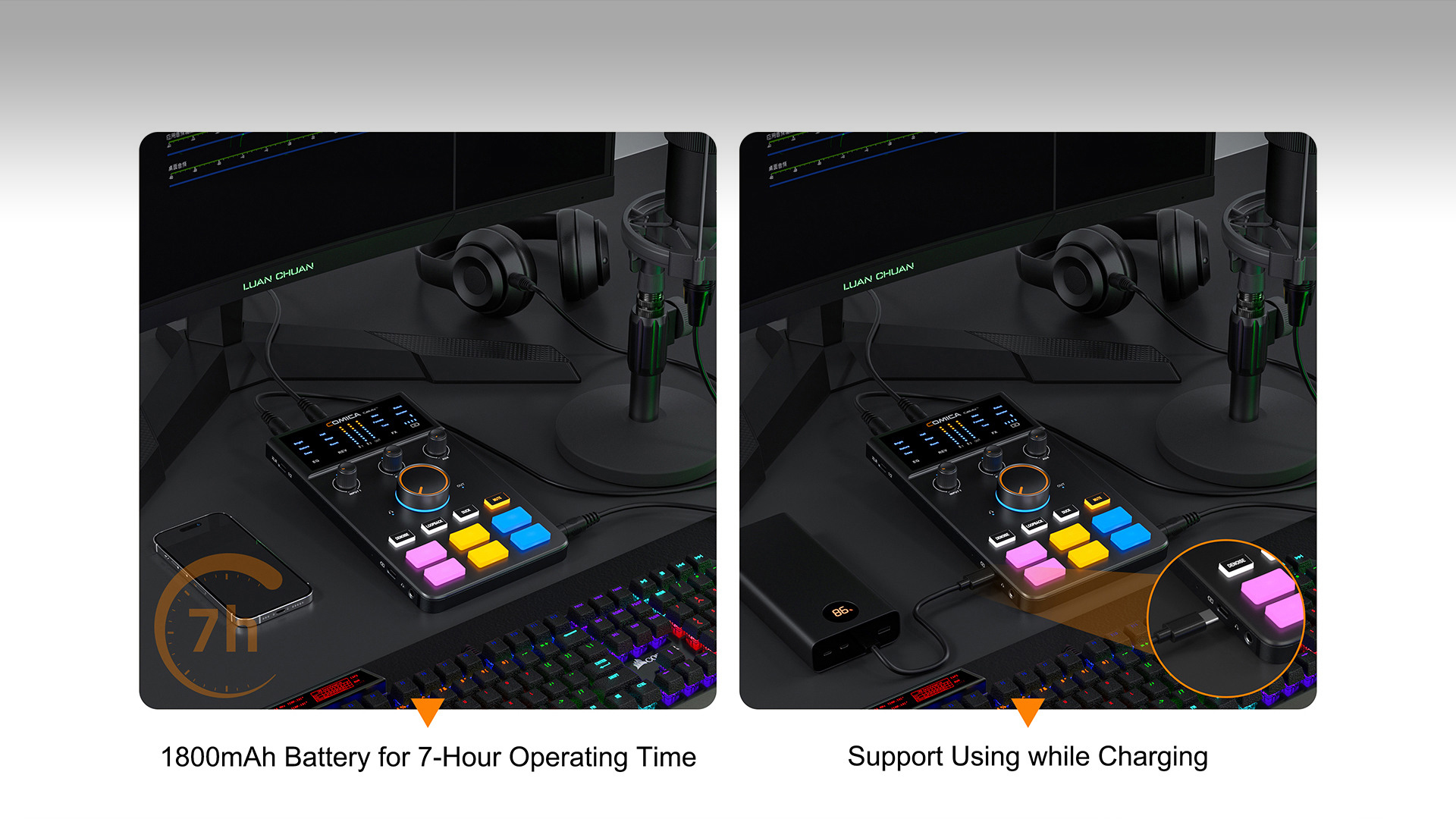

Built-in Lithium Battery, 7-Hour Operating Time

Built-in Lithium Battery, 7-Hour Operating Time

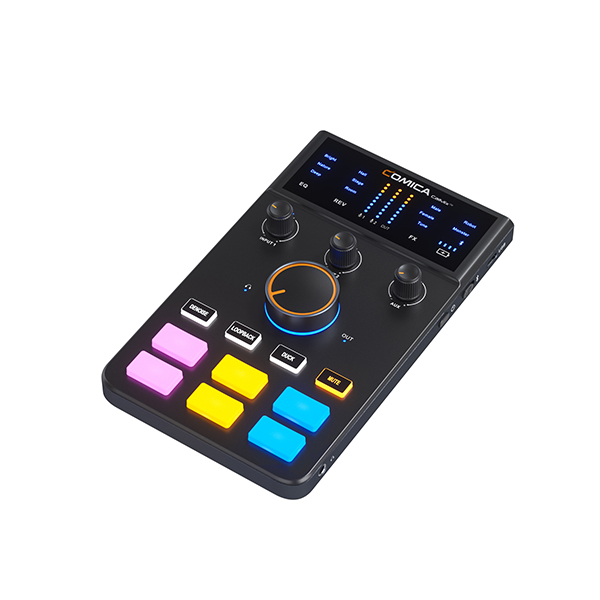

Touch-sensitive Panel Design

The high-end touch module design is more convenient than the traditional button control, which solves the problem that the sound of the keys affects the recording effect, and the operation is visual and more flexible.

Touch-sensitive Panel Design

Parameter

Parameter

Parameter

Parameter

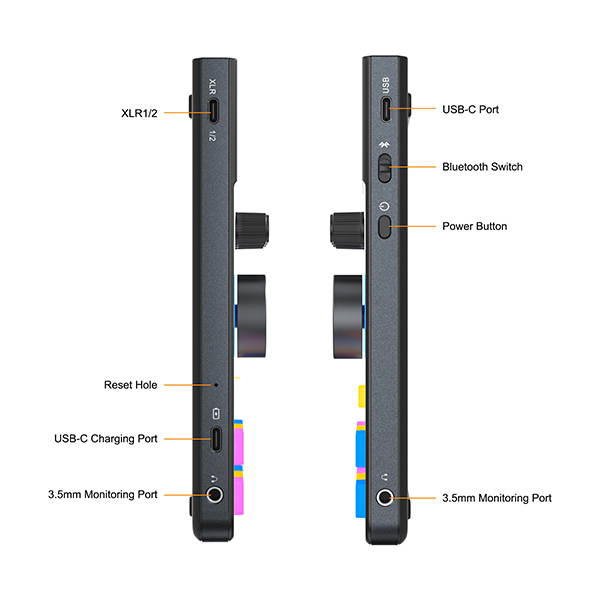

Interface

Input Interface

1 x USB-C to 2 x XLR, 2 x 3.5mm

AUX Input Interface

1 x 3.5mm, 1 x Bluetooth

Digital Interface

1 x USB-C

OUT Interface

2 x 3.5mm

SPK Output Interface

1 x 3.5mm

Headphone Output Interface

2 x 3.5mm

Audio Resolution

Sampling Rate

48kHz

Bit Depth

24bit

Microphone Input

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Response

20Hz ~ 20kHz, ±0.1dB

THD+N

0.003%, 1kHz, -3dBFS, 22Hz/22kHz BPF

Equivalent Noise

-128dBu(A-weighted,as per IEC651)

Input Impedance

5kΩ

Microphone Input Maximum Level

-8dBu

Preamp Gain Range

10dB ~ 60dB

SPK Output

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Response

20Hz ~ 20kHz, ±1dB

Output Impedance

600Ω

Microphone Output Maximum Level

4dBu

Headphone Output

Dynamic Range

100dB(A-weighted,as per IEC651)

Frequency Response

20Hz ~ 20kHz, ±1dB

Output Impedance

Microphone Output Maximum Level

4dBu

Others

Battery

Polymer Lithium Battery 1800mAh 3.7V

Operating Time

With Phantom Power On: 4 Hours;
With Phantom Power Off: 7 Hours

Charging Specification

USB-C 5V2A

Phantom Power Output

48V

Net Weight

303g

Dimension

31 x 110 x 184mm

Working Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃
