VM40

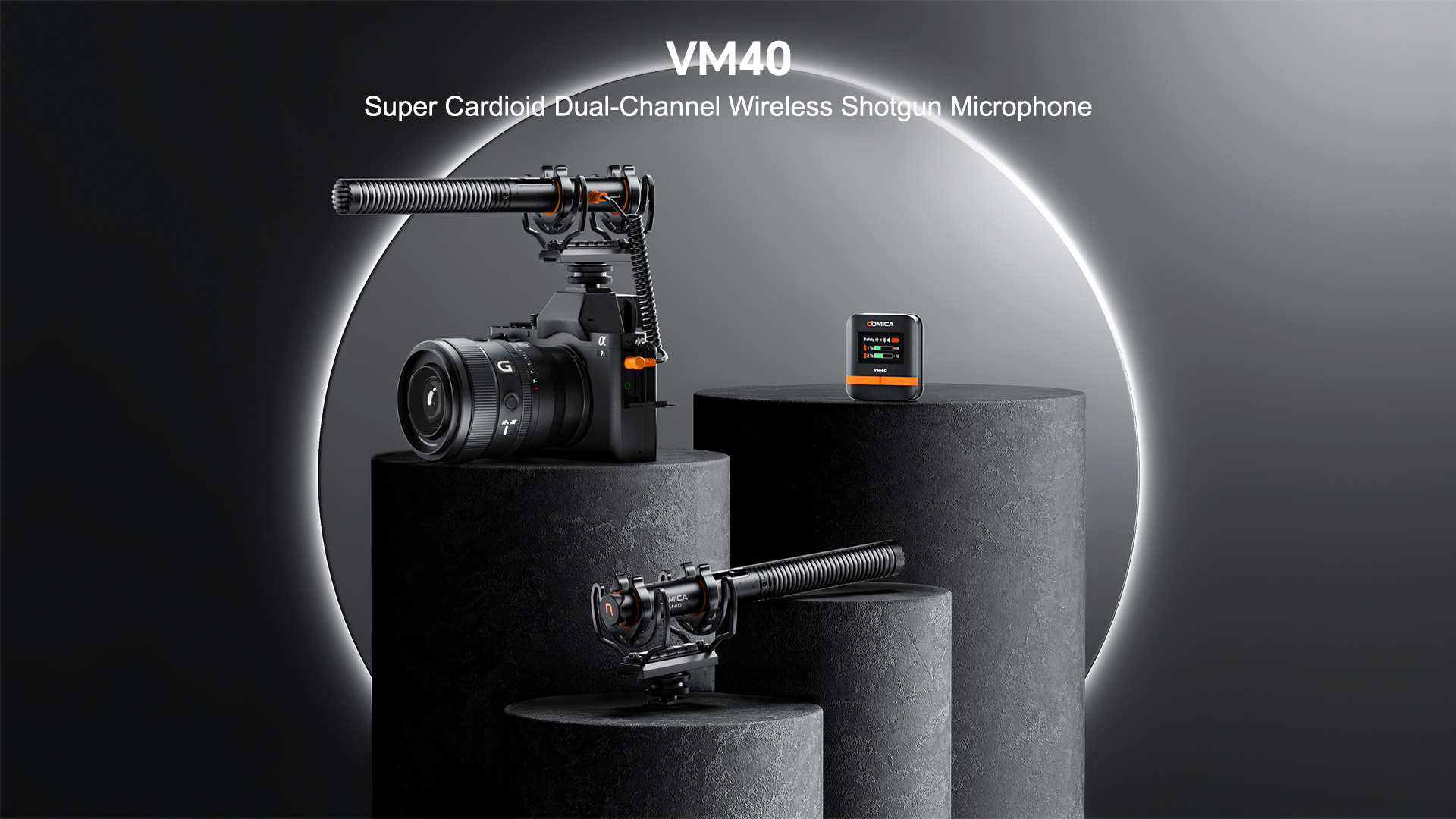

Super Cardioid Dual-Channel Wireless Shotgun Microphone

Watch Video Buy Now
VM40 VM40

VM40

Overview Specifications Download

VM40

Super Cardioid Dual-Channel Wireless Shotgun Microphone

VM40

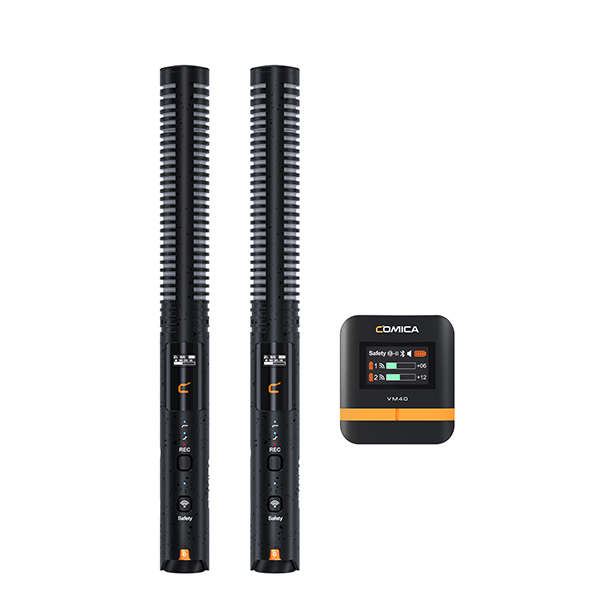

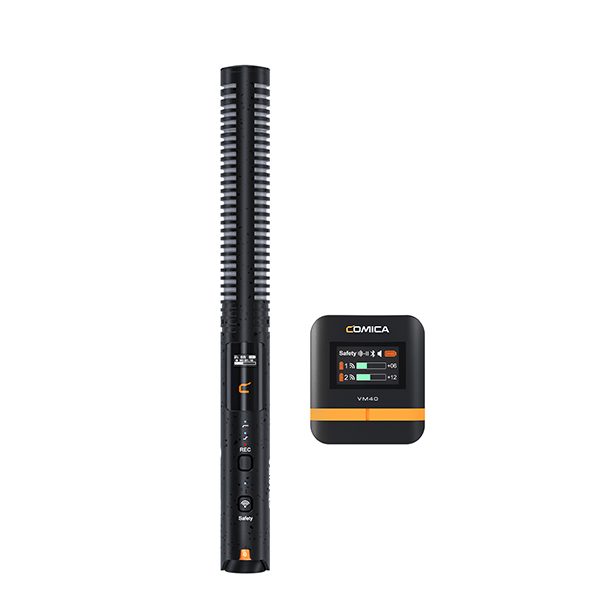

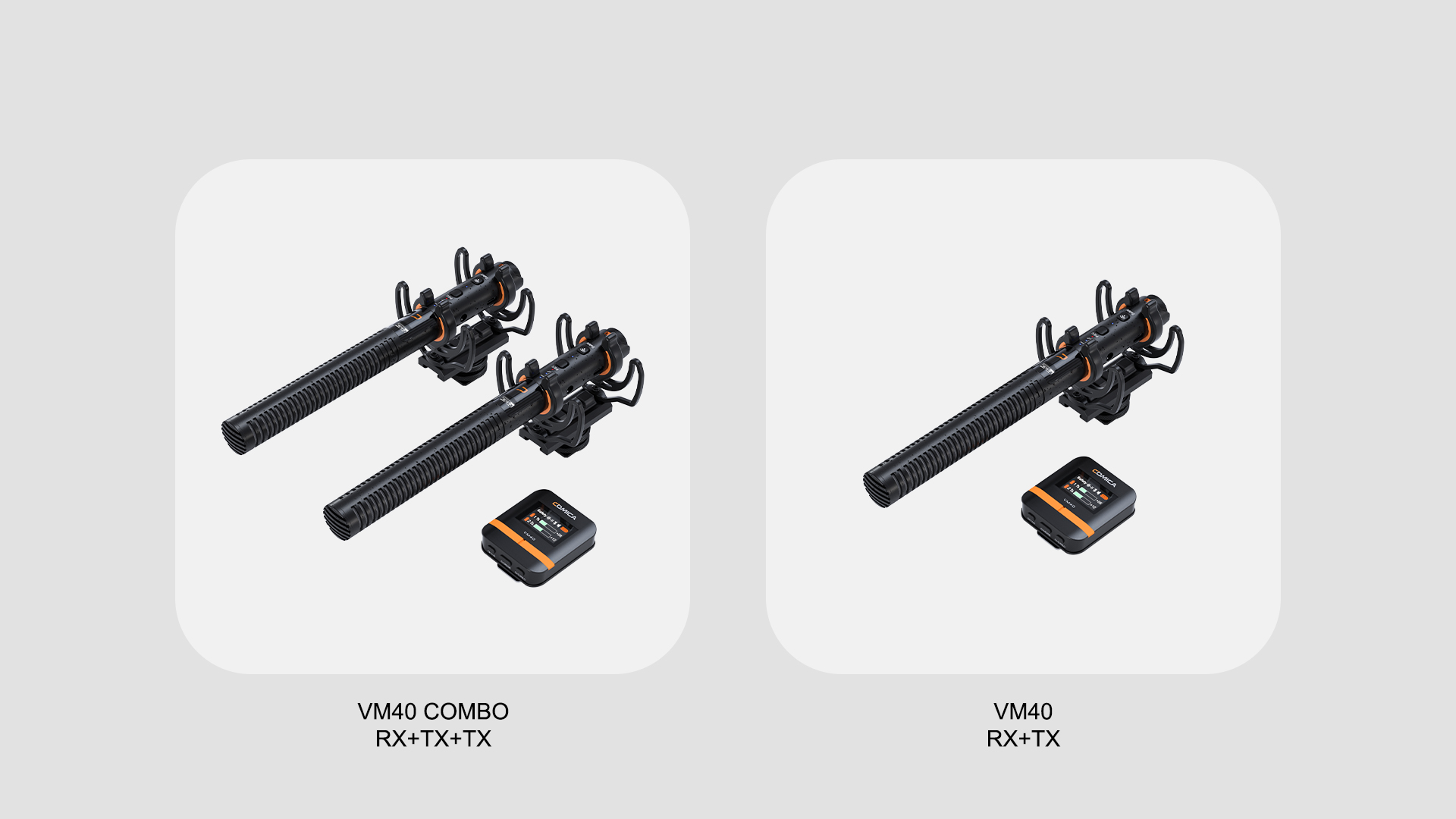

Multiple Options

Multiple Options

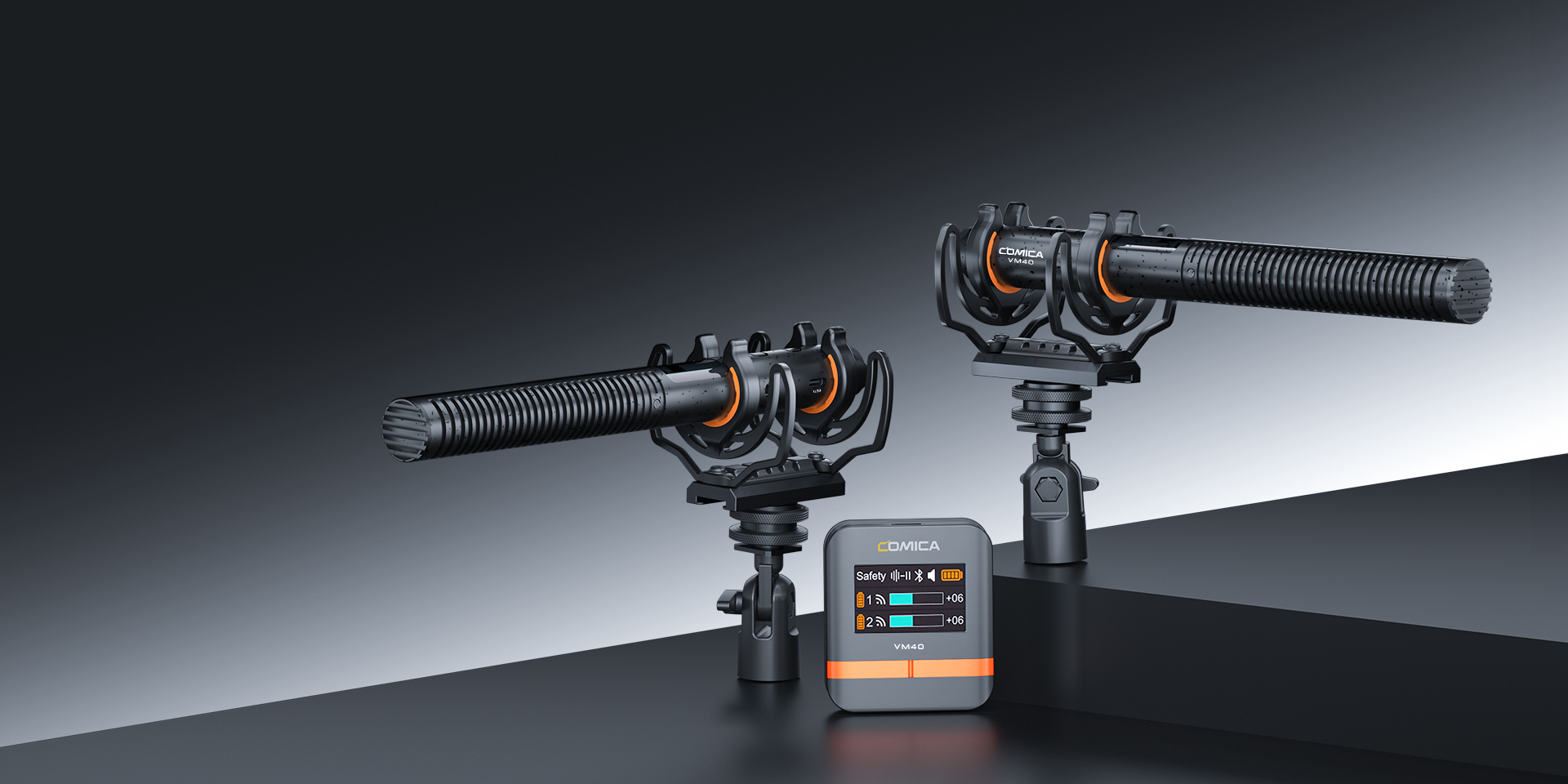

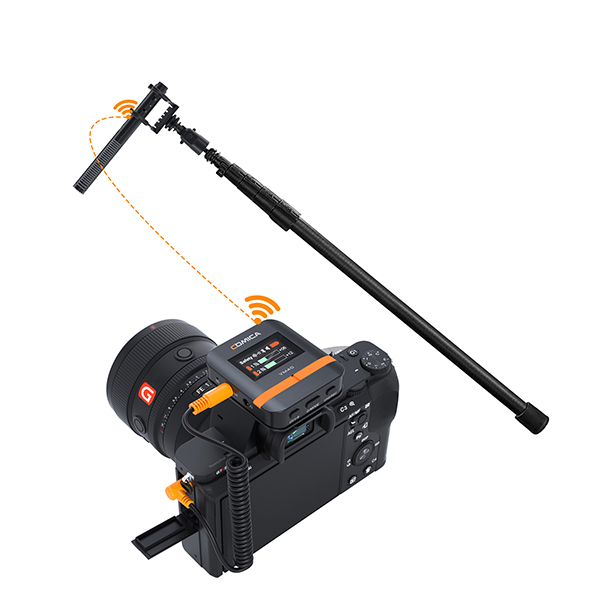

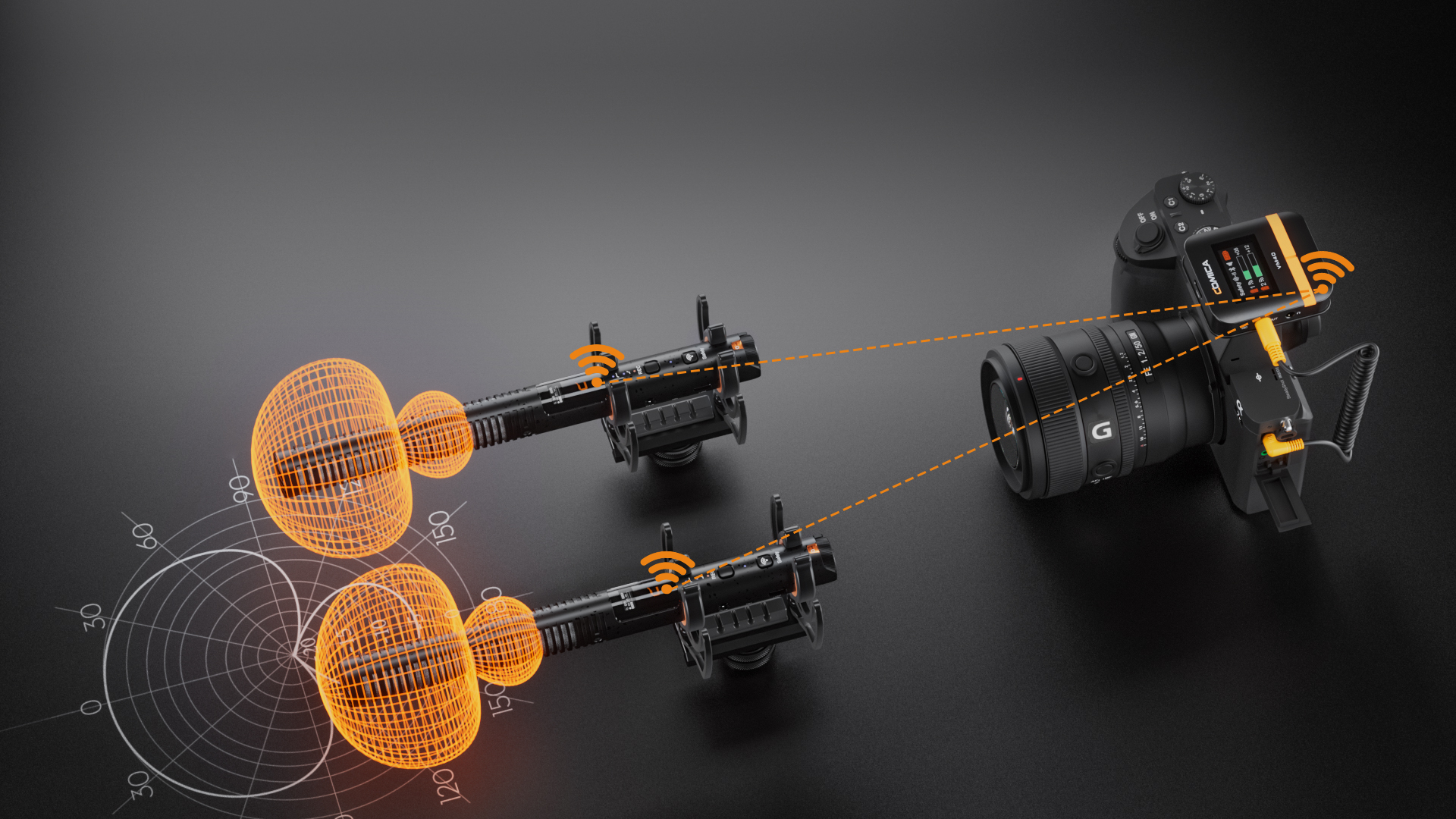

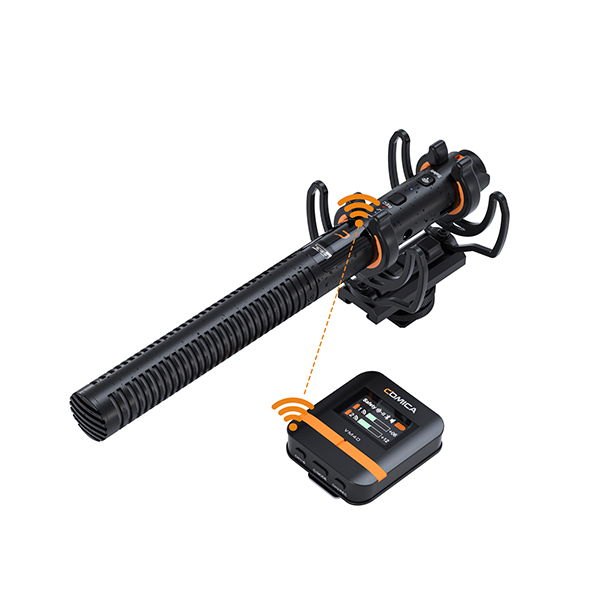

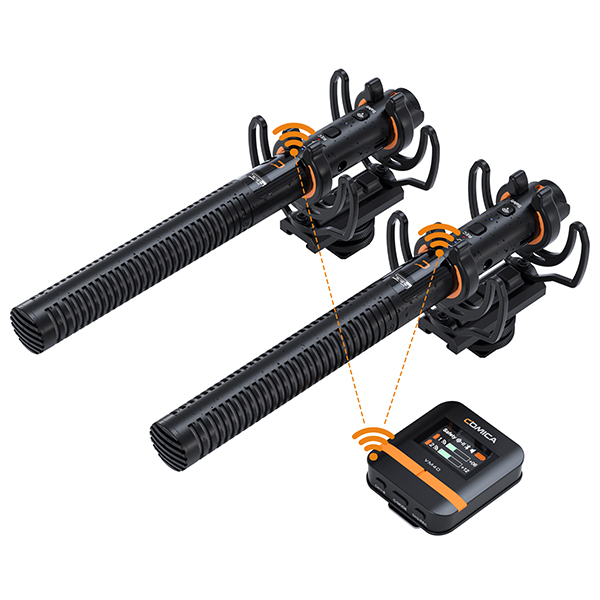

Dual-channel Wireless Shotgun Mic, 14mm Gold-plated Capsule

The shotgun microphone innovatively integrates a wireless RF module to support wireless transmission and single/dual channel options,providing a more flexible solution for professional recording. 14mm gold-plated mic capsule adopts super cardioid polar pattern to accurately pick up original sound and avoid the surrounding noise, presenting fuller, brighter, and crisper high-fidelity sound quality.

Dual-channel Wireless Shotgun Mic, 14mm Gold-plated Capsule

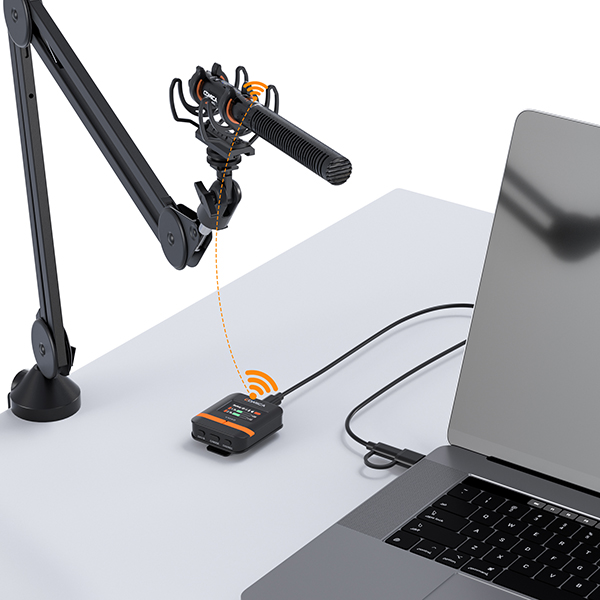

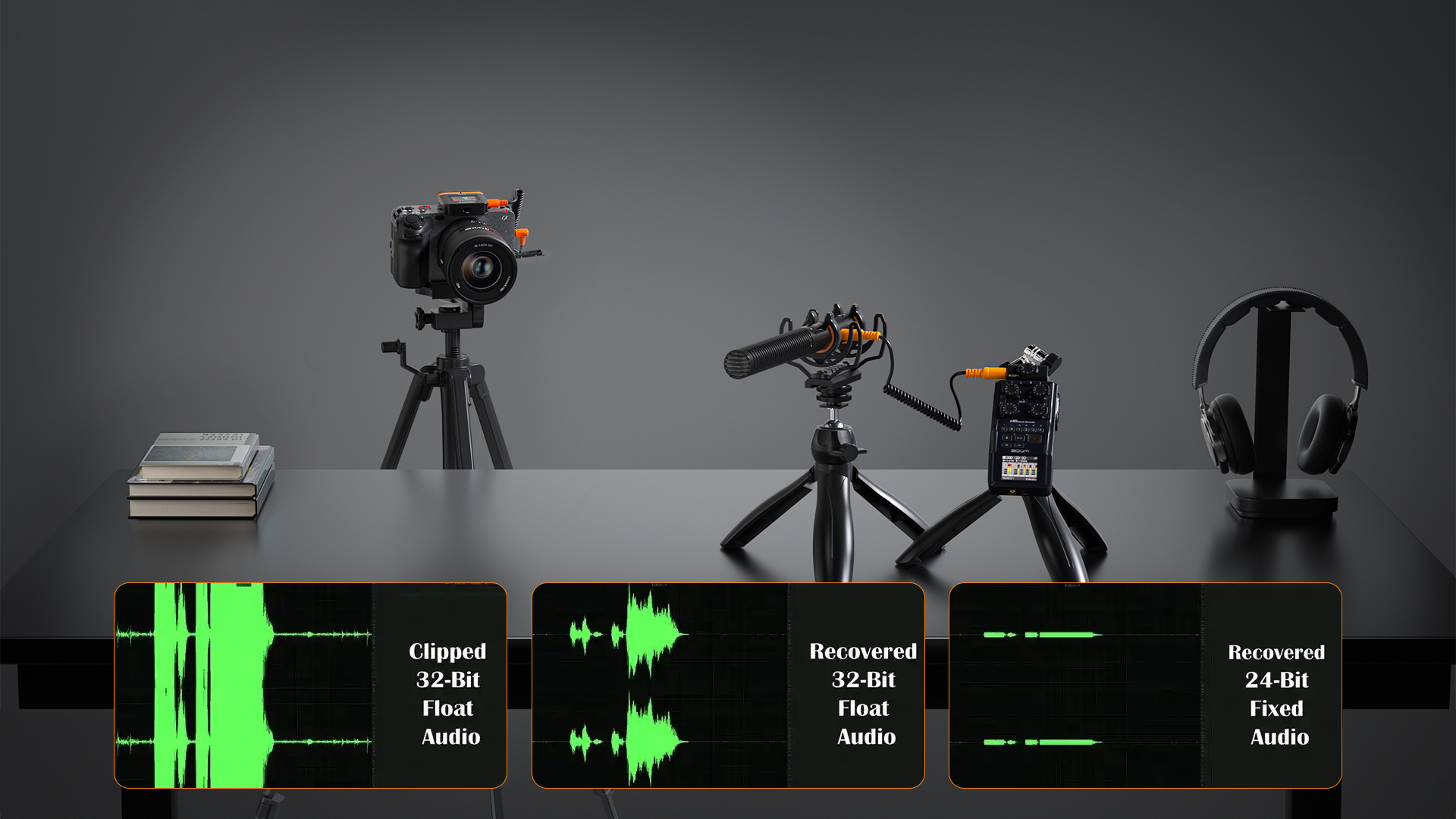

48kHz/32-bit Float Recording, Wired/Wireless Dual Modes

The industry's advanced 48kHz/32-bit float recording provides extremely high audio quality and dynamic range that supports lossless audioadjustment in post-production, which meets the needs of high-sensitivity audio production, such as music production, film dubbing,professional interviews, and broadcasting. The wired and wireless transmissions are available in sync to support multiple devices' output.

48kHz/32-bit Float Recording, Wired/Wireless Dual Modes

32G On-board Recording for 40-hour Audio Storage

Built-in 32GB storage can store up to 40 hours of uncompressed audio. Users can back up the audio during shooting and recording,or use the microphone as a recorder. It ensures audio integrality, making creation more secure.

32G On-board Recording for 40-hour Audio Storage

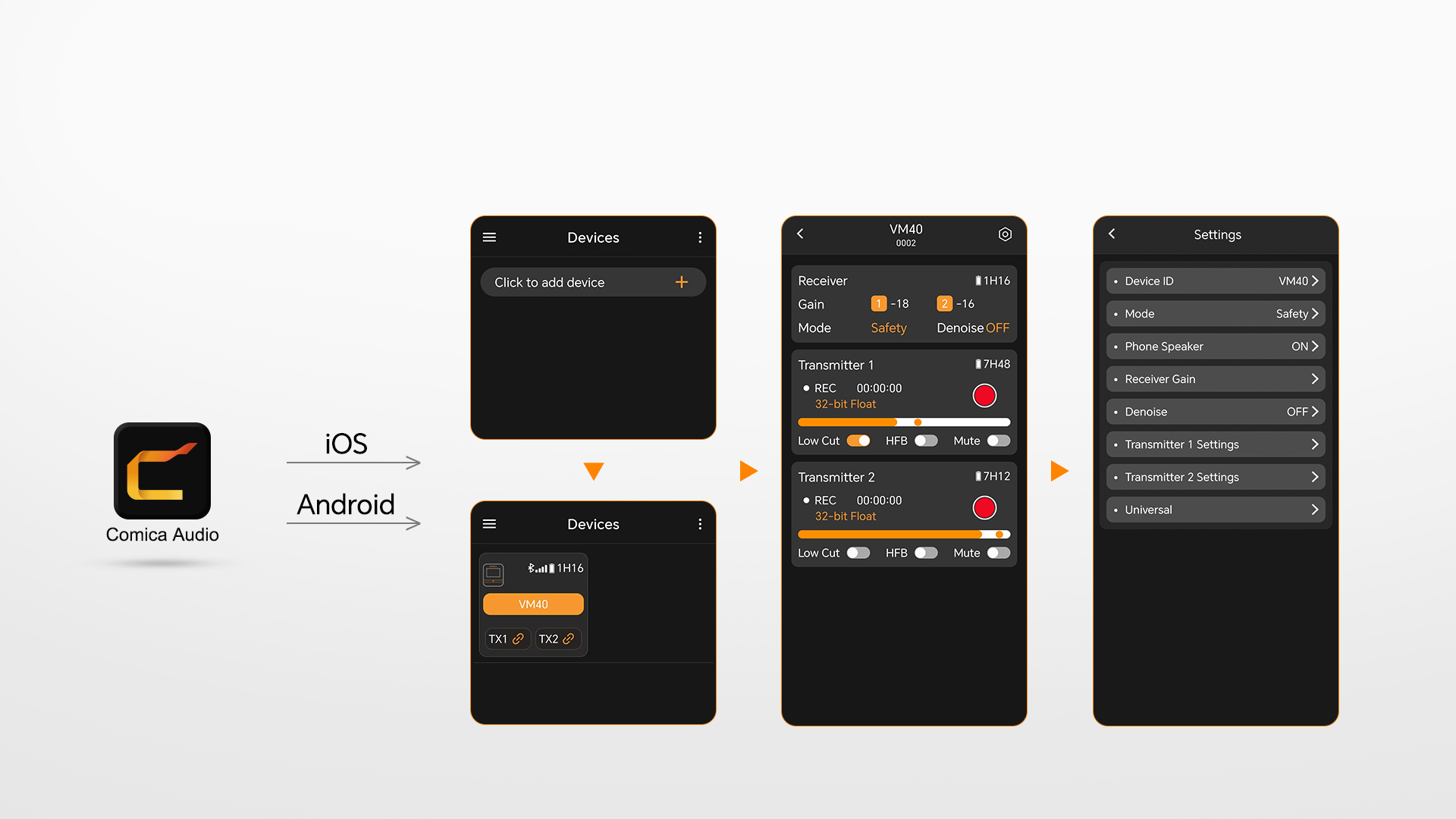

Exclusive Comica Audio APP for More Functions

Official Comica Audio App has iOS and Android versions that can connect to VM40 via smartphone Bluetooth. Users can operate the shotgunmicrophone and receiver through the App. It supports remote monitoring of microphone status, changing settings, managing multiple devices by scene, etc

Exclusive Comica Audio APP for More Functions

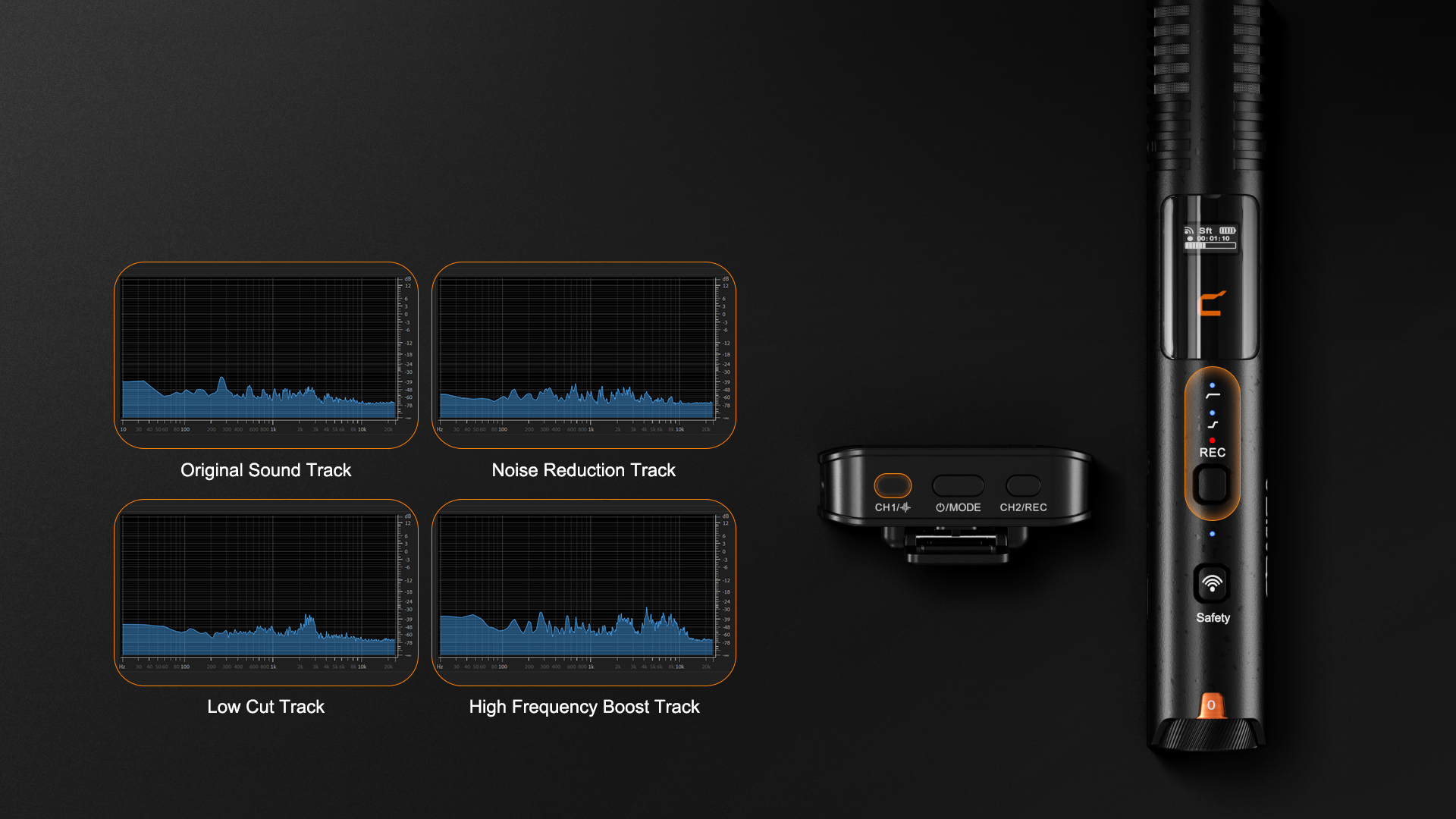

Support One-key Denoise/Low-cut/High-frequency Boost

CalMix® denoise precisely reduces background noise and improves audio quality. The low-cut function filters the audio below 100Hz in the microphonesignal to reduce low-frequency noise. The high-frequency boost enhance the high-frequency part of the microphone signal to make the sound clearer and brighter.

Support One-key Denoise/Low-cut/High-frequency Boost

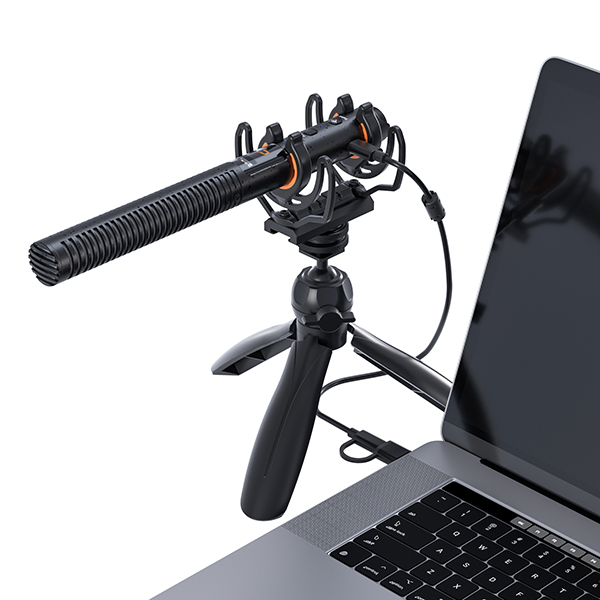

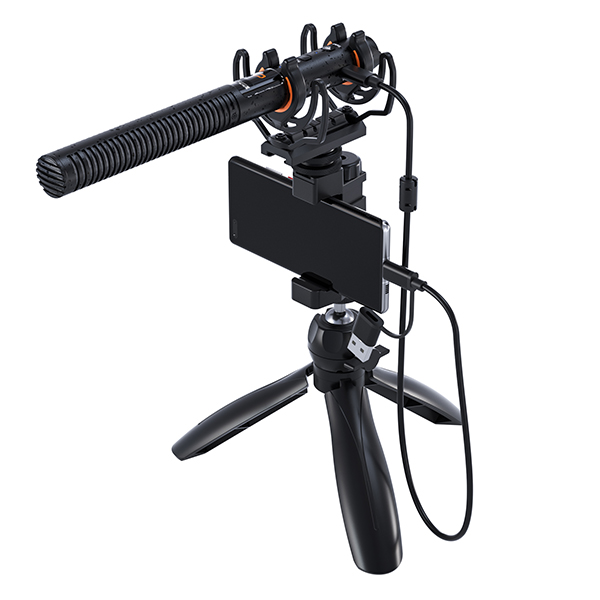

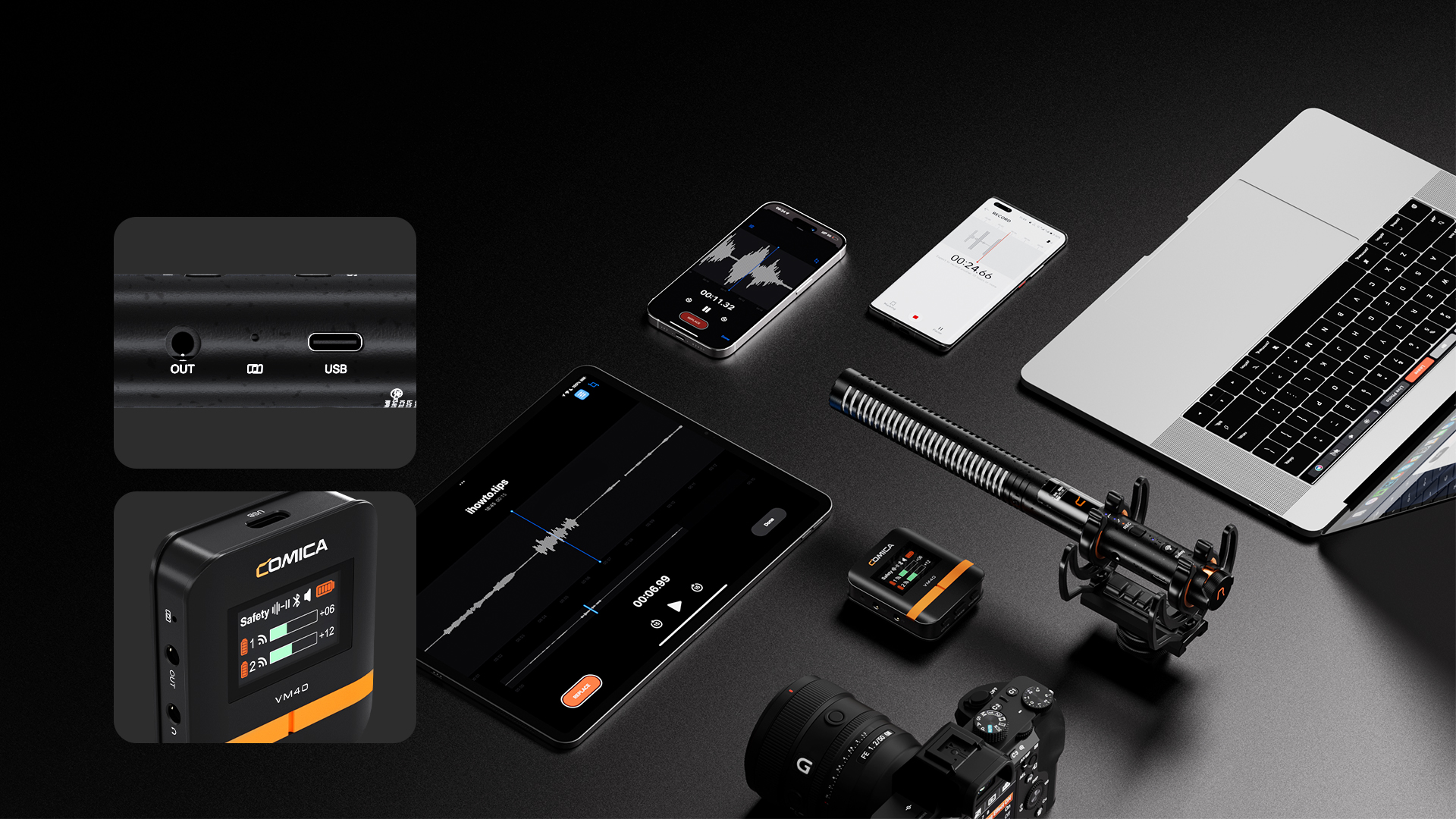

Digital&Analog Outputs, Universal for Camera/Smartphone/PC

Both of the shotgun microphone and receiver support USB-C digital output and 3.5mm TRS/TRRSanalog output, which is widely compatible with cameras, smartphones, computers, etc.

Digital&Analog Outputs, Universal for Camera/Smartphone/PC

Intelligent Power Switch and Auto-sensing 3.5mm Output

The shotgun microphone supports automatically power on/off when connecting/disconnecting the output device, which is plug-and-playand power-saving. Both of the shotgun microphone and receiver supports auto-sensing TRS/TRRS plug to output analog audio.

Intelligent Power Switch and Auto-sensing 3.5mm Output

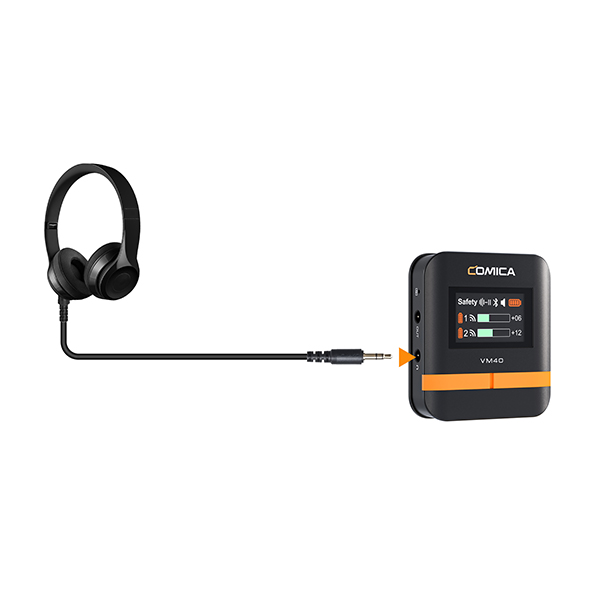

Support Mono/Stereo/Safety Mode and Real-time Monitor

Mono mode is suitable for basic recording. Stereo mode can capture the sound details and present a richer sound effect. Safety mode providesa -6dB backup to avoid popping sounds. Real-time monitoring provides instant feedback on recording effects for better adjustment.

Support Mono/Stereo/Safety Mode and Real-time Monitor

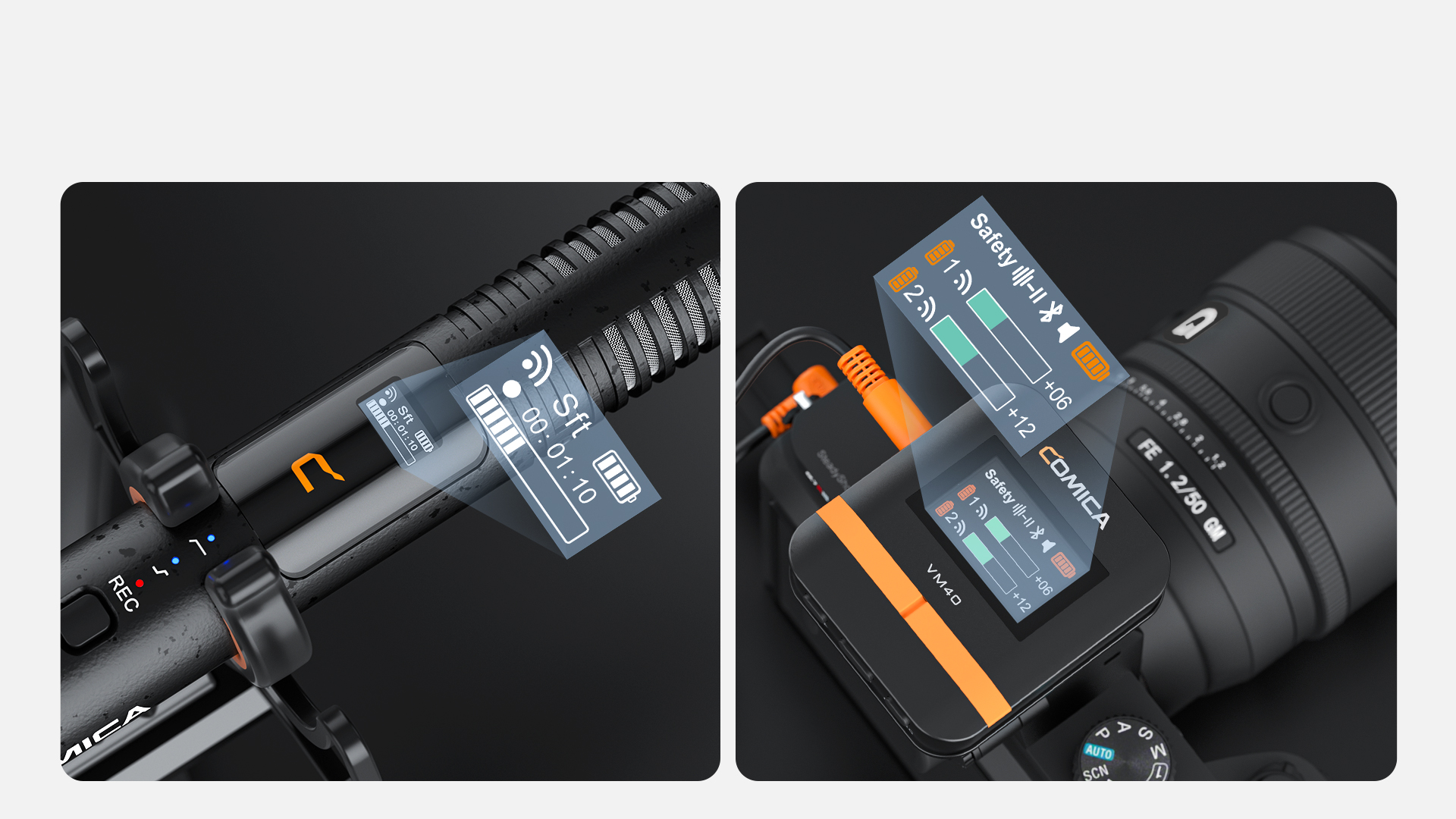

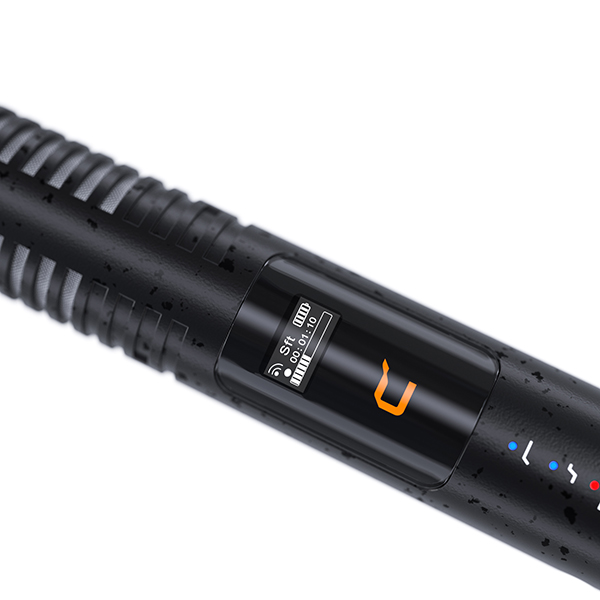

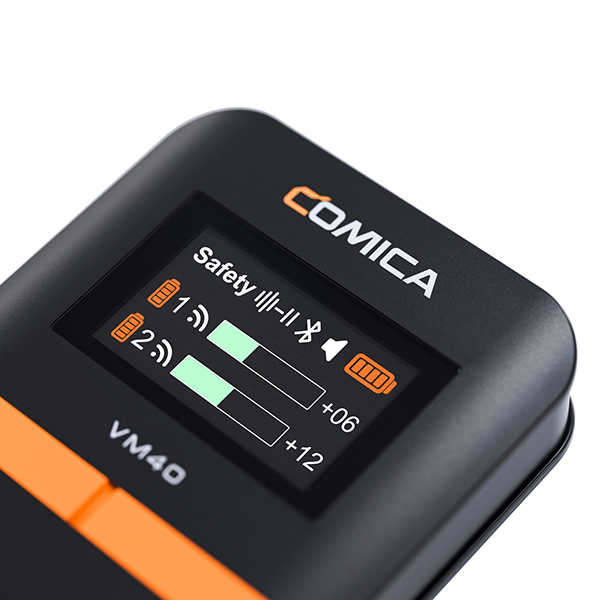

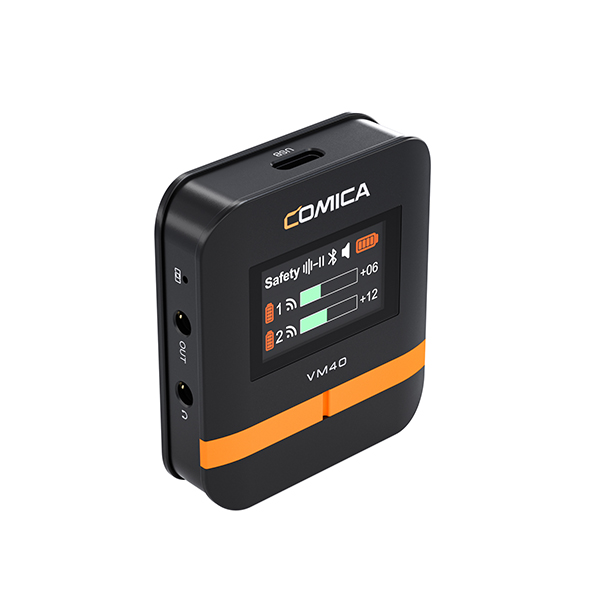

OLED Screen for Monitoring and Visual Operation

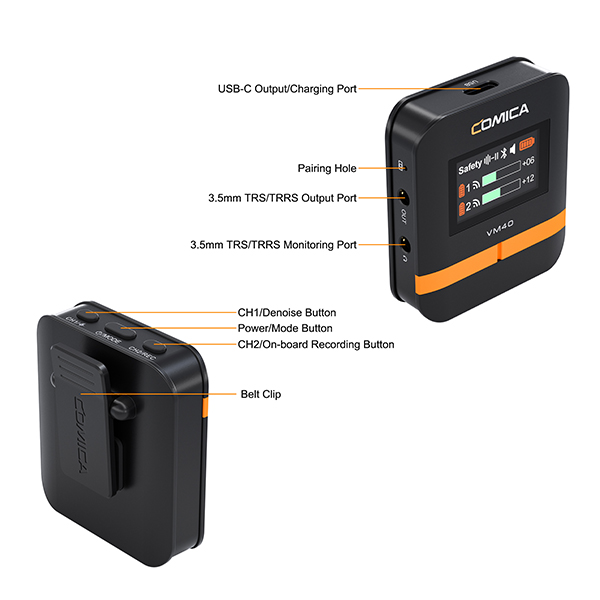

Both of the transmitter and the receiver has a high-definition screen to display battery power, wireless status,audio dynamics, channel mode, gain level, etc, providing users with intuitive data feedback during recording.

OLED Screen for Monitoring and Visual Operation

Battery Life Up to 32H/10H in Wired/Wireless Mode

VM40 supports long battery life and charging while using. In wired mode, it lasts up to 32 hours. In wireless mode,it lasts up to 10 hours. Users can focus on creation without worrying about battery power.

Battery Life Up to 32H/10H in Wired/Wireless Mode

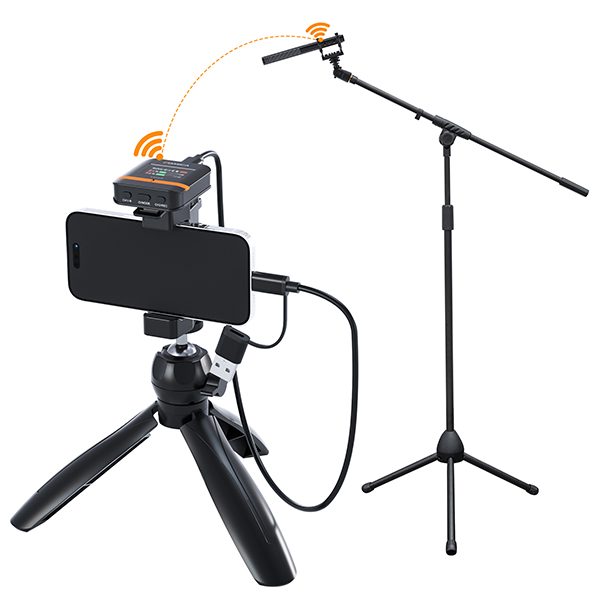

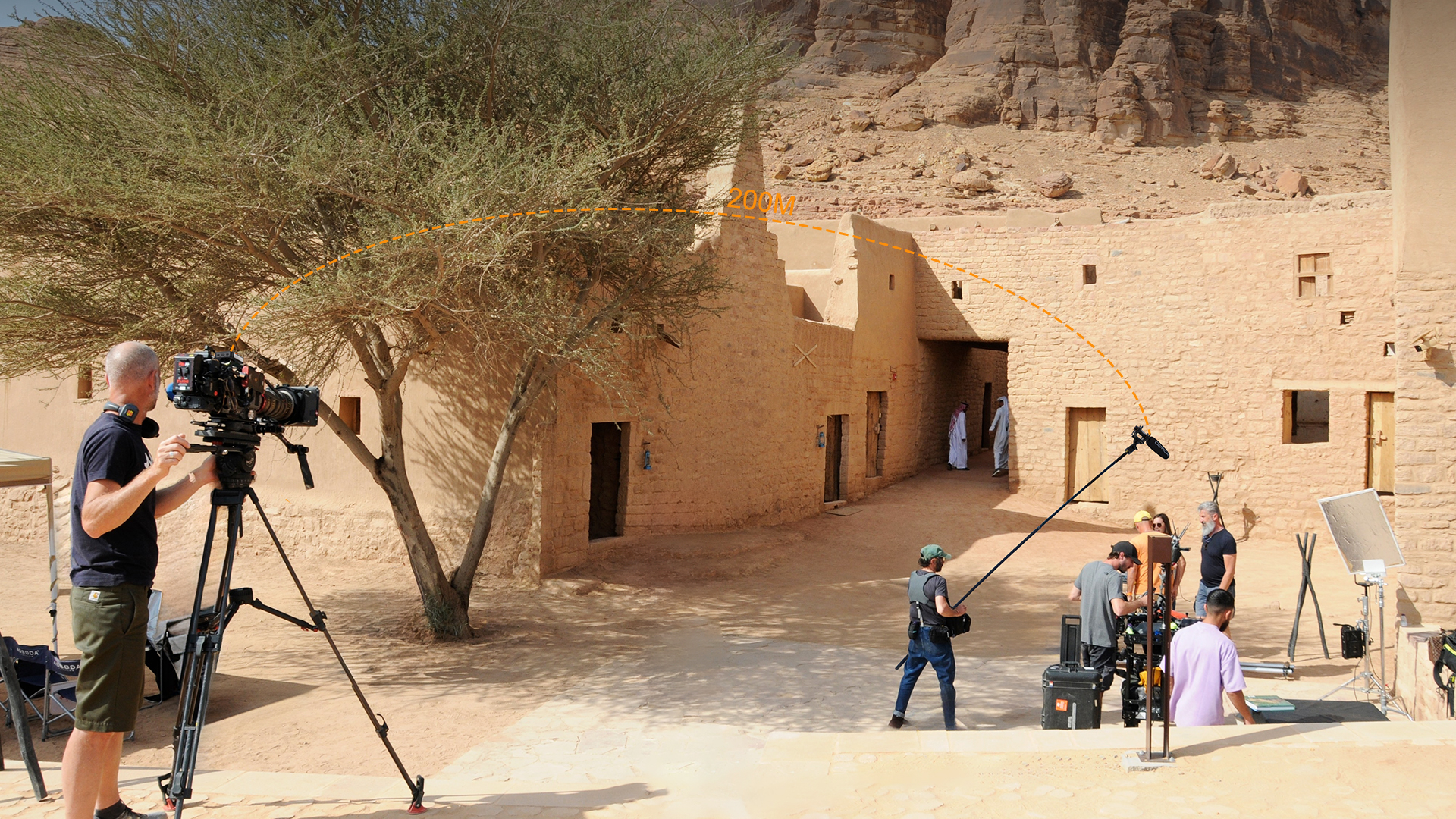

Working Range Up to 200m, Stable & Low Latency(Open Area)

The wireless transmission distance is up to 200m in an open area and is stable without dropouts.Less than 20ms latency makes the audio transmission high efficient and synchronized with the video.

Working Range Up to 200m, Stable & Low Latency(Open Area)

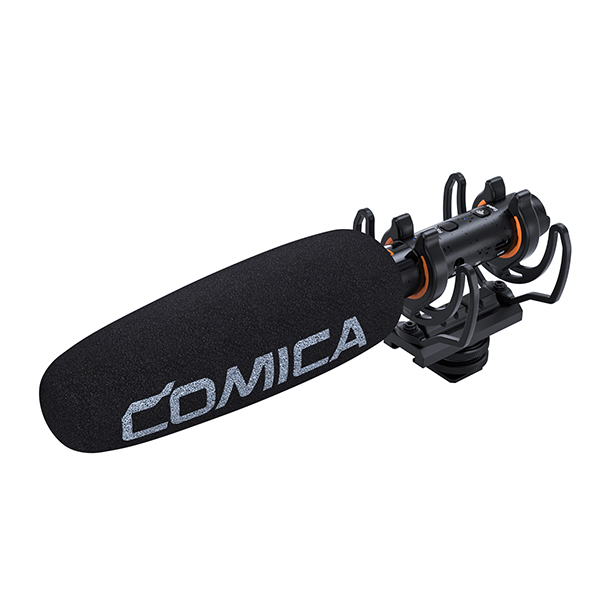

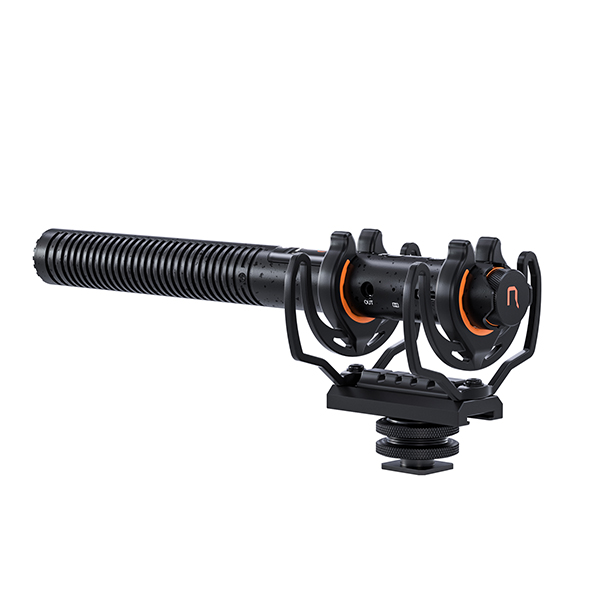

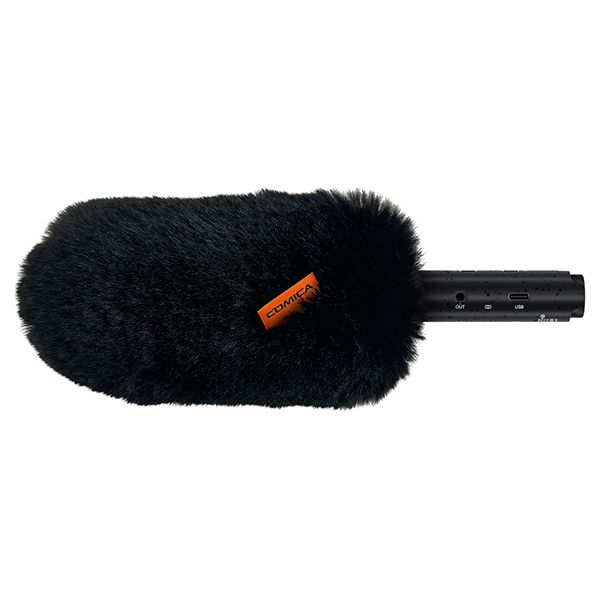

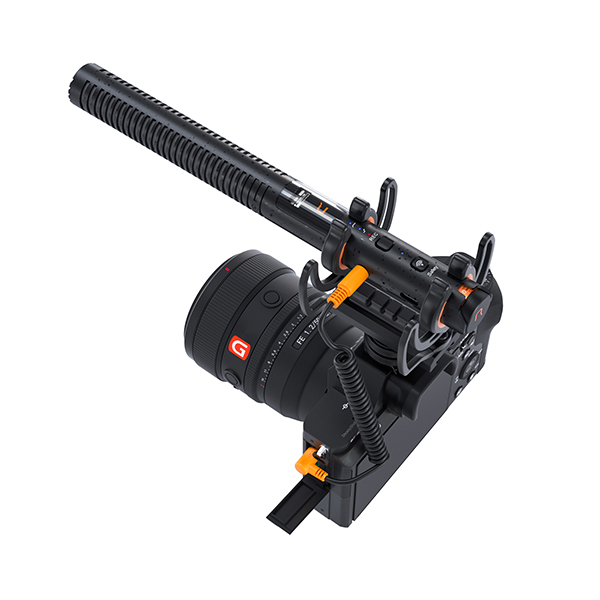

Upgraded Shock-mount & Windproof Accessory

The shock mount reduces or eliminates the noise caused by vibration and collision to ensure the quality of recording.The equipped high-density windscreen and wind muff effectively filter various noises and ensure clear reception even when shooting outdoors.

Upgraded Shock-mount & Windproof Accessory

Wireless Type

2.4GHz

Transmitting Power

+10dBm

Receiving Sensitivity

-96dBm

Antenna

Ceramic Antenna

Sound Delay

<20ms

Polar Pattern

Super Cardioid

Frequency Response

20Hz ~ 20kHz

Low-cut

-3dB @ 100Hz

High-frequency Boost

+3dB @ 10kHz

Output Impedance

600Ω

Sensitivity

-38dB ~ -18dB re 1V/Pa(12mv ~ 125mv @ 94dB SPL) ±2dB @ 1kHz

S/N

75dB SPL(A-weighted,as per IEC651)

Equivalent Noise

19dB SPL(A-weighted,as per IEC651)

Maximum SPL

130dB SPL(@ 1% THD)

Dynamic Range

111dB SPL(A-weighted,as per IEC651)

Analog Output

3.5mm TRRS/TRS

Digital Output

USB-C 48kHz/24bit

Battery

Transmitter:Li-polymer 3.7V 350mAh                  Receiver:Li-polymer 3.7V 330mAh

Battery Life

Transmitter: Wired Mode 32 Hours; Wireless Mode 10 Hours; On-board Recording Mode 5 Hours
Receiver: 8 Hours

Dimensions

Transmitter: Φ22mm x L224mm

Receiver: 54 x 48 x 22mm

Net Weight

Transmitter: 94g

Receiver: 29.5g

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 60℃
