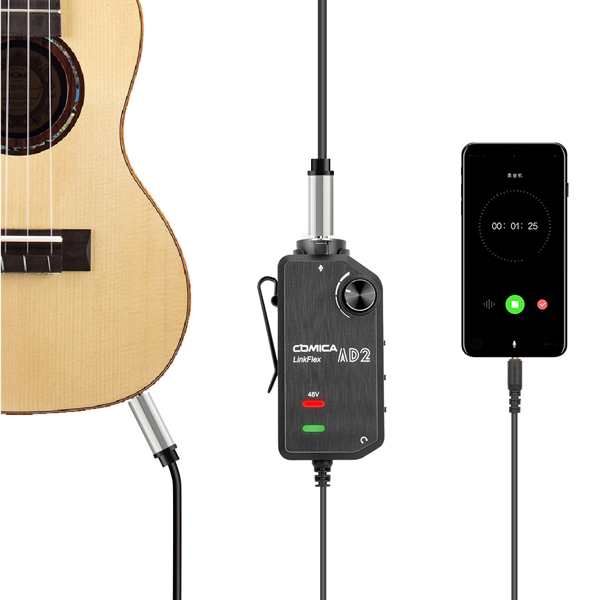

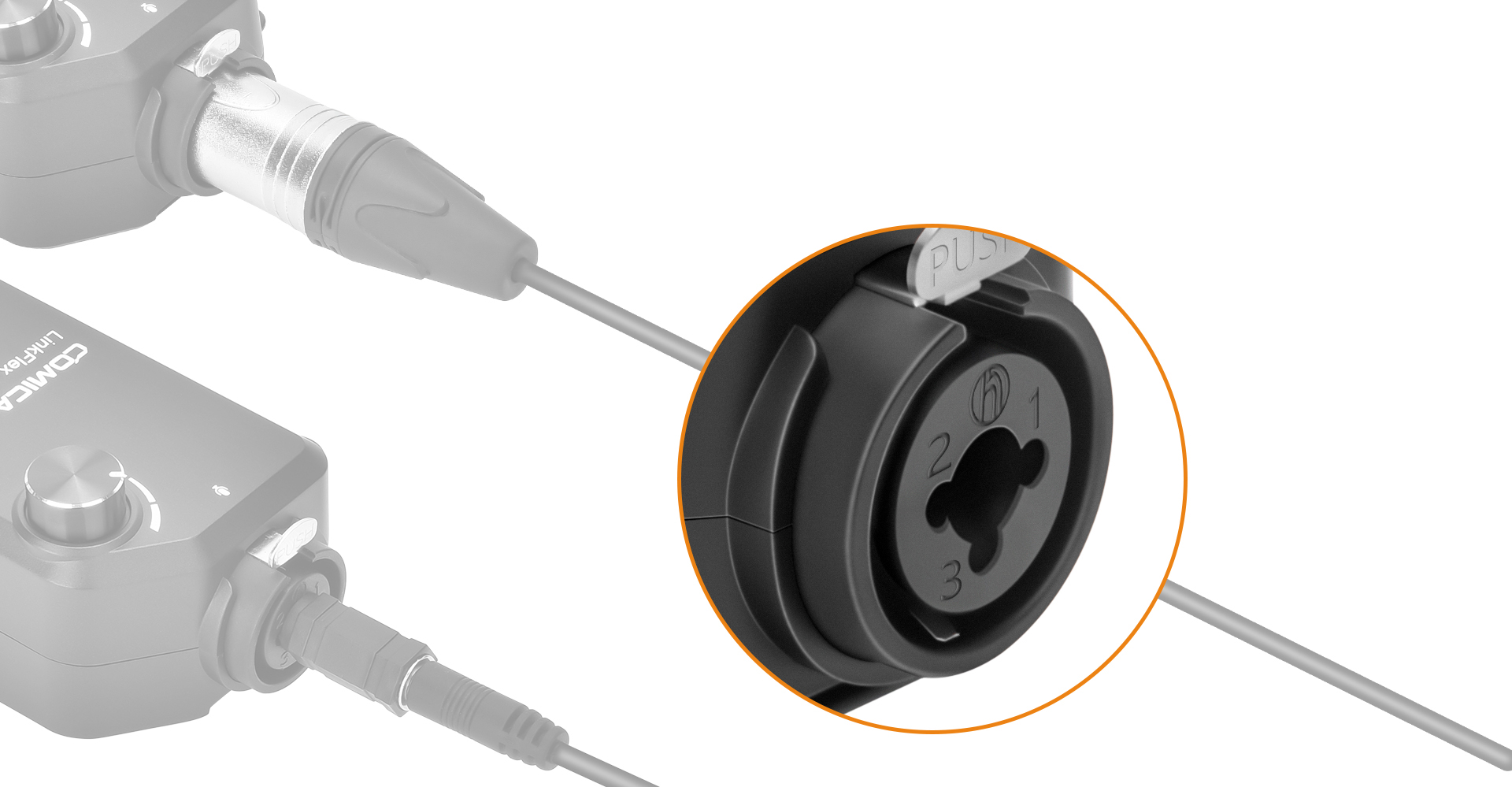

· XLR/6.35mm(For Instrument like Guitar etc.)Audio Adapter Interface
· Universal for Camera and Smartphone
· Support 48V Phantom Power
· Audio Preamp and Gain Control
· Mic/Device (Camera and Phone) Two Way Audio Monitor

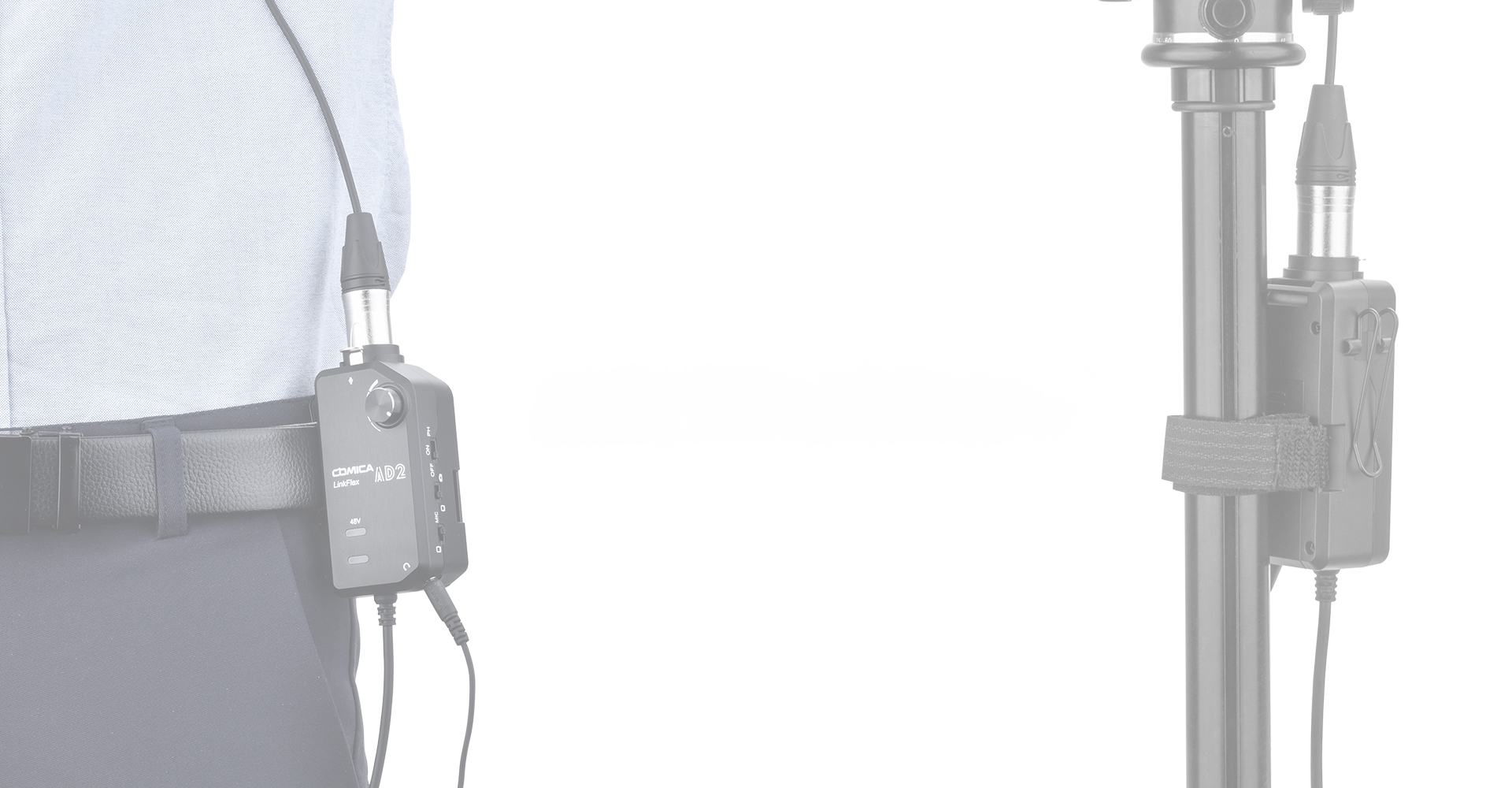

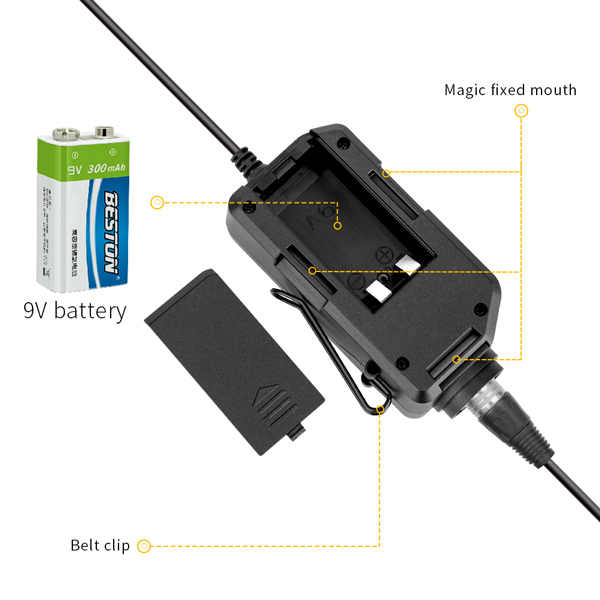

· Belt-clamp and Magic-tape Design at the Bottom

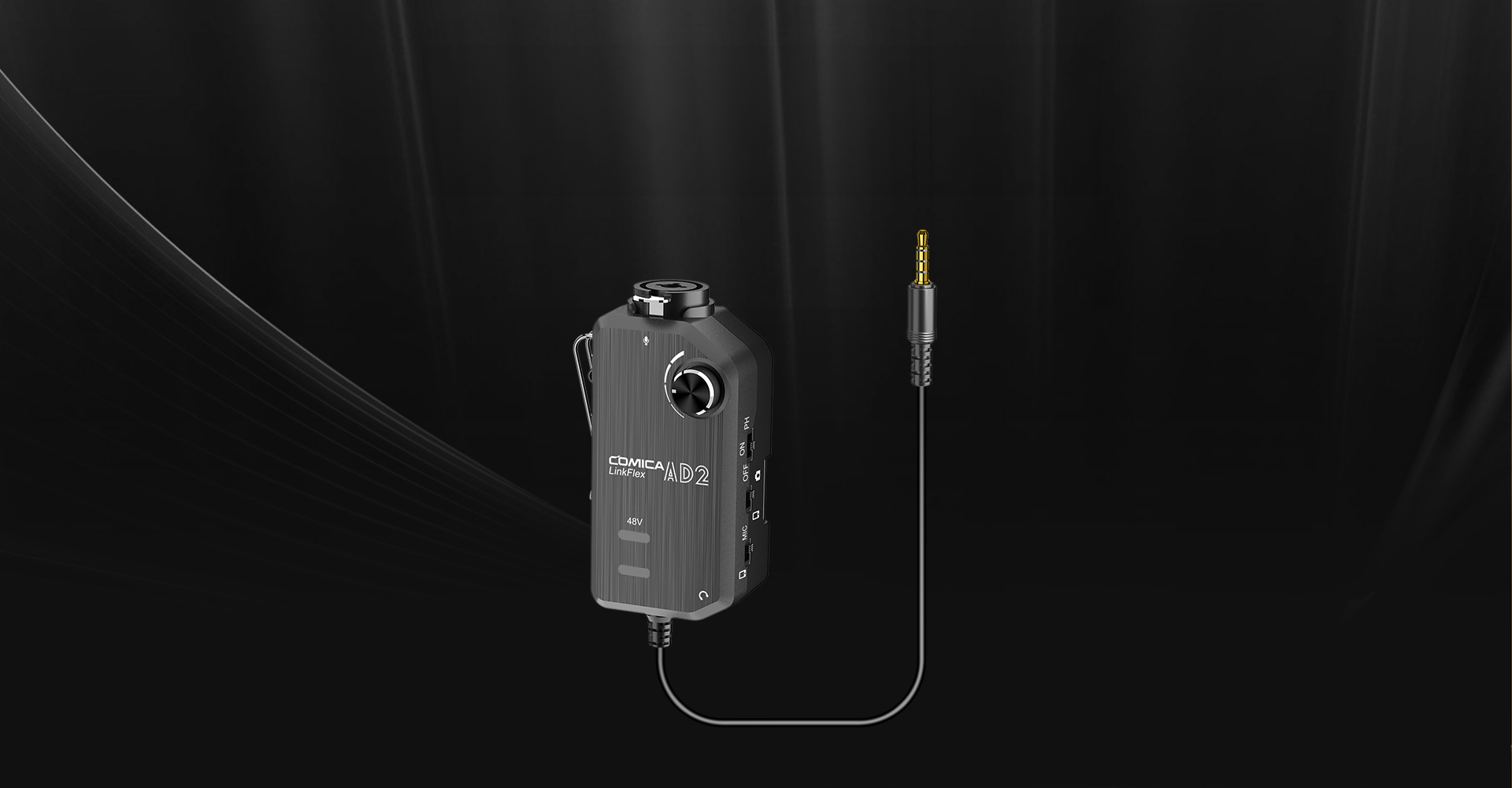

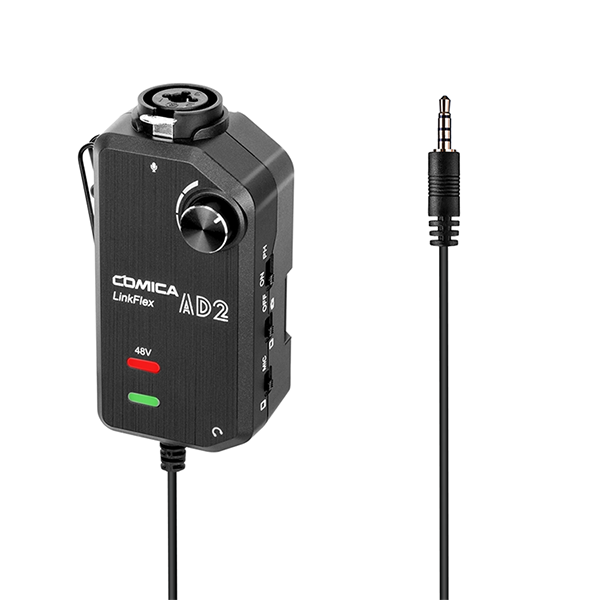

XLR/6.35mm Audio Preamp Adapter/interface for Camera and Smartphone

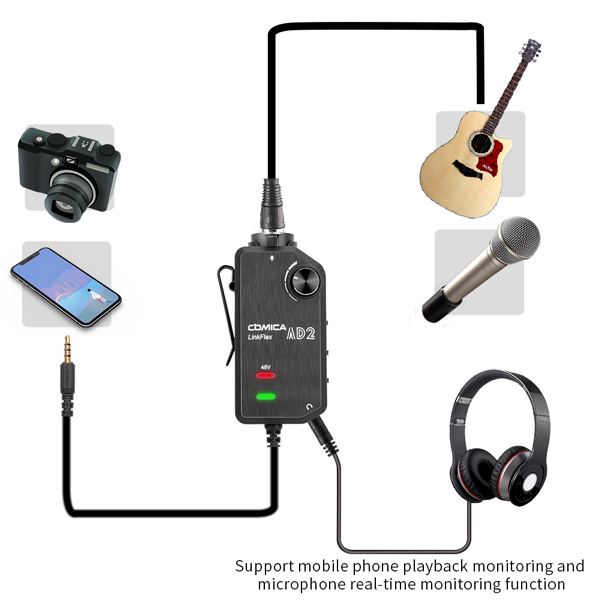

Multi-functional design, suitable for a variety of products

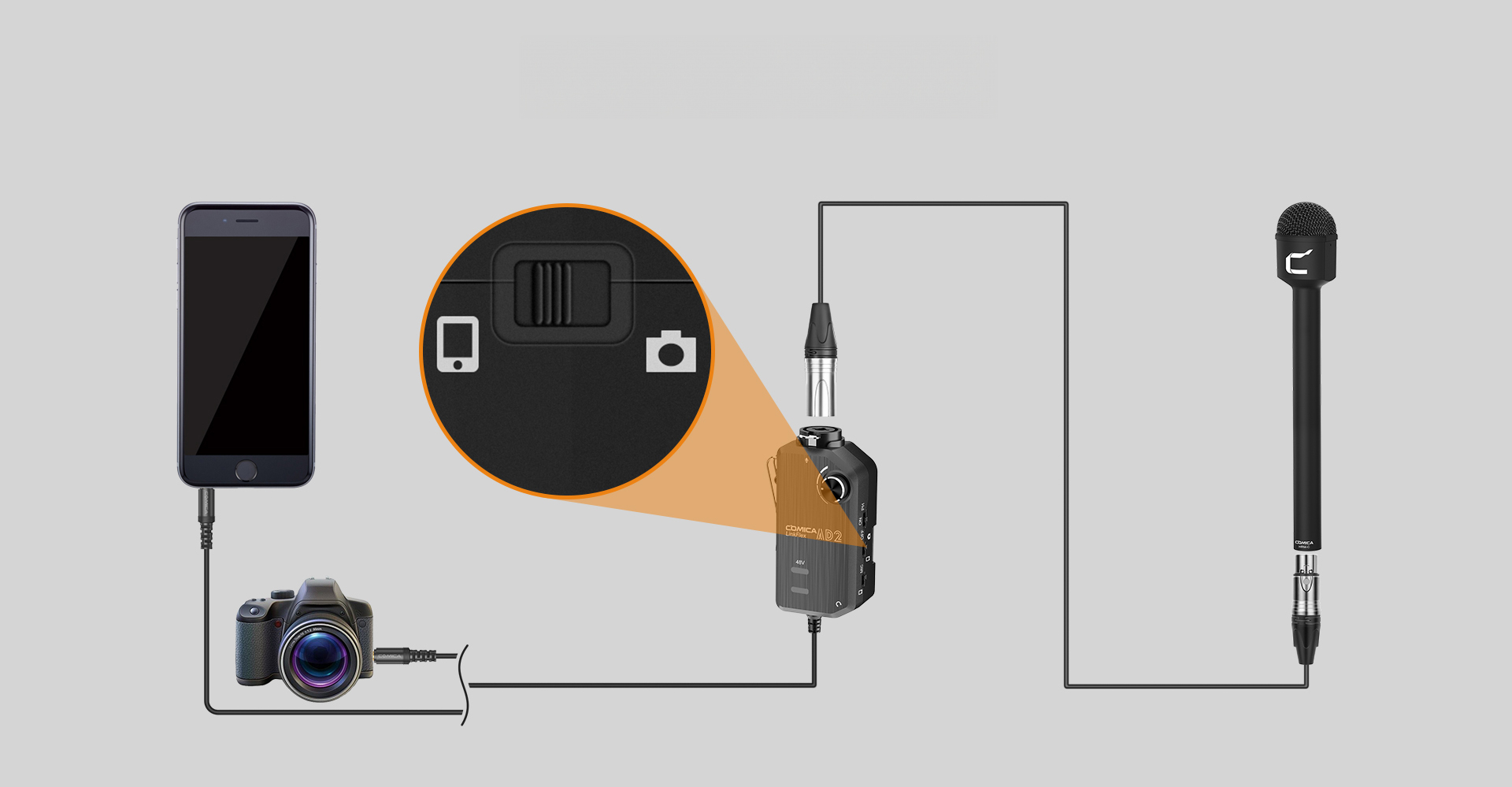

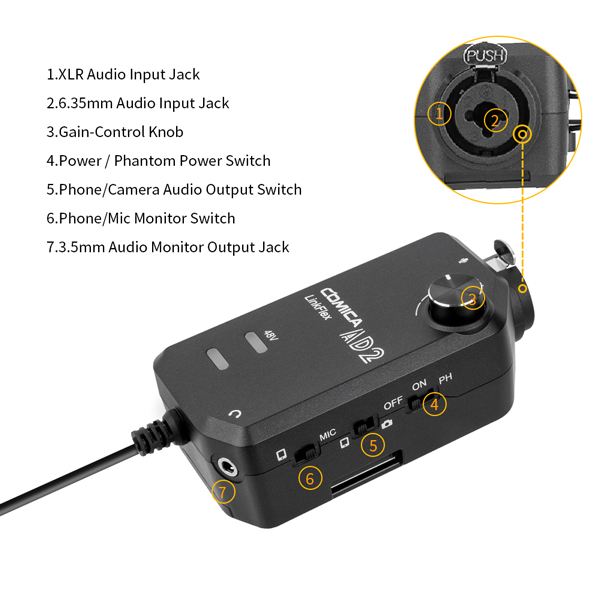

One click switch, simple operation

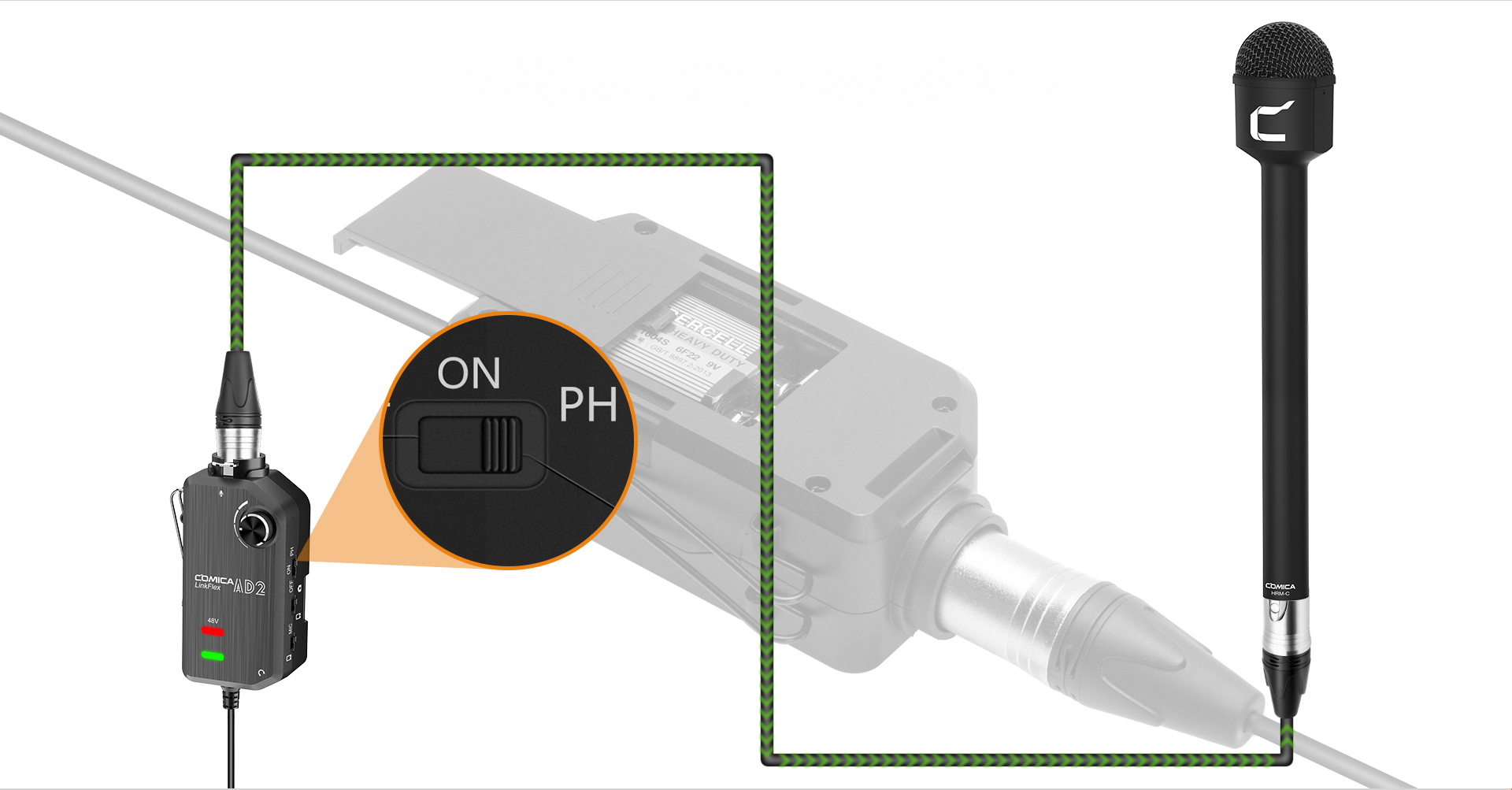

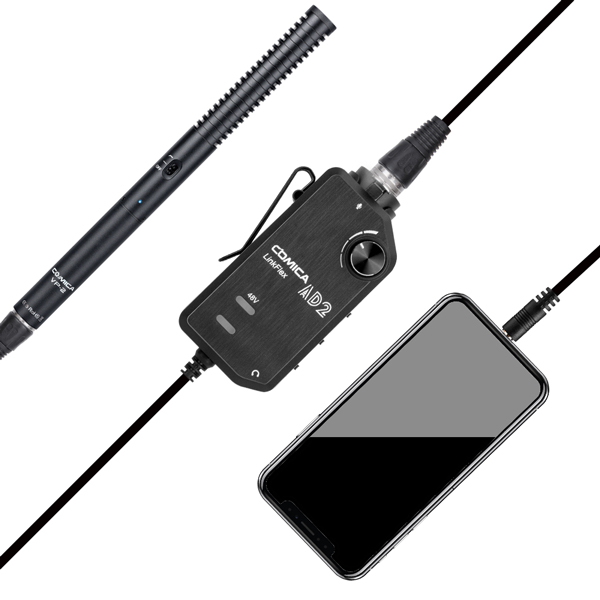

It can provide power to microphone that supports 48V phantom input, simple and convenient

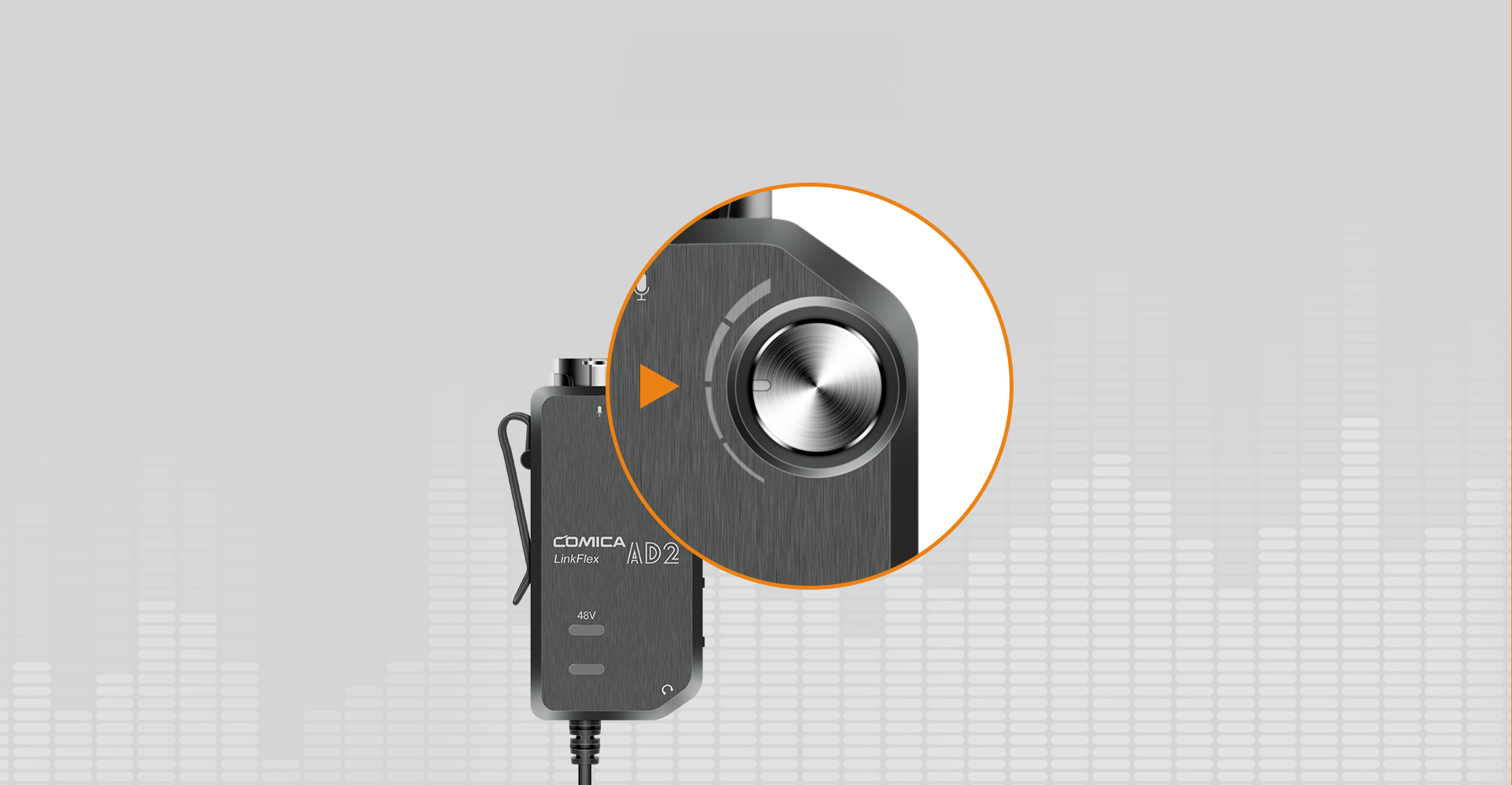

Adjust according to the shooting demands

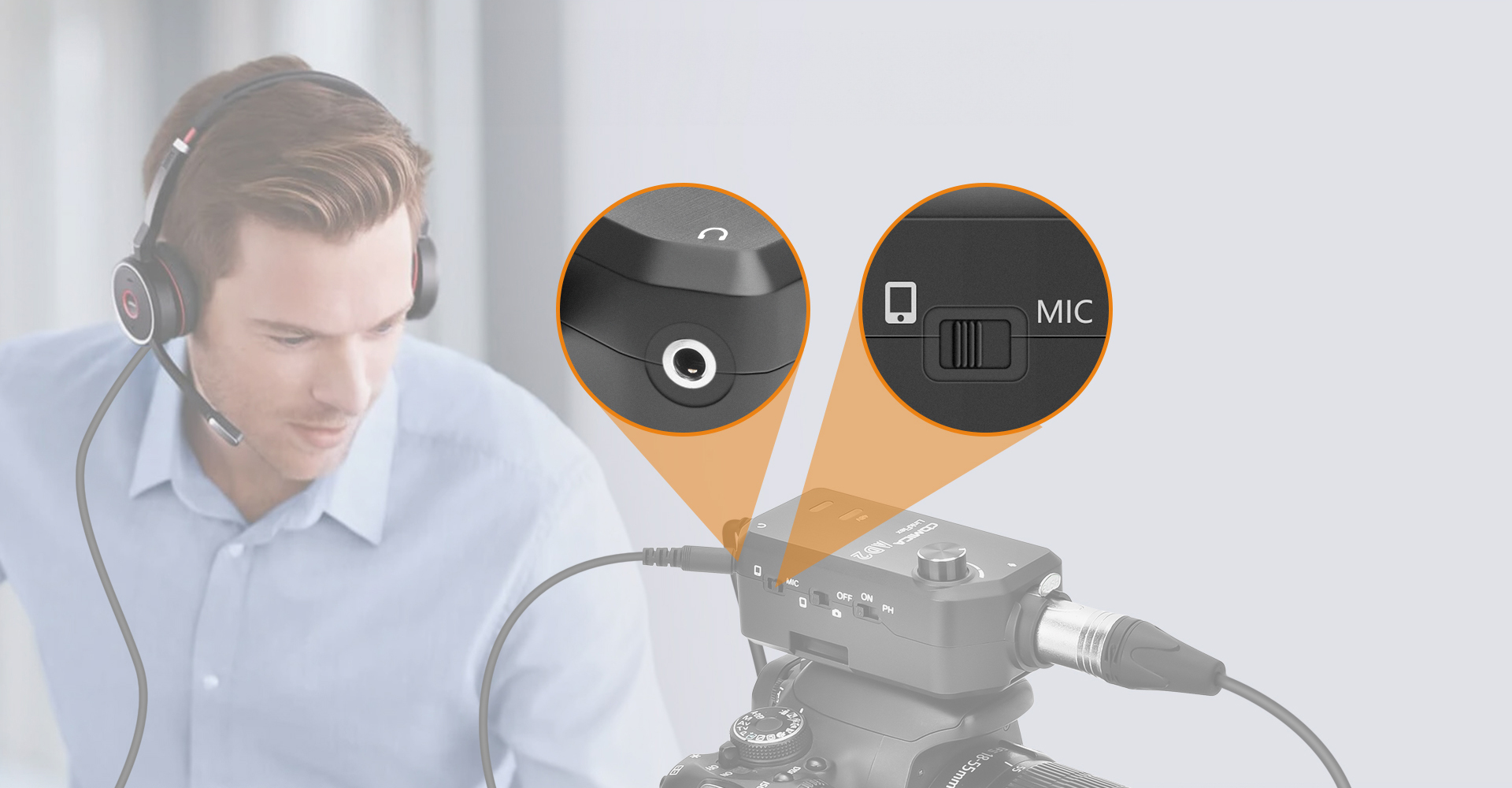

Real-time monitoring for the microphone recording and smartphone playback recording
Easy to carry and install
Input |
XLR,6.35mm |
Output |

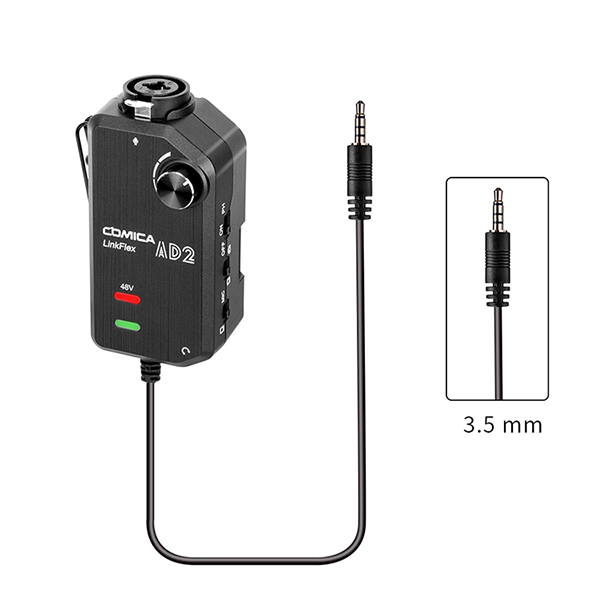

3.5mm audio output,3.5mm headphone output |
Frequency Response |
20Hz-20kHz,±1dB |
Gain Range |
Maximum increase +20dB |
THD+Noise |
<0.02%, RL=2KΩ, f=20Hz~20kHz, Vo=1Vrms |
Battery |
9V 6LR61/6F22 x 1 |
Size |
53x43x102mm |
Net Weight |
109g |
Working Temperature |
0℃ ~ +50℃ |
Storage Temperature |
-20℃ ~ +60℃ |

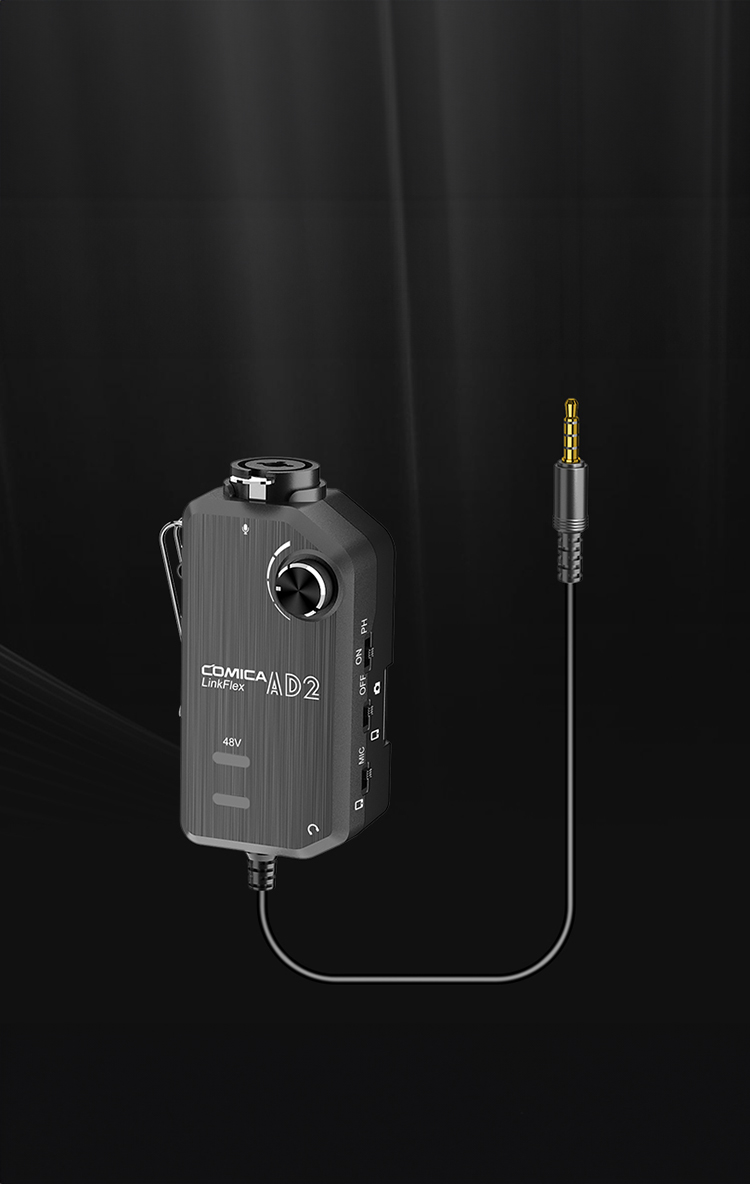

LinkFlex AD2
User Manual(EN) User Manual(CN)
