WS50

UHF Mini&Flexible Wireless Microphone

Watch Video Buy Now
WS50 WS50

WS50

Overview Specifications Download

WS50

UHF Mini&Flexible Wireless Microphone

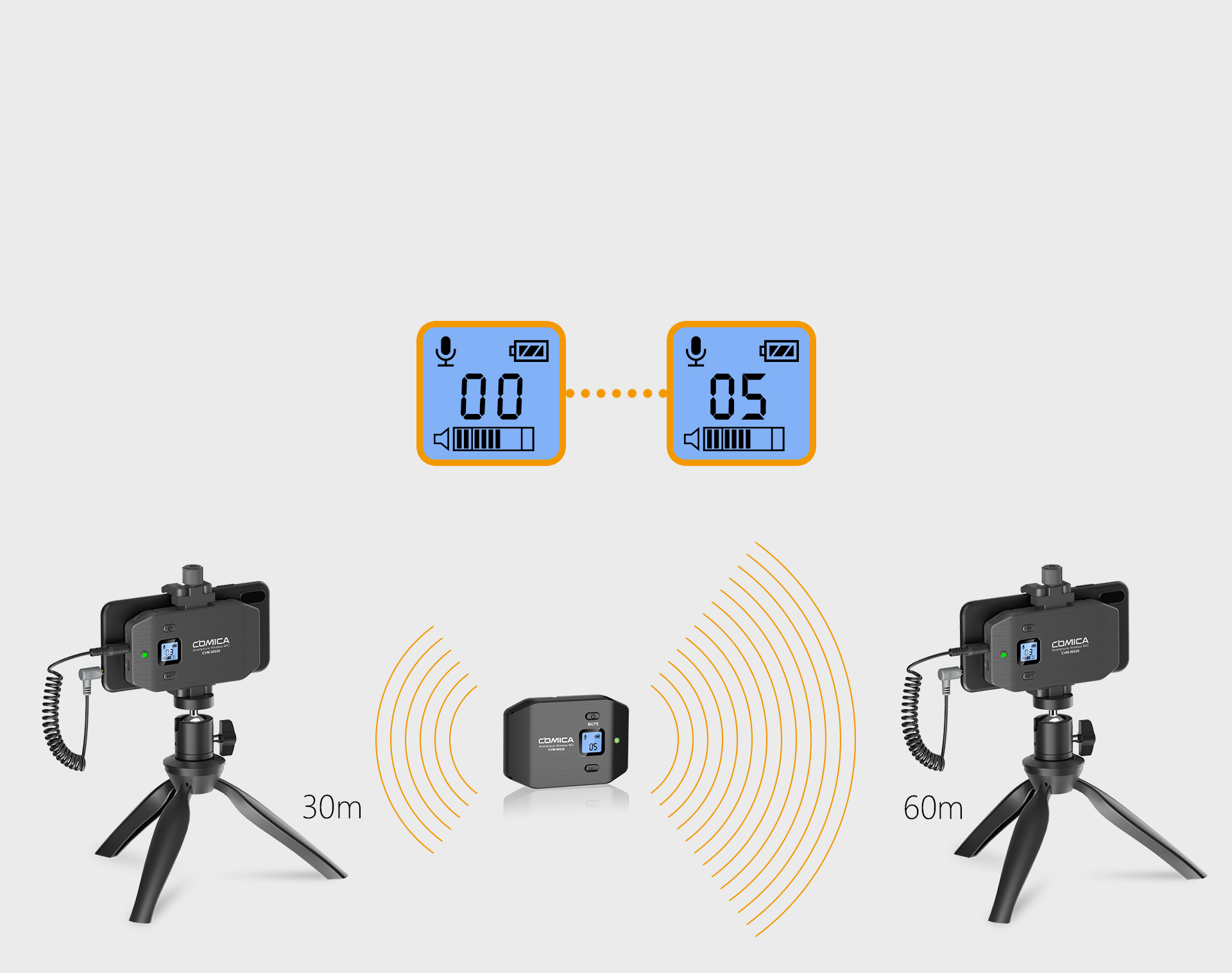

6 Channels, Working Distance Up to 60m (in Open Area, 30m in Area with Obstacle)

Optional 6 channels, flexible channel matching; when other channels are disturbed in the same space or near distance, you can quickly switch the channel to prevent interference.

6 Channels, Working Distance Up to 60m (in Open Area, 30m in Area with Obstacle)

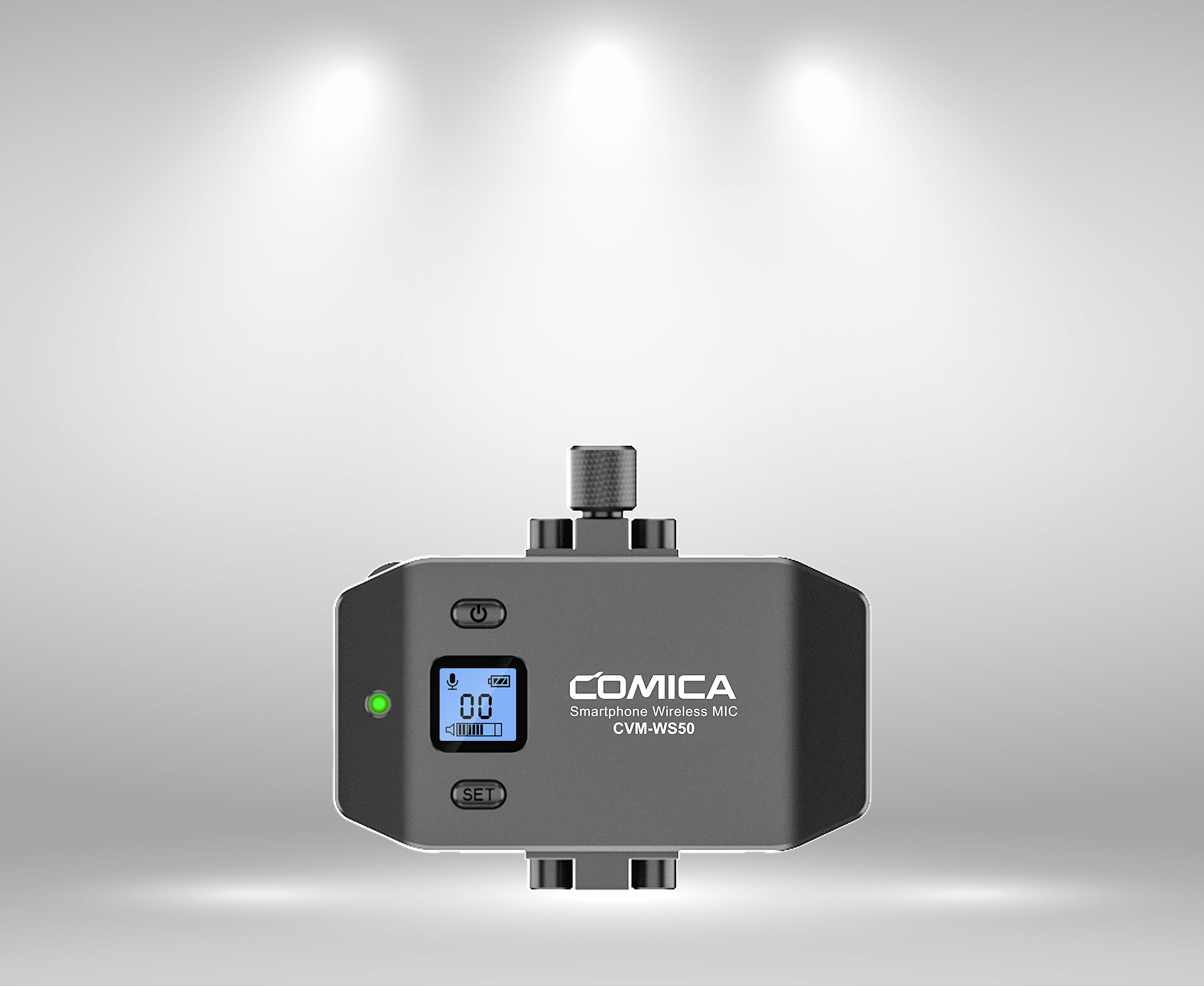

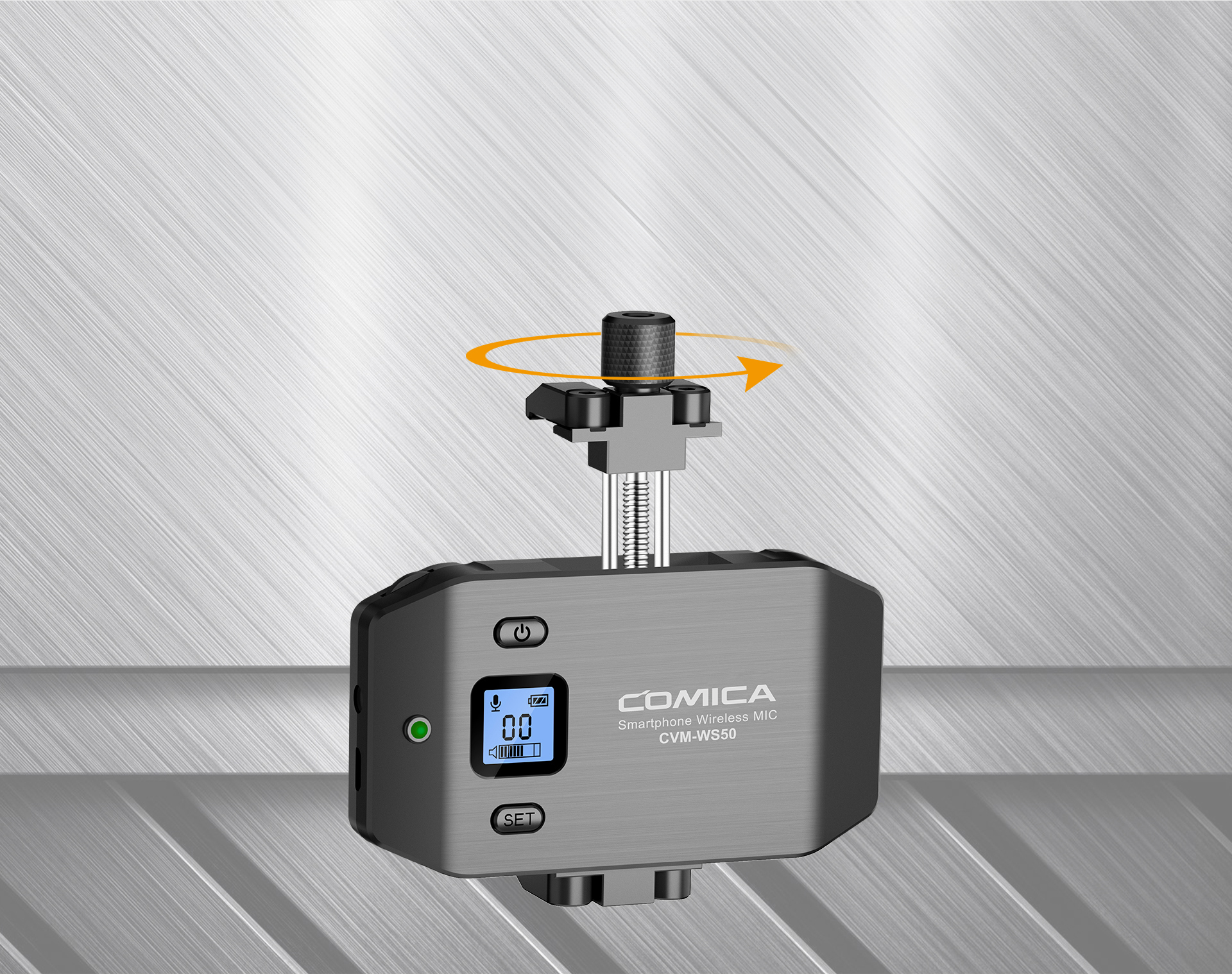

Built-in Metal Material Smartphone Holder

CNC processing, with high-quality appearance and metal shell. The smartphone clamp can be retracted, which makes it convenient to storage. The smartphone clamp width can be adjusted.

Built-in Metal Material Smartphone Holder

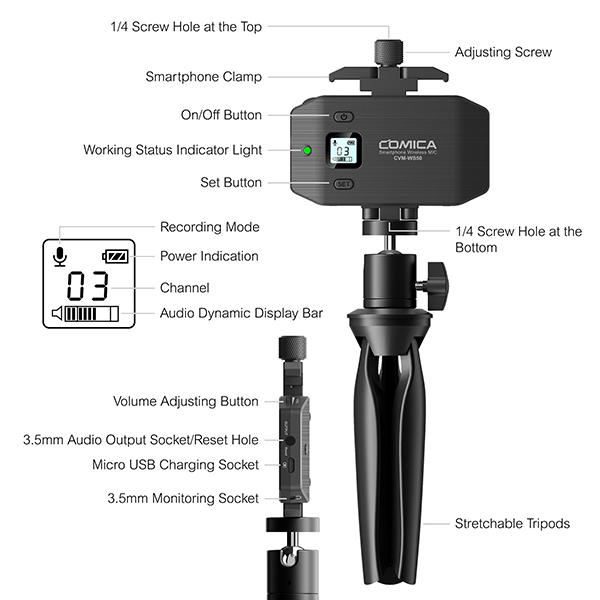

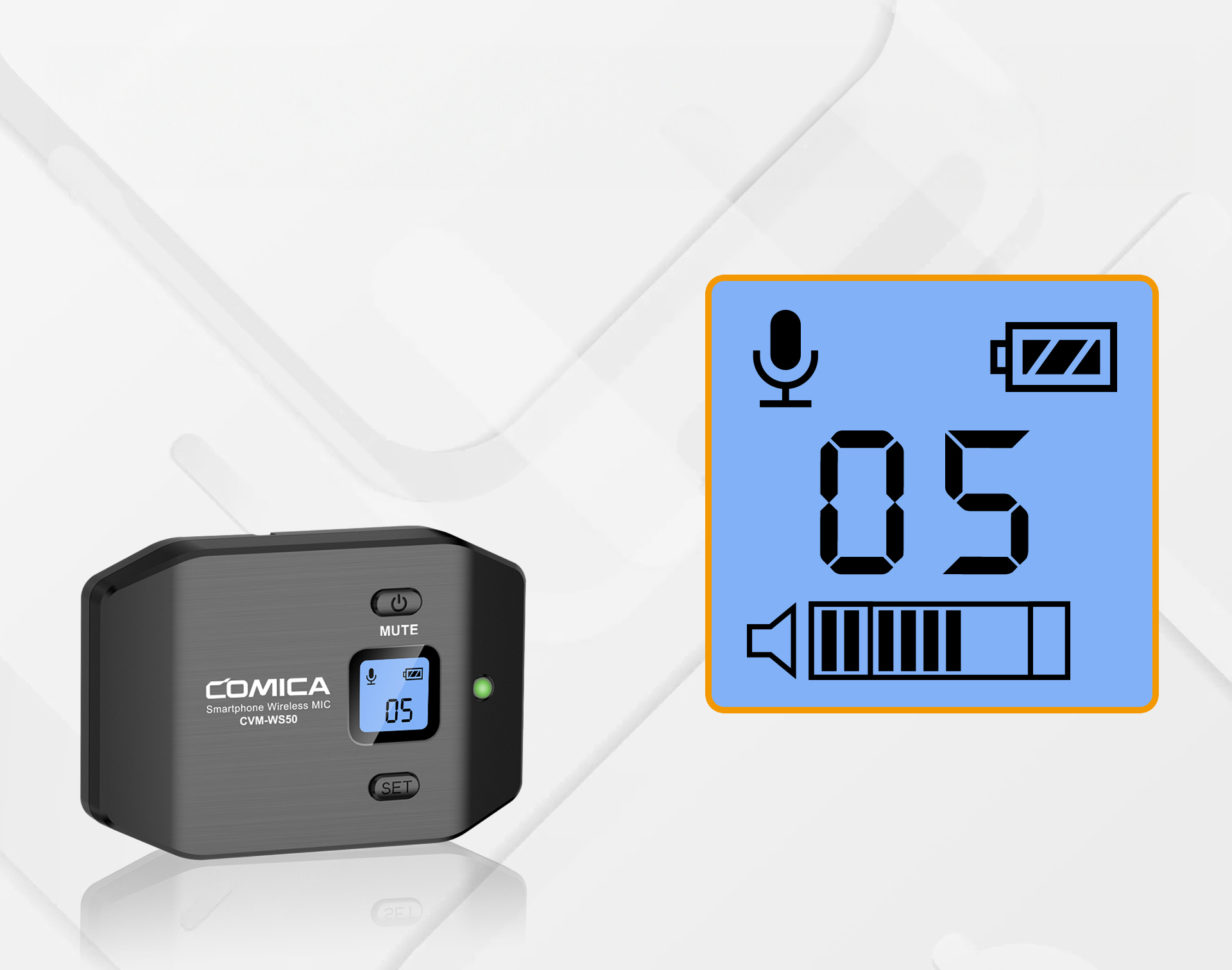

LCD Screen for Displaying Channels and Audio Status

Special LCD screen can display channels, audio status and power consumption, clear and convenient.

LCD Screen for Displaying Channels and Audio Status

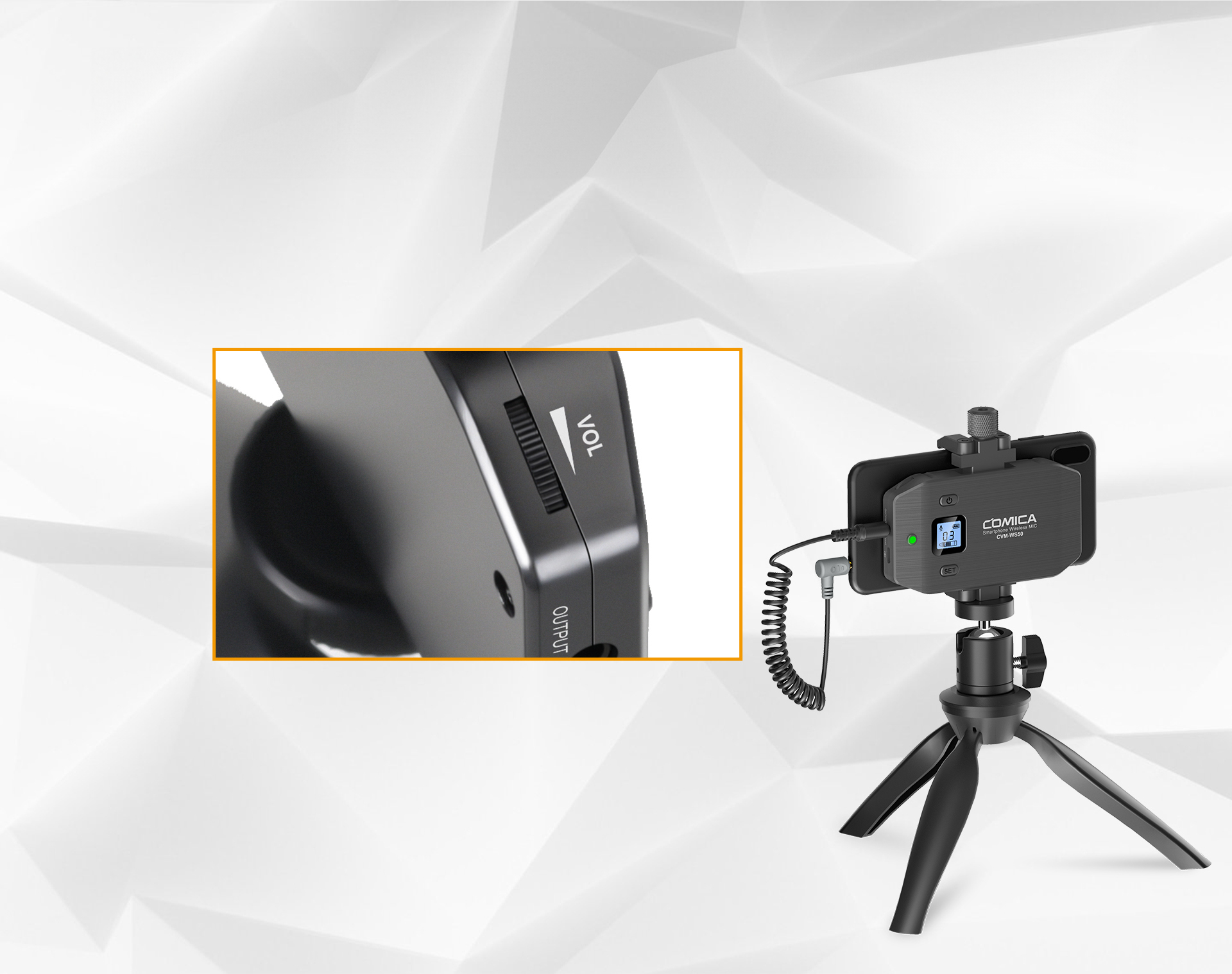

Stepless Volume Adjustment

Equipped with adjustable dial to adjust the volume according to your shooting demands.

Stepless Volume Adjustment

Real-time Audio Monitor

You can real-time monitor the recording status to make your shooting more attractive.

Real-time Audio Monitor

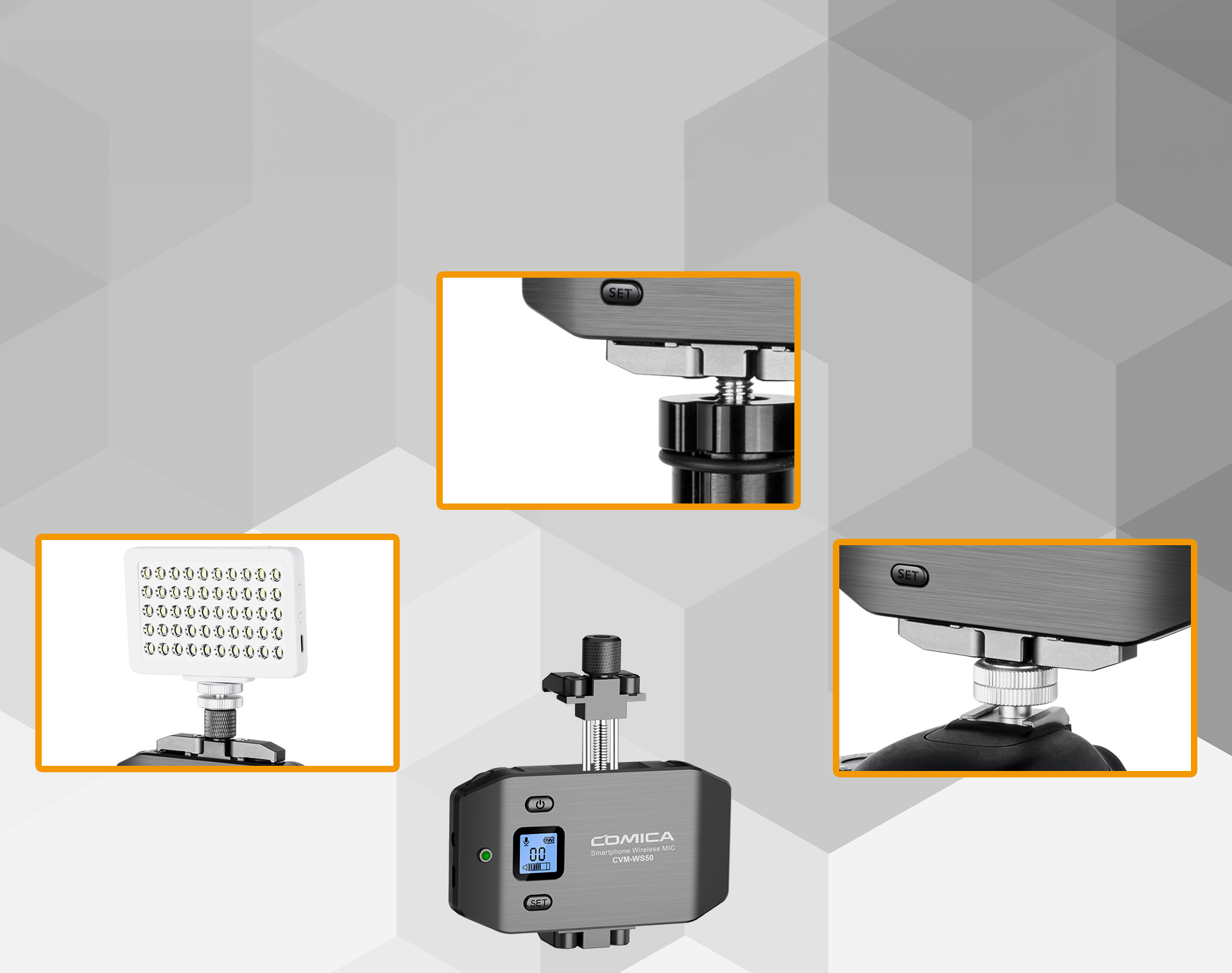

Extendable for Connection with LED Light, Grip, Tripod, Cold-shoe, etc.

Extendable design brings more diversified usage and makes your shooting more professional and convenient.

Extendable for Connection with LED Light, Grip, Tripod, Cold-shoe, etc.

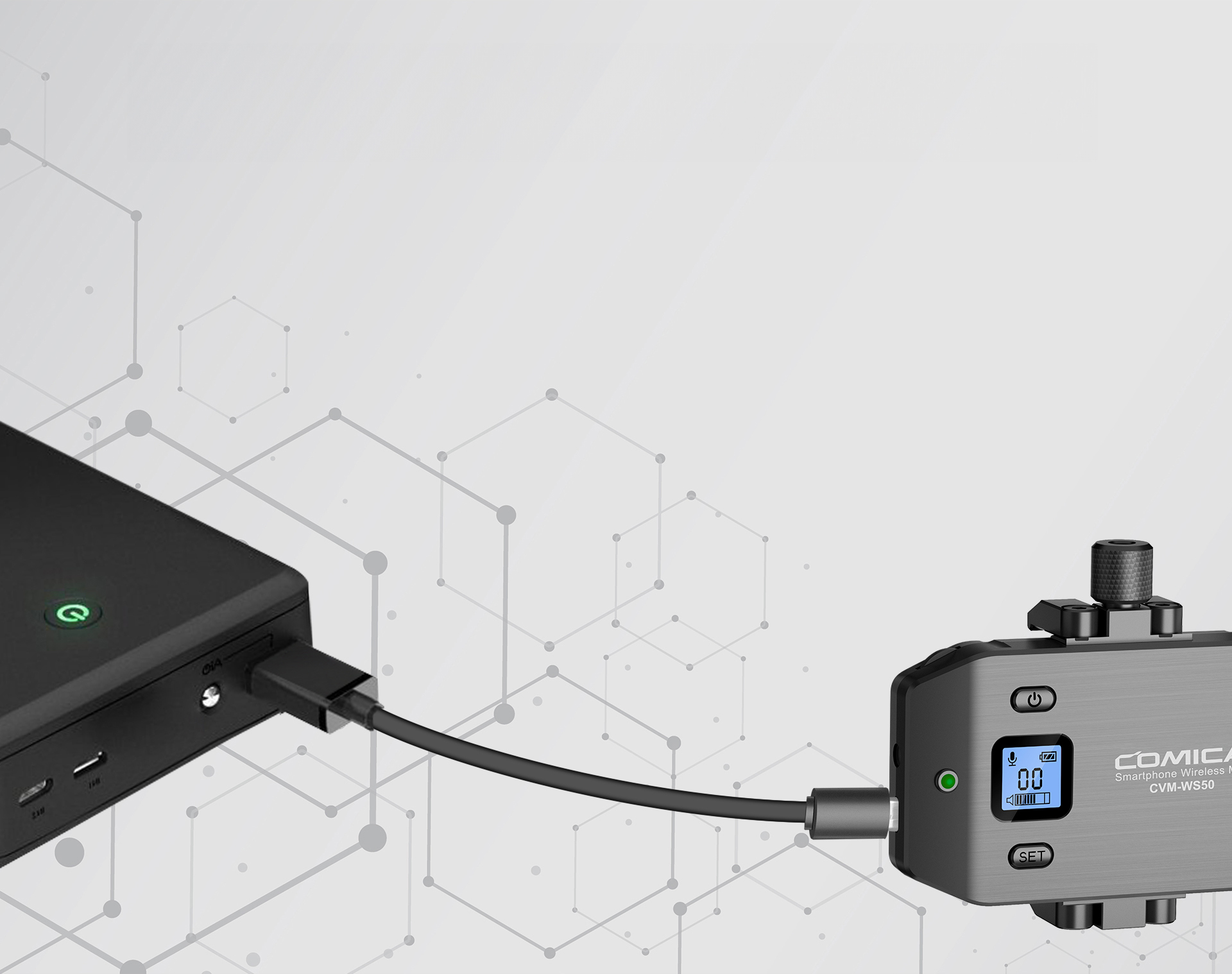

Built-in Rechargeable Lithium Batteries

It's available in charging with powerbank supply, and you can charge while in use.

Built-in Rechargeable Lithium Batteries

Portable and Light

Delicate and special design, easy to carry.

Portable and Light

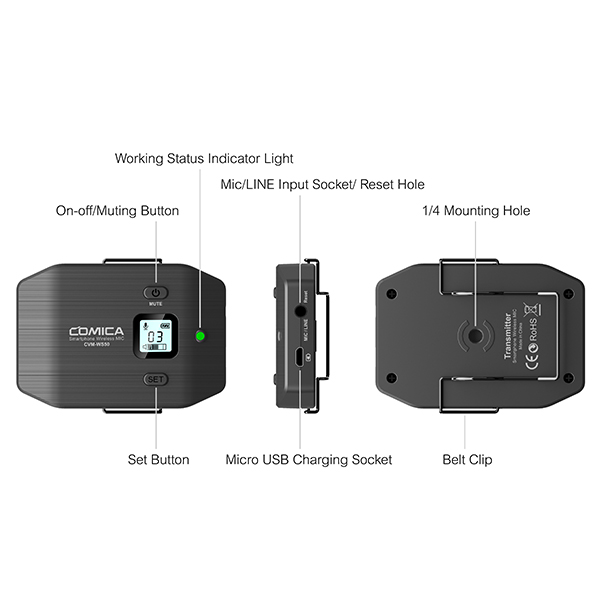

Transmitter

Channels

6(0~5)

Wireless Frequency

520.00MHz ~ 526.00MHz

Signal / Noise

>65dB

Antenna

1/4 Wavelength Wire Antenna

Transmitting Power

10dBm

Stray Radiation

<-60dBc

Sound Delay

<20ms

Audio Distortion

<0.5%

Audio Input Socket

3.5mm socket

Batteries

Polymer Lithium Battery3.7V 1150mAH

Charging Socket

Micro USB

Dimension

85 x 59 x 16.3 mm

Operating Temperature

0℃ ~ +50℃

Storage Temperature

-20℃ ~ +60℃



Hand-held Transmitter

Signal / Noise

>65dB

Antenna

PCBAntenna

Stray Radiation

<-60dBc

Sound Delay

<20ms

Audio Distortion

<0.5%

Battery

2pcs AA Battery

Dimension

Φ53.5(MAX)x 248mm

Operating Temperature

0℃ ~ +50℃

Storage Temperature

-20℃ ~ +60℃





Receiver

Channels

6(0~5)

Wireless Frequency

520.00MHz ~ 526.00MHz

Signal / Noise

>65dB

Antenna

1/4Wavelength Wire Antenna

Receiving Sensitivity

-95dBm

Sound Delay

<20ms

Audio Distortion

<0.5%

Frequency Response

20Hz ~ 18KHz

Audio Input Socket

3.5mmSocket

Batteries

Polymer Lithium Battery 3.7V 1150mAH

Charging Socket

Micro USB

Dimension

104 x 57.6 x 16.3mm

Charging Socket

0℃ ~ +50℃

Storage Temperature

-20℃ ~ +60℃





Bluetooth Electronic Grip

Bluetooth Version

3.0

Effective Distance

10m

Battery

CR2032 x 1

Auto power-off time with no operation

10 minutes

Dimension

35 x 25 x 8.4mm
