WM100 PLUS
Overview Specifications Download

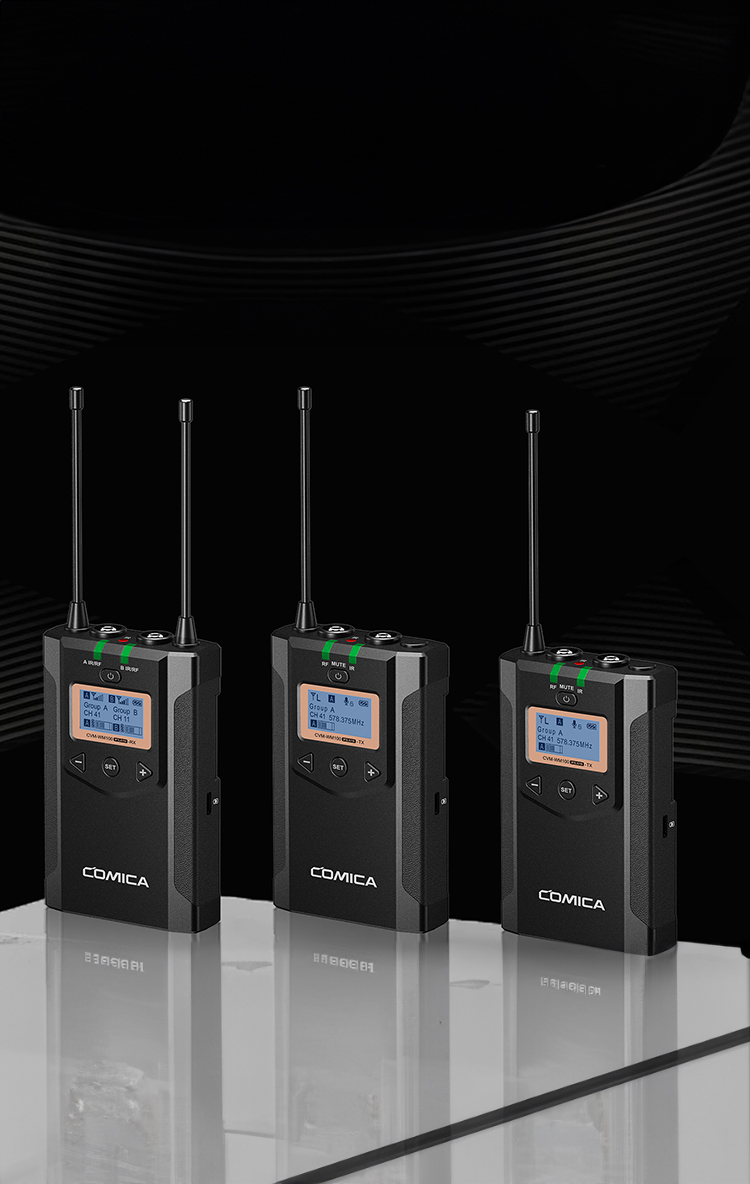

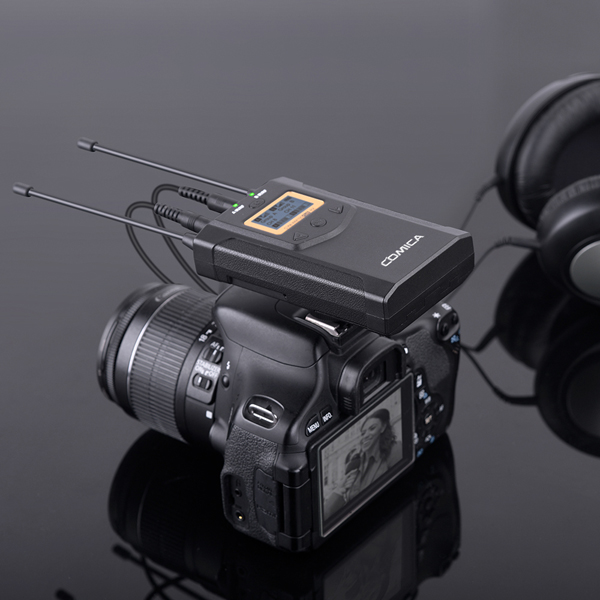

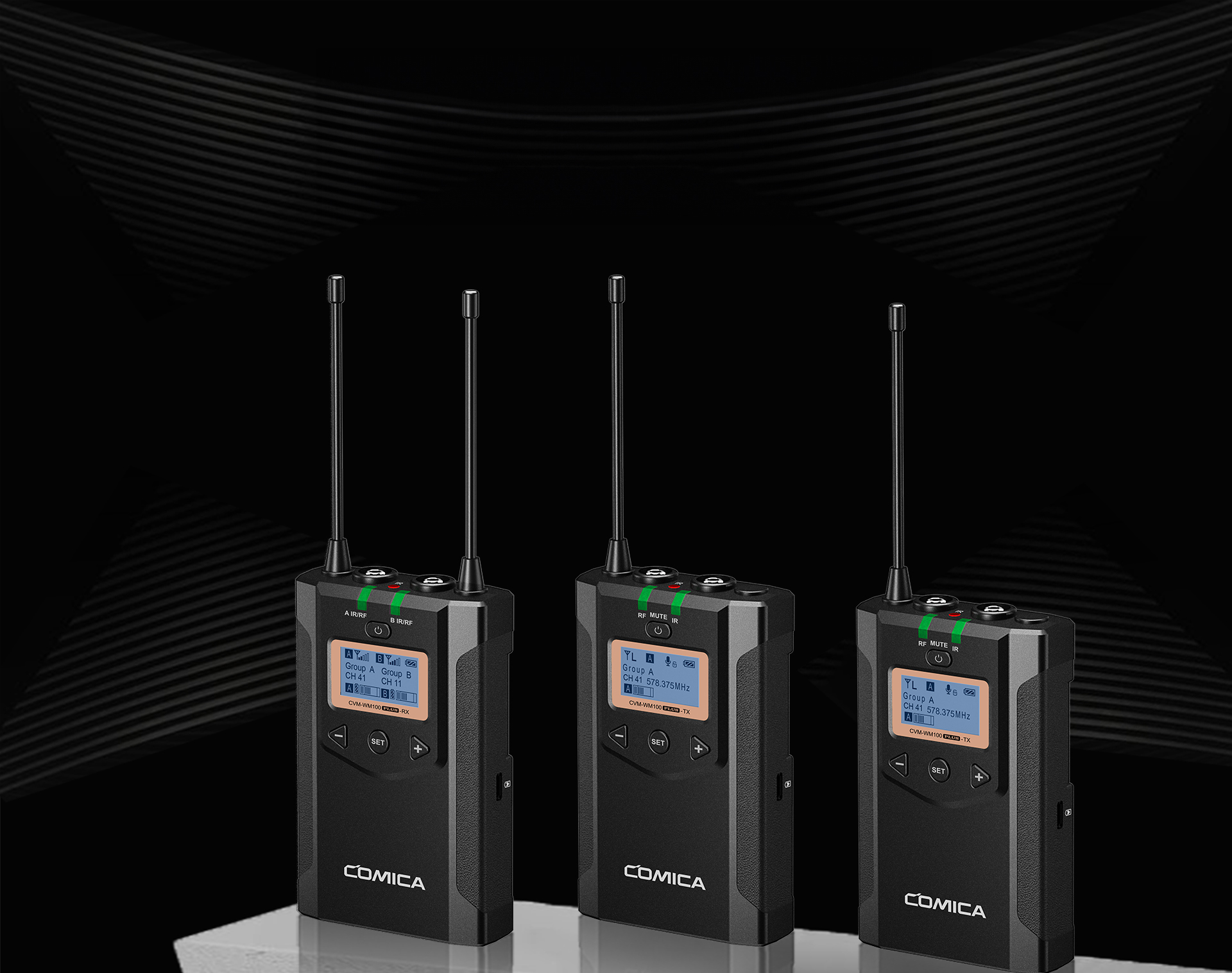

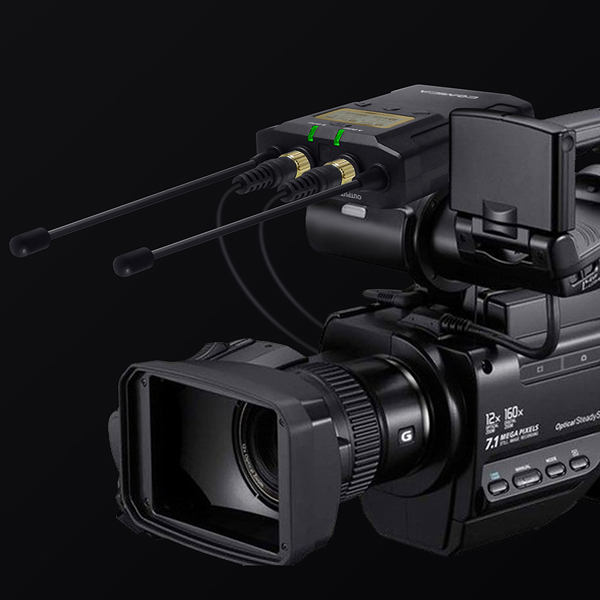

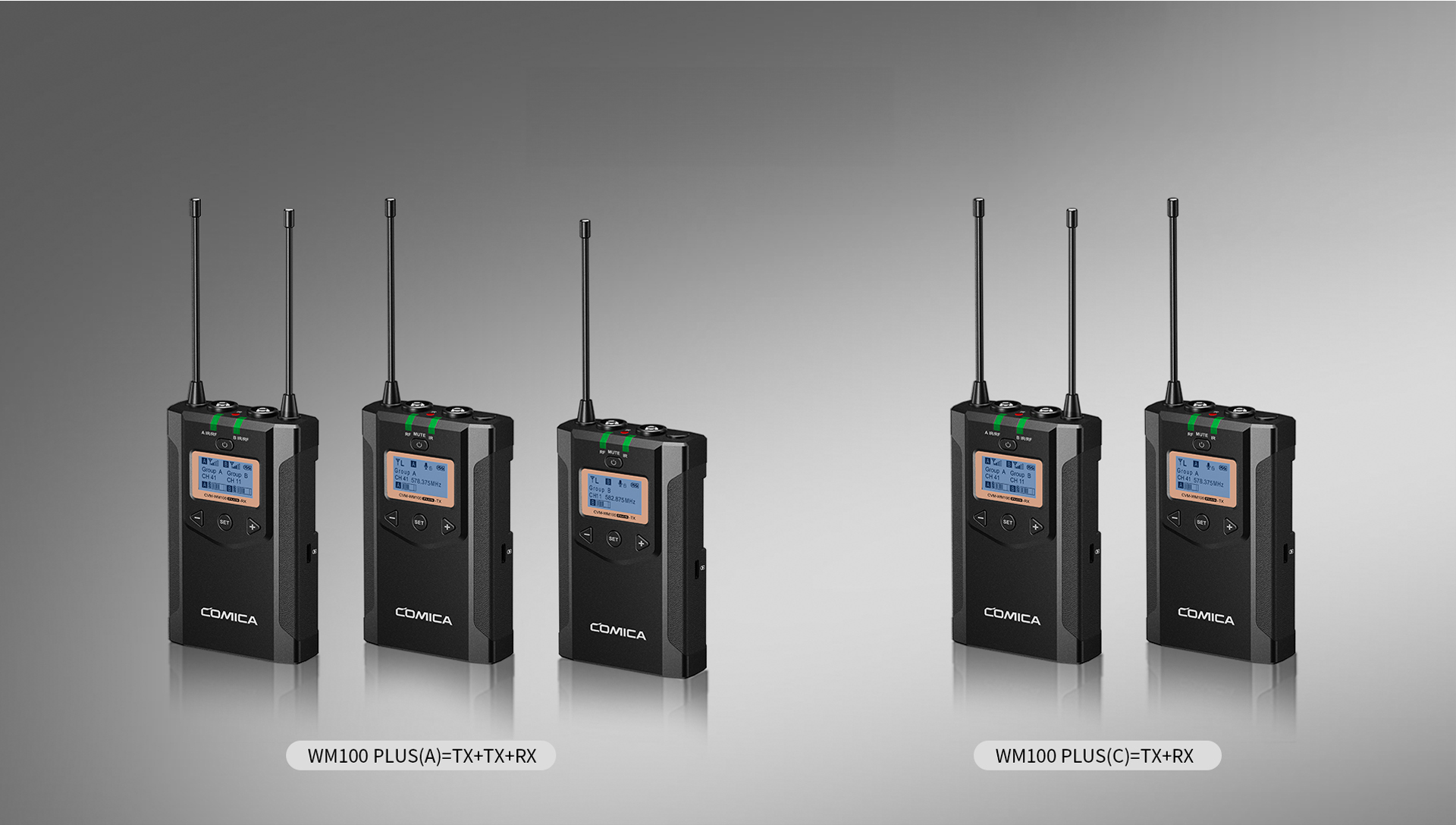

. 1-trigger-2, Perfectly Support Two Transmitters and One Receiver Work Simultaneously
. Working Distance Up to 100m (Open Area 100m, 60m in area with obstacle)
. 48-channels for Multiple Devices Work Together
. M/S Switch, IR Sync, LCF, 16-levels Adjusted Gain Control, Muting Functions
. Two Power Supply Modes（AA batteries and support external supply）
. Support Real-time Monitor
. Volume Dynamic Monitor
. Adjusted RF Power
. Lattice LCD Display, High Resolution

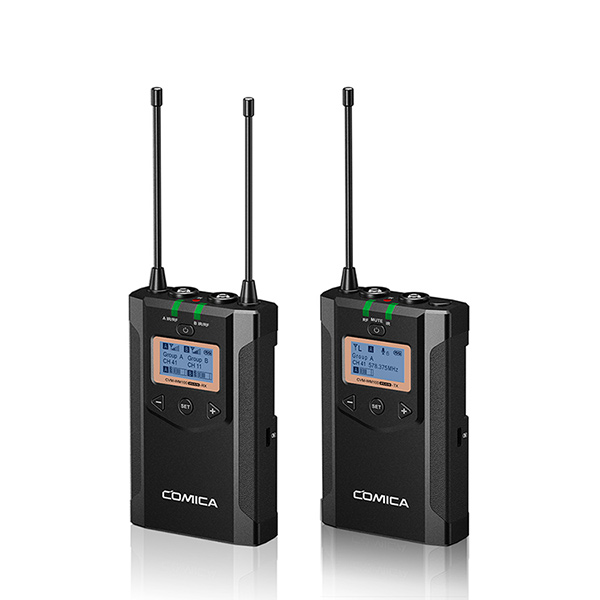

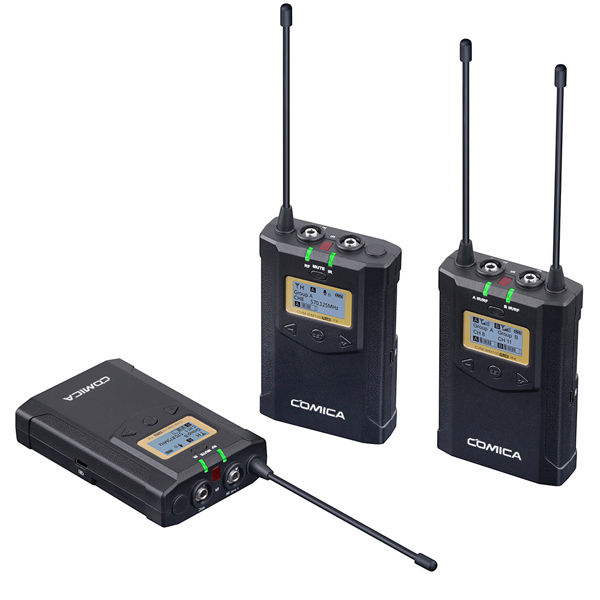

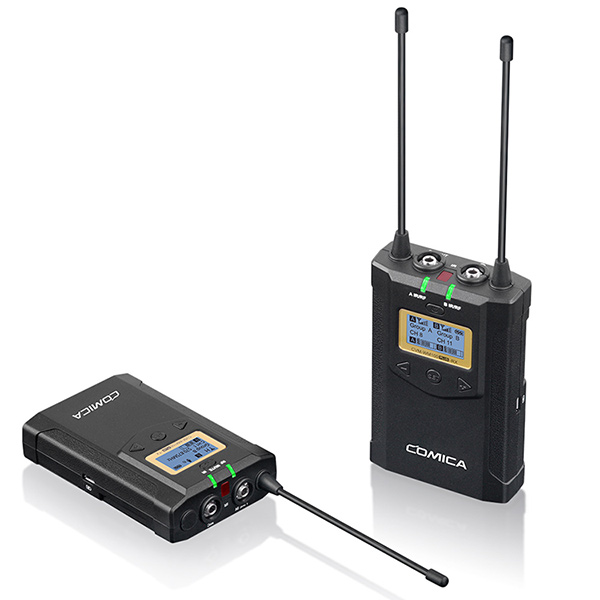

WM100 PLUS
UHF Wireless Microphone

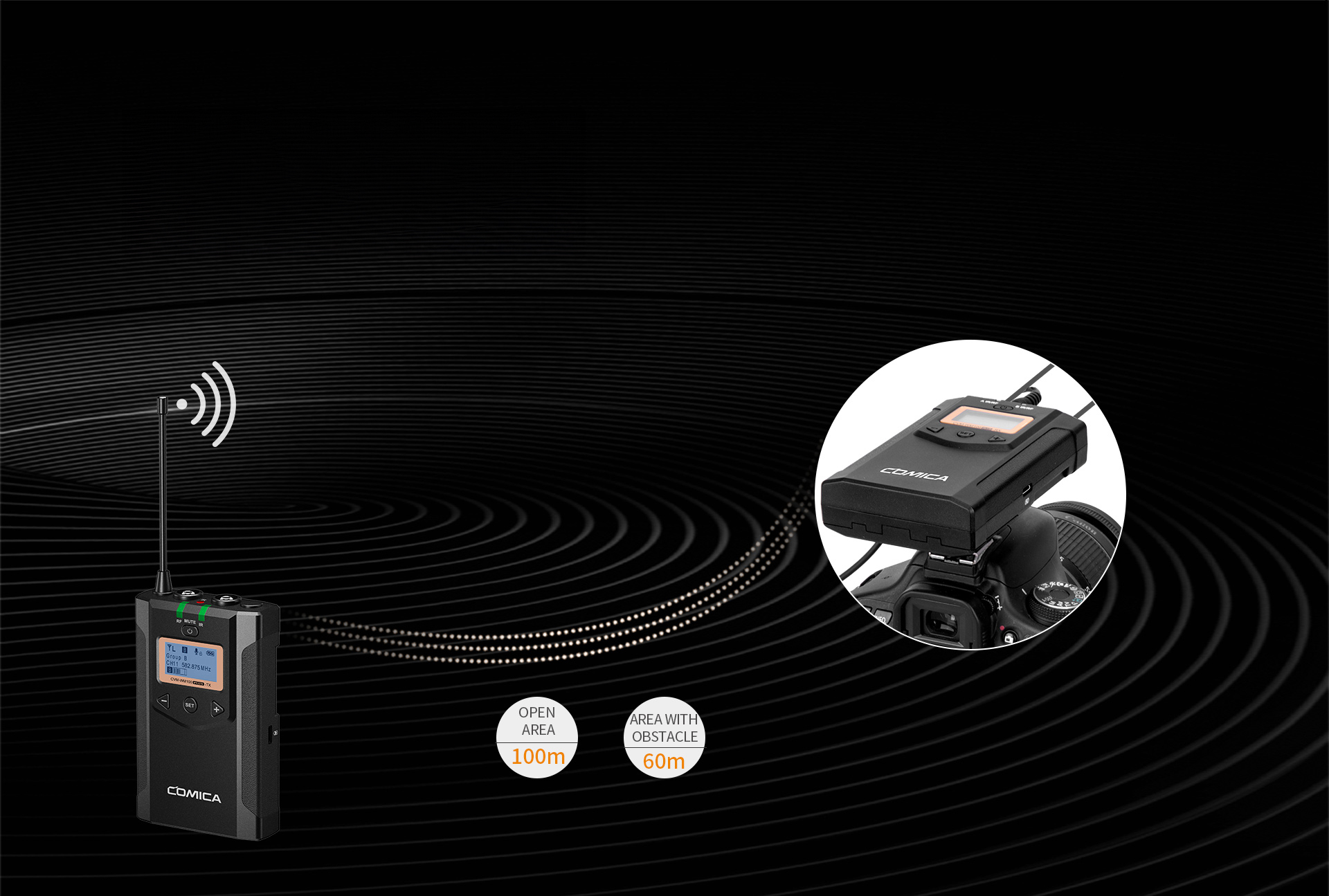

Working Distance Up to 100m (Open Area 100m, 60m in Area with Obstacle)
Super long pick-up distance, which meets the needs of most shooting scenes
48 Channels, Convenient for Multiple Devices Working Together
There are multiple channels for you to choose freely when multiple devices are used at the same time, to avoid interference from other channel signals

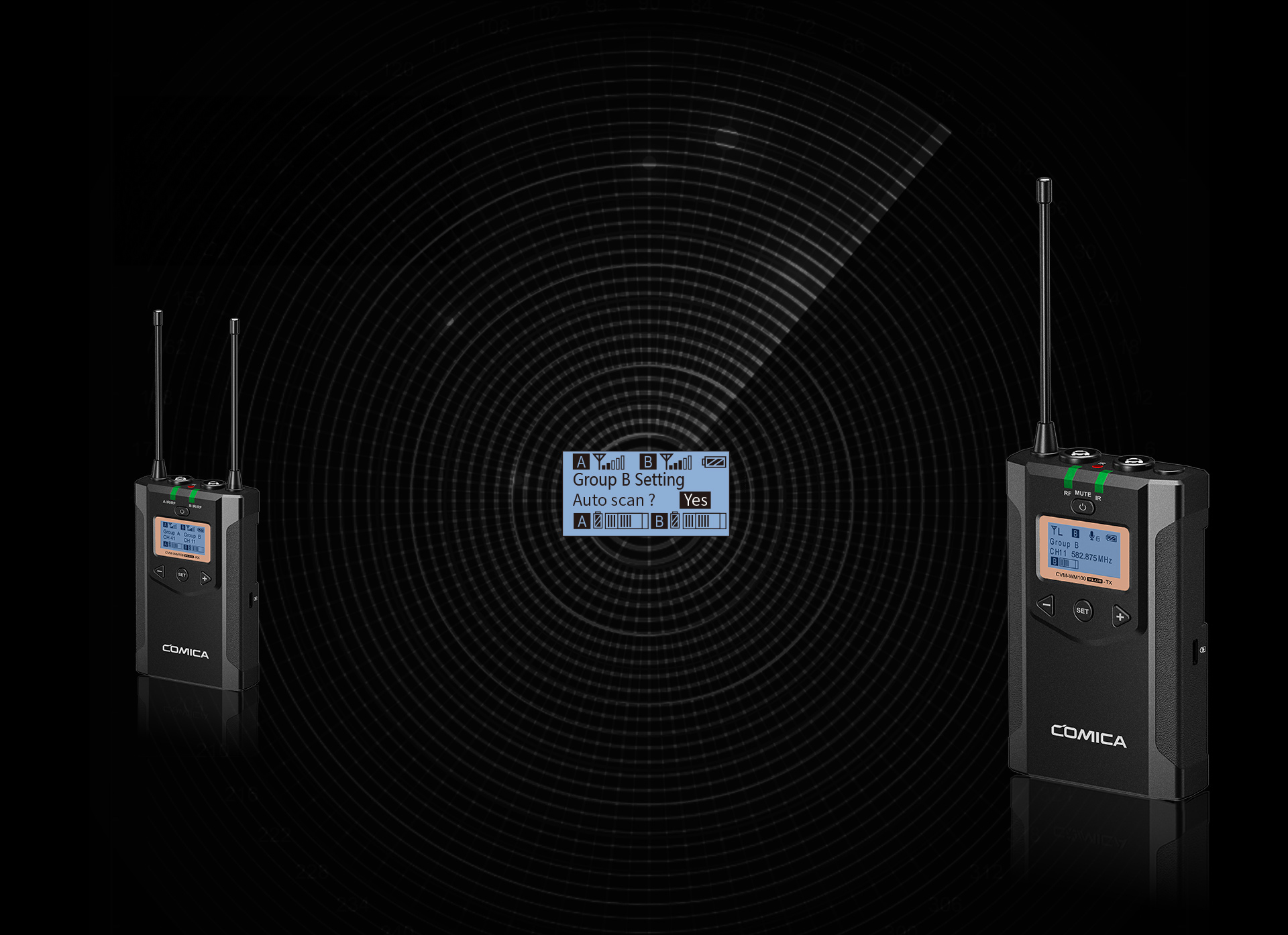

Auto-scanning and IR Sync for Quick Channel Selection
Scanning to the most suitable channel for the current environmentTo reduce interference, efficient and convenient

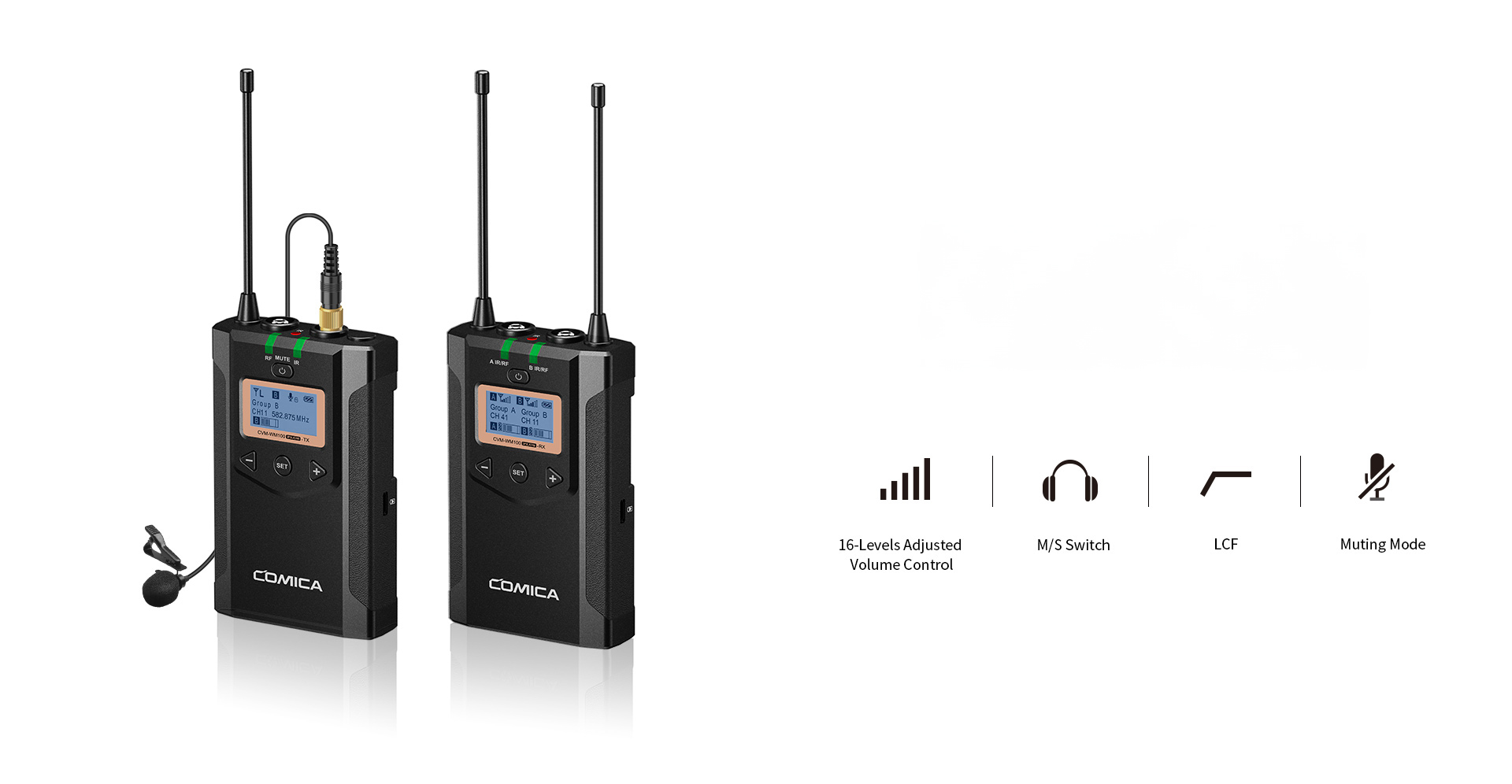

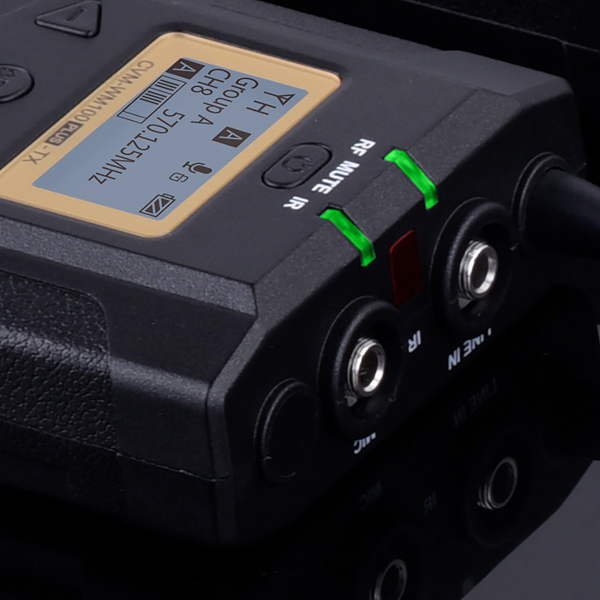

M/S Switch, LCF, 16-Levels Adjusted Volume Control, Muting Functions
Multi-function adjustment is optional to meet more needs

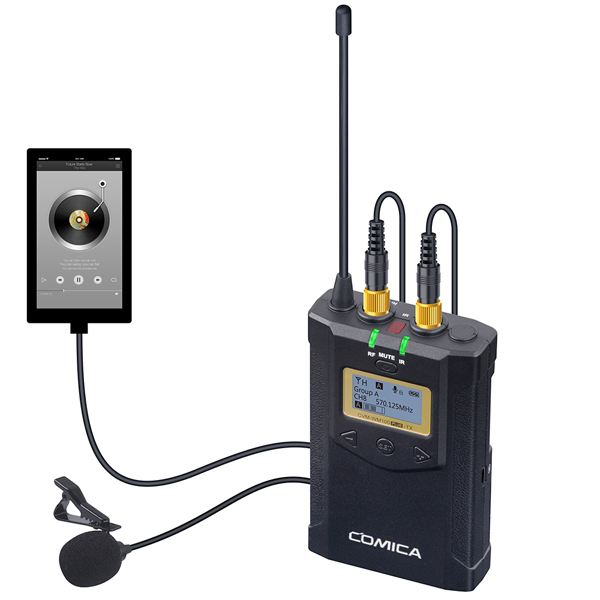

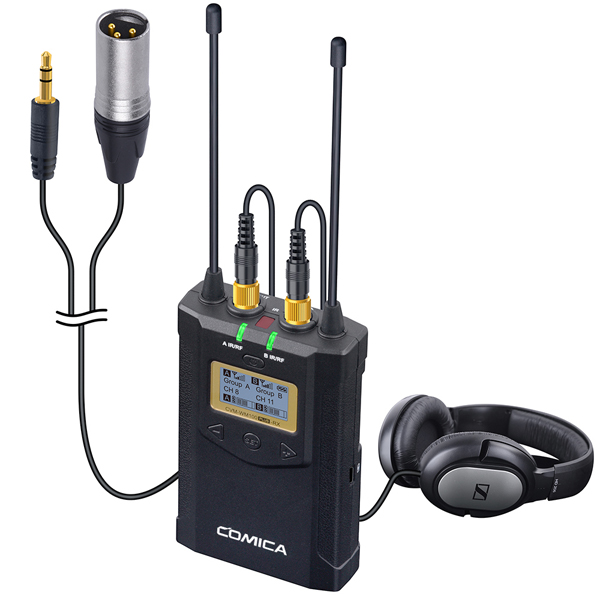

Support Real-time Audio Monitor and Volume Dynamic Monitor
Instant monitoring and adjustment to ensure more stable work

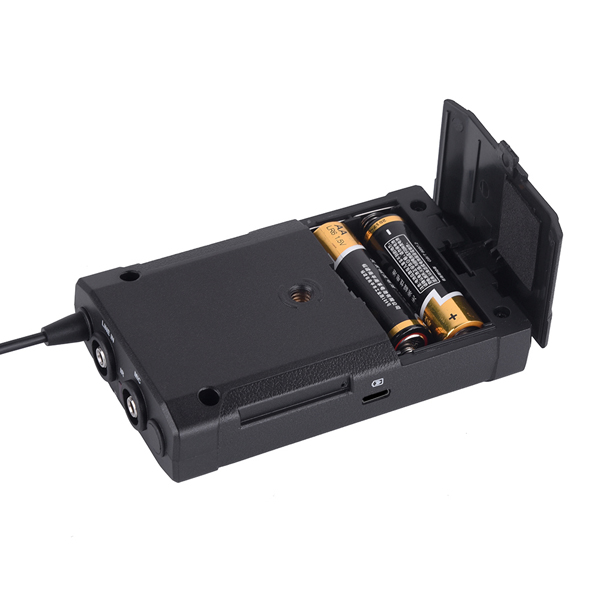

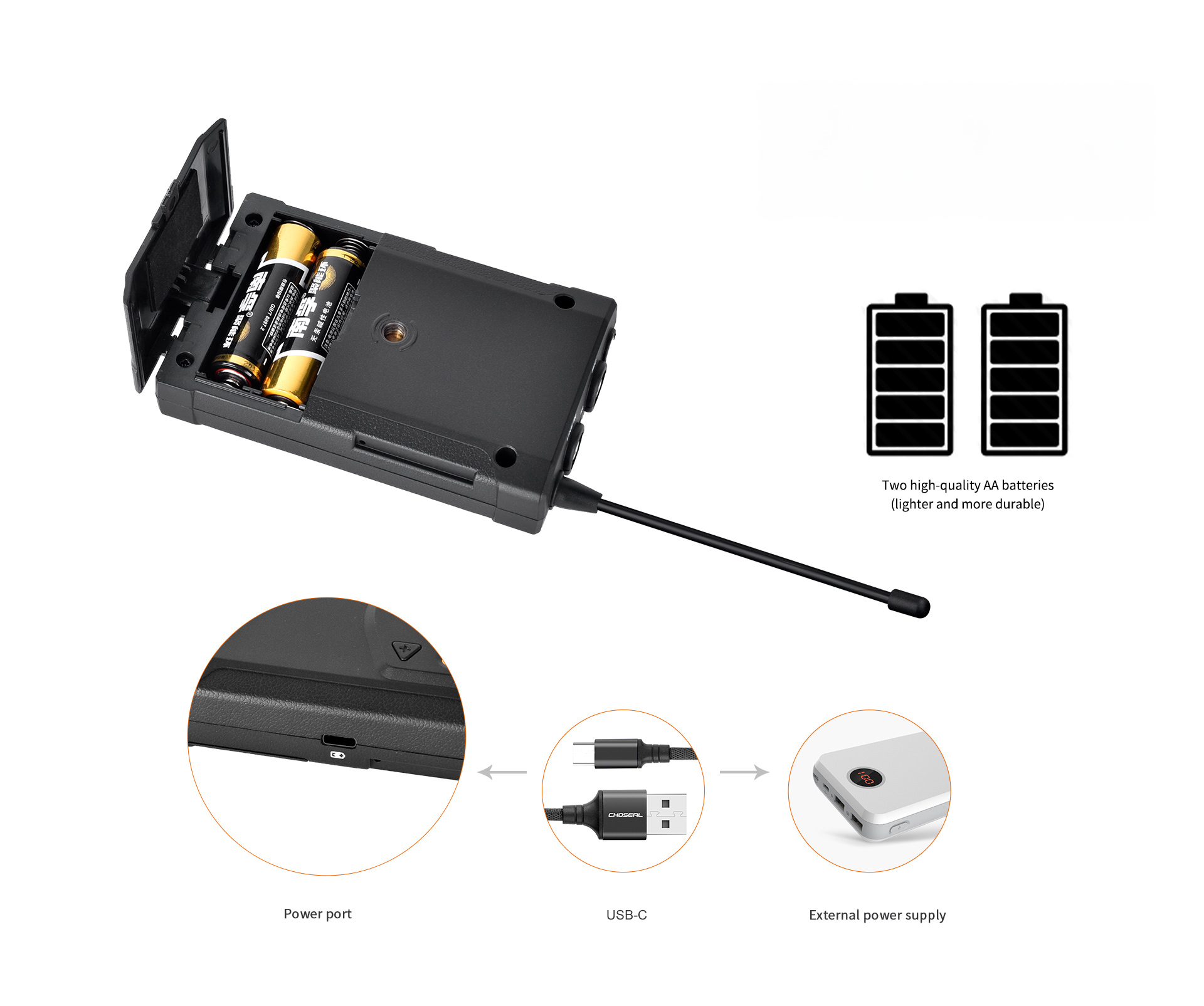

AA Batteries and External Power Supply
Using high-quality AA battery, standby time is up to 6 hoursAlso can be connected to an external power supply, easy to shoot outside

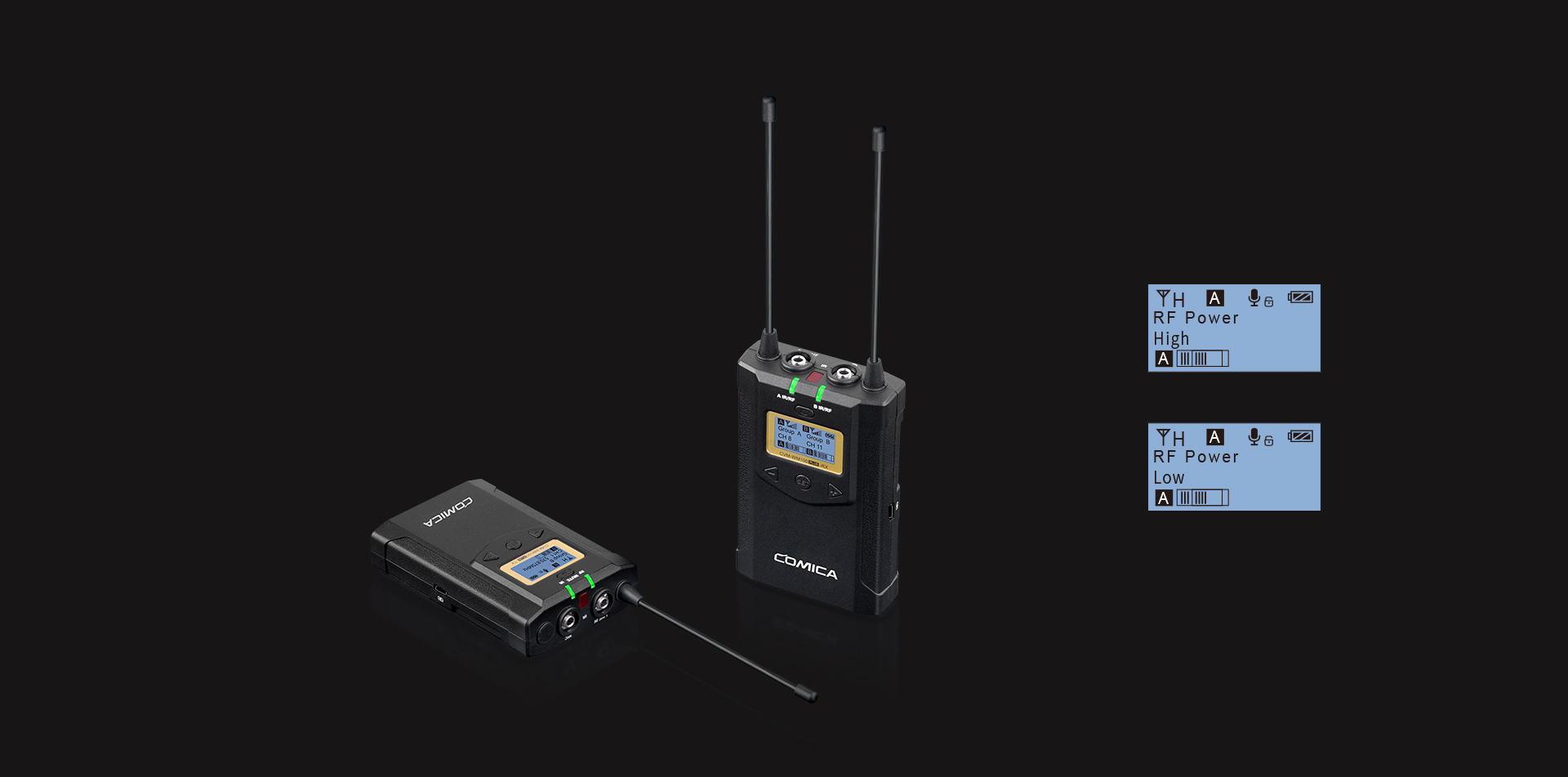

Adjusted RF Power
High and low transmitting signal strengths for you to choose High strength means long transmission distance and high power consumptionLow strength means the opposite

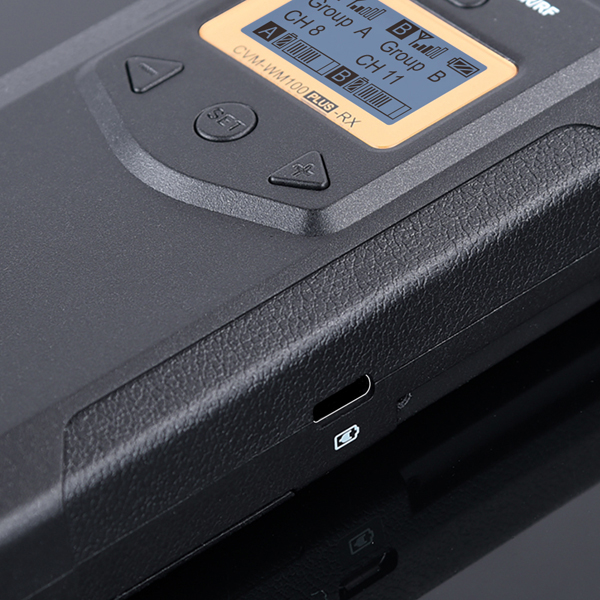

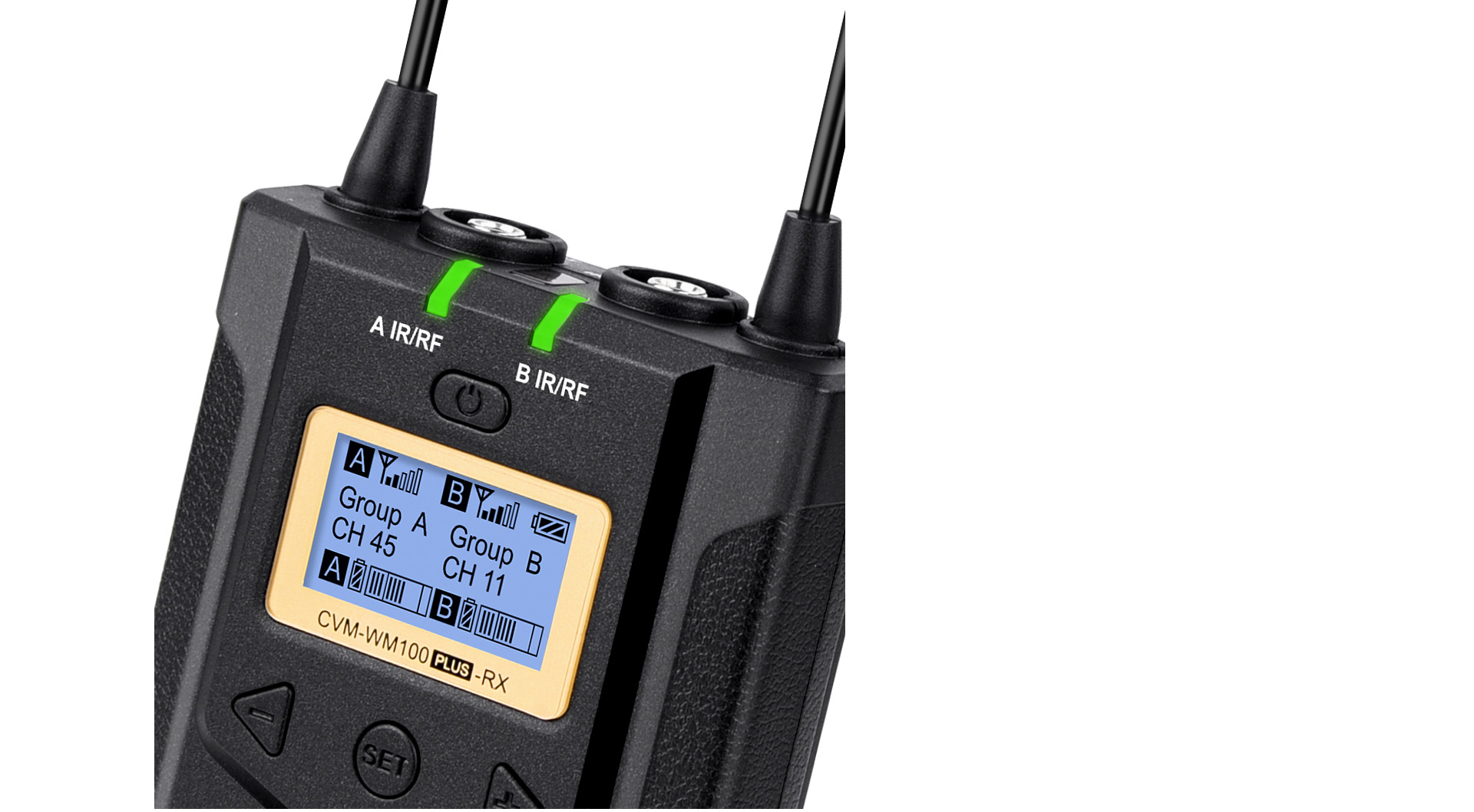

Lattice LCD Display, High Resolution
Lattice with high definition and real-time mastering of equipment operation status
Hand-held Transmitter HTX
|
Wireless Frequency |
568~592MHz |
|
Channel |
48 |
|
Duration |
4 Hours |
|
Signal/Noise |
＞65dB |
|
Antenna |
PCB Antenna |
|
Transmitting Power |
10dBm/15dBm |
|
Stray Radiation |
＜-60dBc |
|
Sound Delay |
＜20ms |
|
Audio Distortion |
＜0.5% |
|
Battery |
AA batteries×2pcs |
|
Size |
Φ53.5(max)x253mm |
|
Operating Temperature |
0℃~ +50℃ |
|
Storage Temperature |
-20℃~ +60℃ |

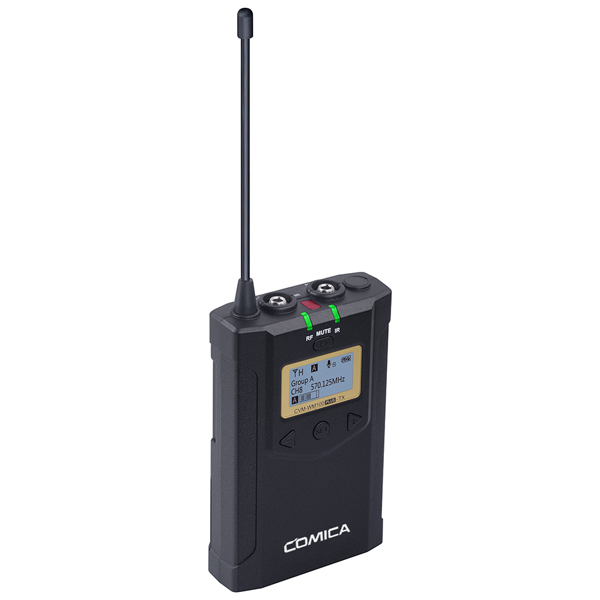

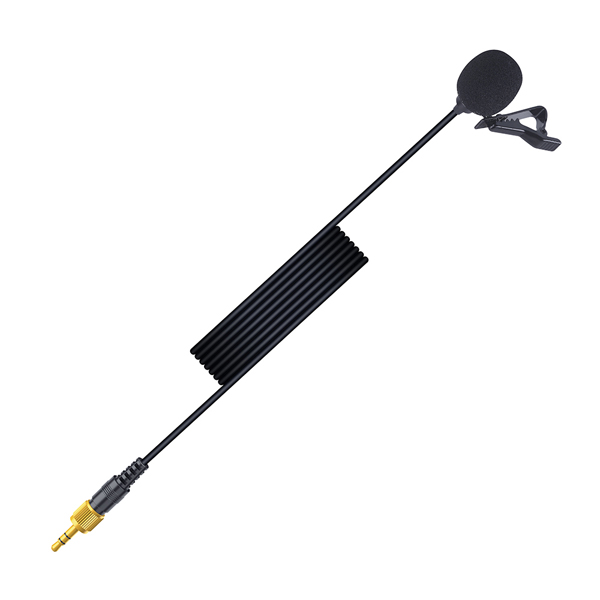

Lavalier Transmitter TX
|
Wireless Frequency |
568~592MHz |
|
Channel |
48 |
|
Duration |
6 Hours |
|
Antenna |
1/4 Wavelength Wire Antenna |
|
Transmitting Power |
10dBm/15dBm |
|
Stray Radiation |
＜-60dBc |
|
Sound Delay |
＜20ms |
|
Audio Distortion |
＜0.5% |
|
Signal/Noise |
＞65dB |
|
Frequency Response |
20Hz~18KHz |
|
Audio Input Socket |
3.5mm Socket |
|
Battery |
AA batteries×2pcs |
|
External Power |
Micro USB 5V/1A |
|
Size |
107 x 66 x 26.1mm |
|
Operating Temperature |
0℃~ +50℃ |
|
Storage Temperature |
-20℃~ +60℃ |

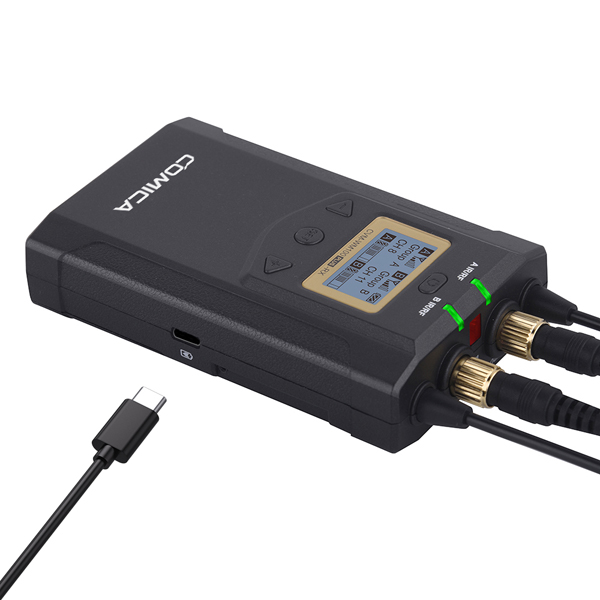

Receiver RX
|
Wireless Frequency |
568~592MHz |
|
Channel |
48 |
|
Duration |
6 Hours |
|
Signal/Noise |
＞65dB |
|
Antenna |
1/4 Wavelength Wire Antenna |
|
Sensitivity |
-90dBm |
|
Sound Delay |
＜20ms |
|
Audio Distortion |
＜0.5% |
|
Frequency Response |
20Hz~18KHz |
|
Audio Output Socket |
3.5mm Socket |
|
Battery |
AA batteries×2pcs |
|
External Power |
Micro USB 5V/1A |
|
Size |
107 x 66 x 26.1mm |
|
Operating Temperature |
0℃~ +50℃ |
|
Storage Temperature |
-20℃~ +60℃ |
-
