ADCaster C1-K1 User Guide

For users who are new to the audio interface, using the ADCaster C1-K1 may feel a little confused. Don't worry. To help you get started quickly, Comica specially prepared this detailed user guide. Take a look!

Packing List

The following parts are included in the ADCaster C1-K1 set:

Panel and Interfaces Introduction

Instructions for Use of Input/Output/Monitoring Interfaces

Input Interfaces

ADCaster C1 has external dual XLR and built-in dual 3.5mm microphone input interfaces. Two XLR interface microphones can be connected through the USB C-XLR audio cable, and two 3.5mm interface microphones can also be connected through input 1/2 interfaces.

*When connecting a microphone via the XLR interface, please turn on/off the 48V phantom power according to the type of microphone.

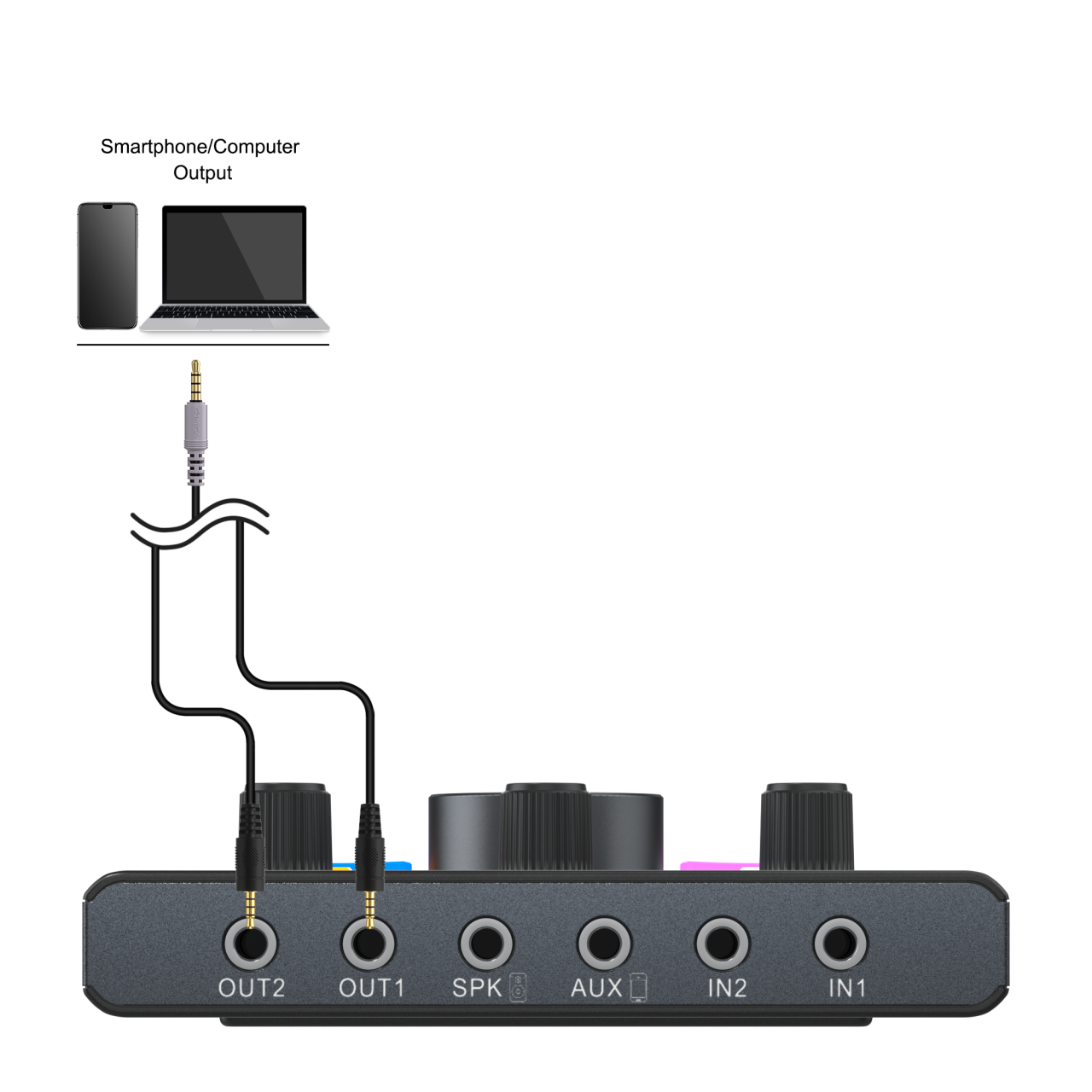

Output Interfaces

ADCaster C1 has a USB digital output interface and dual 3.5mm analog output interfaces, which can be connected to mobile phones/computers for audio output. USB interface can also input audio like background music.

Monitoring Interfaces

ADCaster C1 is designed with two 3.5mm TRS/TRRS earphone monitoring interfaces for monitoring and one 3.5mm speaker interface for audio play.

Microphone and Audio Interface Connection Guide

Connect the STA-X2S microphone to ADCaster C1 through the XLR-3.5mm TRS audio cable. Insert the XLR end into the port of the microphone and insert the 3.5mm end into the 3.5mm IN 1/2 of the ADCaster C1.

If you have any other questions during use, welcome to reply to the email for consultation. We look forward to starting a new live streaming/singing/recording experience with you!
