.Portable Dual-channel UHF Wireless Microphone, Broadcast Level
.SupportMulti-receiver Monitoring & Shooting
.Internal and External Mic Two Input Modes

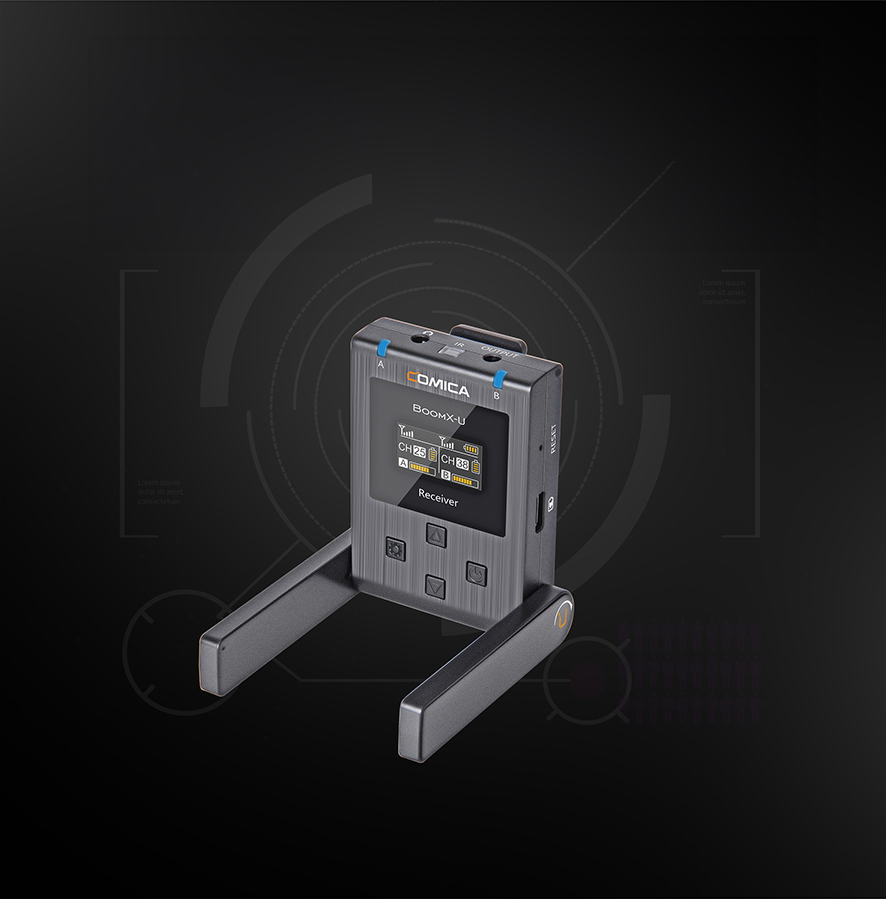

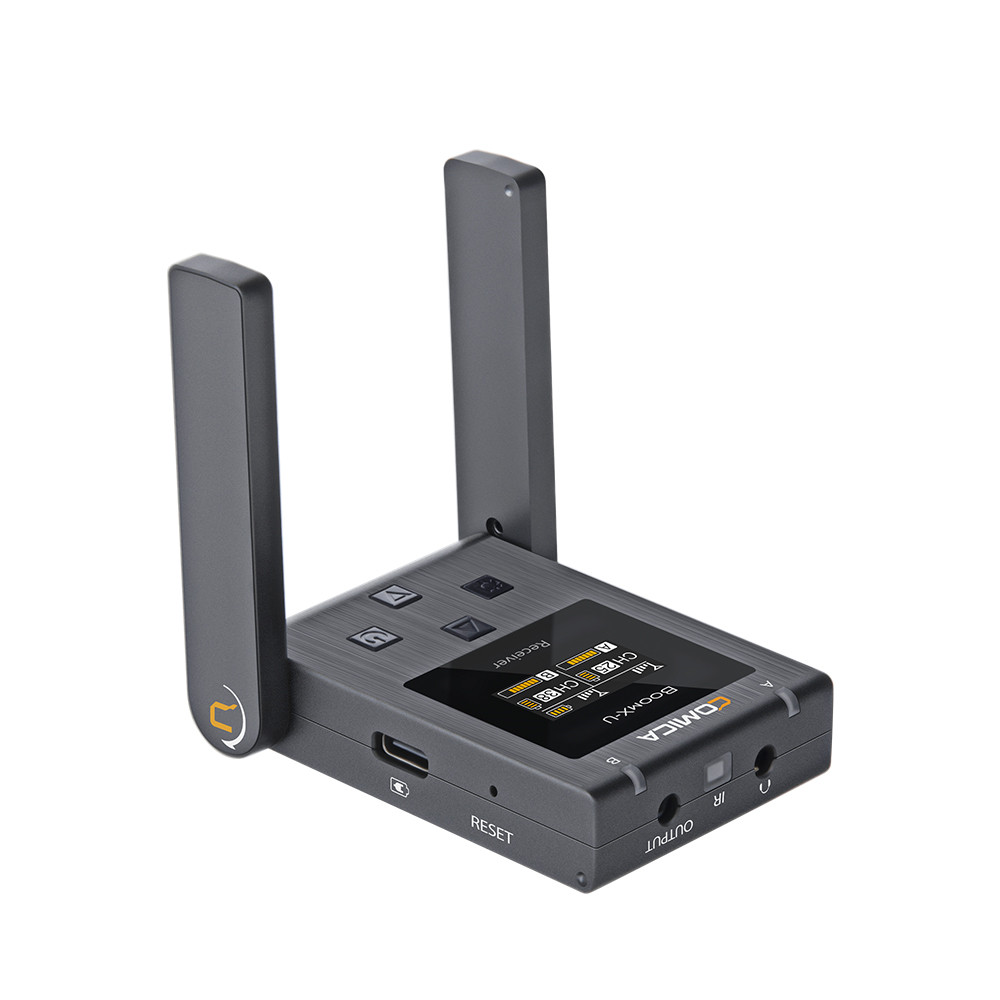

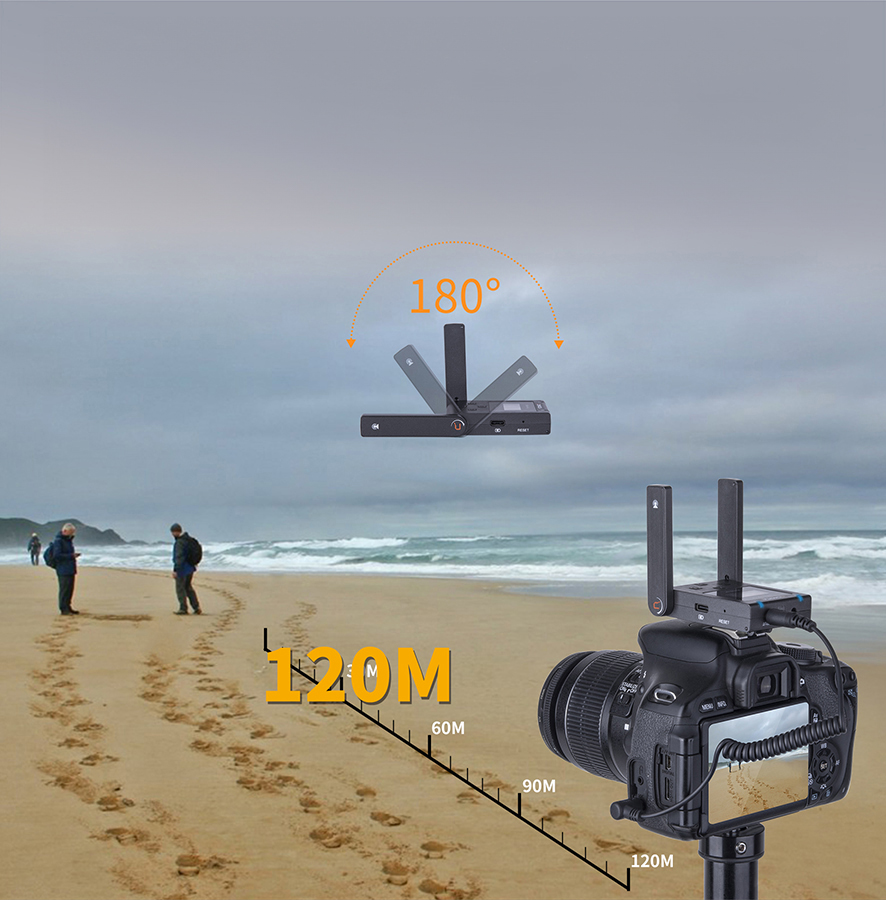

.180° Foldable Antenna, 120m Transmission Distance

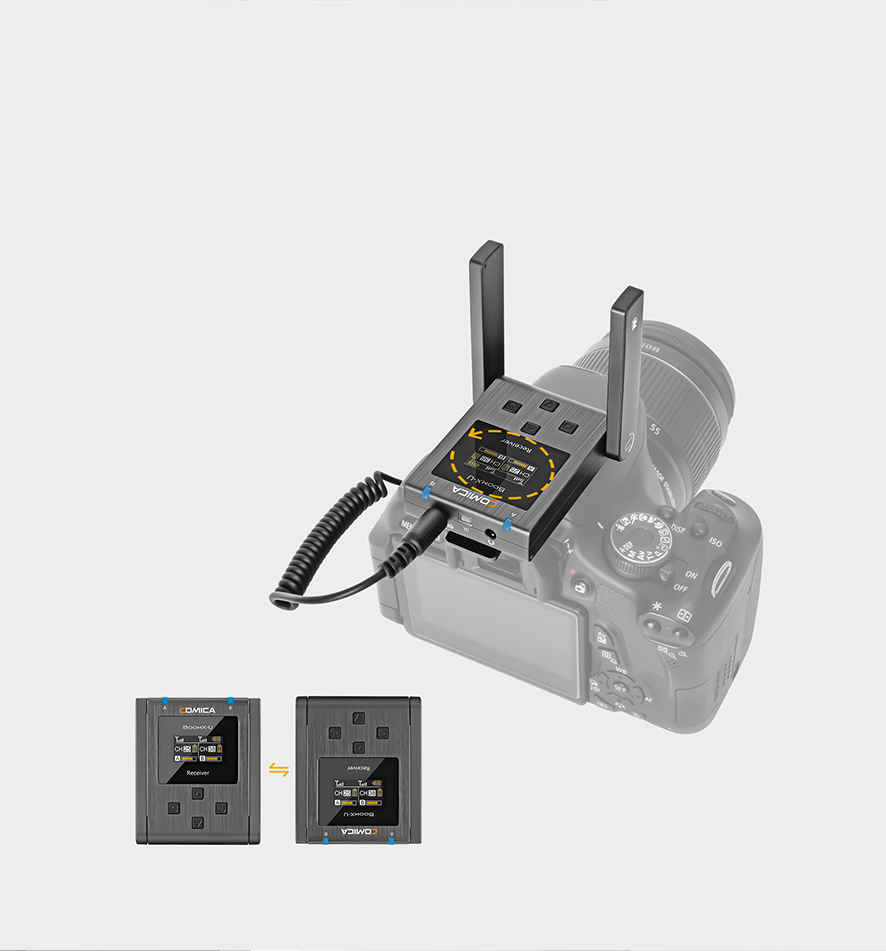

.Support Screen Flip and Bilingual Selection
.48 Channels Used for Several Devices Working Together

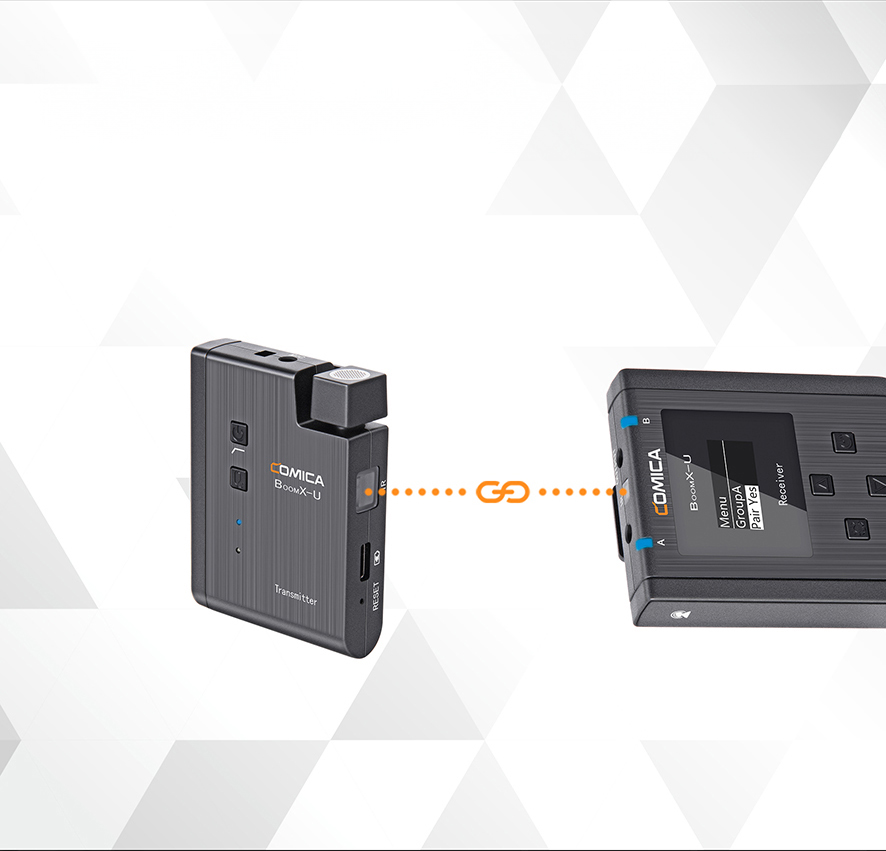

.Support Auto-scanning/Manual Channel-setting

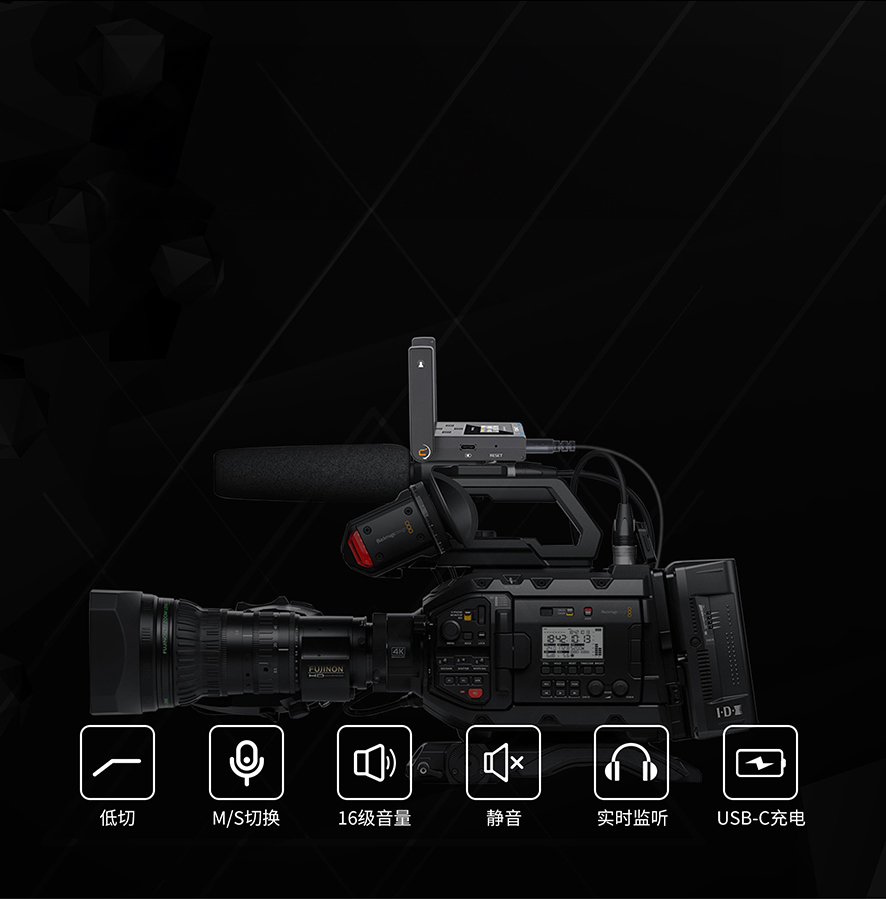

.LCF, M/S Switch, 16-level Adjusted Gain Control, Muting Functions
.Real-time Visual Power and Audio Dynamic Monitor

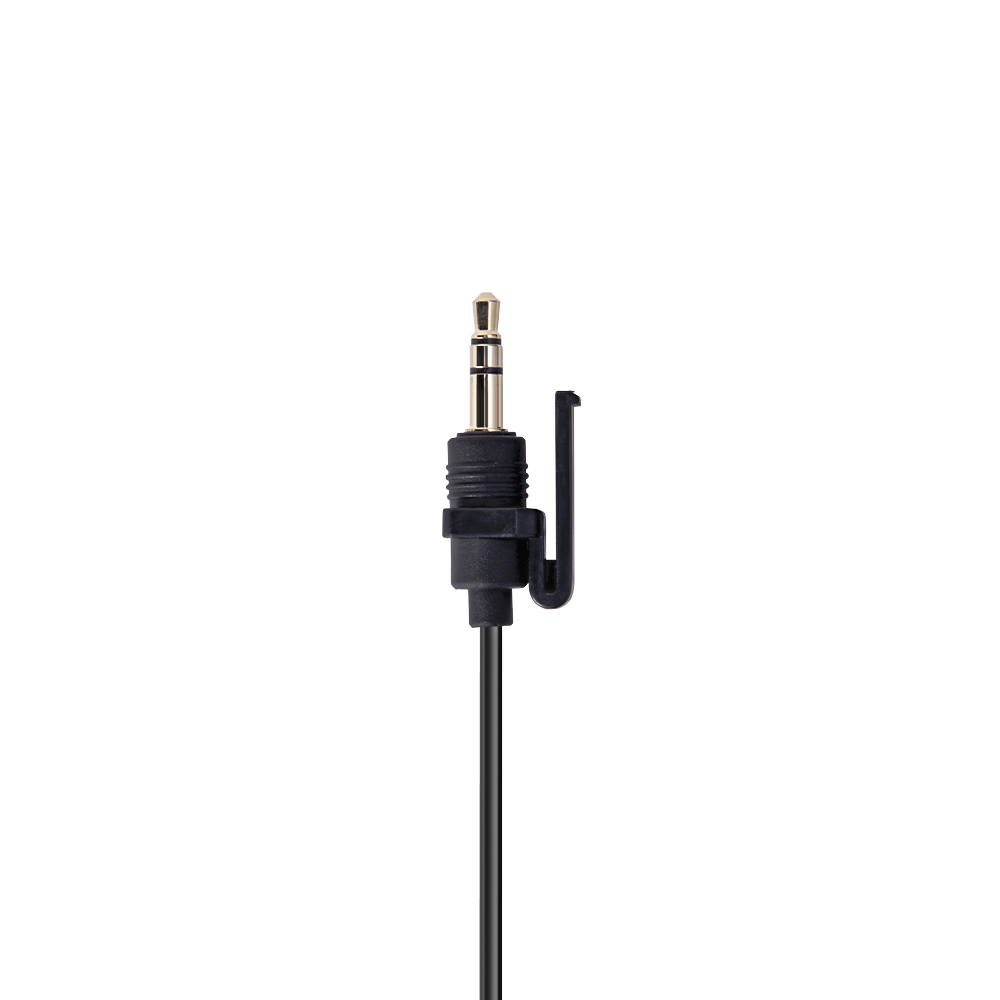

.Special Anti-loose Design for External Lavalier Mic

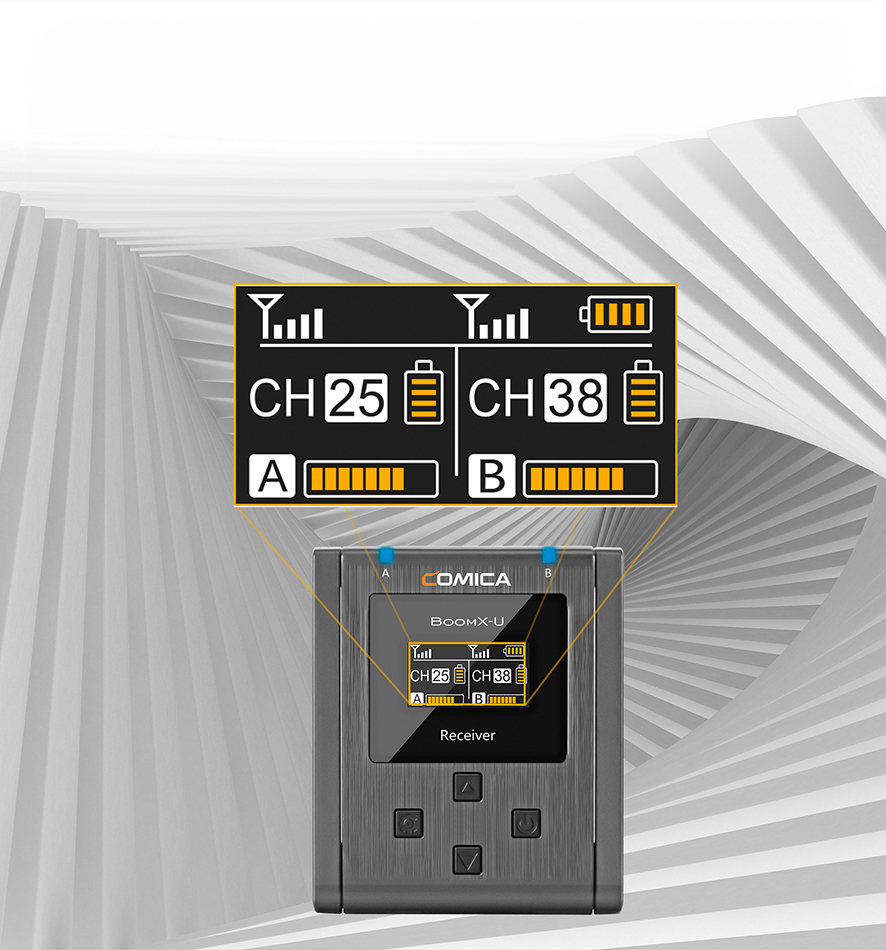

.Colorful TFT Display, High Resolution

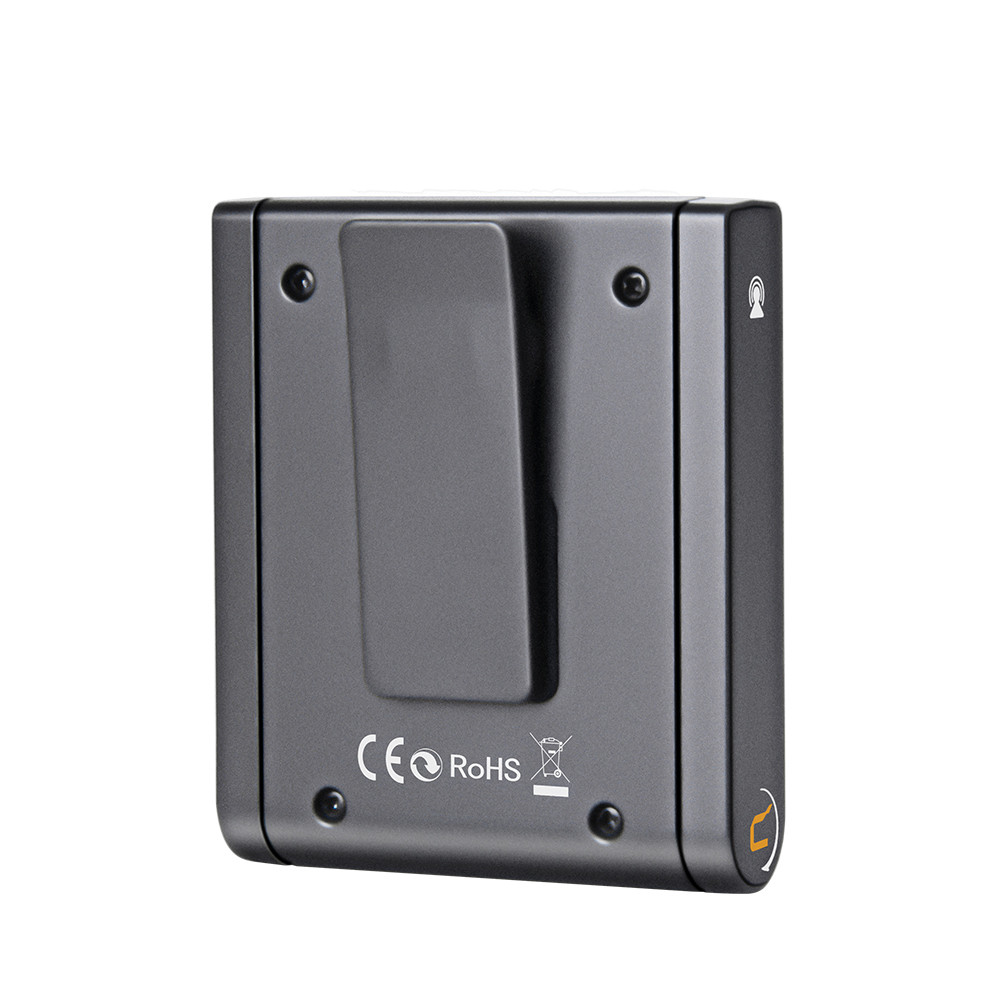

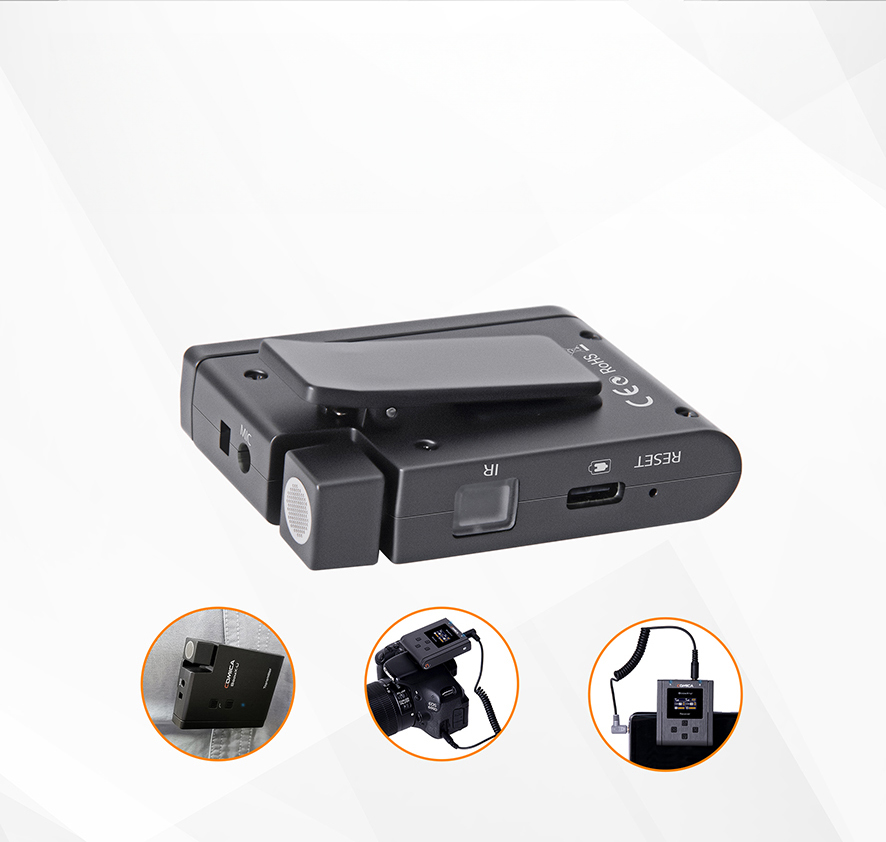

.Designed with Multi-functional Belt Clip and Compact
Delicate design for perfect sound quality

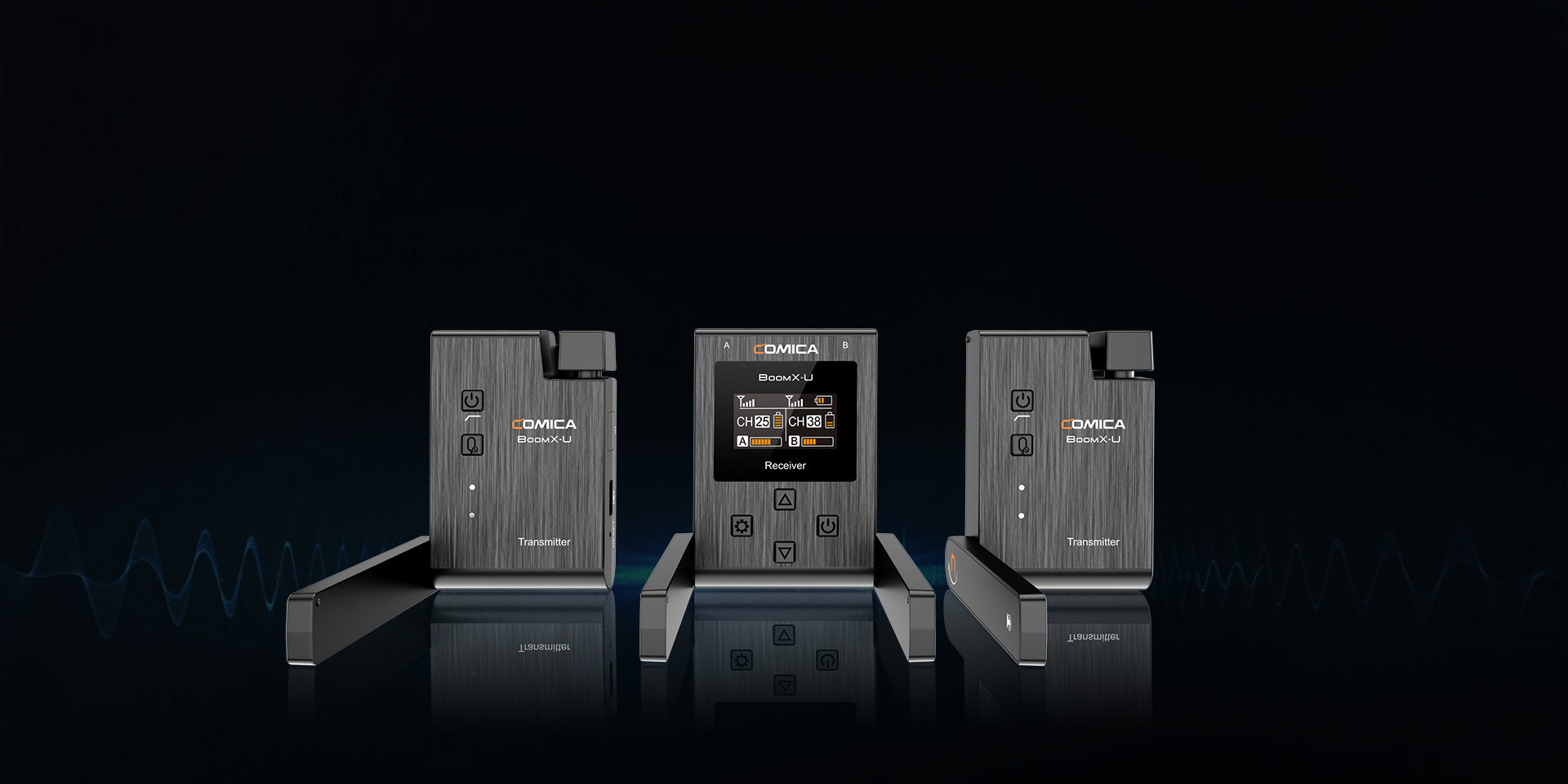

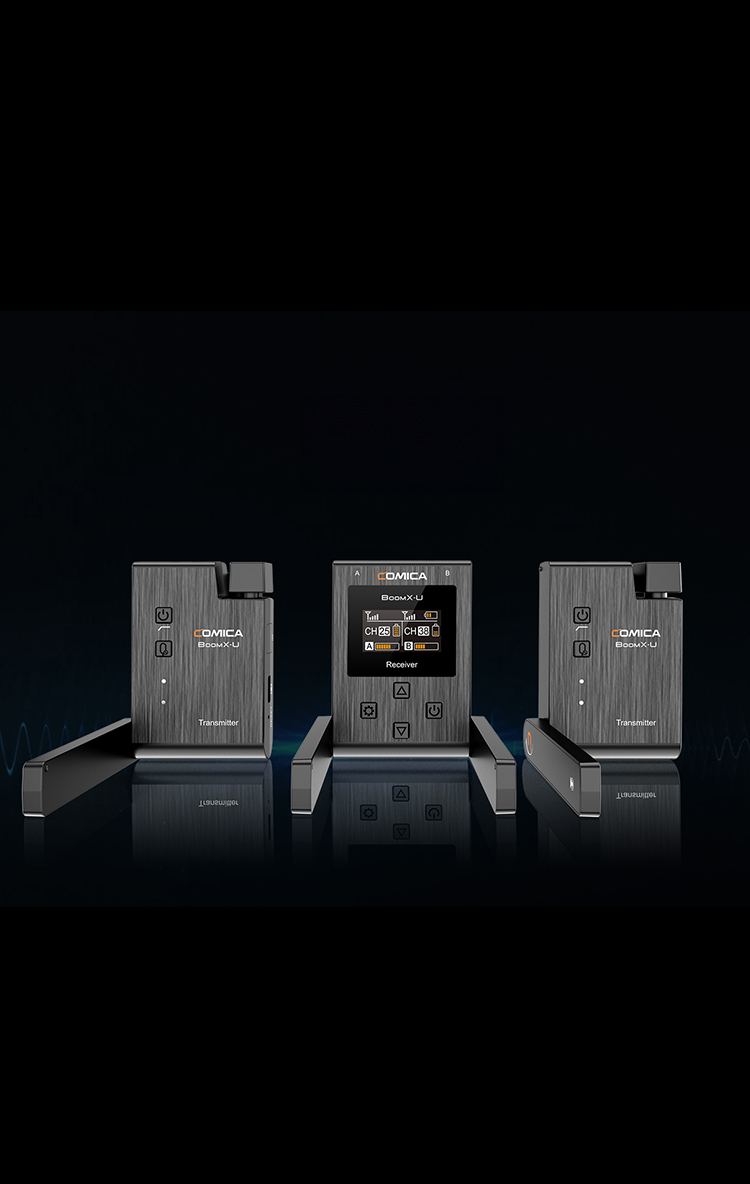

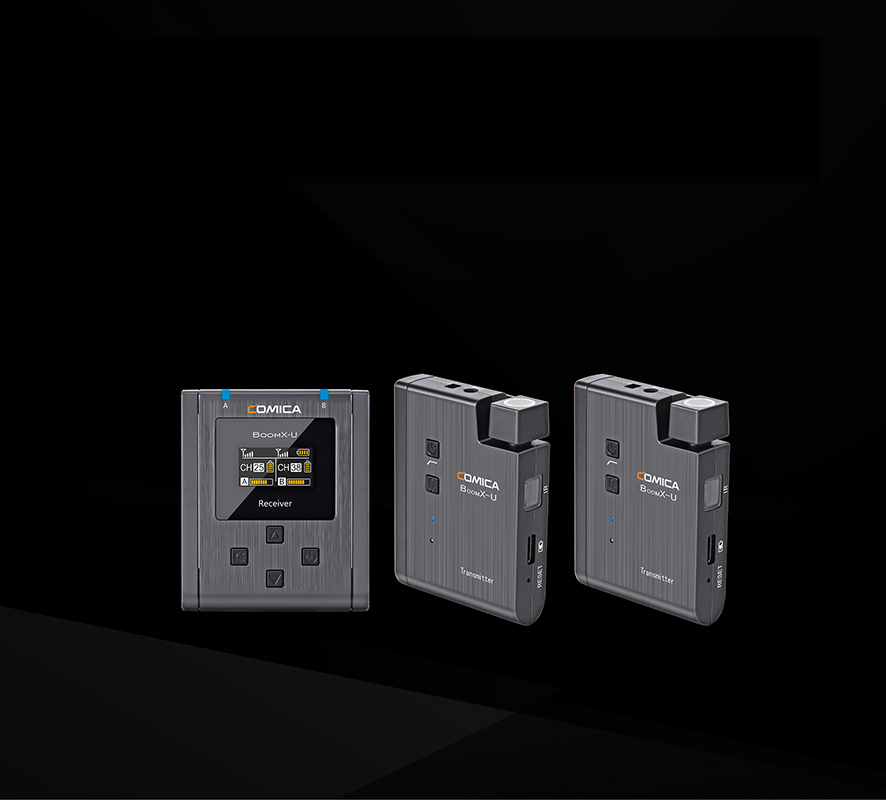

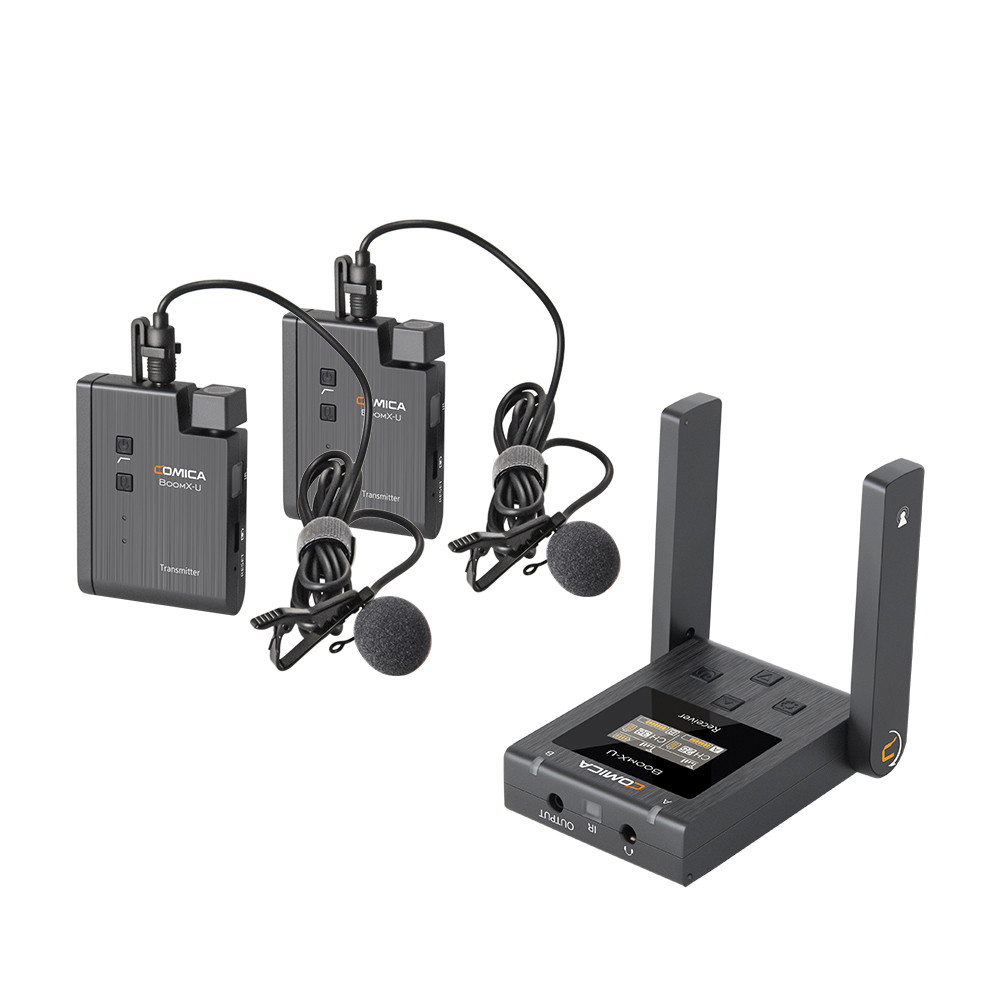

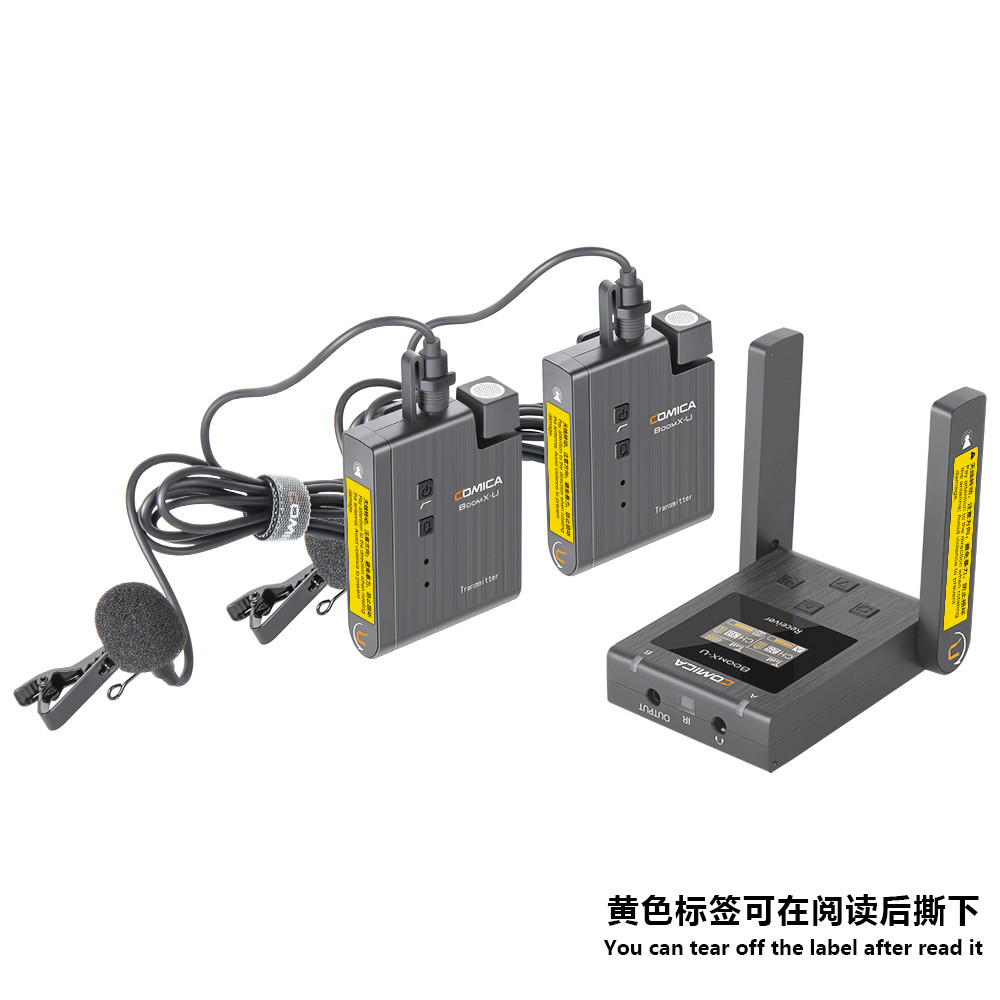

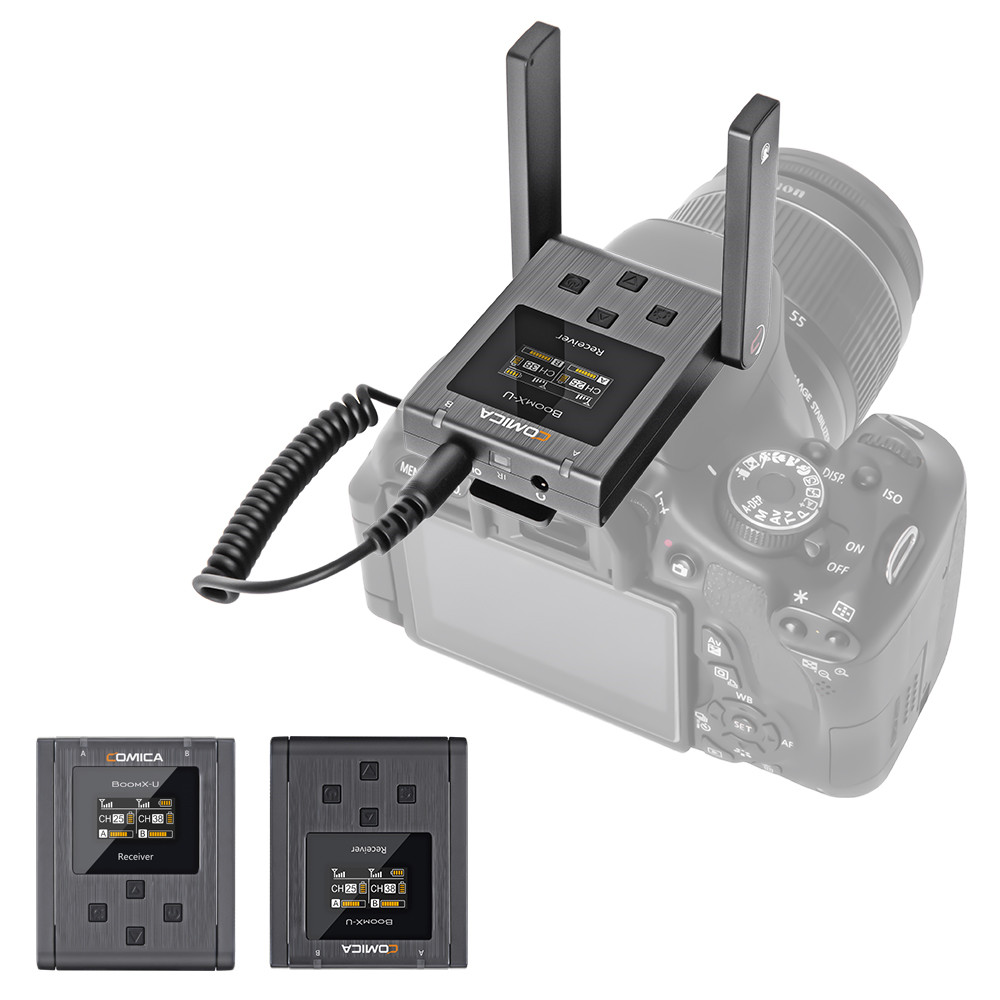

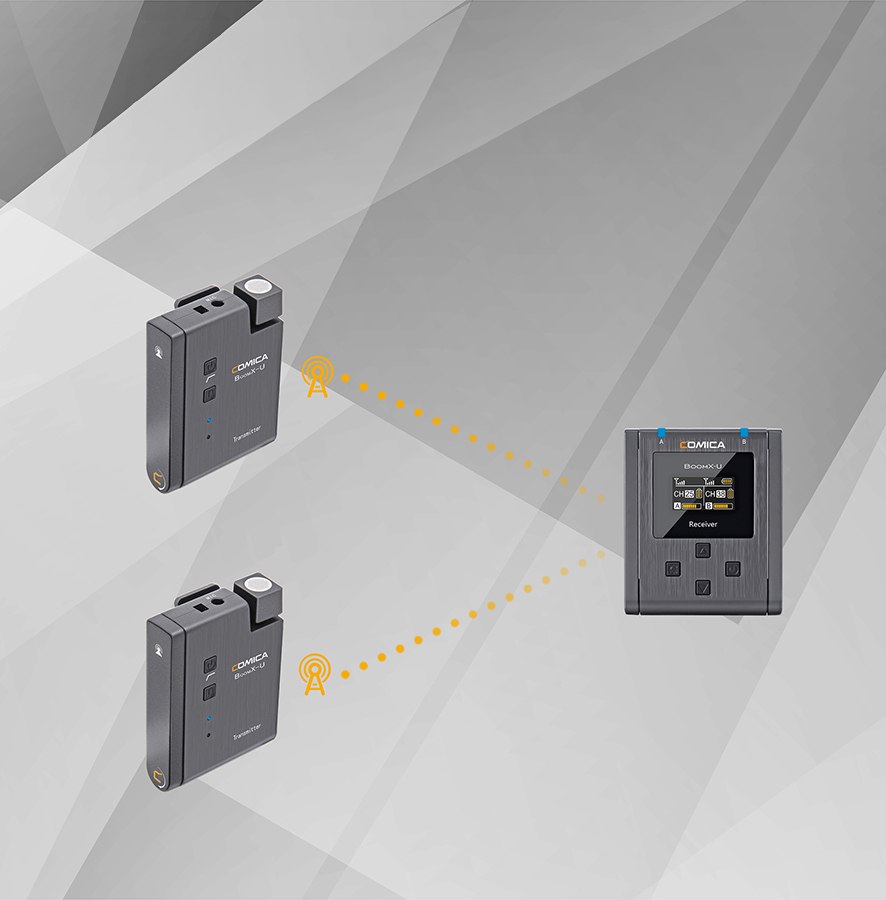

Perfectly support two transmitters and one receiver work simultaneously
It can realize multi-receiver work together and make your shooting more diversified

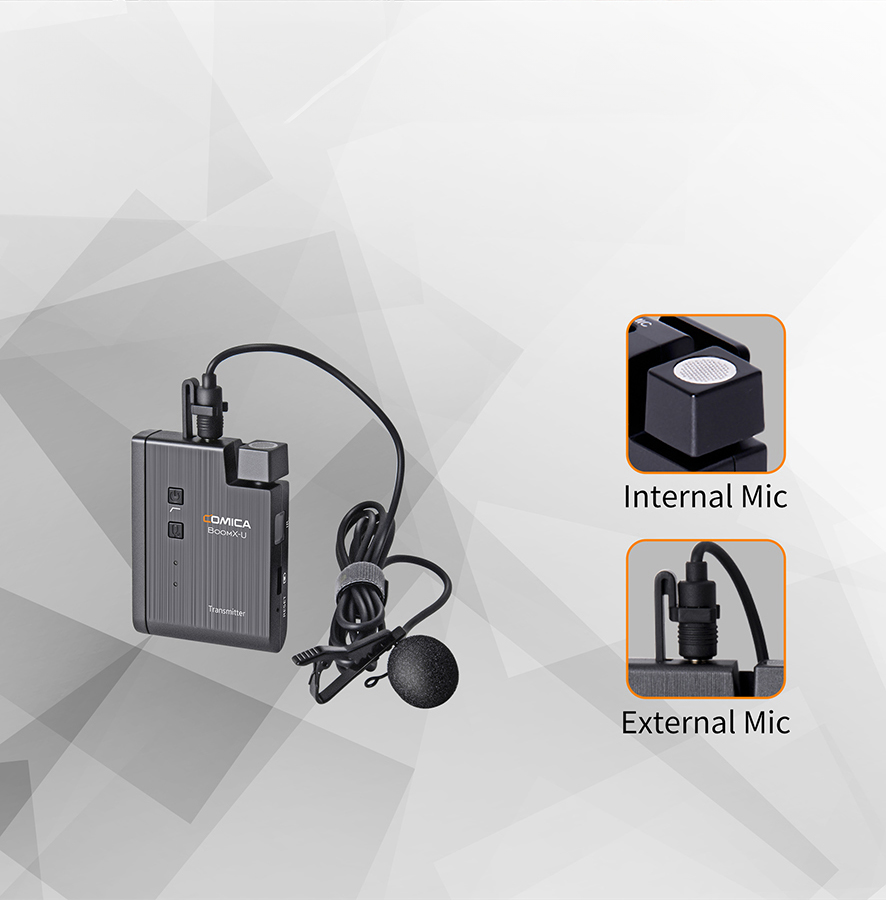

Two input modes can meet various scenes
Super-long transmission distance can meet the needs of professional users
Effectively reduce the interference of multiple devices work in the same environment
Accurately select the less interference channel, simple and convenient
Multi-function to meet various demands of recording
Real-time monitor can keep the persistent working status

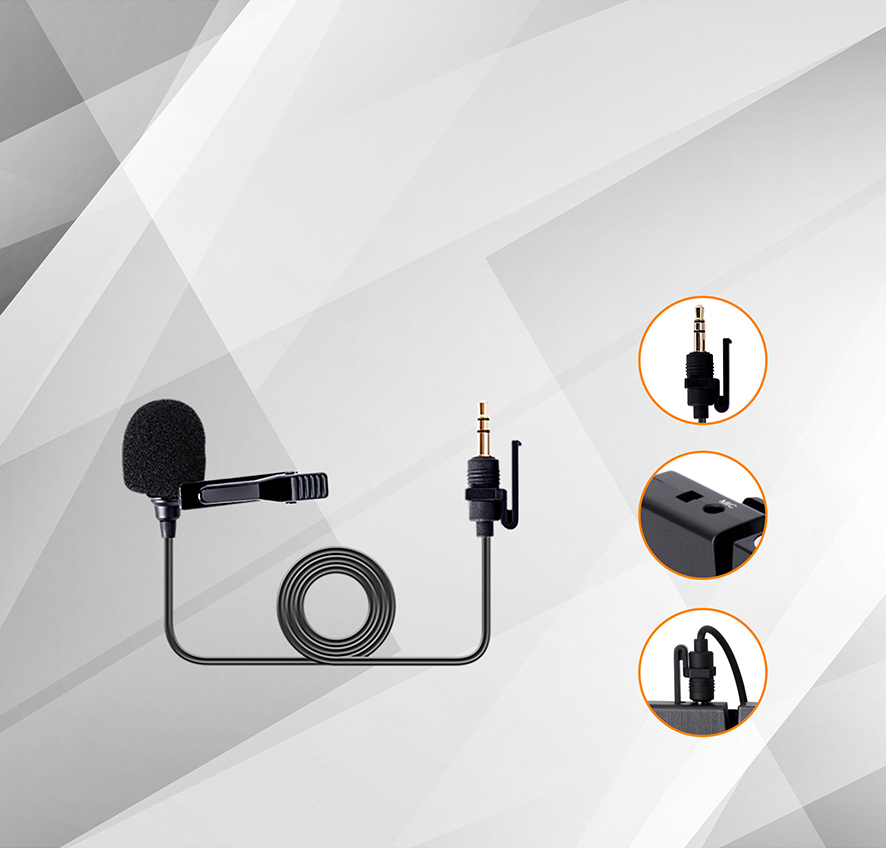

Unique design makes mic more stable
The easy operation brings you more convenient visual angle
Precise design, flexible use

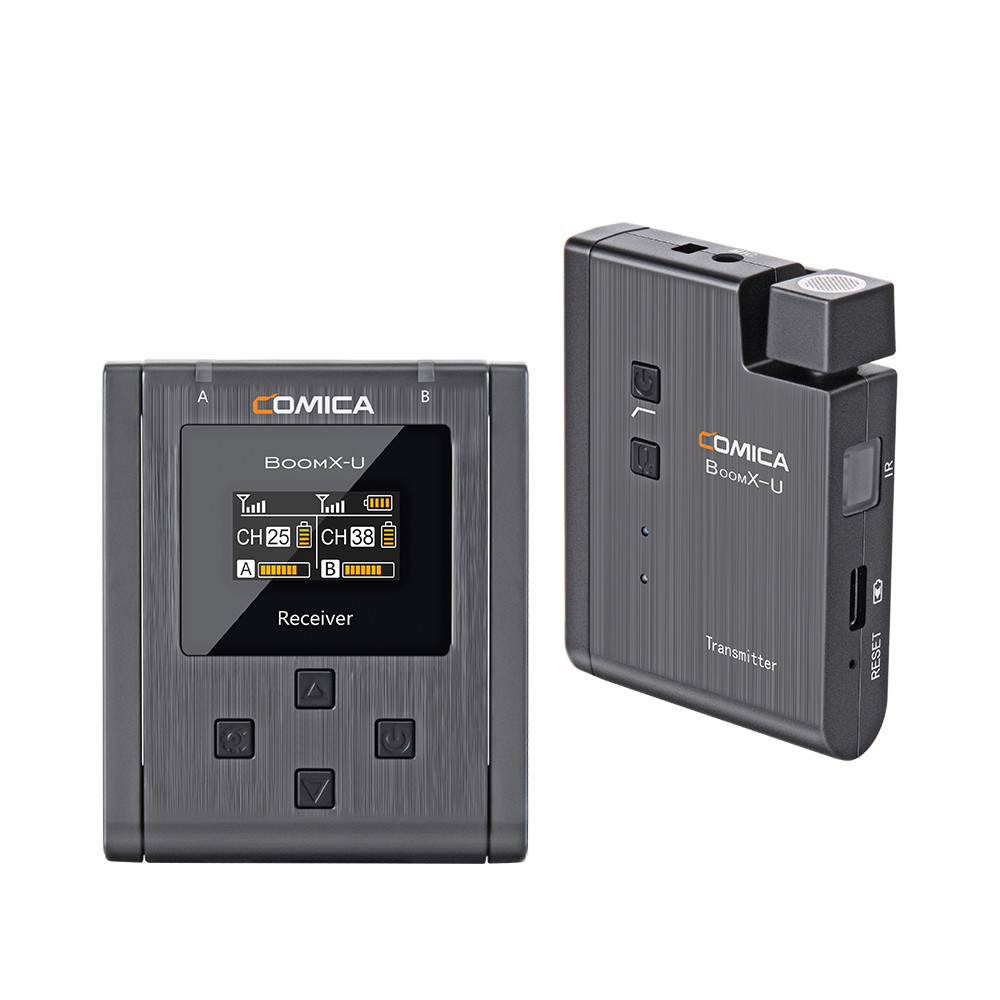

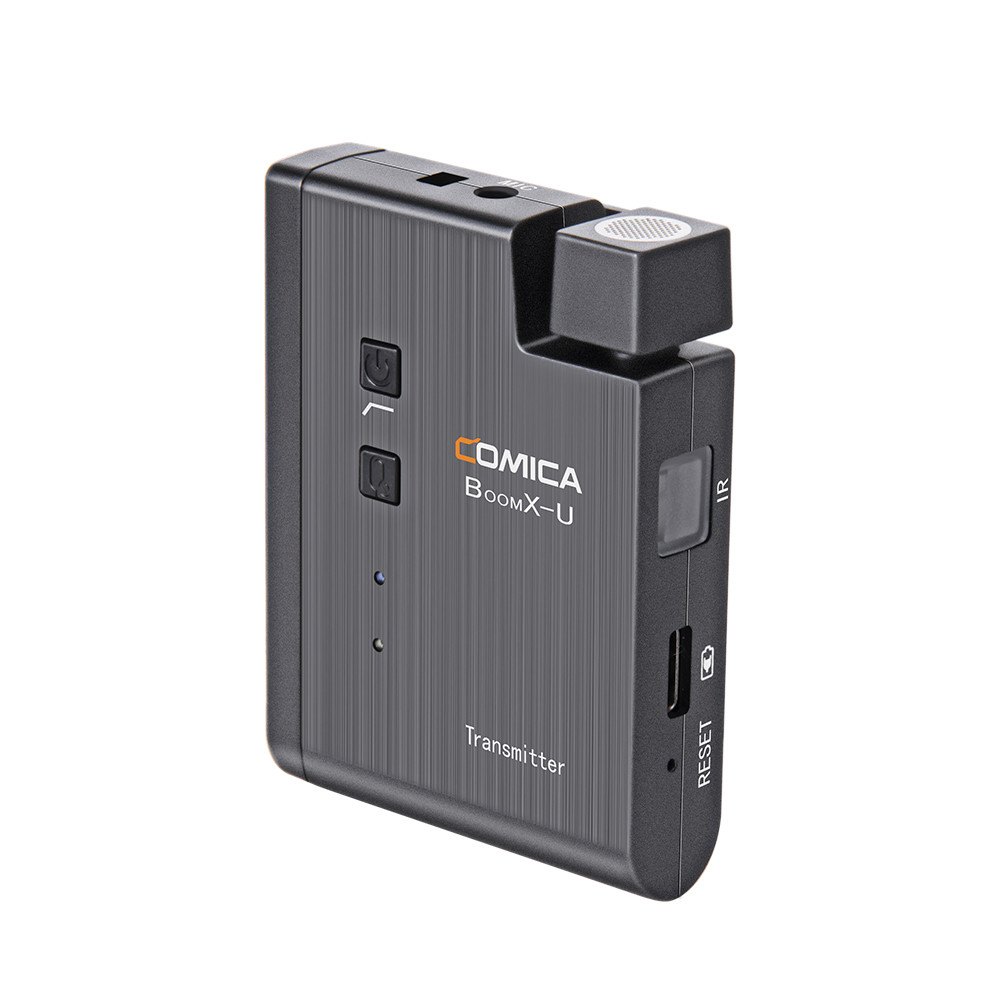

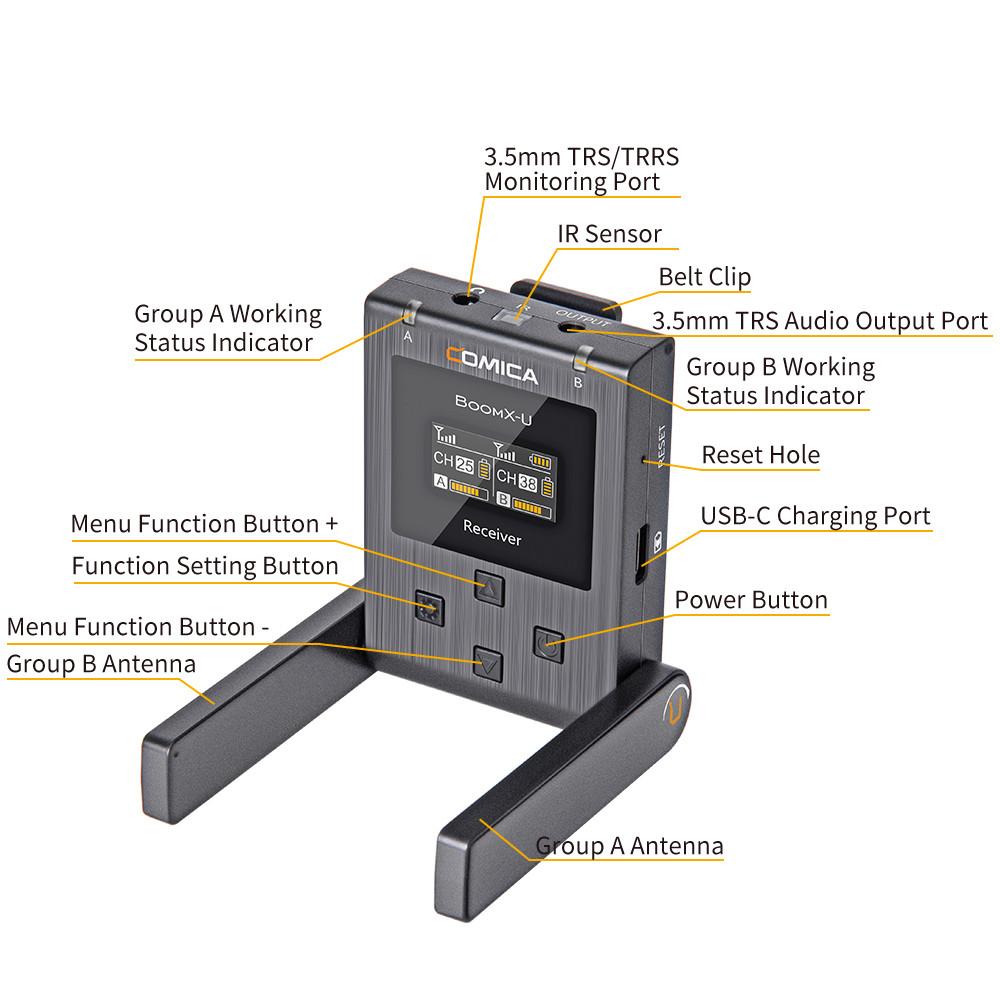

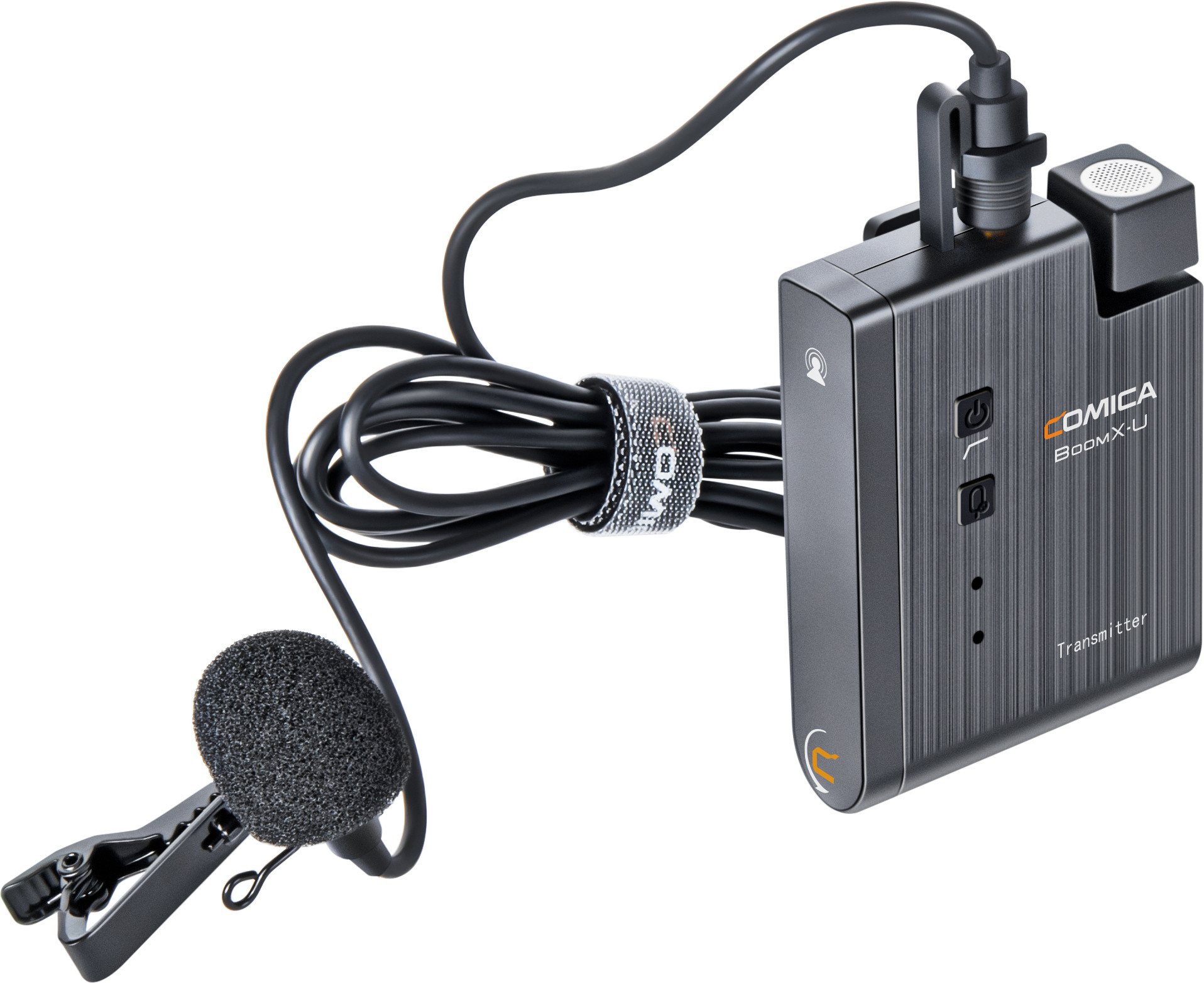

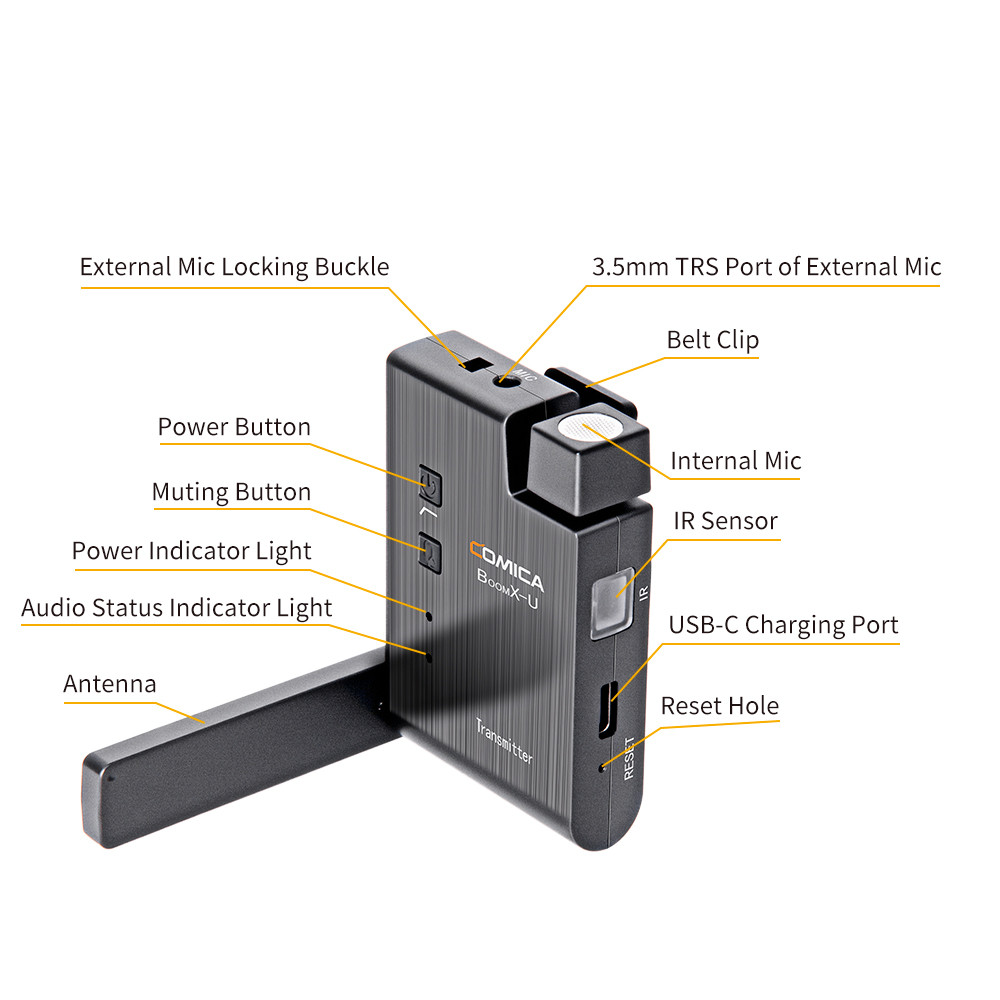

Transmitter (TX)
Group A Wireless Frequency |
568.125MHz ~ 579.875MHz |
GroupB Wireless Frequency |
580.125MHz ~ 591.875MHz |
Transmit Power |
15dBm |
Channels |
48 x 2 |
Antenna |
PCB Antenna |
Polar Pattern |
Omnidirectional |
Frequency Response |
80Hz ~ 20kHz |
Sound Pressure Level |
100dB |
Signal/Noise |
75dB |
Equivalent Noise |
19dBA |
Dynamic Range |
81dB |
Sound Delay |
<20ms |
External Mic Input Interface |
3.5mm TRS |
Battery |
Li-ion Battery600mAh 3.7V |
Battery Life |
5 Hours |
Net Weight |
47g |
Dimension |
49 x 22 x 66mm |
Operating Temperature |
0℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |

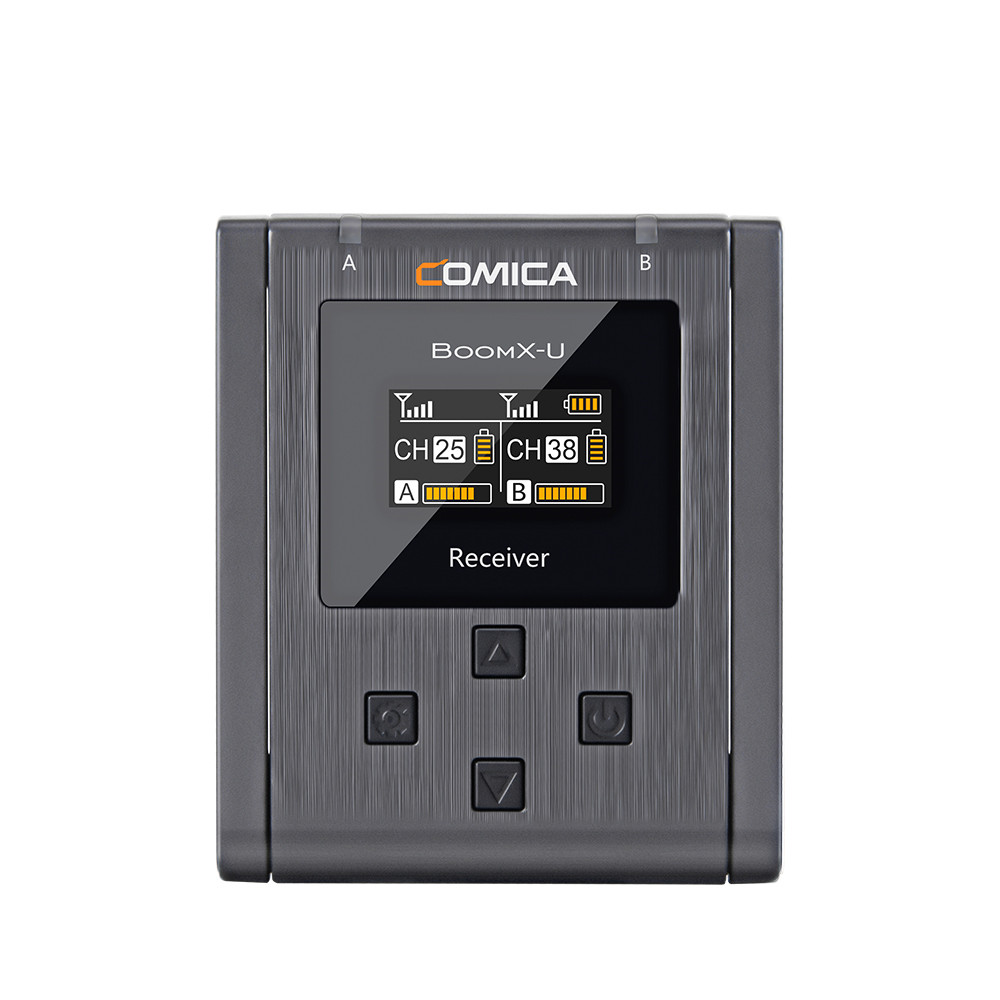

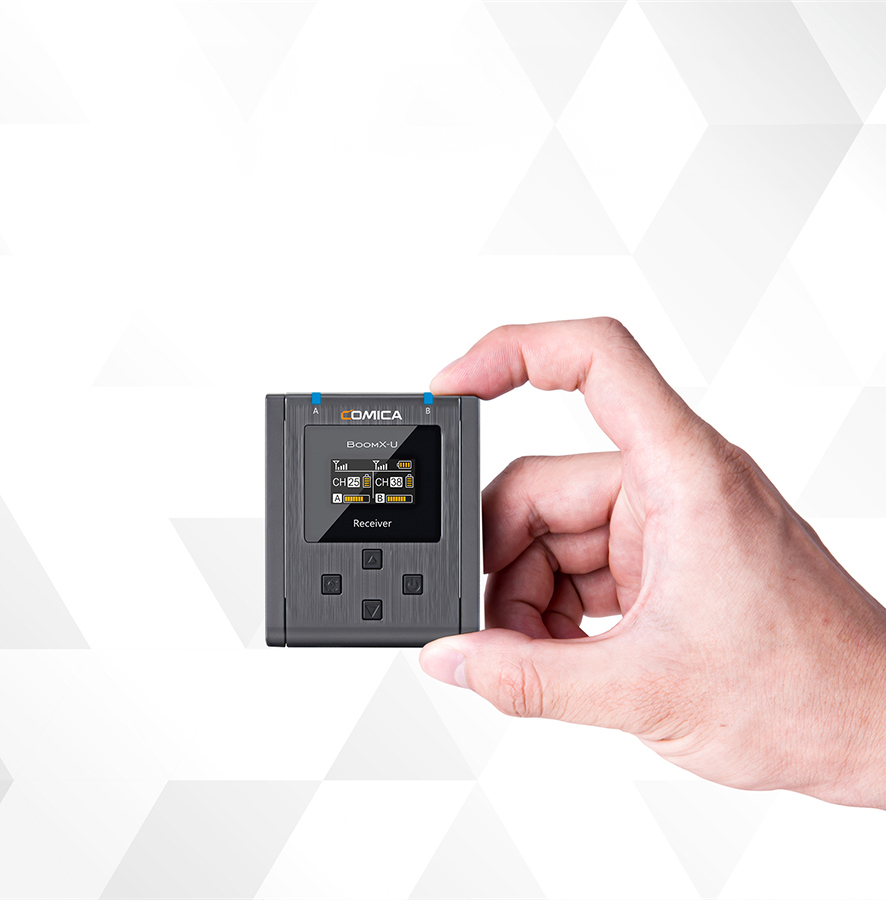

Receiver (RX)
Group A Wireless Frequency |
568.125MHz ~ 579.875MHz |
GroupB Wireless Frequency |
580.125MHz ~ 591.875MHz |
Channels |
48 x 2 |
Antenna |
PCB Antenna |
Receiving Sensitivity |
-90dBm |
Signal/Noise |
75dB |
Equivalent Noise |
19dBA |
Dynamic Range |
81dB |
Sound Delay |
<20ms |
Audio Output Interface |
3.5mm TRS |
Monitor Interface |
3.5mm TRS/TRRS |
Battery |
Li-ion Battery600mAh 3.7V |
Battery Life |
5 Hours |
Net Weight |
55g |
Dimension |
56 x 22 x 66mm |
Operating Temperature |
0℃~ 50℃ |
Storage Temperature |
-20℃~ 60℃ |
