BoomX-D
Overview Specifications Download
. 2.4G Dual-channel Wireless Microphone, Global Free Frequency
. 48kHz/16bit Record, CD-level Sound Quality
. Digital/Analog Outputs, Universal for Camera/Smartphone/PC
. Support Gain Control, One-click Muting and Denoise
. Intuitive Power, Audio Dynamic Monitor and Other Display Functions
. Real-time Monitor, Mono/Stereo/Safety Mode Switch
. Internal and External MIC Two Input Modes
. Low Latency<20ms, Working Range up to 200m(Open Area)
. Designed with Multi-functional Belt Clip and Compact

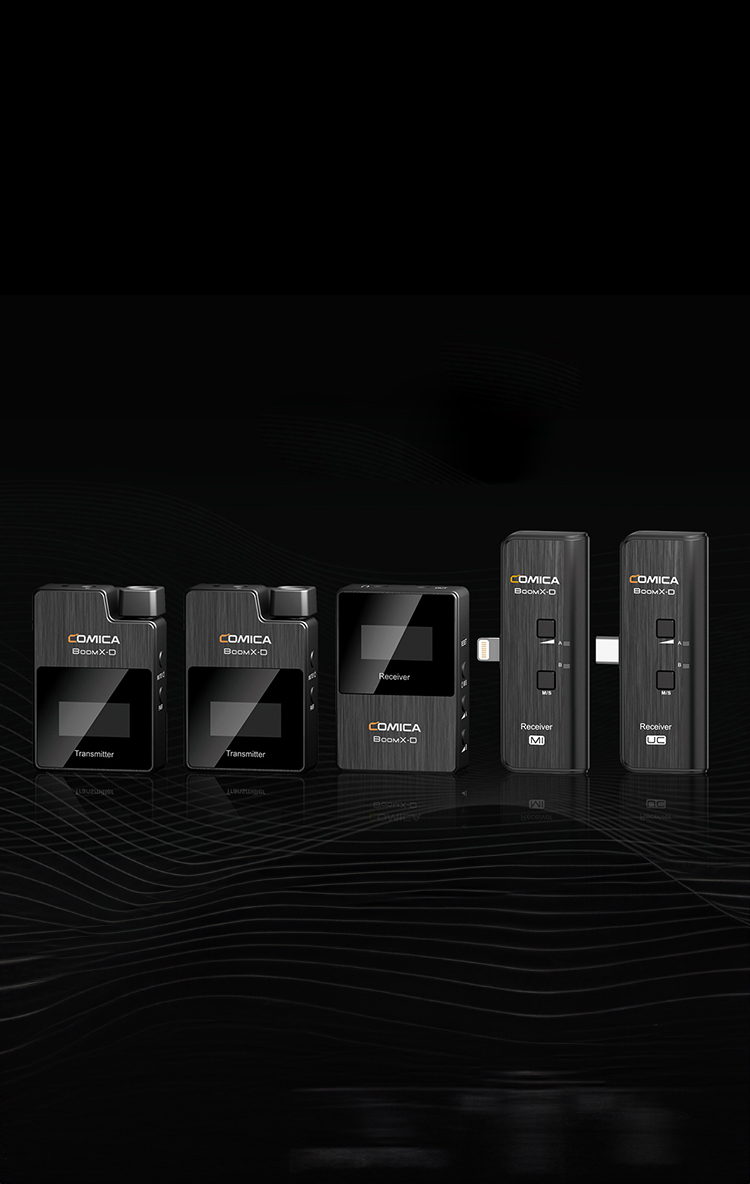

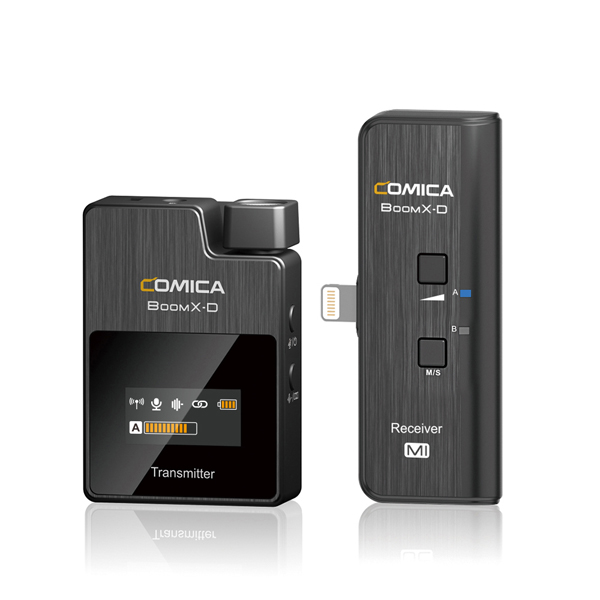

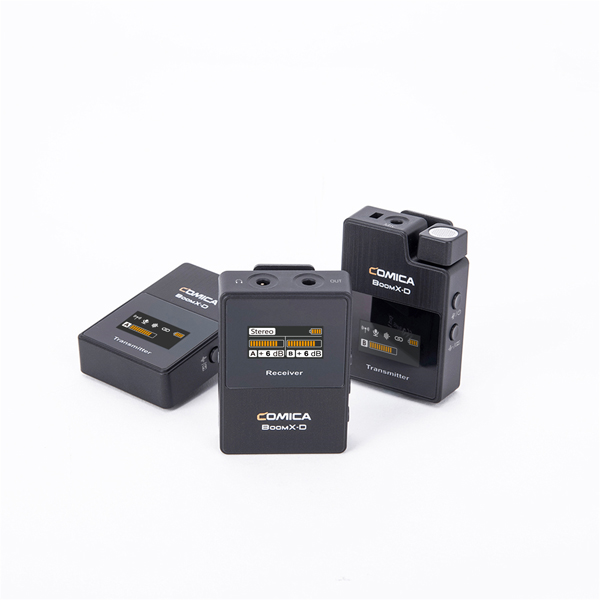

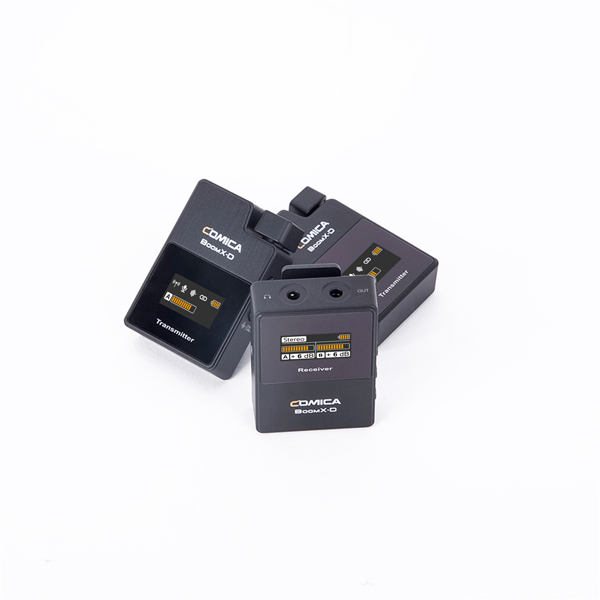

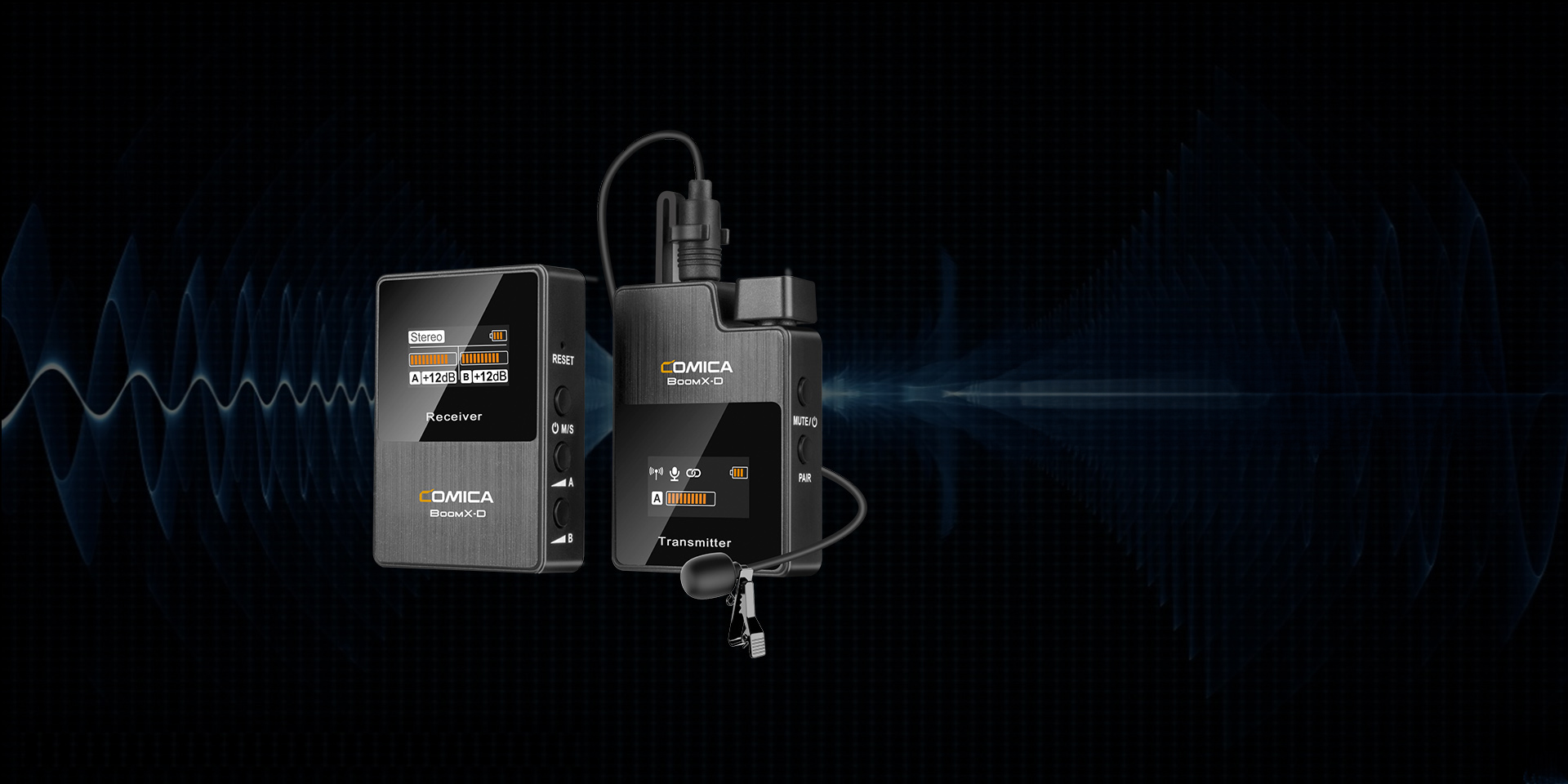

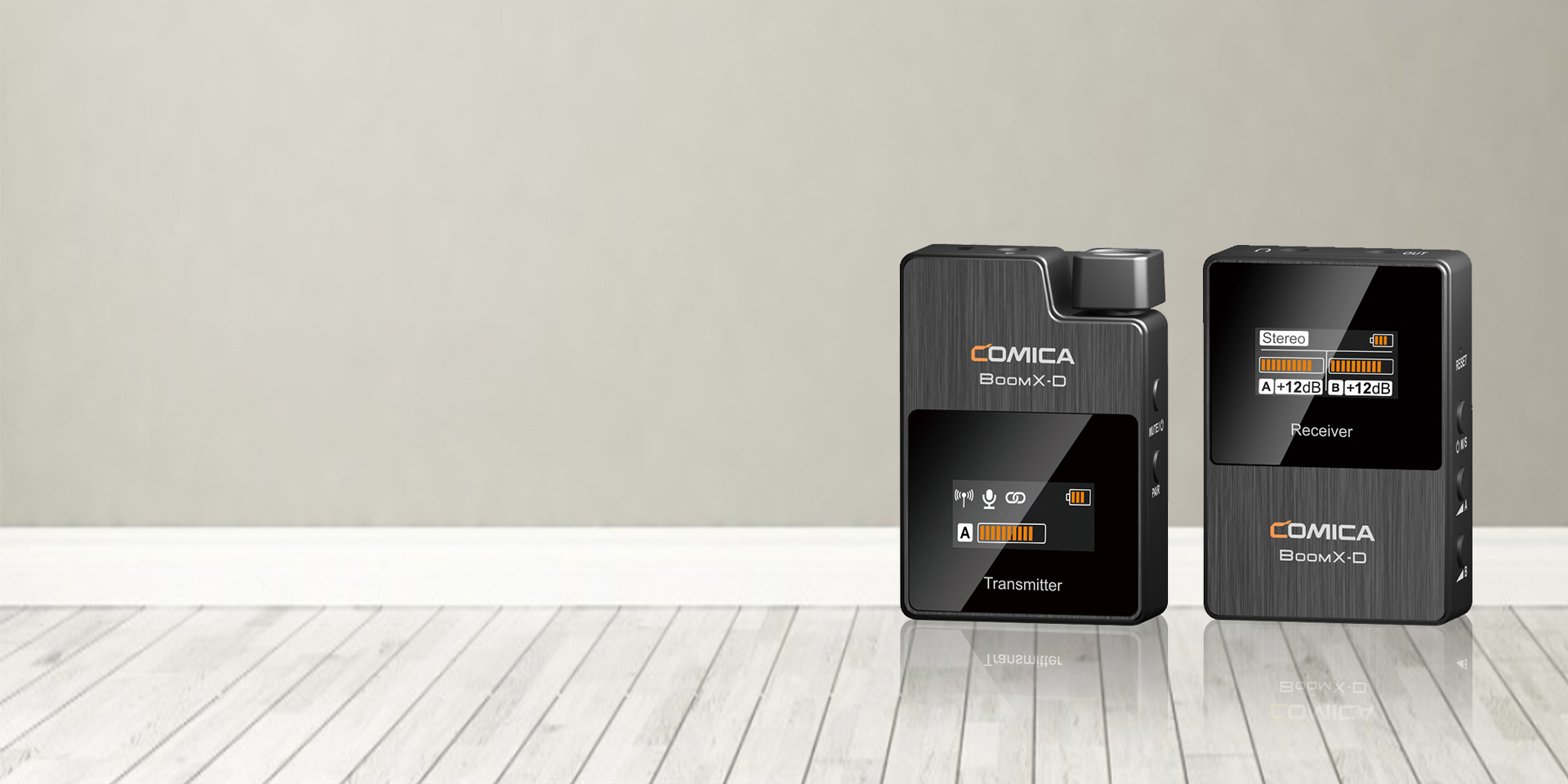

BoomX-D
2.4G Digital Wireless Microphone
2.4G Digital Wireless, Global Free Frequency
Mini and portable, high-quality professional wireless microphone

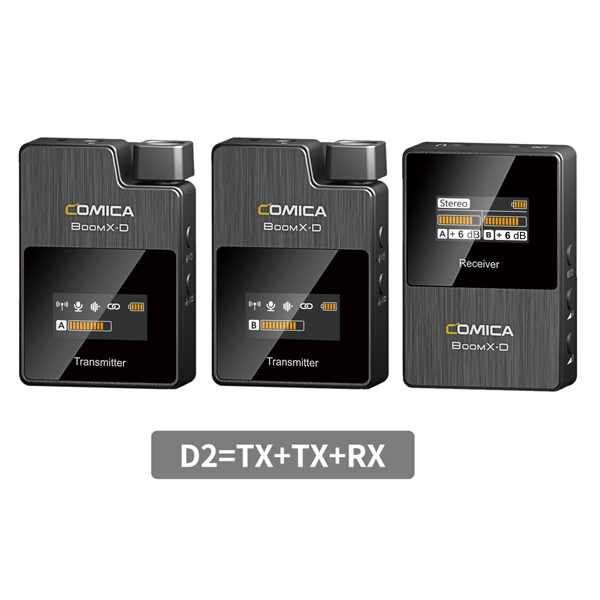

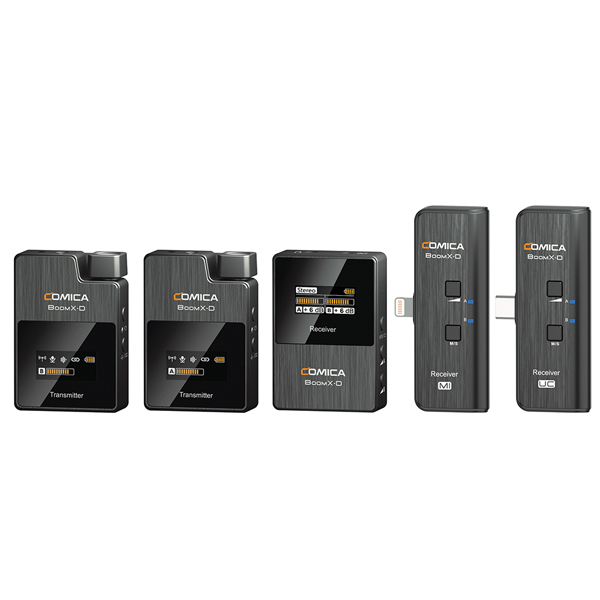

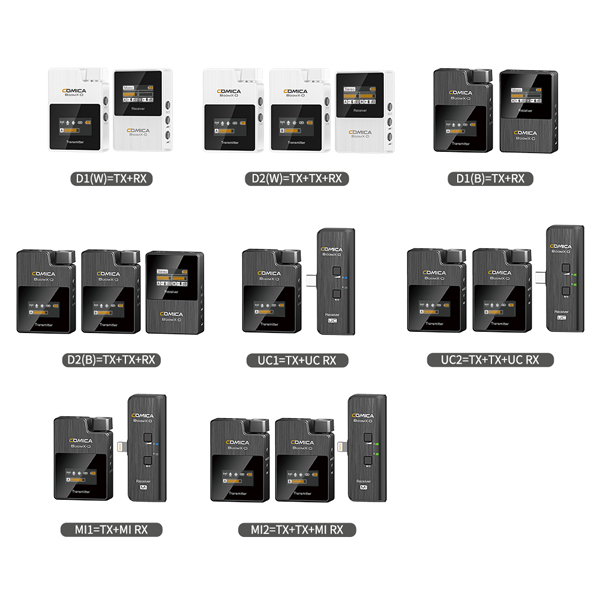

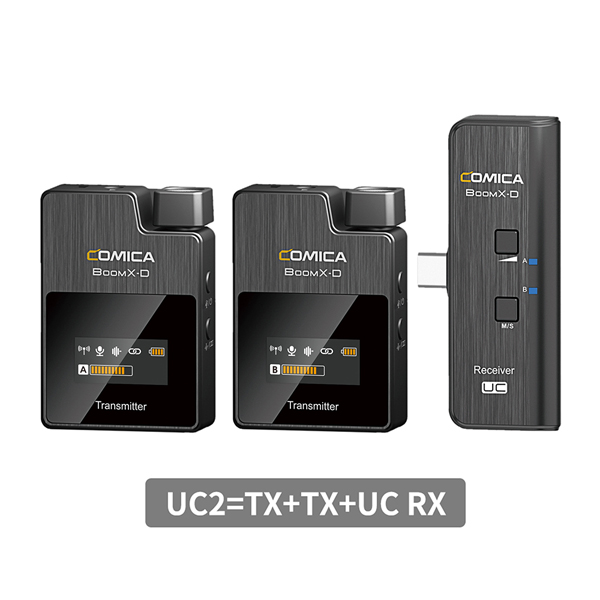

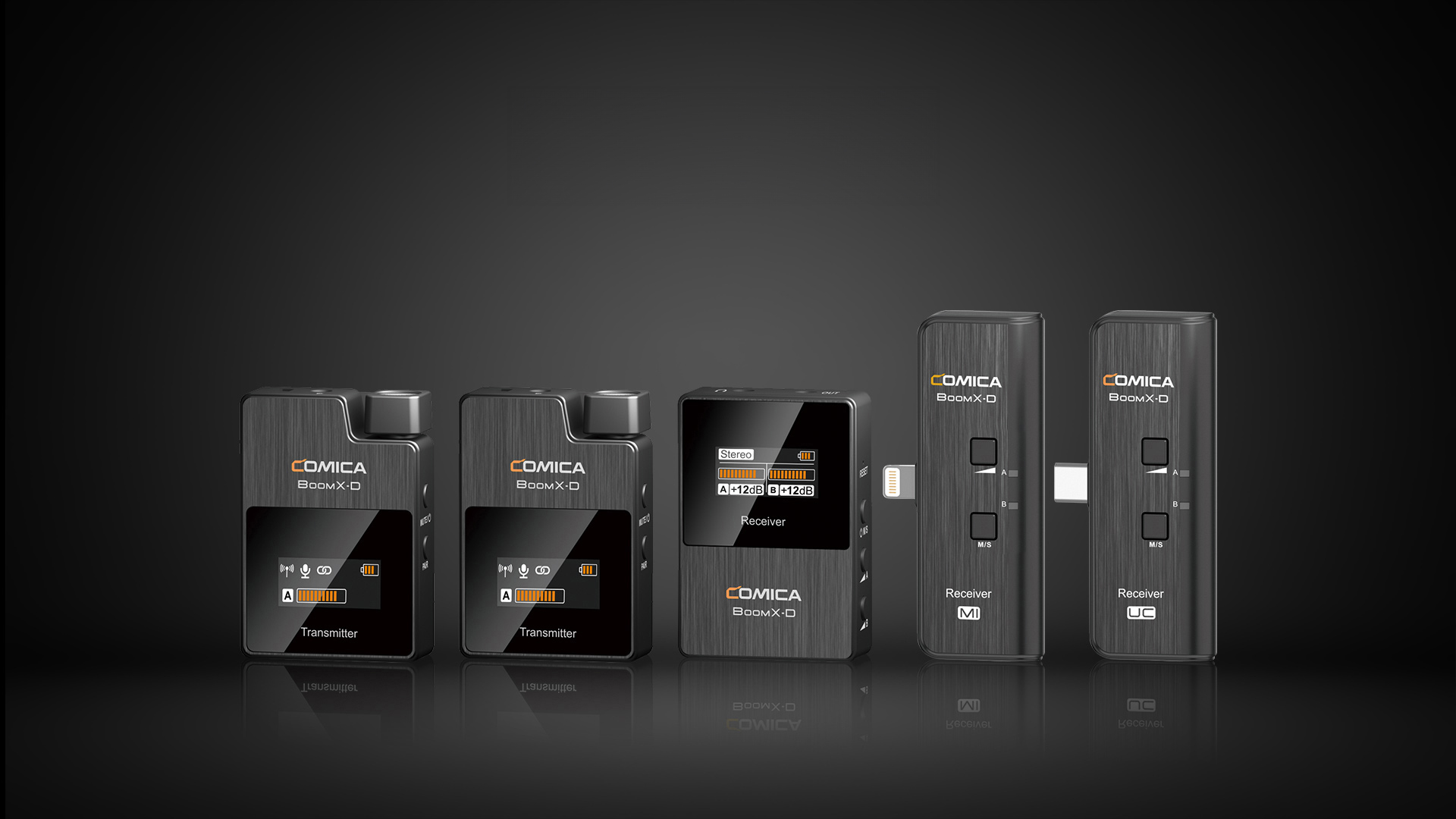

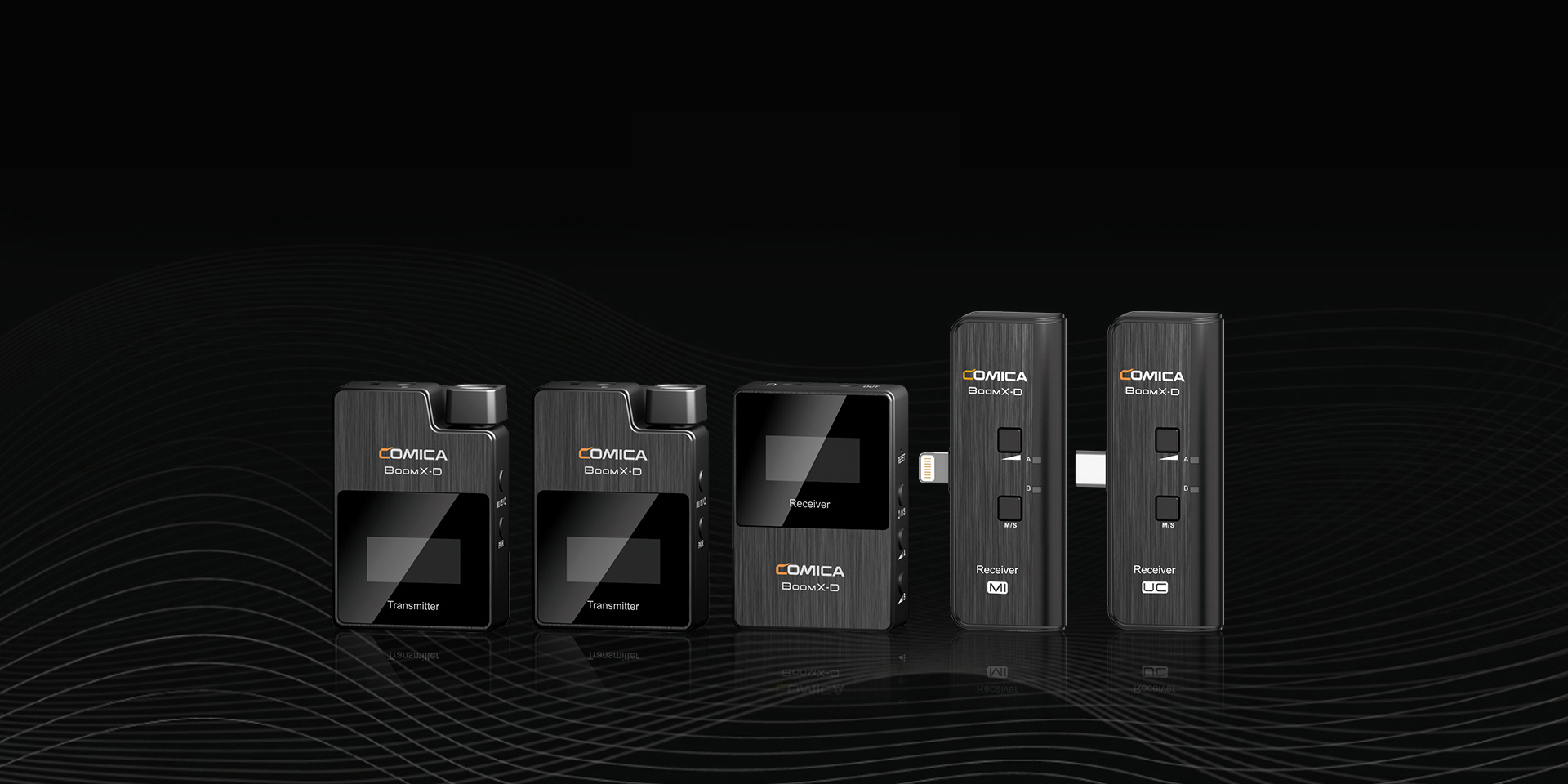

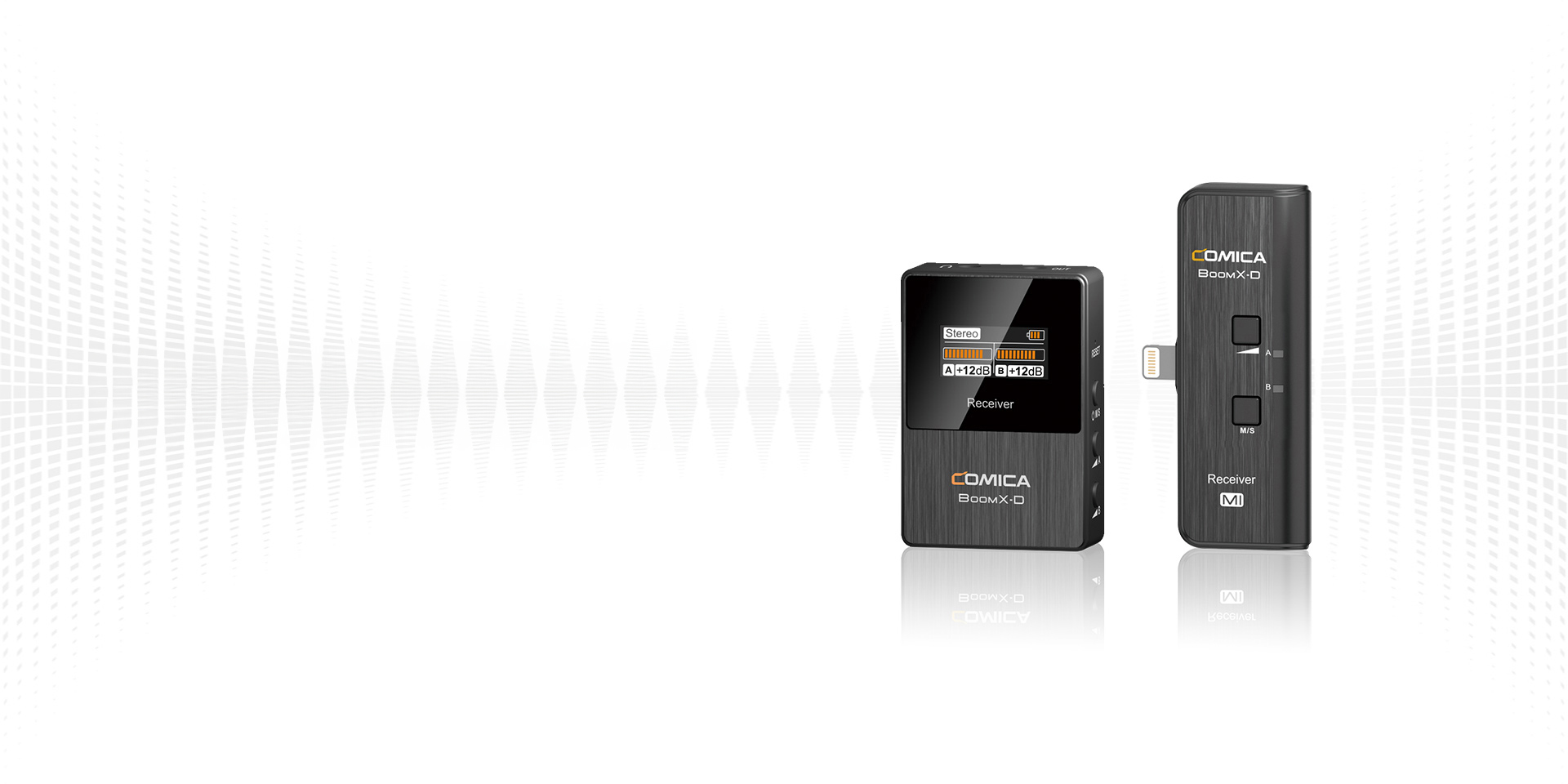

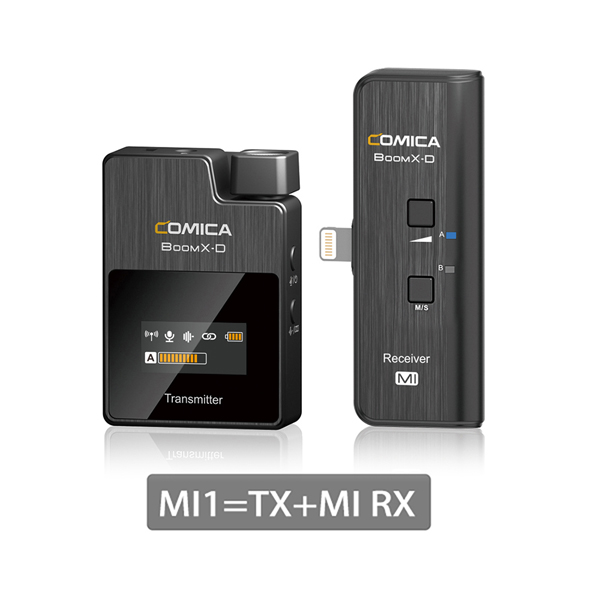

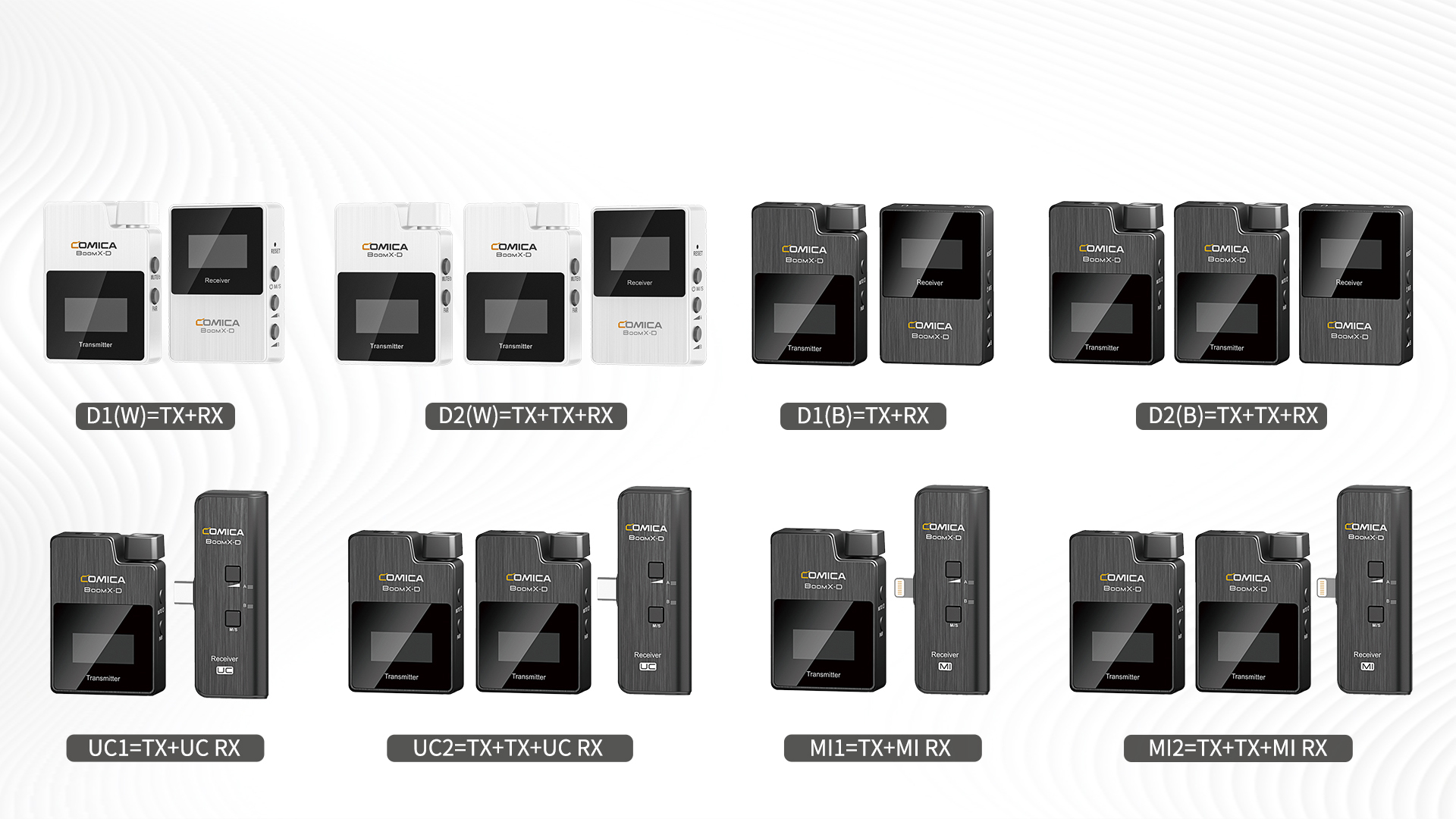

Different Combinations

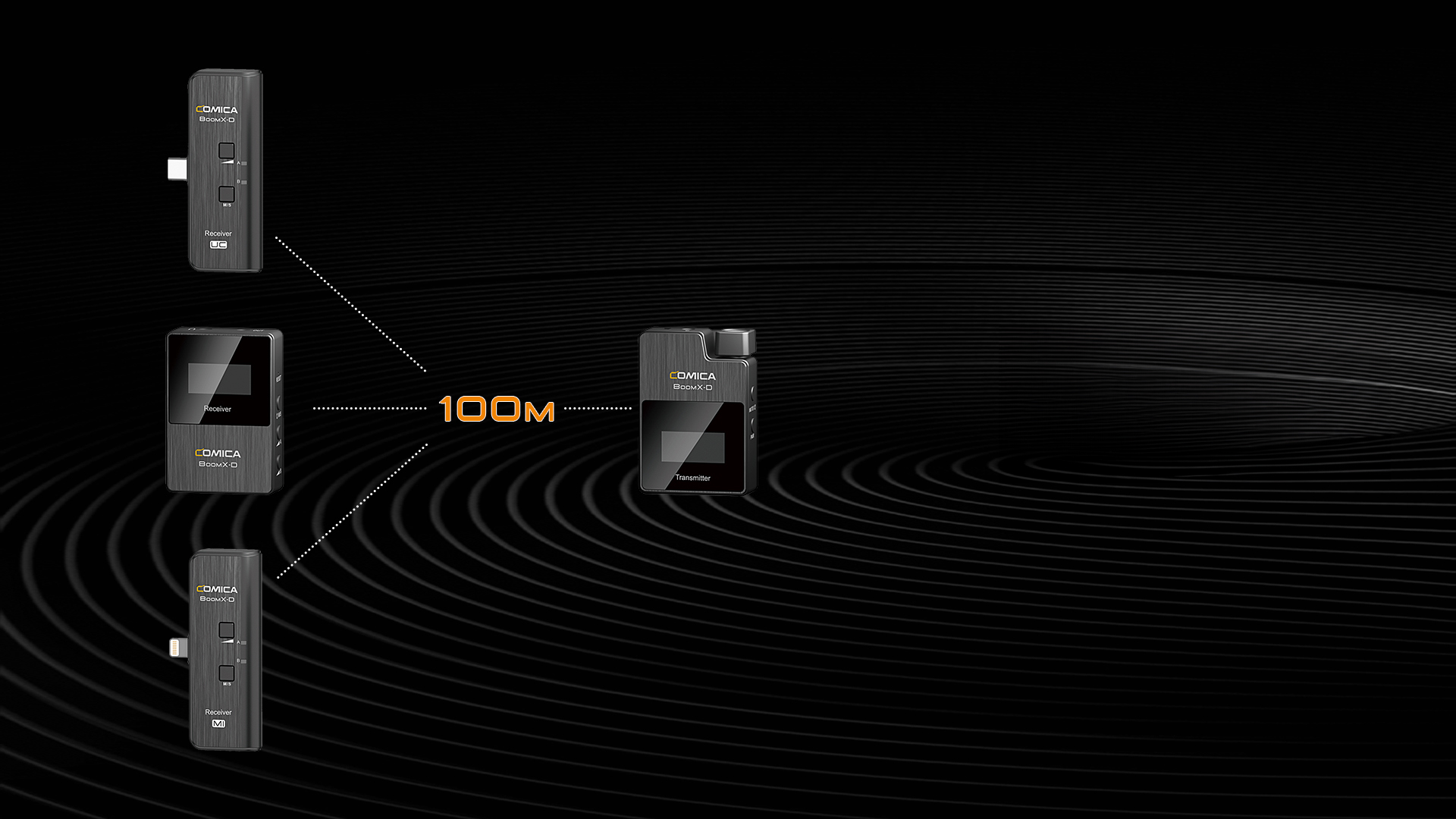

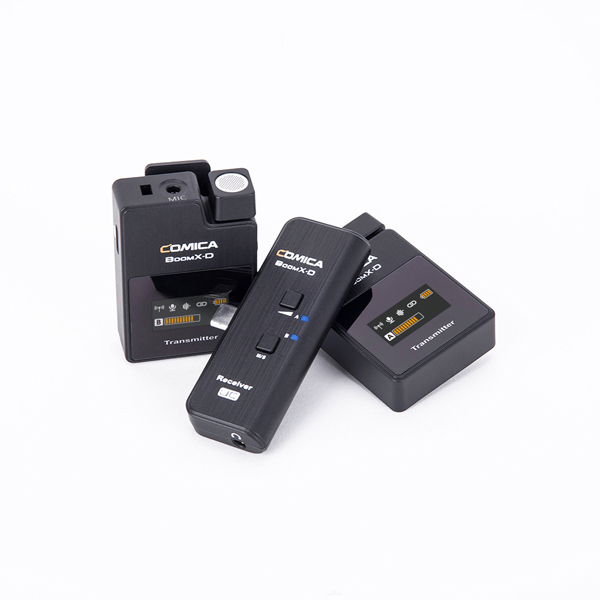

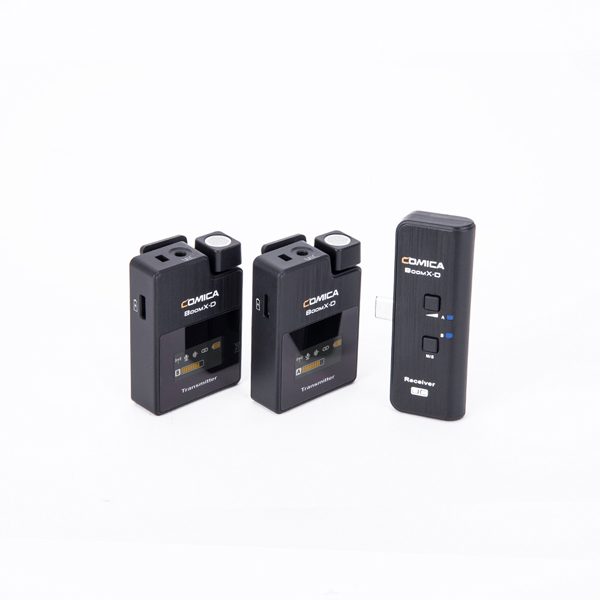

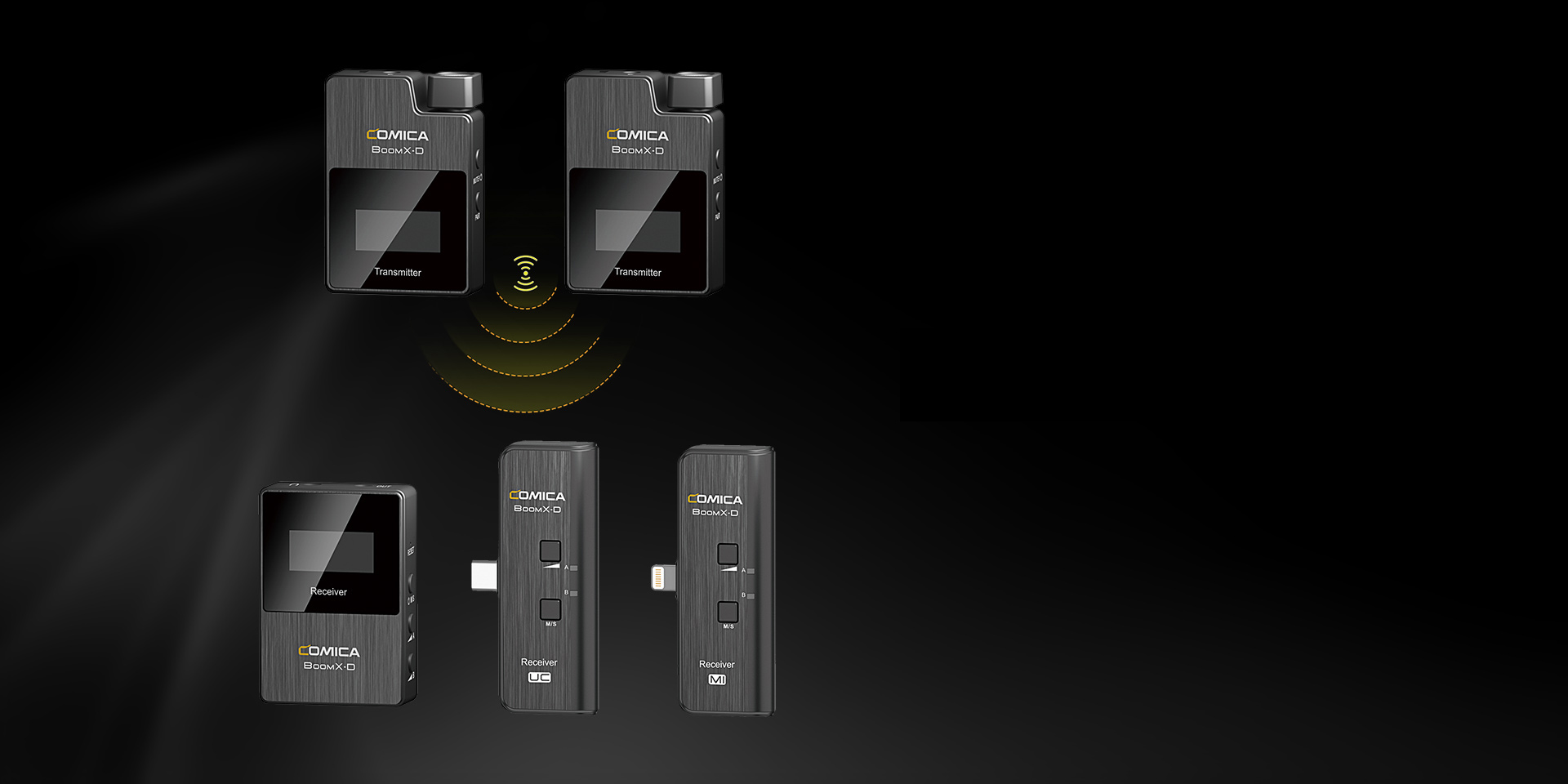

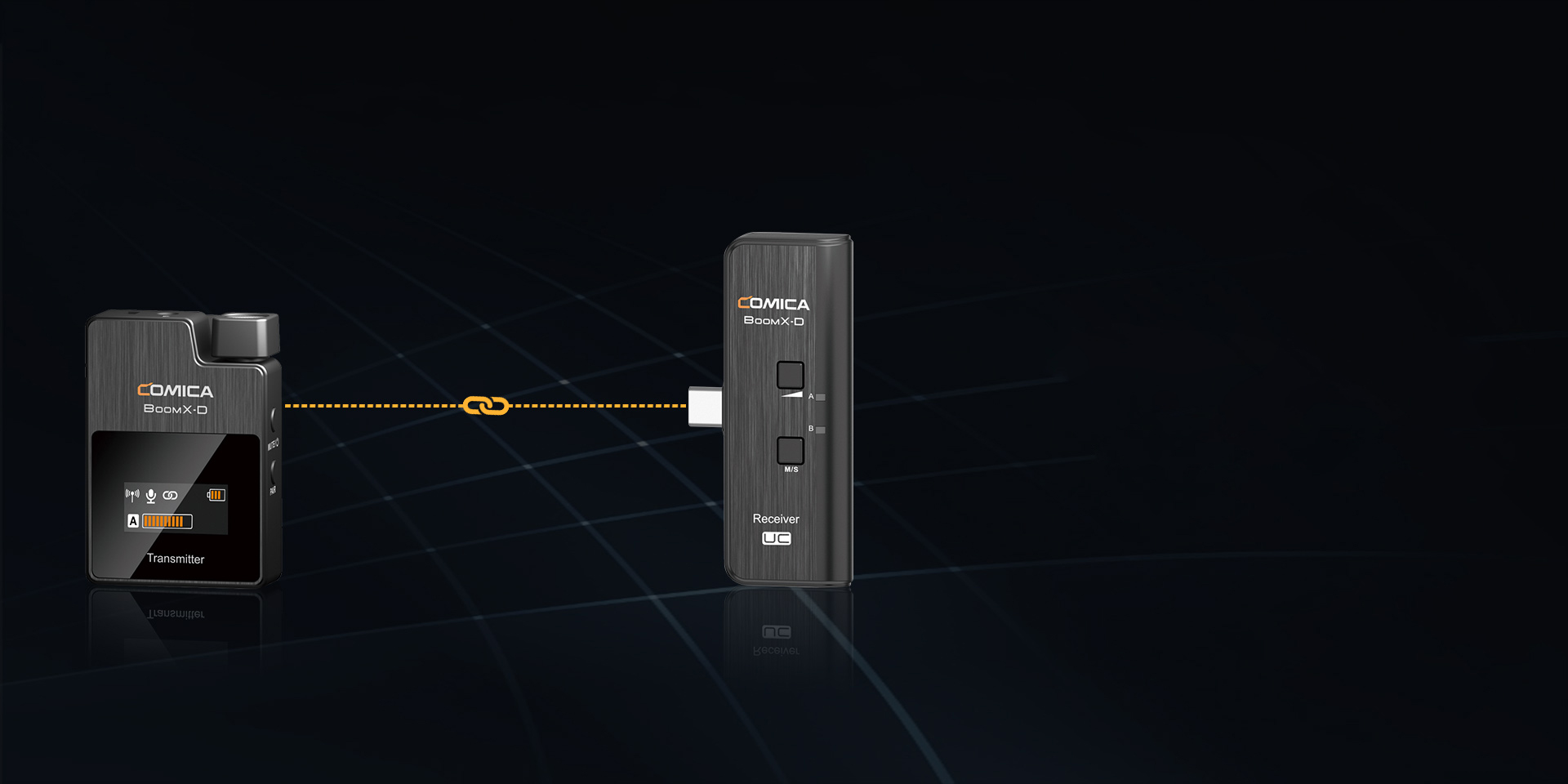

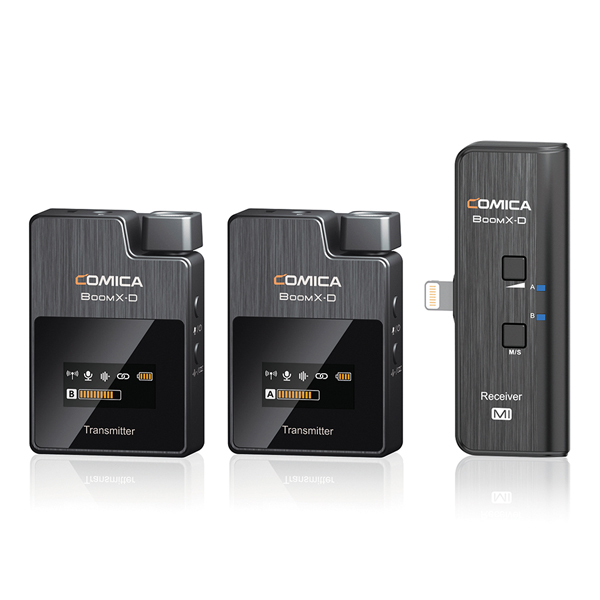

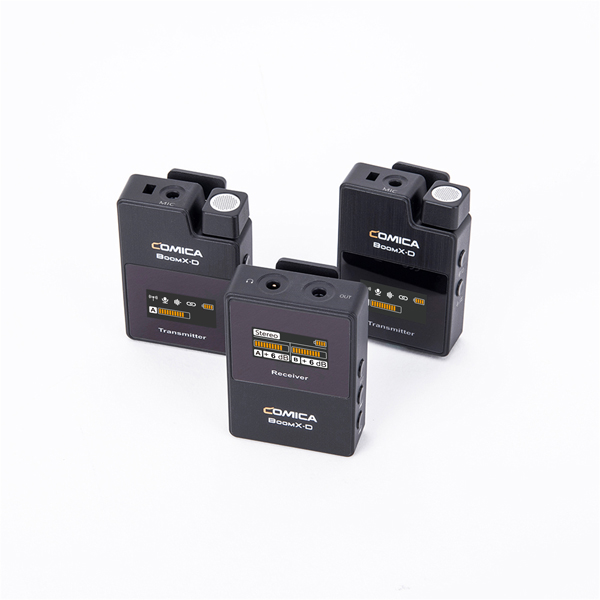

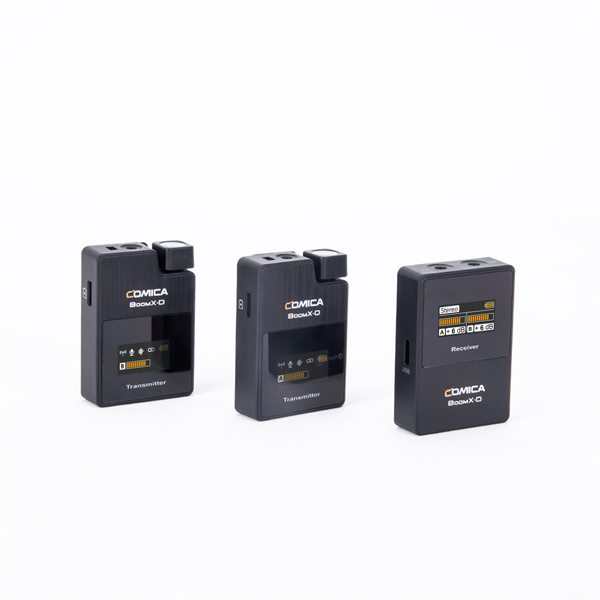

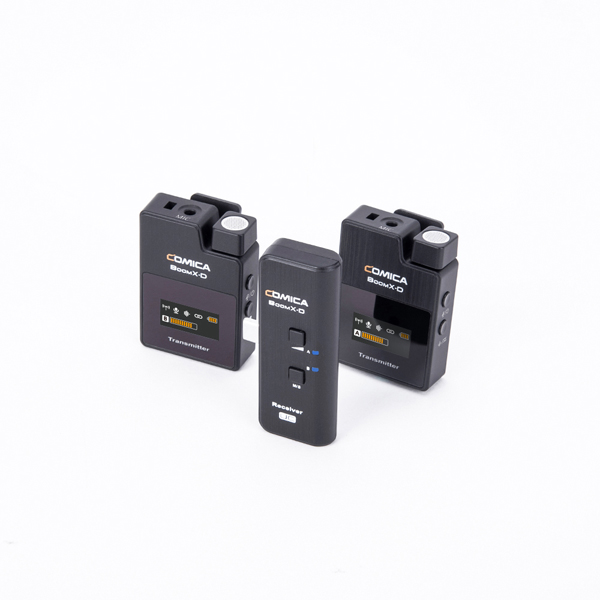

Dual Transmitters Triggered by One Receiver
Several devices working together, stable signal and more efficient

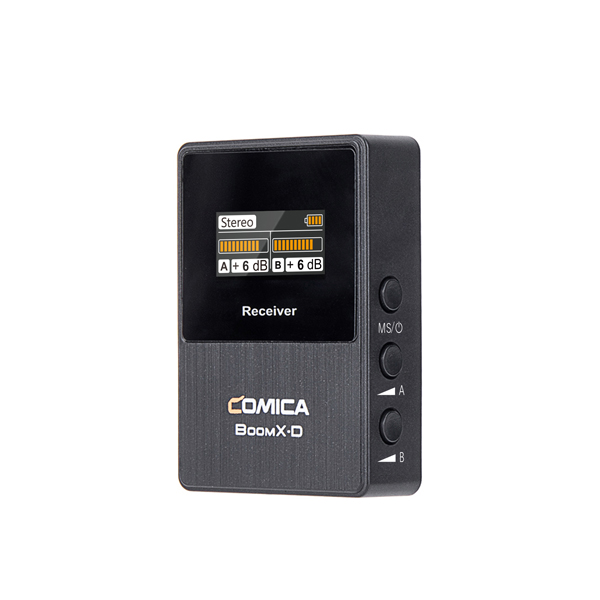

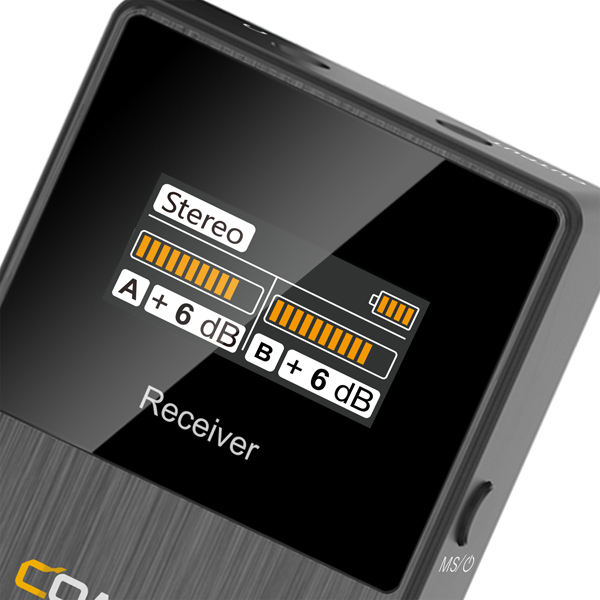

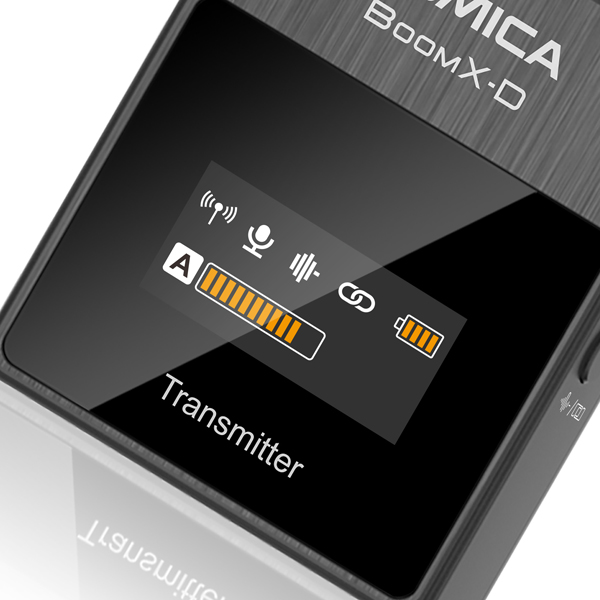

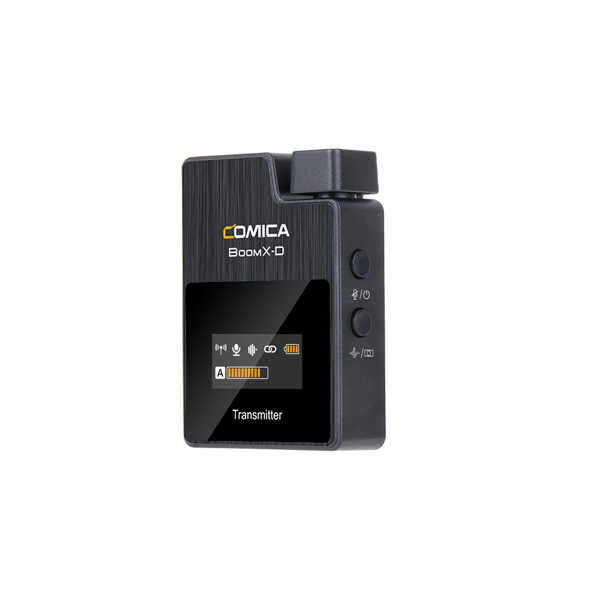

Visual Power, Audio Dynamic Monitor and Other Display Functions
Clear and convenient, easy to monitor and ensure the work status
Mono/Stereo Switchable Output Modes
You can according to the environment to choose output mode

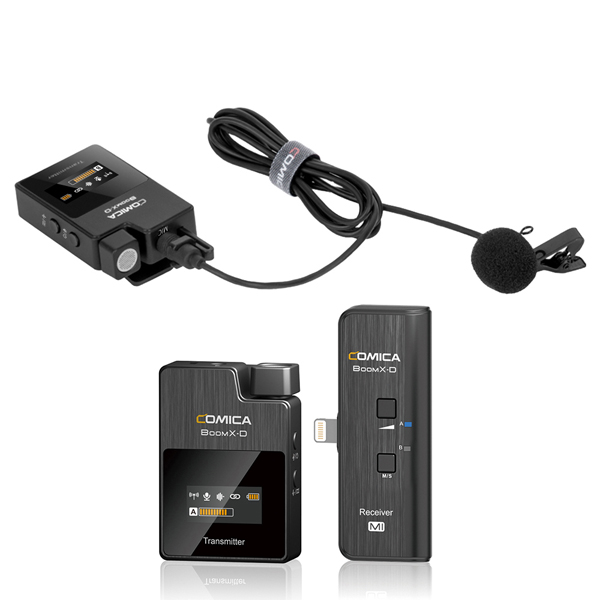

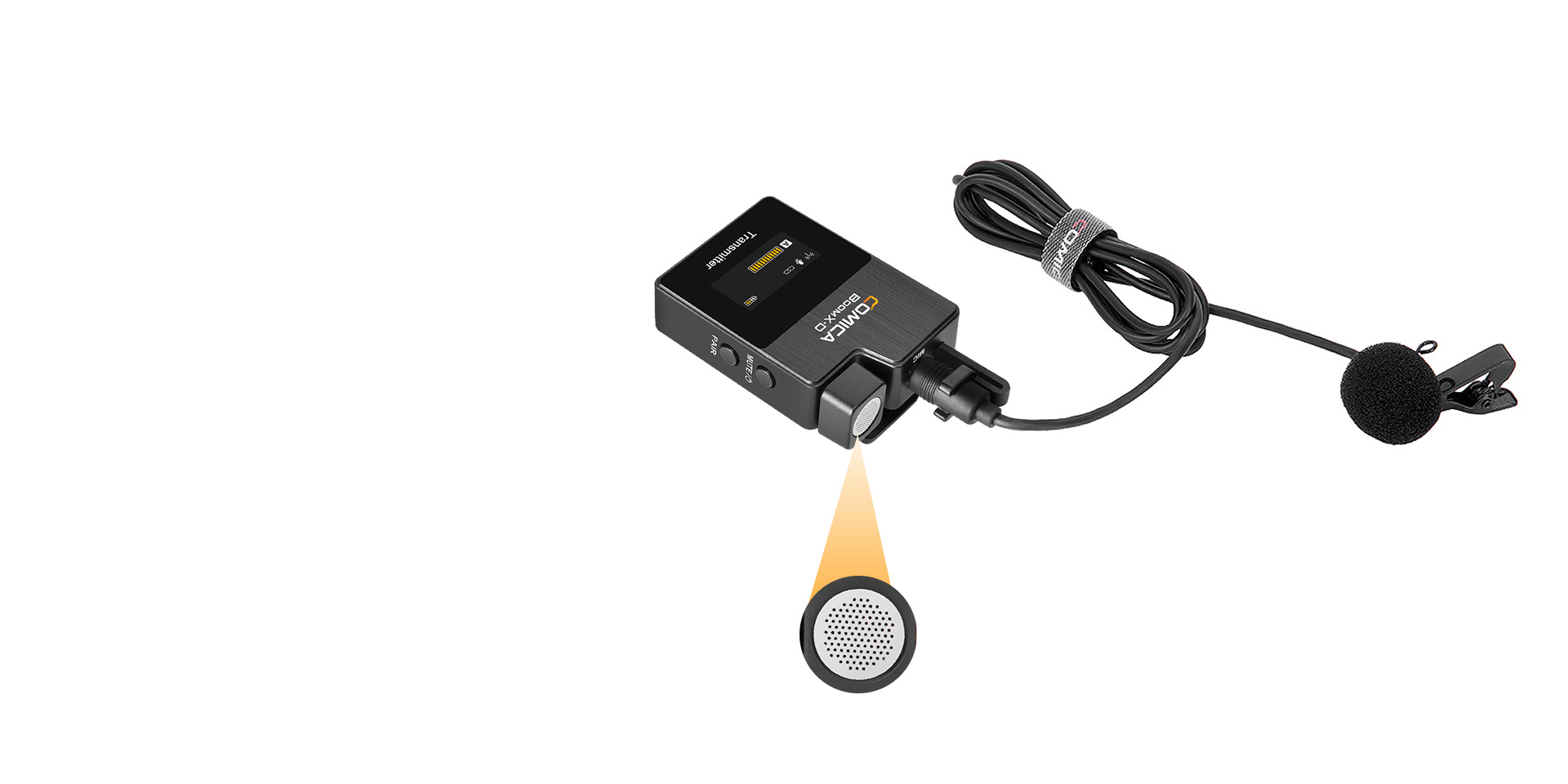

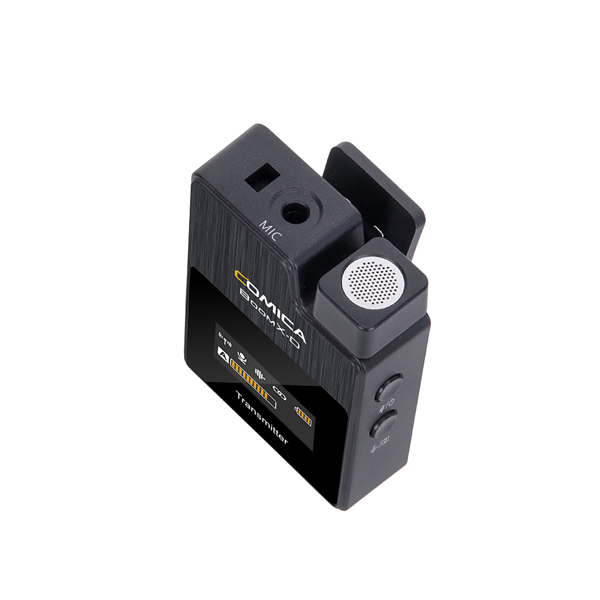

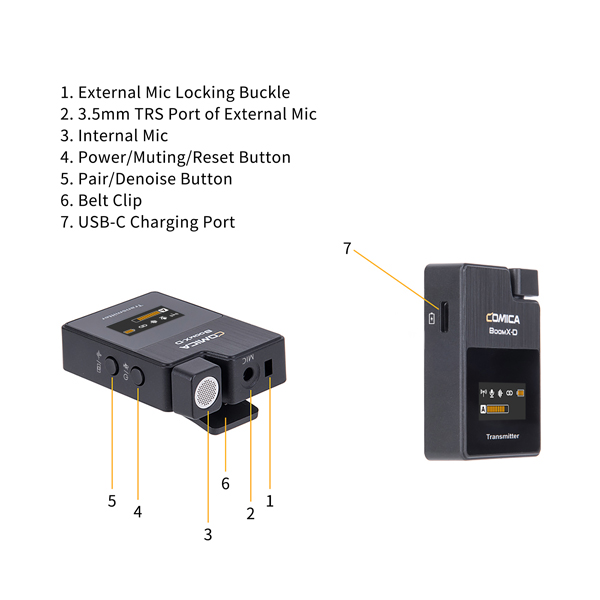

Internal and External MIC Two Input Modes
Flexible use with input modes in different scene

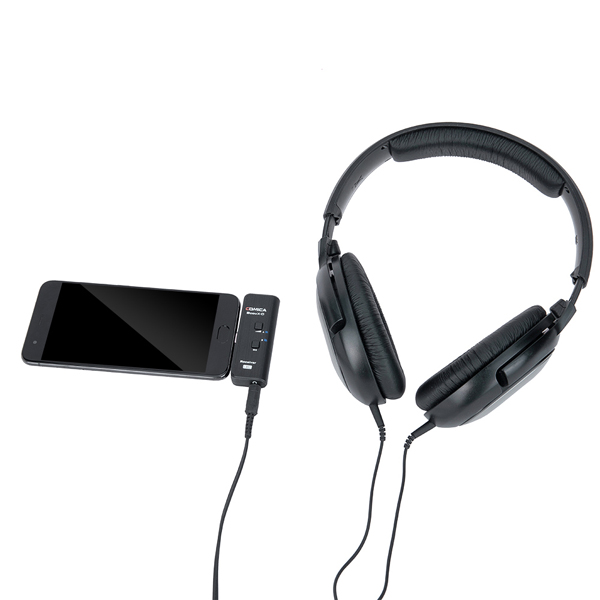

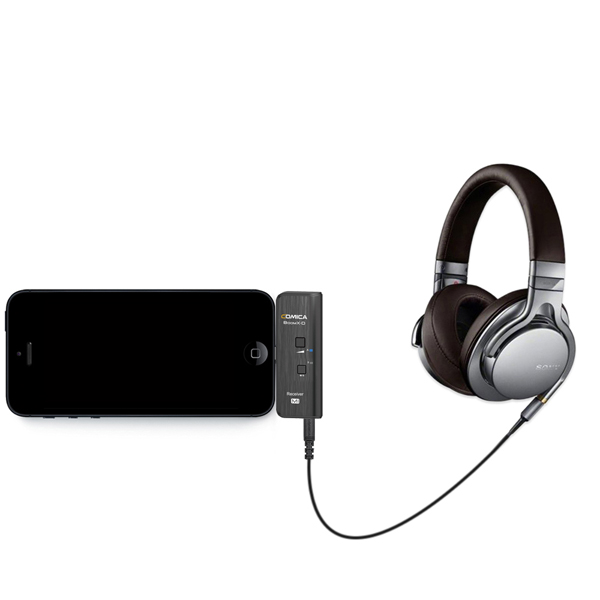

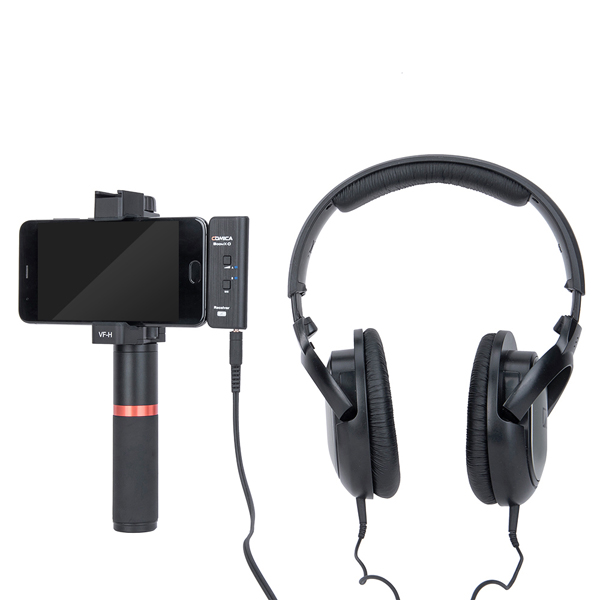

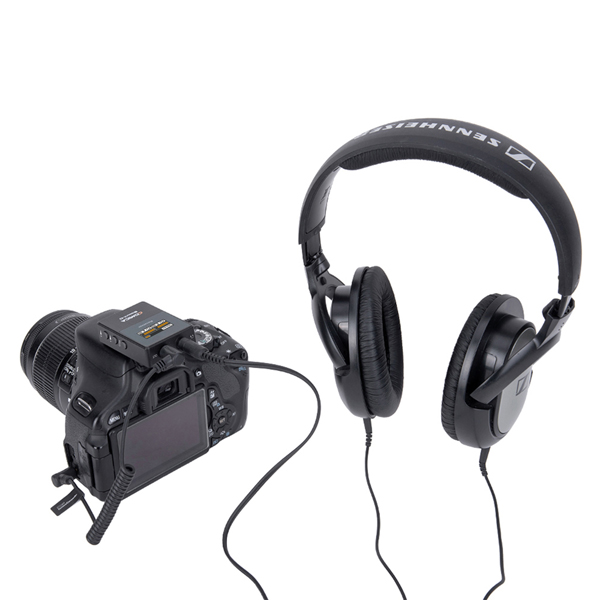

Real-time Audio Monitor
Ensure clear recording and keep the microphone work properly
Broadcasting Quality Audio, 48KHz 16 Bit
Professional technology creates perfect audio quality
RF Technology, Auto Freq. Adjustment, Stable Transmission
Suitable frequency, accurate choice in various situation
Low Latency < 20ms
Make recording clear and natural, sound fluent and smooth

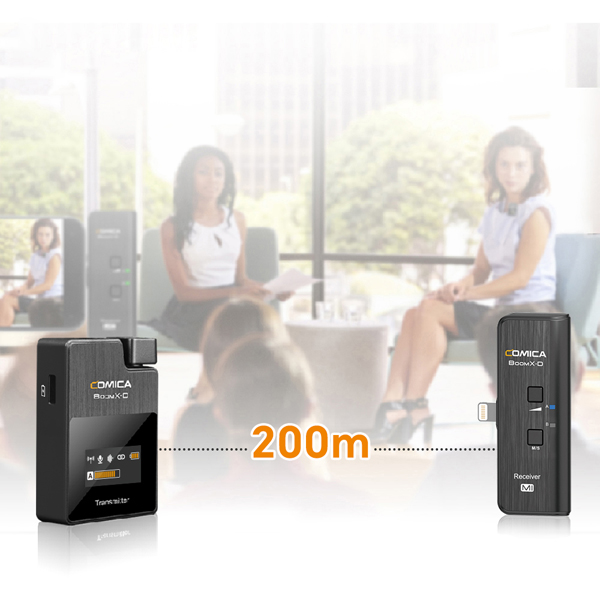

Working Range Up to 200m
Effective transmission working range realizes smooth recording without staccato

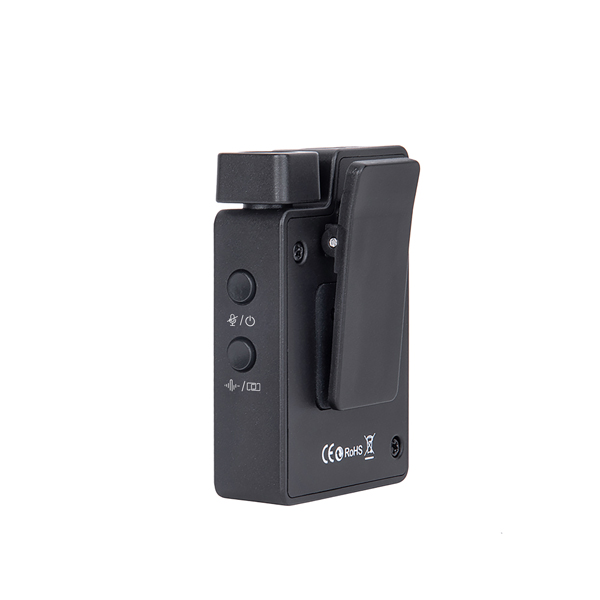

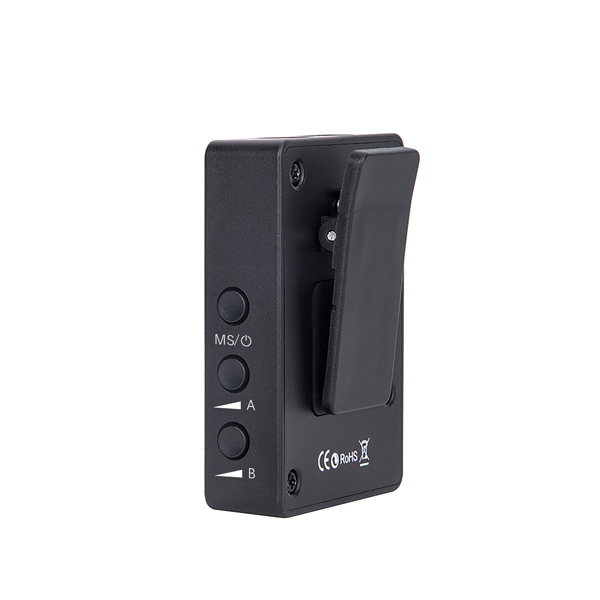

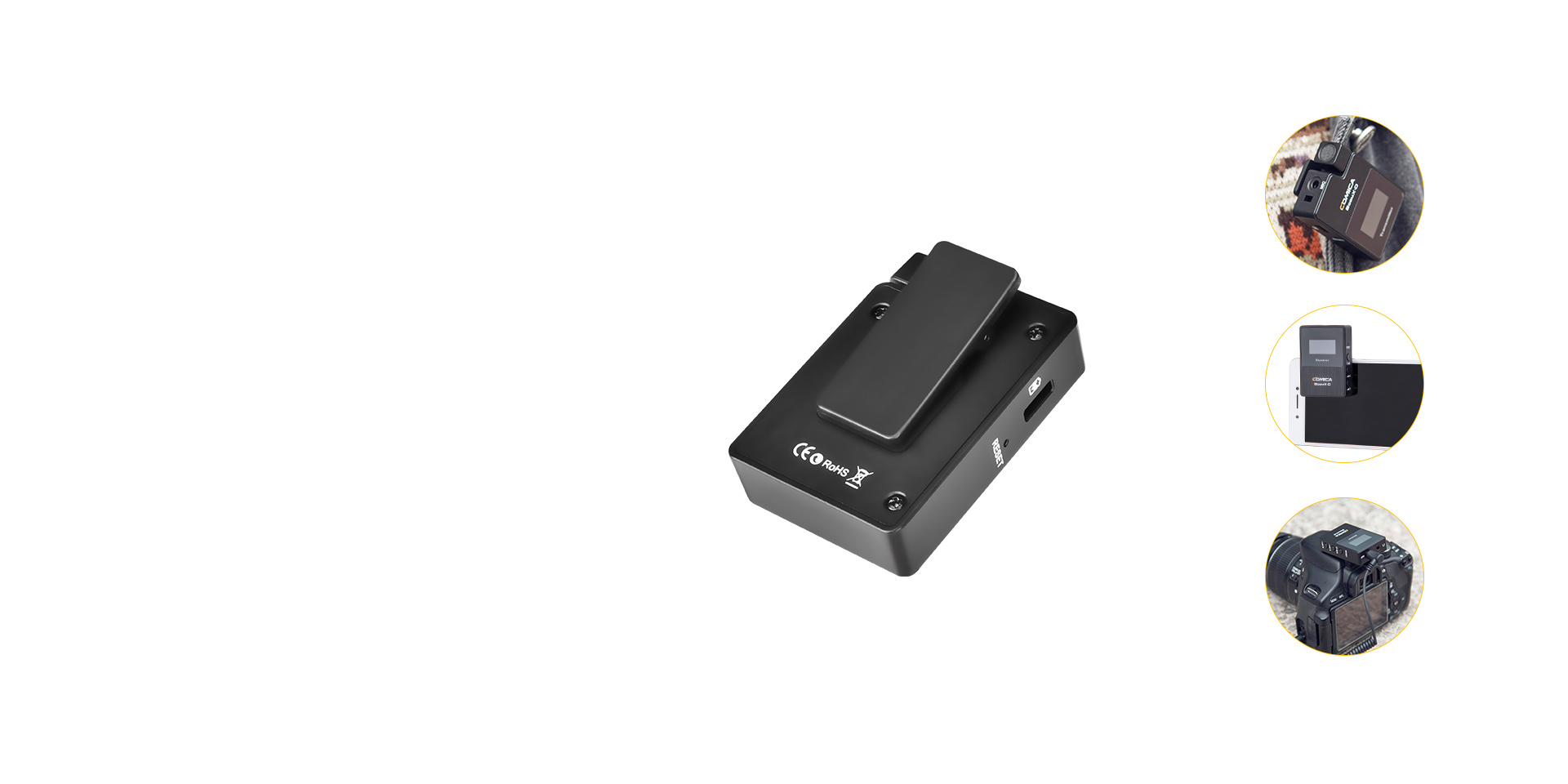

Designed with Multi-functional Belt Clip and Compact
Precise design, portable and convenient

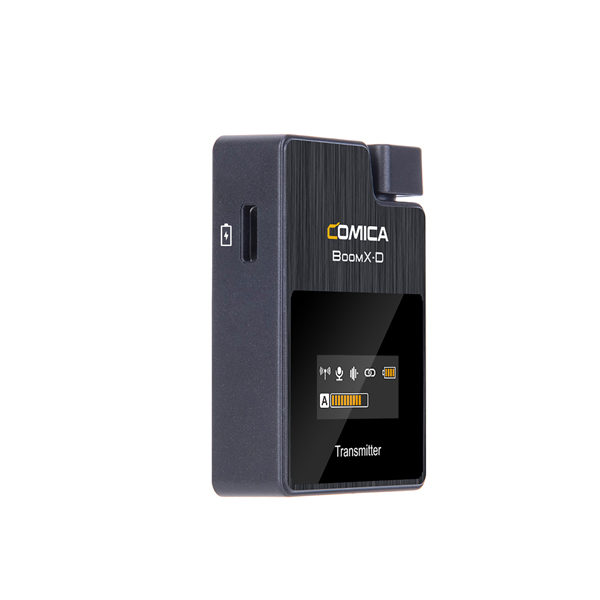

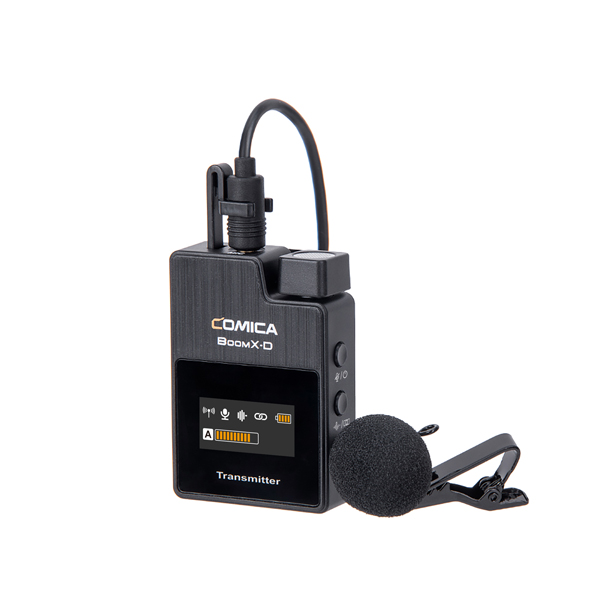

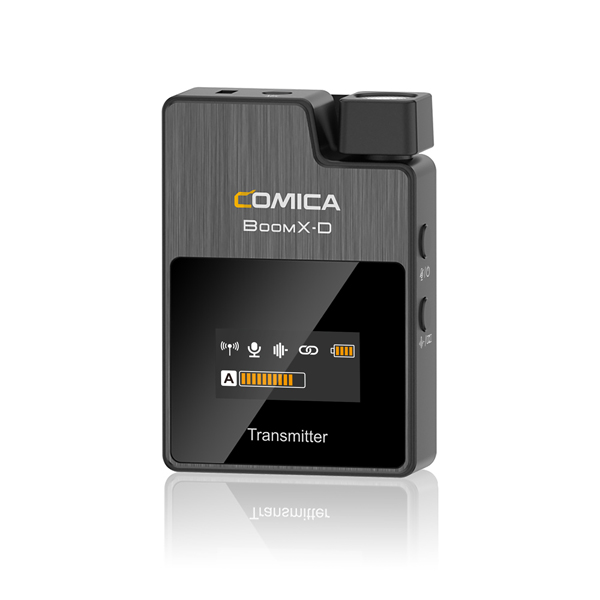

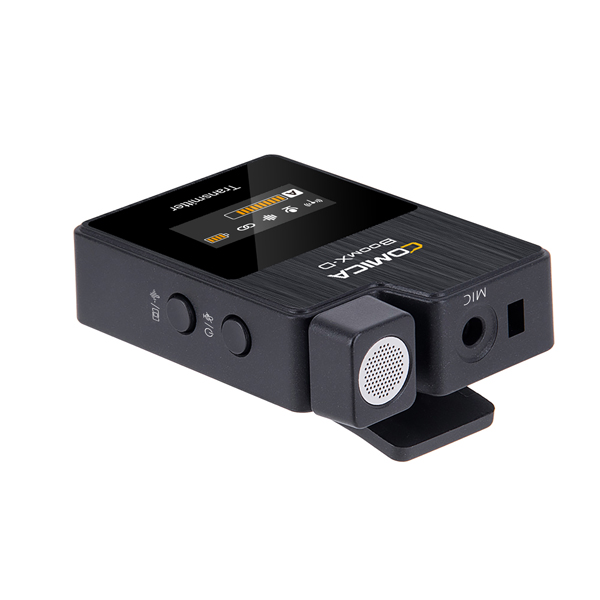

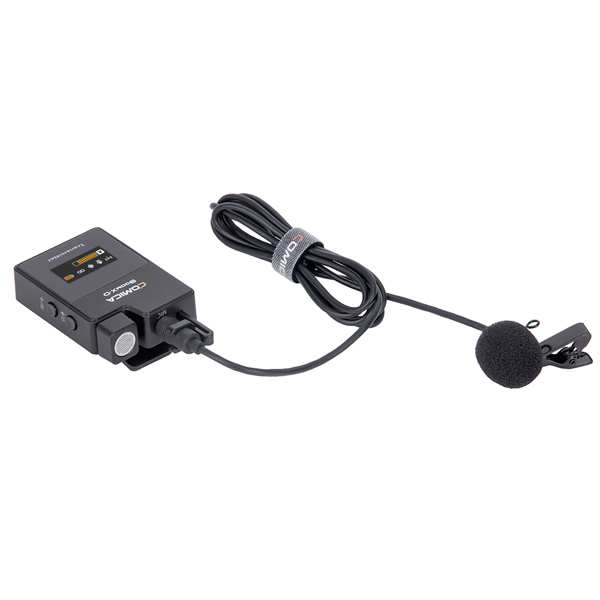

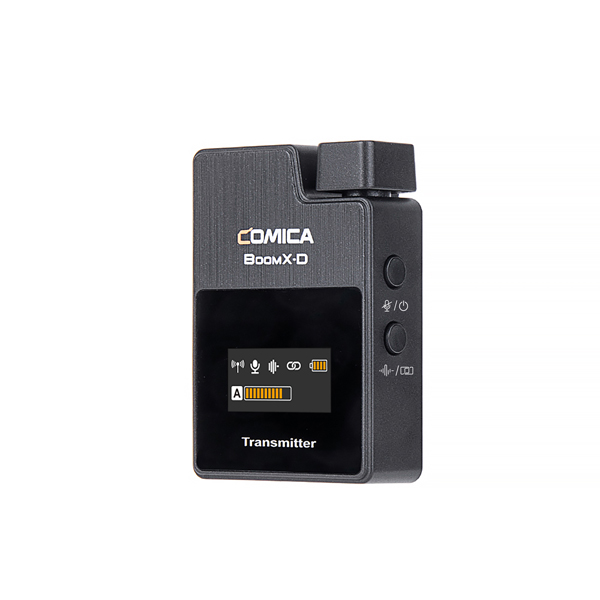

Transmitter (TX)
|
Wireless Type |
2.4GHz |
|
Antenna |
Ceramic Antenna |
|
Transmitting Power |
+10dBm |
|
Microphone Sensitivity |
-32dB±2dB |
|
Polar Pattern |
Omnidirectional |
|
Frequency Response |
80Hz ~ 20kHz |
|
S/N |
70dB SPL(A-weighted,as per IEC651) |
|
Equivalent Noise |
24dB SPL(A-weighted,as per IEC651) |
|
Maximum SPL |
110dB SPL(@ 1% THD) |
|
Dynamic Range |
86dB SPL(A-weighted,as per IEC651) |
|
Sound Delay |
<20ms |
|
External Mic Input Port |
3.5mm TRS |
|
Battery |
Li-ion Battery 330mAh 3.7V |
|
Operating Time |
15 Hours |
|
Net Weight |
29g |
|
Dimension |
39 x 22 x 55mm |
|
Working Temperature |
0℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ +60℃ |

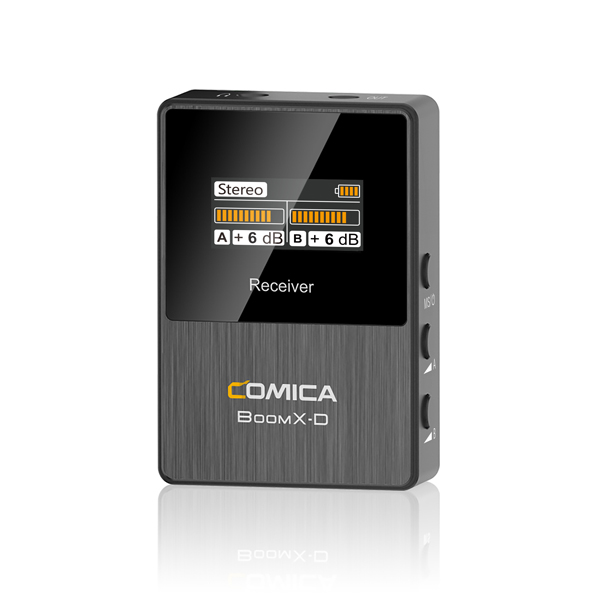

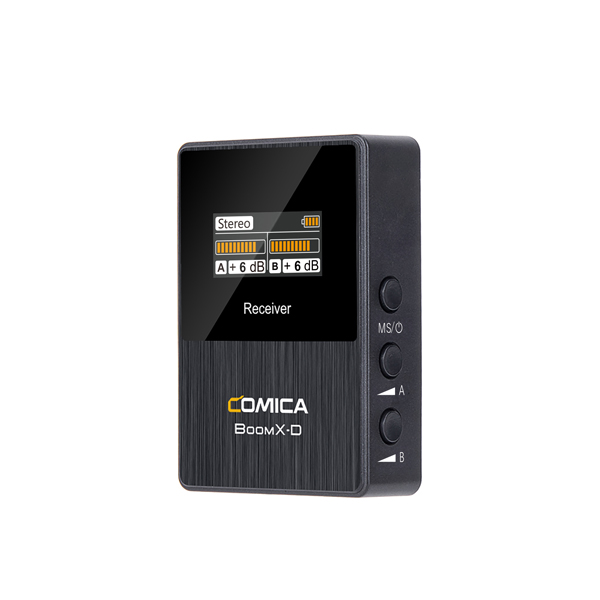

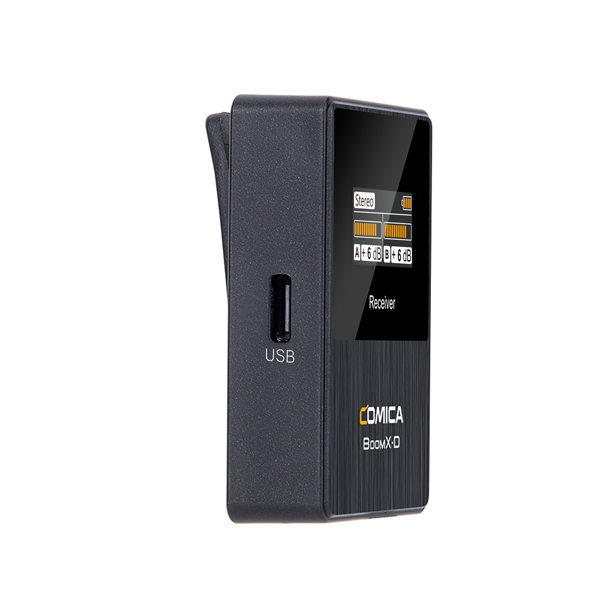

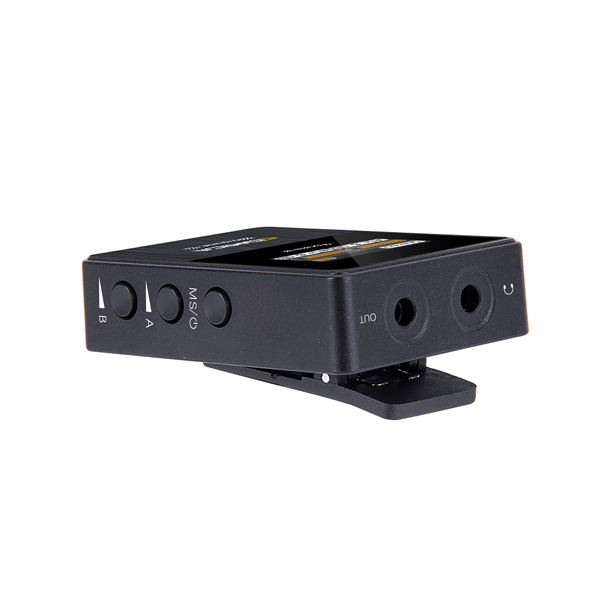

Receiver (RX)
|
Wireless Type |
2.4GHz |
|
Antenna |
Ceramic Antenna |
|
Transmitting Power |
+10dBm |
|
S/N |
70dB SPL(A-weighted,as per IEC651) |
|
Equivalent Noise |
24dB SPL(A-weighted,as per IEC651) |
|
Dynamic Range |
86dB SPL(A-weighted,as per IEC651) |
|
Sound Delay |
<20ms |
|
Output Gain Range |
-6dB ~ +6dB |
|
Anolog Output |
3.5mm TRS |
|
Digital Output |
USB-C / 48kHz 16bits |
|

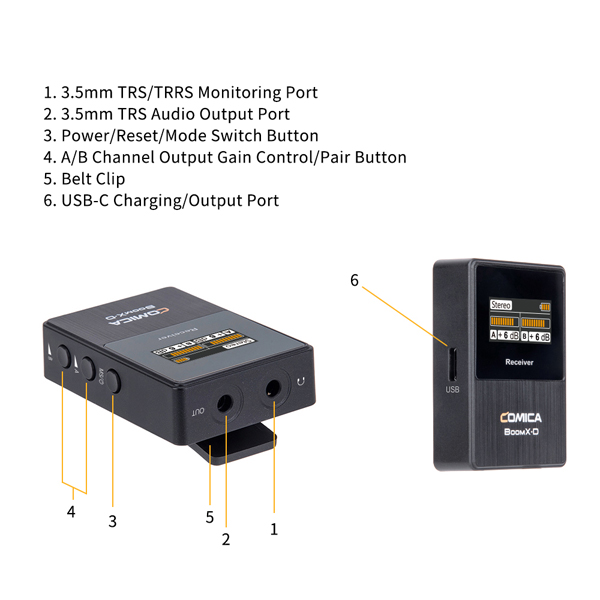

Monitor Port |
3.5mm TRS/TRRS |
|
Battery |
Li-ion Battery 330mAh 3.7V |
|
Standby Time |
12 Hours |
|
Net Weight |
28g |
|
Dimension |
39 x 22 x 55mm |
|
Working Temperature |
0℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ +60℃ |

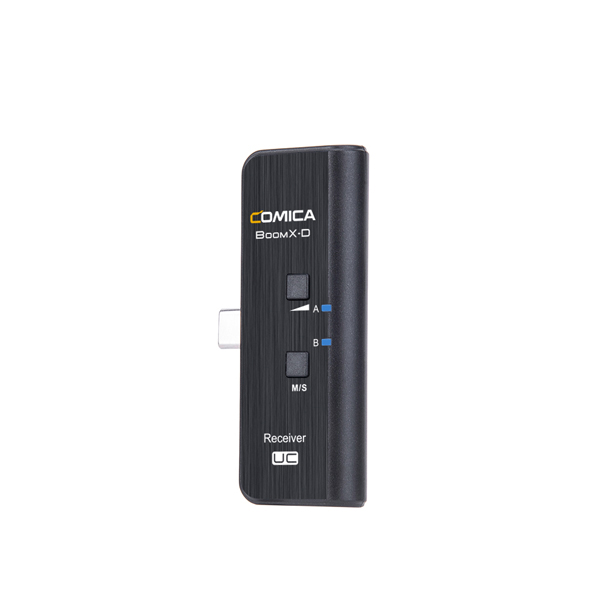

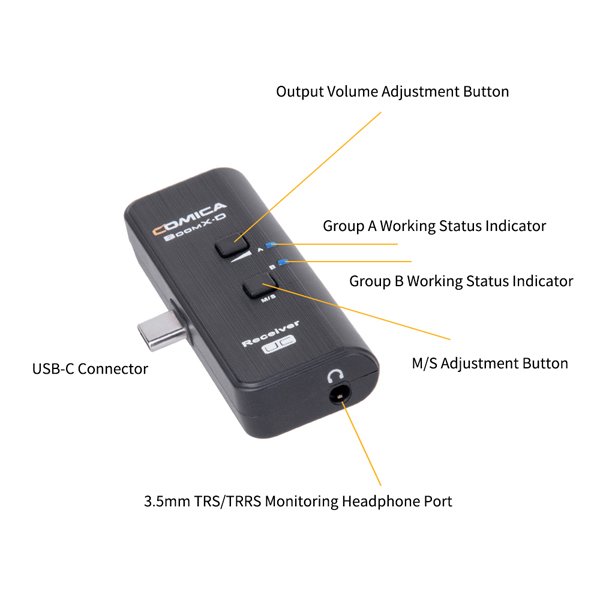

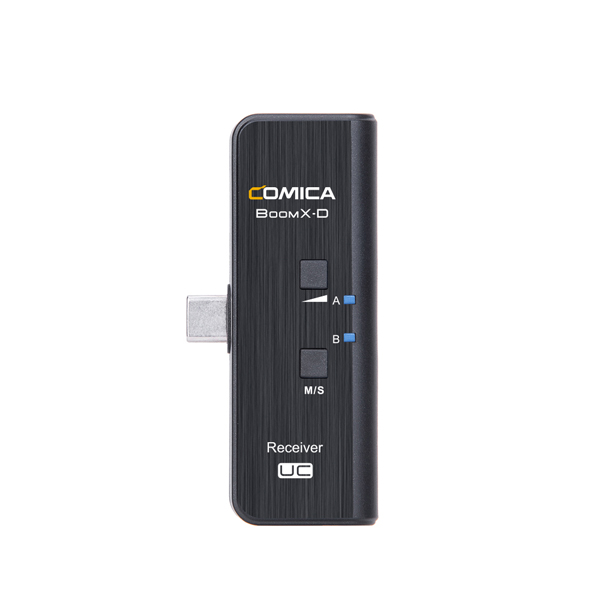

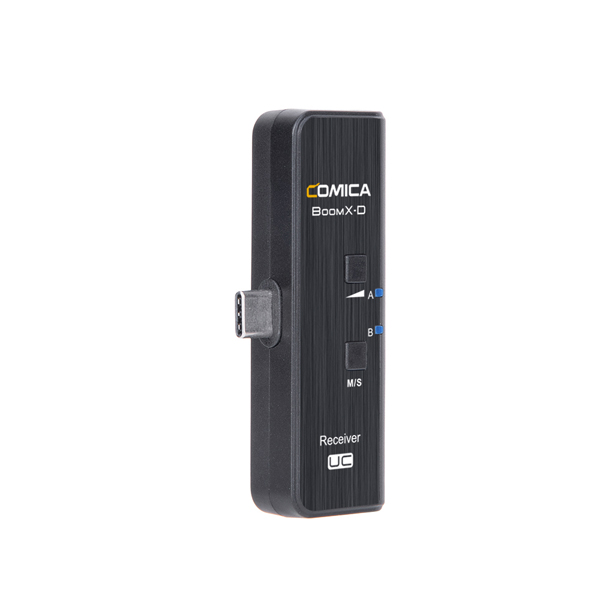

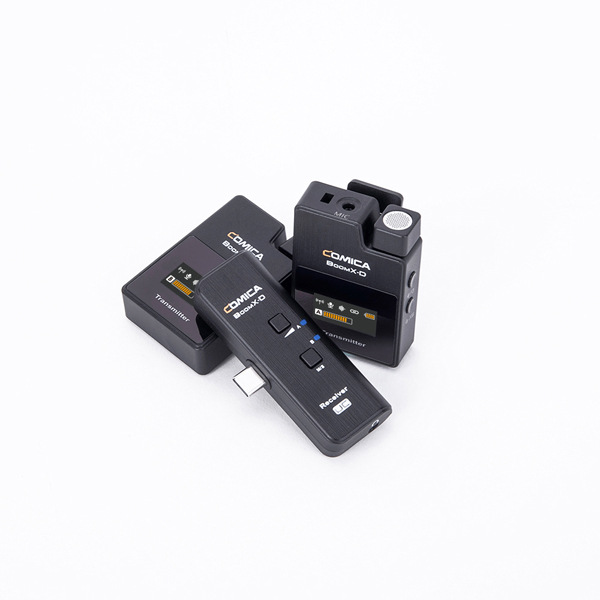

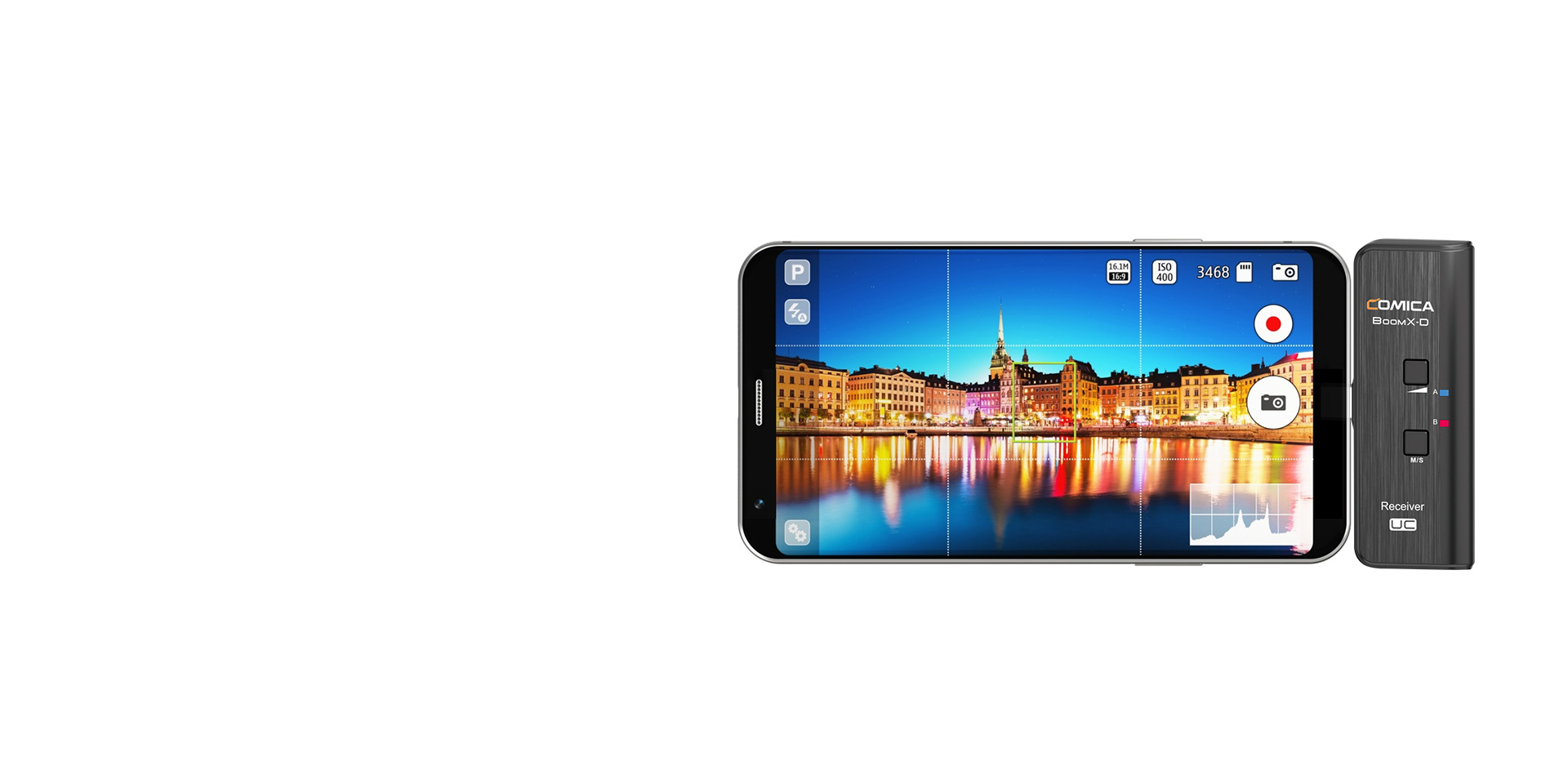

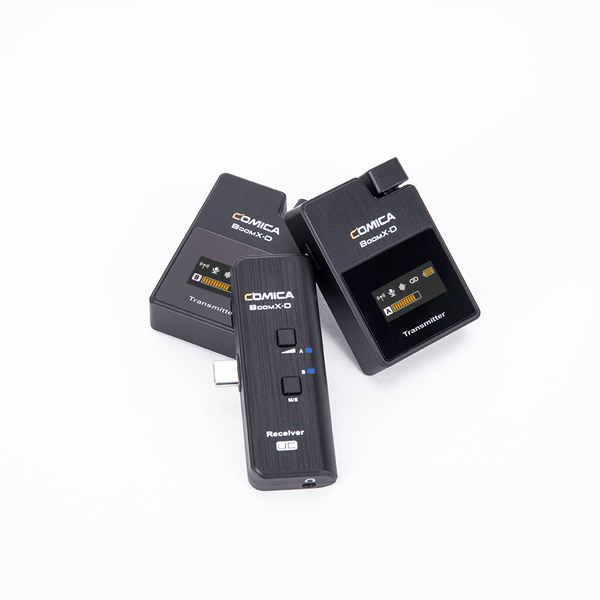

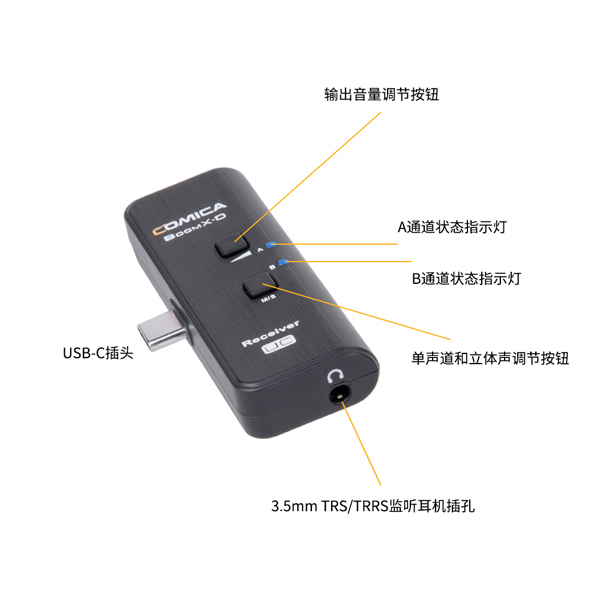

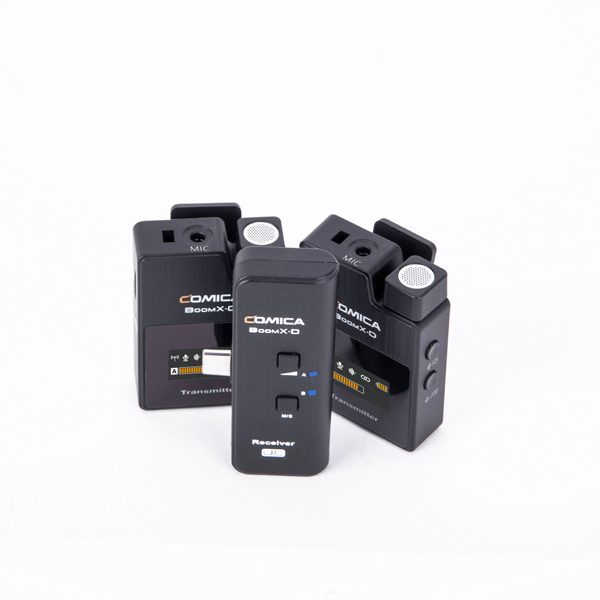

UC Receiver (UC RX)
|
Wireless Type |
2.4GHz |
|
Antenna |
Ceramic Antenna |
|
Transmitting Power |
+10dBm |
|
Audio Output Level |
1~4 Level(6dB increments per level) |
|
S/N |
70dB SPL(A-weighted,as per IEC651) |
|
Equivalent Noise |
24dB SPL(A-weighted,as per IEC651) |
|
Dynamic Range |
86dB SPL(A-weighted,as per IEC651) |
|
Sound Delay |
<20ms |
|
Digital Output Plug |
USB-C |
|
Monitor Port |
3.5mm TRS/TRRS |
|
Net Weight |
15g |
|
Dimension |
33 x 13 x 70mm |
|
Working Temperature |
0℃ ~ 50℃ |
|
Storage Temperature |
-20℃ ~ 60℃ |
-
BoomX-D
User Manual(EN) User Manual(CN)
