AX3

XLR/6.35mm/3.5mm(2-Groups) Audio Mixer

Watch Video Buy Now
AX3 AX3

AX3

Overview Specifications Download

AX3

XLR/6.35mm/3.5mm(2-Groups) Audio Mixer

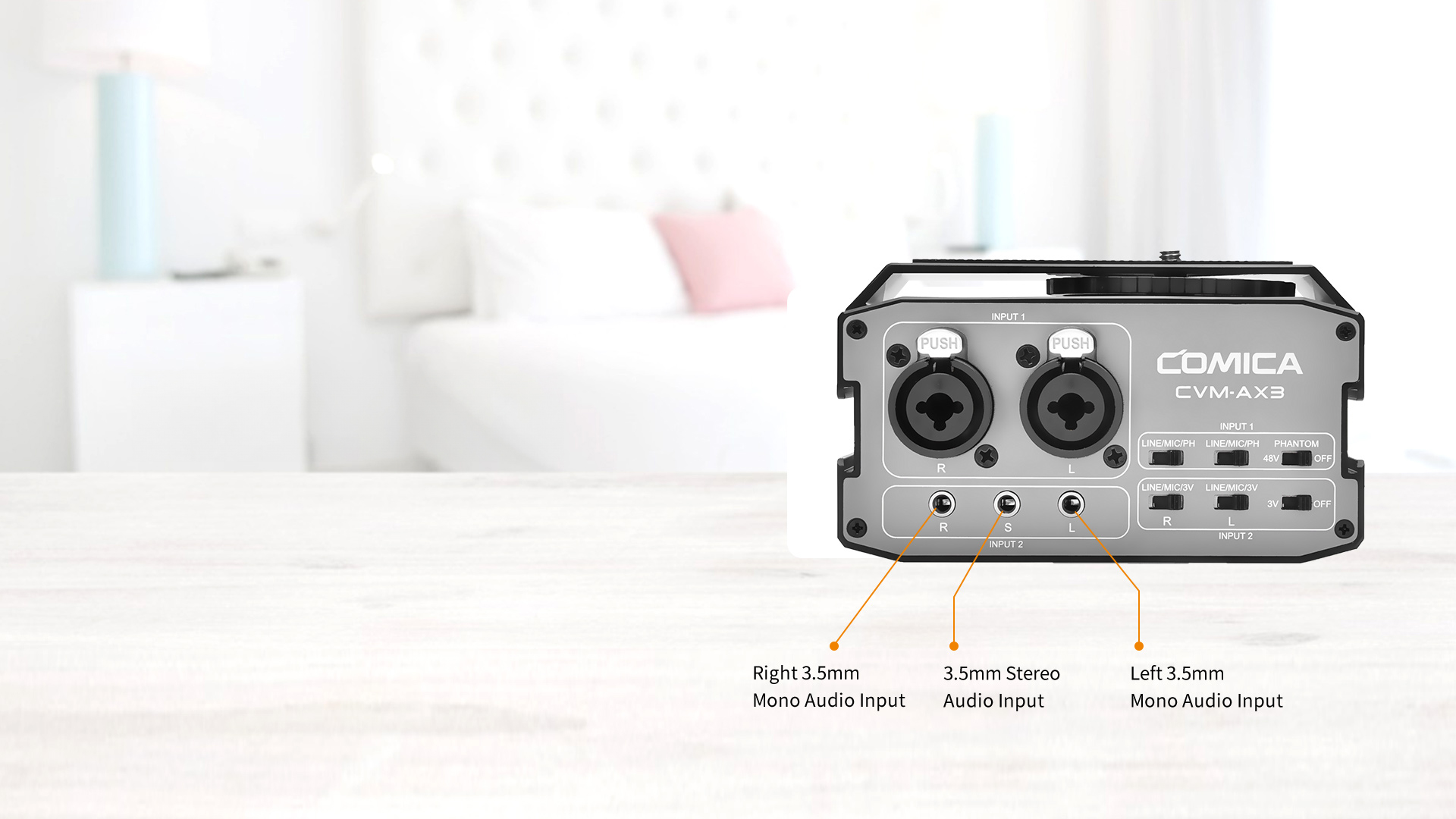

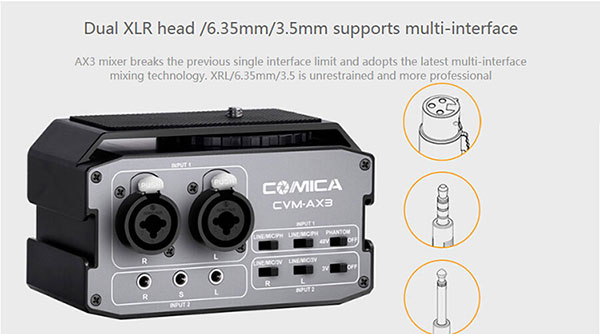

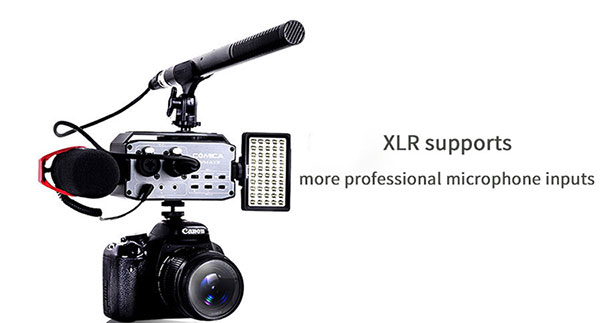

Dual XLR/6.35mm/3.5mm Mics Audio Mixer

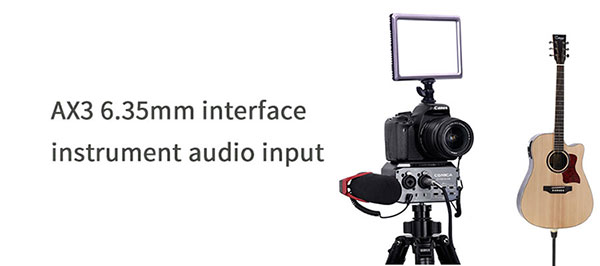

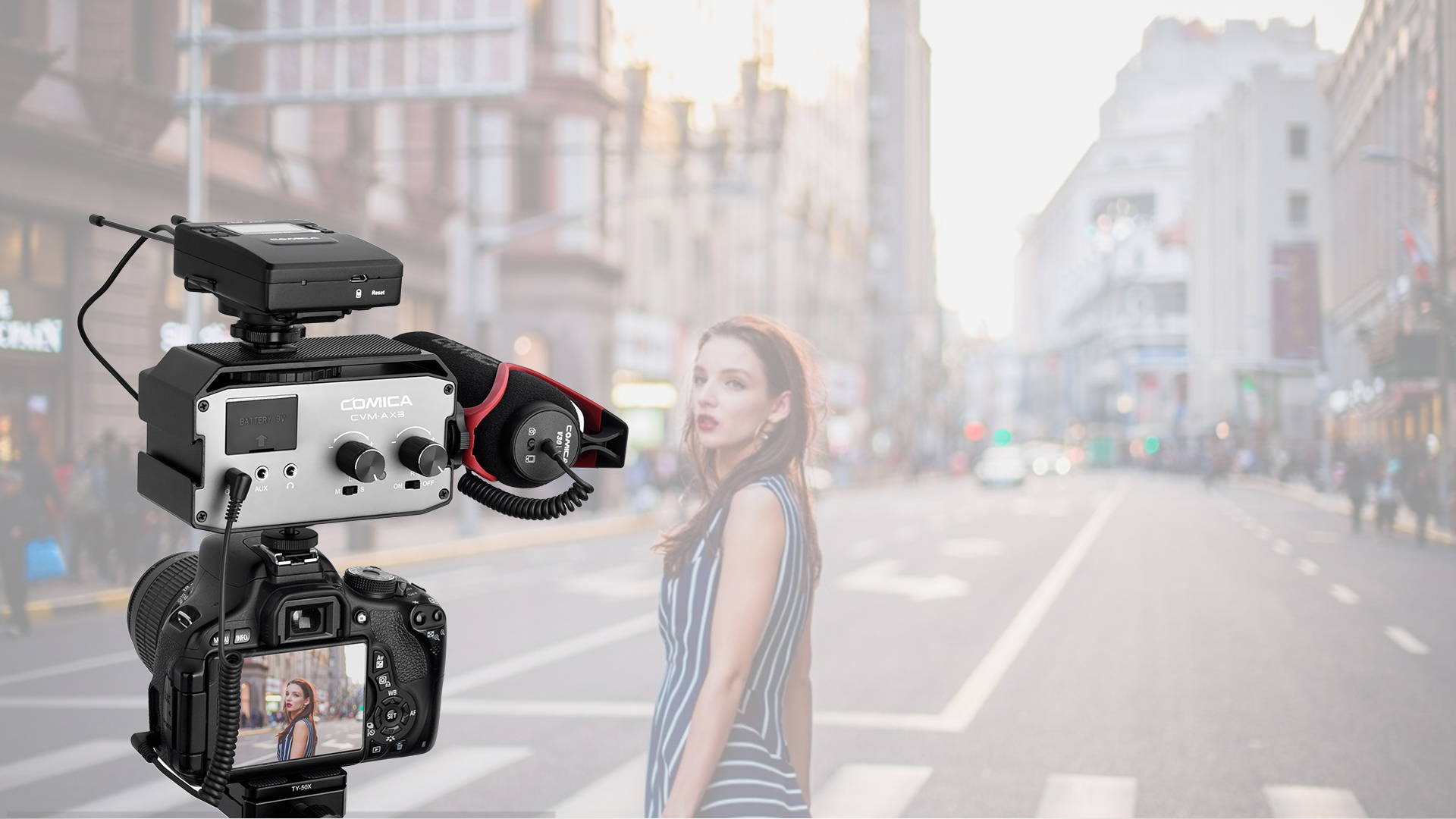

Special design, suitable for a variety of equipments

Dual XLR/6.35mm/3.5mm Mics Audio Mixer

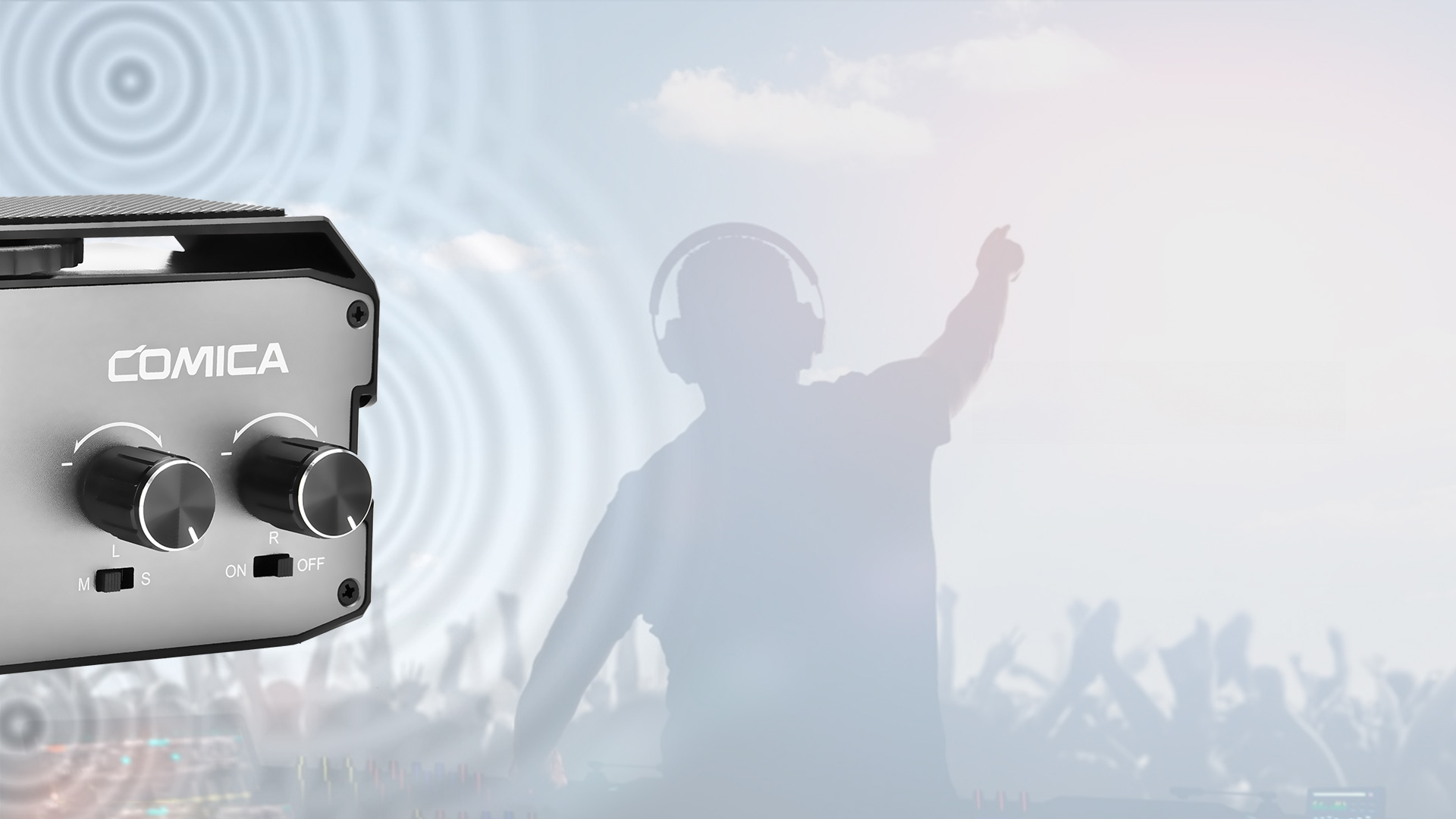

Support Real-time Monitoring

Ensure the microphone is working properly

Support Real-time Monitoring

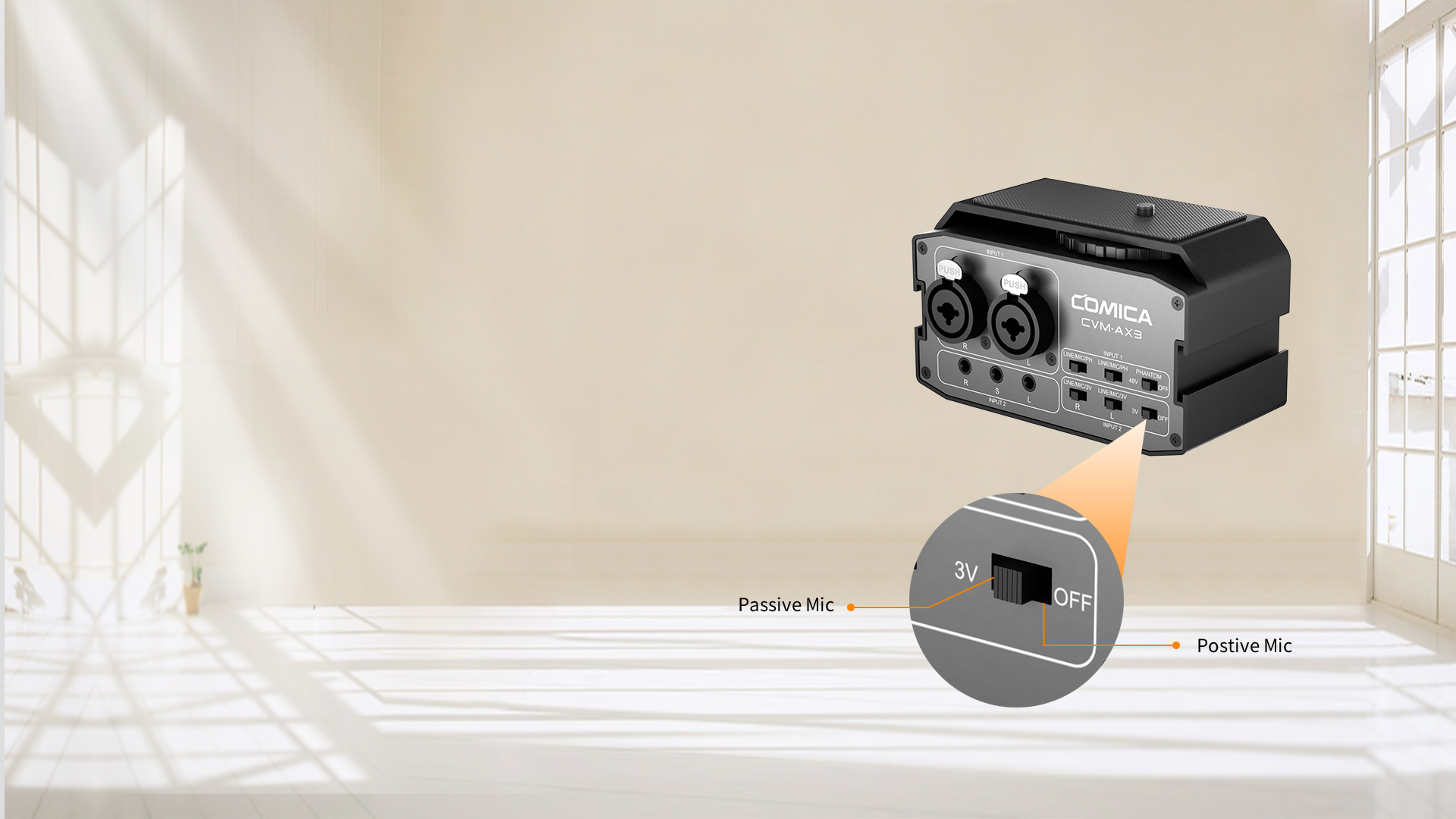

Support both Postive and Passive Mic

Choose freely to meet your needs

Support both Postive and Passive Mic

Dual Gain-Control Knobs

Adjust the volume separately to satisfy your demands

Dual Gain-Control Knobs

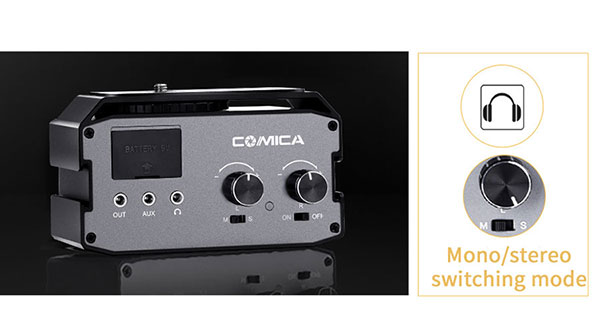

Mono/Stereo Output Switch

Multi-functional design, satisfy different recording demands

Mono/Stereo Output Switch

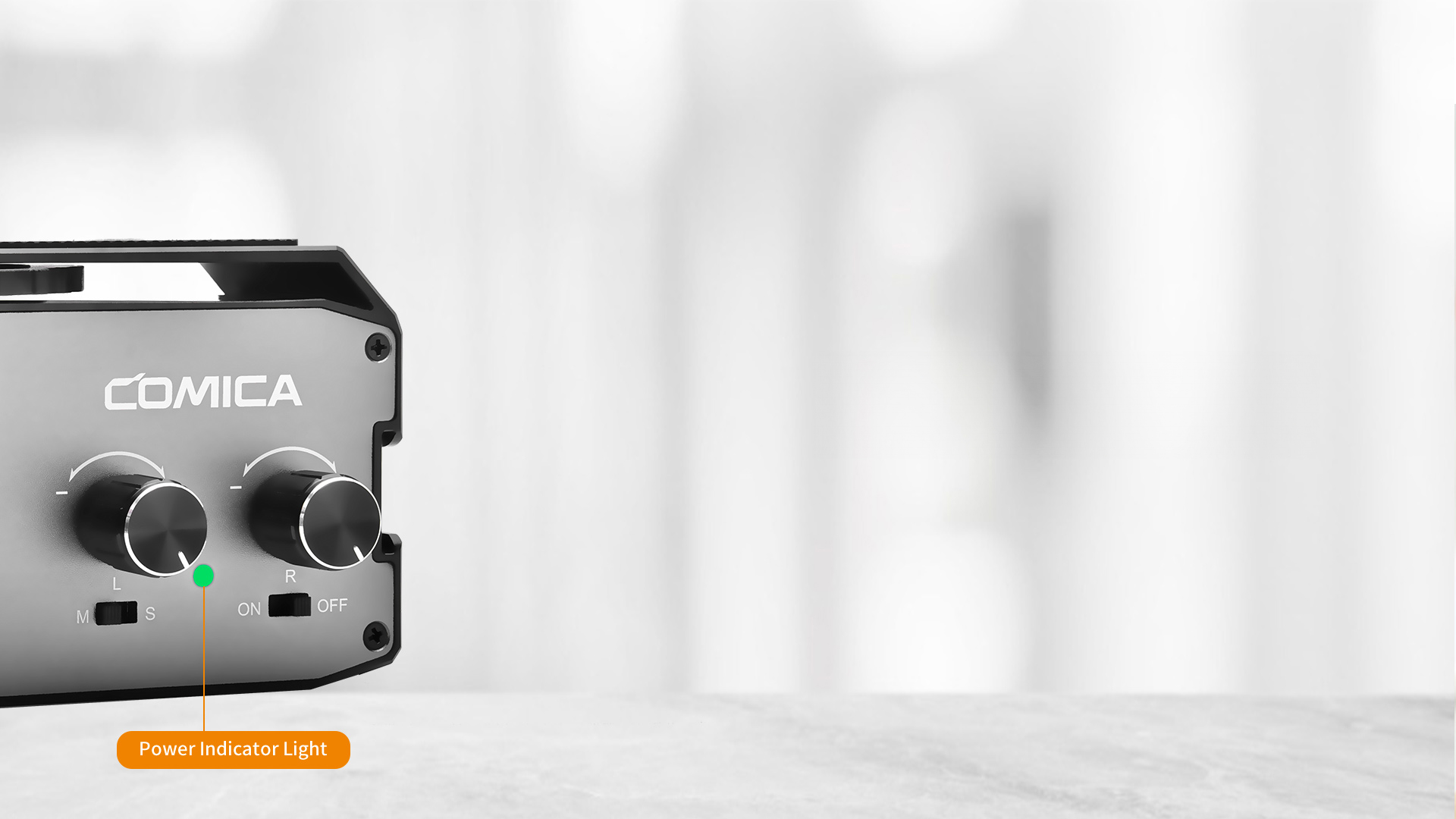

Designed with Working Status Indicator

Show the working status of the audio mixer clearly

Designed with Working Status Indicator

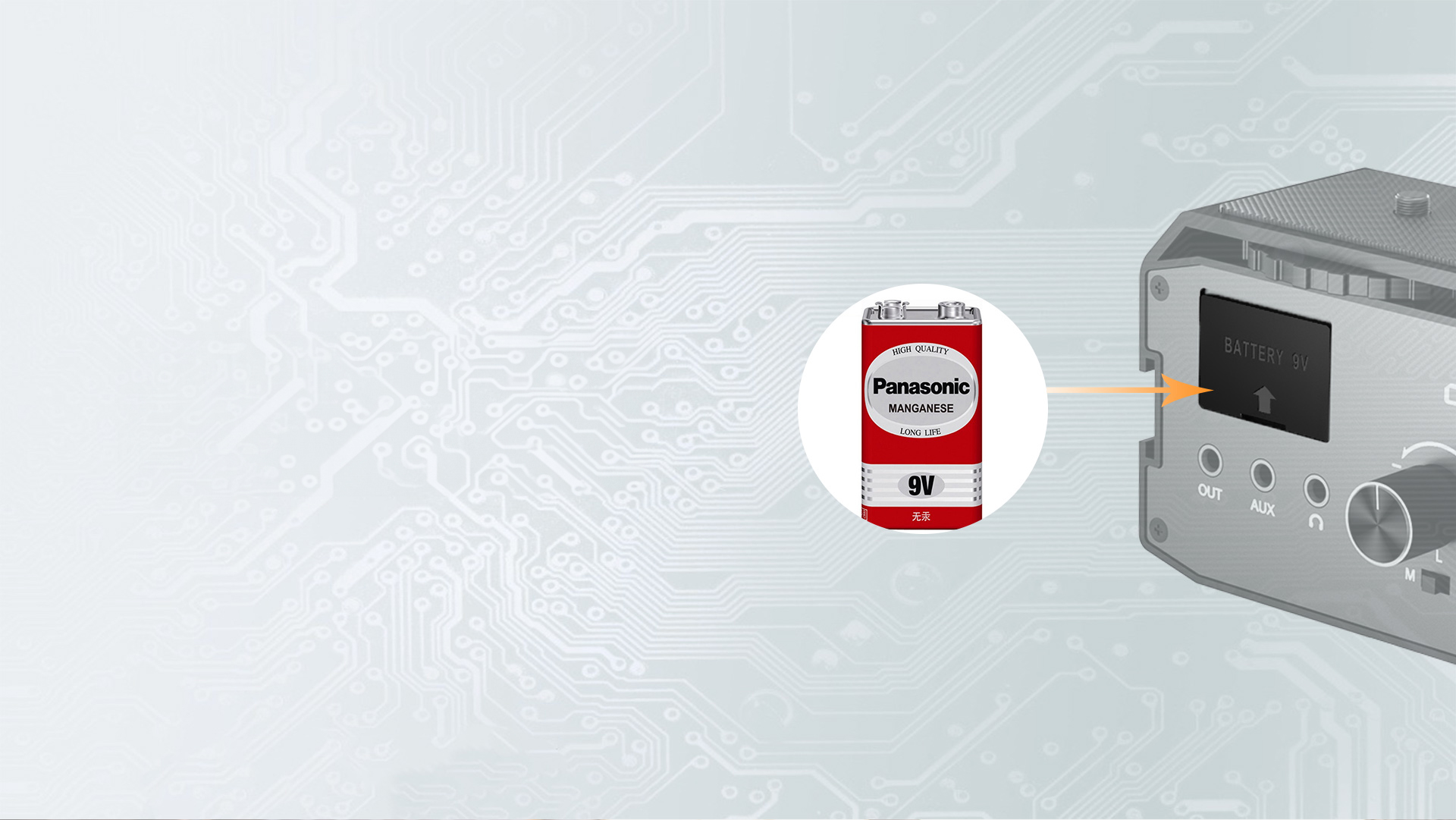

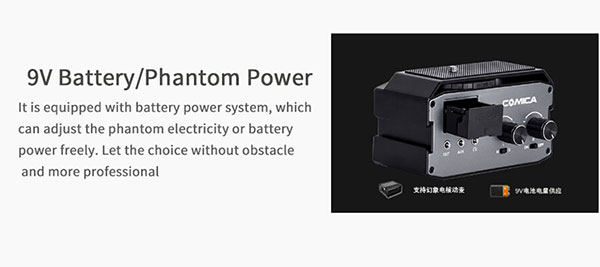

9V Battery Power, Support 3V and Phantom Power Output

Supply power to mic, avoid the interruption of recording due to low power

9V Battery Power, Support 3V and Phantom Power Output

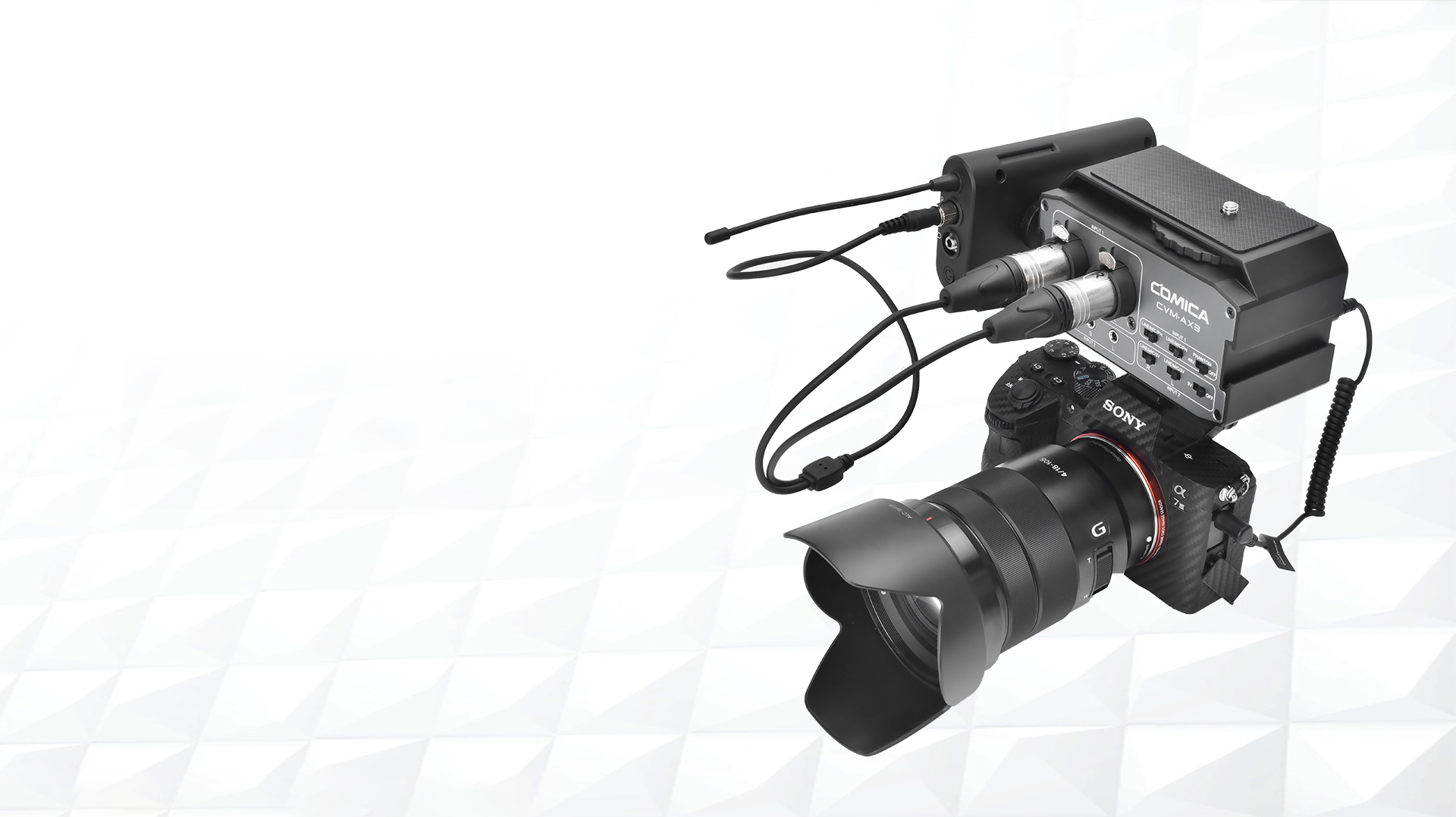

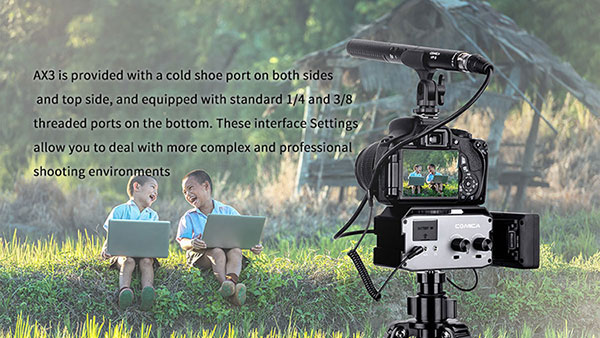

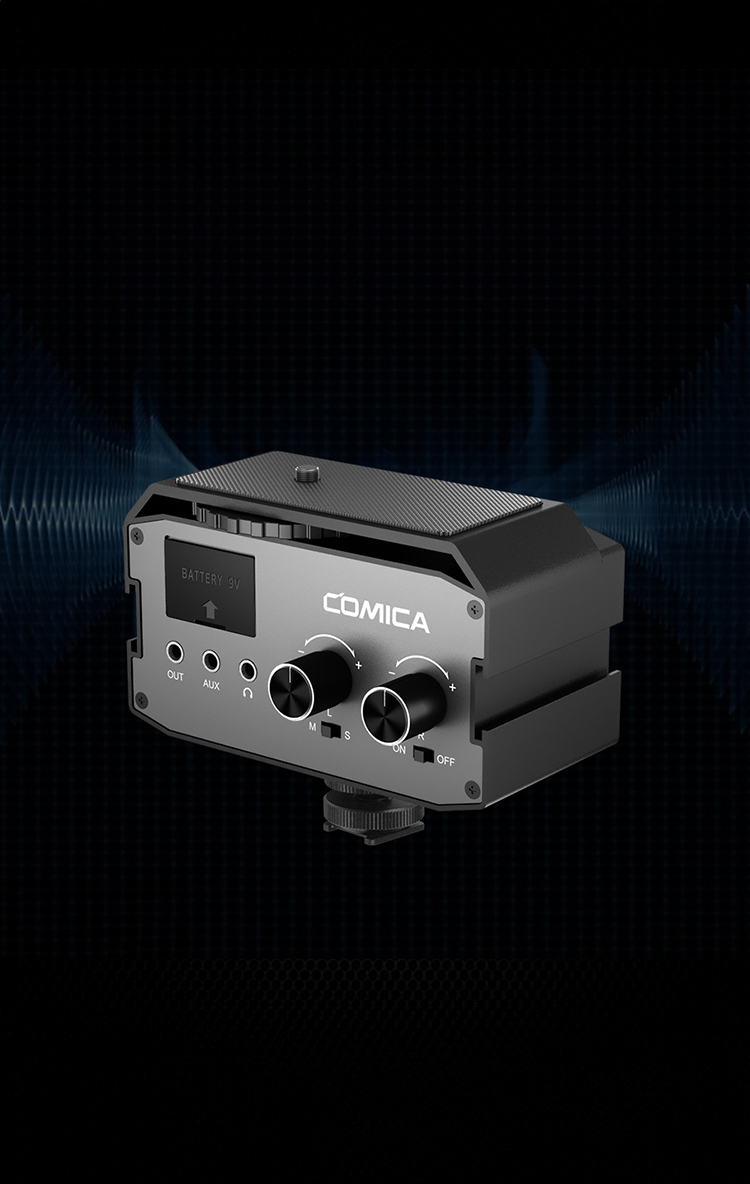

External Port&Cold Shoe Mount

Highly extendable, suitable for many equipment

External Port&Cold Shoe Mount

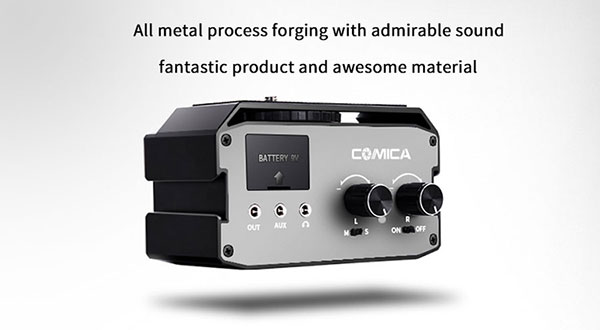

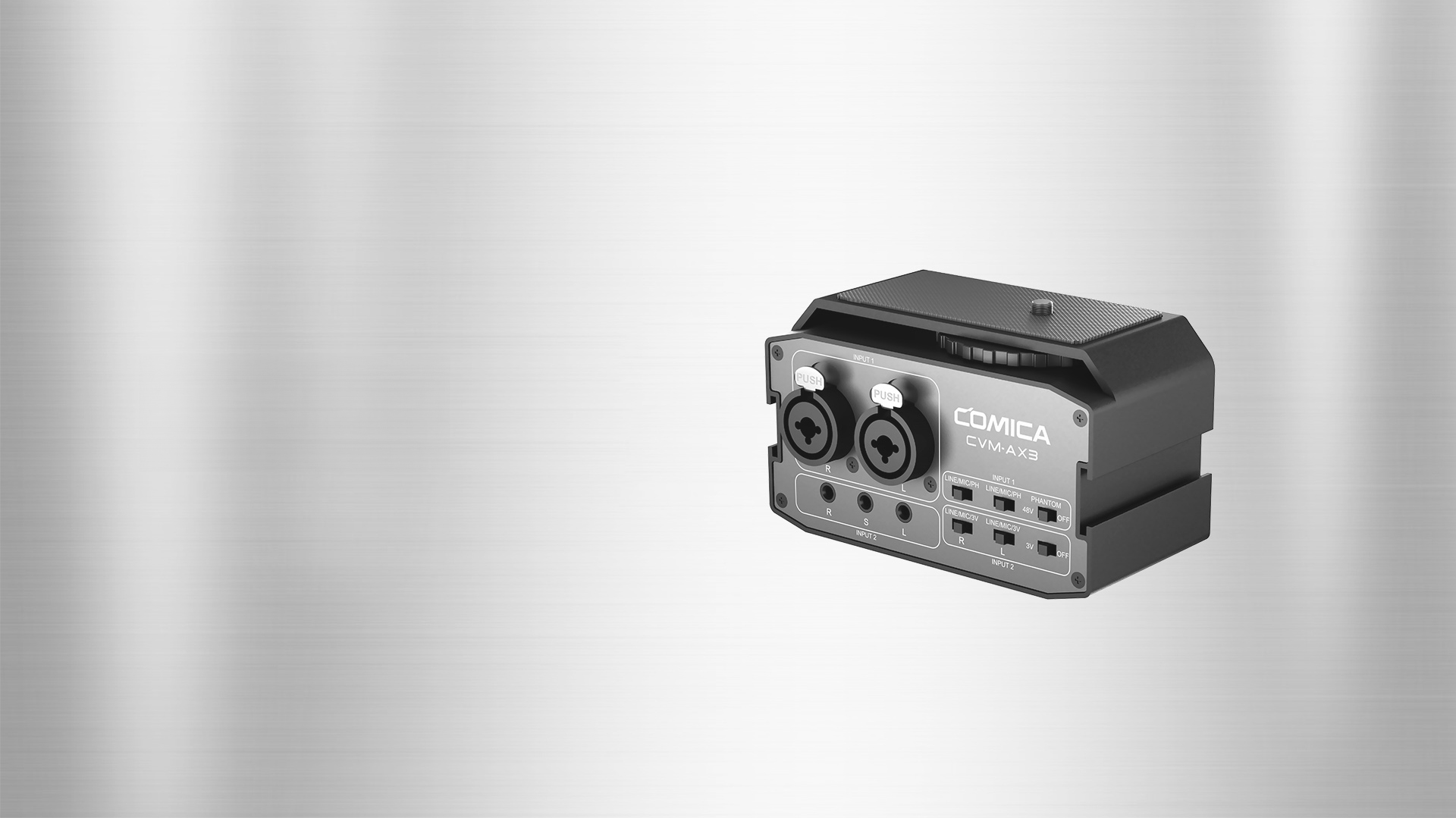

Aluminum Alloy Material

Super shielding, excellent mixing effect

Aluminum Alloy Material

Input

XLR x 2(L/R), 6.35mm x 2(L/R),
Mono x 2(L/R), Stereo x 1(S), AUX

Output

3.5mm audio output, 3.5mm headphone output

Frequency Response

20Hz~20kHz, ±1dB

THD+Noise

<0.02%, RL=2kΩ, f=20Hz~20kHz, Vo=1Vrms

Battery

9V 6LR61/6F22 x 1

Size

123 x 71 x 60.6mm

Net Weight

460g

Working Temperature

0℃ ~ +50℃

Storage Temperature

-20℃ ~ +60℃
