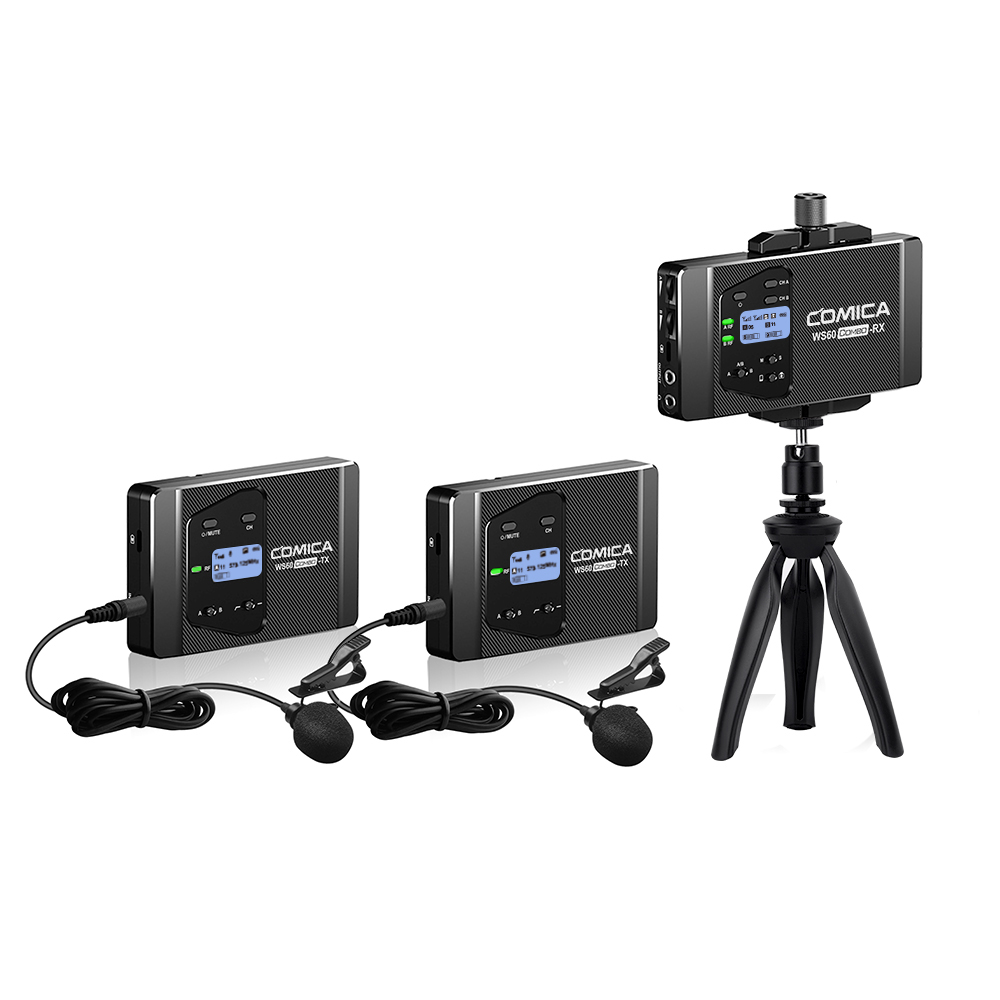

. 1-Trigger-2, Universal for Smartphone & Camera

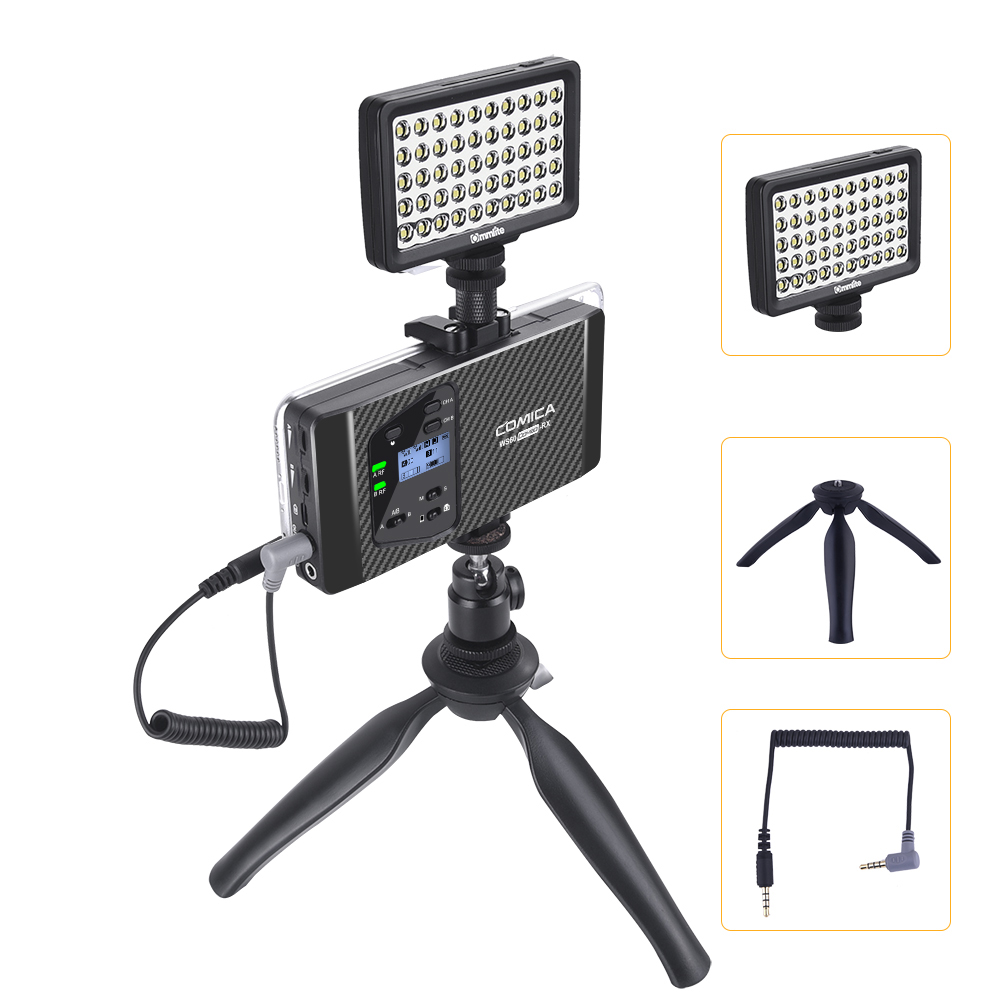

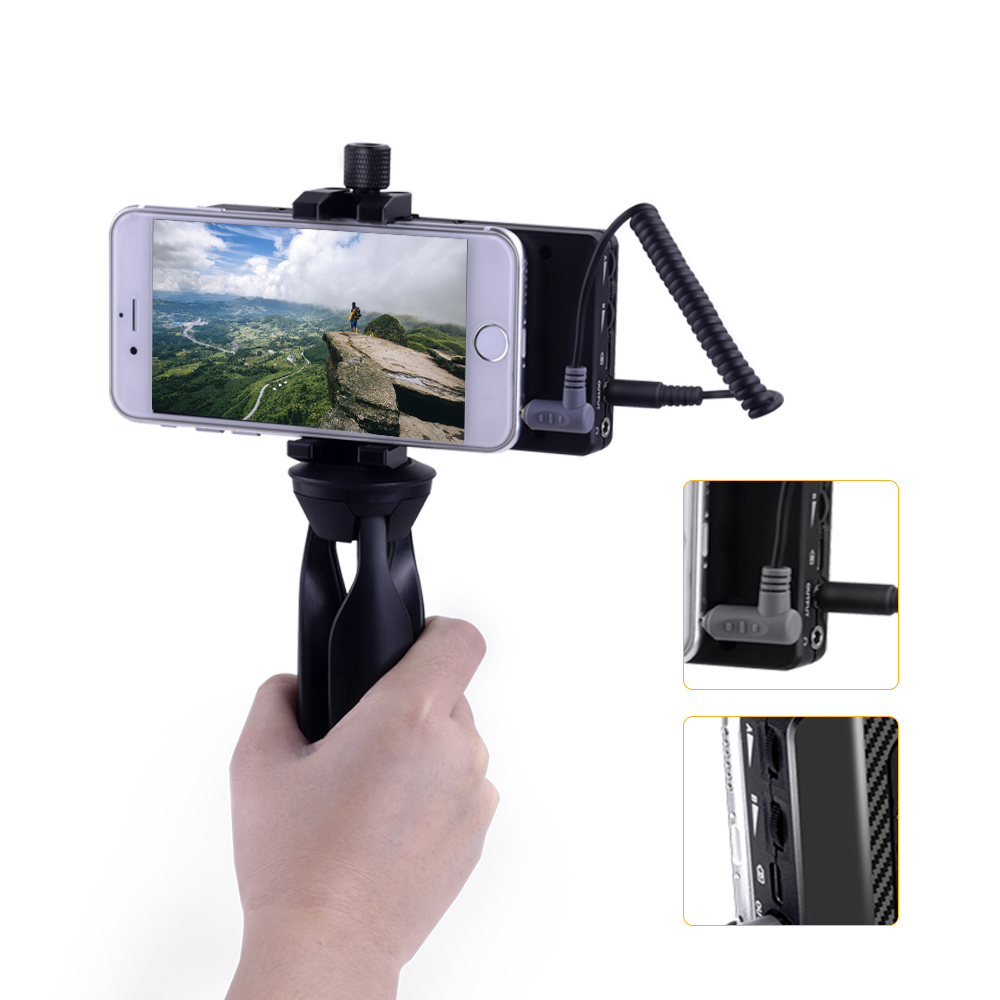

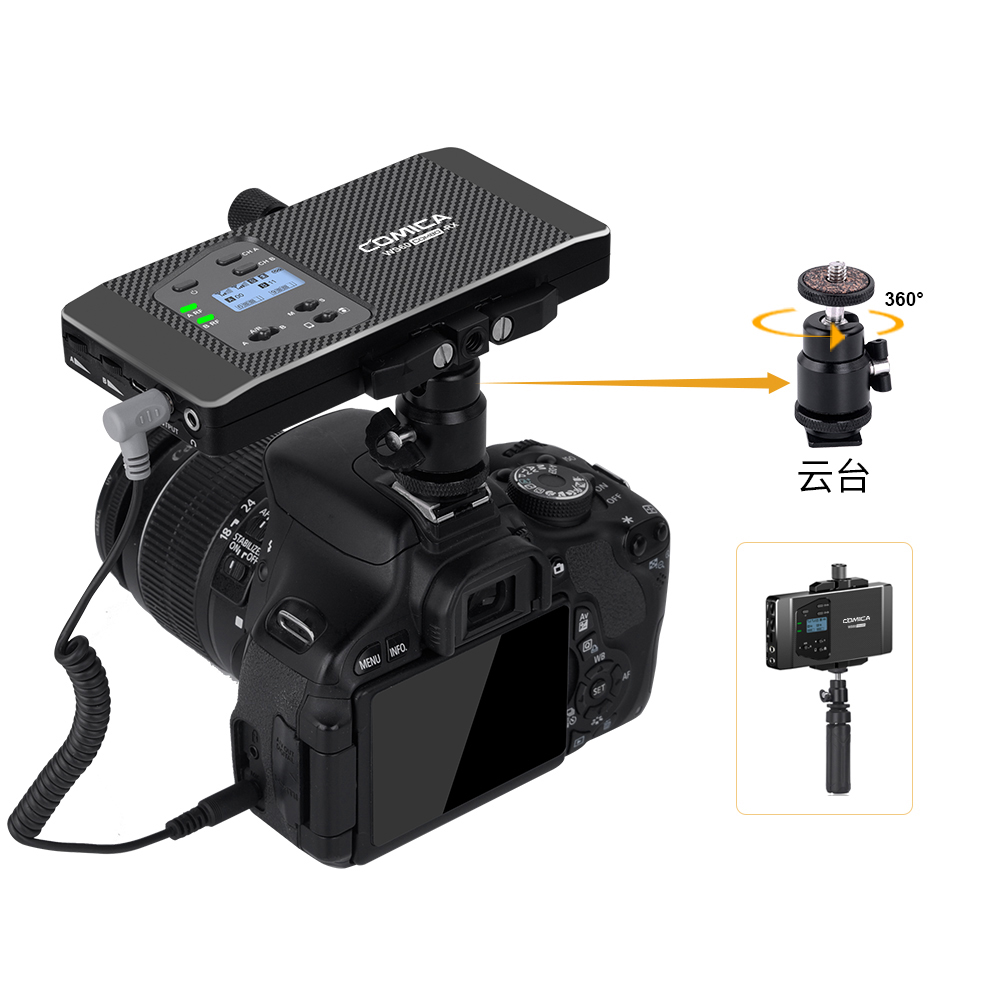

. Built-in Smartphone Holder Design, Flexible and Convenient
. Mini and Compact, Working Distance Up to 60m
. 12 Channels for Multiple Devices Work Together

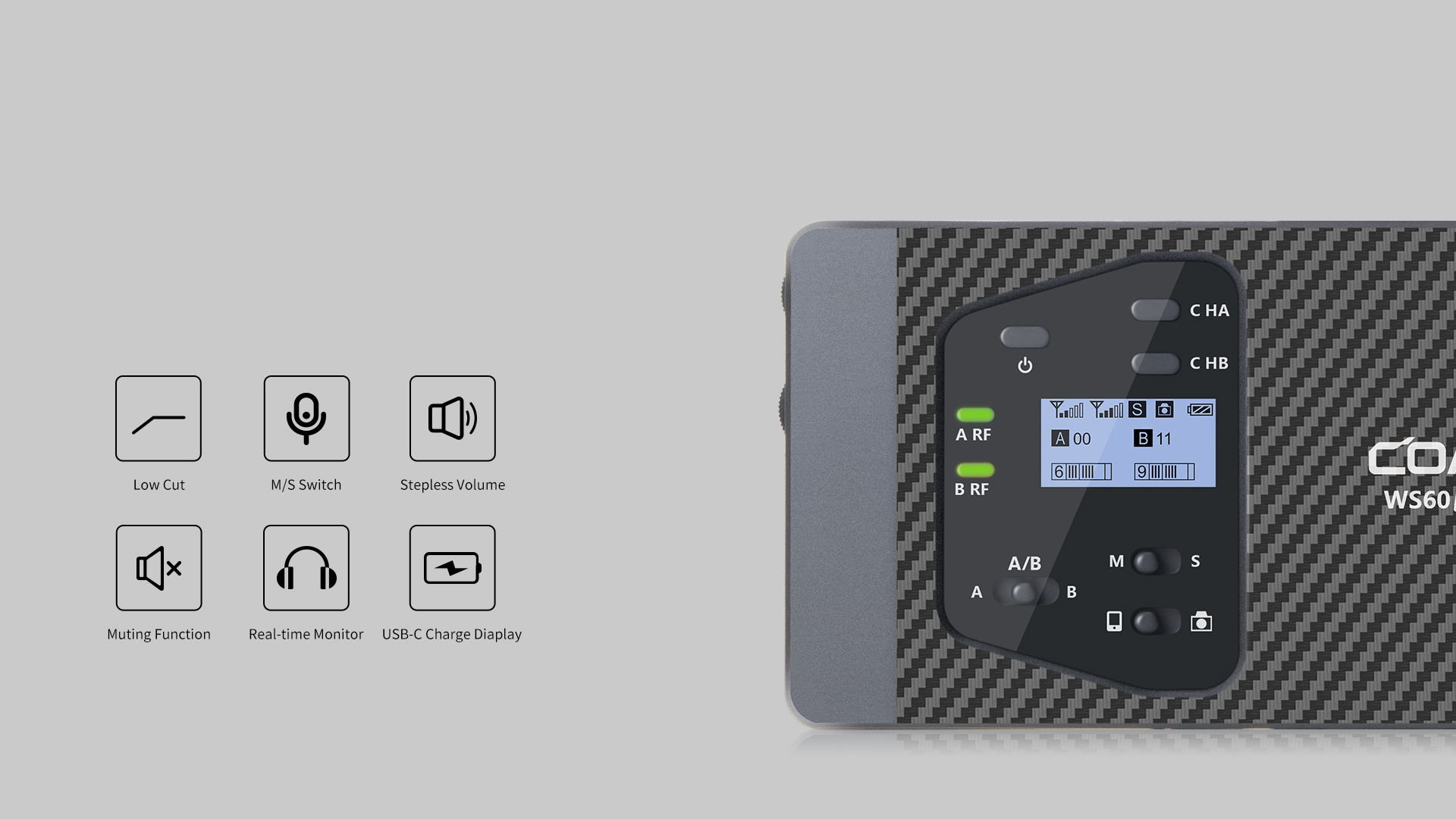

. M/S Switch, 10-Levels Gain Adjustment, Muting Functions
. Real-time Monitor
. Built-in Rechargeable Lithium Battery
. Volume Dynamic Monitor

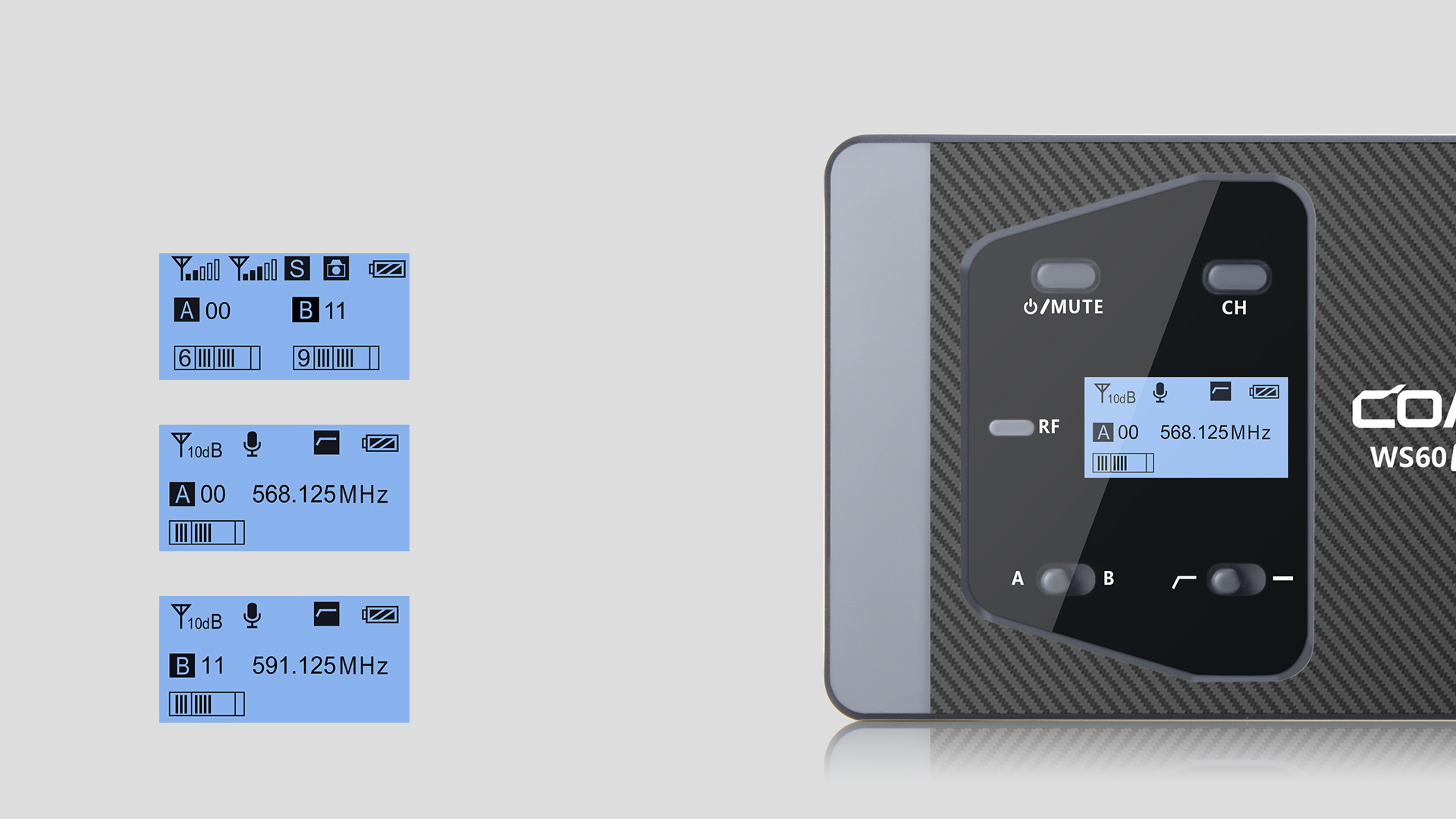

. Lattice LCD Display, High Resolution
This

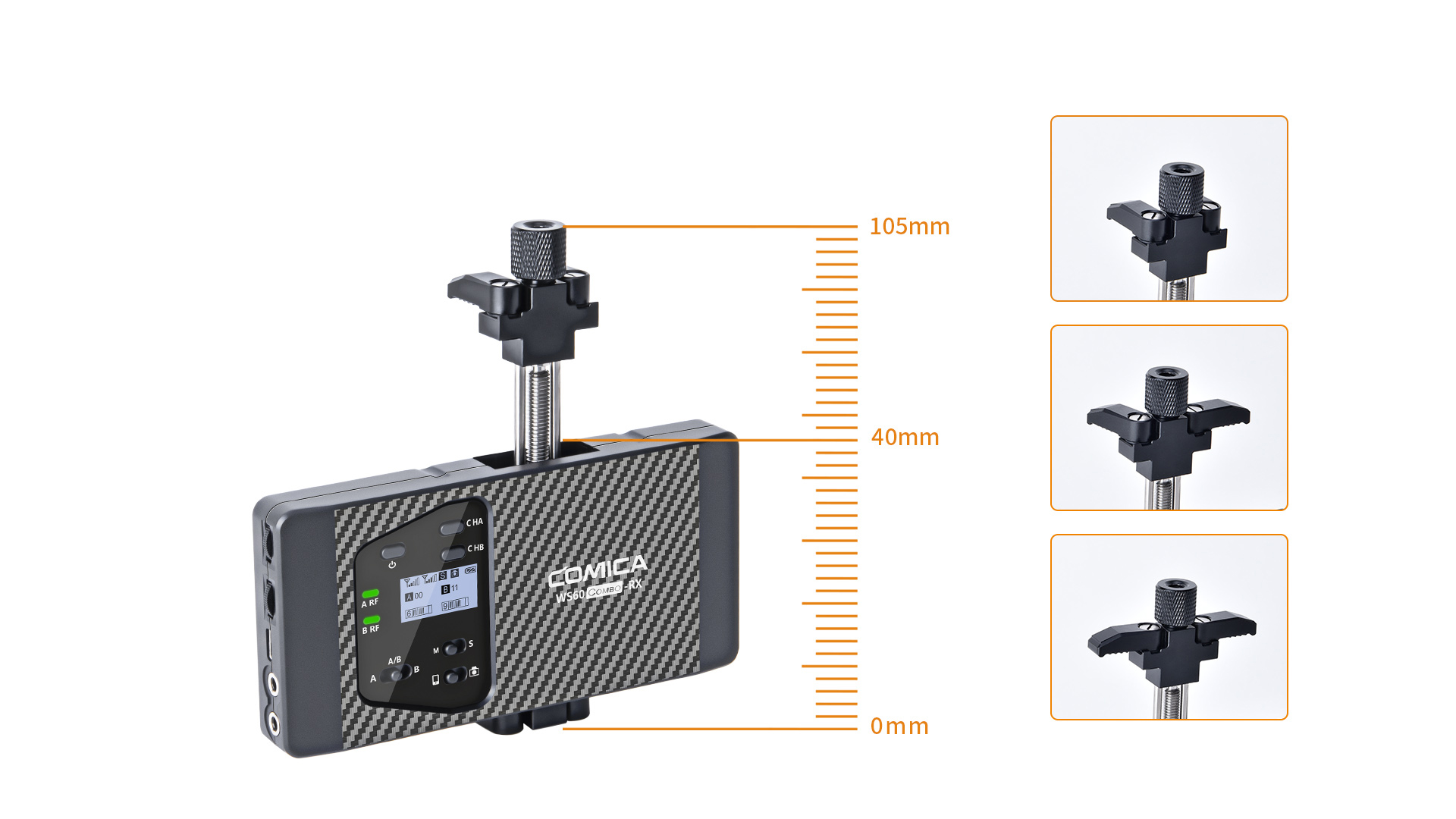

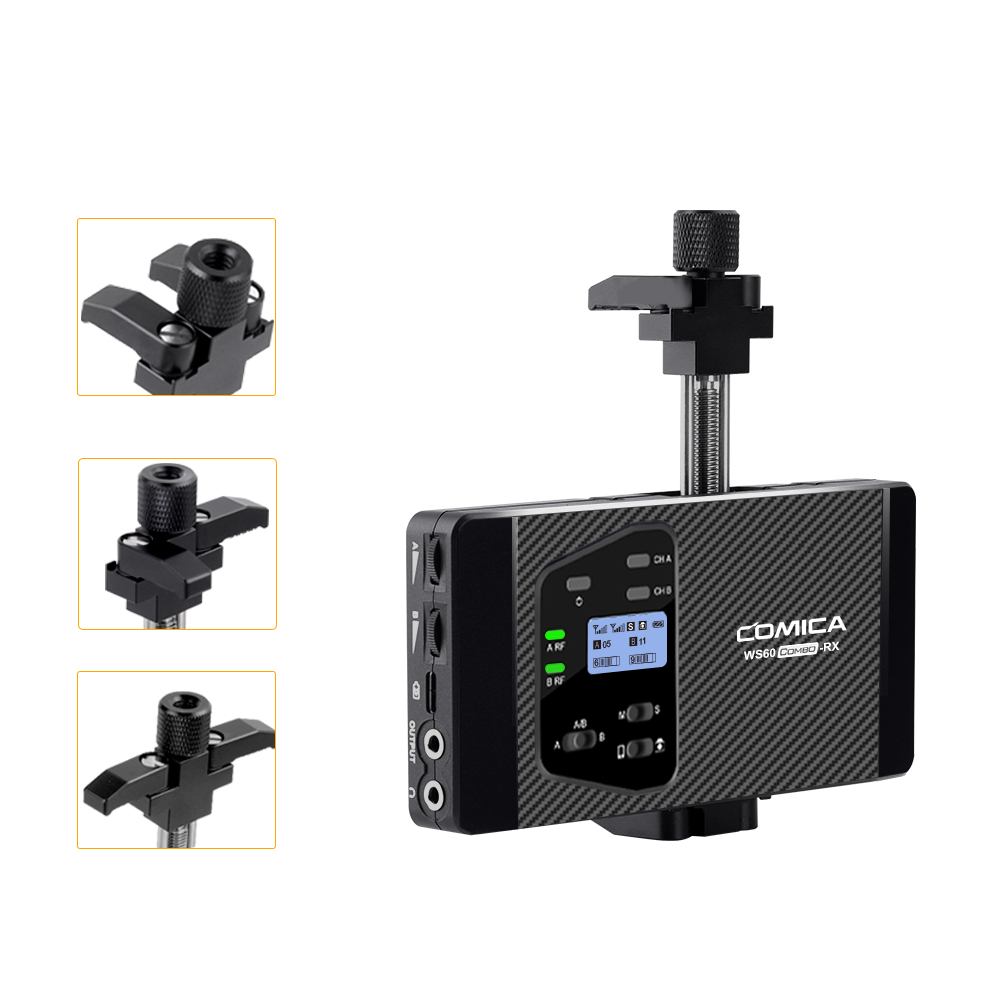

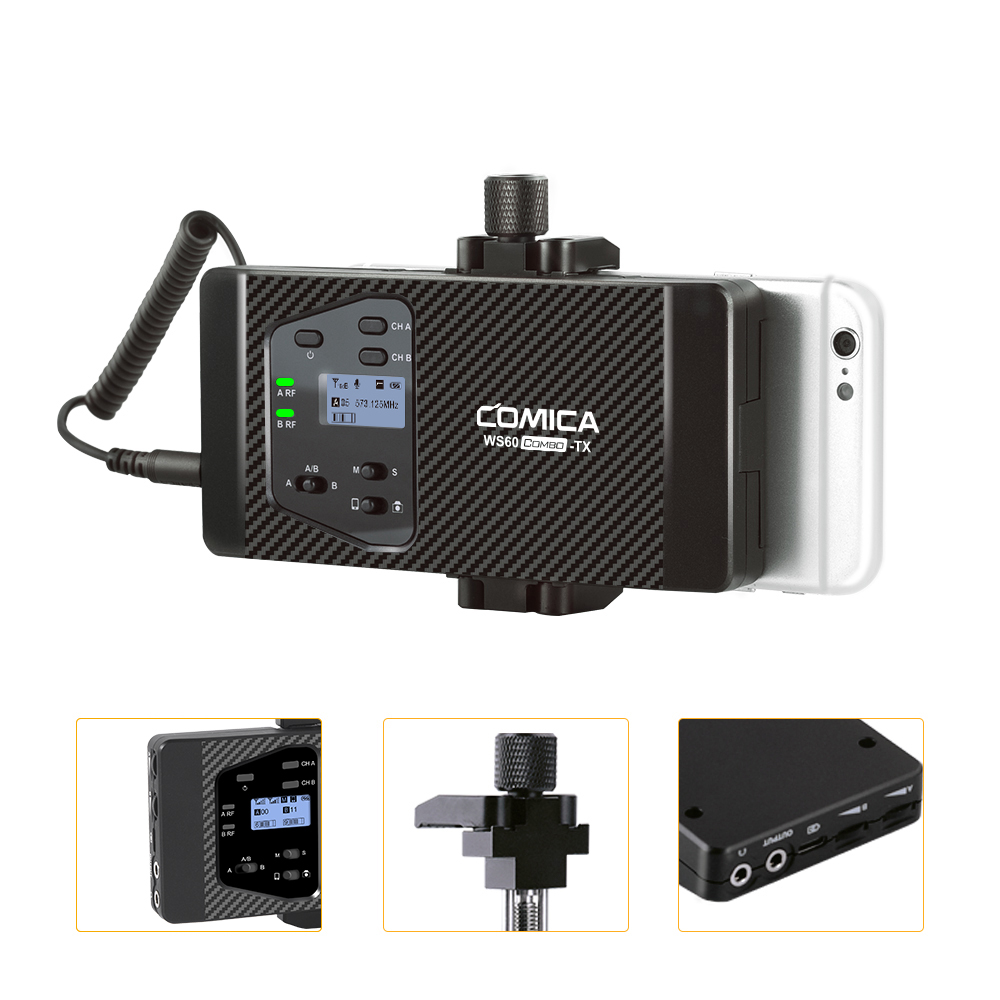

CNC processing, with high quality appearance and metal shell. Mobile phone clip can be retracted for easy storage. Adjustable width, suitable for all kinds of smartphones.

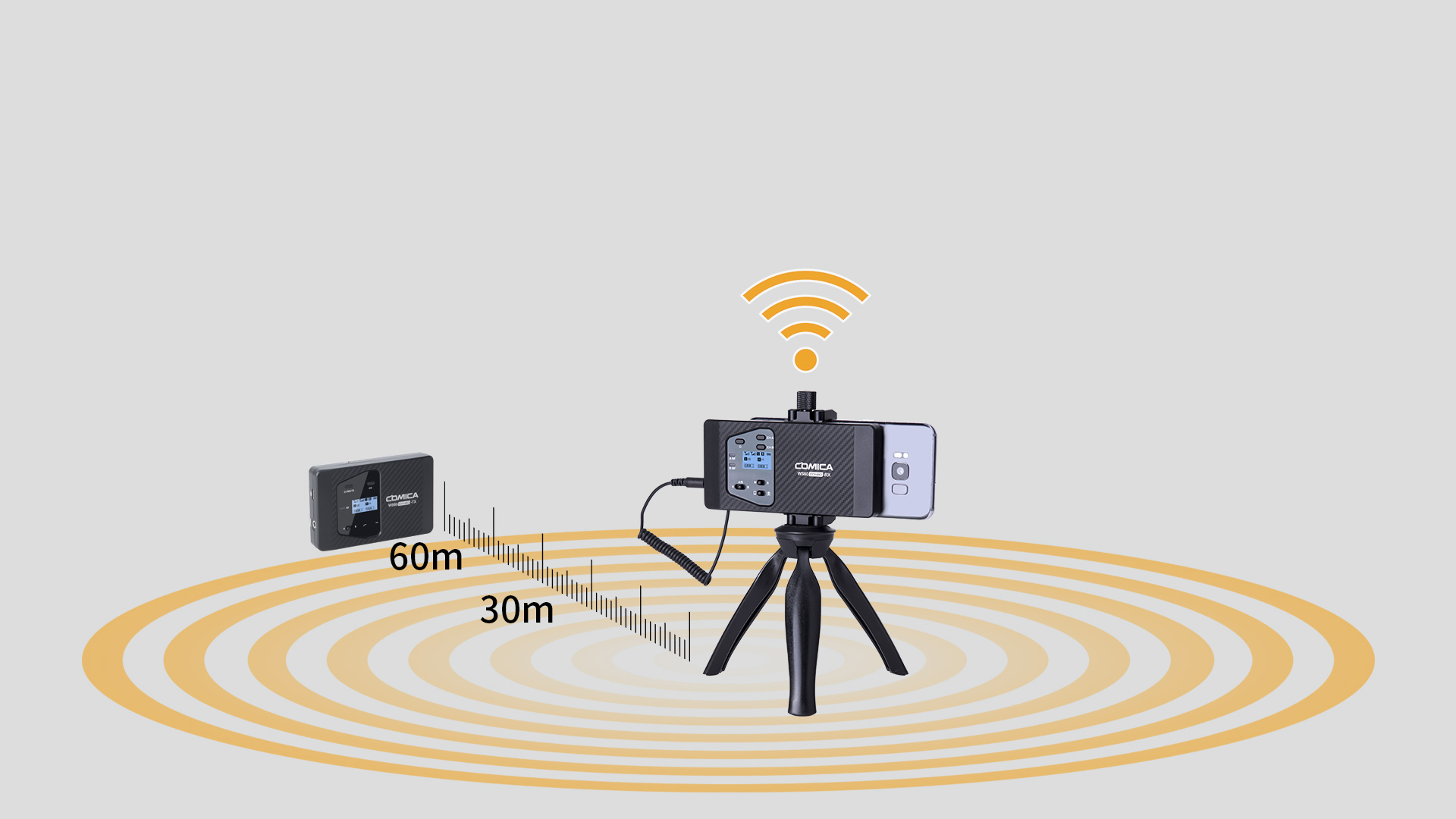

60m in open area, 30m in area with obstacle
Multi-channel options, avoiding chaotic signal and reducing interference.
Multiple function for better adjustment of recording.
Instant monitoring and adjustment to ensure more stable work.

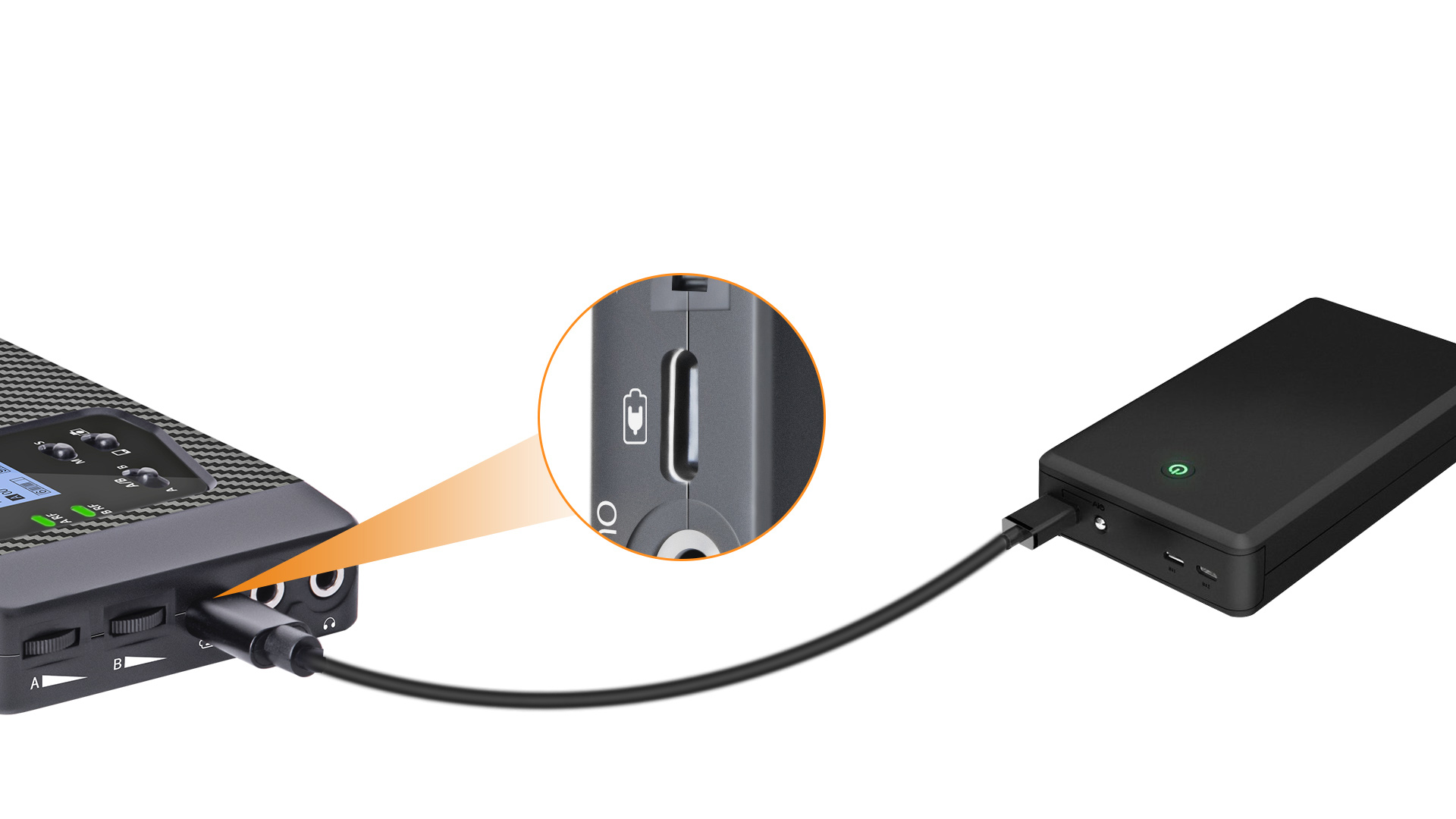

With the built-in lithium battery, the standby time is up to 8 hours. With USB-C interface, it's very convenient to charge.

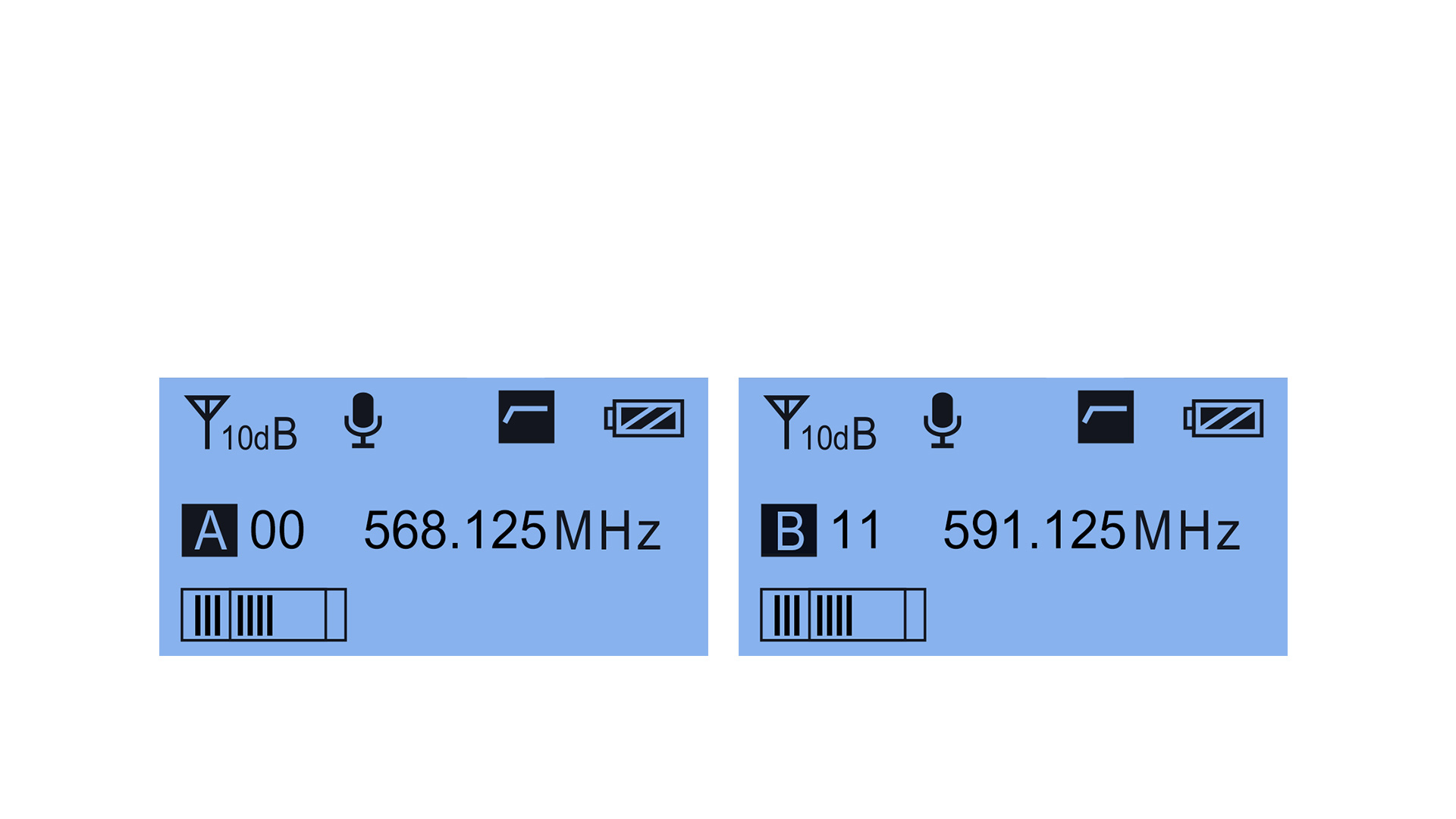

Clear and easy to monitor the working status.

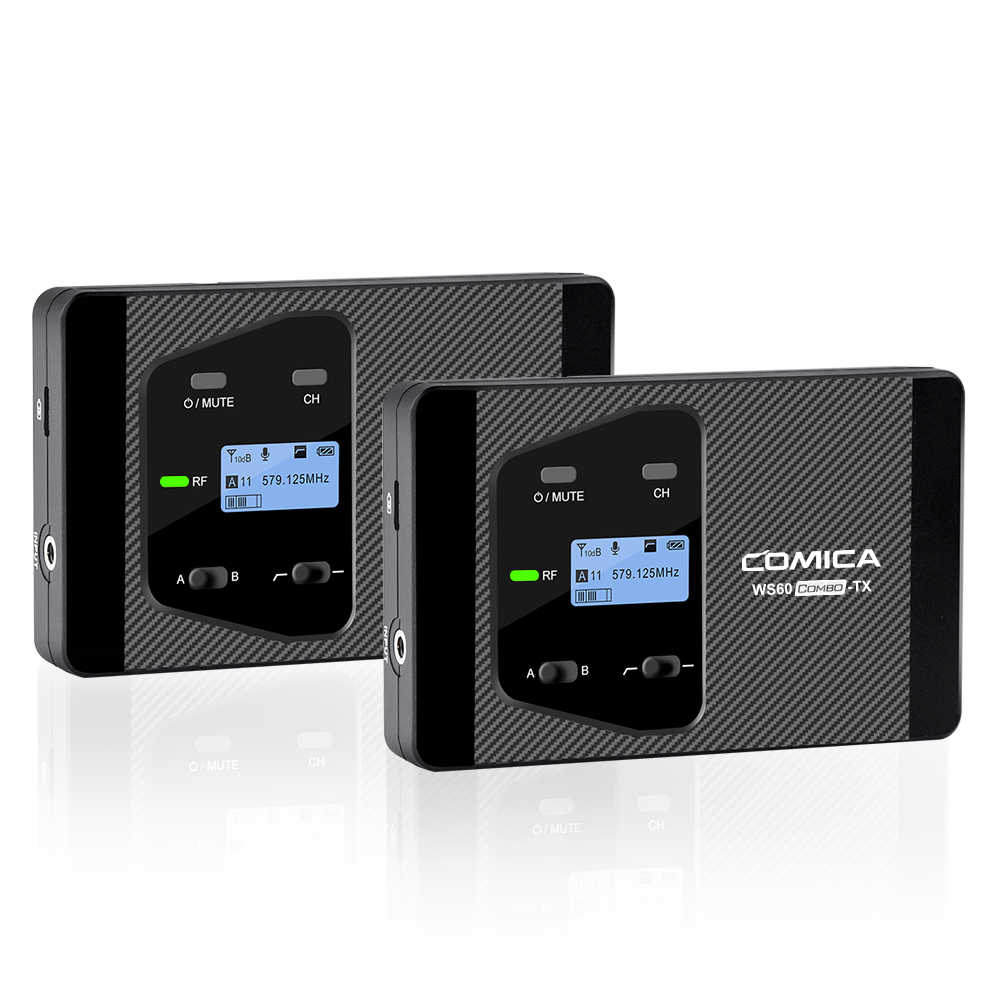

Lavalier Transmitter(TX)
Channel |
12 |
Duration |
8 hours |
Antenna |
Built-in Antenna |
Stray Radiation |
﹤-60dBc |
Sound Delay |
﹤20ms |
Audio Distortion |
﹤0.5% |
Signal/Noise |
﹥65dB |
Audio Input Socket |
3.5mmTRS |
Battery |
Li-po Battery 1150mAh 3.7V |
Dimension |
104×65.2×18mm |
Working Temperature |
0℃~+50℃ |
Storage Temperature |
-20℃~+60℃ |

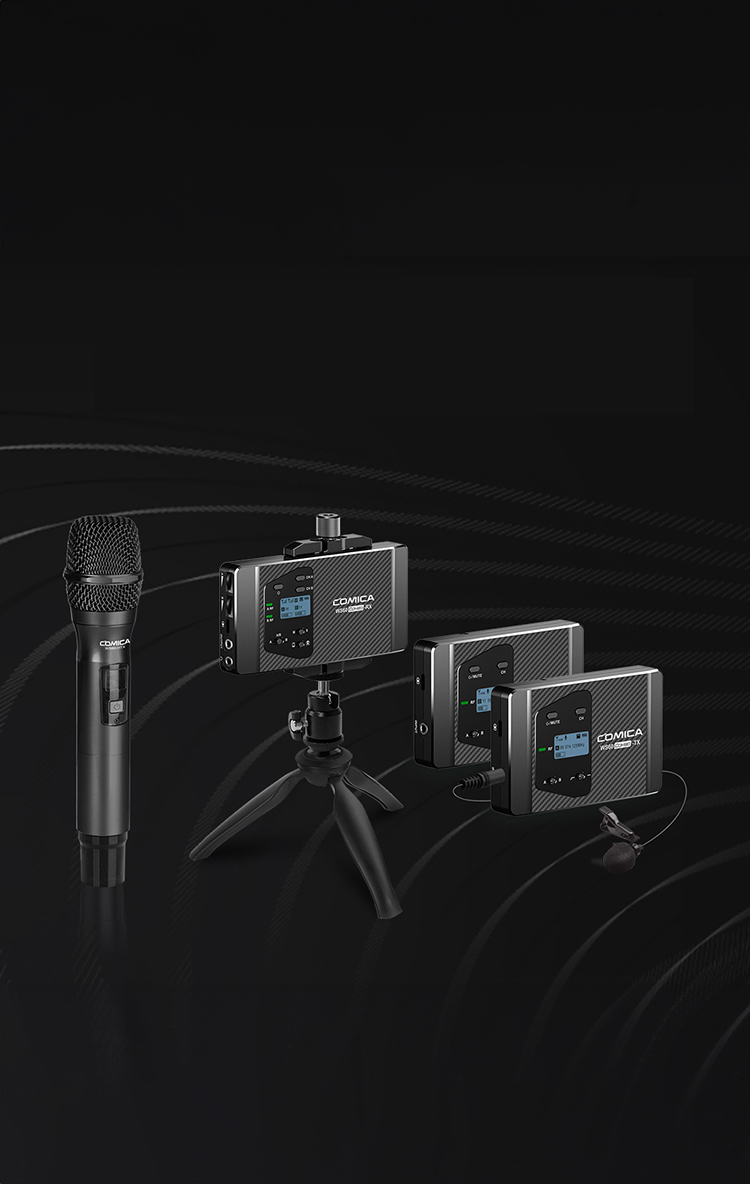

Hand-held Transmitter (HTX)
Channel |
12 |
Duration |
4 hours |
Signal/Noise |
﹥65dB |
Antenna |
Built-in PCB Antenna |
Stray Radiation |
﹤-60dBc |
Sound Delay |
﹤20ms |
Audio Distortion |
﹤0.5% |
Battery |
AA Batteries ×2pcs |
Dimension |
Φ 3.5 (MA5X)×248mm |
Working Temperature |
0℃~+50℃ |
Storage Temperature |
-20℃~+60℃ |
Receiver(RX)
Channel |
12 |
Duration |
8 hours |
Antenna |
Built-in Antenna |
Sensitivity |
-90dBm |
Sound Delay |
﹤20ms |
Audio Distortion |
﹤0.5% |
Radiation Response |
20Hz~18KHz |
Signal/Noise |
﹥65dB |
Audio Output Socket |
3.5mmTRRS |
Monitor Interface |
3.5mmTRS/TRRS |
Battery |
Li-po Battery 1150mAh 3.7V |
Dimension |
134.5×65.4×18mm |
Working Temperature |
0℃~+50℃ |
Storage Temperature |
-20℃~+60℃ |

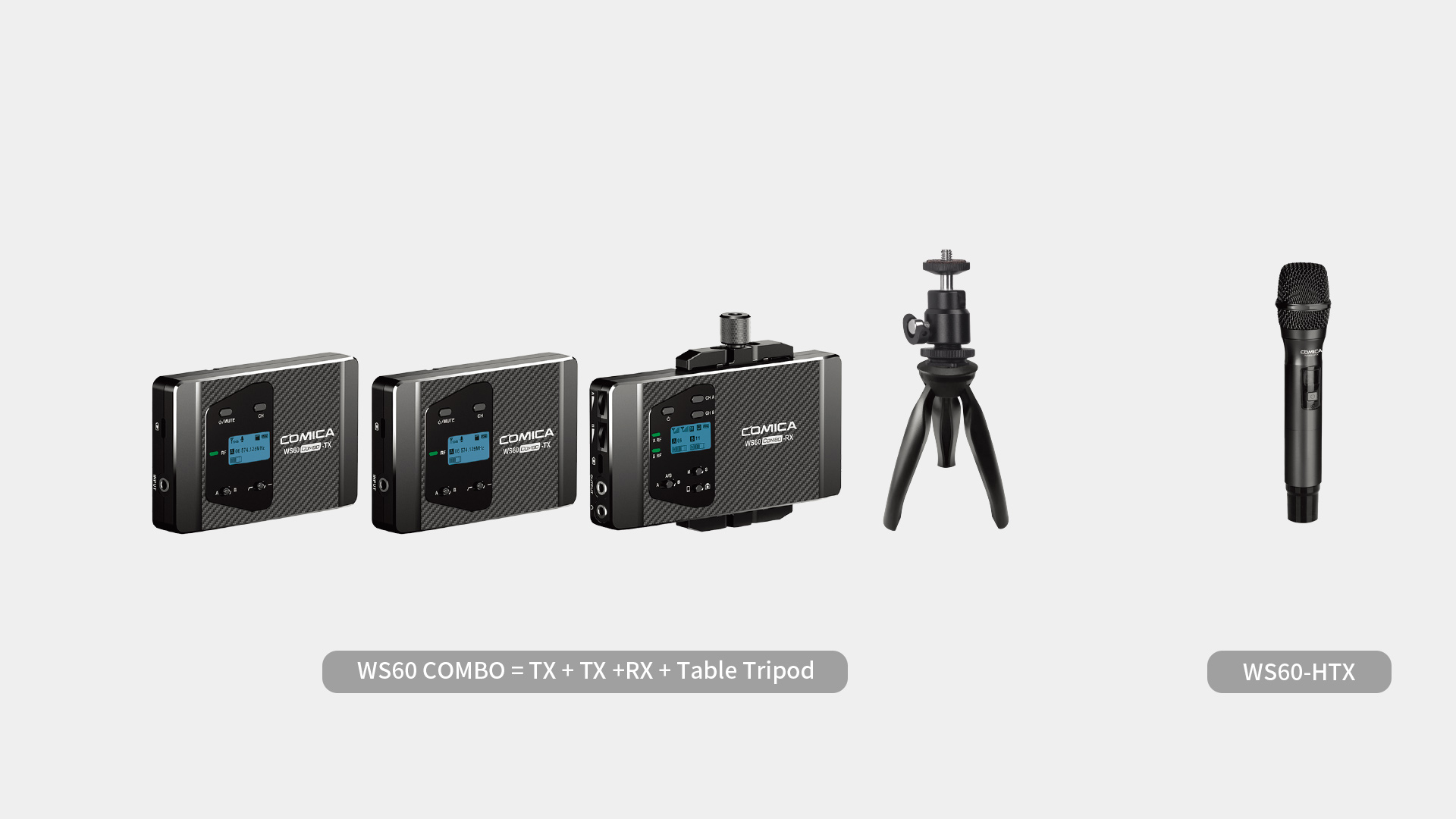

WS60 COMBO
