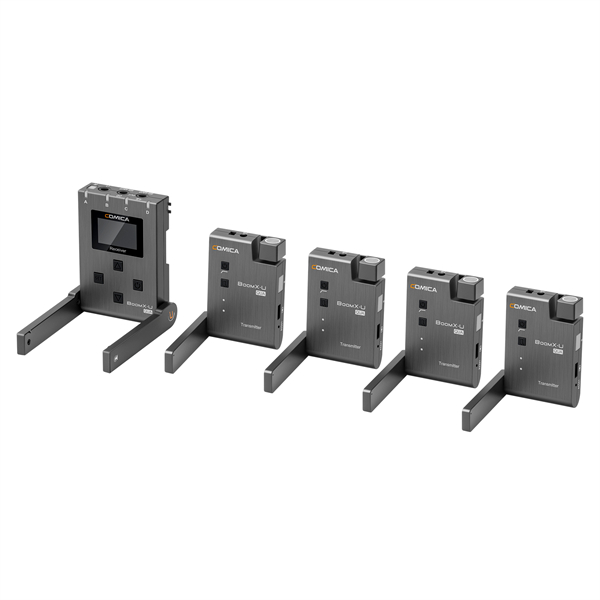

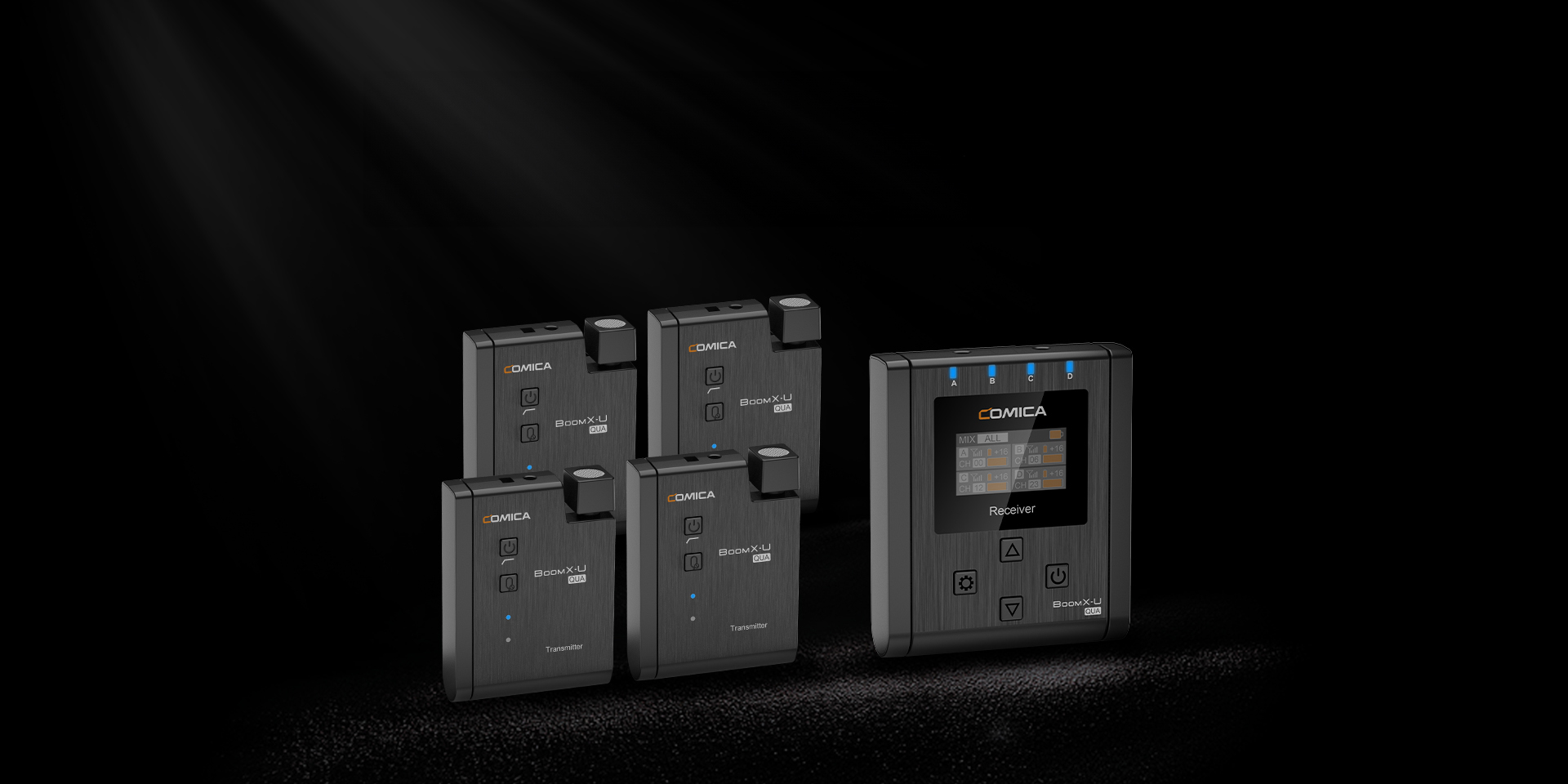

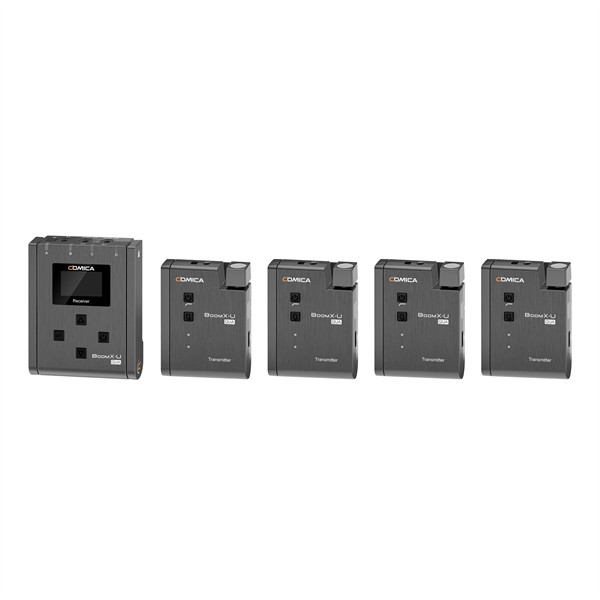

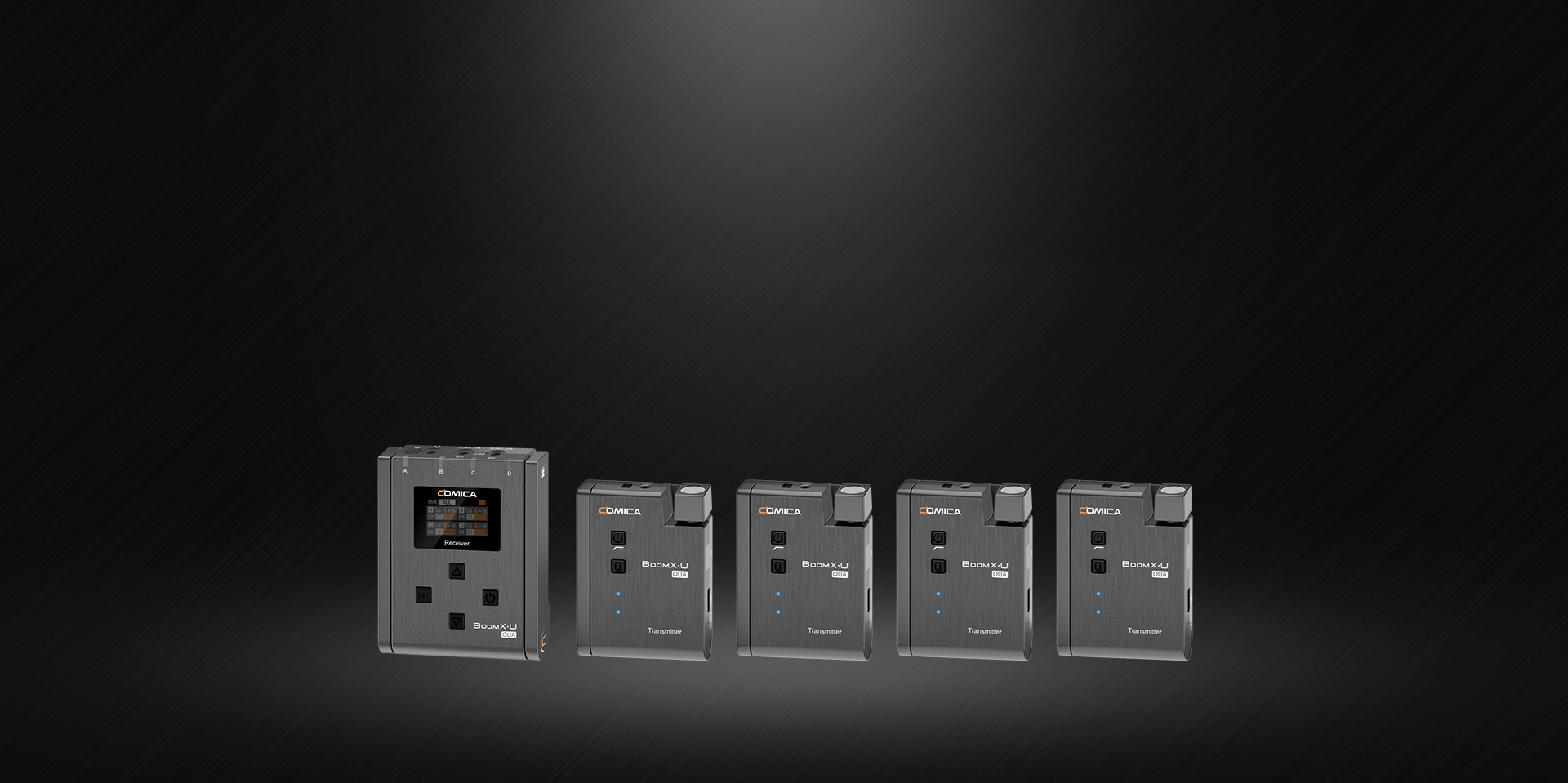

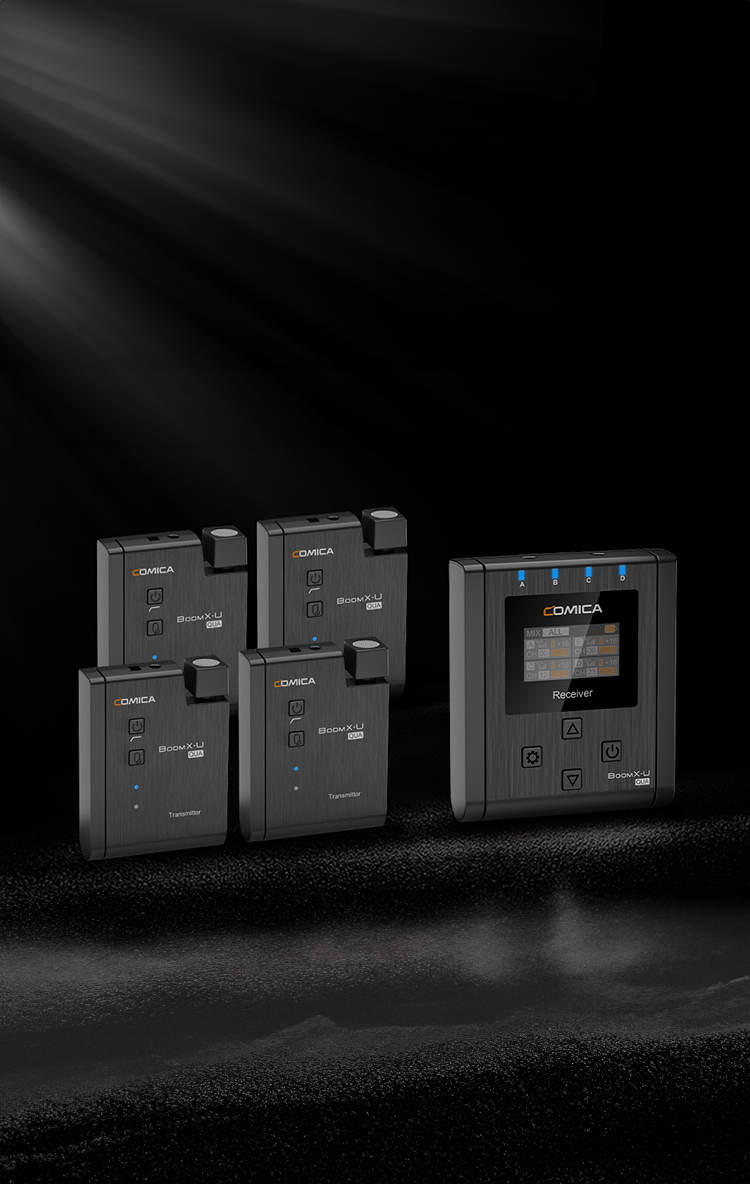

Support four transmitters and one receiver work simultaneously and perfect sound quality

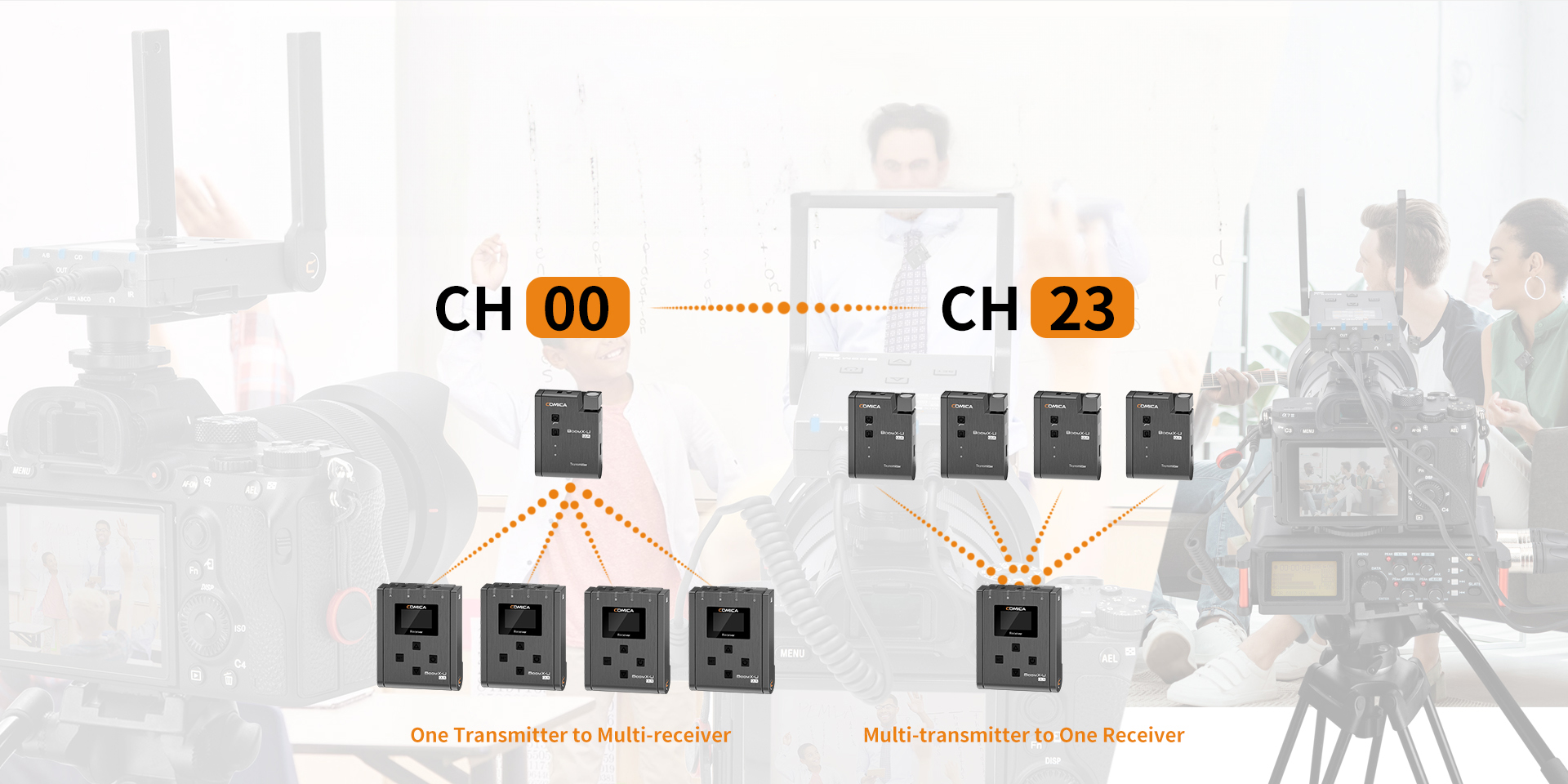

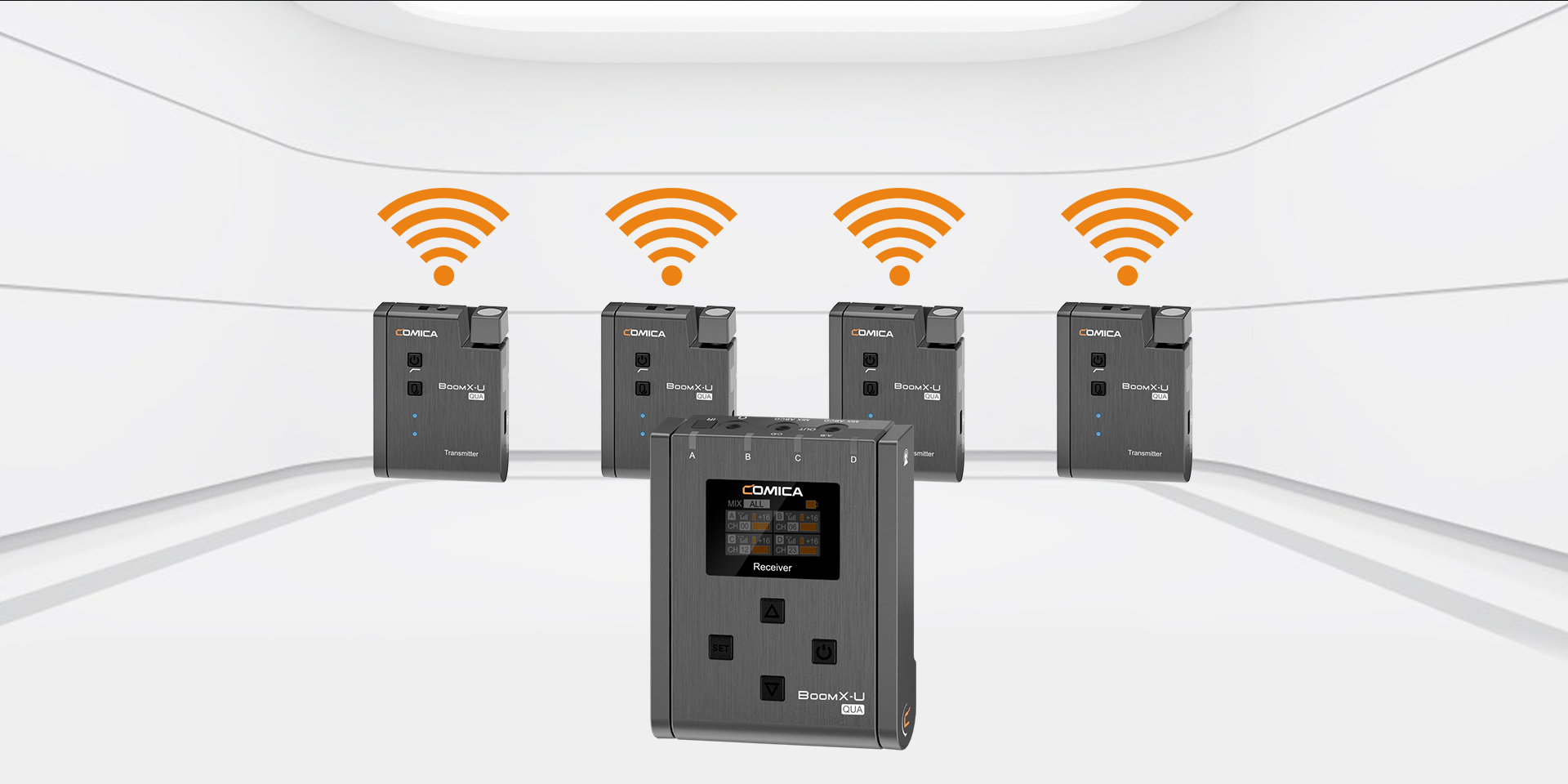

Support “One Transmitter to Multi-receiver”: It can realize multi-camera shooting and multi-person monitoring in real time Support “Multi-transmitter to One Receiver”: It can be used to record four sound sources at the same time to achieve diversified shooting

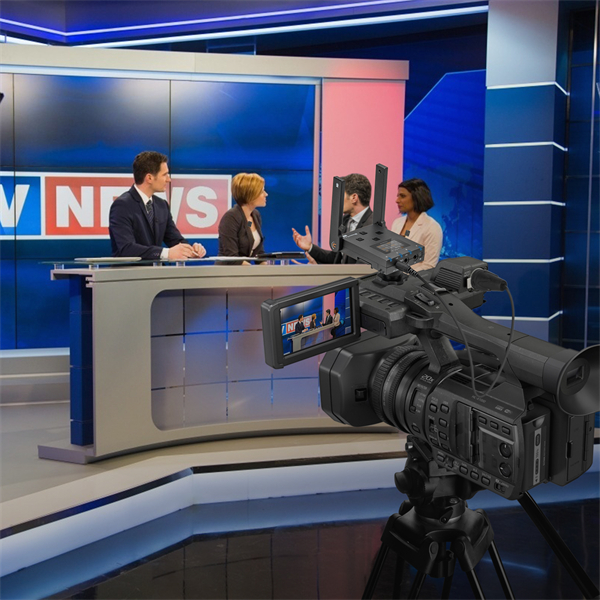

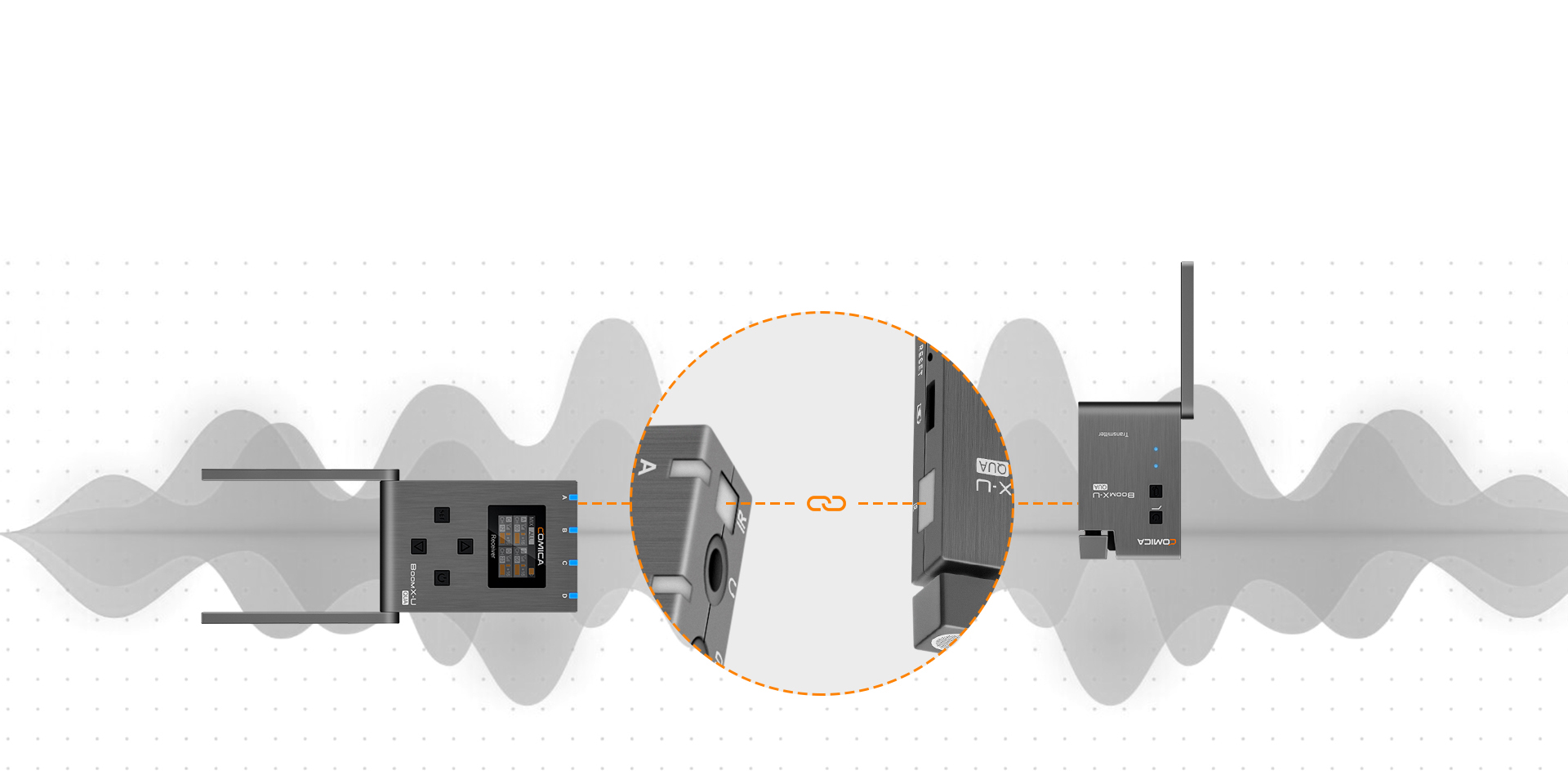

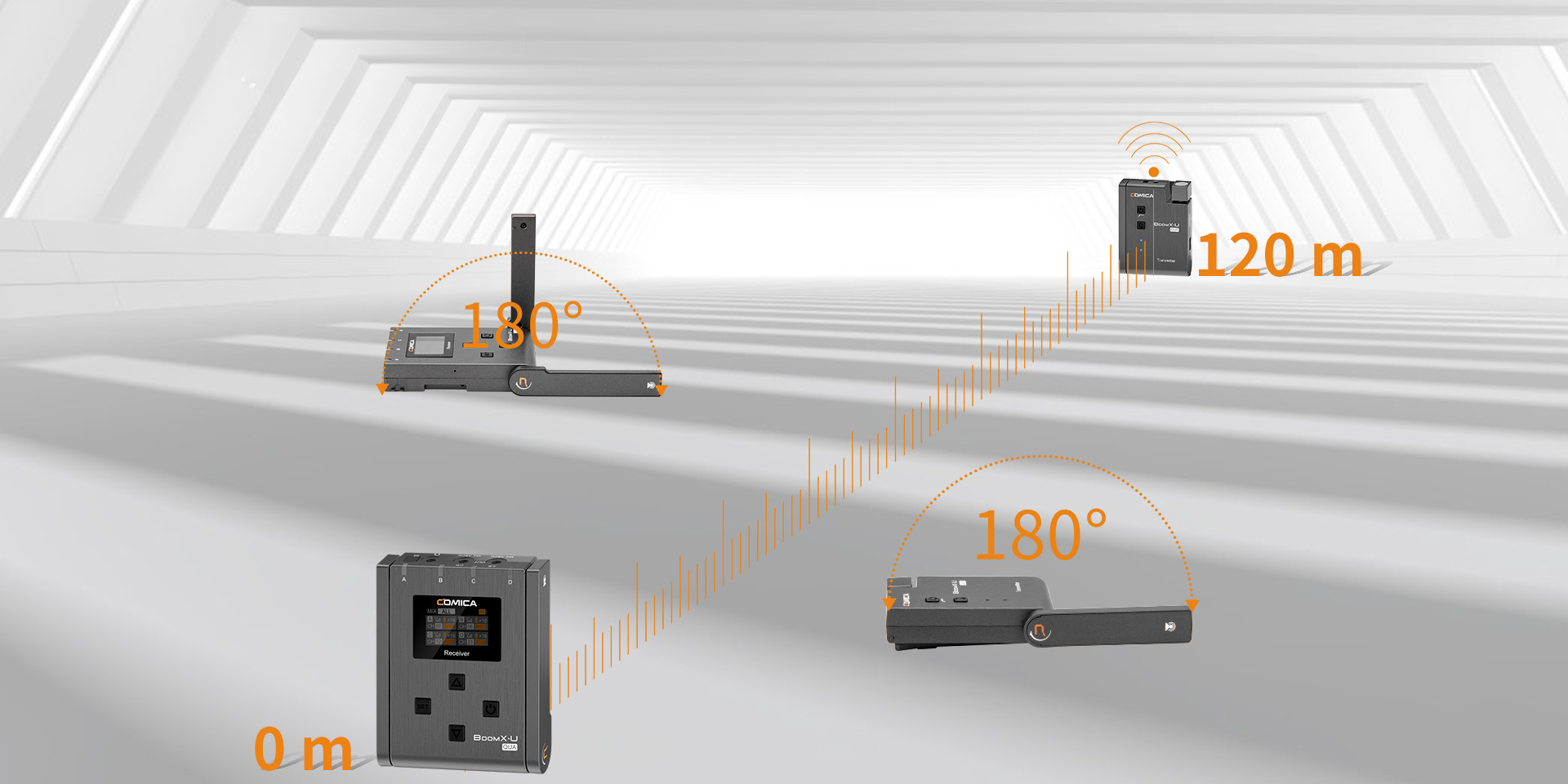

Super-long transmission distance can meet the needs of professional users

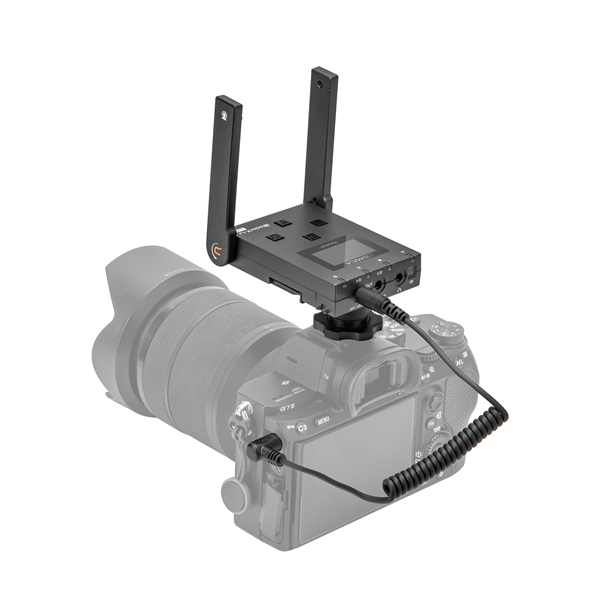

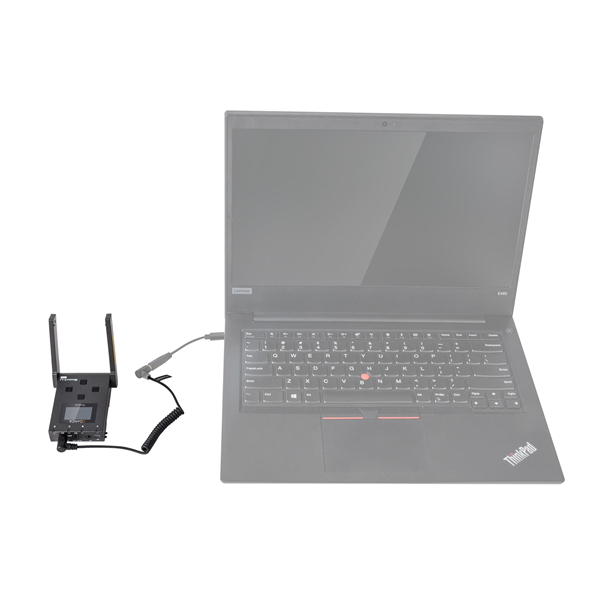

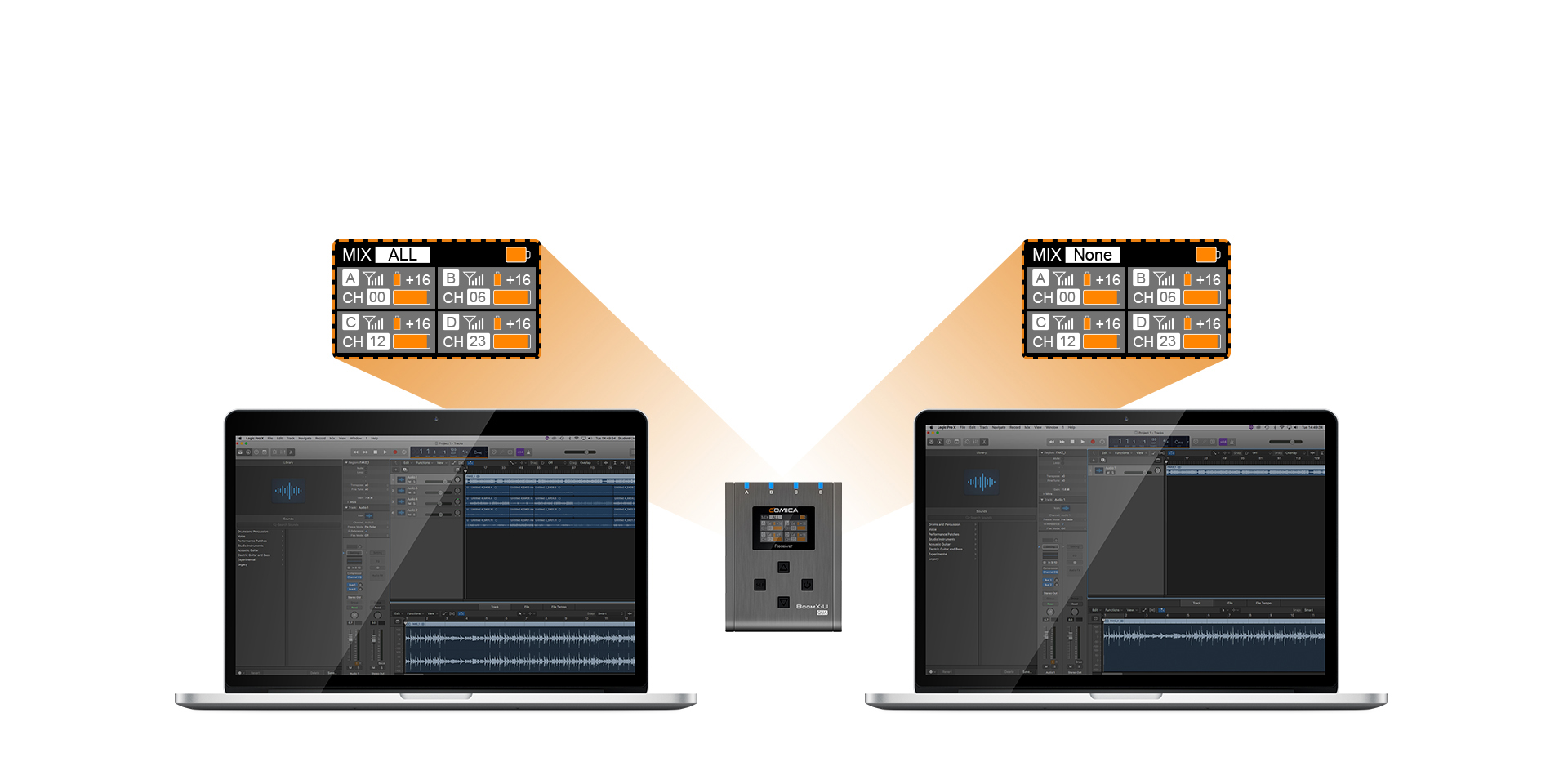

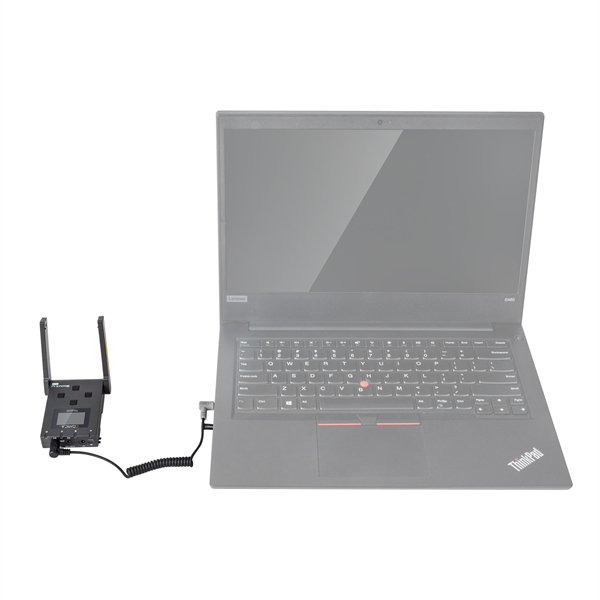

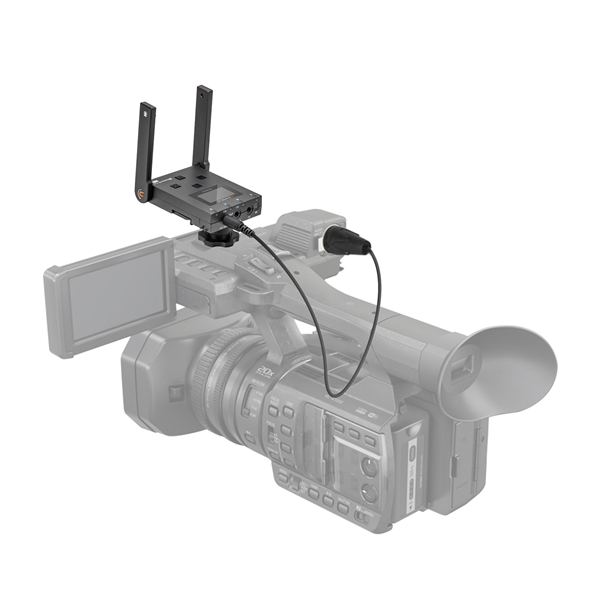

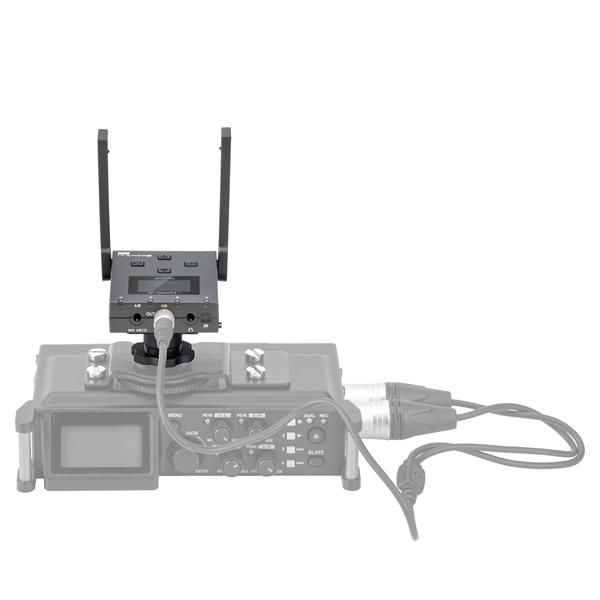

Multiple outputs are convenient for post-production and meet the requirements of different scenarios

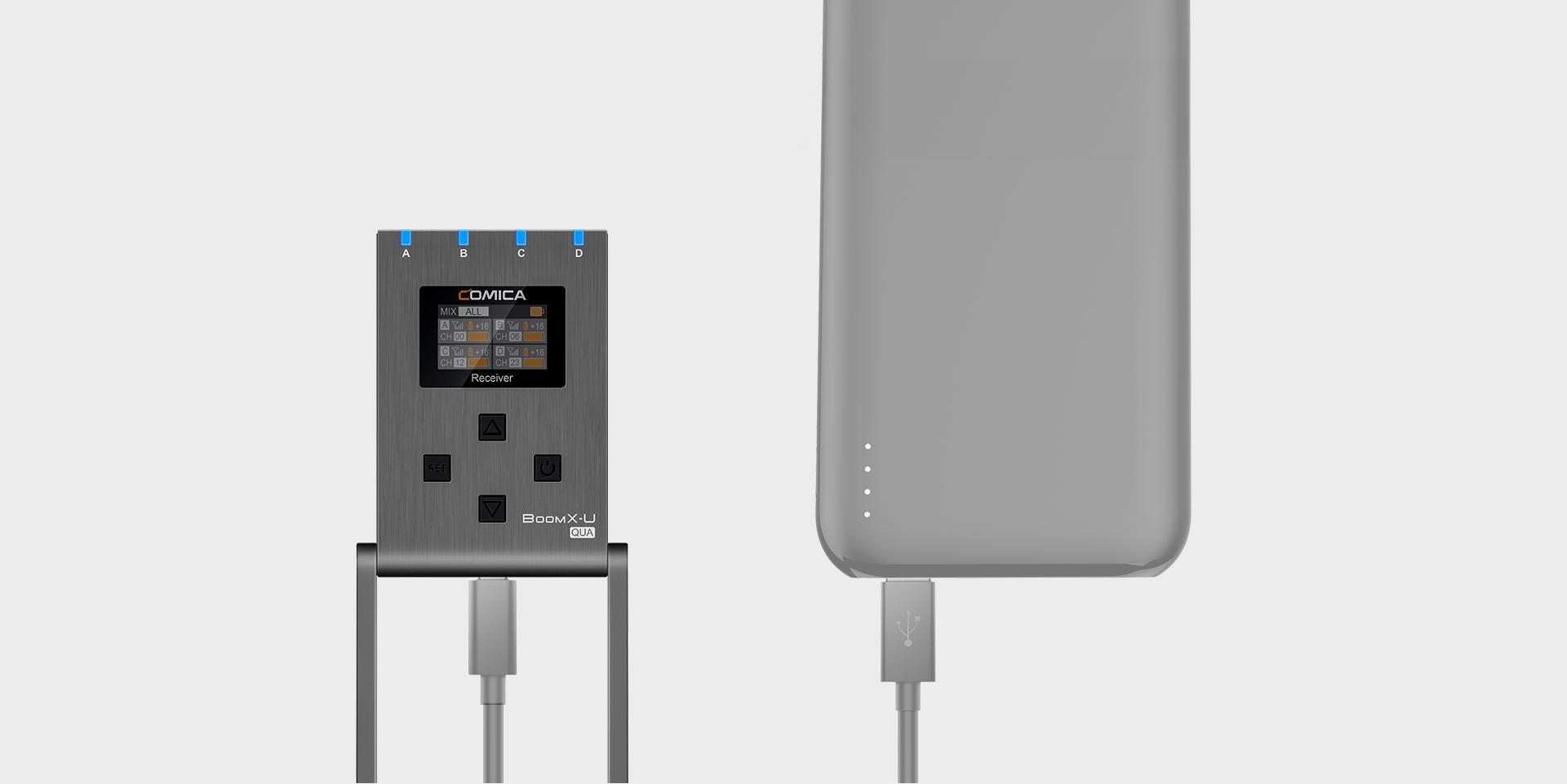

Easily meet the shooting needs of long-term recording and simplify your workflow

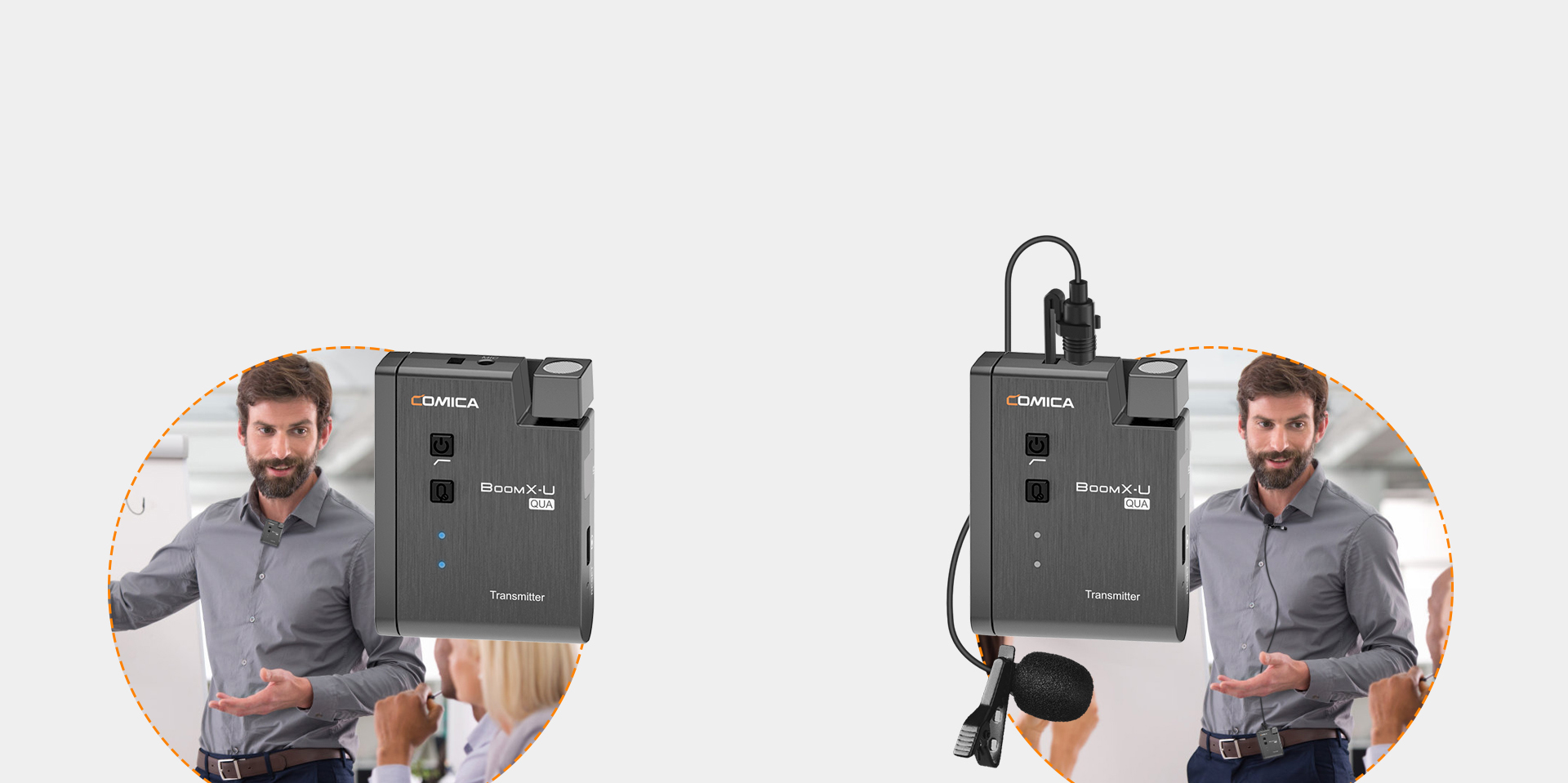

Two input modes can meet various scenes
Auto-scanning can help you automatically select the best channel. It is used in most scenarios, such as “Multi-transmitter to One Receiver”Manual Channel-setting can allow you to manually select the channel you want. It is mostly used in the scenes of “One Transmitter to Multi-receiver” or “Multi-transmitter to Multi-receiver”

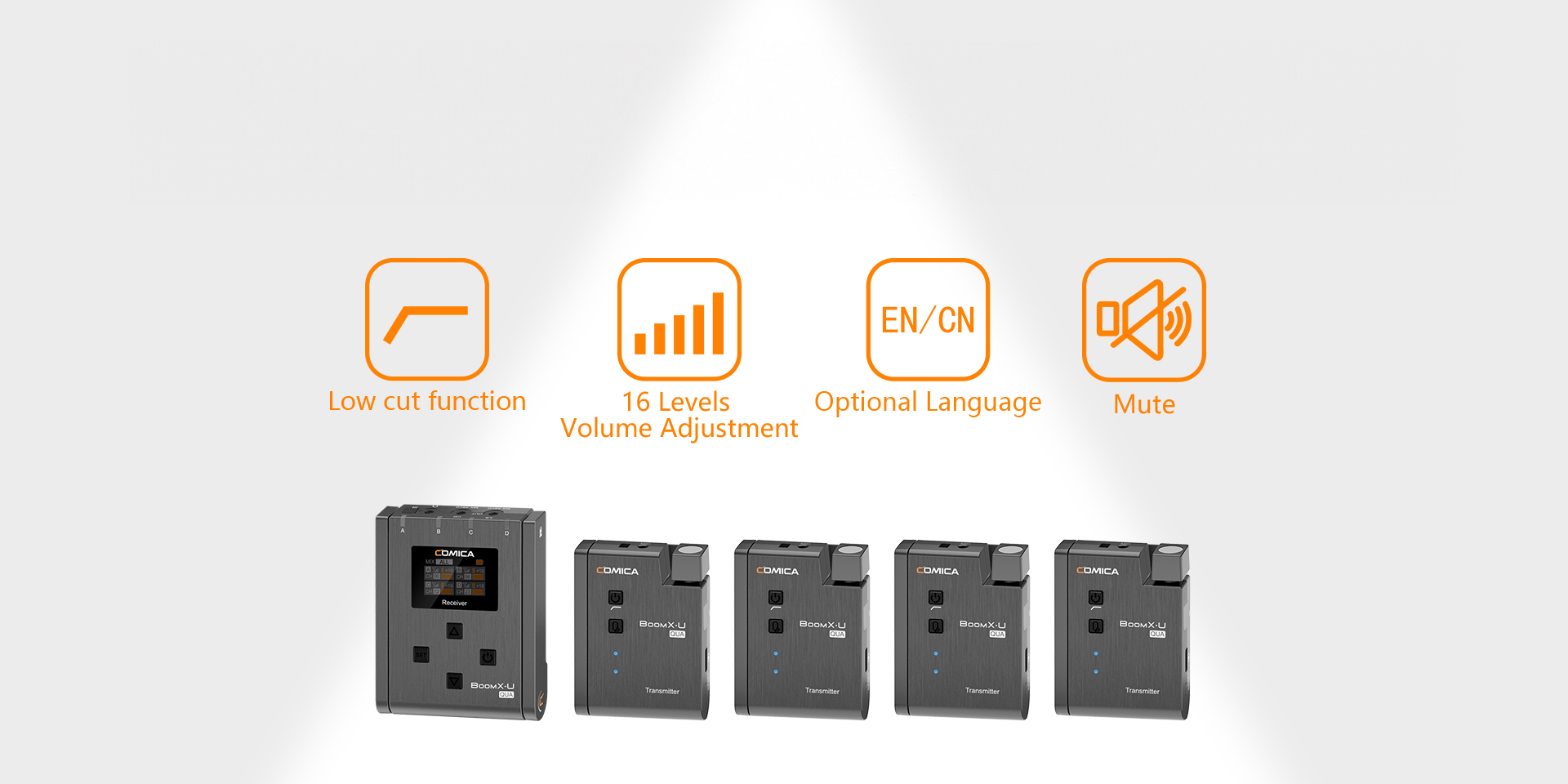

One-button to filter out low-frequency sound; Adjustable gain control to meet various needs; Chinese and English two language options; Muting function to handle streaming/recording and other on-site emergencies

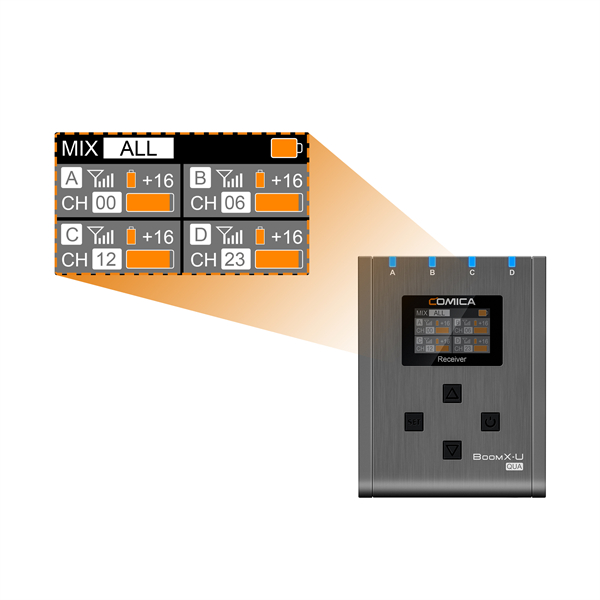

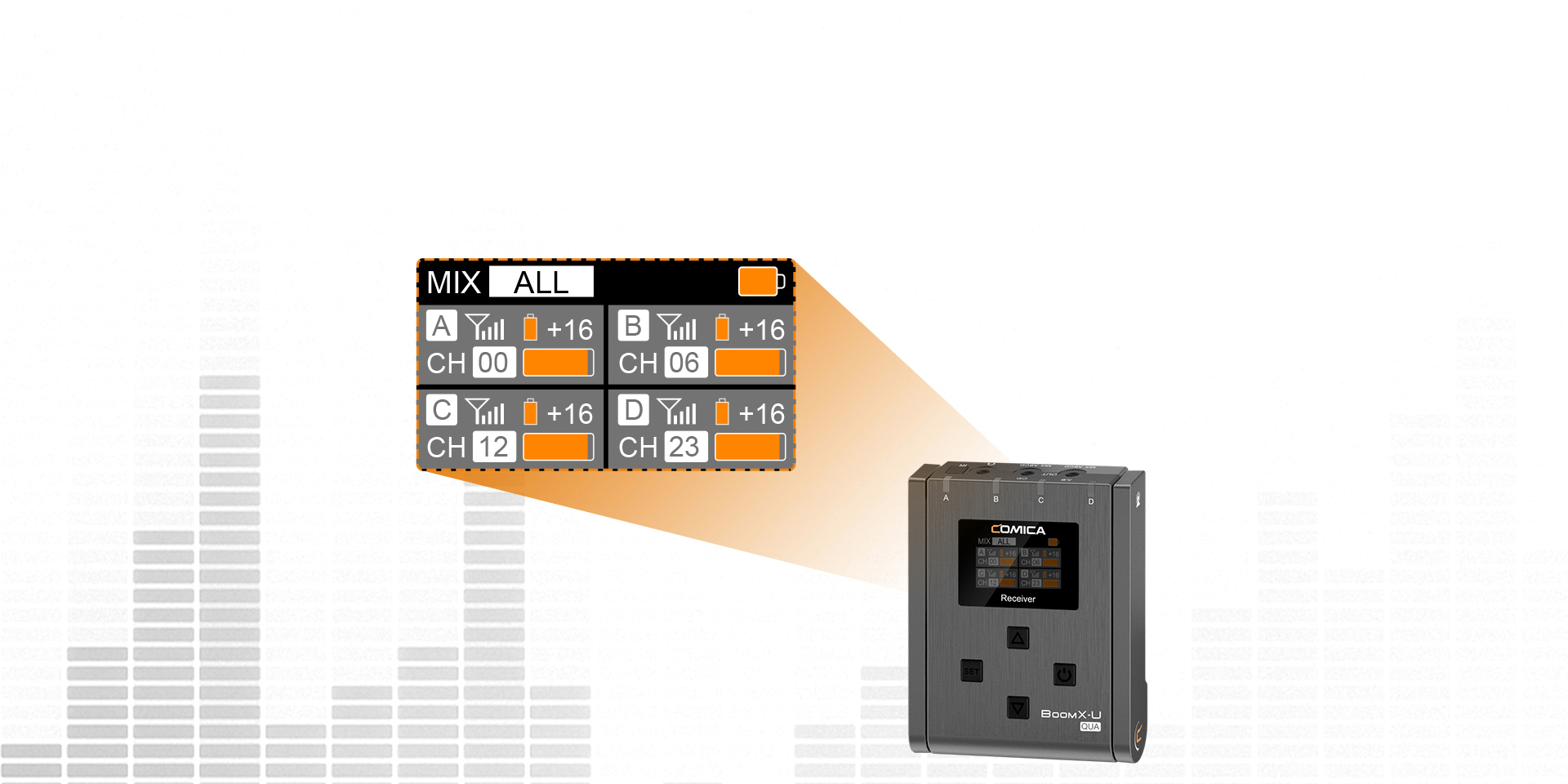

It can monitor the power of the microphone in real time and charge it in time for long-term recording; The audio dynamic bar can monitor the working status of the microphone to ensure stable and normal recording

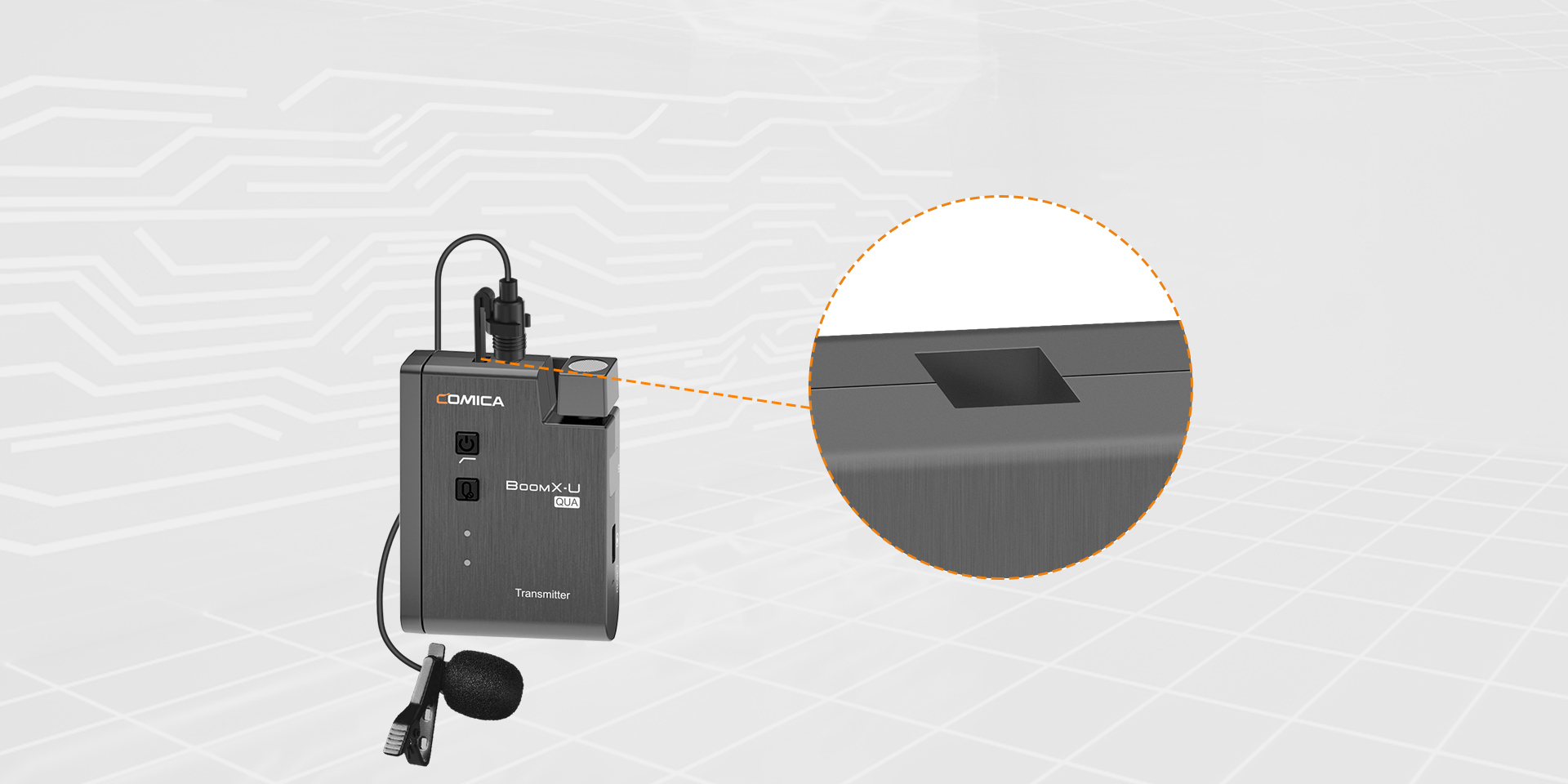

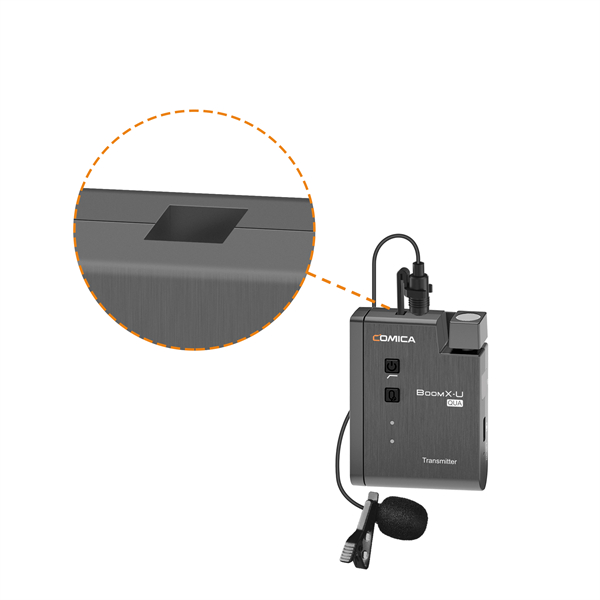

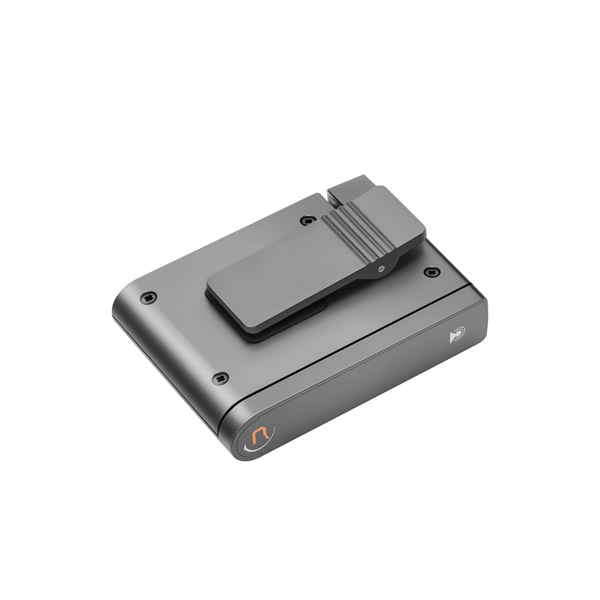

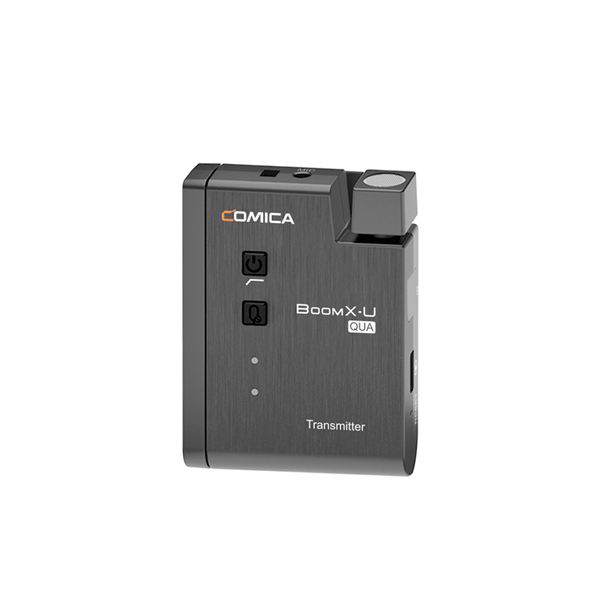

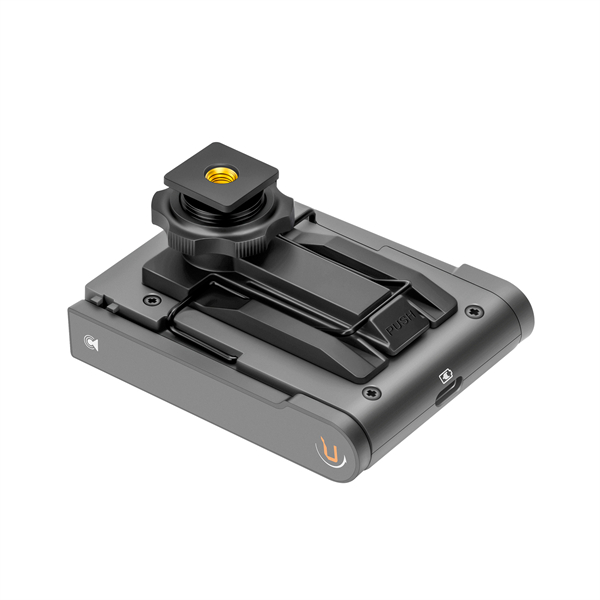

Unique design makes MIC more stable

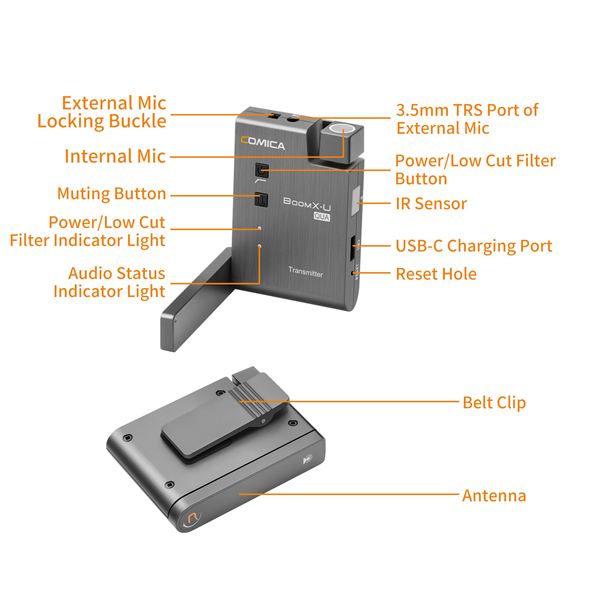

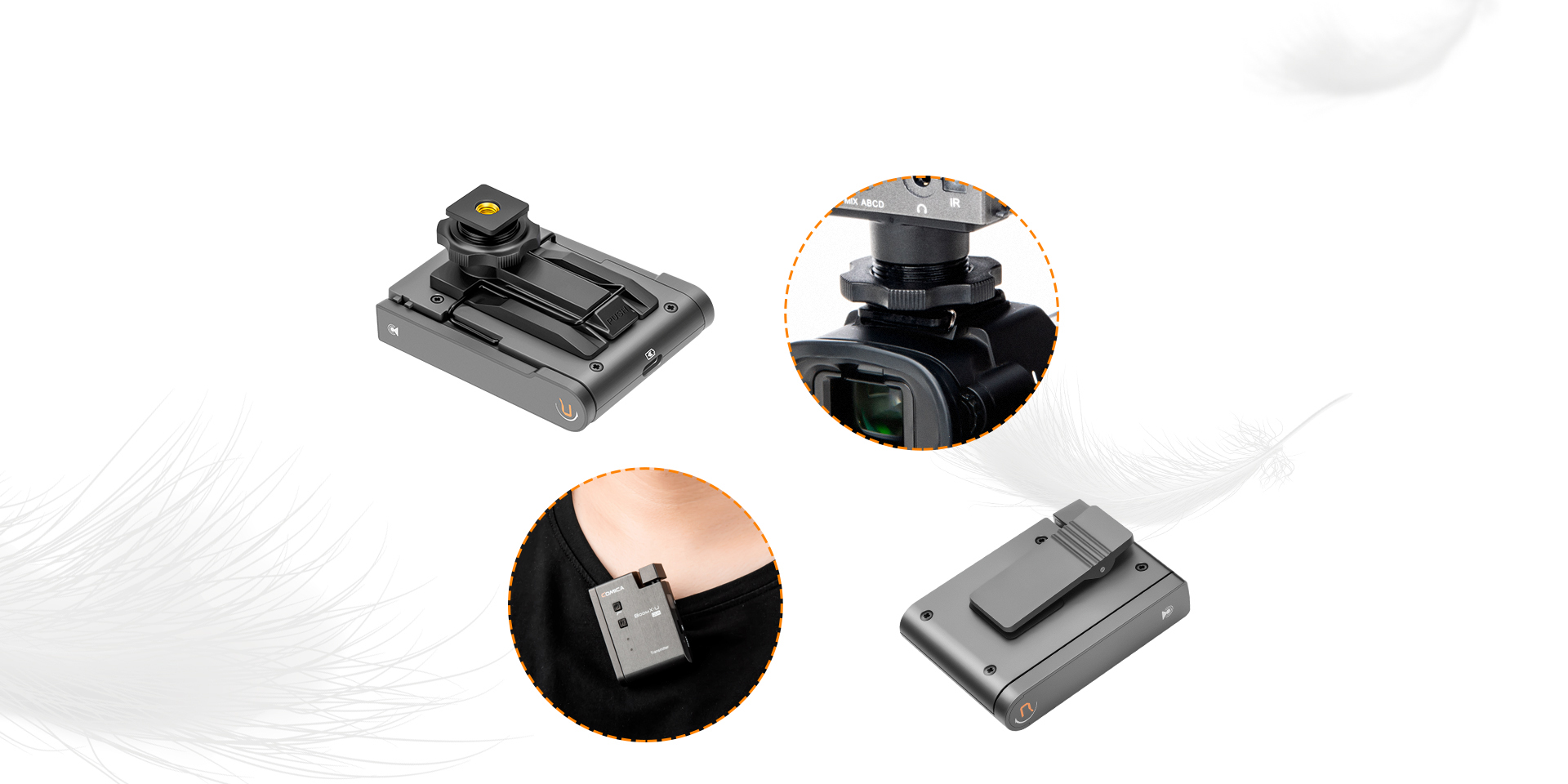

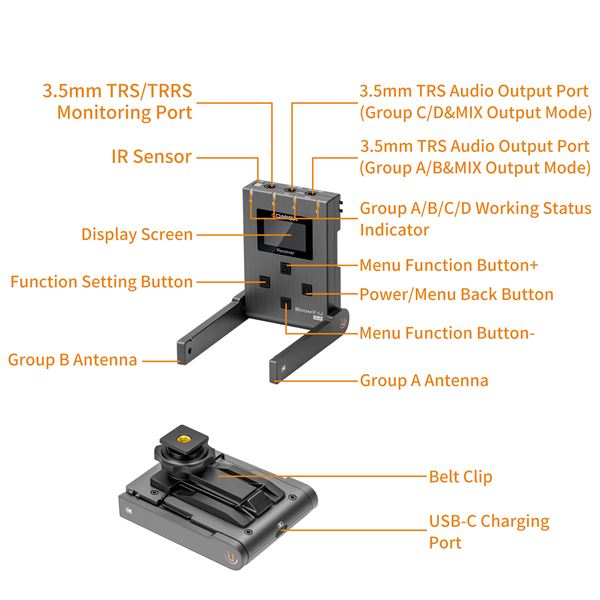

Precise design, flexible use
Antenna | PCB Antenna |
Polar Pattern | Omnidirectional |
Frequency Response | 80Hz ~ 20kHz |
Maximum SPL | 100dB SPL(@ 1% THD) |
S/N | 75dB SPL(A-weighted,as per IEC651) |
Equivalent Noise | 19dB SPL(A-weighted,as per IEC651) |
Dynamic Range | 81dB SPL(A-weighted,as per IEC651) |
Sound Delay | <20ms |
External Mic Input Interface | 3.5mm TRS |
Battery | Li-ion Battery 600mAh 3.7V |
Standby Time | 5 Hours |
Net Weight | 47g |

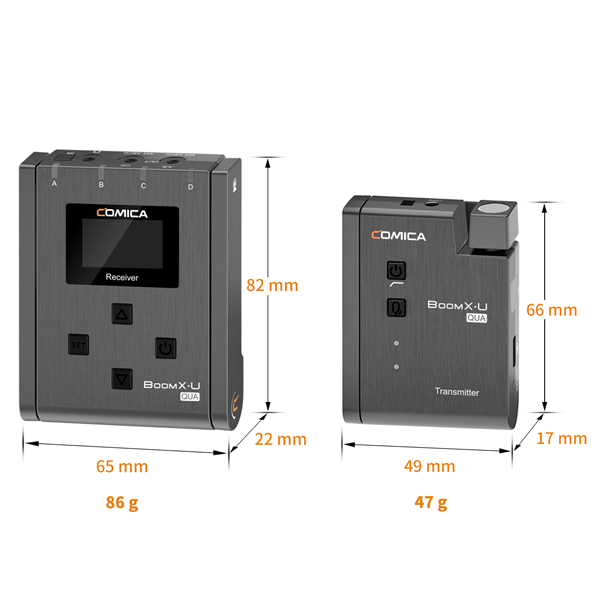

Dimension | 49 x 22 x 66mm |
Operating Temperature | 0℃ ~ 50℃ |
Storage Temperature | -20℃ ~ 60℃ |

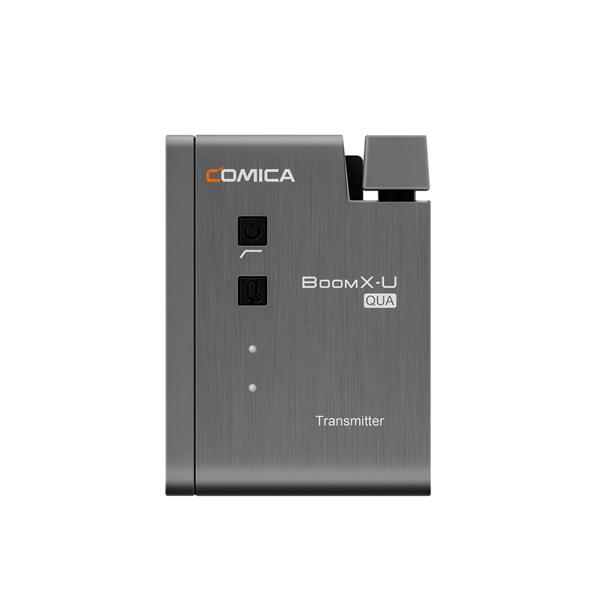

BoomX-U QUA
