• Dual-channel Wireless Microphone, One Touch to Switch Channel

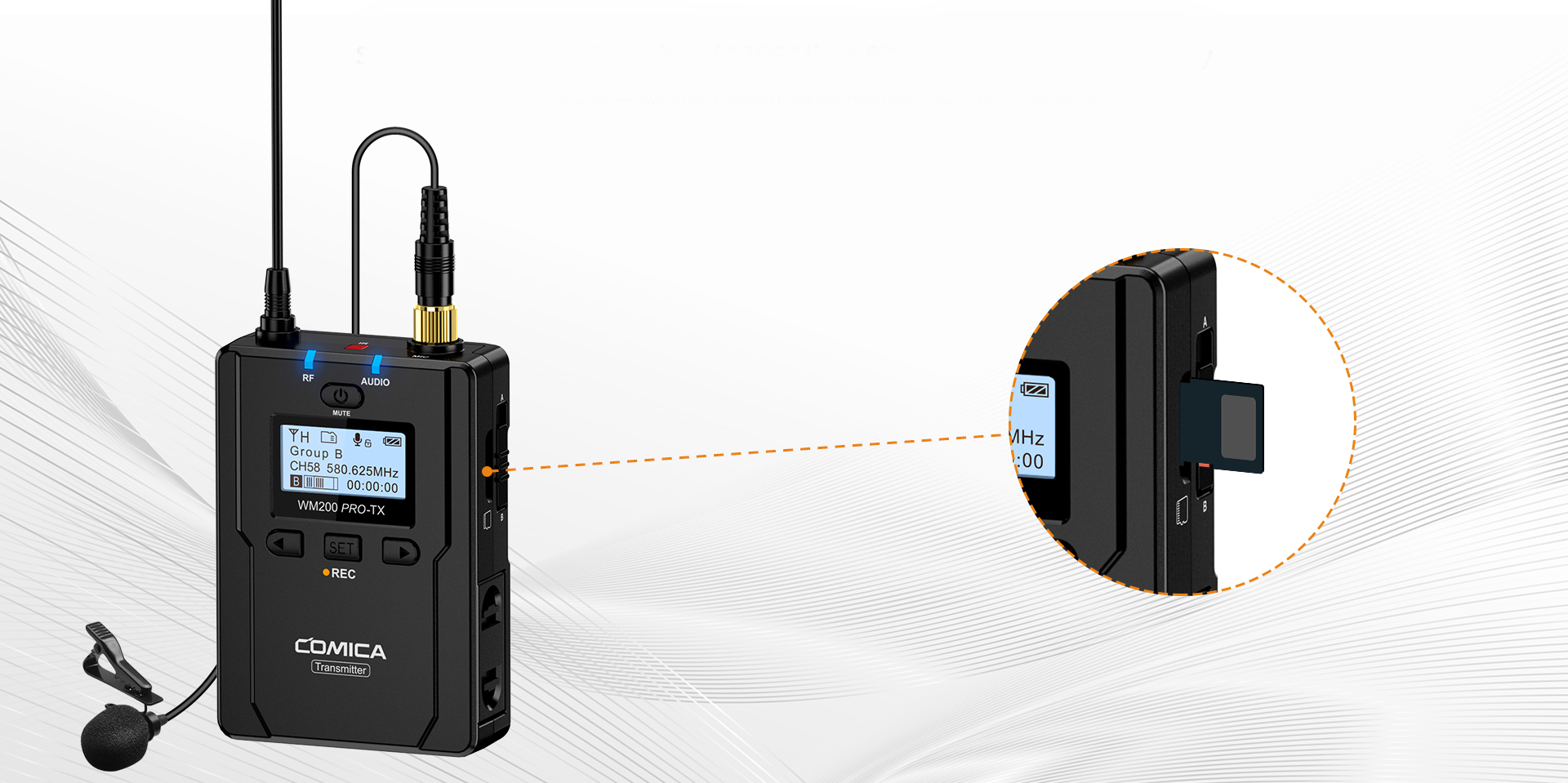

• Support Maximum Capacity of 128G Micro SD Card for External Memory

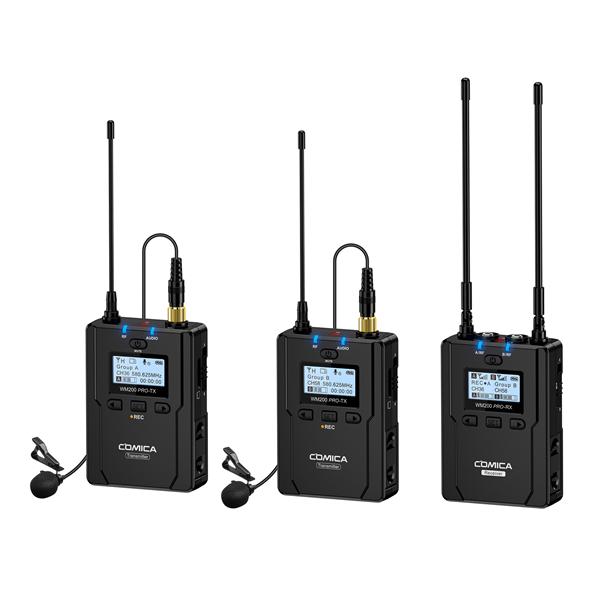

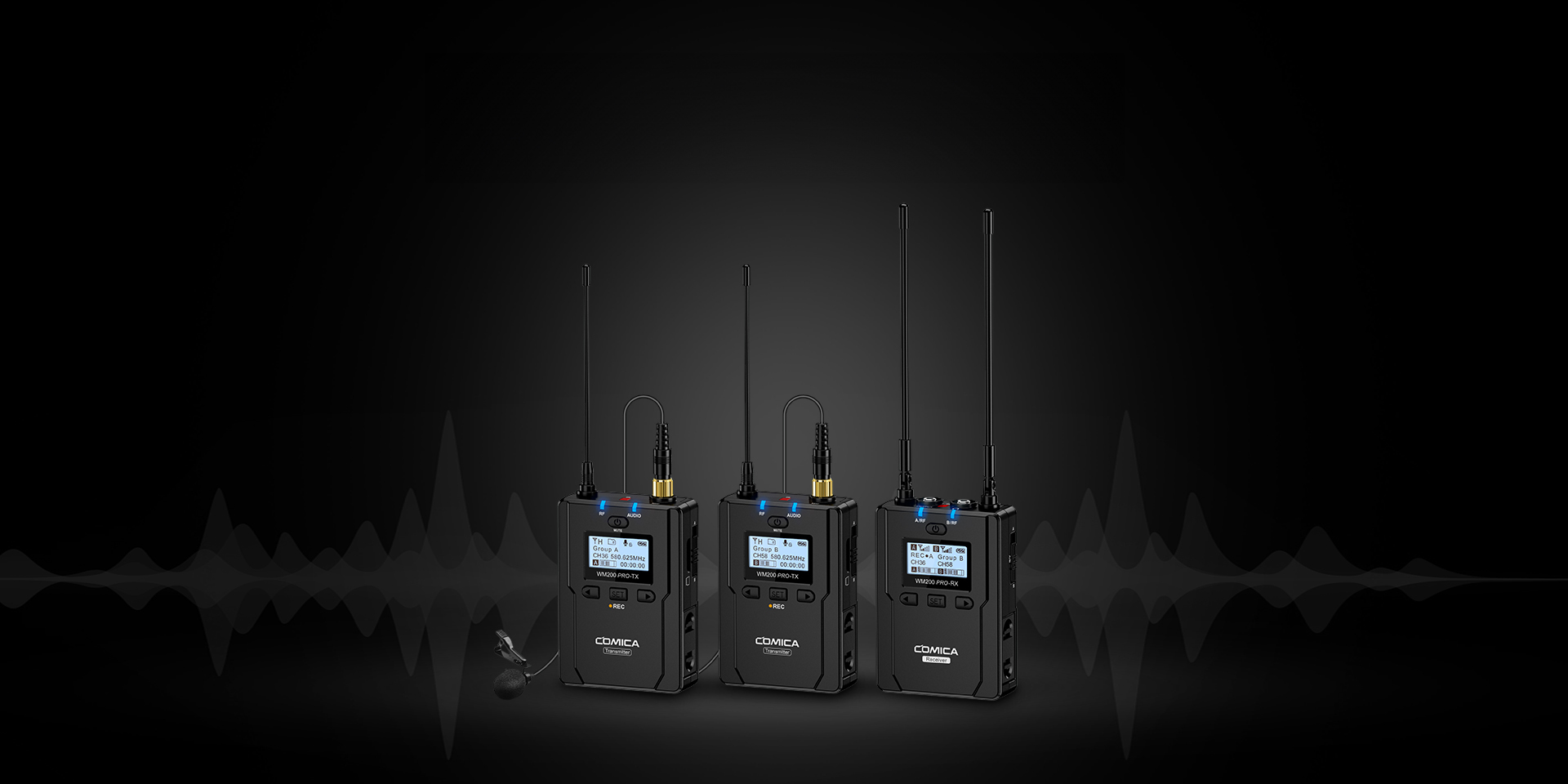

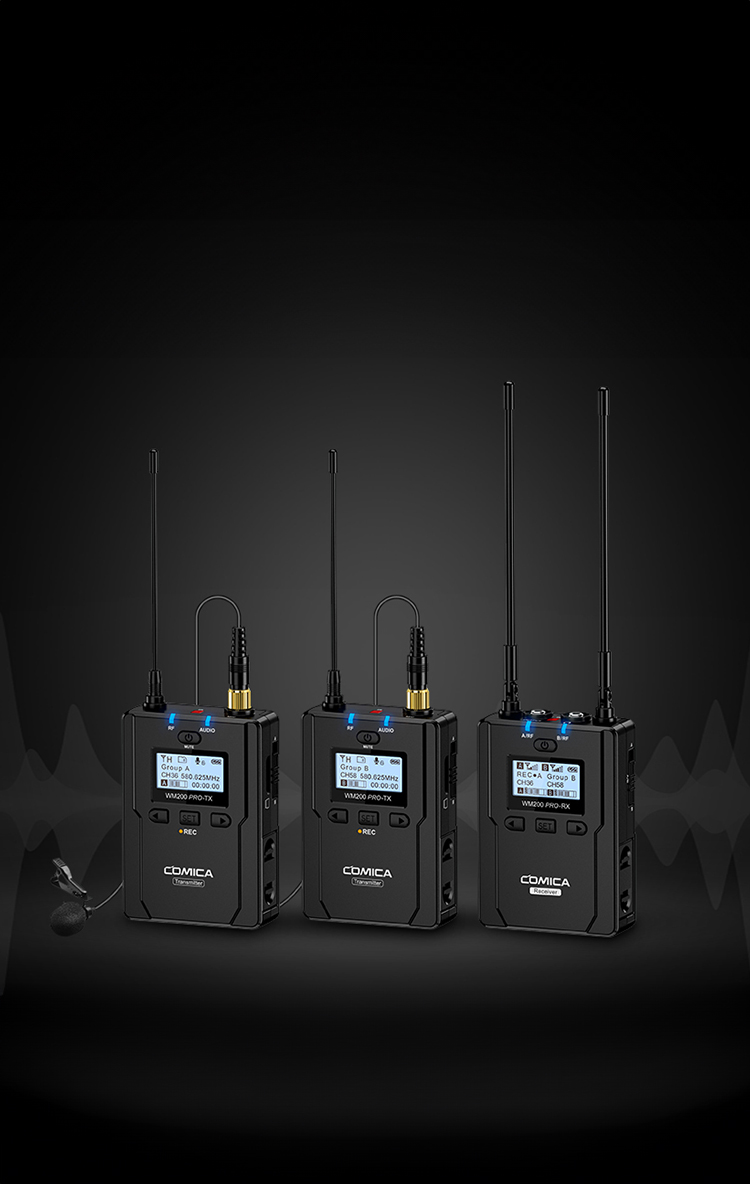

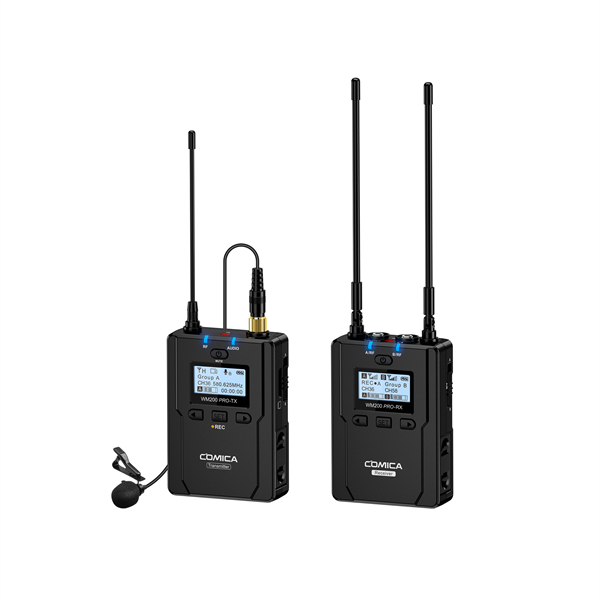

UHF Metal Dual-channel Wireless Microphone

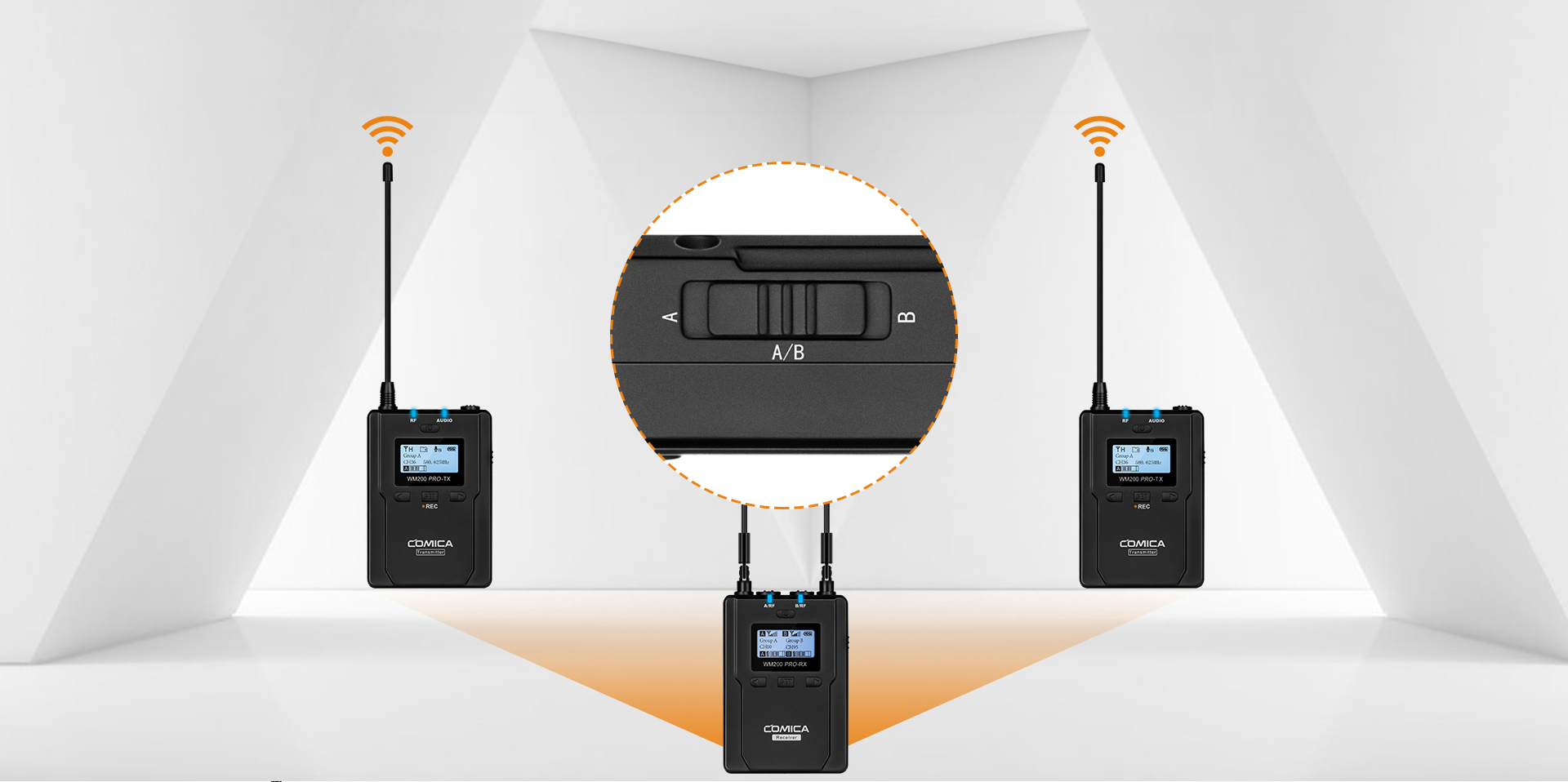

Dual-channel wireless microphone system for recording two sound sources simultaneously and quick A/B/A+B Group Switch
Support recording file storage in real-time and prevent invalid recording, simple and convenient

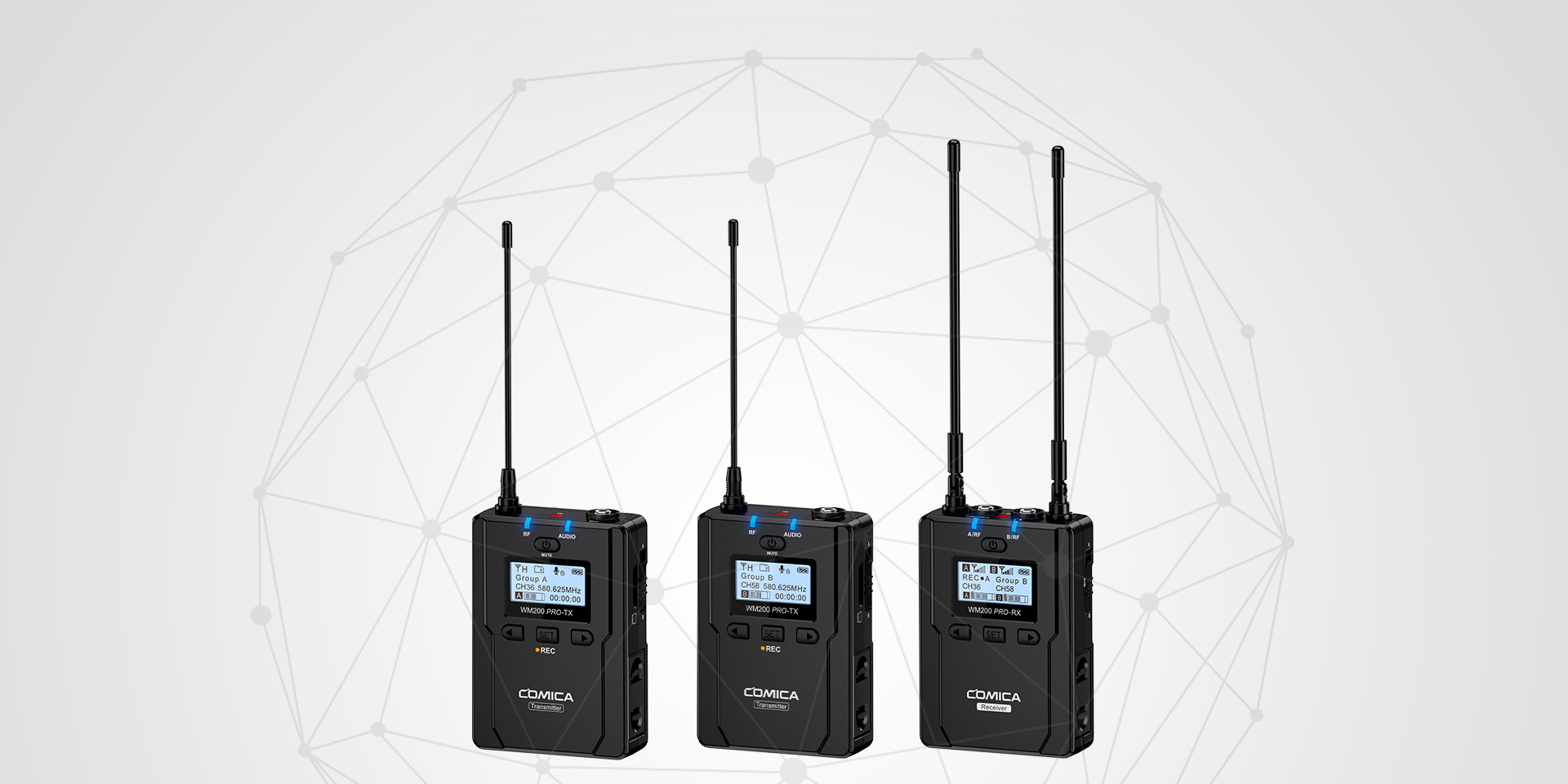

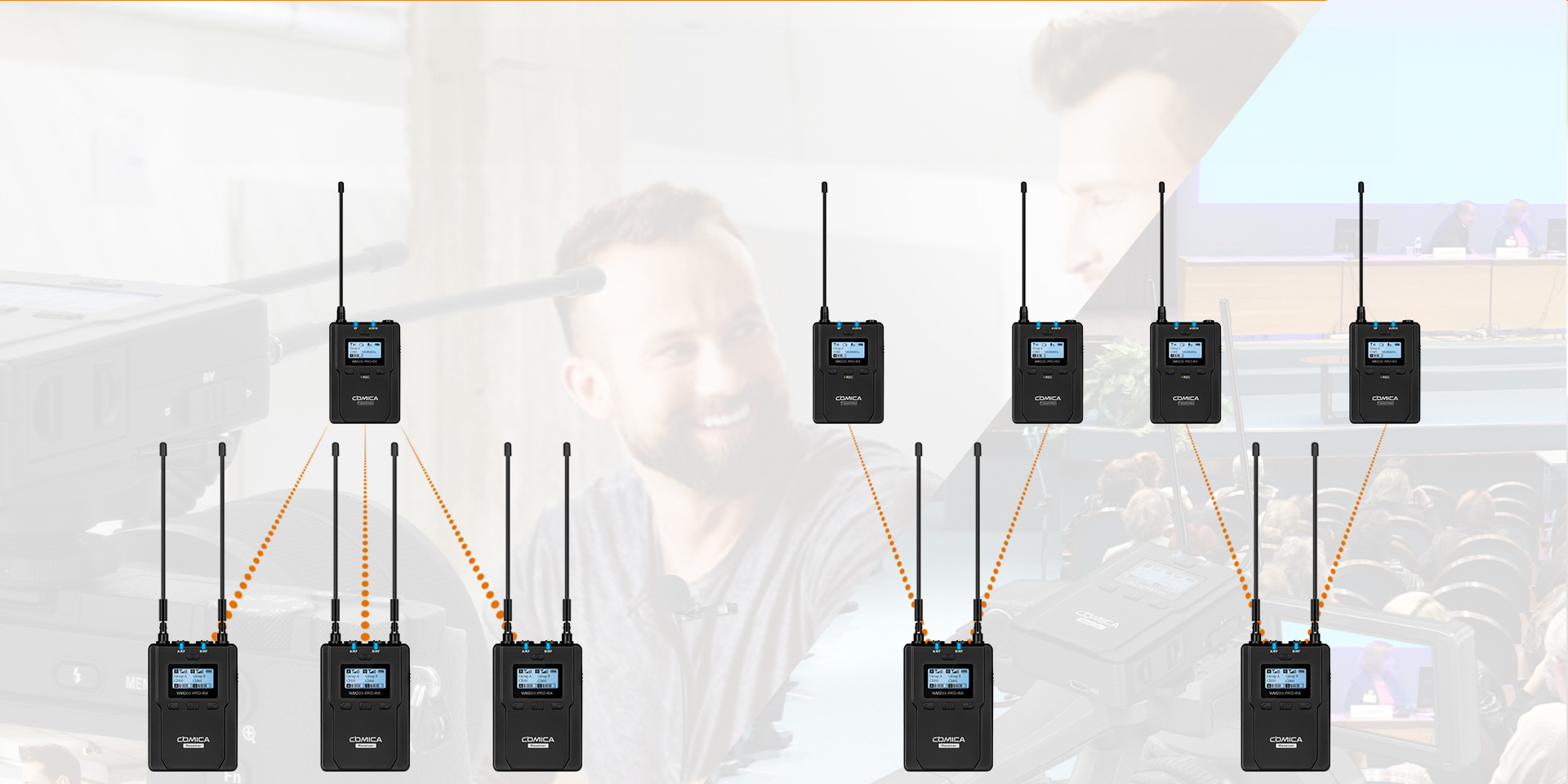

Support “One Transmitter to Multi-receiver”: It can realize multi-camera shooting and multi-person monitoring in real time Support “Multi-transmitter to Multi-receiver”: Support multiple WM200 PRO to be used simultaneously and applied to record multiple sound sources at the same time to achieve diversified shooting

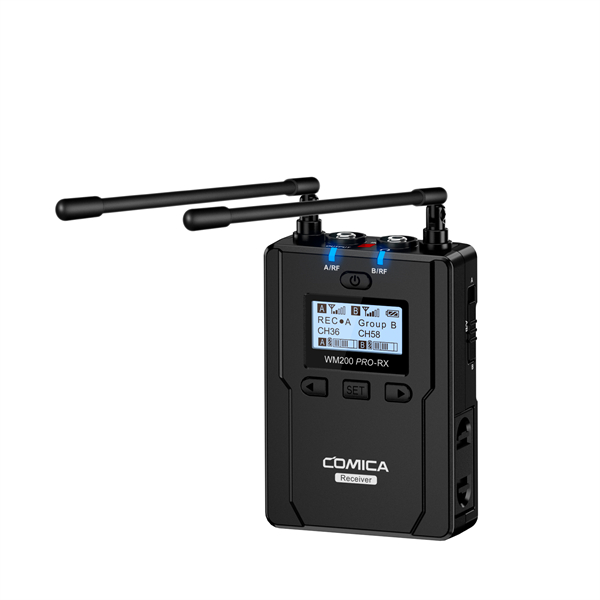

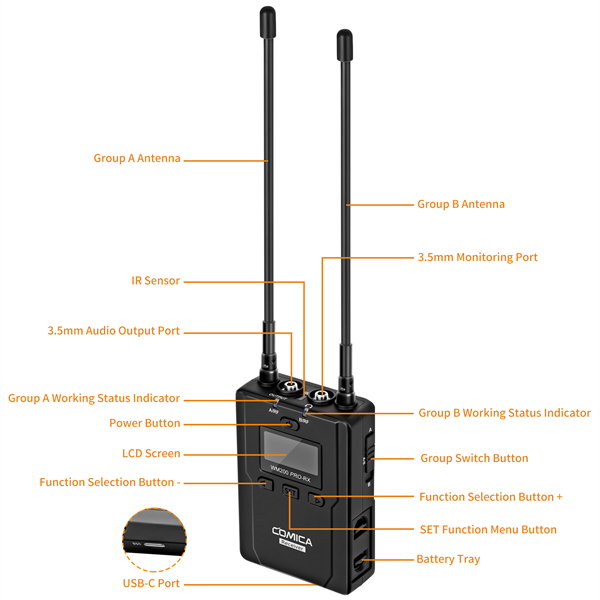

The receiver’s antenna can be rotated; Rotating to 90° is the best angle for stable signal transmission

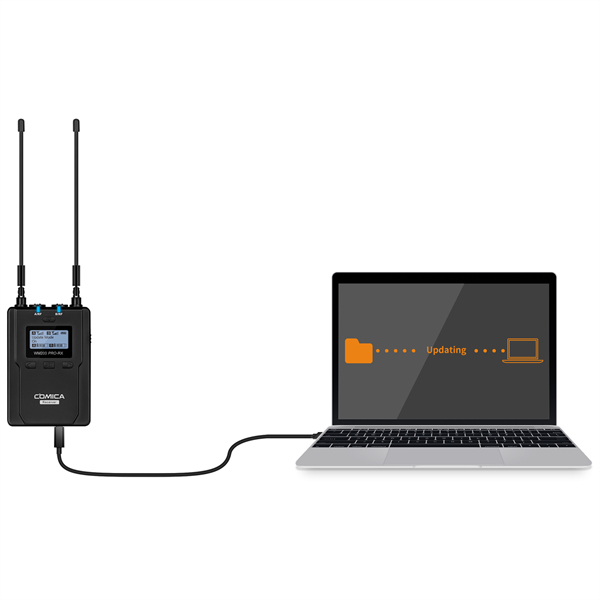

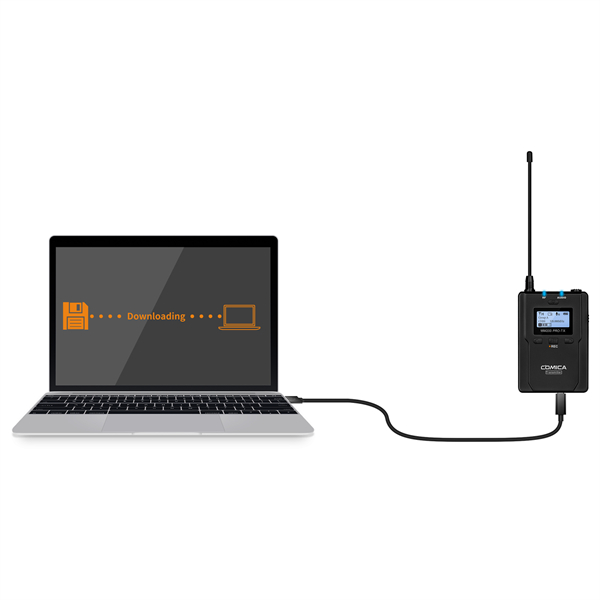

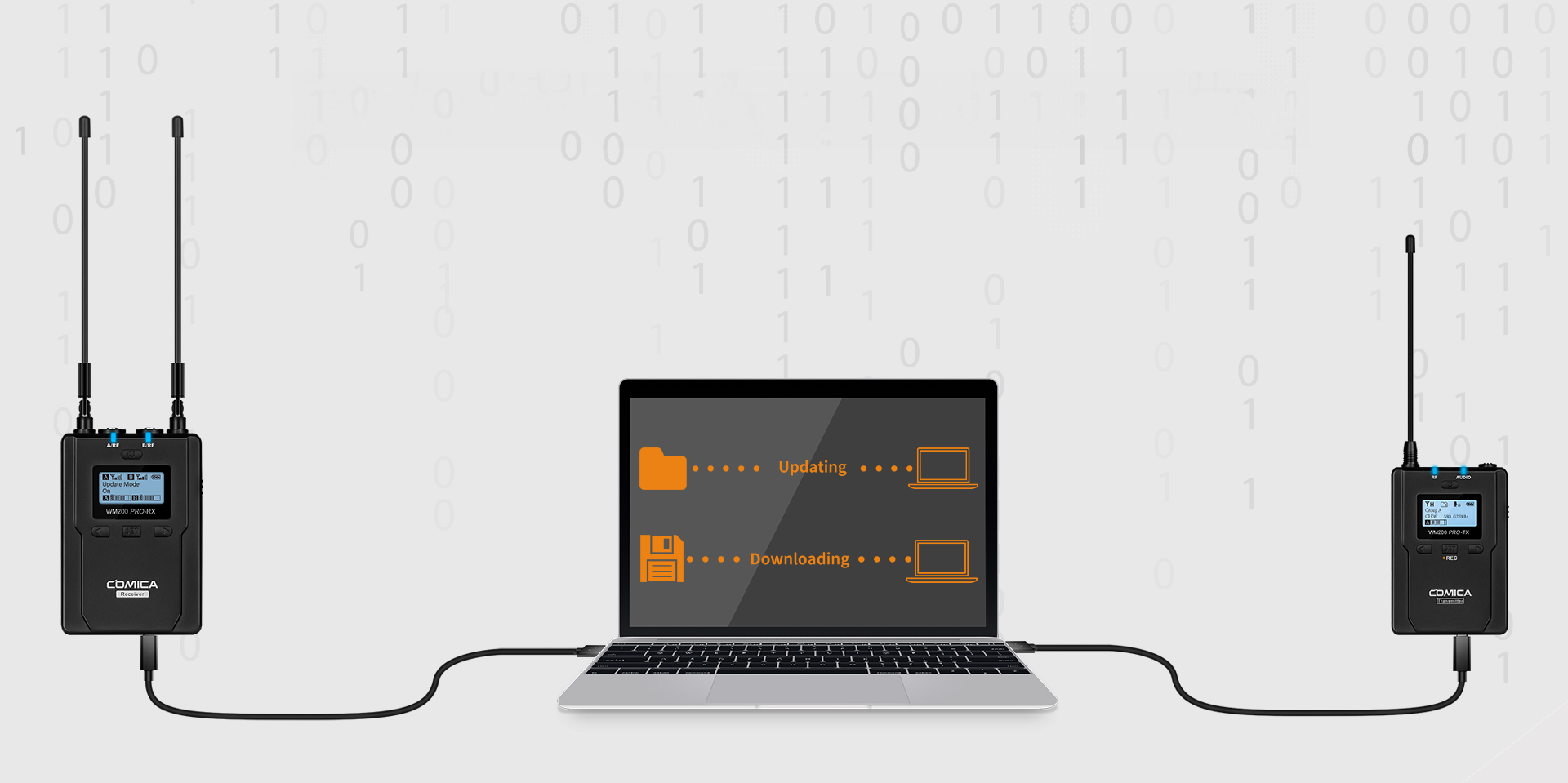

The upgrade and recording file can be transmitted via USB-C interface, convenient to use

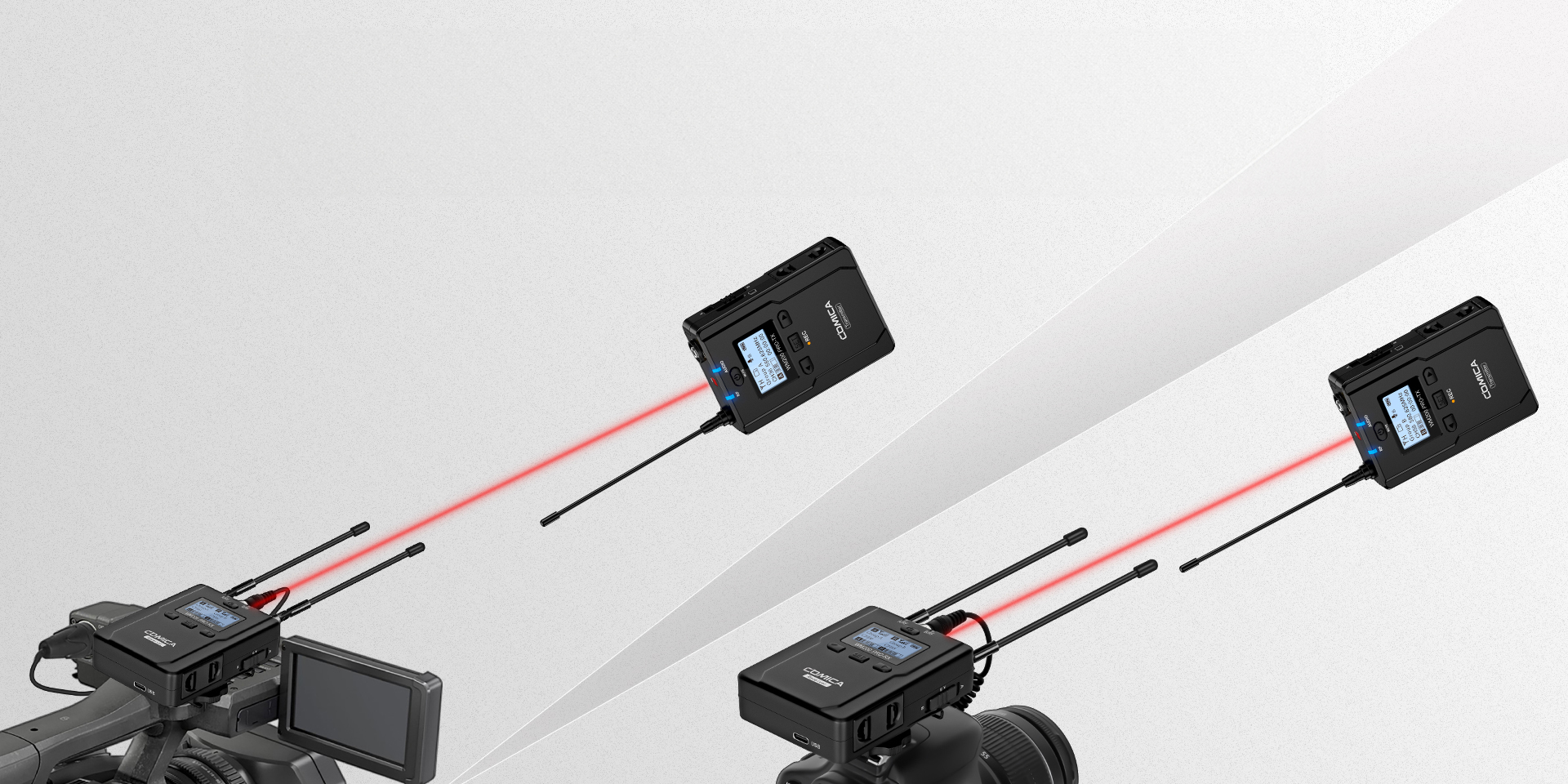

Auto-scanning can help you automatically select the best channel. It is used in most scenarios, such as “Multi-transmitter to One Receiver”Manual Channel-setting can allow you to manually select the channel you want. It is mostly used in the scenes of “One Transmitter to Multi-receiver” or “Multi-transmitter to Multi-receiver”Infrared Pairing: Keep the transmitter and receiver's IR sensor being closely aligned to complete the pairing

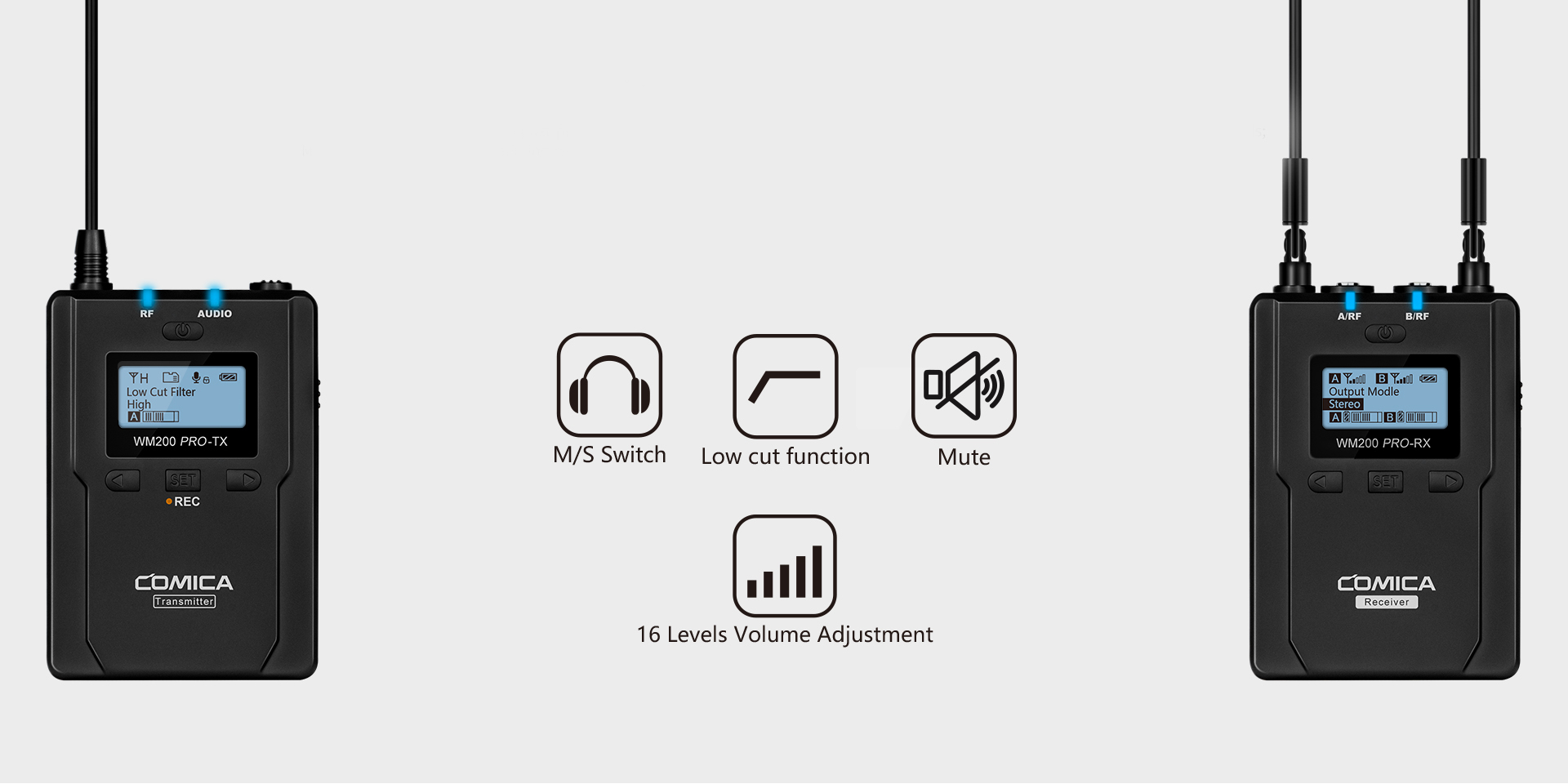

Mono/Stereo output options for post-production; One-button to filter out low-frequency sound; Adjustable gain control to meet various needs; Muting function to handle streaming/recording and other on-site emergencies

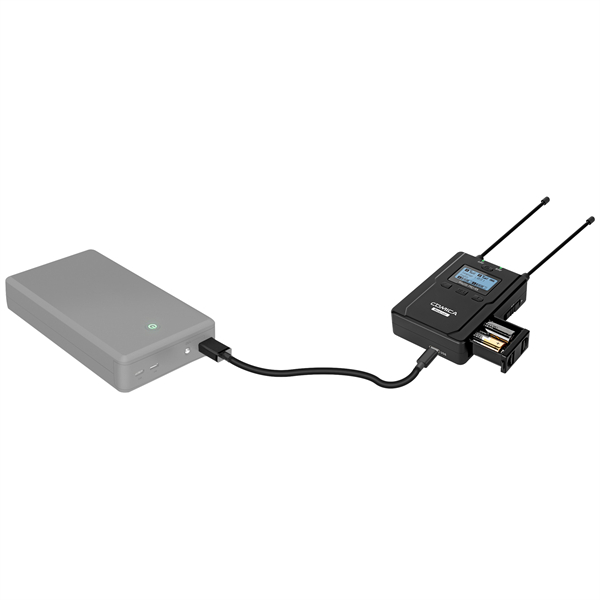

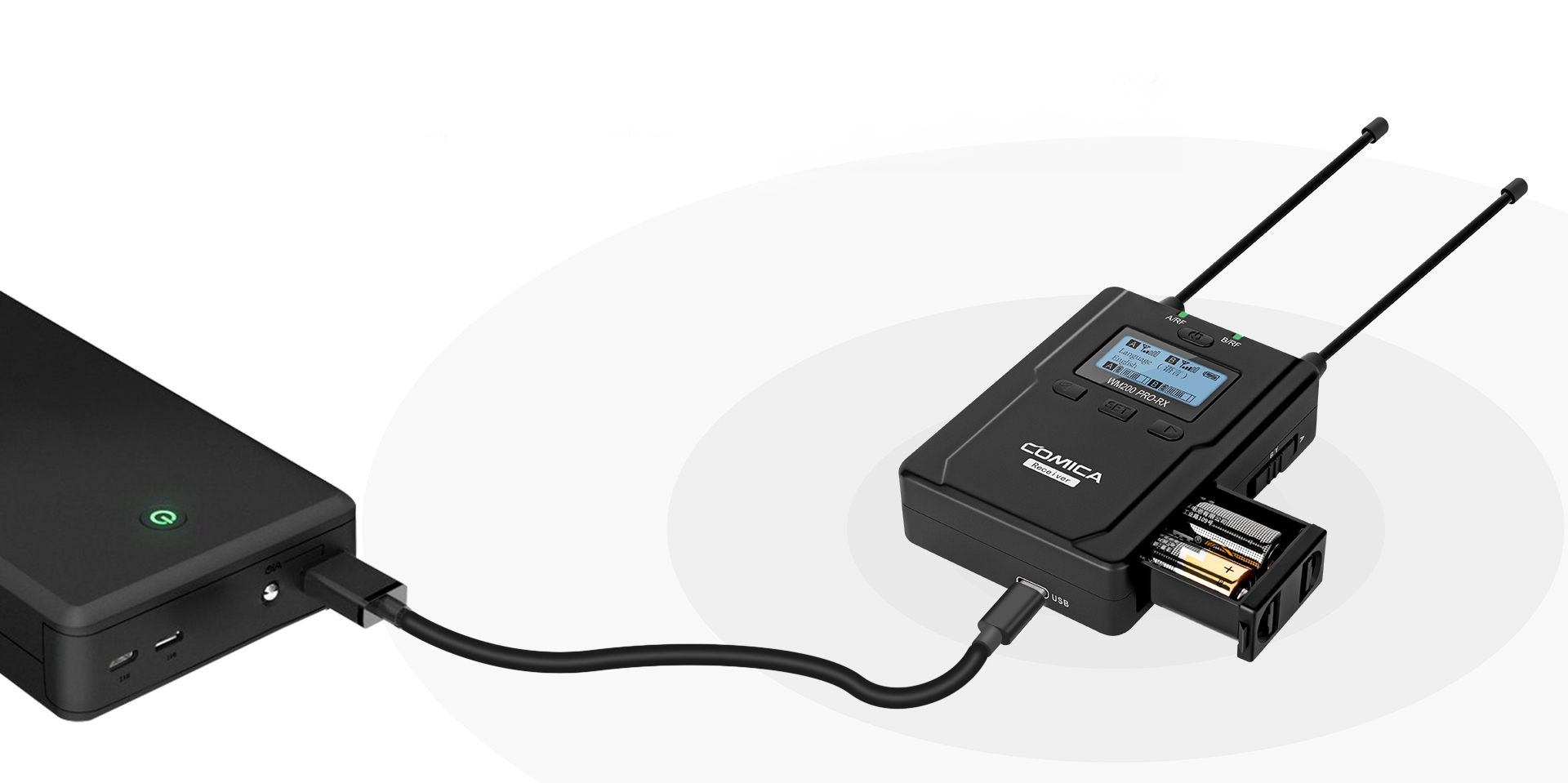

Flexible choice of two power supply solutions; Replace AA battery at any time to facilitate power supply; Support USB-C interface to connect external power supply to meet the shooting needs of longer recording

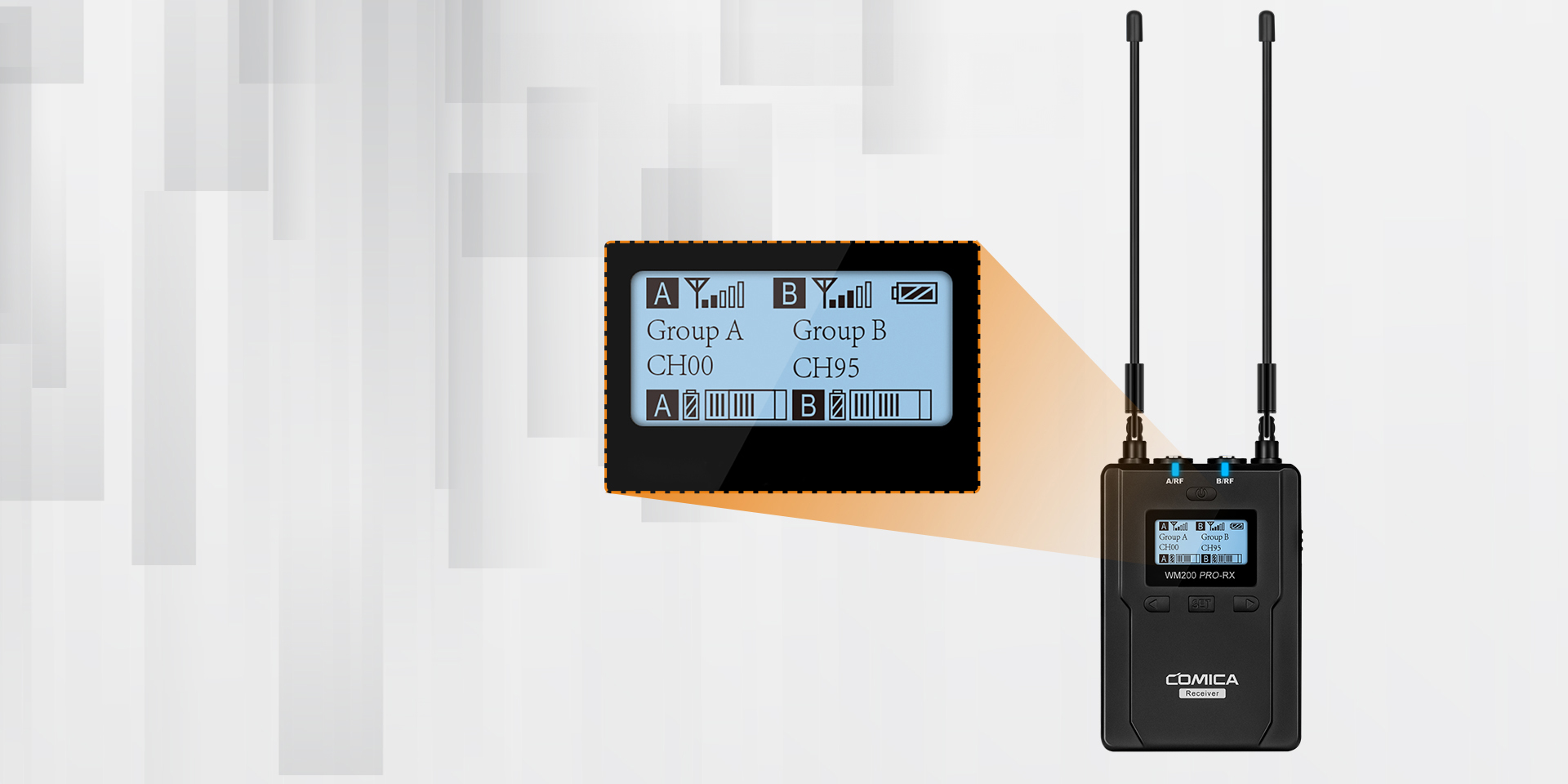

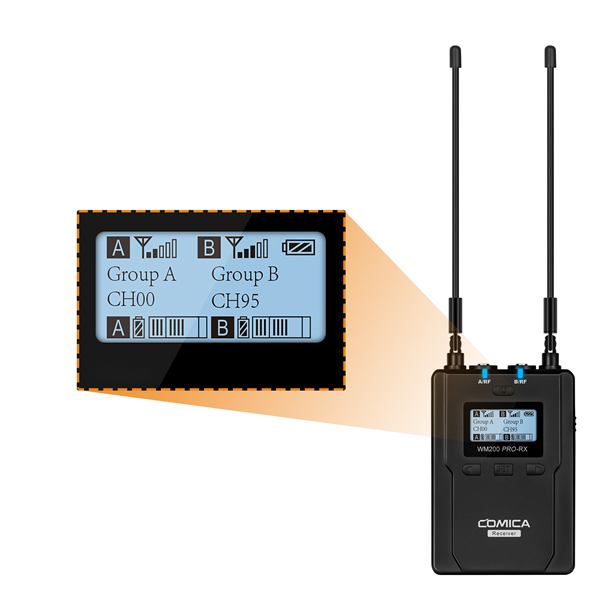

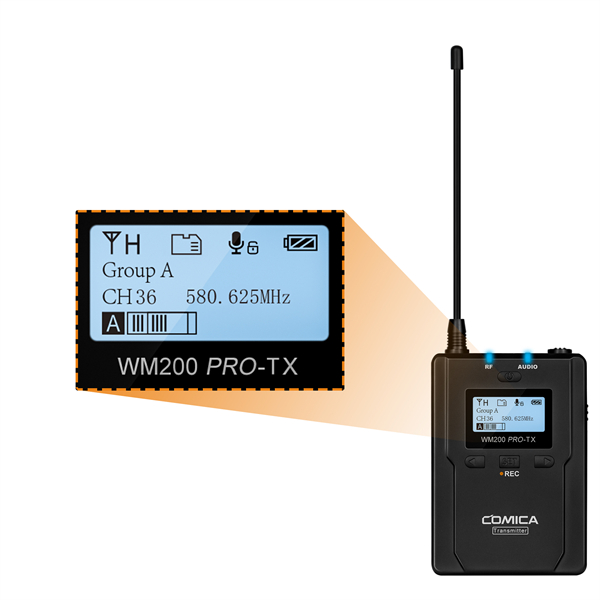

It can monitor power, audio dynamic and signal strength in real time

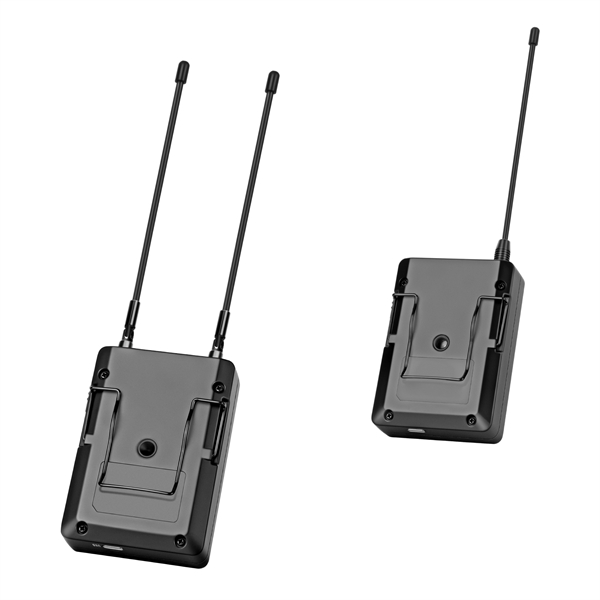

Full metal construction for better shielding, stable and durable

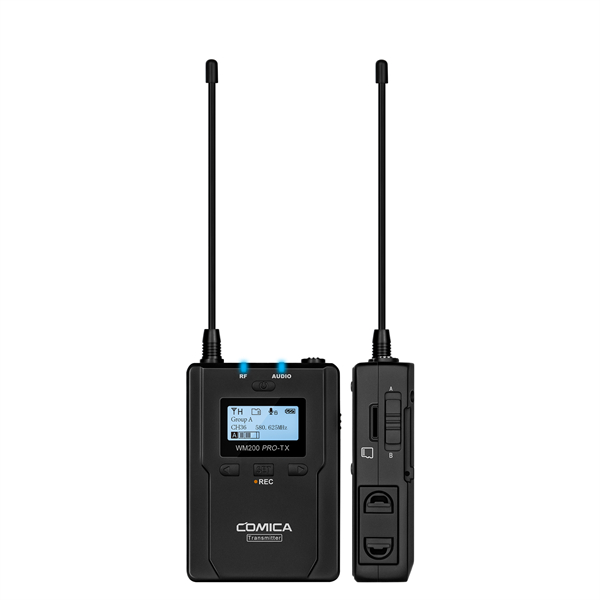

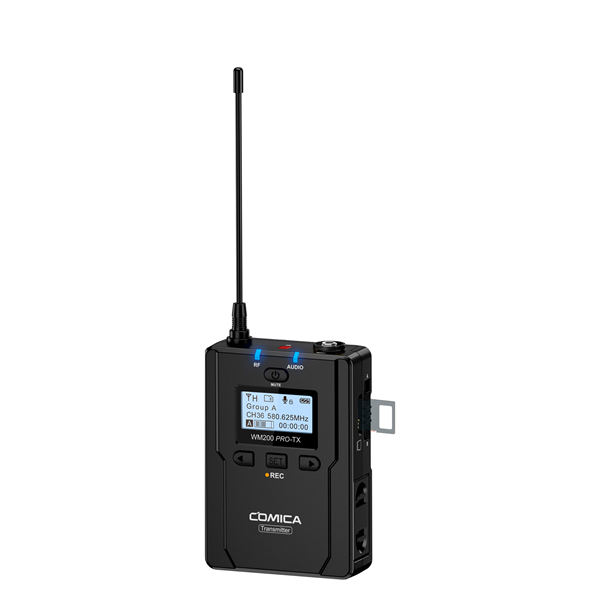

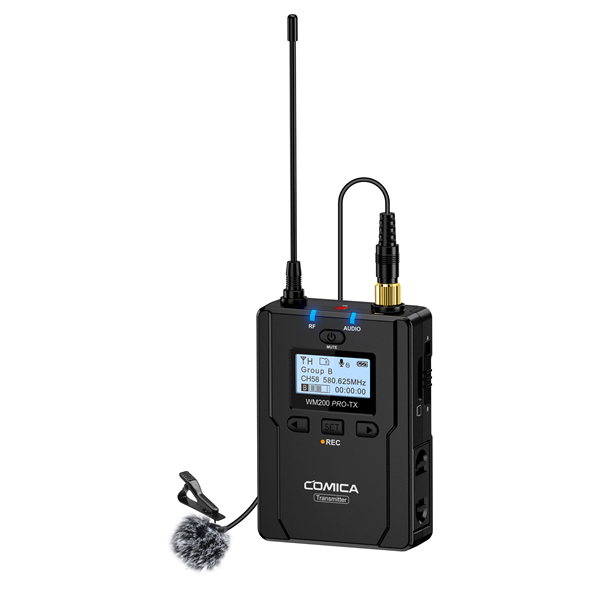

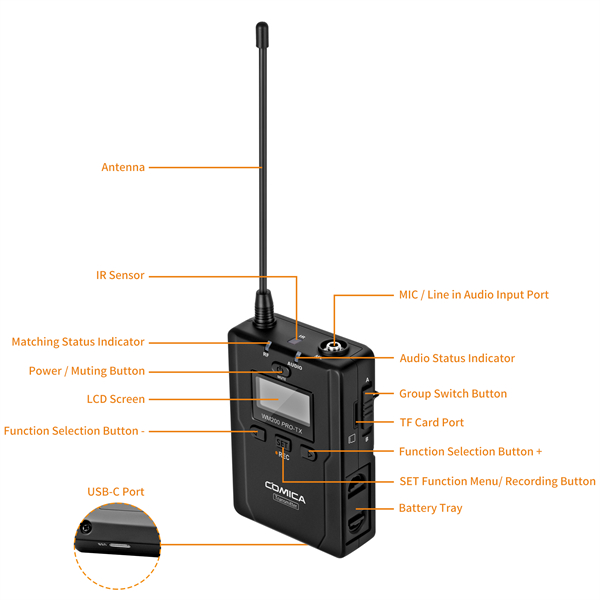

Lavalier Transmitter (TX)
Group A Wireless Frequency |
534.125MHz ~ 557.875MHz |
Group B Wireless Frequency |
566.125MHz ~ 589.875MHz |
Transmit Power |
15dBm/10dBm |
Antenna |
1/4 Wavelength Wire Antenna |
Signal/Noise |
70dB |
Equivalent Noise |
24dBA |
Sound Pressure Level |
100dB |
Low Cut |
80Hz / 160Hz |
Sound Delay |
<20ms |
Audio Distortion |
<0.5% |
Power Consumption |
660mW in High RF Mode 430mW in Low RF Mode |
Battery |
AA Batteries x 2pcs |

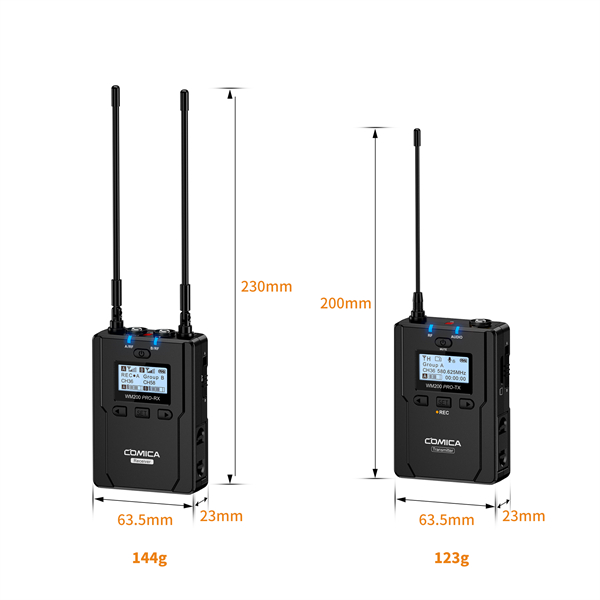

Dimension |
84 x 63.5 x 23mm |
Weight |
125g |
Operating Temperature |
0℃ ~ 50 ℃ |
Storage Temperature |
-20 ℃ ~ 60 ℃ |

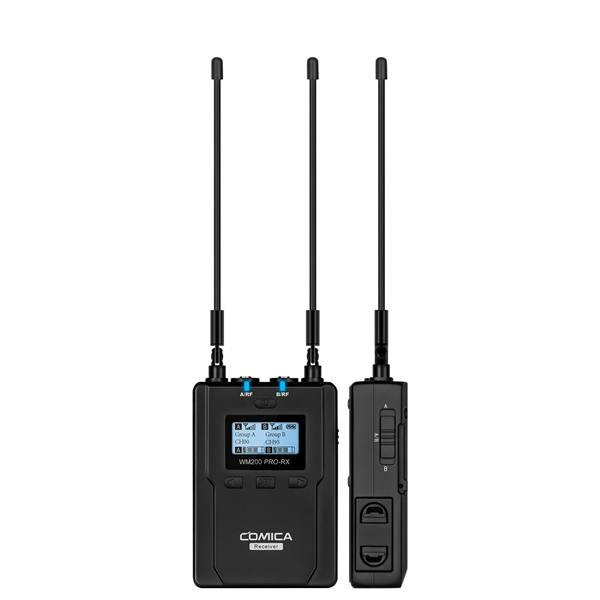

Receiver (RX)
Group A Wireless Frequency |
534.125MHz ~ 557.875MHz |
Group B Wireless Frequency |
566.125MHz ~ 589.875MHz |
Receiving Sensitivity |
<-93dBm |
Antenna |
1/4Wavelength Wire Antenna |
Signal/Noise |
70dB |
Equivalent Noise |
24dBA |
Sound Delay |
<20ms |
Audio Distortion |
<0.5% |
Power Consumption |
660mW in Dual-channel Mode 430mW in Single Channel Mode |
Battery |
AA Batteries x 2pcs |
Dimension |
84 x 63.5 x 23mm |
Weight |
145g |
Operating Temperature |
0℃ ~ 50 ℃ |
Storage Temperature |
-20 ℃ ~ 60 ℃ |

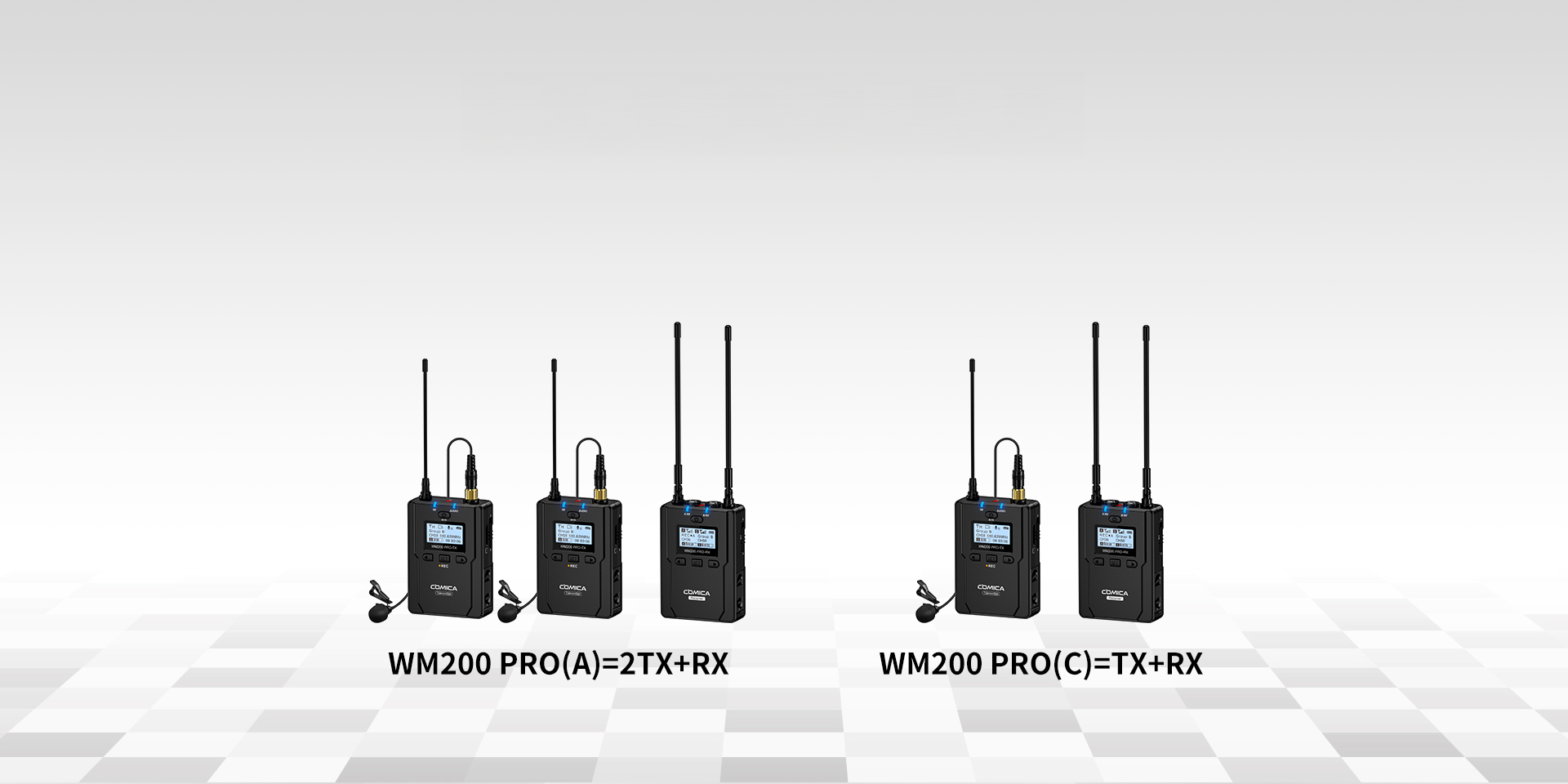

WM200 PRO
User Manual(EN) User Manual(CN)
