● Dual-channel Wireless Microphone, One Touch to Switch A/B/A+B Group
● 96 Channels for Multiple Devices Working Together
● 180° Rotatable Antenna, Working Distance Up to 120m(Open Area)
● Support Auto-scanning/Manual Channel-setting and Infrared Pairing
● M/S Switch, Low Cut, Mute, 16-level Volume Adjustment, etc.
● Low-consumption, Adjustable RF Signal Strength, Super-long Standby Time
● Support USB-C Interface/AA Battery for External Power Supply

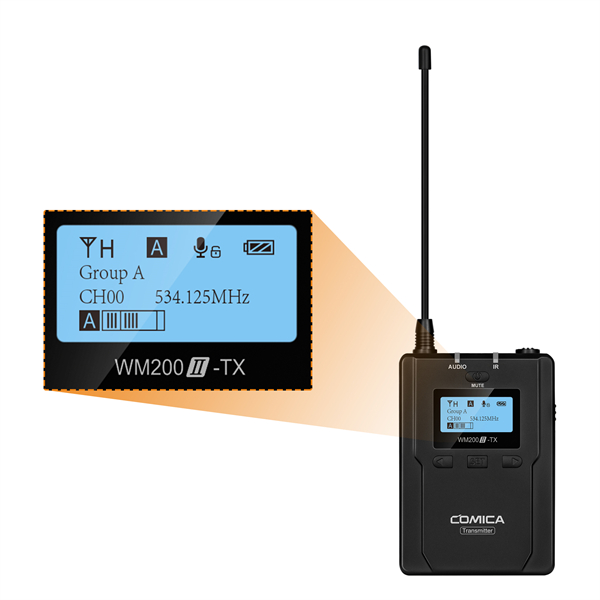

● LCD Screen for Intuitive Operation and Usage
● Full Metal Manufacturing, Excellent Shielding

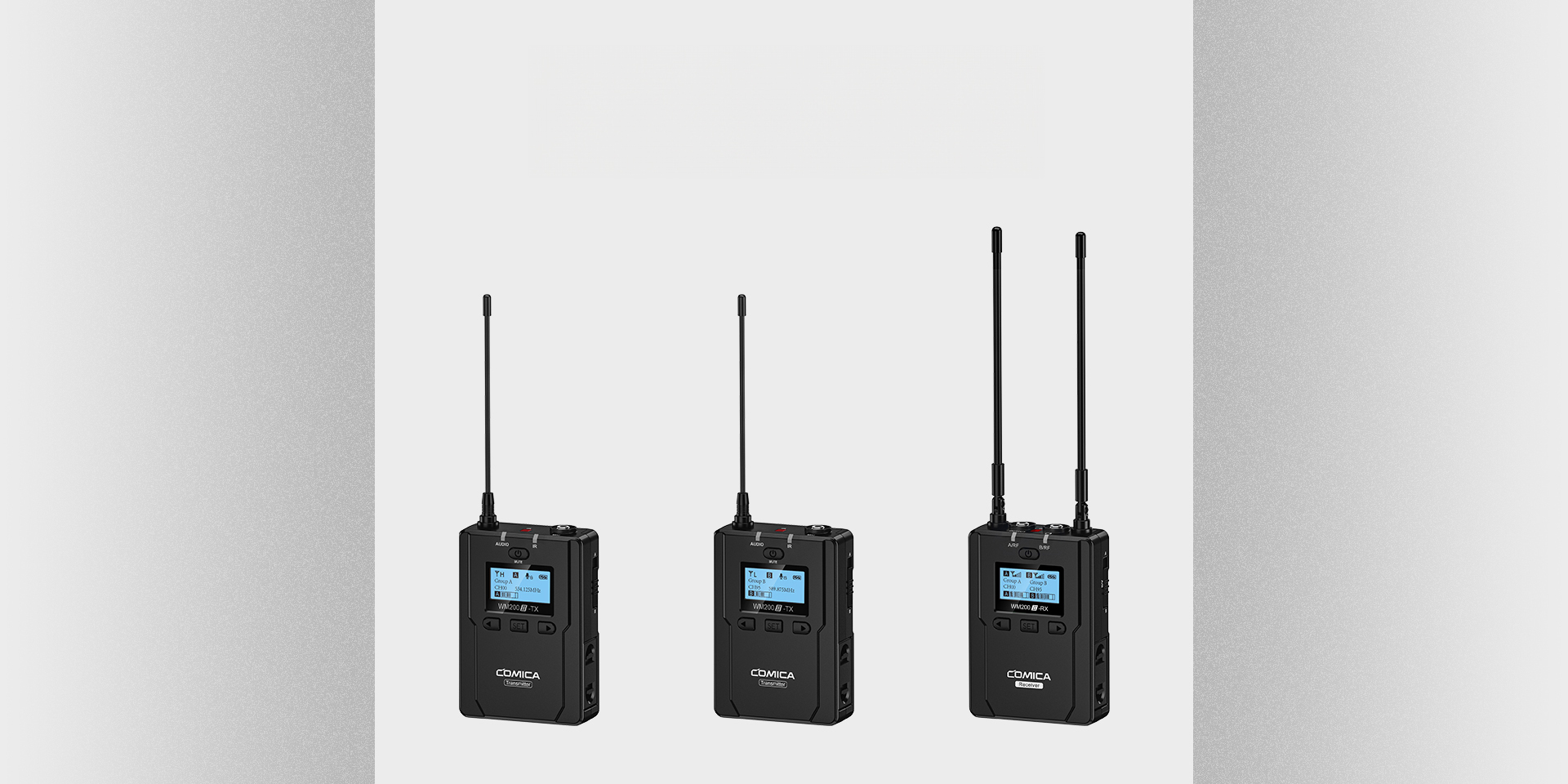

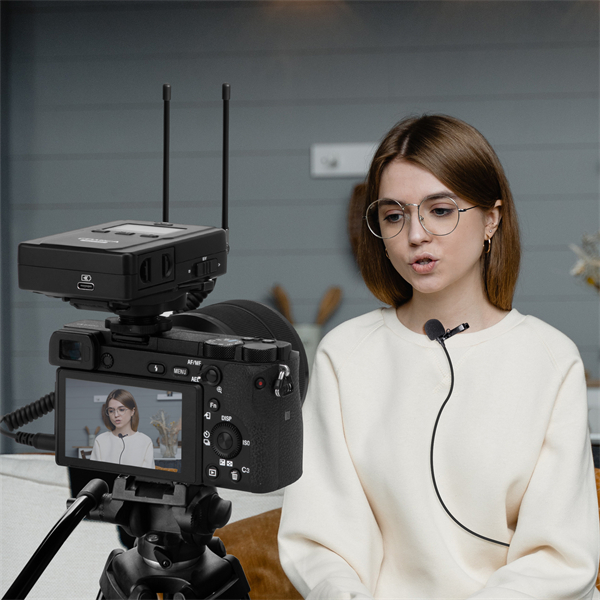

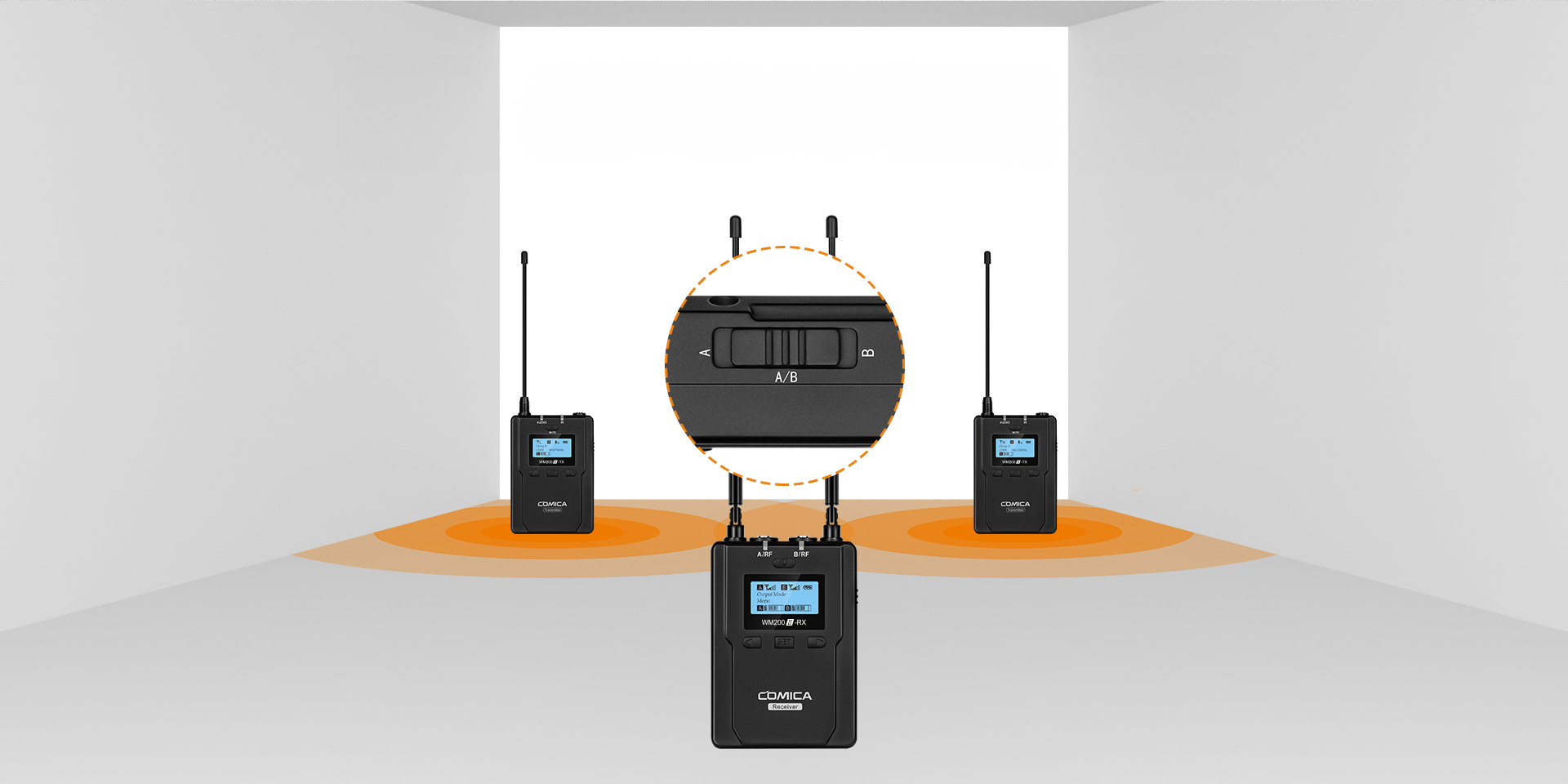

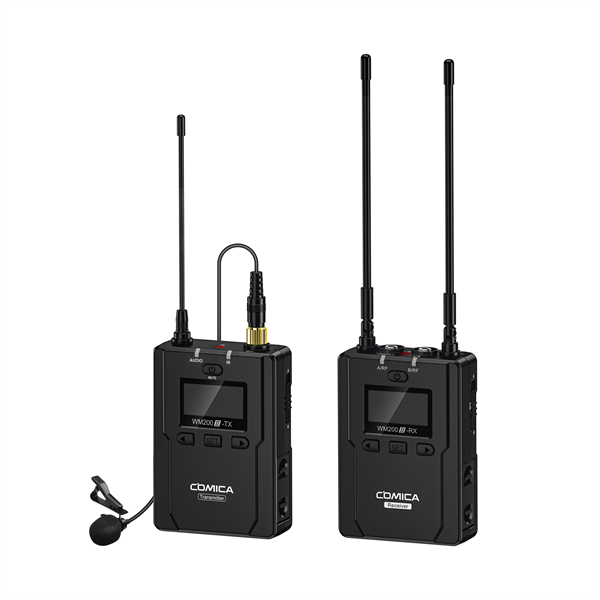

Dual-channel wireless microphone system for recording two sound sources simultaneously and quick A/B/A+B Group Switch

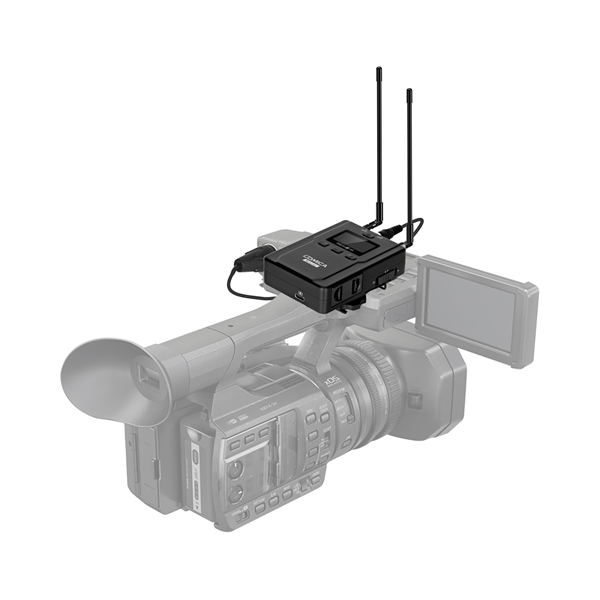

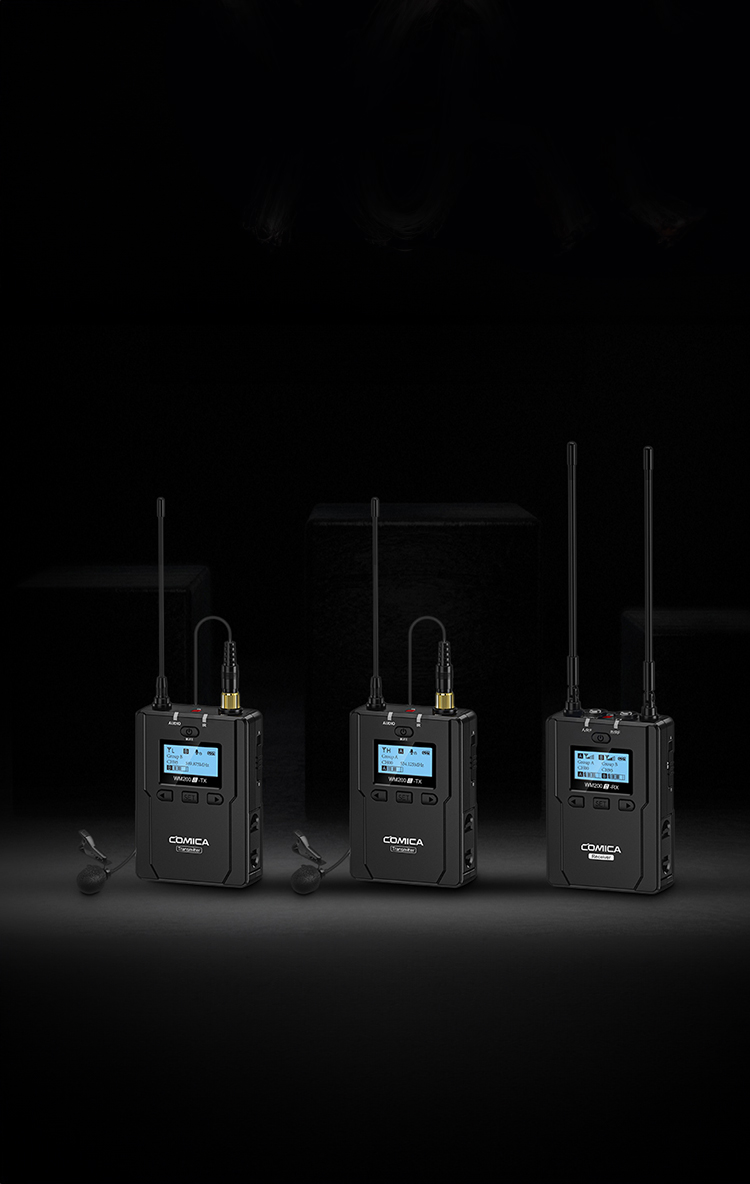

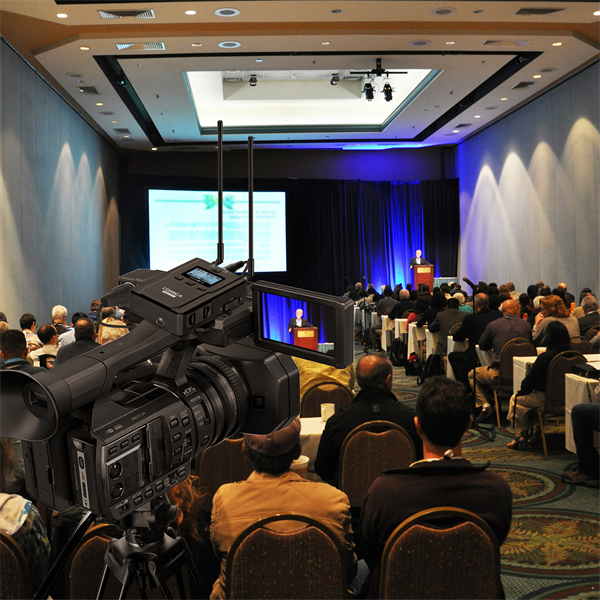

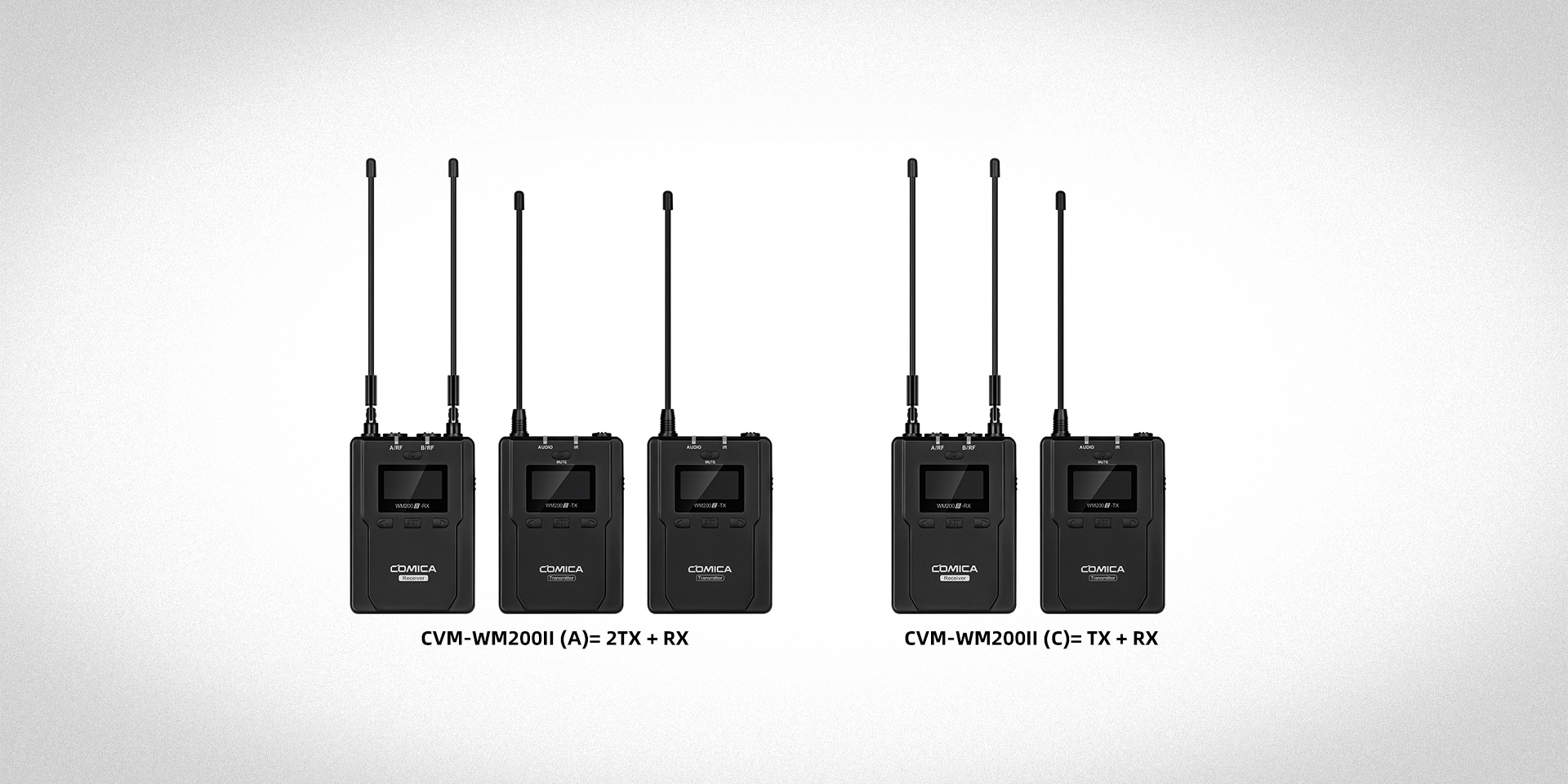

Support “One Transmitter to Multi-receiver”: It can realize multi-camera shooting and multi-person monitoring in real timeSupport “Multi-transmitter to Multi-receiver”: Support multiple WM200Ⅱ to be used simultaneously and applied to record multiple sound sources at the same time to achieve diversified shooting

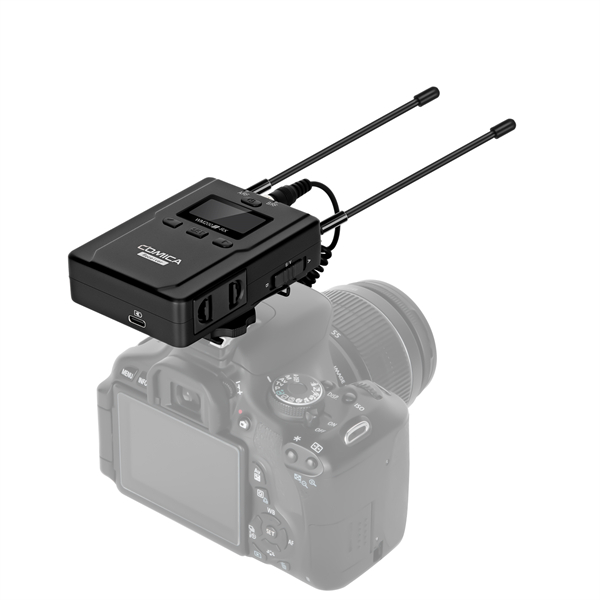

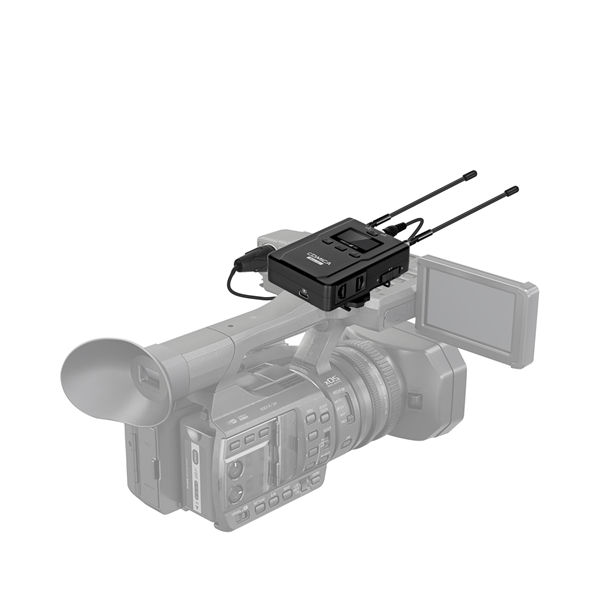

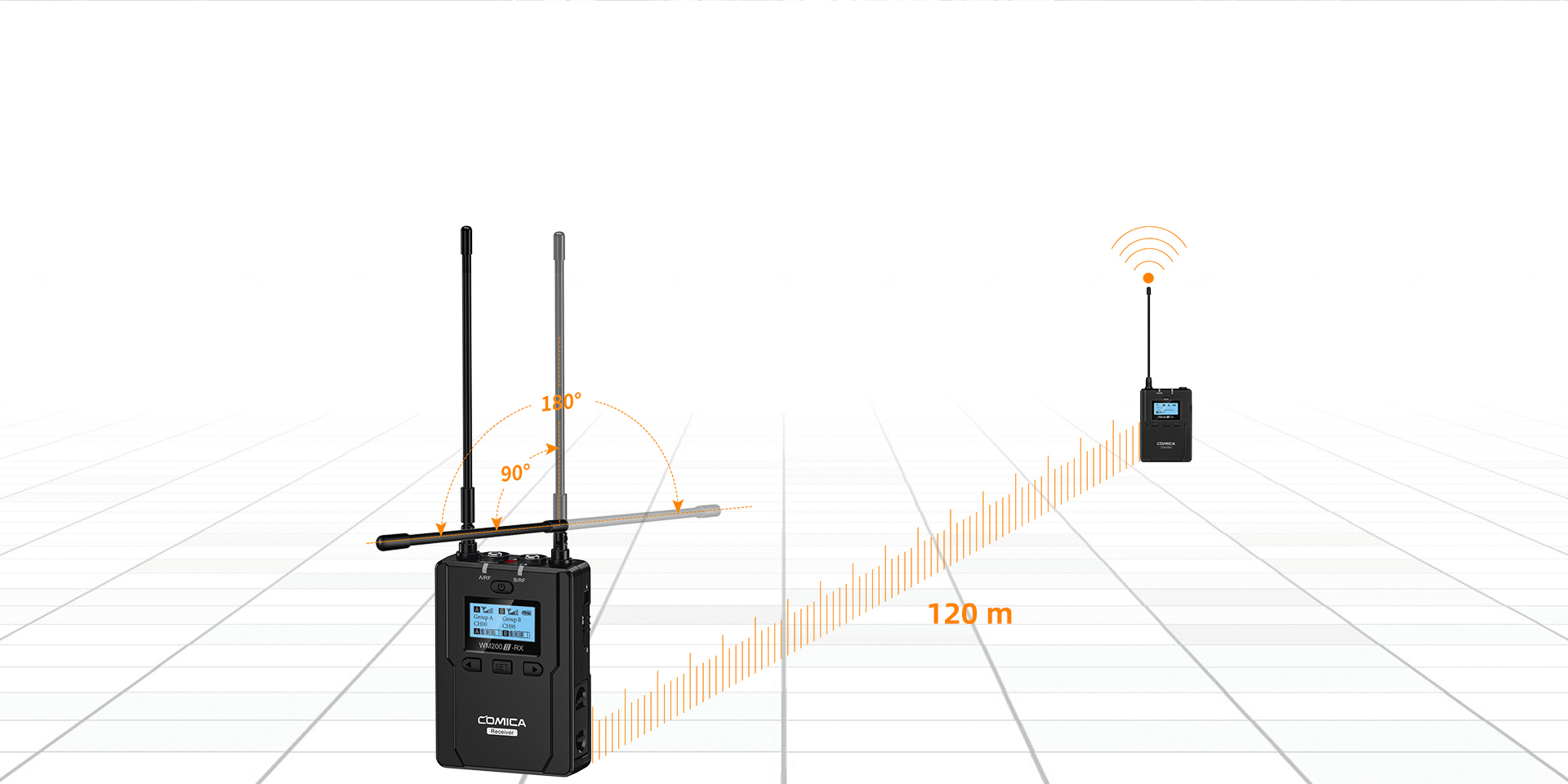

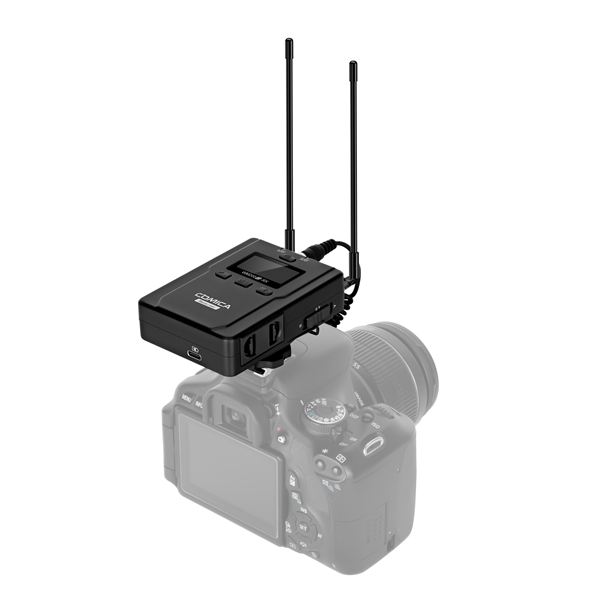

The receiver’s antenna can be rotated; Rotating to 90° is the best angle for stable signal transmission

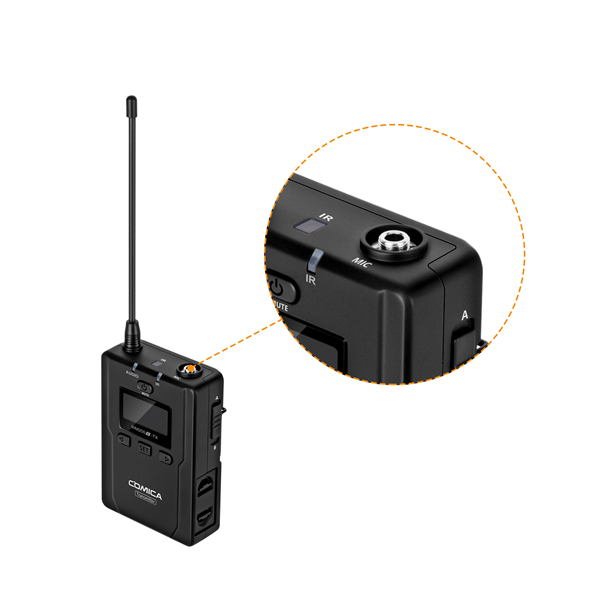

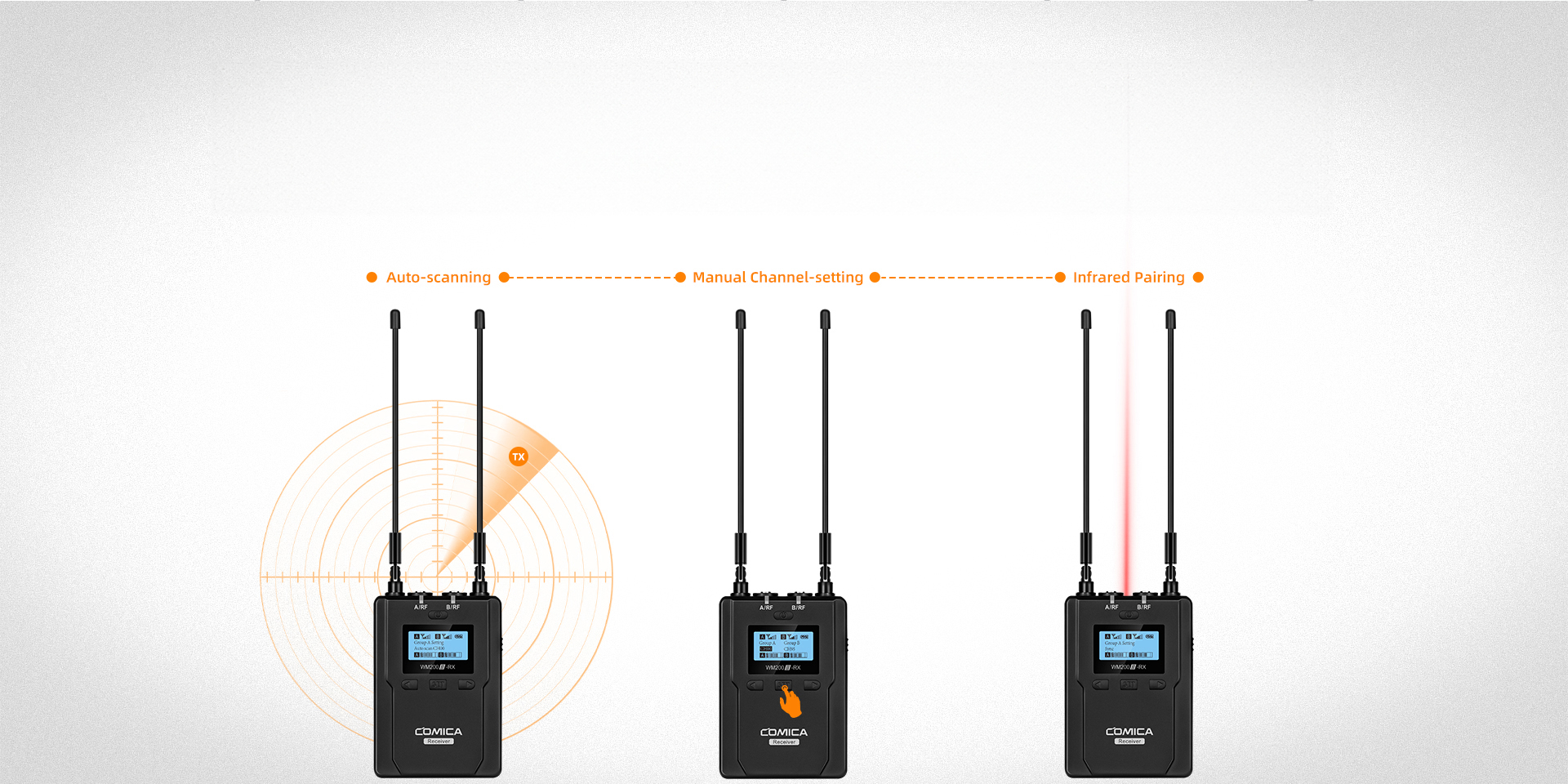

Auto-scanning can help you automatically select the best channel. It is used in most scenarios, such as “Multi-transmitter to One Receiver”Manual Channel-setting can allow you to manually select the channel you want. It is mostly used in the scenes of “One Transmitter to Multi-receiver” or “Multi-transmitter to Multi-receiver”Infrared Pairing: Keep the transmitter and receiver's IR sensor being closely aligned to complete the pairing

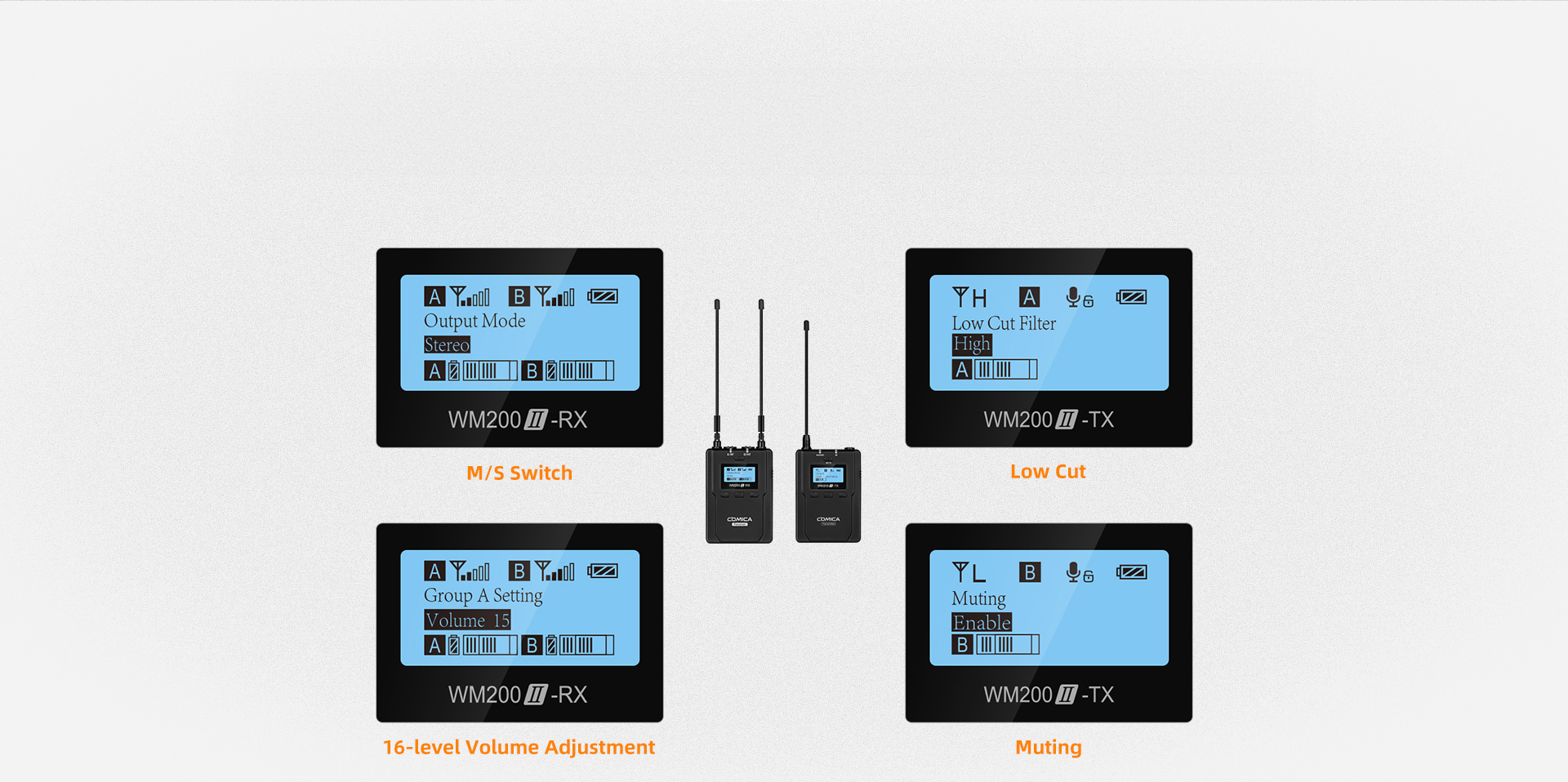

Mono/Stereo output options for post-production; One-button to filter out low-frequency sound; Adjustable gain control to meet various needs; Muting function to handle streaming/recording and other on-site emergencies

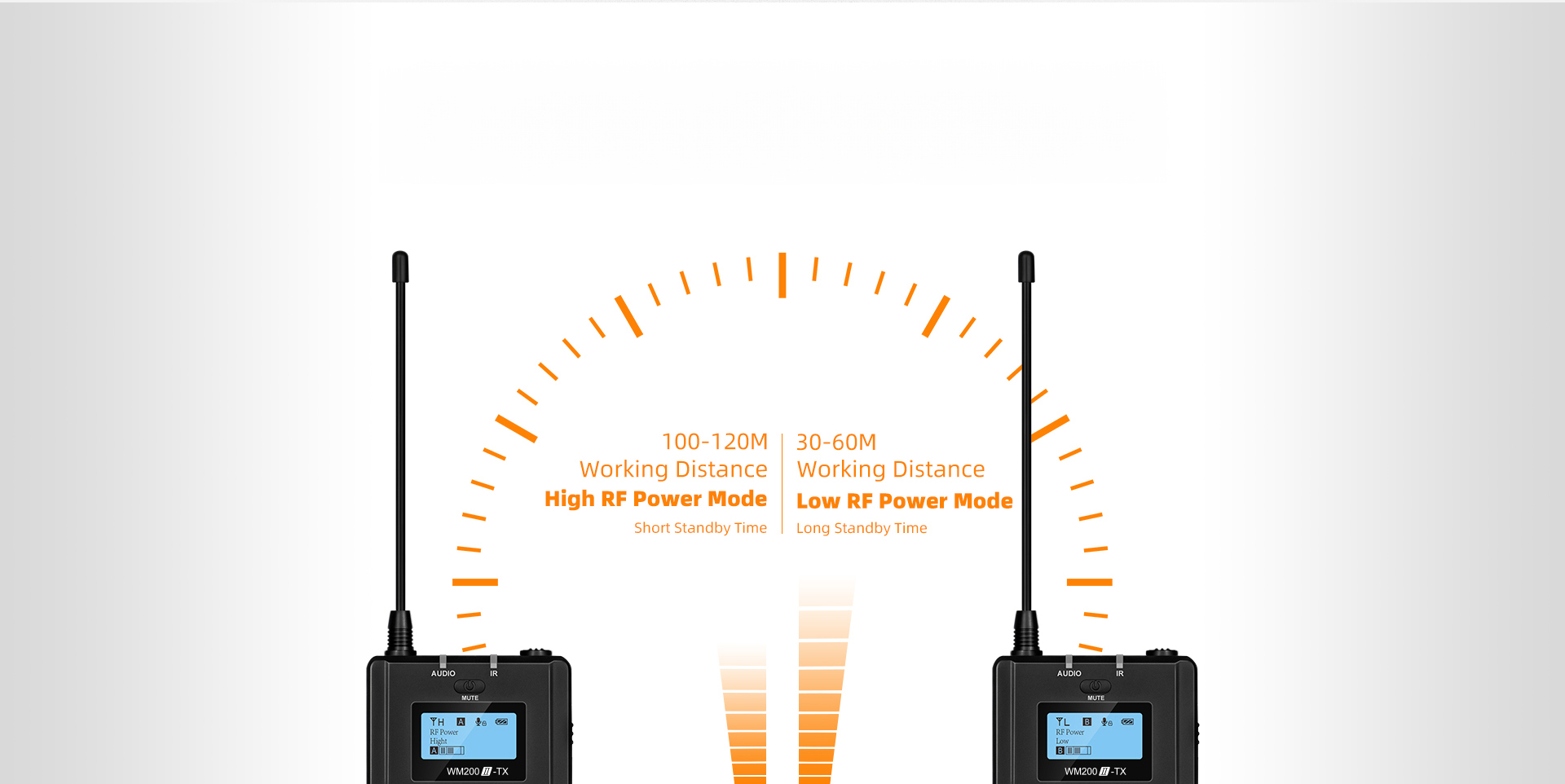

High RF Power Mode: With 100-120M working distance, high power consumption and short standby timeLow RF Power Mode: With 30-60M working distance, low power consumption and long standby time

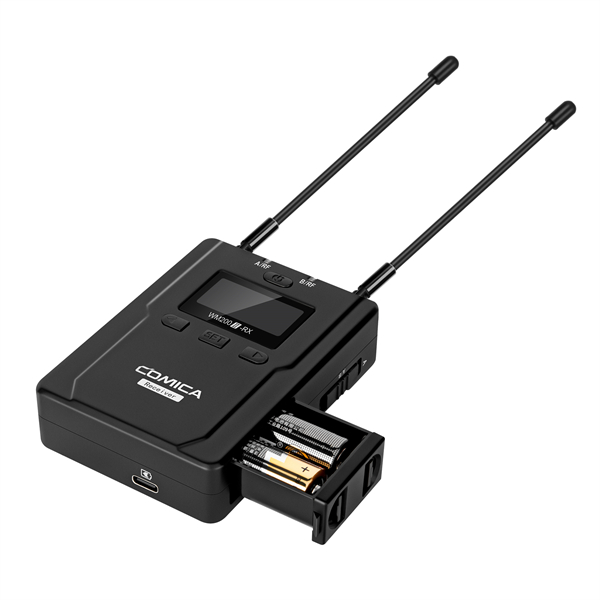

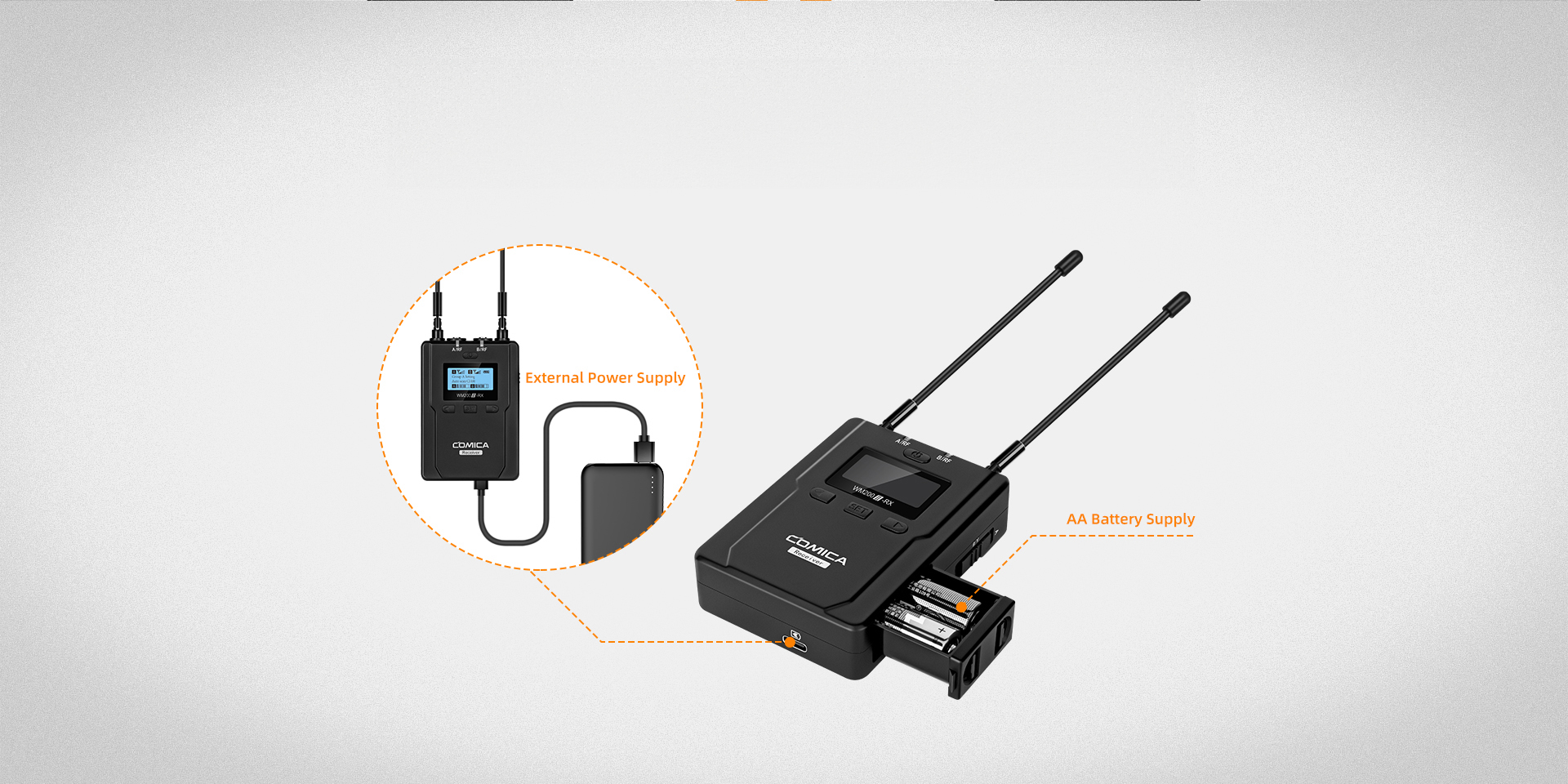

Flexible choice of two power supply solutions; Replace AA battery at any time to facilitate power supply; Support USB-C interface to connect external power supply to meet the shooting needs of longer recording

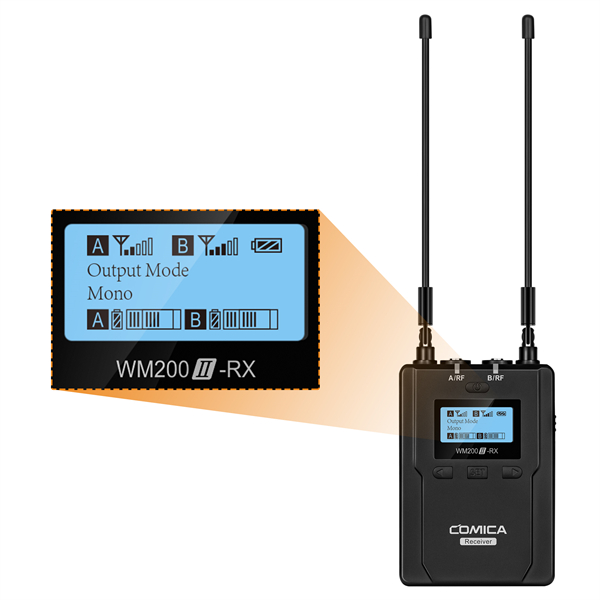

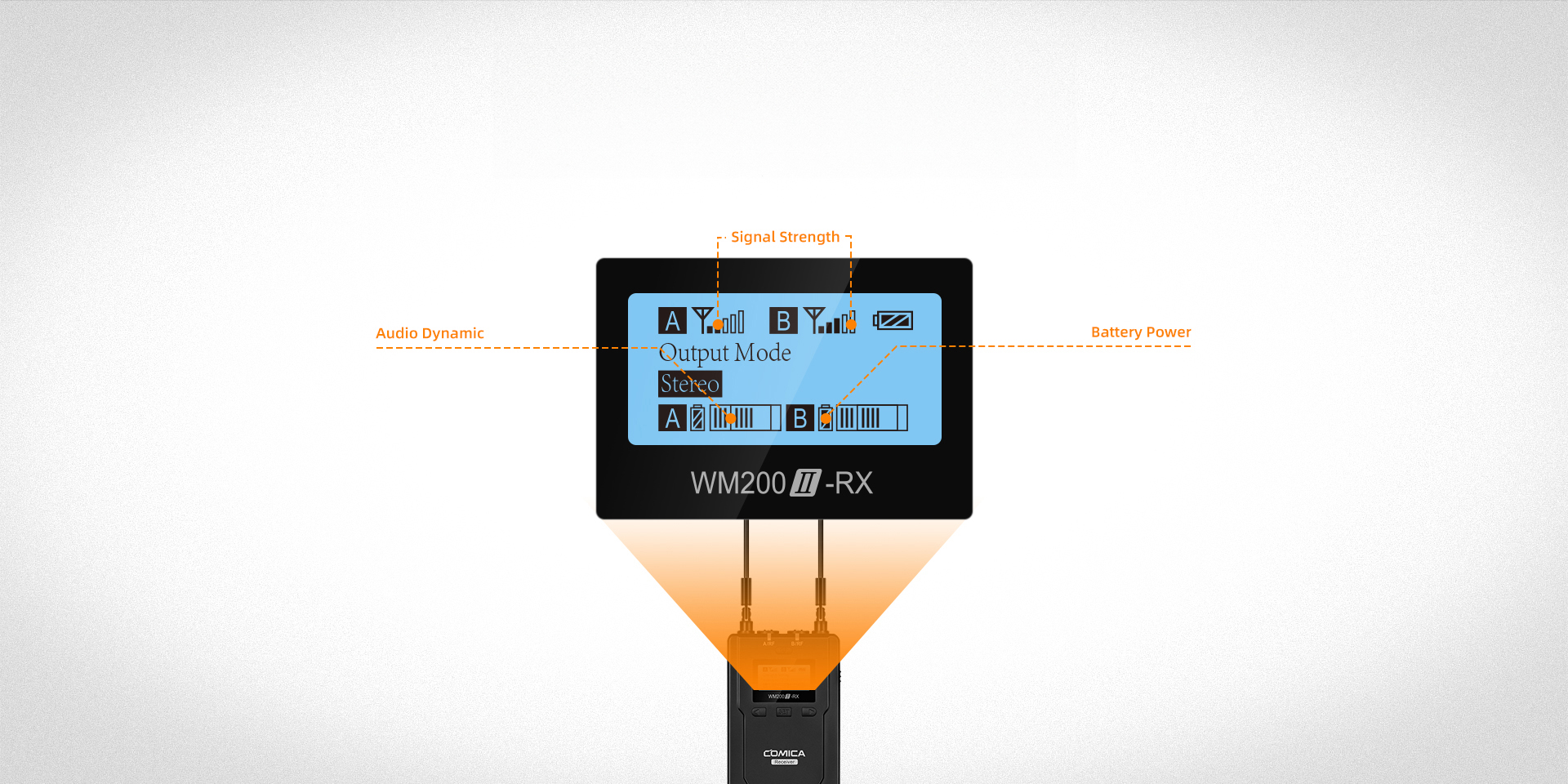

It can monitor power, audio dynamic and signal strength in real time
Full metal construction for better shielding, stable and durable

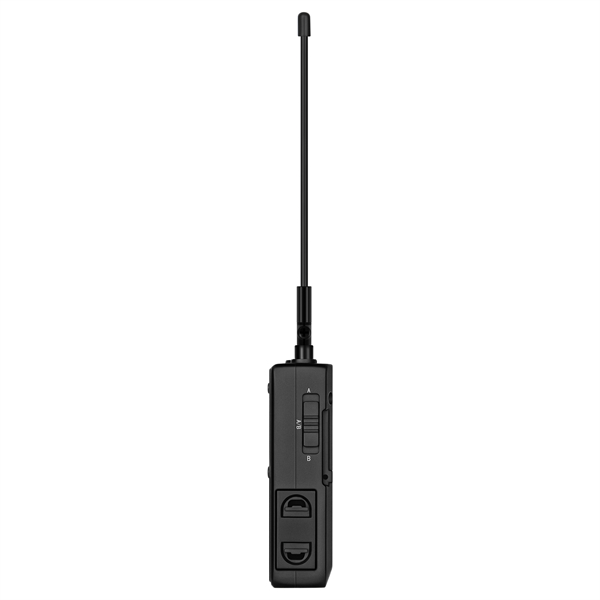

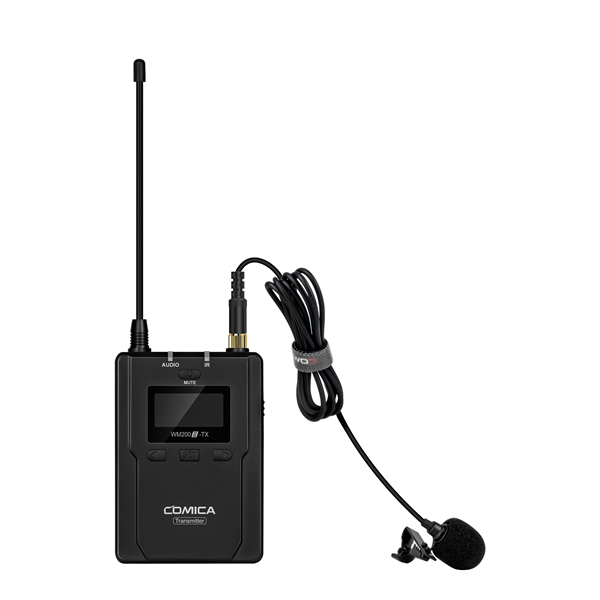

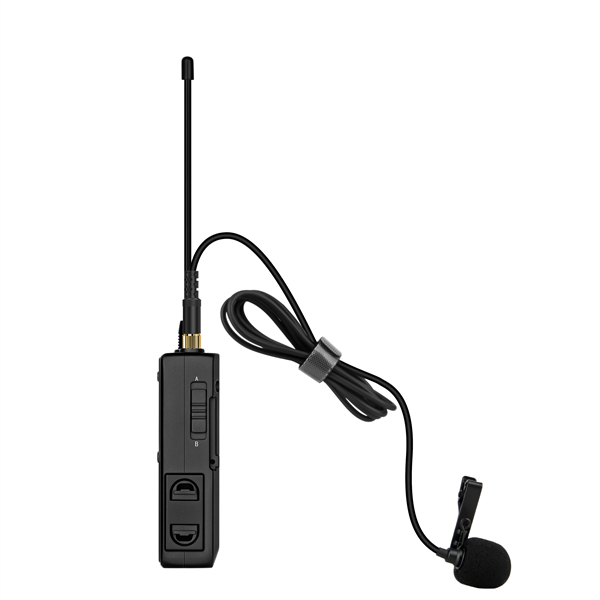

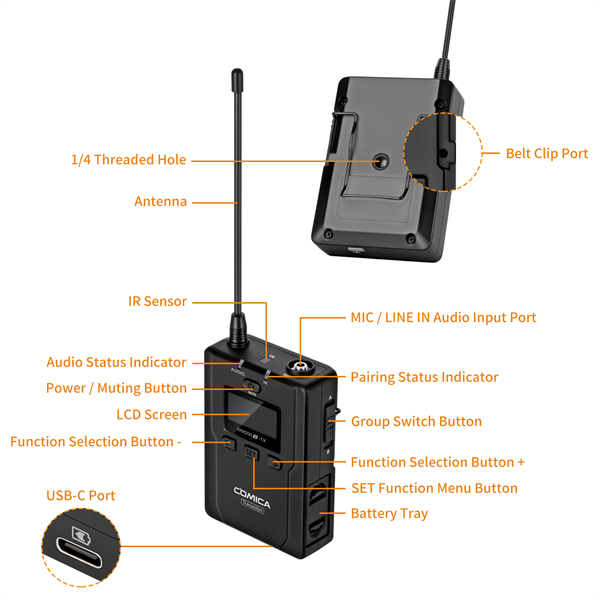

Lavalier Transmitter (TX)
Group A Wireless Frequency |
534.125MHz ~ 557.875MHz |
Group B Wireless Frequency |
566.125MHz ~ 589.875MHz |
Transmit Power |
15dBm/10dBm |
Antenna |
1/4 Wavelength Wire Antenna |
Signal/Noise |
70dB |
Equivalent Noise |
24dBA |
Sound Pressure Level |
100dB |
Low Cut |
80Hz / 160Hz |
Sound Delay |
<20ms |
Audio Distortion |
<0.5% |
Power Consumption |
550mW in High RF Mode 370mW in Low RF Mode |
Battery |
AA Batteries x 2pcs |
Dimension |
84 x 63.5 x 23mm |
Weight |
125g |
Operating Temperature |
0℃ ~ 50 ℃ |
Storage Temperature |
-20 ℃ ~ 60 ℃ |

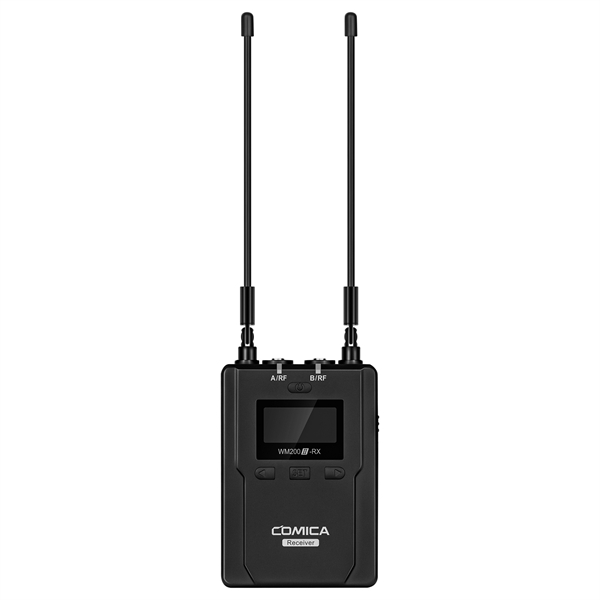

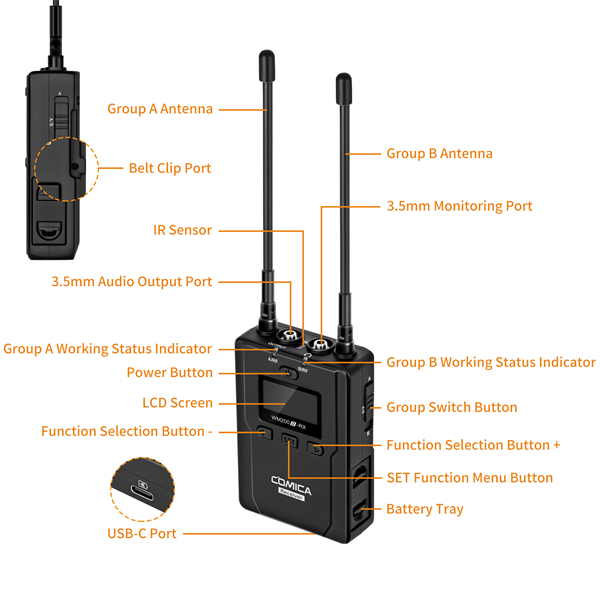

Receiver (RX)
Group A Wireless Frequency |
534.125MHz ~ 557.875MHz |
Group B Wireless Frequency |
566.125MHz ~ 589.875MHz |
Receiving Sensitivity |
<-93dBm |
Antenna |
1/4Wavelength Wire Antenna |
Signal/Noise |
70dB |
Equivalent Noise |
24dBA |
Sound Delay |
<20ms |
Audio Distortion |
<0.5% |
Power Consumption |
580mW in Dual-channel Mode 360mW in Single Channel Mode |
Battery |
AA Batteries x 2pcs |
Dimension |
84 x 63.5 x 23mm |
Weight |
145g |
Operating Temperature |
0℃ ~ 50 ℃ |
Storage Temperature |
-20 ℃ ~ 60 ℃ |
