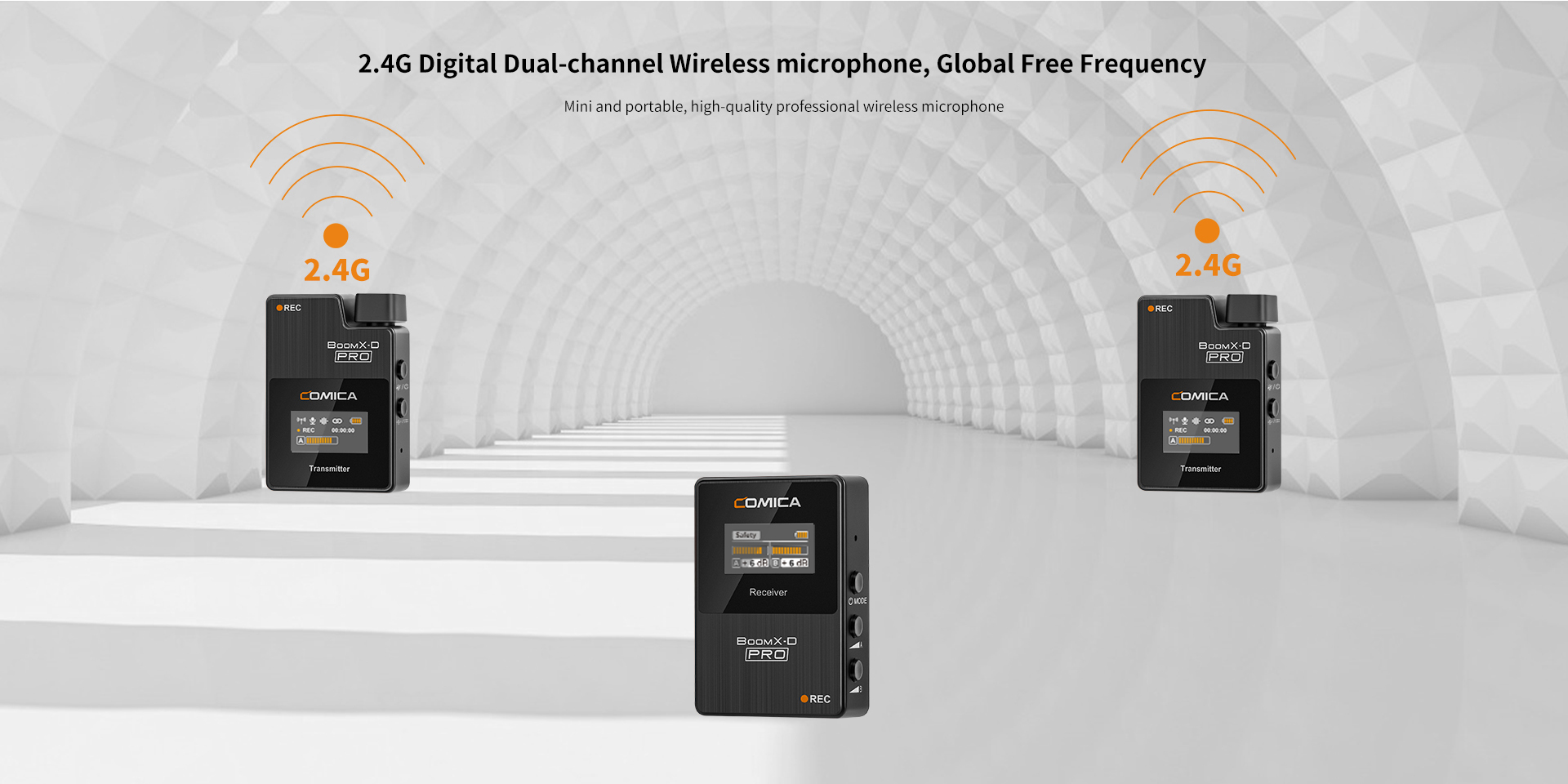

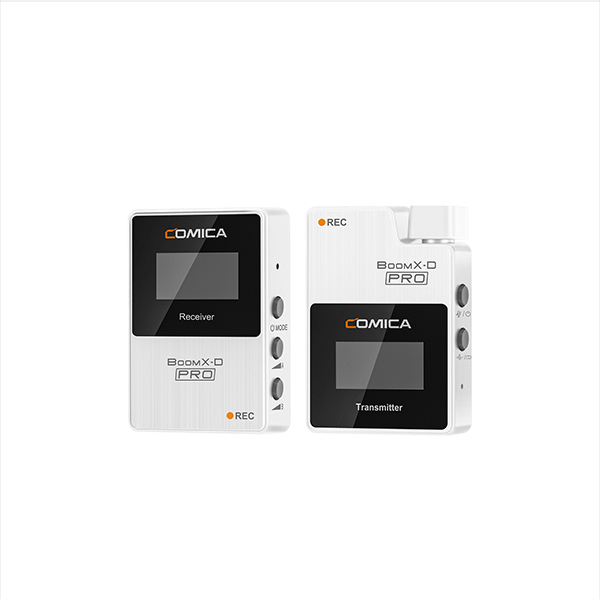

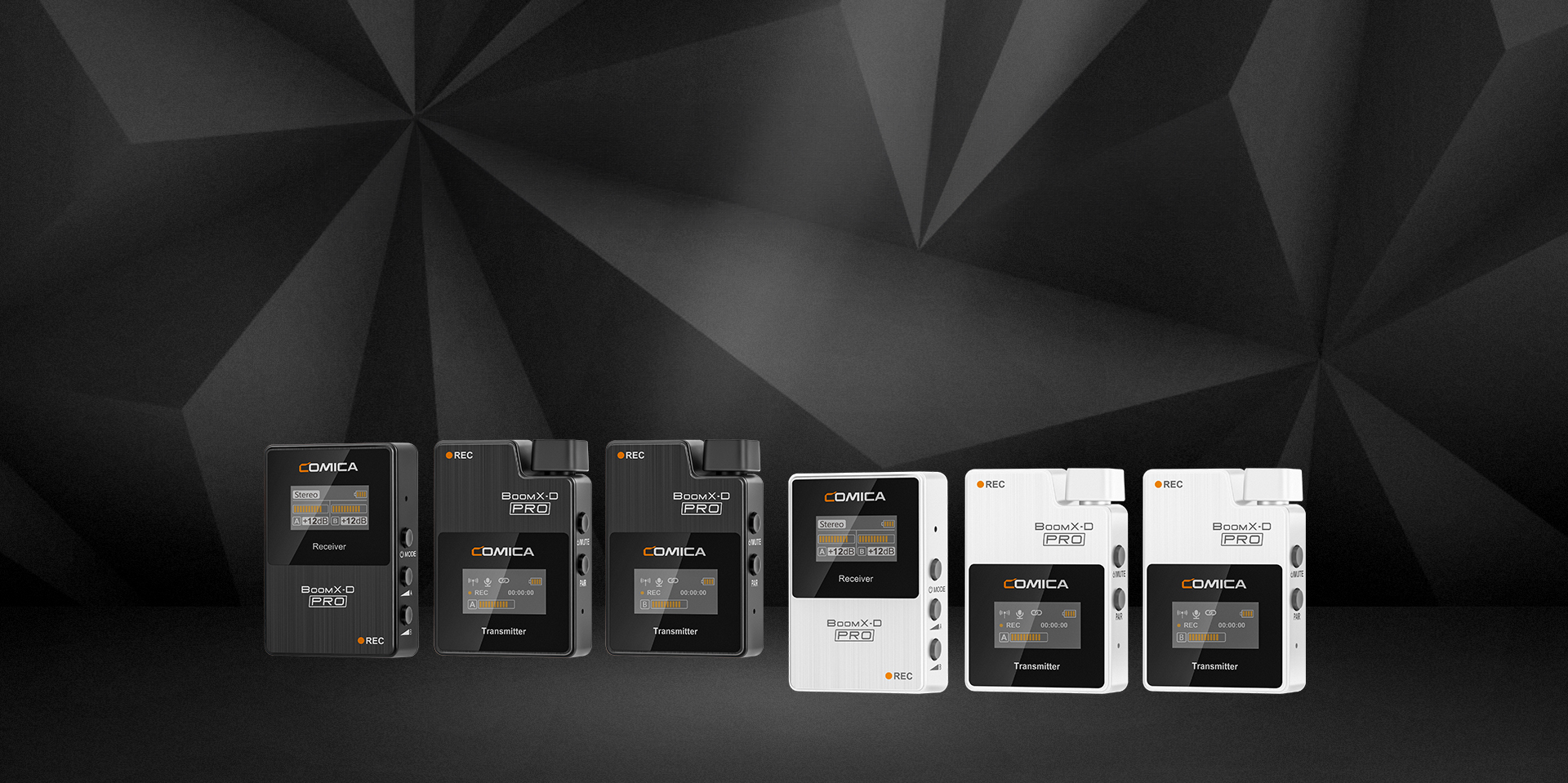

Mini and portable, high-quality professional wireless microphone
High sampling rate for better picking up high and low frequency audio signals, high sound reproduction

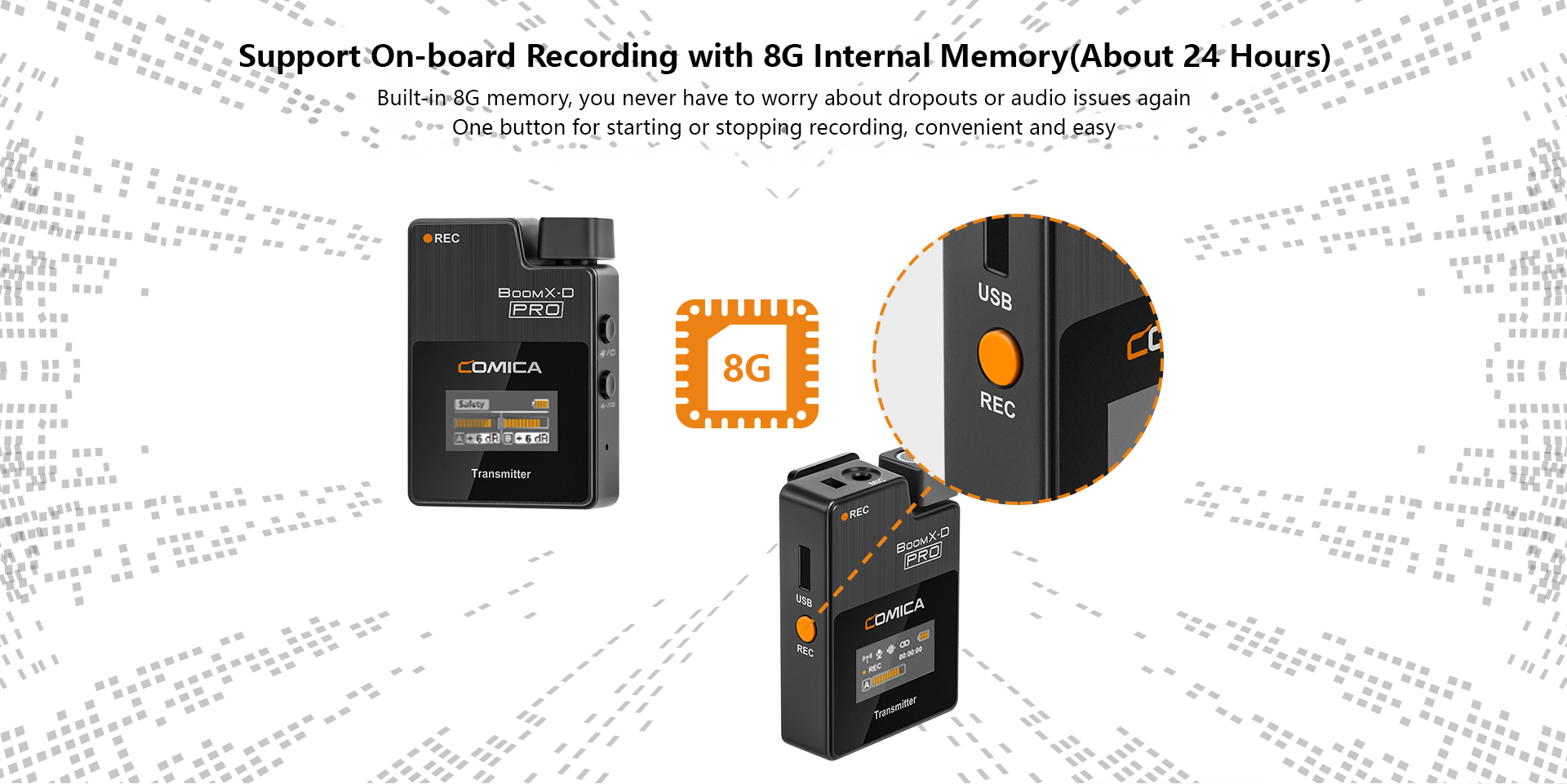

Built-in 8G memory, you never have to worry about dropouts or audio issues again; one button for starting or stopping recording, convenient and easy

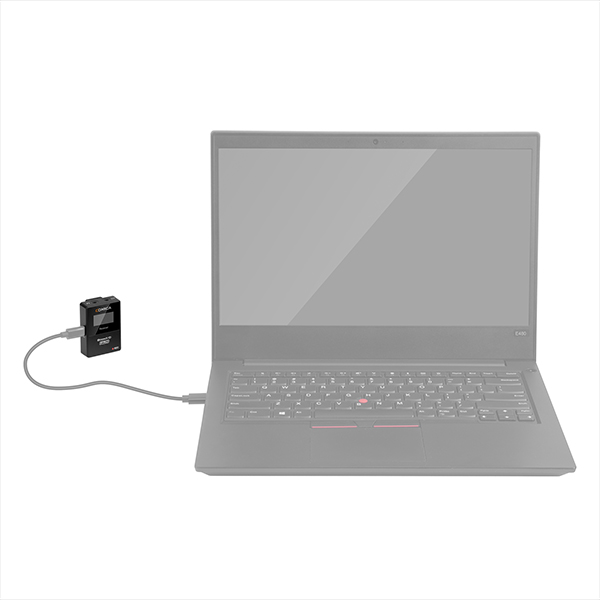

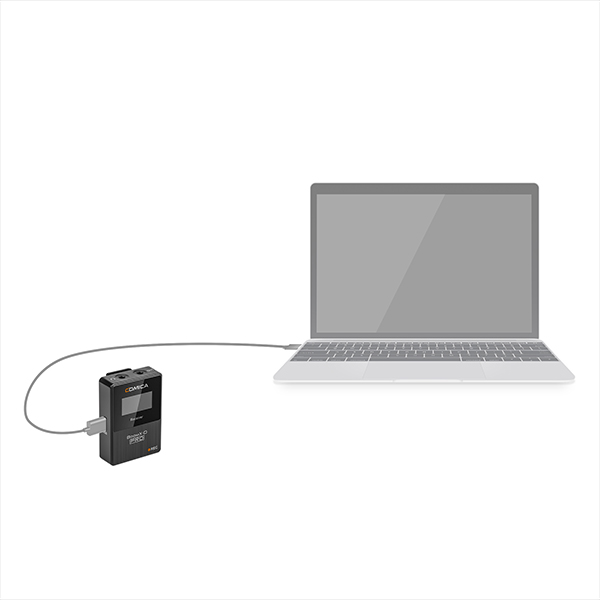

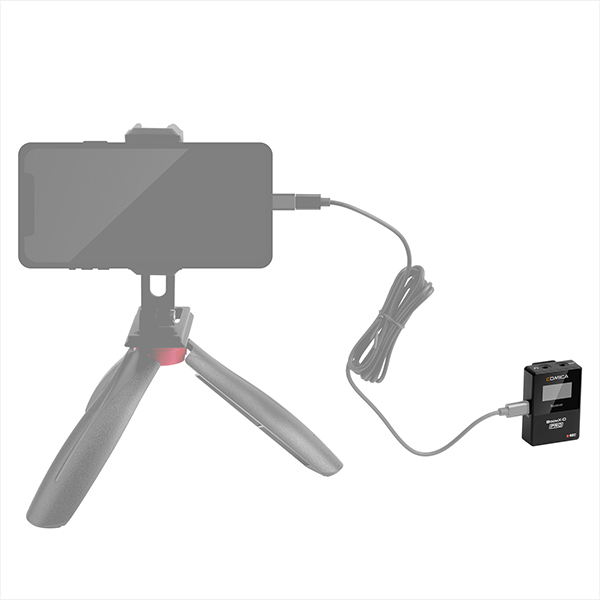

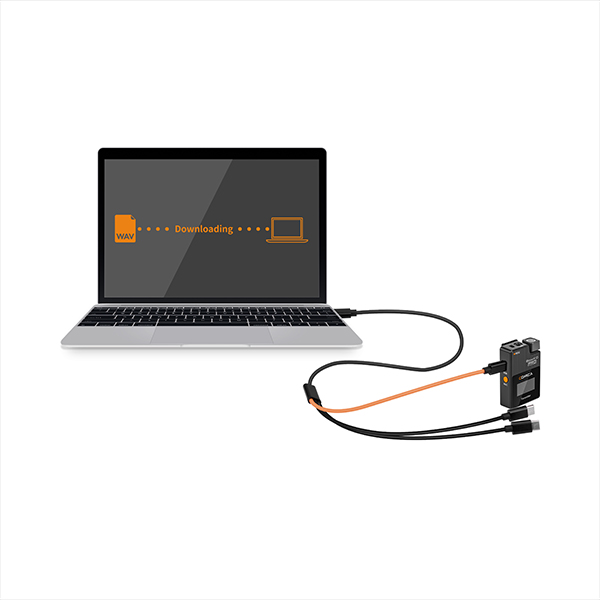

The recording file can be transmitted via USB-C interface of the transmitter

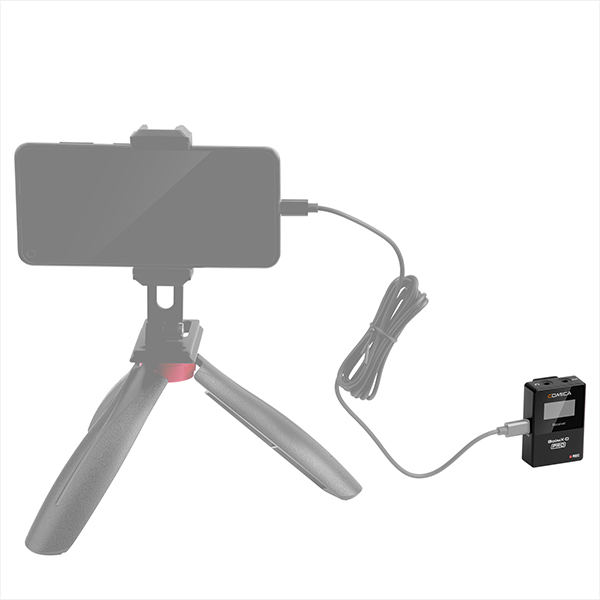

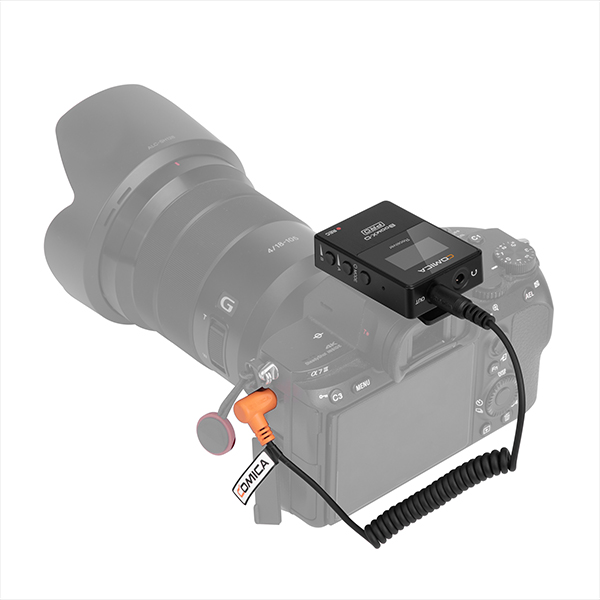

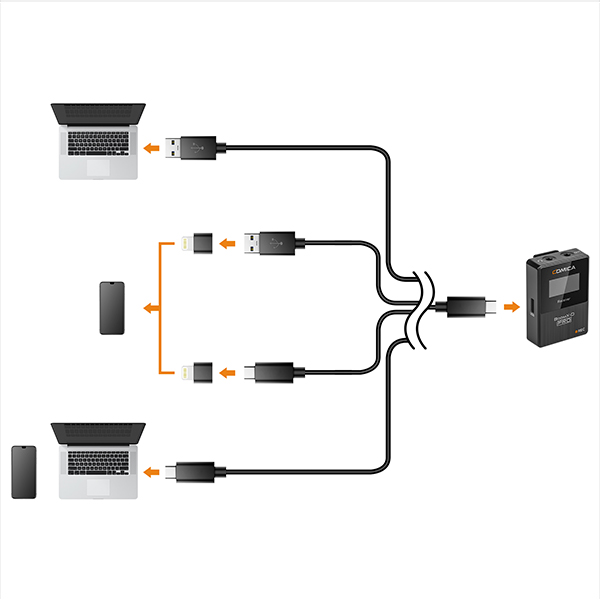

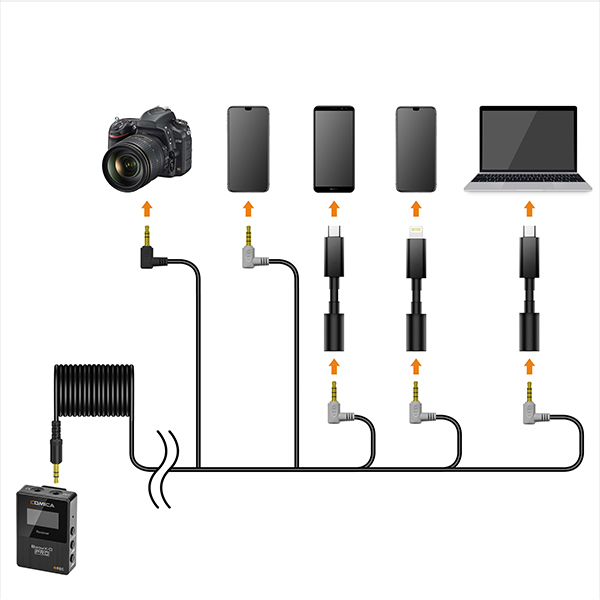

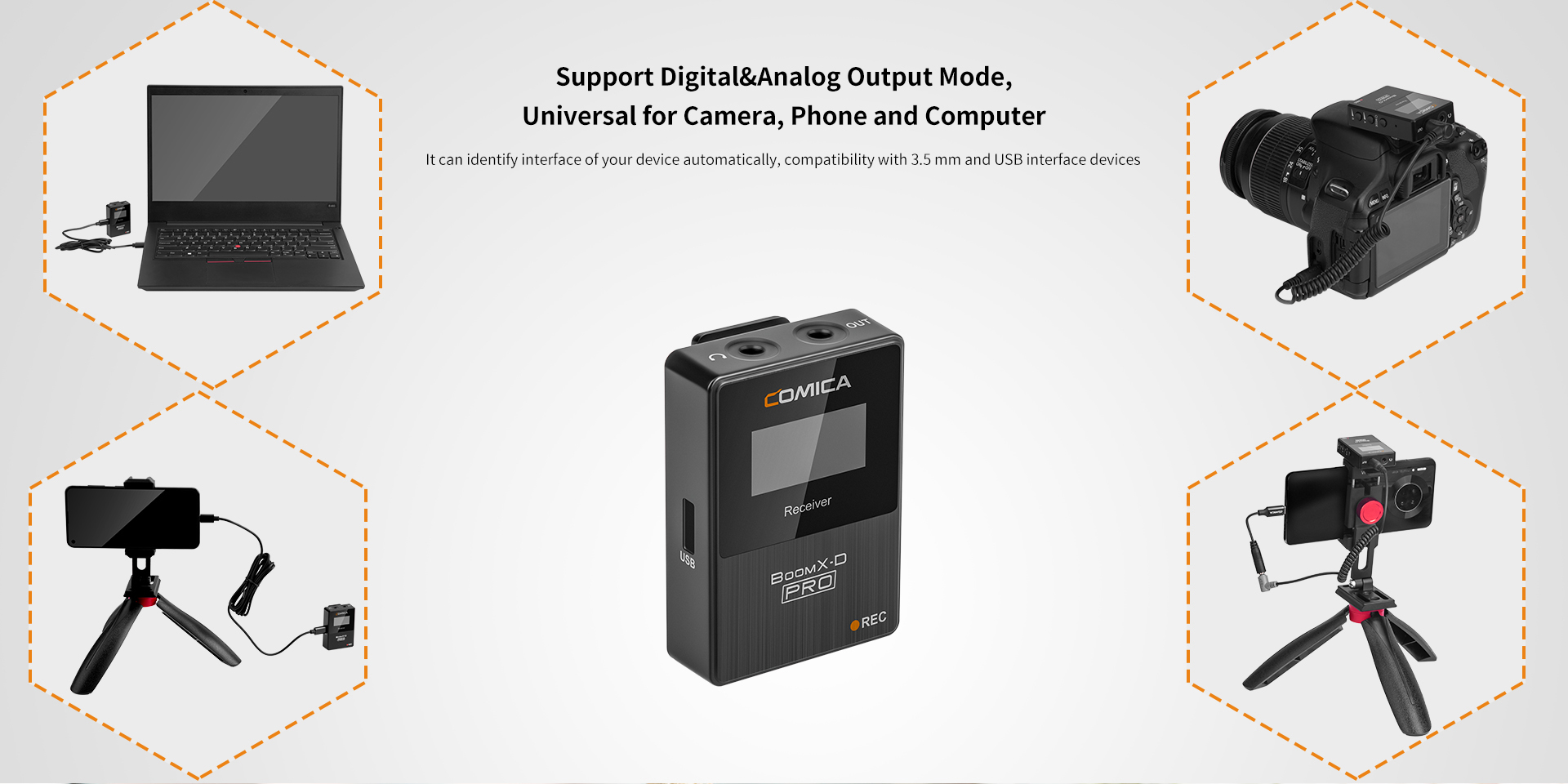

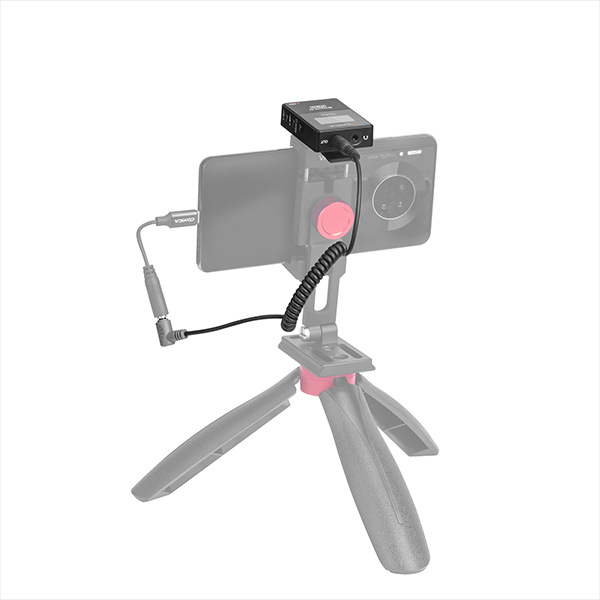

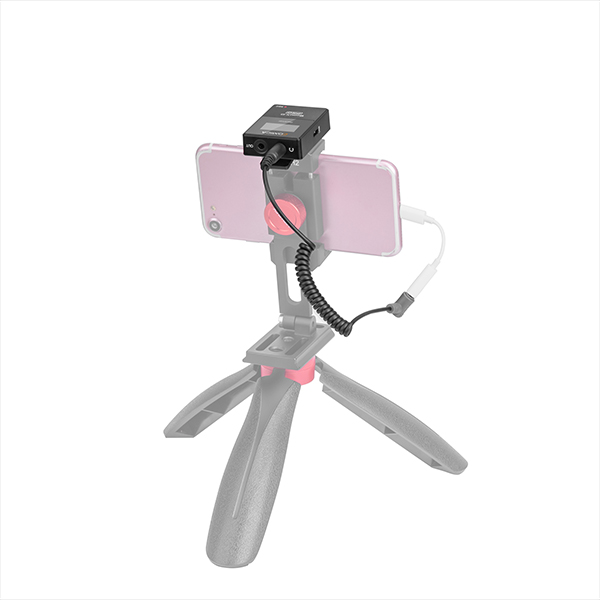

It can identify interface of your device automatically, compatibility with 3.5 mm and USB interface devices
Records a second track at -6dB to avoid peak audio and invalid recording

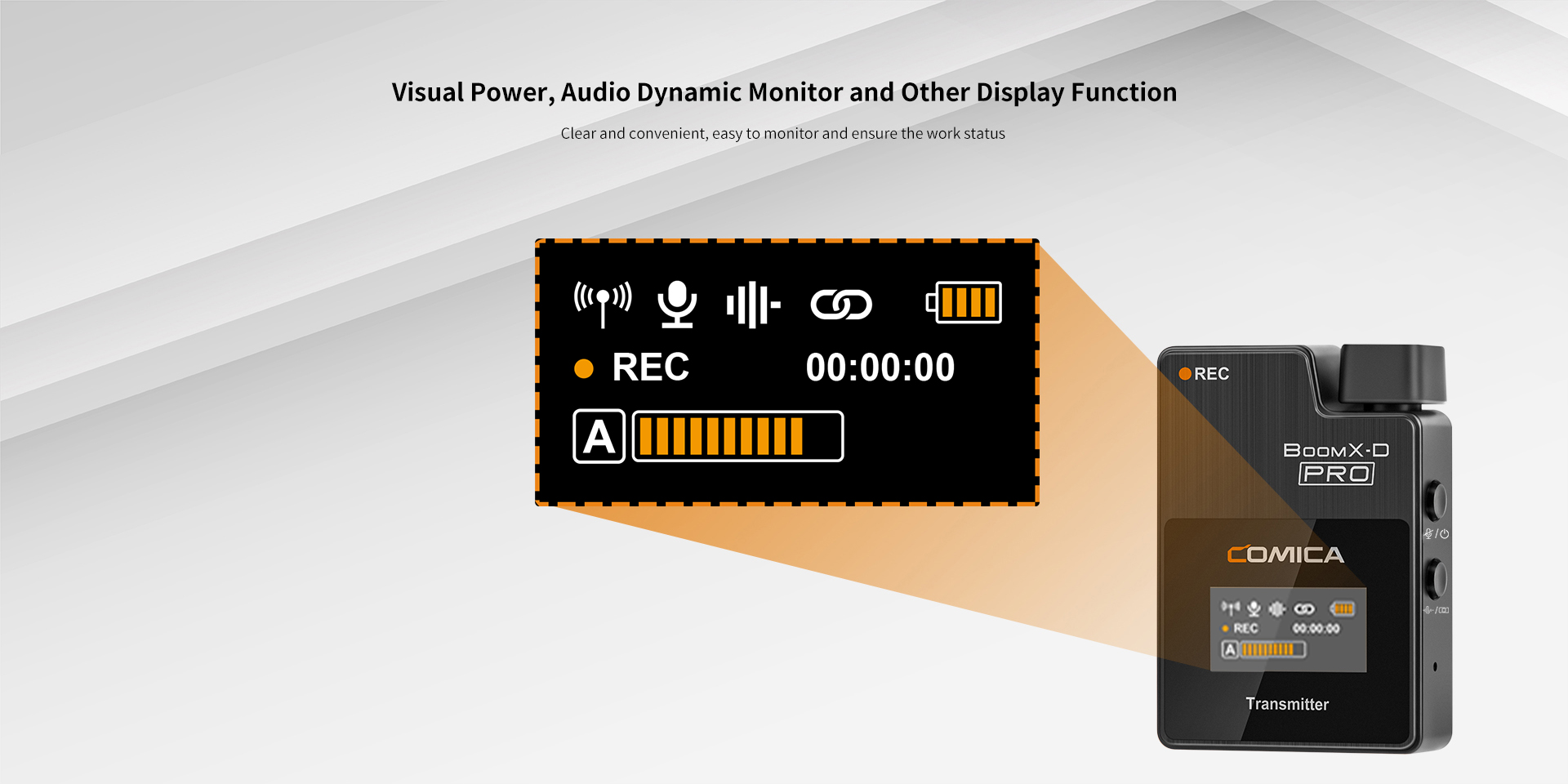

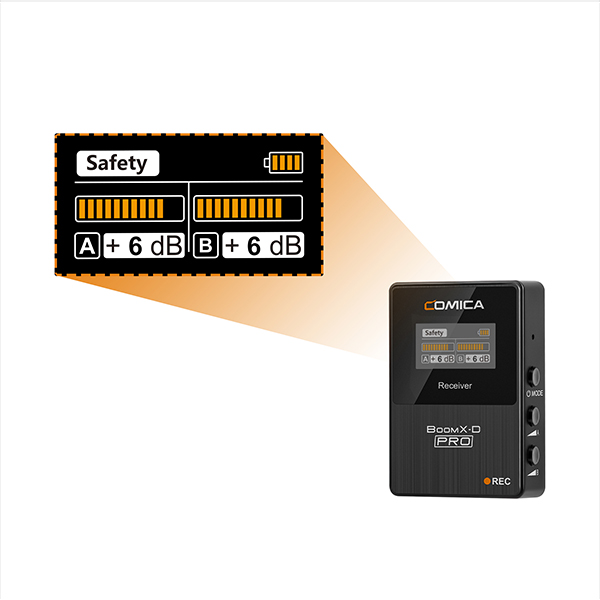

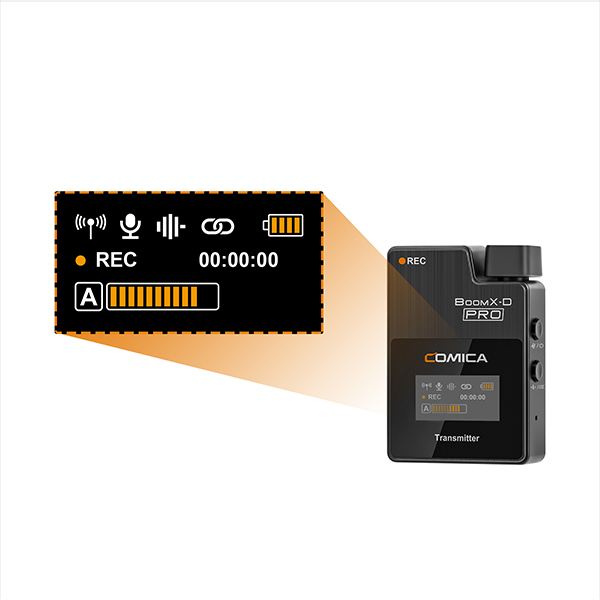

Clear and convenient, easy to monitor and ensure the work status

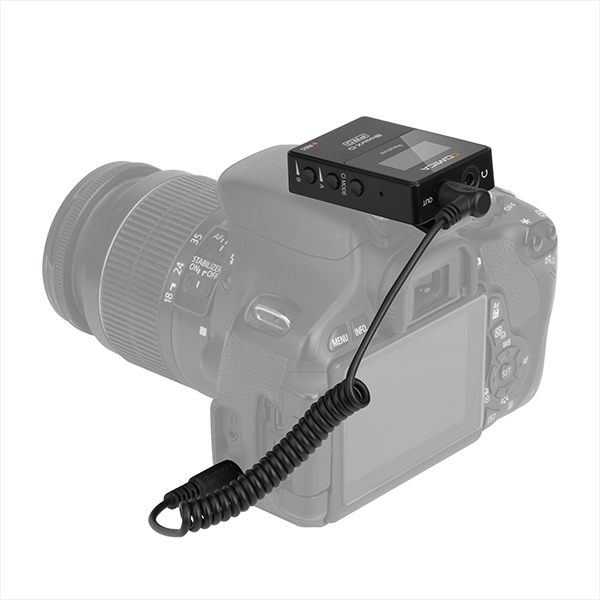

You can according to the environment to choose output mode

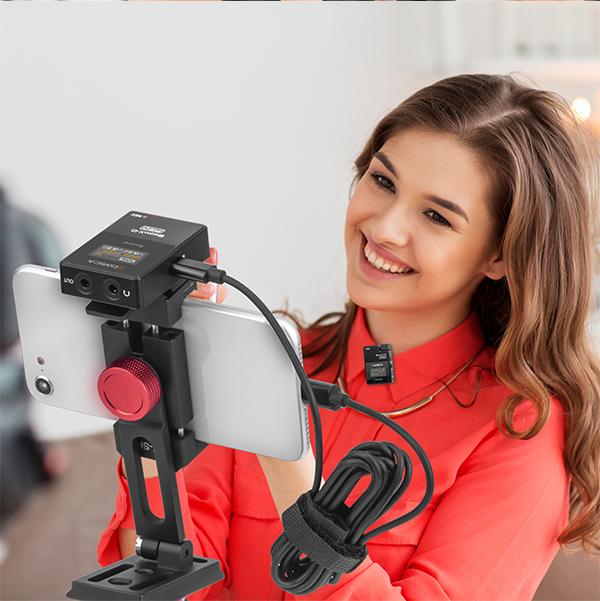

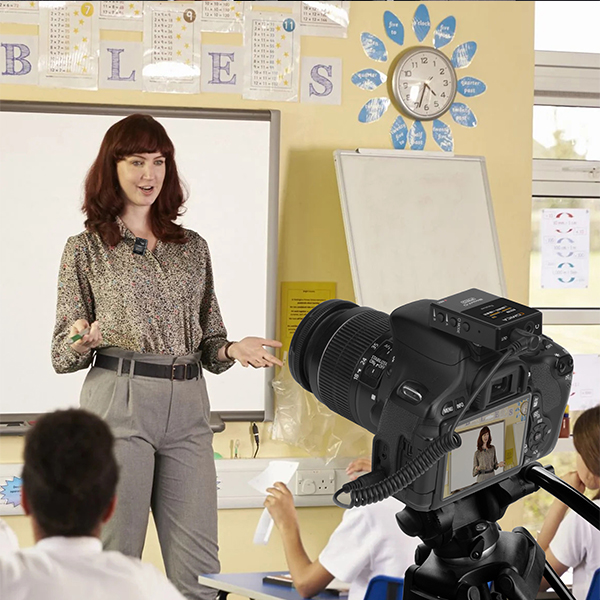

Flexible use with input modes in different scene

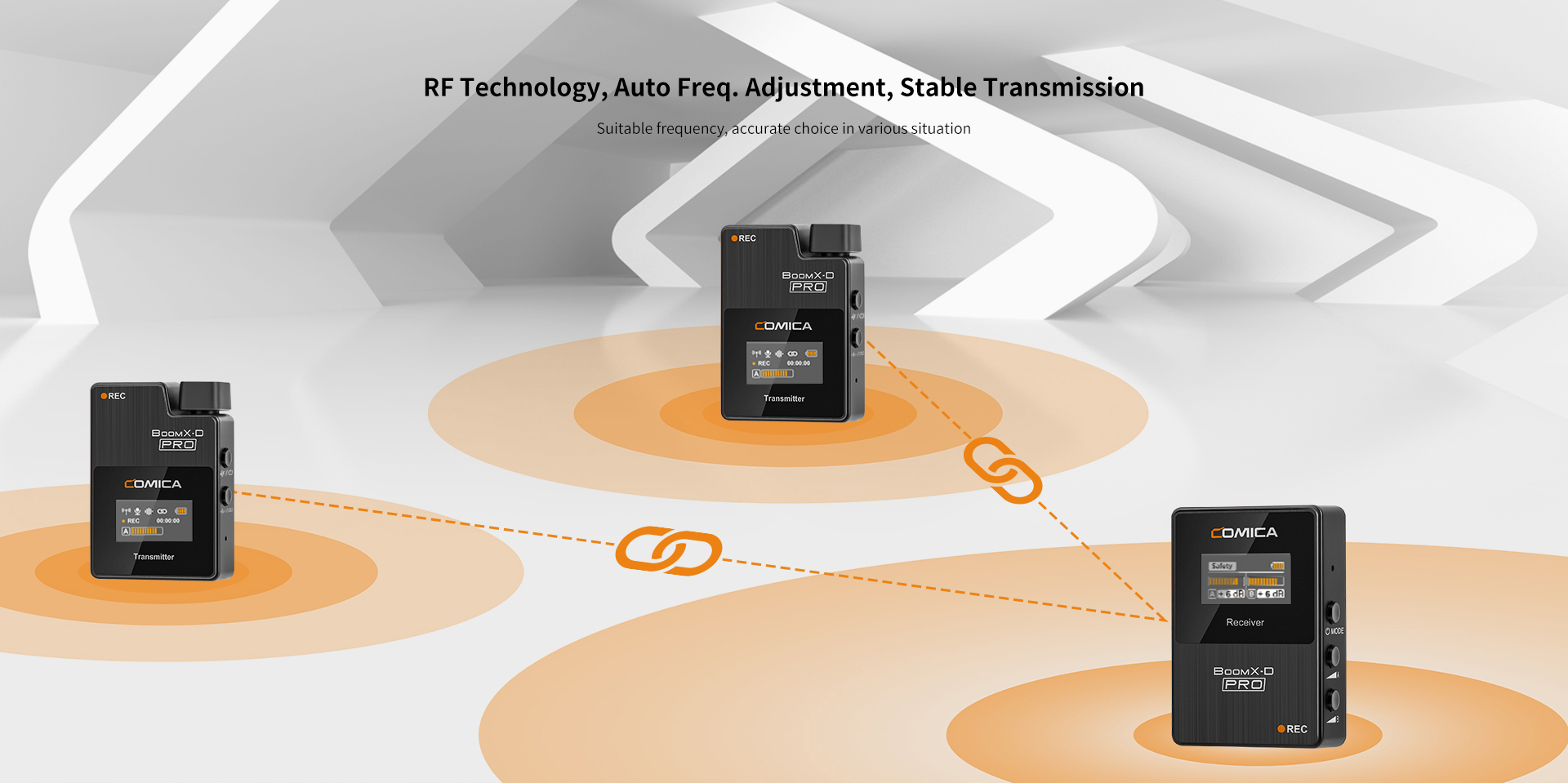

Suitable frequency, accurate choice in various situation

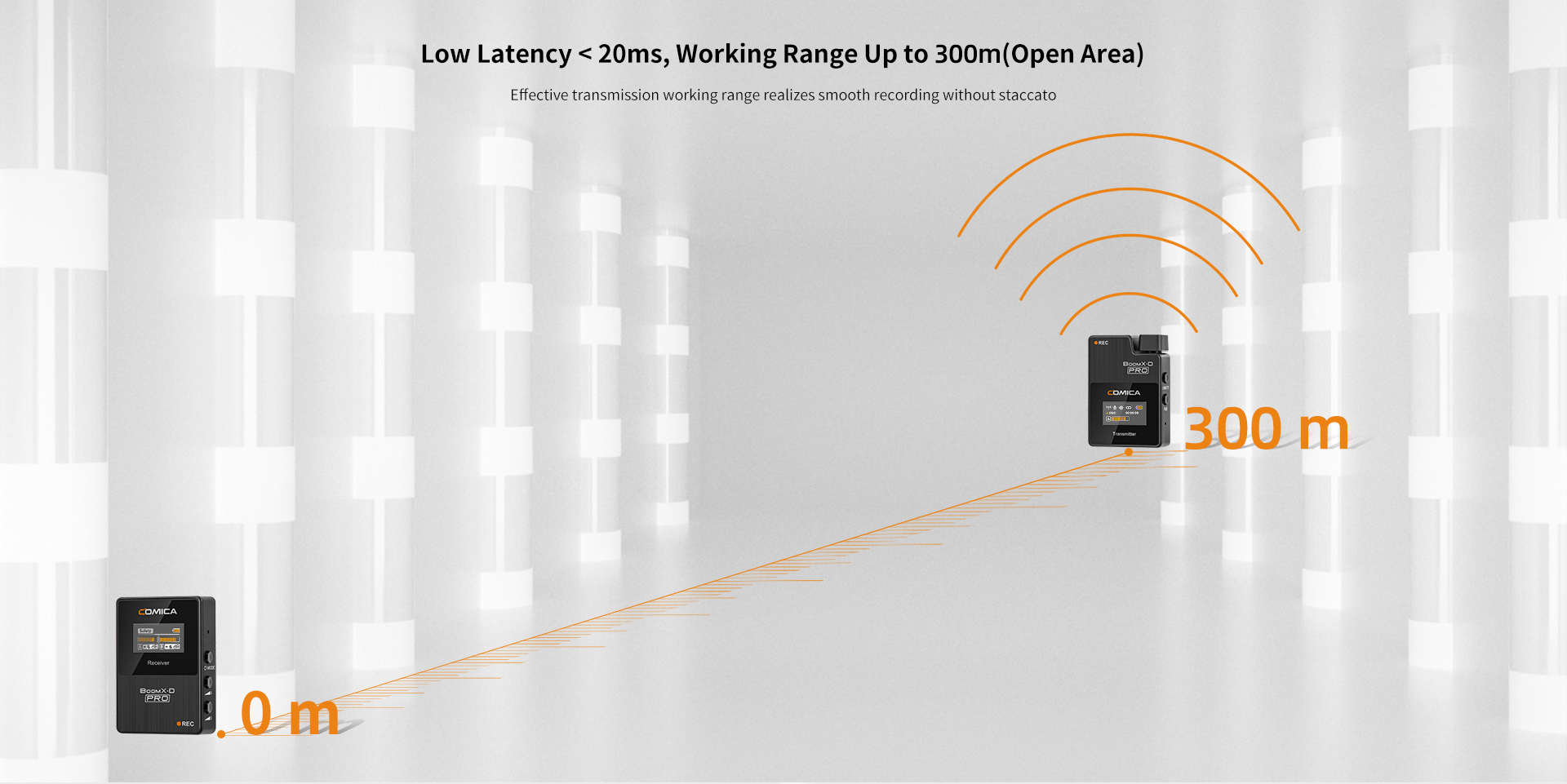

Effective transmission working range realizes smooth recording without staccato

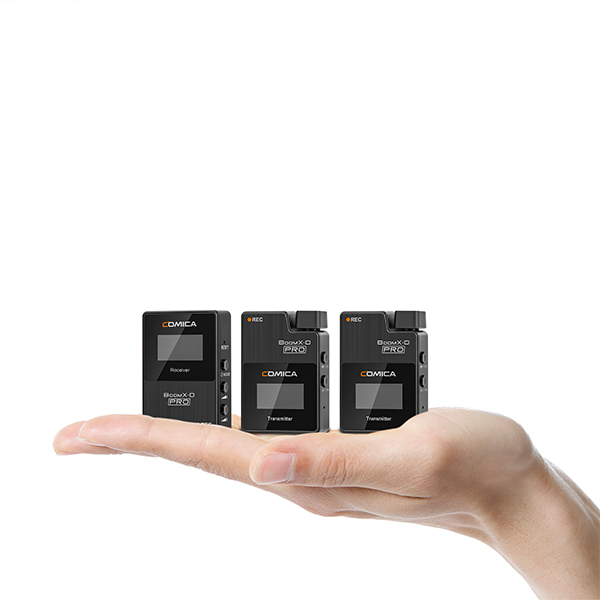

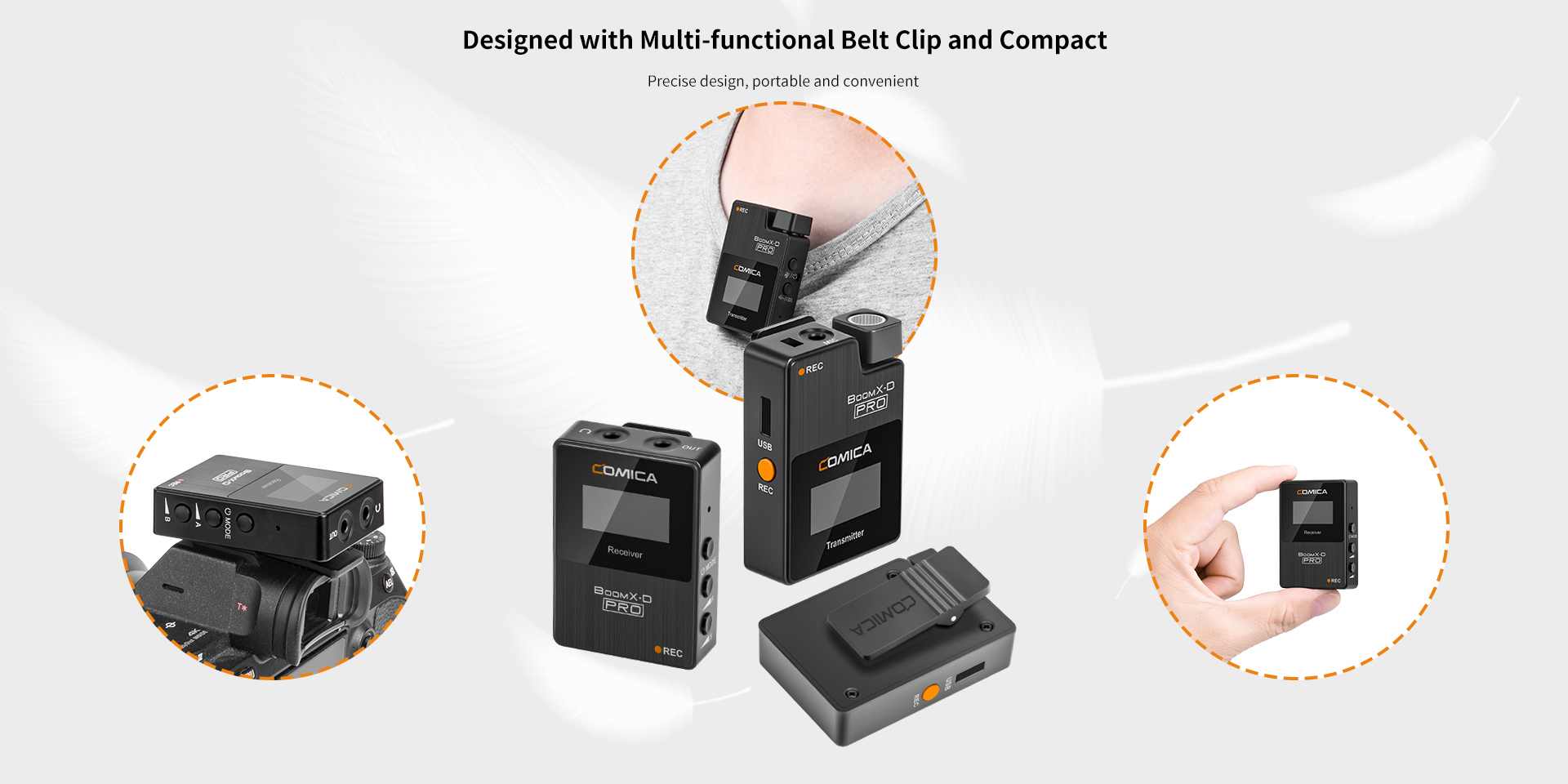

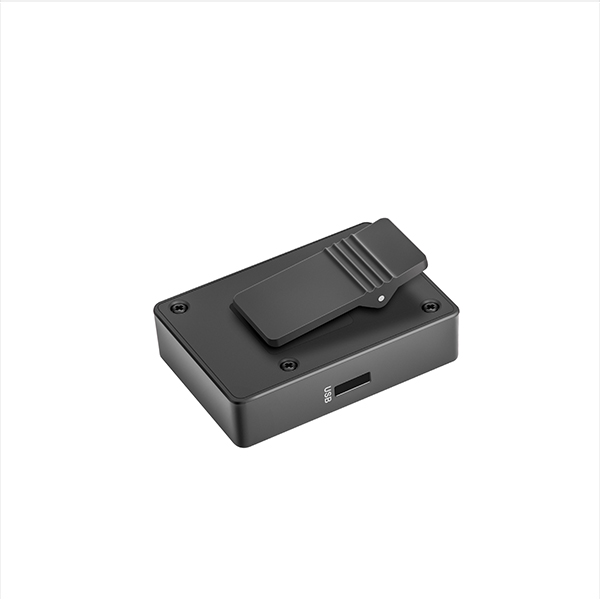

Precise design, portable and convenient

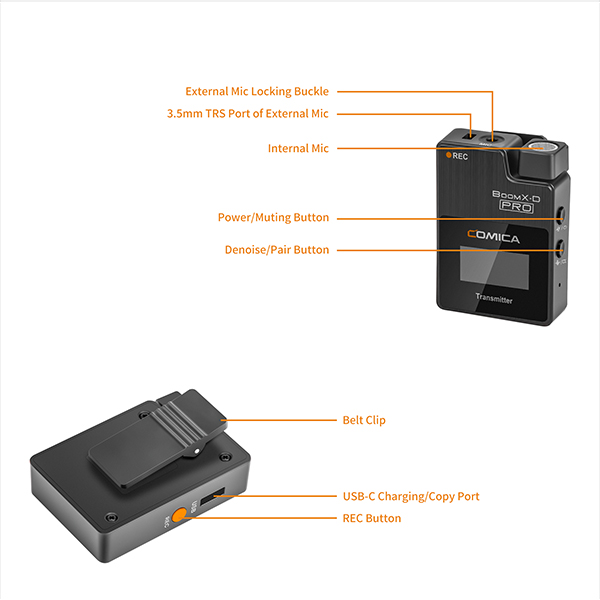

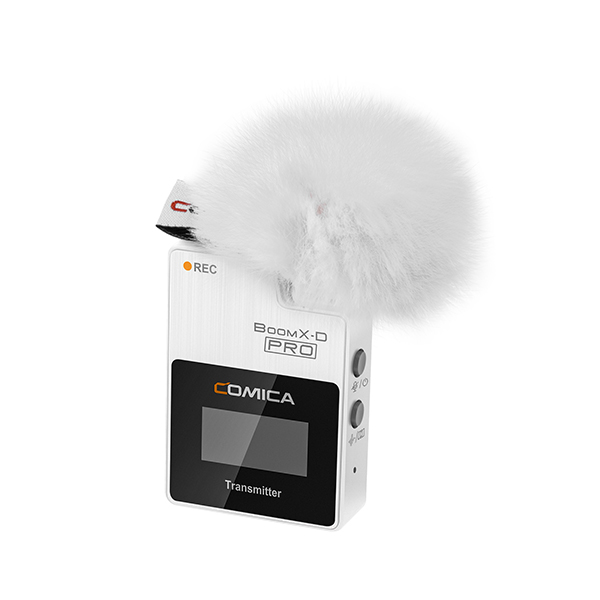

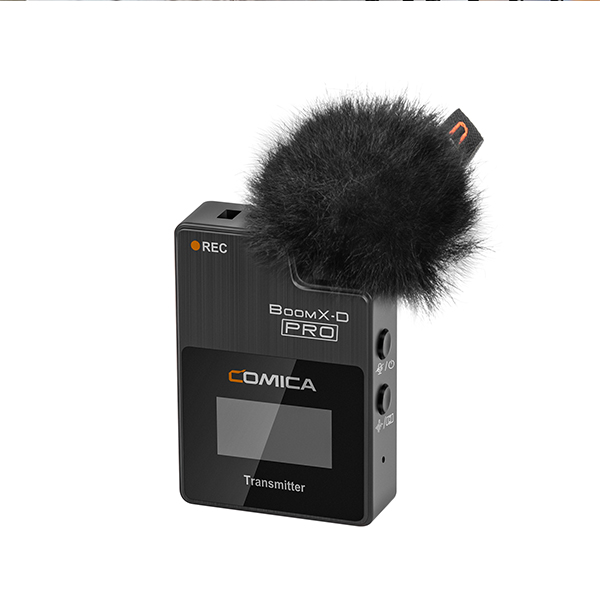

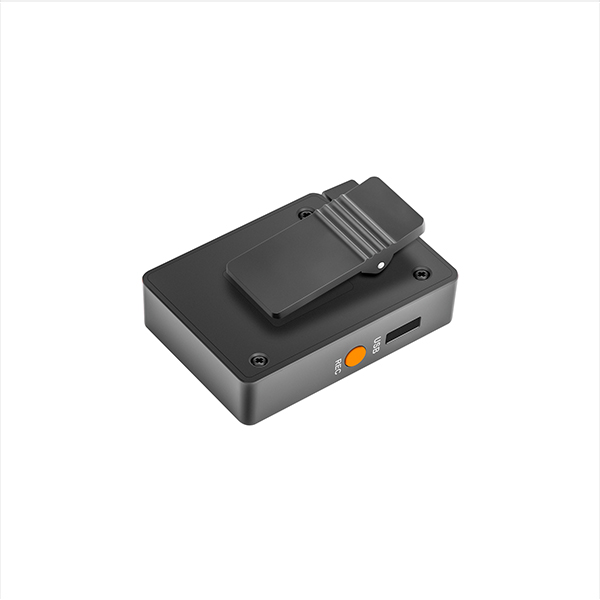

Transmitter(TX)
WirelessBand |
2400~2483.5MHz |
Transmitting Power |
+10dBm |
Receiving Sensitivity |
-86dBm |
Antenna |
PCB Antenna |
Polar Pattern |
Omnidirectional |
Frequency Response |
80Hz ~ 20kHz |
SoundPressureLevel |
100dB |
S/N |
70dB |
EquivalentNoise |
24dBA |
Dynamic Range |
76dB |
Sound Delay |
<20ms |
External Mic Input Interface |
3.5mm TRS |
Battery |
Built-in Li-ion Battery 330mAh 3.7V |
Battery Life |
4.5 Hours |
Recording Time |
24 Hours |
Net Weight |
29g |
Dimension |
39x22x55mm |
Operating Temperature |
0℃~ 50℃ |
StorageTemperature |
-20℃~60℃ |

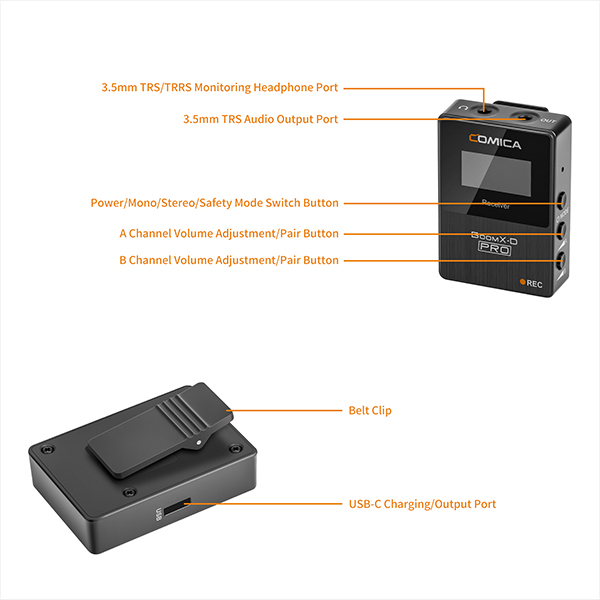

Receiver(RX)
WirelessBand |
2400~2483.5MHz |
Transmitting Power |
+10dBm |
Receiving Sensitivity |
-86dBm |
Antenna |
PCB Antenna |
Audio OutputAdjustment |
-12dB~+12dB |
S/N |
70dB |
EquivalentNoise |
24dBA |
Dynamic Range |
76dB |
Sound Delay |
<20ms |
Audio Output Interface |
3.5mm TRS&USB-C |
Digital Output |
48kHz24bits |
Monitor Interface |
3.5mm TRS/TRRS |
Battery |
Built-in Li-ion Battery 330mAh 3.7V |
Battery Life |
6 Hours |
Net Weight |
29g |
Dimension |
39x22x55mm |
Operating Temperature |
0℃~ 50℃ |
StorageTemperature |
-20℃~60℃ |
BoomX-D PRO
User Manual(EN) User Manual(CN)
