There is a comprehensive guide to help you use LinkFlex AD5 more effectively and make it your best recording tool as soon as you receive one. With the aid of this guide, you can enjoy using the LinkFlex AD5!
-Overview and Accessories-
LinkFlex AD5 is a feature-packed audio interface. Supporting plug-and-play on mobile phones, computers, and other devices, it is designed for recording such things as music production and mixing, podcasting, live streaming, etc. LinkFlex AD5 is born to be a multi-functional and perfect recording assistant!
----------------------------
Accessories:
3.5mm TRRS-TRRS Audio Cable
USB 2-in-1 Audio Cable (*2)
User Manual & Warranty Card
|
|
|
| -Components and Instruction- |
|
|
|
|
The screen displays input and output audio dynamic bars, phantom power, Inst instrument input, Record/Stream mode, power status, and the working status of denoise, direct monitoring, loopback, EQ, and reverb.
|
|
|
|
|
Touch to turn on/off Mute.
|
|
|
|
|
|
|
There are two denosise modes. Please switch to denoise 1 mode when using dynamic mics; Please switch to denoise 2 mode when using condenser mics.
|
|
|
|
|
|
|

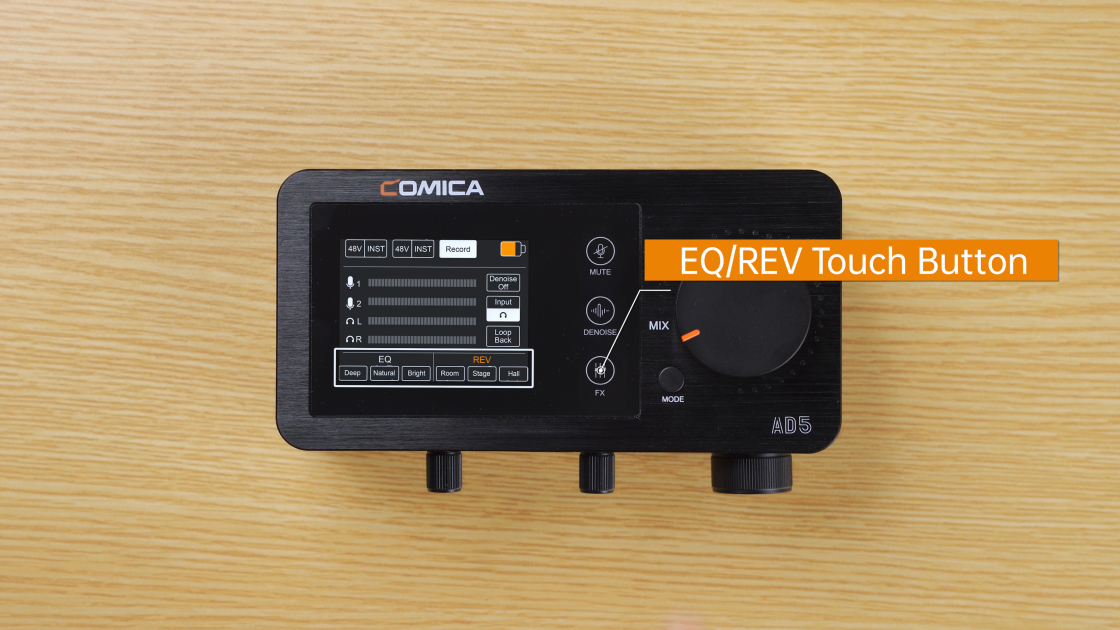

Long press to switch to EQ or Reverb. EQ/REV will turn orange after switching to the correct effect. Short press to switch between EQ and REV modes. EQ and REV can be used simultaneously.
|
|
|
|
|
|
|
Recording/Streaming Mode Switch Button
|
|
|
|
|
AD5 outputs stereo audio in recording mode, IN1 is the left channel, and IN2 is the right channel; AD5 outputs mono audio in streaming mode, which is better compatible with various live streaming platforms.
|
|
|
|
|
|
|
You can use the Mix knob to control the volume level of the audio output from line output ports when in recording mode. When in streaming mode, adjust the volume level of the audio output from the 3.5 mm and USB-C ports. The volume indicators will change in accordance with the volume level.
|
|
|
|
|
The front panel consists of input 1, input 2 and monitor area.
|
|
|
|
|
|
|
6.35 TRS instruments and XLR microphones can be connected to AD5 through the input ports IN1/2. You must turn on the phantom power before connecting a condenser microphone. When connecting a dynamic microphone or other input device that not require 48V phantom power to IN1/2 port, please make sure to turn off 48V phantom power.
|
|
|
|
|
When connecting or disconnecting microphones from AD5, please set the gain of AD5 to the minimum before turning on or off 48V phantom power to avoid damaging the devices.
|
|
|
|
|
There is a 3.5mm TRS/TRRS monitoring port on AD5, which is used to connect headphones to monitor.
|
|
|
|
|
|
|
In direct monitoring mode, AD5 will route the audio signals from IN1/2 directly to the monitor outputs and headphones with zero latency. There are two types of direct monitoring: stereo and mono. In direct monitoring stereo mode, IN1 is the left channel, and IN2 is the right channel. In direct monitoring mono mode, the monitoring audio is mono.
|
|
|
|
|
In input monitoring mode, audio signals from IN1/2 will be routed to the DAW software and then to the monitor outputs and headphones with mixed audio, which will cause a delay in monitoring.
|
|
|
|
|
Loopback uses the 'virtual' inputs, which have no physical connectors on the audio interface itself but can directly route the digital signal streams back to DAW software, it can capture all the audio signals from your computer, such as the audio signal output from a web browser to input to the audio interface.
|
|
|
|
|
When Loopback is on, AD5 will output audio signals both from IN1/2 and USB-C ports; When Loopback is off, AD5 will output audio signals from IN1/2 ports.
|
|
|
|
| Monitoring Volume Control Knob |
|
|
|
|
|
You can adjust the volume level of the monitoring port 1/2.
|
|
|
|
|
|
|
The back panel of the AD5 consists of a pair of 6.35mm output ports, a 3.5mm TRS/TRRS monitoring port, two 3.5mm TRRS input & output ports, two USB-C ports, and a USB-C charging port.
|
|
|
|
|
It can be used to connect to a mixer or monitor speakers.
|
|
|
|
|
| 3.5ｍｍTRS/TRRS Monitoring Port 2 |
|
|
|
|
|
Plug in 3.5mm TRS/TRRS headphones to monitor.
|
|
|
|
|
|
| 3.5ｍｍTRRS Input & Output Port |
|
|
|
|
|
To connect phones to input/output audio signals via the 3.5mm TRRS-TRRS audio cable. Phones can route audio signals to AD5 and AD5 can achieve analog output of the audio signals from phones and IN1/2.
|
|
|
|
|
|
|
The 2 in 1 audio cable is used to connect phones and computers to input and output audio signals. Phones and computers can route audio signals to AD5, and AD5 can achieve the digital output of audio signals from both phones/computers and IN1/2.
|
|
|
|
|
You can charge while in use with the USB-C charging port. With a built-in 3000 mAh lithium battery, the AD5 lasts up to 6 hours.
|
|
|
|
|
|
|
|
|
|
